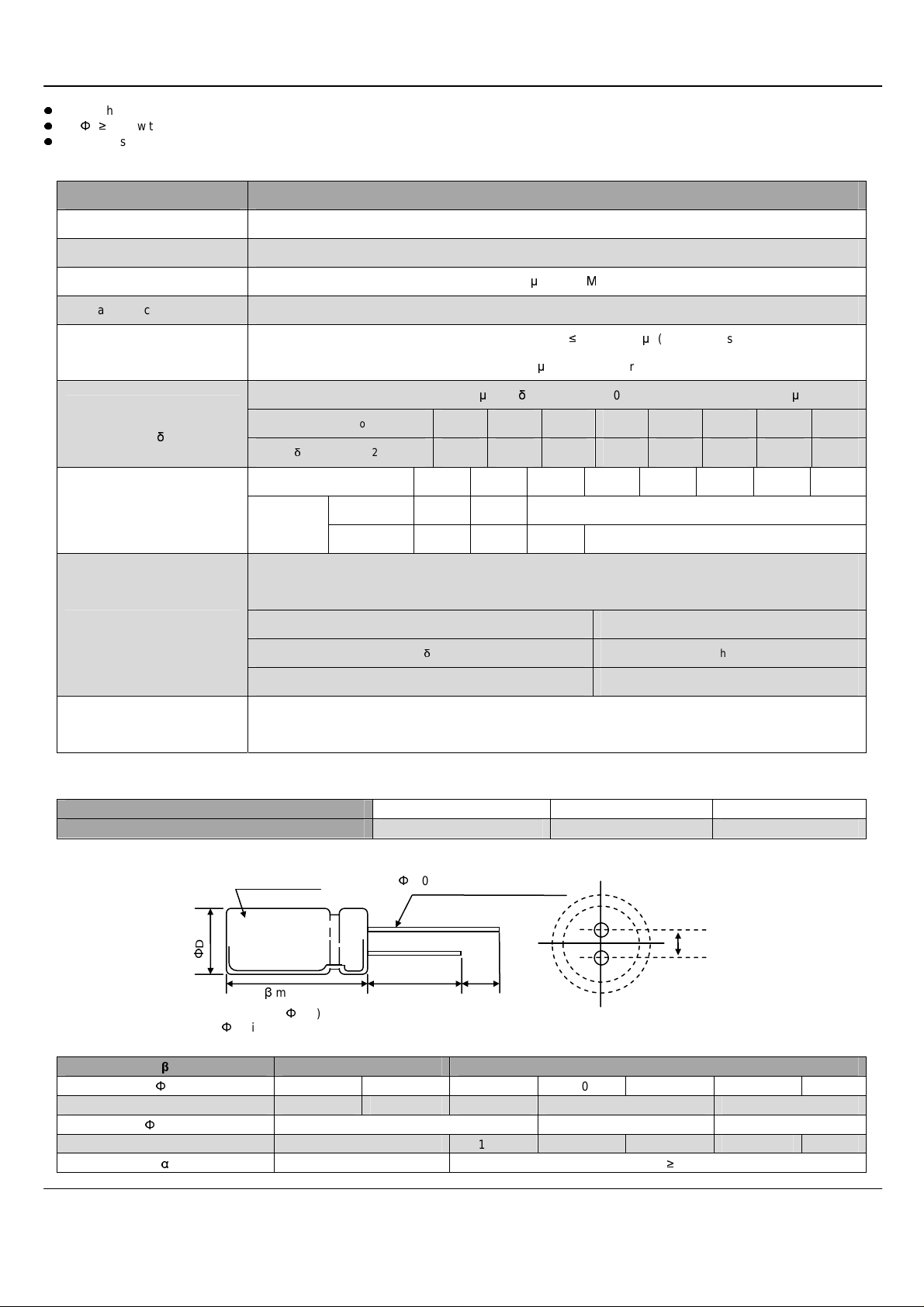

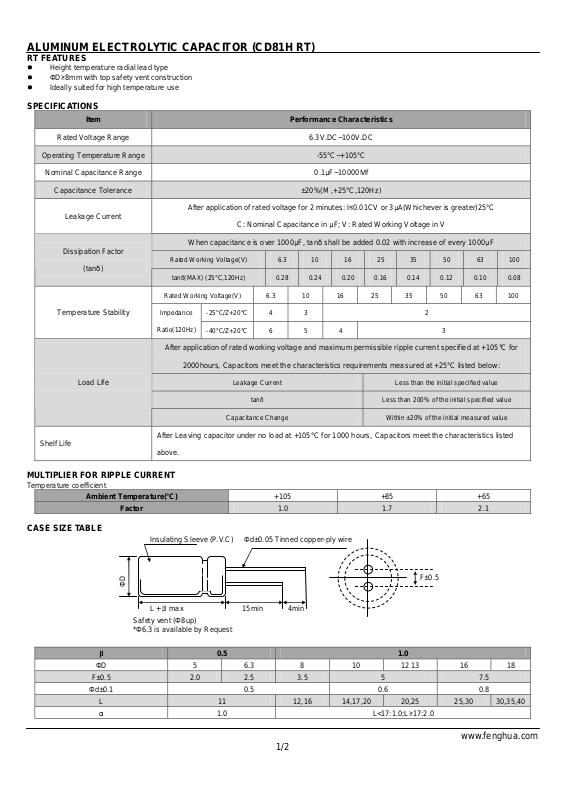

ALUMINUM ELECTROLYTIC CAPACITOR (CD81H RT)
Safety vent (Ф8up)
RT FEATURES
Height temperature radial lead type
ФD≥
Ideally suited for high temperature use
SPECIFICATIONS
8mm with top safety vent construction
Item Performance Characteristics
Rated Voltage Range 6.3V.DC~100V.DC
Operating Temperature Range
Nominal Capacitance Range 0.1μF~10000Μf
Capacitance Tolerance ±2 0%(M ,+25°C,120Hz)
Leakage Current
Dissipation Factor
(tanδ)
Ratio(120Hz)
Load Lif e
After app lication of r at ed voltage f or 2 minutes: I
C: Nominal Capacitance in
When cap ac it ance is over 100 0μF, tanδ shall b e add ed 0. 02 w ith incr ease of every 10 00μF
Rated Working Voltage(V) 6.3 10 16 25 35 50 63 100
tanδ(MAX) (25°C,120Hz) 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08
Rated Working Voltage(V) 6.3 10 16 25 35 50 63 100
-25°C/Z+20°C
-40°C/Z+20°C
After app lication of r at ed w orki ng voltag e an d m axi m u m permissible ripp l e current sp ecif i ed at +105°C for
2000hours, Capacitors meet the characteristics requirements measured at +25°C listed below:
Leakage Current Less than the initial specified value
Capacitance Change Within ±20% of the initial measured value
4 3 2 Temperature Stability Impedance
6 5 4 3
tanδ Less than 200% of the initial specified value
-55°C~+105°C
≤
0.01CV or 3μA(Whichever is greater)25°C
μ
F; V: Rated Working Voltage in V
Shelf Life
After Leaving capacitor under no load at +105°C for 1000 hours, Capacitors meet the characteristics listed
above.
MULTIPLIER FOR RIPPLE CURRENT
T emperature coefficient
Ambient Temperature(°C) +105 +85 +65
Factor 1.0 1.7 2.1
CASE SIZE TABLE
β
0.5 1.0
Ф
D 5 6.3 8 10 12 13 16 18
F±0.5 2.0 2.5 3.5 5 7.5
Ф
d±0.1 0.5 0.6 0.8
L 11 12,16 14,17,20 20,25 25,30 30,35,40
α
1.0 L<17:1.0;L≥17:2.0
Insulating Sleeve (P.V.C)
D
Ф
*Ф6.3 is avai l abl e b y R equ es t
Ф
d±0.05 Tinned copper-ply wire
15min L + β max
4min
1/2
F±0.5
www.fenghua.com
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR (CD81H RT)
DIMENSIONS, RATED VOLTAGE RANGE AND CAPACITANCE
6.3 10 16 25 35 50 63 100 V
uF
0.1 5X11 1.0
0.15 5X11 1.9
0.22 5X11 2.5
0.33 5X11 4
0.47 5X11 7
0.68 5X11 10
1 5X11 13 5X11 15
1.5 5X11 15 5X11 16
2.2 5X11 20 5X11 21
3.3 5X11 25 5X11 30
4.7 5X11 25 5X11 28 5X11 32 5X11 35
6.8 5X11 27 5X11 31 5X11 35 6.3X11 46
10 5X11 35 5X11 36 5X11 41 5X11 46 5X11 48 6.3X11 60
15 5X11 41 5X11 44 5X11 47 5X11 52 6.3X11 60 6.3X11 75
(1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2)
22 5X11 45 5X11 54 5X11 58 5X11 61 5X11 68 6.3X11 80 8X12 98
33 5X11 55 5X11 58 5X11 65 5X11 69 5X11 77 6.3X11 94 6.3X11 100 8X12 140
47 5X11 65 5X11 68 5X11 80 5X11 84 6.3X11 100 6.3X11 115 8X12 140 10X14 185
68 5X11 73 5X11 80 6.3X11 100 6.3X11 107 6.3X11 130 8X12 153 8X16 170 10X20 230
100 5X11 96 6.3X11 105 6.3X11 130 6.3X11 140 8X12 170 8X12 200
150 6.3X11 123 6.3X11 134 6.3X11 169 8X12 184 8X12 153 10X17 269 10X20 310 13X25 350
220 6.3X11 160 6.3X11 175 8X12 220 8X12 240
330 8X12 210 8X12 235 8X12 270
470 8X12 275 8X12 295
680 8X12 353 10X17 415 10X17 492 10X20 569 13X20 665 13X25 815 16X25 923 18X35 1120
1000
1500 10X20 596 10X20 700 13X20 807 13X25 946 16X25 1053 16X30 1230 18X30 1560
2200 10X20 775 12X20 860 13X25 1050 16X25 1230 16X30 1373 18X30 1600 18X40 1920
3300 13X20 985 13X25 1100 16X25 1300 16X30 1500 18X35 1680 18X40
4700 16X25 1150 16X25 1350 16X30 1650 18X30 1800 18X40 1920
6800 16X25 1480 16X30 1700 18X35 1900 18X40 2050
8X16
(10X14)
460 10X17 540 10X20 640 12X20 740 13X25 865 16X25 1060 16X30 1200 18x40 1400
8X16
(10X14)
8X16
(10X14)
375 10X17 440 10X20 525 13X20 600 13X25 700 16X30 880
8X16
(10X14)
335 10X17 400 10X20 470 13X20 540 16X25 690
200 10X17 350 10X20 390 13X25 560
8X16
(10X14)
230 10X20 290
10000 16X30 1700 18X35 1950 18X40 1950
(1) Case Size D×L(mm)
(2) Max al l ow ab l e rip pl e cu r rent (mAr ms +1 05°C,120Hz)
www.fenghua.com
2/2
