Page 1
RS2640

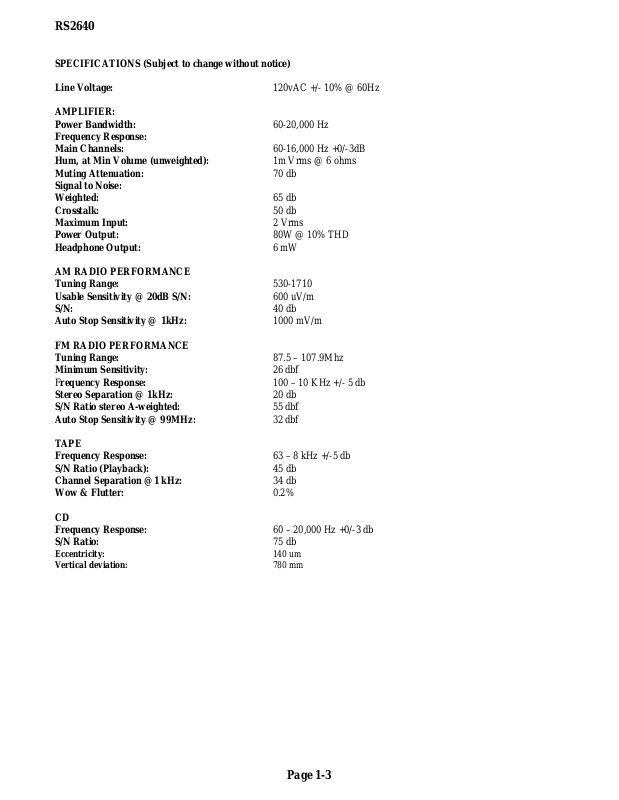

SPECIFICATIONS (Subject to change without notice)
Line Voltage: 120vAC +/- 10% @ 60Hz
AMPLIFIER: Power Bandwidth: 60-20,000 Hz Frequency Response: Main Channels: 60-16,000 Hz +0/-3dB Hum, at Min Volume (unweighted): 1m Vrms @ 6 ohms Muting Attenuation: 70 db Signal to Noise: Weighted: 65 db Crosstalk: 50 db Maximum Input: 2 Vrms Power Output: 80W @ 10% THD Headphone Output: 6 mW
AM RADIO PERFORMANCE Tuning Range: 530-1710 Usable Sensitivity @ 20dB S/N: 600 uV/m S/N: 40 db Auto Stop Sensitivity @ 1kHz: 1000 mV/m
FM RADIO PERFORMANCE Tuning Range: 87.5 – 107.9Mhz Minimum Sensitivity: 26 dbf Frequency Response: 100 – 10 KHz +/- 5 db Stereo Separation @ 1kHz: 20 db S/N Ratio stereo A-weighted: 55 dbf Auto Stop Sensitivity @ 99MHz: 32 dbf
TAPE Frequency Response: 63 – 8 kHz +/-5 db S/N Ratio (Playback): 45 db Channel Separation @1 kHz: 34 db Wow & Flutter: 0.2%
CD Frequency Response: 60 – 20,000 Hz +0/-3 db S/N Ratio: 75 db
Eccentricity: 140 um Vertical deviation: 780 mm
Page 1-3
Page 2
RS2640 RS2640
DISASSEMBLY DISASSEMBLY
Cover Removal
Note: Perform all disassembly procedures in the order
presented. When reassembling, use the reverse procedure. Make sure that all leads/wiring are routed correctly when reassembling.
1. Remove the screw located on the backside of the unit as shown in Figure 1. Remove seven (7) screws located on the left and right side of the cover
2. Remove top panel by lifting upward from rear and separating tabs from backside of front plate.
Back Panel Removal
1. Remove cover.
2. Remove thirteen (13) screws from the back of unit as shown in Figure 2.
3. Lift CD tray to release tabs on back panel as shown in Figure 2.
Fig. 1 Cover Removal
1/2 PAN HEAD SCREW 1 OF 5
Remove screws
Located on the Back of Unit.
Fig. 2 Back Panel Removal
Page 2-2Page 2-1
Page 3
RS2640 RS2640
DISASSEMBLY DISASSEMBLY
CD Mechanism Removal
1. Plug unit in and extend the CD tray. While extended un­plug the unit.
2. Remove top cover.
3. Remove side panels.
4. Remove the back panel
5. Remove one (1) screw from the CD Arm Stop as shown in Figure 3.
CD Mechanism Removal (Cont’d)
7. Remove four (4) srews fron CD Mechanism Assembly as shown in Figure 4.
8. Release one (1) wire from catch on bottom of CD Tray.
9. Release CD Mechanism Assembly from mount by pull­ing towards the rear and lifting gently.
Remove (4) screws
CD Tray
CD Mechanism Assembly
CD Arm
Rear of Unit
Remove (1) screw
CD Arm
Rotate Gear Clockwise
Fig. 3 CD Mechanism Removal
Fig. 4 CD Mechanism Removal
Page 2-3
Page 2-4
Page 4
RS2640 RS2640
DISASSEMBLY DISASSEMBLY
CD Mechanism Removal (Cont’d)
10. Disconnect one (1) Ribon wire from CD Mechanism Assembly as shown in Figure 5.
Risconnect Wire from
CD Mechanism Assembly
Fig. 5 CD Mechanism Removal
Page 2-5
Page 2-6
Page 5
Page 6
Page 7
RS2640 RS2640
ALIGNMENT PROCEDURES
Operating Conditions
Unless otherwise noted, the following conditions must be observed when aligning the RS2640:
1. Chassis must be operated from a 120VAC isolation transformer, with line voltage set to 120VAC (±2.0V).
2. Set controls (Volume, Tone, Balance, etc.) to mid-range.
3. Procedures must be performed in the sequence given.
4. A 10X probe must be used for oscilloscope and fre­quency measurements.
5. Minimum warm-up time is 10 minutes
Required Test Equipment
Personal Computer: IBM or Compatible 486DX 66 meg PC (or LAPTOP) with 16 MEG Memory, VGA Monitor, one 3 1/2” floppy drive, 540 Meg or larger hard drive, compat­ible mouse, one parallel port dedicated for service interface box and one port for mouse, Windows 95, 4X CD ROM, Printer and Sound Card.
Isolation Transformer:
Digital Voltmeter: Range .1V DC to 1000V DC, Accuracy: ±
.5%/
True “RMS” Voltmeter: Range: 01 to 1000 Volts ± .5% Ac- curacy
DC Voltage Supply: Range: 0 to 50V, 2A—Well Filtered
Temperature Controlled Soldering Station: Grounded Tip
Type—Tip Temperature 500F to 800F Adjustable
Frequency Counter: Range: 50Hz to 100 MHz Sensitivity: 25mV to 5V. Equipped with Lo-Cap Probe (10:1 Attenua­tion)
AC Variac: Continuously Variable. Isolation Type Preferred
NTSC Video Signal Generator: Must provide 1V P-P Nega-
tive Sync, Video into 75-OHM input. Produce, standard NTSC 75% Saturated Color Bars with 100% White Window. (B&K 1249, or equivalent)
RF Signal Generator: 100 kHz to 150 MHz .1V RMS, Int. Mod. 1KHz 30%
TAG001 Tuner Alignment Generator (stock # 215568) or equivalent: Equivalent Generator must have RF output capa-
bilities for cable channels 1-125.
Cross Hatch Generator: Must have RF output.
S-Video Source: Must provide standard Y-C separated sig-
nal. SVHS output of VCR, DSS or DVD will suffice
Dual Trace, Delayed Sweep Oscilloscope: 25 MHz with Channel invert capability. Sensitivity’ 5mV/cm Maximum Sweep Rate: .1us/cm.
Hot Air Desoldering Station:
MTS TV Stereo Generator: Must produce L-R, L+R, SAP at 300 Hz, 1KHz, 8KHz(B&K 2009, or equivalent).
FM IF ALIGNMENT
Test Points:
Input: TP 001 TP001G (RFGND) Output: TP 003 TP001G (AGND)
1. Connect an FM IF signal to TP004 (Pin 39 of UIC001) and TP004G (IFGND) through a 1nF capacitor in series with a 10K resistor.
2. Connect an Oscilloscope to the IF signal output at TP009 (Pin 10 of IC001) and TP009G (AGND) through a 4.7 uF capacitor.
3. Align TF006 to obtain a clear display on the oscilloscope without any interference.
4. Ensure that the curve is not saturated.
5. Tune the set to 98.10 MHz
6. Apply an un-modulated mono RF signal at 98.10 MHz with RF input level of 1 mV to TP001 and TP001G (RFGND).
7. Connect a frequency counter to TP003 (Pin 33 of IC001) thru a capacitor 0.1 uF
8. Check TP003 and align TF006 to get 10.7 MHz ± 10 KHz.
TUNER
SECTION
TP-004G
TP-009G
TP-004
TP-009
1 nF 10K
4.7uF
Figure 1.
IN
OUT
10.60
10.70
10.80
Figure 2.
ALIGNMENT PROCEDURES
FM OSCILLATOR AND RF ALIGNMENT
Test Points:
Input: TP001 TP001G (RFGND) Output: TP007/TP008 TP009G (AGND) Tuning(VT):TP002 TP009G (AGND)
1. Set frequency to 87.5 MHz. Adjust FM Osc coil (L004) to obtain 1.0 to 1.05V at TP002 (VT) and TP009G (AGND).
2. Set frequency to 108.10 MHz. Adjust Vari-Cap (CV002) to obtain 7.0V ±0.5 at TP002 and TP009G (AGND).
3. Repeat steps 1 and 2 above until the band coverages falls within the specified VT voltage.
4. Feed a FM RF signal to a matching balanced pad (50 ohm - 75 ohm) at TP 001 and TPR001G (RFGND).
5. Use the circuit in figure 3 to detect the signal from TP 007/008 and TP009G (AGND).
6. Set frequency to 90.10 MHz and adjust L003 until maxi­mum amplitude is reached.
7. Set frequency to 106.10 MHz to see whether approxi­mate amplitude is the same as in step 6.
8. Set frequency to 98.10 MHz and check for approximate amplitude.
1.00V
DC Voltmeter
TUNER
TP-001G
TP-002
TP-001
TP-001G
TP-007/008
TP-009G
OSC ILLOSCOP E
4.7uF
FIGURE 3
IN OUT
FM STEREO ALIGNMENT
Test Points:
Input: TP001 TP001G (RFGND) Output: TP005 TP010G (DGND)
TUNER SECTION
FM Signal Generator
TP-0 10
RV-001
TP-001
TP-001G
TP-006
TP- 005
FIGU RE 4
Frequenc y Counter
152.000kHz
98.10M Hz
1. Apply an un-modulated mono RF signal at 98.10 MHz with RF input level of 1 mV to TP001 and TP001G (RFGND).
2. Search to 98.10 MHz (Remove the VT probe during search)
3. Connect a 10K from TP005 to TP010G (DGND).
4. Connect a frequency counter to TP005 (Pin 24 of IC001) and TP010G (DGND), short TP010 (Pin 27 of IC001) to TP010G (DGND, Pin 26 of IC001).
5. Check TP005 and align RV001 to get 152 KHz ± 1 KHz.
6. Apply a stereo 98.10 MHz signal to the set. Ensure the Stereo indicator lights up. Signal strength must be less than 32dB.
7. Remove the 10K resistor from TP005 and TP010G in­stalled in step 3.
Page 3-2Page 3-1
Page 8
RS2640 RS2640
ALIGNMENT PROCEDURES ALIGNMENT PROCEDURES
AM OSCILLATOR ALIGNMENT (MW)
Test Points:
Input: AM Antenna Loop TP001G (RFGND) Output: TP007/TP008 TP009G (AGND) Tuning(VT):TP002 TP009G (AGND)
1. Set frequency to 530 KHz . 2 Adjust MW Osc coil (TF003) to obtain 1.4 ± 0.05V at
TP 002 and TP009G.
3. Set frequency to 1710 KHz. Ensure the MW-VT at TP002 and TP009G is 8.0 ± 1 V
AM OSCILLATOR ALIGNMENT (LW)
Test Points:
Input: AM Antenna Loop TP001G (RFGND) Output: TP007/TP008 TP009G (AGND) Tuning(VT):TP002 TP009G (AGND)
1. Set frequency to 150 KHz.
2. Adjust MW Osc coil (TF003) to obtain 1.51 ±0.01V at TP 002 and TP009G.
3. Set frequency to 283 KHz. Ensure the MW-VT at TP002 and TP009G is 4.6 ± 1V
AM IF AND AFC ALIGNMENT
Test Points:
Input: AM Antenna Loop TP001G (RFGND) Output: TP011 TP004G (IFGND)
1. Connect an AM IF signal to AM OSC, TP012 (pin 6 of IC001) and TP001G (RPGND).
2. Detect the output signal at TP009 (pin 10 of IC001) and TP009G (AGND) as shown below in figure 5.
3. Adjust TF005 & TF008 until maximum amplitude is reached
4. Send an un-modulated RF signal at 1000 KHz with RF level of 100mV.
5. Tune the receiver to search up/down (remove the VT probe during search). It will stop after acquiring this signal.
6. Connect a frequency counter to TP011 (pin 36 of IC001) and TP004G (IFGND) thru a capacitor 1uF
7. Check TP011 (pin 36 of IC001) and align TF007 to get 450 KHz ± 1 KHz.
AM RF ALIGNMENT (MW)
Test Points:
Input: AM Antenna Loop TP001G (RFGND) Output: TP007/TP008 TP009G (AGND)
1. Apply a modulated (400 Hz) MW RF signal at 630 KHz with low RF level of 300 uV.
2. Detect the signal from TP 007/008 and TP009G (AGND). Adjust TF001 for the maximum amplitude.
AM RF ALIGNMENT (LW)
Test Points:
Input: AM Antenna Loop TP001G (RFGND) Output: TP007/TP008 TP009G (AGND)
1. Apply a modulated (400 Hz) MW RF signal at 170 KHz with low RF level of 300 uV.
2. Detect the signal from TP 007/008 and TP009G (AGND. Adjust TF001 for the maximum amplitude.
MAIN BOARD TAPE ALIGNMENT
Alignment for the cassette portion should be done at the semi - encased stage.
TUNER
TP012
TP004G
TP009
TP009G
445
AZIMUTH ALIGNMENT
1uF
4.7uF
FIGURE 5
IN
OUT
455
1. In tape transport 1, playback a test tape (TCC-153) freq. 10 KHz.
2. Connect the speaker outputs to a dual trace oscilloscope.
3. Adjust the azimuth screw at the tape head to obtain the maximum amplitude on both channels. (Both channels must be in phase).
TAPE SPEED ADJUSTMENT
1. Rewind the test tape (MTT-111 DN 3khz) until both the spools on the left and right hubs are equal.
2. Connect the output to the WOW -FLUTTER METER.
3. Adjust the trimmer in the motor to obtain a playback freq. of 3KHz ± 60 Hz.
RECORD BIAS OSCILLATOR ALIGNMENT
1. Place a tape inside the set. Ensure that the tape is not
450
record protected.
2. Select Tape mode and engage the Record button.
3. Monitor TP60 and TP60G (ground). Ensure that the scope/meter does not have an activated low pass filter. Adjust L302 & L303 to obtain a voltage of 12Vrms±5%.
Page 3-4Page 3-3
Page 9
Page 10
Page 11
Page 12
NOTES:
1. Unless otherwise specified: A. All resistor values are in ohms B. All Capacitor values are in uF
2. Voltages are positive with respect to ground under no signal conditions and volume control minimum
AUDIO_L
AGND
AUDIO_R
R512
6K8
1/16W
1N4148
1N4148
D515
D516
AMP_MUTE
H/P_IN
H/P_MUTE
1/16W
R511
10K
+10V
-30V
FIL+
FIL-
X883
X884
LIVE
JP881
NEUTRAL
R881
3M3
1/2W
X885
SHIELD_GND
On transformer BD
3. Replace transistors with type specified from replacement parts list
4. * and indicates critical safety
components. Replace only with those
specified from replacement parts list
to maintain proper performances and
safety of this unit.
R502L
C502L
33K
1uF
1/16W
50V
R507L
100K
1/16W
R507R
100K
1/16W
C502R
R502R
1uF
33K
50V
1/16W
WARNING SEE NOTE
R502
470
1/16W
D501
1/2W
2V4
D504
L
N
WARNING SEE NOTE
R510
5V1
1K 1/16W
1/2W
100pF
C502
50V
L N
KTC3875GR
Q501
1/16W
1N4148
D503
R525
33K
1/16W
R529
10K
1/16W
1K5
R532
C507L
470pF
50V
C507R
470pF 50V
10uF
C534
50V
R503L
1/16W
R503R
C509R
390
C509L
50V
1/16W
47uF 50V
4
AMPLIFIER\POWER SUPPLY SCHEMATIC
C518
100nF
111213
BOOT_LOADER
BUFFER_DRIVER
-VS
-PWVS +PWVS
8
111213
BOOT_LOADER
BUFFER_DRIVER
-VS
-PWVS +PWVS
8
-POWER_SUPPLY
C512
4700uF
50V
2200uF
C516
22uF
25V
AGND
BOOTSTRAP
CLIP_DET
15
BOOTSTRAP
CLIP_DET
15
100uF
50V
R530
1/2W
WARNING SEE NOTE
C514
25V
63V
C501L
R501L
5pF
33k
50V
OUT
14
5 6
C524
100nF
63V
C501R
OUT
14
5 6
C520
100nF
1/16W
C537
22uF 25V
R505L
D501L
2K2
1N4148
1/16W
C533
1/16W
33k
R505R
2K2
1/16W
100nF
100uF
63V
50V
C539
D501R
1N4148
R501R
5pF
50V
C538
22uF 25V
63V
C505L
1NF 50V
C505R
1NF 50V
R510L
L501L
0.5uH
L501R
0.5uH
R510R
10 1/4W
C518L
10
1/4W
100nF
R512L
1/16W
16V
C518R
100nF
R512R
1/16W
C521L
330nF
50V
4R7
16V
4R7
C521R
330nF
50V
C540
+POWER_SUPPLY
C532
1N5402
D510 D512
100nF
50V
50V
C807
100nF
C526
100nF
100V
D506
C513
1N5402
4700uF
C528
WARNING SEE NOTE
100nF
D508
WARNING SEE NOTE
C531
50V
1N4001
1N4001
1.3W
D509
D511
27V
100V
1N5402
C530
100nF 50V
D820
100nF 50V
7.5V
1/2W
R885
50V
WARNING
SEE NOTE
220 1/2W
D819
10k 1/4W
R886 D821
C806
100uF
WARNING SEE NOTE
F503
5S_5A_125V
US:
R531
4K7
1/2W
F504
5S_5A_125V
US:
WARNING SEE NOTE
RF505
WARNING
1W
0.27
SEE NOTE
D822
1N4001
1N4001
R888
1 2
PF01
1
1/4W
C805
100uF
50V
50V
R889
1
1/4W
N/A
C525
100nF 100V
D505
4K7
1N5402
C527
100nF 100V
D507
C529
100nF
1N4001
1N4001
WARNING
SEE NOTE
7
IN-
+VS
C535
10uF
50V
C523
100nF
25V
C522L
1NF 50V
C522R
234
IN+
SGND
IC501
TDA7293
MUTE
STBY-GND
STBY
9 10
234
1NF 50V
9 10
WARNING SEE NOTE
3
C515
22uF
16V
IN-
IN+
SGND
MUTE
STBY
OUT
D513
1N4148
IC503
KIA7812
GND
2
IN
1
7
+VS
IC502
TDA7293
STBY-GND
1
WARNING
SEE NOTE
1
D514
>25V 1/2W
WARNING SEE NOTE
47uF
390
L502L
5uH
N801A
1 2 3
12345
N801B
JW3
JW2
JW1
JW04
JW05
JW06
JW07
JW08
R506L
22k
1/16W
1/16W
TO N801B TO N801A
2 3 4 51 321
L
L503L
R
L502R
5uH
R506R
22k
D502R
1N4148
D502L
1N4148
TRANSFORMER (EI76X50)
L503R
EU only
C519L
5uH
100nF 16V
5uH
C519R
100nF
R509
10
1/4W
R505
10K
1/16W
R503
10K
1/16W
KTC3875GR
Q503
C503
47uF 25V
FUSE INSIDE X`MER
WARNING SEE NOTE
L OUTPUT
16V
R OUTPUT
+10V
KTA1273
Q502
R504
1K
1/4W
ON X'FORMER BD
FROM
BOARD
AC
NJ501
TO FAN
12
X883
X884
MAIN OUTPUT
1 2 3 4
N501
Page 13

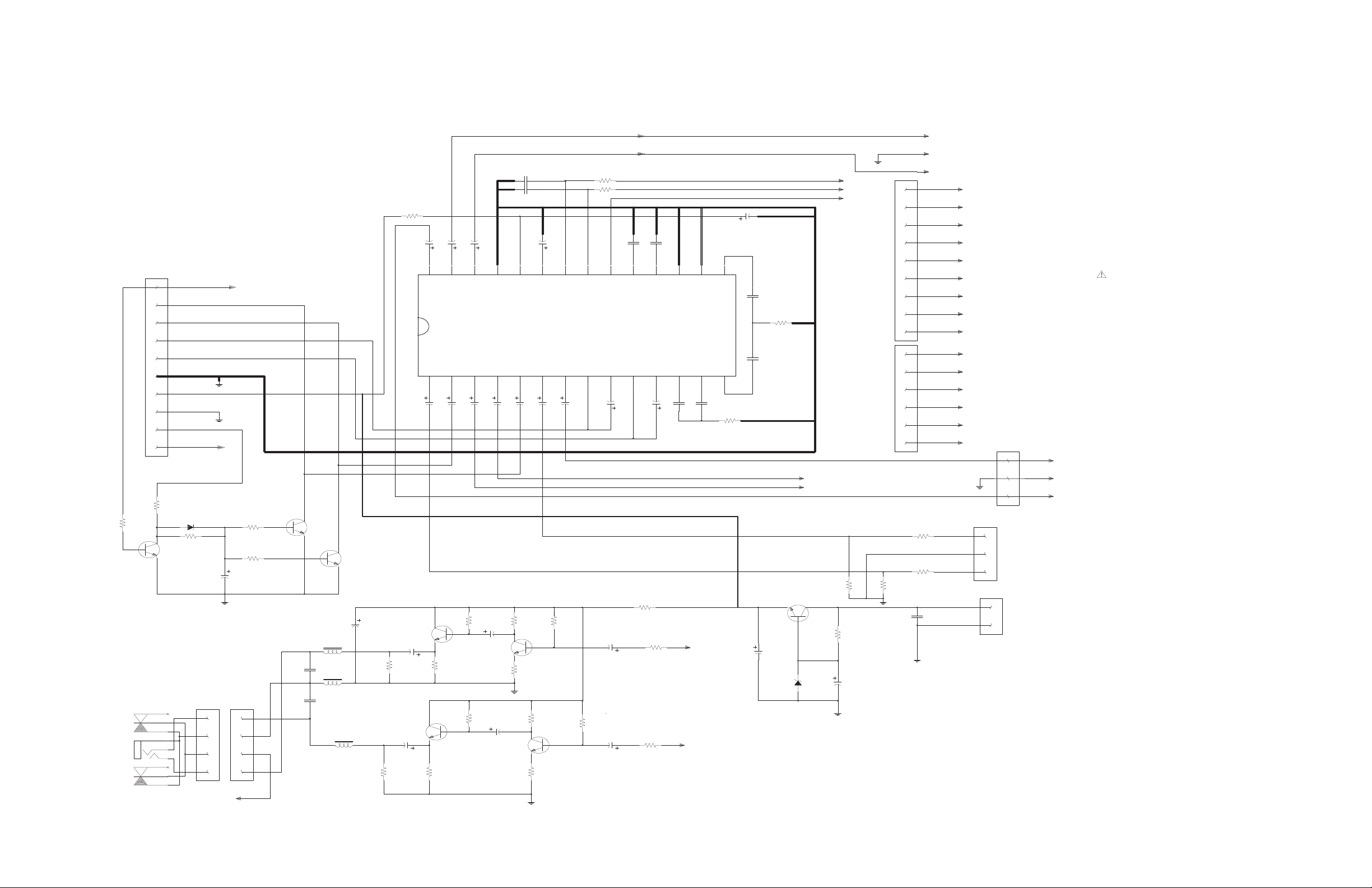

Audio S witching/ Headphone J ack S chematic
R410
47K
1/16W
KTC3875
NJ503
NJ503
Q410
NJ503
P301
R411
CD_SYNCHRO
+10V
TAPE_MUTE
1 2 3 4 5 6 7 8 9 10
10K
1/16W
R412
10K
9
8
7
1
3
2
6
5
4
TAPE_L
TAPE_R
RECORD_L
RECORD_R
AGND
6.8V
AGND
D401
1/4W
1N4148
C412
P601A
H/P_IN
AUDIO_L
AUDIO_R
C402
100pF 50V
50V
100pF
C403
C420
47uF 25V
22
23
24
25
VS
AGND
CREF
TDA7440D
L_IN3
L_IN2
L_IN1
4
5
6
7
50V
50V
C401R
C401L
2u2F
50V
50V
C402L
C400L
2u2F
2u2F
2u2F
22UF
10V
4K7
4K7
R410L
R410R
1/16W
1/16W
Q410L
KTC3875
Q410R
KTC3875
56
R420
1/16W
50V
50V
C453R
2u2F
28
R_IN4
2u2F 50V
2u2F
C409R
C409L
26
27
LOUT
ROUT
IC401
R_IN2
R_IN3
1
50V
C402R
2u2F
R_IN1
2
3
C400R
2u2F 50V
50V
2u2F
H/P_VCC
H/P_VCC
1k
1/16W
Q602R
R610L
470K
KTC3875
1/16W
1/16W
C600
470uF
10V
6.5uH
L603L
50V
100nF
C601L
6.5uH
L602
50V
100nF
C601R
1234
1234
R617L
6.5uH
L603R
R617R
2K2
P601
1/16W
100uF
10V
C605L
2K2
1/16W
100uF
C605R
Q603L
KTC3875
Q603R
KTC3875
10V
1/4W
R616R
180
1.8K
R616L
180 1/4W
1.8K
1/16W
R615L
25V
R615R
22uF C604L
R613L
AGND
C604R
22
22uF25V
R612R
R613R
1/16W
R612L
1/16W 1k
Q602L
KTC3875
1/16W
22
R407
1K
1/16W
1K
1/16W
R408
10V
100uF
SDATA
SCLK
D-GND
C400
50V
50V
5n6F
5n6F
C404R
C404L
16
17
18
19
20
21
SDA
SCL
D-GND
TREBLE(R)
MUXOUT(R)
IN(L)
MUXOUTL
L_IN4
8
9
10
C410L
2u2F
50V
C453L
C410R
2u2F
50V
R600
47
NC2
NC1
13
BOUT(R)
C408R
100nF
50V
BOUT(L)
BIN(L)
14 15
TREBLE(L)
BIN(R)
IN(R)
11
12
C407R
150nF
50V
50V
C408L
100nF
R403L
5K6
1/16W
50V
C407L
150nF
R403R
5K6
1/16W
TUNER_L
TUNER_R
R402L
10K
1/16W
1/2W
6.8V
Q401
KTC3203Y
R401
560
1/2W
C410
47uF 25V
1/16W
R610R
330k
10V
C611L
10V
C611R
R611L
1/16W
1/16W
AUDIO_L
AUDIO_R
C411
220uF 16V
D402
7V5
1uF
47K
R611R
1uF
47K
AUDIO_L
GND
AUDIO_R
N702N701
R402R
10K
1/16W
AGND
50V
100nF
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6
R401R
10K
1/16W
R401L
10K
TUNER-PWR
CD_SYNCHRO
CLOCK-T
ST-MONO
DATA-T
WR-EN
H/P_MUTE
SDATA
SCLK
TAPE_MUTE
AGND
-30V
FIL+
FIL-
+10V
CD_L
AGND
CD_R
1/16W
C061
+10V
AGND
AUX_L
AGND
AUX_R
P401
NOTES:
1. Unless otherwise specified:
A. All resistor values are in ohms,
1/4W
B. All Capacitor values are in uF
2. Voltages are positive with respect
to ground under no signal conditions
and volume control minimum
3. Replace transistors with type
specified from replacement parts list
4. Unless otherwise stated, all voltages
taken in radio "on" position
5. * and indicates critical safety
components. Replace only with those
specified from replacement parts list
to maintain proper performances and
safety of this unit.
N516
1
2
3
1
2
3
12
P101
AGND

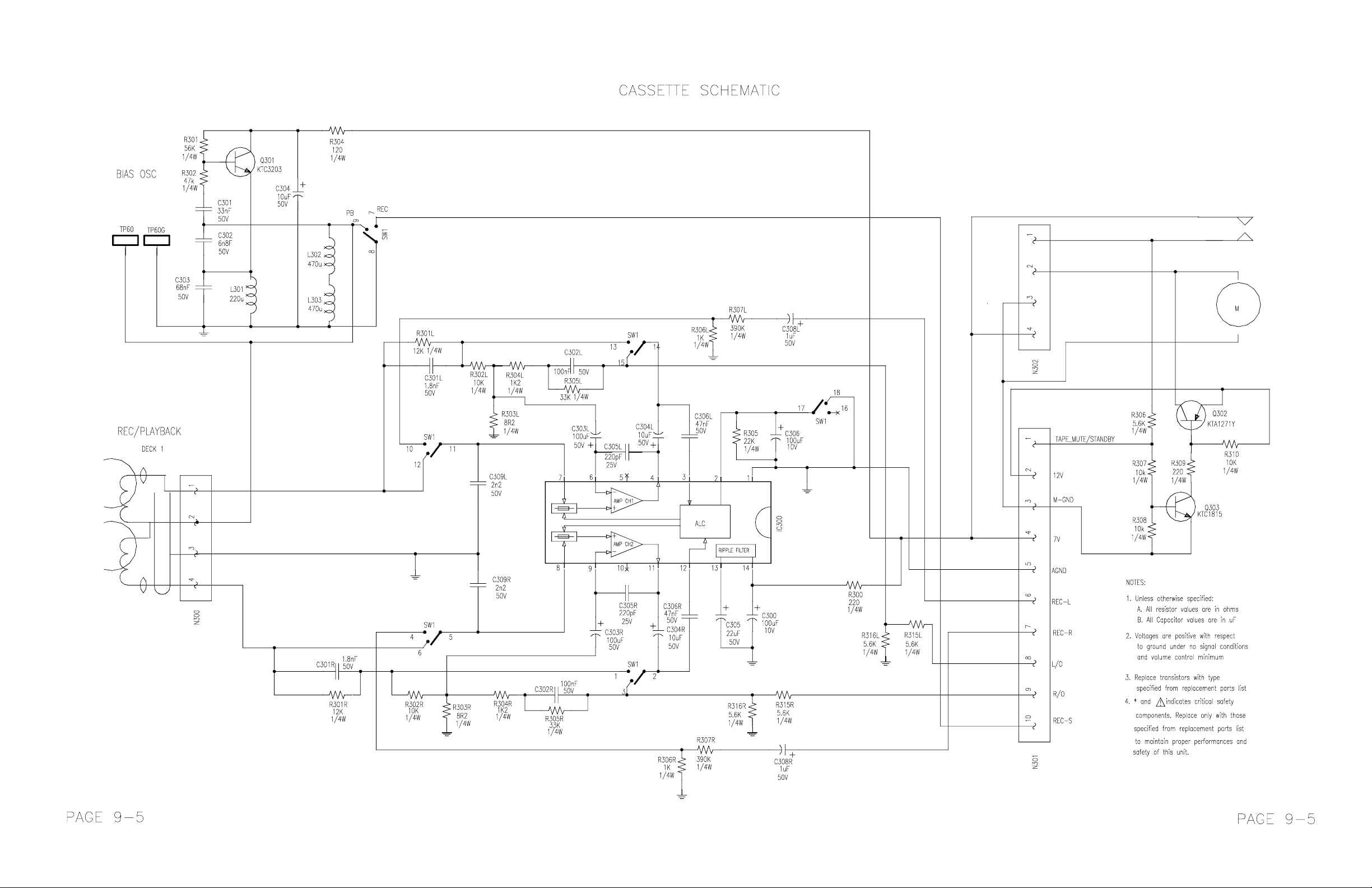

Page 14

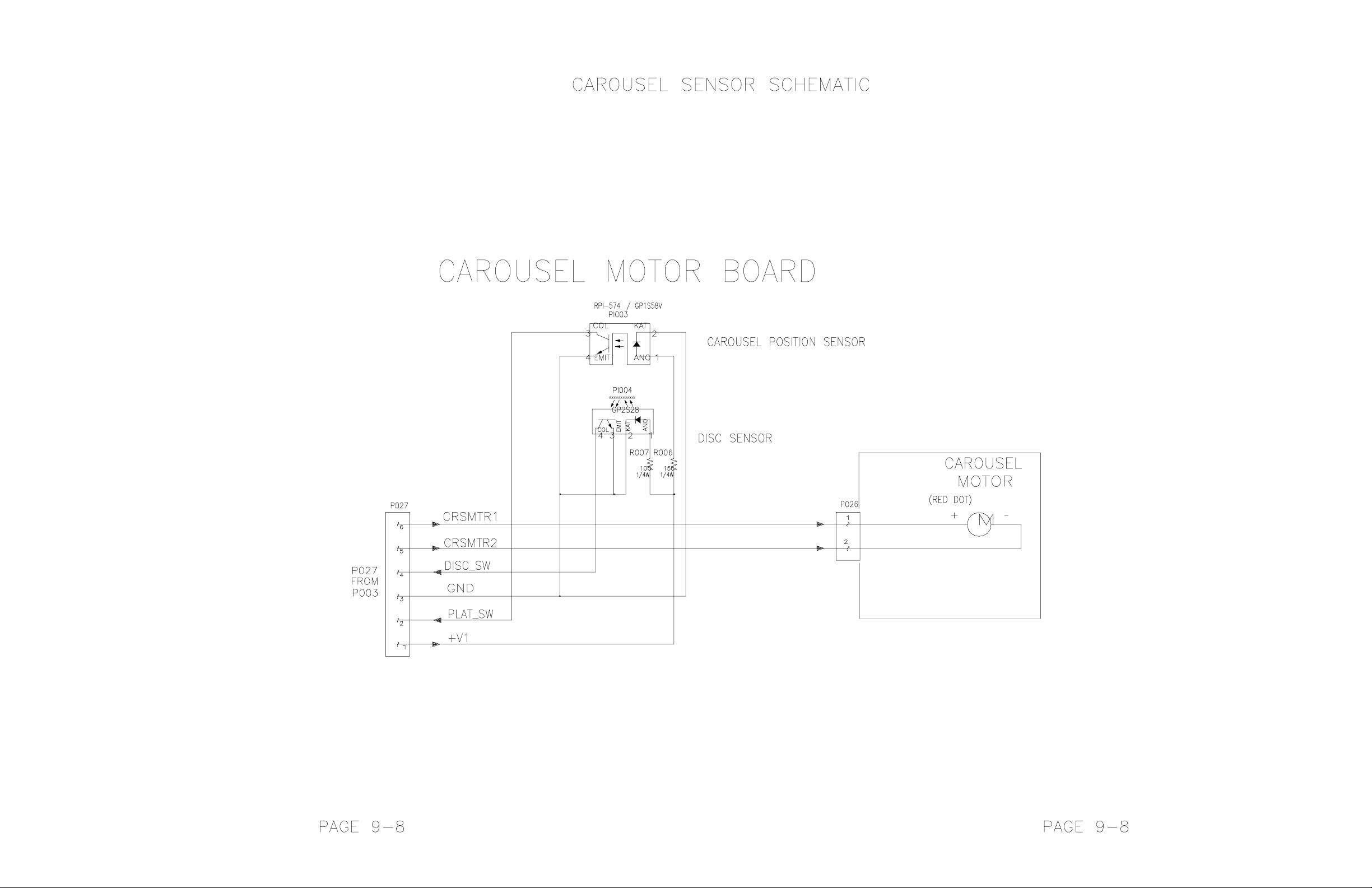

Page 15

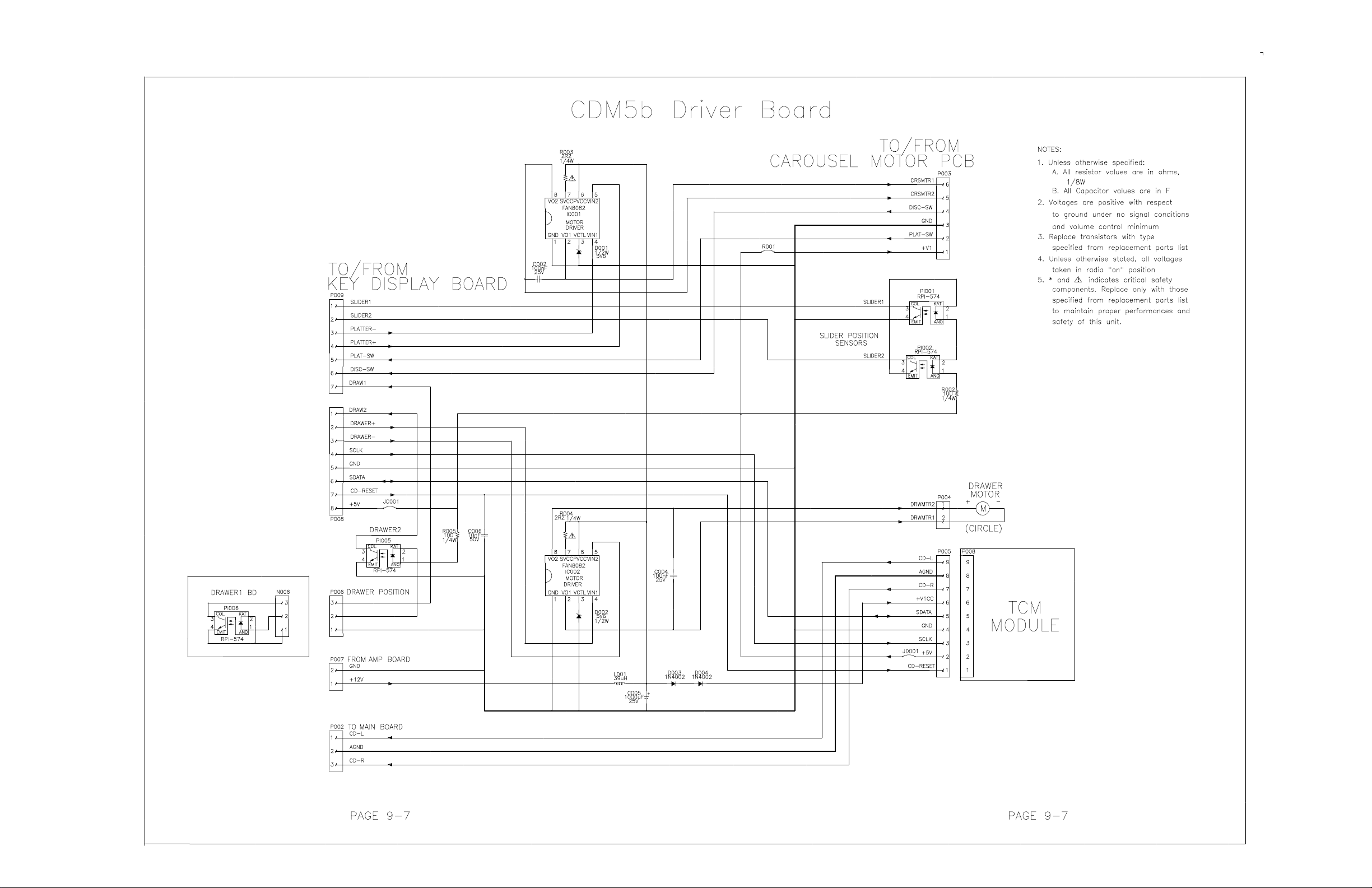

Page 16
Page 17

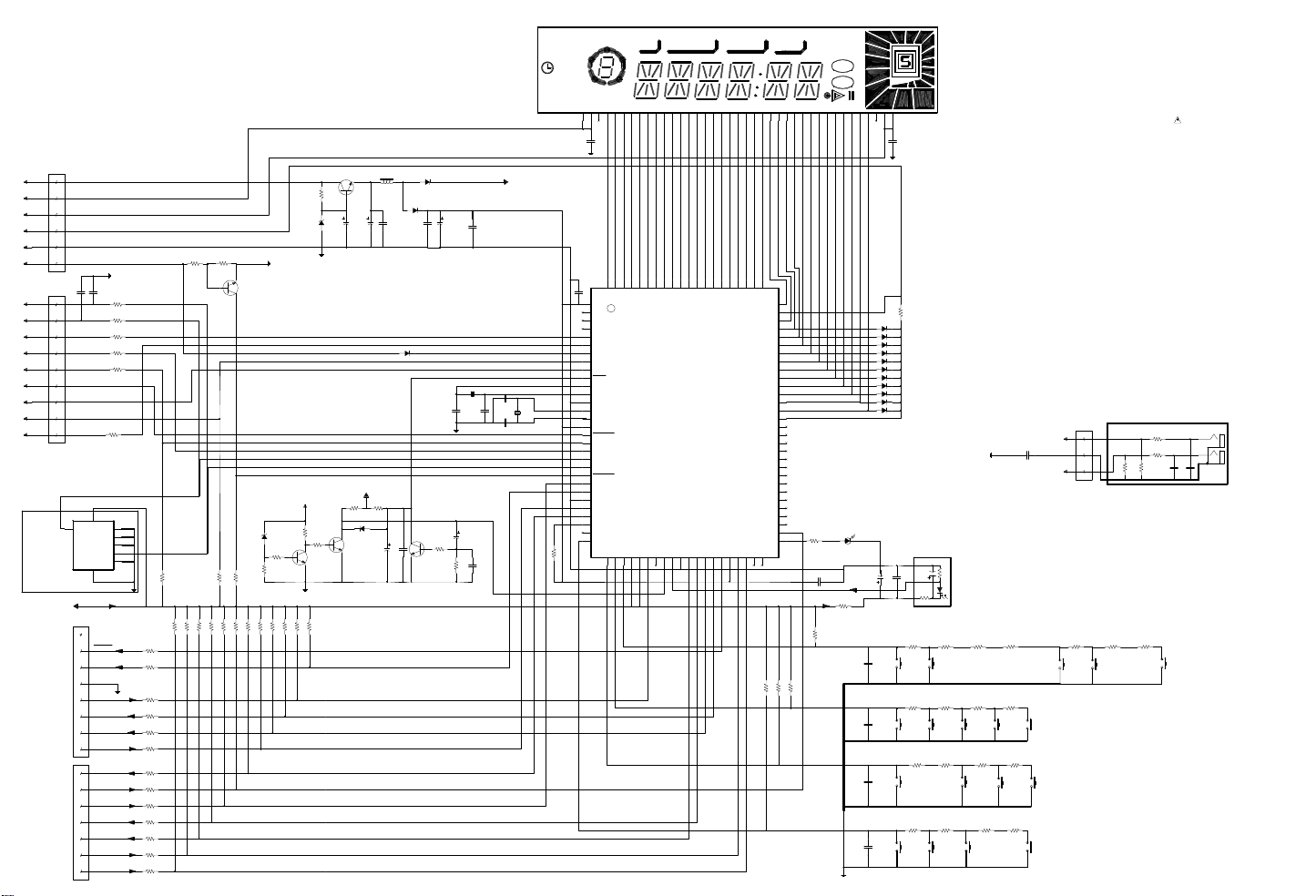

SYSTEM CONTROL\INPUT KEY SCHEMATIC
P701
123456
+10VKB
FIL-KB
FIL+KB
-30VKB
GND GND
TAPE_MUTEKB
SCLKKB
SDATAKB
H/P_MUTEKB
WR-ENKB
DATA-TKB
123456789
GND
C726
C725
100pF100pF
50V50V
R718
1K
1/16W
R717
1K
1/16W
R783
1K
1/16W
R716
1K
1/16W
R788
1K
1/16W
ST-MONOKB
CLOCK-TKB
CD_SYNCHROKB
TUNER-POWERKB
R784
1K
1/16W
P702
8 VCC
1
5
E0
SDA
2
E1
IC702
3
E2
ST24C01B1
6
SCL
7
MODE
VSS
For EU version
4
+5V
To CDM5B
CD-REST
CD-DATA
GND
P706
CD-CLK
DRW-DIR-CW
DRW-DIR-CCW
1 2 3 4 5 6 7 8
DRAW-IN
DRAW-OUT
DISC-SW
PLATTER-SW
CAR-DIR-CW
P705
CAR-DIR-CCW
SLIDER-UP
SLIDER-DN
1 2 3 4 5 6 7
To CDM5B
R725
R726
4K7
2K
1/16W
R700
1/16W
22k
R805
1/16W
10k
1/16W
1/16W
1/16W
1/16W
R760
R761
R762
R764
R763
22K
22K
22K
R712
1K
1/16W
R746
1K
1/16W
R747
1K
1/16W
R748
1K
1/16W
R749
1K
1/16W
R750
1K
1/16W
R751
1K
1/16W
R752
1K
1/16W
R753
1K
1/16W
R754
1K
1/16W
R755
1K
1/16W
R756
1K
1/16W
R757
1K
1/16W
47K
GND
1/16W
KTC3875GR
Q705
D702
6V2 1/2W
Q704
KTC3198GR
R705
4k7
R706
1/16W
R714
4.7k
1/16W
1/16W
10k
1/16W
22K
1/16W
1/16W
1/16W
1/16W
1/16W
R769
R765
R766
R767
R768
22K
47K
22K
22K
22K
SHUFFLEMIX REPEATALL 1 DISCS INTRO
MW FM LW AM PM
KTC3203Y
R701
330 1/4W
Q702
D701
C702
C701
100uF
6V2
47uF
10V
10V
1/2W
+5V
R708
+10VKB
10K
R709
1/16W
1/16W
12k
Q703
D721
KTC3198GR
1N4148
R707
10K
1/16W
D704
L701
1N4148
100uH
D703
1N4148
C704
C705
C706
470uF
100nF
100nF
50V
1N4148
R703
10k
1/16W
C721A
4u7F 50V
10V
50V
D730
C711
33pF
50V
Q701
R704
100
C721
47NF
1/16W
10V
KTC3198GR
R710
47K
1/16W
C705A
100nF
50V
STAND_BYKB
Y701
4M19HZ
C712
33pF 50V
C713
1UF 10V
C755
100nF 16V
+5V
C715
50V
33pF
Y702 32768Hz
C714
33pF
50V
OVERLOAD
1/16W
R734
10K
PROG
ST
1G
F1_1
NP1
F1_2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
C707
47nF
50v
GND
C750
1/16 47N
FIP2
FIP1
FIP0
1
VDD3
2
P37
3
P36/BUZ
4
P35/PCL
5
P34/TI2
6
P33/TI1
7
P32/TO2
8
P31/TO1
9
P30/TO0
10
RESET
11
X2
12
X1
13
IC(VPP)
14
XT2
15
P04/XT1
16
VDD2
17
P27/SCK0
18
P26/SO0/SB1
19
P25/S10/SB0
20
P24/BUSY
21
P23/STB
22
P22/SCK1
23
P21/SO1
24
P20/SI1
25
AVSS
26
P17/ANI7
27
P16/ANI6
28
P15/ANI5
29
P14/ANI4
30
P13/ANI3
P10/ANI0
P11/ANI1
P12/ANI2
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
GND
1/16W
1/16W
R771
R770
22K
22K
X701
CD TUNER TAPE
8G7G6G5G4G3G2G
9G
P24
P23
P22
P21
P20
P19
P18
FIP9
FIP8
FIP7
FIP6
FIP5
FIP4
FIP3
uPD780205GF
P03/INTP3/CI0
AVREF
AVDD
P01/INTP1
P02/INTP2
FIP10
IC701
P74
VSS
P00/INTP0/TI0
FIP12
FIP11
P83/FIP16
P82/FIP15
P81/FIP14
P80/FIP13
P126/FIP51
P127/FIP52
VDD1
P70
P71
P72
P73
P17
P16
P87/FIP20
P86/FIP19
P85/FIP18
P84/FIP17
P90/FIP21 P91/FIP22 P92/FIP23 P93/FIP24 P94/FIP25 P95/FIP26 P96/FIP27
P97/FIP28 P100/FIP29 P101/FIP30 P102/FIP31 P103/FIP32 P104/FIP33 P105/FIP34 P106/FIP35 P107/FIP36 P110/FIP37 P111/FIP38 P112/FIP39 P113/FIP40 P114/FIP41 P115/FIP42 P116/FIP43 P117/FIP44 P120/FIP45 P121/FIP46 P122/FIP47 P123/FIP48
P124/FIP49
P125/FIP50
RDS BASS
AUX
ATS SURROUND
MHz KHz
P15
P14
P13
P12
P11
P10P9P8P7P6P5P4
P3 P2 P1 NP2 F2_1 F2_2
C708
47nF 50V
GND
81828384858687888990919293949596979899100
80 79
VLOAD
78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52
Power (Red)
51
R786
330
D716
1/16W
50V
C753
100nF
100R
R702
1/16
R790
10K
1/16W
C790
1/16W
1/16W
1/16W
10K
10K
10K
R794
R735
R797
1nF
R739
68K
1/16W
1N4148
D718
1N4148
D717
1N4148
D715
1N4148
D714
1N4148
D708
1N4148
D709
1N4148
D710
1N4148
D711 D713
1N4148
1N4148
D712
1N4148
D707
SHIELD_GND
IR701
GP1U287R
GND
3
10K
10uF
C751
C730
100N
10V
1/16
1
OUT
47uF
50V
C791
1nF 50V
C792
1nF 50V
C793
1nF 50V
PROG/SET
REWOARD
SW715
10K
VCC
2
R796R795
R791
2K
1.5k1.2k 1/16W
1/16W1/16W
2
SW707SW706
CLOCK
121
2
R728
2.7K
1/16W
2
REPEAT
1
SW703
SW714
BASS
1 2
VOL_UP
BOOST
1 2
TUNE/PRESET
R740
2.2k
1/16W
R729
1.5k
1/16W
PLAY
STOPFORWARD
PAUSE
SW713
SW716
TIMER
1 2
DIMMER
R745R759
82K1.2K 4.7K
1/16W1/16W 1/16W
SW702
OPEN/
1 2
CLOSE
AUX_LKB
C430
AUX_GND
100nF
16V
AUX_RKB
R792
8.2K
1/16W
R743R742R799R798
3.3k2.2k1.5k1.2k
1/16W1/16W1/16W1/16W
2
DEMO
SW712SW711SW710SW709SW708
VOL_DOWN
R737R736
4.7k3.3k
1/16W1/16W
SW717
2
SW704
SOURCE
1
121212121
POWER /ECO
121
R793
2
SW718
DISC SKIP
1
NOTES:
1. Unless otherwise specified: A. All resistor values are in ohms, B. All Capacitor values are in uF
2. Voltages are positive with respect
3. Replace transistors with type specified from replacement parts list
4. Unless otherwise stated, all voltages taken in radio "on" position
5. * and indicates critical safety components. Replace only with those specified from replacement parts list to maintain proper performances and safety of this unit.
P516
1
2
3
R414L
R414R
R780
R741
R744
7.5K 47k
22K
1/16W 1/16W
1/16W
SW705
BAND
1 2
AUTO PROG
EQ PRESET
to ground under no signal conditions and volume control minimum
AUX IN
R413L
39K
1/16W
1
R413R
39K
1/16W
2
22K22K
1/16W1/16W
SW701
3
C414LC414R
1nF1nF
NJ504
50V50V
2
1
1/16w
GND
Page 18
FMANT
AM ANT
N002
12
D005
C001
D004
33pF
XXX
C050
L001
0.1uF
TF001
6
TP001
FM_IN
5
AGND
C062
AGND
100nF
D003
R009
47K
1/16W
R013
C020
470p
AGND
C060
C019
R014
1uF
220K 1/16W
AGND
TF003
6
AM OSC FM STEREO
33pF
220K 1/16W
C016 1 2 34
C021
22pF
AGND
GND3
TUNER_L
AGND
TUNER_R
+10V
TUNER_PWR
6.8V
ST_MONO
CLOCK_T
DATA_T
WR_EN
C004
33pF
FM-RF
C003
33pF
RF AM amplitude
1
AGND
2
34
C018
AGND
TP002
R006
47k
1/16W
R007
47k
1/16W
R008
47K 1/16W
2k2
R010
1/16W
470nF
AGND
G
C015
150nF
C011
11p
C010
47pF
100pF
D002
OSCGND
D001
L003
MED 90.1 VT
RFGND
L004
LOW 87.5 VT
3
47K
RV001
1
R097
100
1/16W
CV001
G
XXX
AGND
XXX
G
HIGH 108.1 VT
AGND
68K
R011
1/16W
2
AGND
RFGND
TP001G
11p
C009C012
MED 106.1 VT
R005
56R
1/16W
11p
CV002
91K
R012
1/16W

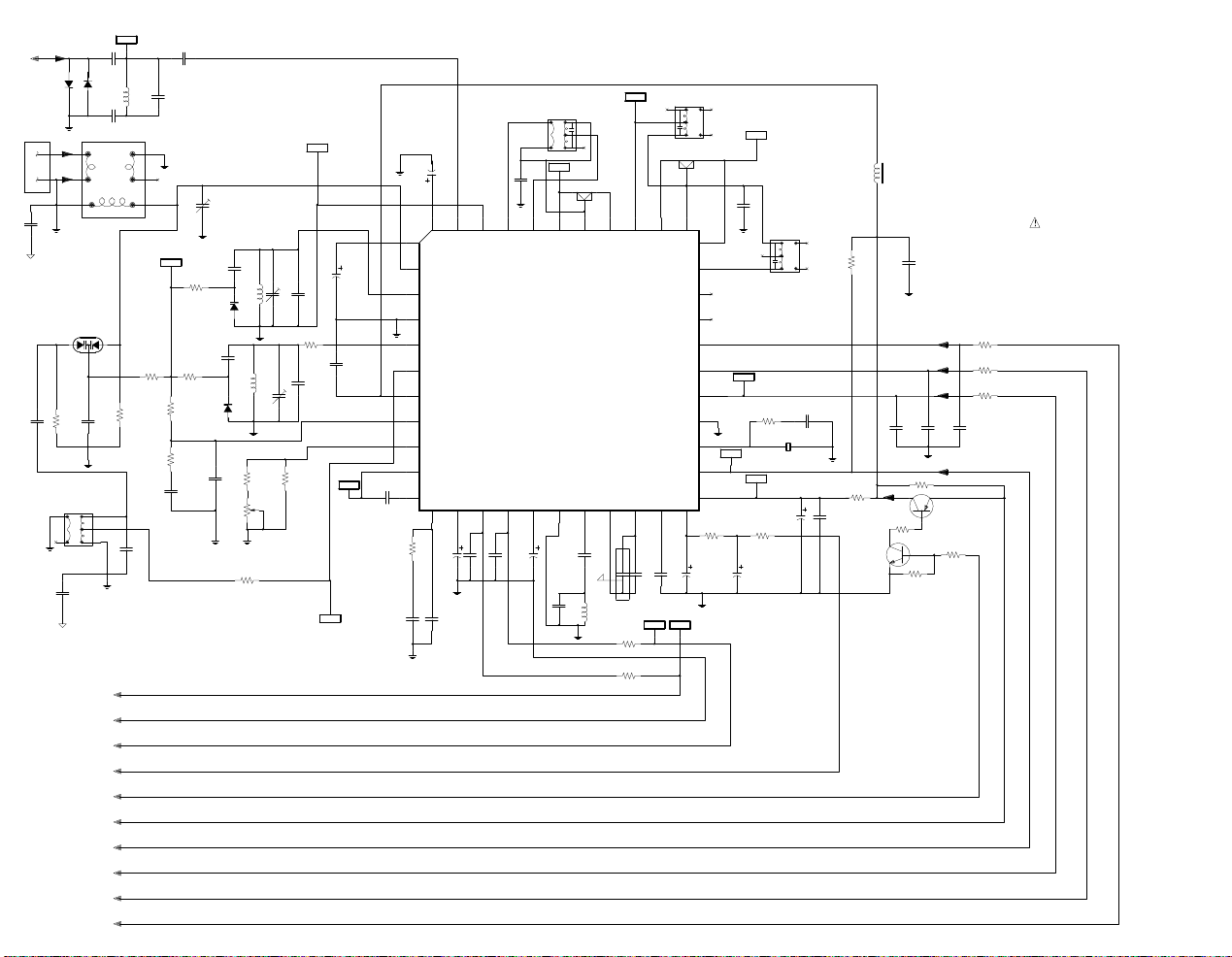

TUNER SCHEMATIC
AM IF amplitude
TP011
TF008
FM-IF1I
AFC-NEG
CA03
470nF
R017
8K2 1/16W
R021
8K2 1/16W
3 4 2 1
IN
FM-IF1O
AM-IF2I/O
WRITE-ENABLE
BUS-CLOCK
INDICATOR
AFC-POS
470nF
C030
FM IF ADJ
TP007
Y002
E
VSTABB
AFC-AM
DATA
DGND
XTAL
C031
100nF
AGND
TP008
3435363738394041424344
P1
P0
VCC2
6
OUT
33
FM-IF2I
32
31
30
29
28
27
26
25
24
VDD
23
R030
1K 1/16W
C032
1uF
TP005
C033
AGND
TP010
TP003
100nF
C041
AM IF 450K
R036
150K 1/16W
TP006
R031
100 1/16W
1uF
TF007
3 4 2 1
X001
75.0KHZ
33uF
C036
C034
NOTES:
1. Unless otherwise specified: A. All resistor values are in ohms, 1/10W B. All Capacitor values are in uF
2. Voltages are positive with respect to ground under no signal conditions
L007
470uH
C035
100nF
R035
1/16W
R034
C043
18K
1/16W
C045
C047
47pF
AGND
JP02
0 1/16W
22R
470
R056
1/16W
Q009
22K 1/16W
R058
6
12pF
AGND
and volume control minimum
3. Replace transistors with type specified from replacement parts list
4. Unless otherwise stated, all voltages taken in radio "on" position
5. * and indicates critical safety components. Replace only with those specified from replacement parts list to maintain proper performances and
100nF
safety of this unit.
R046
R045
R047
470pF
ST_MONO
6.8V
WR_EN
DATA_T
CLOCK_T
470 1/16W
470 1/16W
470 1/16W
C046
47pF
Q008
R057
10K 1/16W
TUNER_PWR
FM-ANT.
AM IF amplitude
TF005
1
6
2 34
TP004
10nF
C025
RFGND
AF-LO
AGND
AM-IF1I
AF-RO
10nF
C026
100nF
C027
2.2uf
C099
AM-MIXER
IC001
PILFIL
C028
Y001
IN
FM-MIXER
IFGND
C029
15pF
100pF
AGND
E
OUT
VSTABA
FM-DEM
TF006
XXX
SELECTION
4u7F
C007
AGND
AGC
1
RIPPLE
C008
100uf
5p15pF
AGND
AGND
C013
100nF
TP009
C014
470nF
TP012
C022
AGND
FM-RFI
AM-RFI
2
FM-RFO
3
SUBGND
4
FM-OSC
5
AM-OSC
6
VCC1
7
TUNE
8
VCO
9
AFO MO-ST
10
MPXI
MUTE
LPF
11
12 13 14 15 16 17 18 19 20 21 22
R015
C024
2K2 1/16W
1uF
AGND
C023
470nF
470nF
Page 19

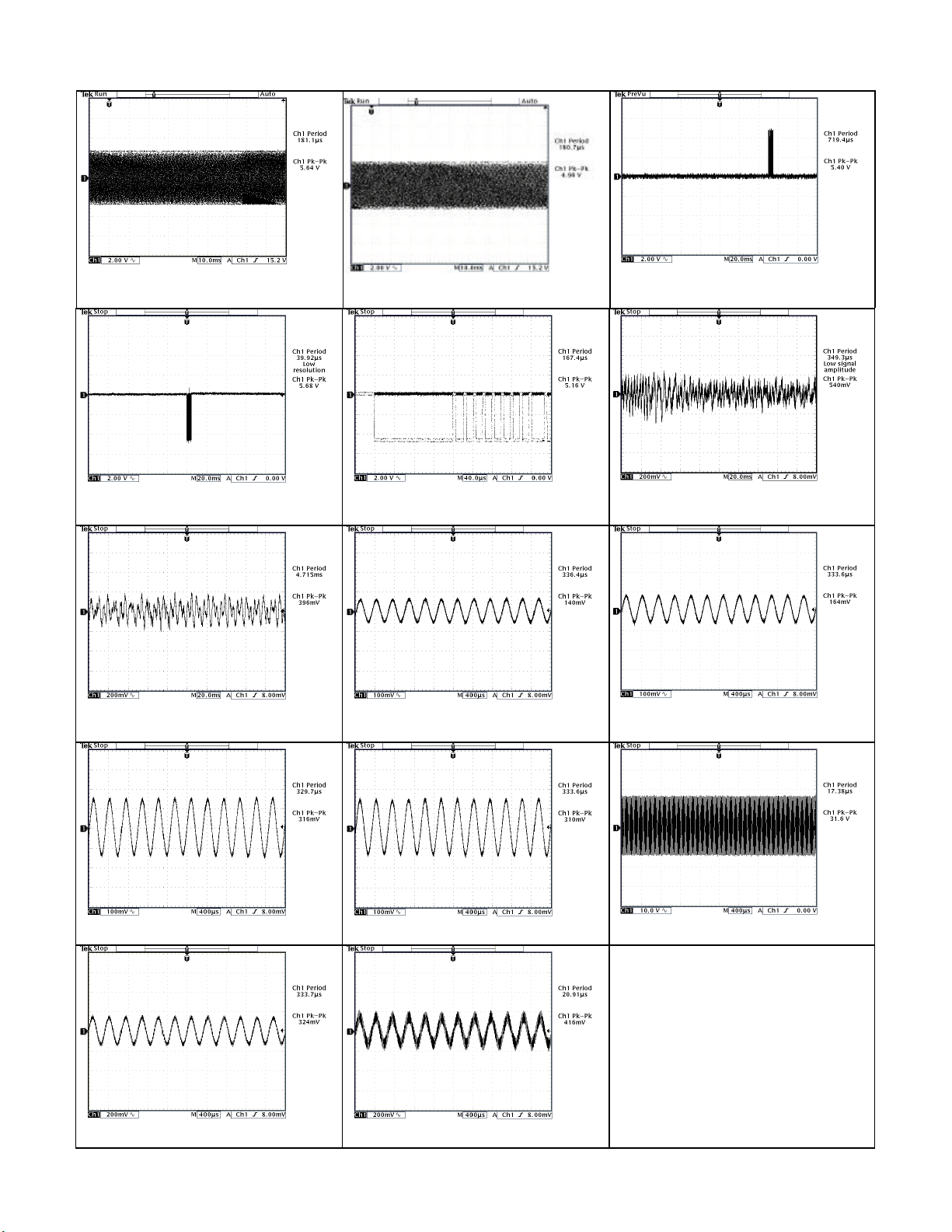

RS2640 WAVEFORMS
IC701 Pin 11
IC701 Pin 18
TP008
IC701 Pin 12
IC701 Pin 9
IC401 Pin 5
IC701 Pin 19
TP007
IC401 Pin 2
IC401 Pin 8
IC401 Pin 10
TP60
IC401 Pin 27
IC401 Pin 26
Page 20
VOLTAGE CHARTS
IC001 Tuner
Pin AM FM Pin AM FM
1 2.1 2.1 23 6.8 6.8 200 245.40.28 300 251.41.41 400 2600 500 2700 600 284.84.8
76.96.9 29 0 0 8 1.78 2.4 30 6.3 0
9 1.35 1.0 31 0 0 10 0.58 0.71 32 1.4 1.4 11 1.26 1.25 33 1.07 0.74 12 0.16 0.79 34 1.47 1.42 13 0.76 0.76 35 1.02 0.69 14 0.65 0.64 36 1.47 1.42 15 0.65 0.65 37 0.99 0.67 16 1.01 0.95 38 1.43 1.4 17 0 0 39 0.95 1.02 18 0.03 1.04 40 1.43 1.4 19 1.16 1.15 41 1.43 1.4 20 1.16 1.15 42 0 0 21 1.89 2.01 43 0.01 0.7 22 11.8 11.6 44 0.37 0.44
IC300
Pin Play Rec
100 2 0 0.62 3 0 0.22 4 3.02 3.03 5 1.38 1.35 6 1.26 1.25 700 800
9 1.26 1.25 10 1.38 1.37 11 2.98 2.97 12 0 0.15 13 5.9 5.9 14 5.9 5.9
Pin Pin
1 3.3 15 3.3
23.3 16 0
33.3 17 0 4 3.3 18 3.3 5 3.3 19 3.3
63.3 20 0
73.3 21 0
83.3 22 0
93.3 23 0 10 3.3 24 6.6 11 3.3 25 0 12 3.3 26 2.6 13 3.3 27 2.6 14 3.3 28 3.3
IC401
IC501
Pin
10
229.8 30 4-29.6 50 6-3.4 70 80
90 10 0 11 -3.4 12 0 13 0 14 0 15 29.6
IC701
Pin Pin Pin Pin
1 4.8 26 4.8 51 0 76 -23.4 2 4.8 27 0.34 52 4.6 77 -27.8 3 4.7 28 4.8 53 0 78 -22.1 4 4.7 29 4.8 54 0 79 -28.1 5 0 30 4.8 55 0 80 -27.8 6 4.8 31 4.8 56 0 81 -25.6 7 4.8 32 4.8 57 0 82 -25.6 8 4.2 33 4.8 58 0 83 -25.6
9 0 34 4.8 59 0 84 -27.7 10 4.8 35 4.8 60 0 85 -25.6 11 2.3 36 5.0 61 0 86 -23.4 12 2.1 37 0.13 62 0 87 -23.4 13 0 38 4.8 63 0 88 -25.6 14 2.2 39 4.6 64 0 89 -25.6 15 1.9 40 0 65 0 90 -27.7 16 4.8 41 1.7 66 4.7 91 -27.7 17 0.28 42 1.6 67 -21.3 92 -25.6 18 4.8 43 1.8 68 -21.3 93 -25.7 19 0 44 1.0 69 -21.2 94 -25.6 20 4.8 45 5.1 70 -23.4 95 -25.6 21 0 46 4.8 71 -25.6 96 -25.6 22 4.8 47 0.32 72 -21.3 97 -25.6 23 0.45 48 4.7 73 -23.4 98 -25.6 24 4.8 49 0 74 -23.4 99 -25.7 25 0 50 0 75 -27.7 100 -25.6
Q410RQ302 Q303 Q410 Q410LRec Mode Q301
E0.0811.4 0 0 0 0 B 1.1 10.6 0.69 0 0.68 0.68
C3.9711.46.53.1 0 0
Play Mode Q301 Q302 Q303 Q410 Q410L Q410R
E011.40000 B 0.77 10.6 0.69 0.65 0.03 0.03 C 4.0 11.4 6.5 0.03 0 0
Q603LQ501 Q510 Q602L Q602RQ401
IC001 CD
Pin
10
20.41
30.48
41.6
51.5 611 711
80.42
IC002 CD
Pin
10
20.42
30.28
41.6
51.6 611 711
80.42
Page 7-1
E 6.97 0 -4.6 0.56 0.58 2.02 B 7.57 0 29.7 1.2 1.23 2.69 C 11.7 29.6 29.7 3.08 2.97 5.6
Q603R Q702 Q703 Q704 Q705
E 2.03 5.5 0 0 0 B 2.69 6.2 0.01 0.72 0 C 5.6 11.6 4.8 0.01 4.8
Page 7-1

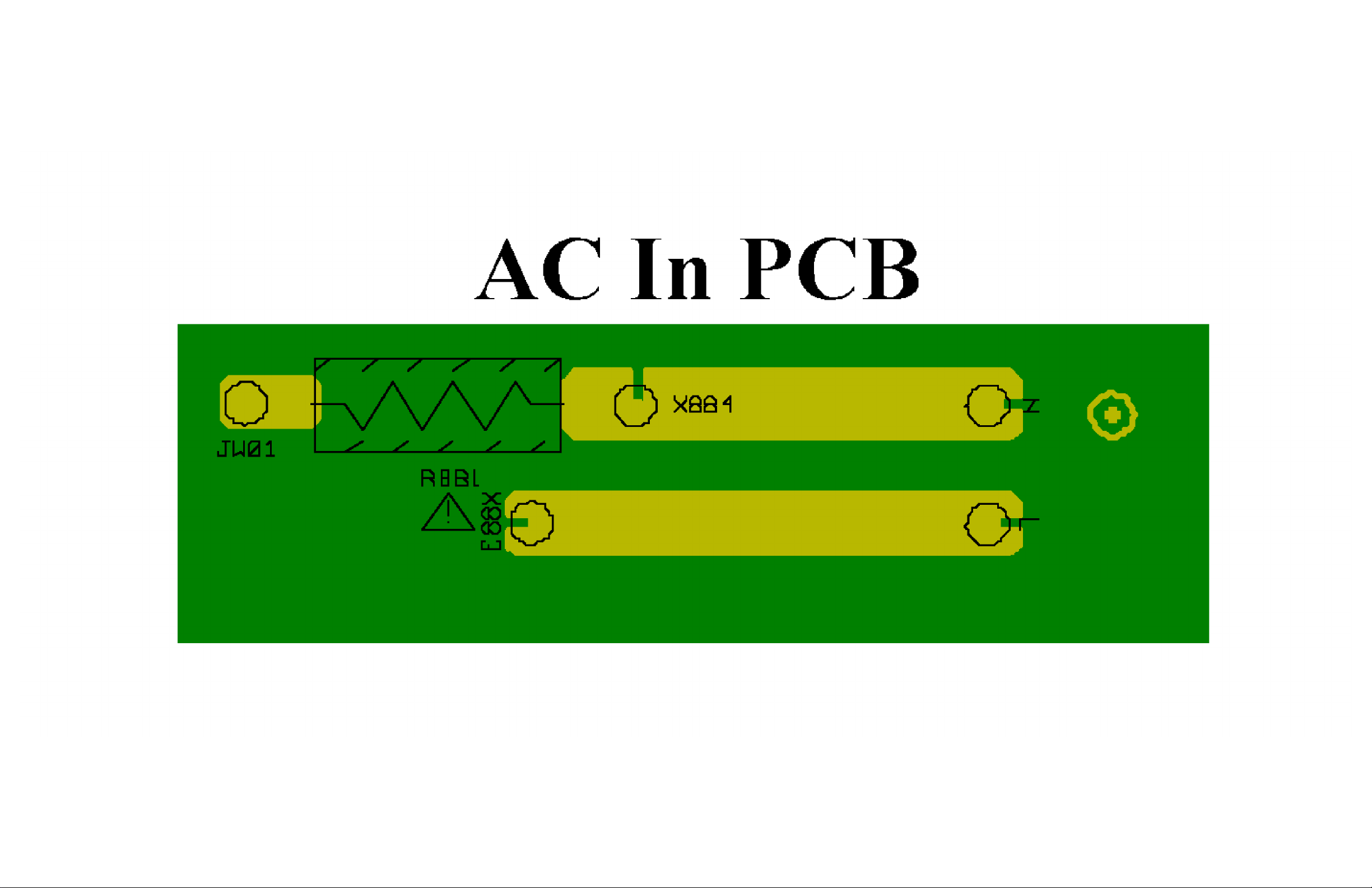

Page 21

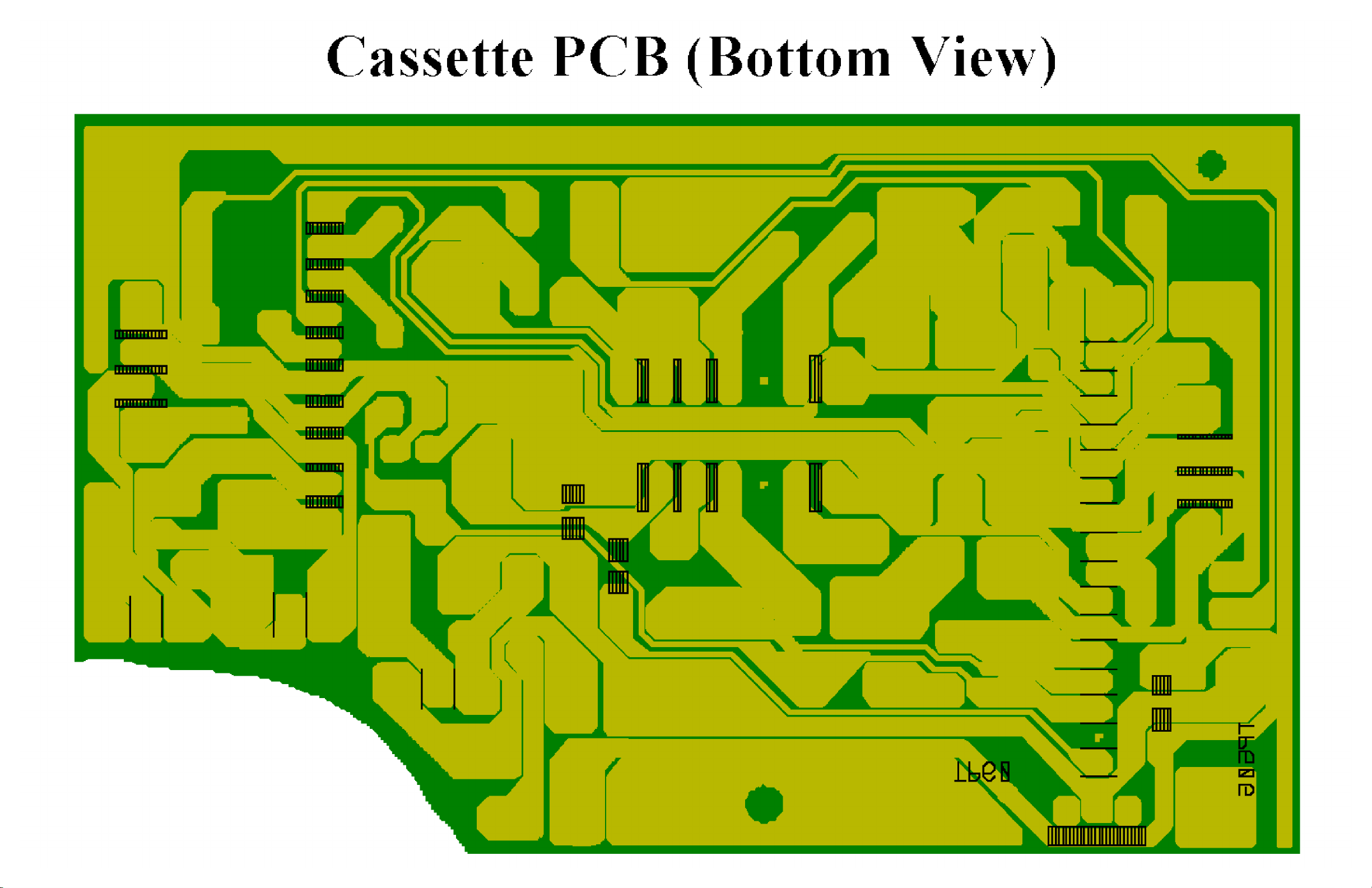

Page 22

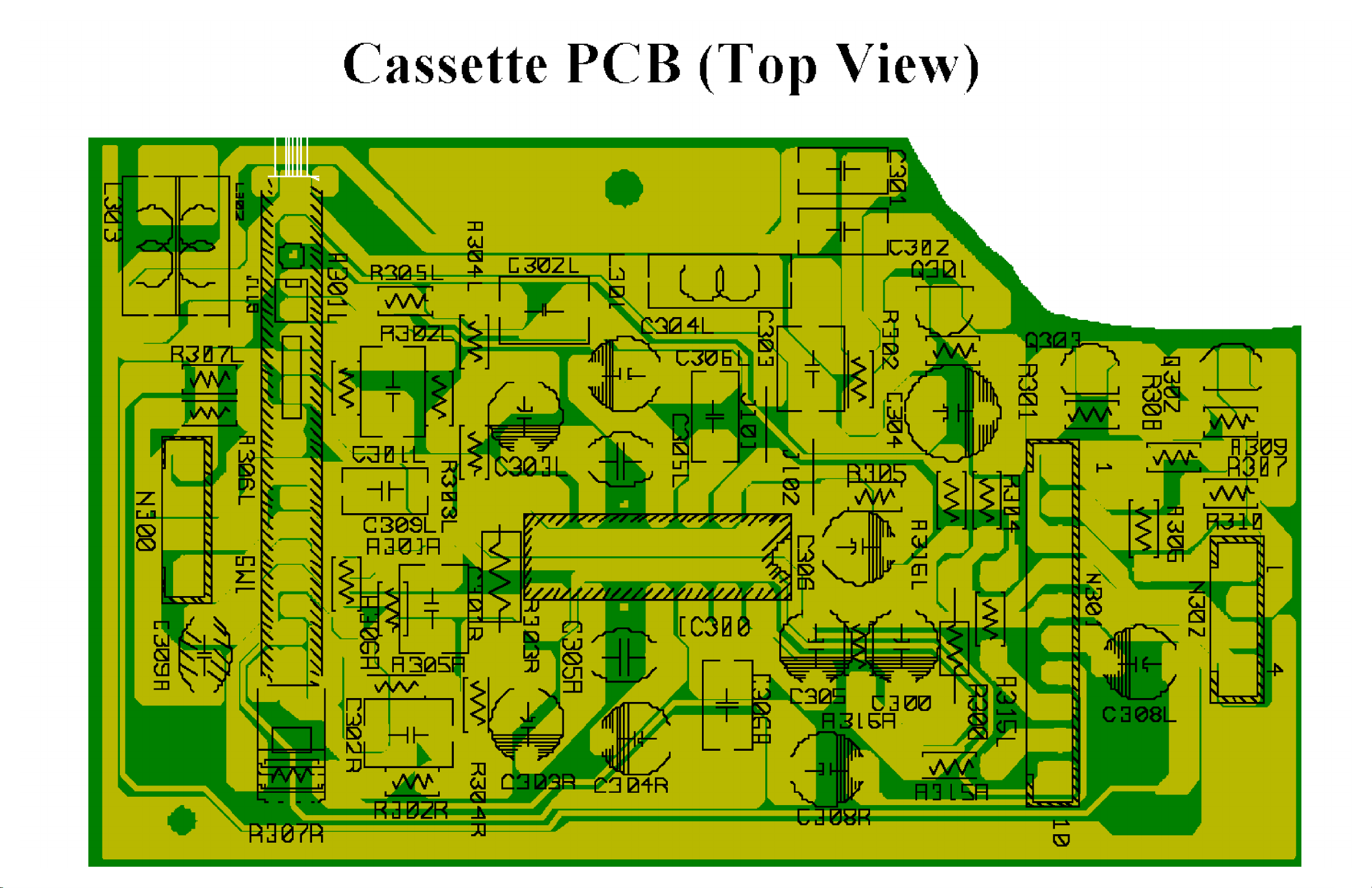

Page 23

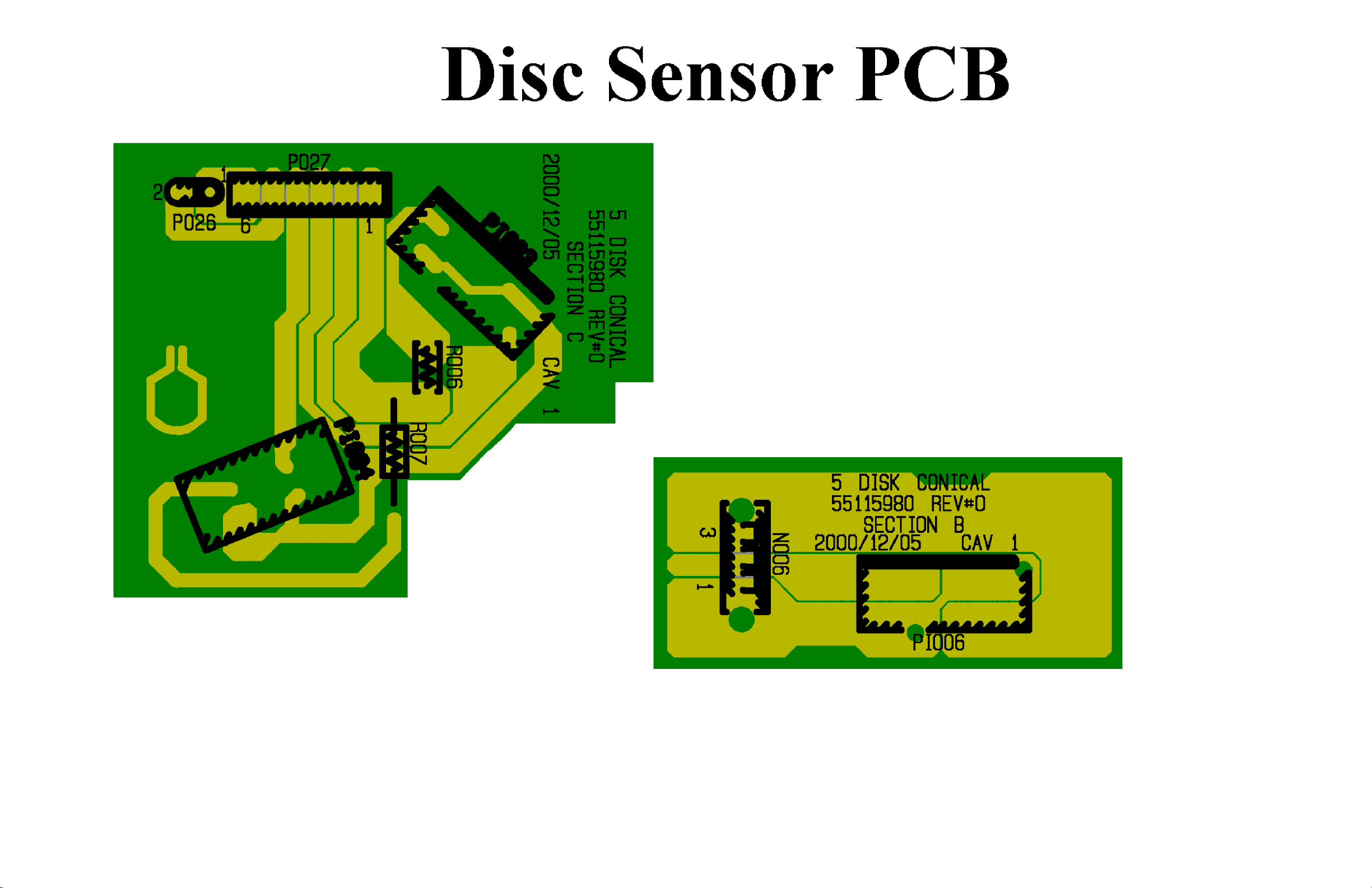

Page 24

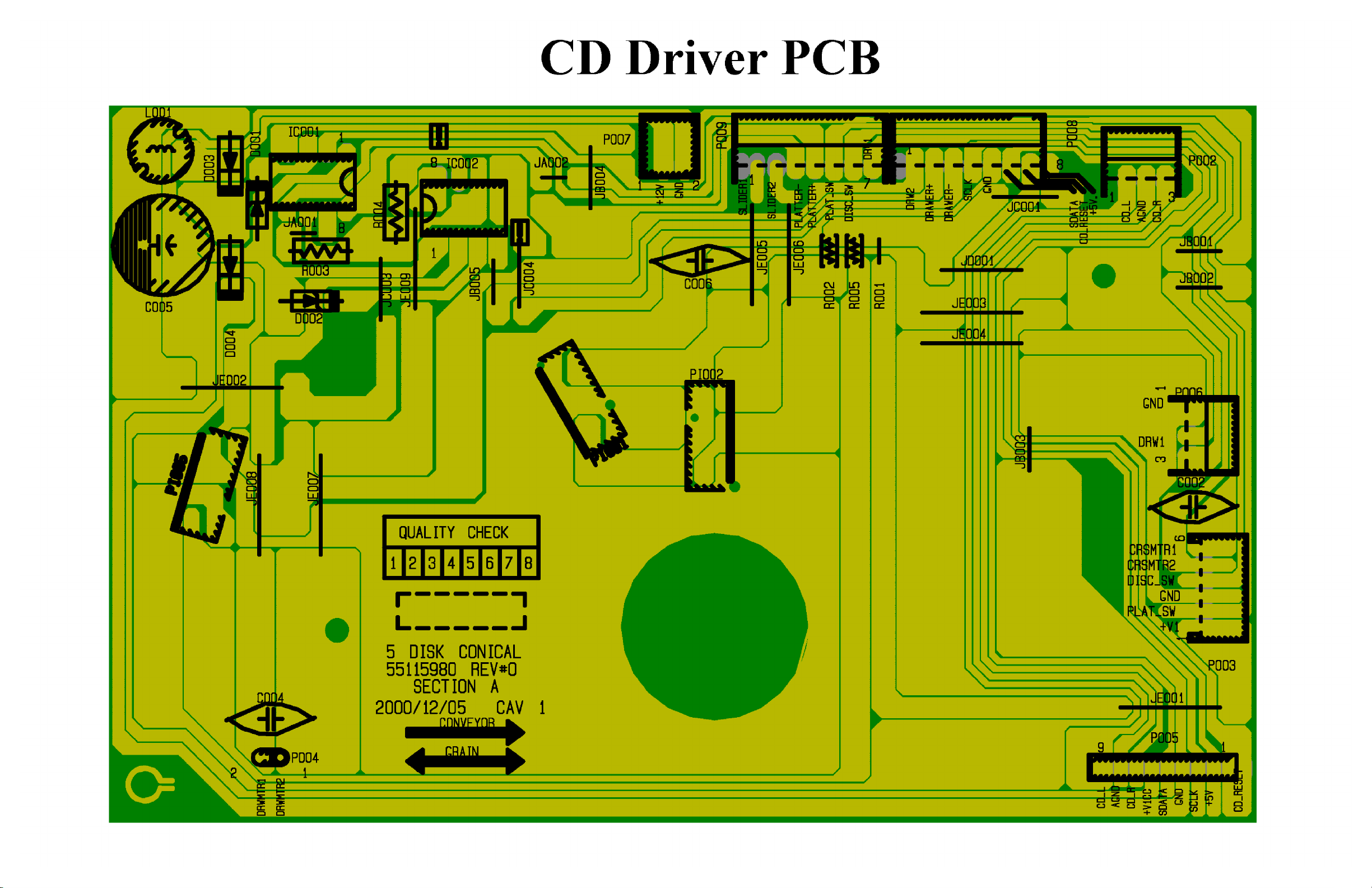

Page 25

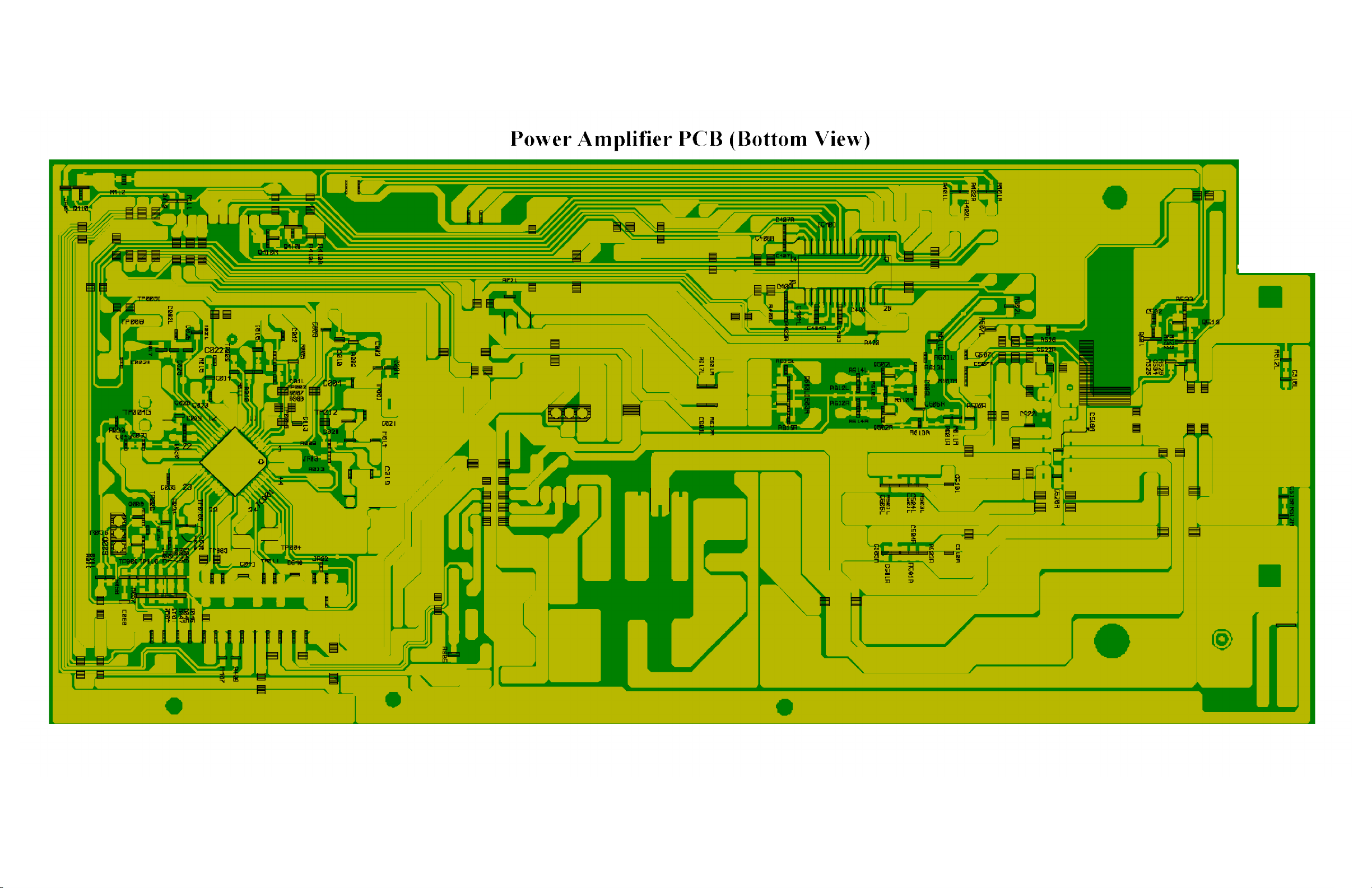

Page 26

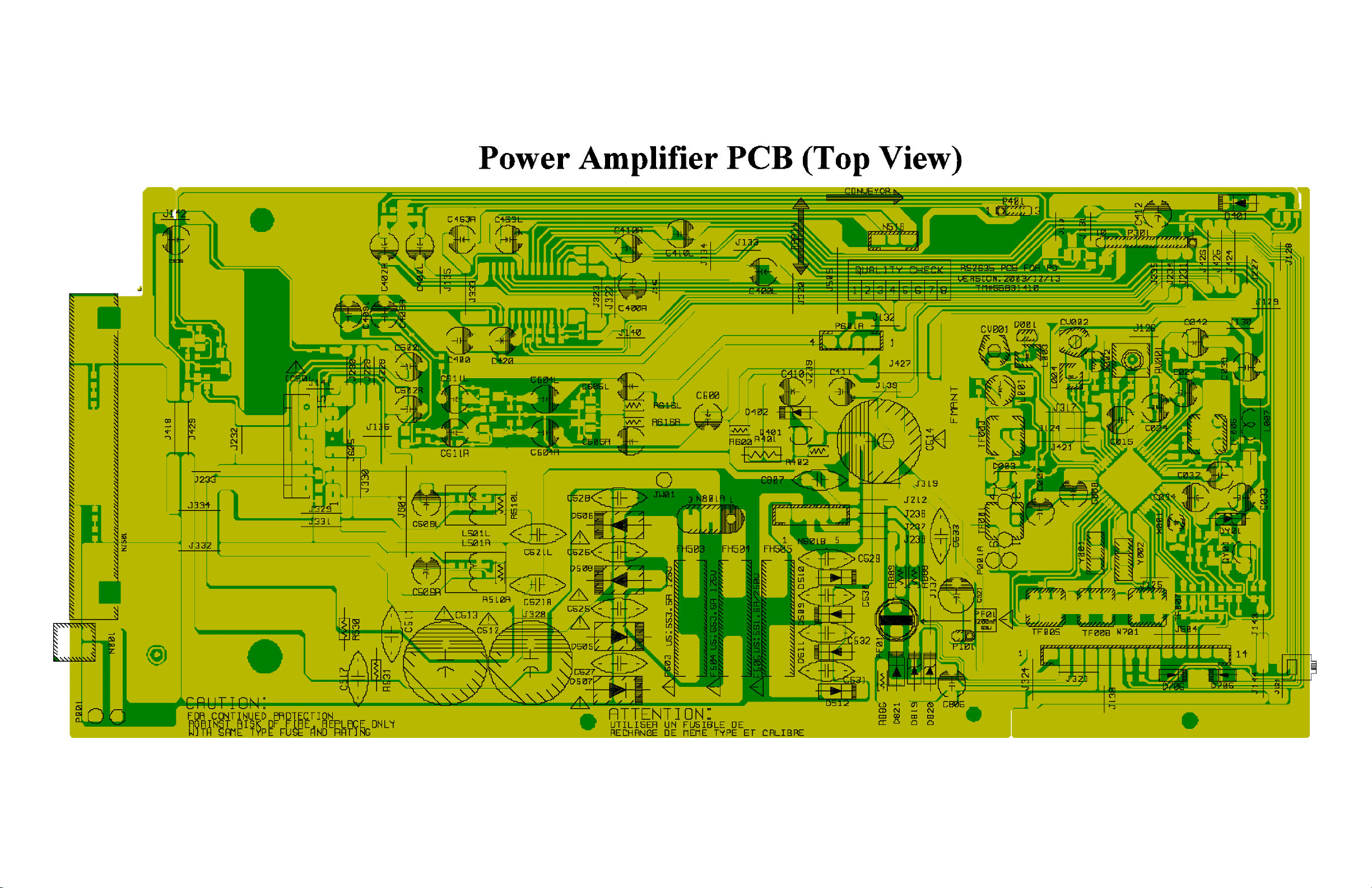

Page 27

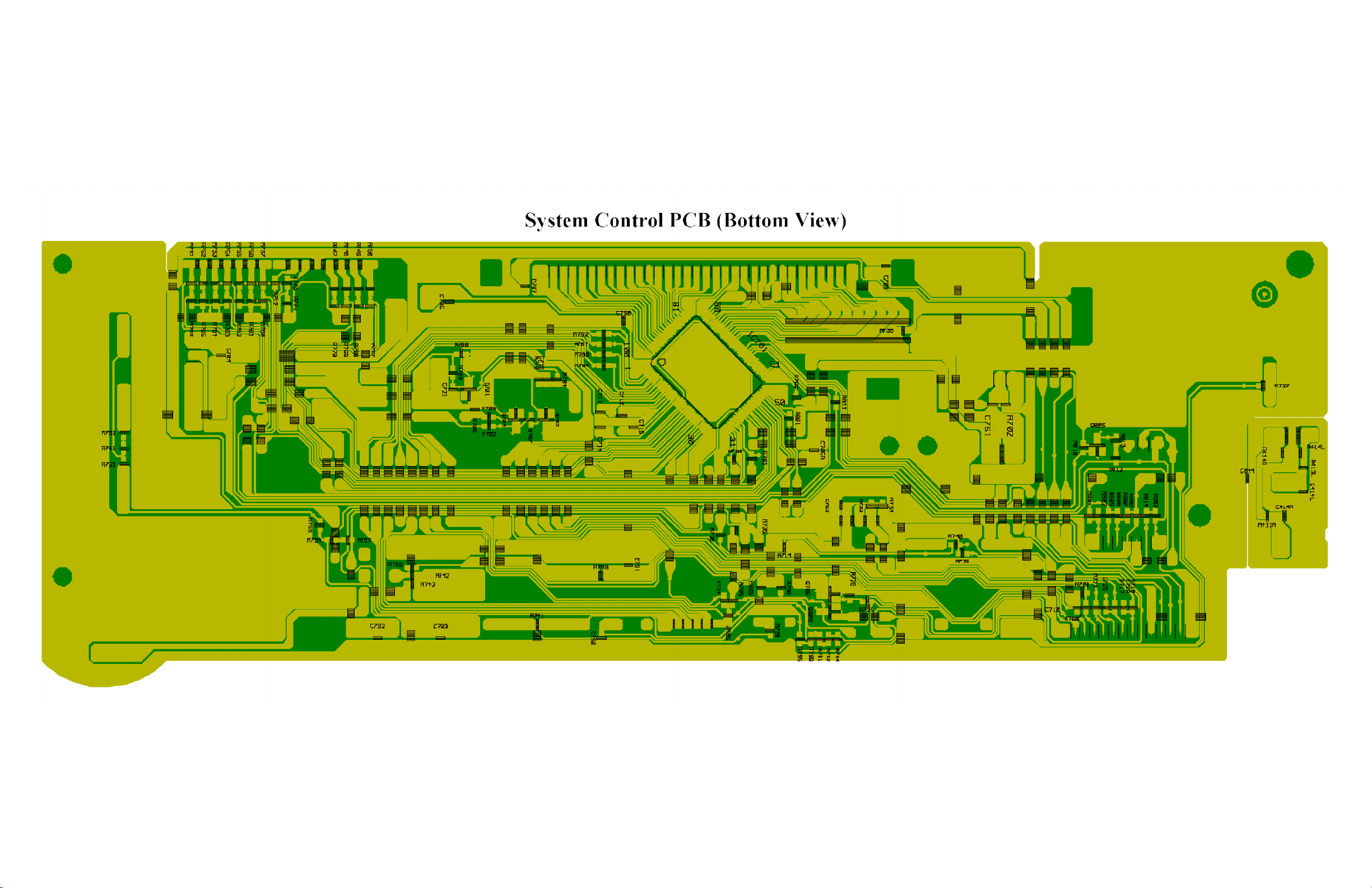

Page 28

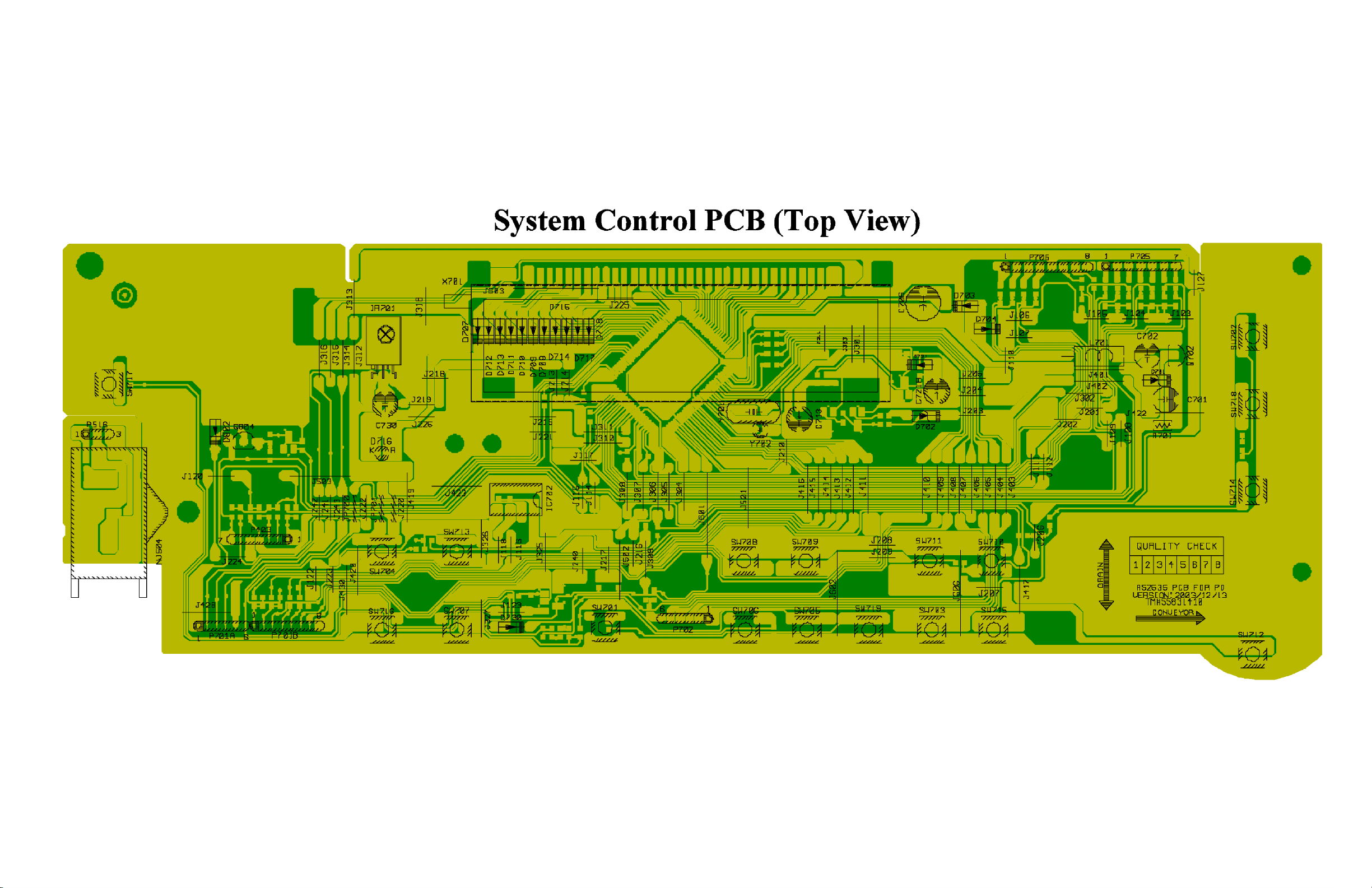

Page 29
Page 30
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
00002 255412 CD PLATTER, 5-DISC CD MECH RS2640 55066450 00003 248366 CD BASE PLASTIC CD MECH RS2640 20980000 0001 267110 WIREBARE 22 DVD ASSEMBLY RS2640 20322580 0001 265140 PULLEY CD MECH RS2640 20987470 0002 265139 PULLEY CD MECH RS2640 20987480 0003 265137 WORM GEAR CD MECH RS2640 20987490 00052 N/S/P AC ASSEMBLY CDM5B DRAWER CD MECH RS2640 20987460 0020 248152 DRAWER CD PLASTIC CDM5B CD MECH RS2640 20979990 0025 238383 ROLLER, RUBBER BLACK 4X10 MM CD MECH RS2640 20712120 0030 262534 HUB, ROLLER CD MECH RS2640 20712170 0035 255882 BRACKET, SPIN MOTOR CD MECH RS2640 20979860 0040 238376 MOTOR CD CAROUSEL CD MECH RS2640 20581820 0040 267098 CABINET FRONT INSTRUMENT ASSEMBLY RS2640 55274220 0045 248153 PULLEY MOTOR CD MECH RS2640 20979870 0050 267097 CABINET BOTTOM RS2640 INSTRUMENT ASSEMBLY RS2640 55872920 0050 N/S/P SCREW 2MM 3MM JIS B 1111 53 0 0 CD MECH RS2640 20349510 0055 251504 PLASTIC BUSHING CD MECH RS2640 20979960 0060 248154 PULLEY WORM CD MECH RS2640 20979880 0060 267074 AC FILTER FILM RS2640 MAIN CBA RS2640 55910910 0060 261259 CABINET LEFT INSTRUMENT ASSEMBLY RS2640 55668460 0065 248155 WORM PLASTIC CD MECH RS2640 20979890 0068 253163 SHAFT, WORM CD MECH RS2640 20979900 0070 261260 CABINET RIGHT INSTRUMENT ASSEMBLY RS2640 55668470 0073 248156 GEAR DUAL WORM CD MECH RS2640 20979780 0080 238377 BELT, PLATTER ID 23MM CD MECH RS2640 20710160 0080 267077 CABINET BACK RS2640 INSTRUMENT ASSEMBLY RS2640 55326250 0090 261262 CABINET TOP INSTRUMENT ASSEMBLY RS2640 55668480 0100 267078 DOOR CASS RS2640 INSTRUMENT ASSEMBLY RS2640 55378020 0100 257334 HOLDER VFD DISPLAY MAIN CBA RS2640 55221820 0120 261265 DOOR CD INSTRUMENT ASSEMBLY RS2640 55600830 0135 257760 MOTOR DRAWER CD MECH RS2640 20581800 0140 N/S/P SCREW 2.6MM 5MM JIS B 1111 53 0 0 CD MECH RS2640 20349540 0150 248157 GEAR PULLEY CD MECH RS2640 20979840 0155 265333 GEAR DUAL CD MECH RS2640 20979770 0160 248159 GEAR, PIVOT CD MECH RS2640 20979830 0165 248160 ARM SWING PLASTIC CD MECH RS2640 20979940 0170 248161 GEAR, IDLER CD MECH RS2640 20979790 0175 248162 GEAR, CLUTCH CD MECH RS2640 20979750 0180 248163 ROLLER, SLIDING CD MECH RS2640 20979950 0185 248164 GEAR, DUAL IDLER CD MECH RS2640 20979760 0190 248165 GEAR, MAIN CD MECH RS2640 20979800 0200 248166 CAM, SLIDER CD MECH RS2640 20979740 0208 253164 SPRING, TORSION MAIN CD MECH RS2640 20979810 0210 248371 BRACKET PICK-UP CD MECH RS2640 20979970 0210 265158 BUTTON, VOLUME UP/DOWN INSTRUMENT ASSEMBLY RS2640 55858310 0220 248108 BELT, DRIVE ID 36MM CD MECH RS2640 55073350 0222 251571 SPRING RETENTION CD MECH RS2640 20979850 0225 261320 ABSORBER, RUBBER GRAY CD MECH RS2640 20365070 0230 261276 BUTTON POWER/ON INSTRUMENT ASSEMBLY RS2640 55536800 0230 245154 CUSHION, CD BLUE CD MECH RS2640 20446740 0235 248373 ARM PLASTIC MAGNETIC ROTATION CD MECH RS2640 20979980 0240 257371 HOLDER MAGNET COVER CD MECH RS2640 55257480 0240 261277 BUTTON OPEN/CLOSE/BASE INSTRUMENT ASSEMBLY RS2640 55536820 0241 257372 HOLDER MAGNET BASE CD MECH RS2640 55381040 0250 267086 BUTTON PRESET/EQ RS2640 INSTRUMENT ASSEMBLY RS2640 55858360 0252 245153 MAGNET CD MECH RS2640 20495830 0300 267087 BUTTON VOLUME RING RS2640 INSTRUMENT ASSEMBLY RS2640 55858370 0310 267088 DOOR RING CASS RS2640 INSTRUMENT ASSEMBLY RS2640 55858380 0320 257285 GEAR BOSS SUPPORT METAL CD MECH RS2640 55189250 0320 267089 DOOR CASS ROUND RS2640 INSTRUMENT ASSEMBLY RS2640 55858860 0322 N/S/P WASHER 3.2MM 7MM 0.5MM 3 00 0 A4 CD MECH RS2640 55218810 0330 267099 COVER CASS ROUND RS2640 INSTRUMENT ASSEMBLY RS2640 55858410 0373 253167 BRACKET CD MECH RS2640 20979820 0380 N/S/P SCREW-ST 3MM 10MM JIS B 1122 25 0 0 CD MECH RS2640 20692310 0385 N/S/P SCREW-ST 3MM 8.0MM JIS B 1122 53 0 0 CD MECH RS2640 20656110 0390 260304 WASHER METAL CD MECH RS2640 21014110 0401 248367 PAD NON-METAL FRICTION CD MECH RS2640 55028010 0410 265151 CRYSTAL WITH RCA LOGO INSTRUMENT ASSEMBLY RS2640 55841590 0420 267100 CRYSTAL DISPLAY RS2640 INSTRUMENT ASSEMBLY RS2640 55858450 0420 253169 RUBBER STOPPER CD MECH RS2640 21014050 0430 265154 CD DOOR INSERT INSTRUMENT ASSEMBLY RS2640 55858470 0440 267101 CRYSTAL CONTROL PANEL RS2640 INSTRUMENT ASSEMBLY RS2640 55858490 0460 261321 BUFFER 8.0X4.8X2.5 CD MECH RS2640 55020030 0460 265141 HOLDER CASS DOOR INSTRUMENT ASSEMBLY RS2640 55923540 0470 265147 MLD CASSETTE BOARD STANDOFF INSTRUMENT ASSEMBLY RS2640 55851210 0480 249224 FOOT RUBBER SQUARE 4.8X11 MM CD MECH RS2640 55074620 0485 261436 BRACKET PRESS CASS INSTRUMENT ASSEMBLY RS2640 55535880 0500 253170 SPRING,PRESSURE 4TURNS 10 MM H CD MECH RS2640 55105210 0510 261293 SPRING CASS INSTRUMENT ASSEMBLY RS2640 55122110 0525 265237 BUSHING AC PLASTIC INSTRUMENT ASSEMBLY RS2640 55055160
Page 1 of 11
Page 31
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
0530 252829 FOOT RUBBER INSTRUMENT ASSEMBLY RS2640 55111450 0540 261298 FOOT CAB BOTTOM INSTRUMENT ASSEMBLY RS2640 55591880 0560 267102 COVER FAN RS2640 INSTRUMENT ASSEMBLY RS2640 55858970 0600 267103 GEAR DAMPER INSTRUMENT ASSEMBLY RS2640 5591059A 0750 267104 SCREW 3MM 10MM LARGE WASHER INSTRUMENT ASSEMBLY RS2640 20366370 0915 267105 SPRING WASHER RS2640 INSTRUMENT ASSEMBLY RS2640 55168690 0930 261438 BRACKET MAINT BD2# INSTRUMENT ASSEMBLY RS2640 55535860 0940 249892 CLAMP AC CORD INSTRUMENT ASSEMBLY RS2640 20682770 AANT 255415 ANTENNA AND HOLDER AM INSTRUMENT ASSEMBLY RS2640 55115970 AC CRD 267071 WIRE BARE 22 POWER AMP PCB RS2640 S 55920140 C001 157199 CAPCD 22PF J NP0 50V DVD ASSEMBLY RS2640 80434590 C001 256816 CAP CC 33PF 50V NPO MAIN CBA RS2640 20506560 C002 260952 CAP CC 100NF 10% 25V Y5R DVD ASSEMBLY RS2640 20246950 C003 157199 CAPCD 22PF J NP0 50V DVD ASSEMBLY RS2640 80434590 C003 256816 CAP CC 33PF 50V NPO MAIN CBA RS2640 20506560 C004 256816 CAP CC 33PF 50V NPO MAIN CBA RS2640 20506560 C004 260952 CAP CC 100NF 10% 25V Y5R DVD ASSEMBLY RS2640 20246950 C005 260634 CAP LYTC 470UF +20% 16.0V 85C DVD ASSEMBLY RS2640 20718370 C006 240934 CAPCD .01UF K Y5P 50V DVD ASSEMBLY RS2640 70428520 C007 249349 CE 4.7UF 20% 50V 85C MAIN CBA RS2640 20268870 C008 249340 CAPCE 100U0F 20% 10V 85C MAIN CBA RS2640 20268940 C010 256817 CAP CC 47PF 50V NPO MAIN CBA RS2640 20506570 C011 256770 CAP CC 100PF +10% -10% 50V NPO MAIN CBA RS2640 10137380 C012 200538 CAPCC 15PF J NPO 50V MAIN CBA RS2640 20468940 C013 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C014 256827 CAP CC .47UF 10V Y5V MAIN CBA RS2640 21022740 C015 260668 CAP POLY 100NF +10% 50V MAIN CBA RS2640 20266460 C016 256827 CAP CC .47UF 10V Y5V MAIN CBA RS2640 21022740 C019 260615 CAPCC 1UF +80% -20% 10V MAIN CBA RS2640 20811460 C020 253714 CAPCC 470PF 5% 50V MAIN CBA RS2640 20506680 C021 256814 CAPCC 22PF +5% -5% 50V NPO MAIN CBA RS2640 20506520 C022 256827 CAP CC .47UF 10V Y5V MAIN CBA RS2640 21022740 C023 256827 CAP CC .47UF 10V Y5V MAIN CBA RS2640 21022740 C024 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C025 256775 CAP CC .01UF K X7R 50V MAIN CBA RS2640 10138960 C026 256775 CAP CC .01UF K X7R 50V MAIN CBA RS2640 10138960 C027 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C028 256770 CAP CC 100PF +10% -10% 50V NPO MAIN CBA RS2640 10137380 C029 243464 CAPCC 15PF 5% 50V MAIN CBA RS2640 20678050 C030 256827 CAP CC .47UF 10V Y5V MAIN CBA RS2640 21022740 C031 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C032 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C033 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C034 260924 CAP LYTC 33UF +20% 25V 85C MAIN CBA RS2640 20247150 C035 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C036 260933 CAPCC 12PF 20% 50V MAIN CBA RS2640 10137170 C041 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C043 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C045 256817 CAP CC 47PF 50V NPO MAIN CBA RS2640 20506570 C046 253714 CAPCC 470PF 5% 50V MAIN CBA RS2640 20506680 C047 256817 CAP CC 47PF 50V NPO MAIN CBA RS2640 20506570 C050 260636 CAP POLY 100NF +10% 50.0V MAIN CBA RS2640 20936070 C060 256816 CAP CC 33PF 50V NPO MAIN CBA RS2640 20506560 C061 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C062 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C099 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C300 249340 CAPCE 100U0F 20% 10V 85C CASSETTE CIRCUIT RS2640 20268940 C301 260929 CAP POLY 33NF +5% 50V CASSETTE CIRCUIT RS2640 20266410 C301L 265127 CAP POLY 1800PF +5% 50.0V CASSETTE CIRCUIT RS2640 20351650 C301R 265127 CAP POLY 1800PF +5% 50.0V CASSETTE CIRCUIT RS2640 20351650 C302 260927 CAP POLY 6.8NF +10% 50V CASSETTE CIRCUIT RS2640 20266280 C302L 260668 CAP POLY 100NF +10% 50V CASSETTE CIRCUIT RS2640 20266460 C302R 260668 CAP POLY 100NF +10% 50V CASSETTE CIRCUIT RS2640 20266460 C303 260928 CAP POLY 68NF +10% 50V CASSETTE CIRCUIT RS2640 20266570 C303L 249340 CAPCE 100U0F 20% 10V 85C CASSETTE CIRCUIT RS2640 20268940 C303R 249340 CAPCE 100U0F 20% 10V 85C CASSETTE CIRCUIT RS2640 20268940 C304 189981 CAP LYTC 10UF M 50V CASSETTE CIRCUIT RS2640 20268880 C304L 189981 CAP LYTC 10UF M 50V CASSETTE CIRCUIT RS2640 20268880 C304R 189981 CAP LYTC 10UF M 50V CASSETTE CIRCUIT RS2640 20268880 C305 260926 CAP LYTC 22UF +20% 25V 85C CASSETTE CIRCUIT RS2640 20268890 C305L 262520 CAPCD 220PF K Z5P 50V CASSETTE CIRCUIT RS2640 70428370 C305R 262520 CAPCD 220PF K Z5P 50V CASSETTE CIRCUIT RS2640 70428370 C306 249340 CAPCE 100U0F 20% 10V 85C CASSETTE CIRCUIT RS2640 20268940 C306L 265126 CAP POLY .047UF +5% 50.0V CASSETTE CIRCUIT RS2640 20266440 C306R 265126 CAP POLY .047UF +5% 50.0V CASSETTE CIRCUIT RS2640 20266440 C308L 194673 CAP LYTC 1UF M 50V CASSETTE CIRCUIT RS2640 20268840 C308R 194673 CAP LYTC 1UF M 50V CASSETTE CIRCUIT RS2640 20268840 C309L 143881 CAPCD 2200PF K Z5P 50V CASSETTE CIRCUIT RS2640 11055540 C309R 143881 CAPCD 2200PF K Z5P 50V CASSETTE CIRCUIT RS2640 11055540 C400 249340 CAPCE 100U0F 20% 10V 85C MAIN CBA RS2640 20268940
Page 2 of 11
Page 32
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
C400L 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C400R 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C401L 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C401R 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C402 256770 CAP CC 100PF +10% -10% 50V NPO MAIN CBA RS2640 10137380 C402L 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C402R 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C403 256770 CAP CC 100PF +10% -10% 50V NPO MAIN CBA RS2640 10137380 C404L 260935 CAPCC 5.6NF 10% 50V XR MAIN CBA RS2640 10138730 C404R 260935 CAPCC 5.6NF 10% 50V XR MAIN CBA RS2640 10138730 C407L 262523 CAP CC 150NF 10% 16V MAIN CBA RS2640 20797500 C407R 262523 CAP CC 150NF 10% 16V MAIN CBA RS2640 20797500 C408L 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C408R 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C409L 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C409R 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C410 260930 CAP LYTC 47UF +20% 25V 85C MAIN CBA RS2640 20268910 C410L 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C410R 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C411 249352 CAPLYTC 220UF 20% 16V 85C MAIN CBA RS2640 20252650 C412 237535 CE 22U0F +20% 100V 85C MAIN CBA RS2640 13074800 C414L 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C414R 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C420 249339 CAPCE 7UF +20% 10V 85C MAIN CBA RS2640 20268930 C430 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C453L 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C453R 260659 CAP LYTC 2.2FU +20% 50V 85C MAIN CBA RS2640 20268850 C501L 260938 CAPCC 5PF 10% 50V MAIN CBA RS2640 20719320 C501R 260938 CAPCC 5PF 10% 50V MAIN CBA RS2640 20719320 C502 256770 CAP CC 100PF +10% -10% 50V NPO MAIN CBA RS2640 10137380 C502L 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C502R 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C503 260930 CAP LYTC 47UF +20% 25V 85C MAIN CBA RS2640 20268910 C505L 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C505R 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C507L 253714 CAPCC 470PF 5% 50V MAIN CBA RS2640 20506680 C507R 253714 CAPCC 470PF 5% 50V MAIN CBA RS2640 20506680 C509L 260930 CAP LYTC 47UF +20% 25V 85C MAIN CBA RS2640 20268910 C509R 260930 CAP LYTC 47UF +20% 25V 85C MAIN CBA RS2640 20268910 C512 267091 CAP 4.7MF +20% 50.0V 85C MAIN CBA RS2640 S 55854010 C513 267091 CAP 4.7MF +20% 50.0V 85C MAIN CBA RS2640 S 55854010 C514 260637 CAP LYTC 2200UF 25.0V 85C MAIN CBA RS2640 13048060 C515 260926 CAP LYTC 22UF +20% 25V 85C MAIN CBA RS2640 20268890 C516 260926 CAP LYTC 22UF +20% 25V 85C MAIN CBA RS2640 20268890 C518 202011 CAP POLY .1UF J 63V MAIN CBA RS2640 20780350 C518L 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C518R 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C520 202011 CAP POLY .1UF J 63V MAIN CBA RS2640 20780350 C521L 267075 CPM 330N0F +5% 50.0V MAIN CBA RS2640 13087290 C521R 267075 CPM 330N0F +5% 50.0V MAIN CBA RS2640 13087290 C522L 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C522R 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C523 260952 CAP CC 100NF 10% 25V Y5R MAIN CBA RS2640 20246950 C524 202011 CAP POLY .1UF J 63V MAIN CBA RS2640 20780350 C533 202011 CAP POLY .1UF J 63V MAIN CBA RS2640 20780350 C534 189981 CAP LYTC 10UF M 50V MAIN CBA RS2640 20268880 C535 189981 CAP LYTC 10UF M 50V MAIN CBA RS2640 20268880 C537 260926 CAP LYTC 22UF +20% 25V 85C MAIN CBA RS2640 20268890 C538 260926 CAP LYTC 22UF +20% 25V 85C MAIN CBA RS2640 20268890 C539 249823 CAPLYTC 100UF 20% 50V 85C MAIN CBA RS2640 13074540 C540 249823 CAPLYTC 100UF 20% 50V 85C MAIN CBA RS2640 13074540 C600 260670 CAP LYTC 470UF +20% 10V 85C MAIN CBA RS2640 20252670 C604L 260926 CAP LYTC 22UF +20% 25V 85C MAIN CBA RS2640 20268890 C604R 260926 CAP LYTC 22UF +20% 25V 85C MAIN CBA RS2640 20268890 C605L 249340 CAPCE 100U0F 20% 10V 85C MAIN CBA RS2640 20268940 C605R 249340 CAPCE 100U0F 20% 10V 85C MAIN CBA RS2640 20268940 C611L 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C611R 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C701 249339 CAPCE 7UF +20% 10V 85C MAIN CBA RS2640 20268930 C702 249340 CAPCE 100U0F 20% 10V 85C MAIN CBA RS2640 20268940 C704 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C705 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C705A 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C706 260670 CAP LYTC 470UF +20% 10V 85C MAIN CBA RS2640 20252670 C707 256811 CAPCC .047UF 50V Y5V MAIN CBA RS2640 20288010 C708 256811 CAPCC .047UF 50V Y5V MAIN CBA RS2640 20288010 C711 256816 CAP CC 33PF 50V NPO MAIN CBA RS2640 20506560 C712 256816 CAP CC 33PF 50V NPO MAIN CBA RS2640 20506560 C713 194673 CAP LYTC 1UF M 50V MAIN CBA RS2640 20268840 C714 256814 CAPCC 22PF +5% -5% 50V NPO MAIN CBA RS2640 20506520
Page 3 of 11
Page 33
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
C715 256814 CAPCC 22PF +5% -5% 50V NPO MAIN CBA RS2640 20506520 C721 256811 CAPCC .047UF 50V Y5V MAIN CBA RS2640 20288010 C725 256818 CAP CC 100PF 50V NPO MAIN CBA RS2640 20506590 C726 256818 CAP CC 100PF 50V NPO MAIN CBA RS2640 20506590 C730 249339 CAPCE 7UF +20% 10V 85C MAIN CBA RS2640 20268930 C750 256811 CAPCC .047UF 50V Y5V MAIN CBA RS2640 20288010 C751 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C753 260642 CAPCC 100NF +80% -20% 16V Y5V MAIN CBA RS2640 20288040 C755 253796 CAPCC .1UF 10% 16V MAIN CBA RS2640 20947390 C790 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C791 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C792 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C793 249336 CAPCC 1NF 10% 50V X7R MAIN CBA RS2640 10138550 C805 249823 CAPLYTC 100UF 20% 50V 85C MAIN CBA RS2640 13074540 C806 249823 CAPLYTC 100UF 20% 50V 85C MAIN CBA RS2640 13074540 C807 267090 CAP 100NF +80% -20% 50V Y5V MAIN CBA RS2640 20267290 C901 194673 CAP LYTC 1UF M 50V CASSETTE CIRCUIT RS2640 20268840 CD 267107 CD ASSY CDM5B(TCM135-2) INSTRUMENT ASSEMBLY RS2640 55842030 CD MEC 267112 CD MECHANISM CD MECH RS2640 55843210 CDMOD 267145 CDM5B CD MECH TCM-135 INSTRUMENT ASSEMBLY RS2640 55947050 CIRC 267106 SINGLE MECH-DECK TAPE MODULE INSTRUMENT ASSEMBLY RS2640 55831120 CIRC 267076 PCB CDM5B DRIVER BD RS2640 DVD ASSEMBLY RS2640 55069430 CS B 267085 BUTTON 13KEYS+RING FRONT P INSTRUMENT ASSEMBLY RS2640 55858340 CS B 267079 BUTTON CASS STOP/EJECT INSTRUMENT ASSEMBLY RS2640 55555620 CS B 267080 BUTTON CASS PLAY RS2640 INSTRUMENT ASSEMBLY RS2640 55562840 CS B 267081 BUTTON CASS RECORD RS2640 INSTRUMENT ASSEMBLY RS2640 55858220 CS B 267082 BUTTON CASS REWIND RS2640 INSTRUMENT ASSEMBLY RS2640 55858240 CS B 267083 BUTTON CASS FFWD RS2640 INSTRUMENT ASSEMBLY RS2640 55858260 CS B 267084 BUTTON CASS PAUSE RS2640 INSTRUMENT ASSEMBLY RS2640 55858280 CV001 260944 CAP TRIM 3PF 11.0F 100 N450 MAIN CBA RS2640 20969010 CV002 260944 CAP TRIM 3PF 11.0F 100 N450 MAIN CBA RS2640 20969010 CY03 195922 CAPCC 330PF 10% 50V MAIN CBA RS2640 10138480 D001 246124 DIODE SVC201SPA MAIN CBA RS2640 20677870 D001 246515 DIODE ZENER 0.5W Z5V6 DVD ASSEMBLY RS2640 20414280 D002 246124 DIODE SVC201SPA MAIN CBA RS2640 20677870 D002 246343 DIODE ZENER 6.8V 1/2W IN5235B DVD ASSEMBLY RS2640 20526990 D003 260293 DIODE SLPVC KV1270NT 16.0V MAIN CBA RS2640 55235610 D003 252773 DIODE SVC348 16.0V MAIN CBA RS2640 55104590 D003 257370 DIODE 1N4002 100.0V 1A DVD ASSEMBLY RS2640 20415050 D004 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D004 257370 DIODE 1N4002 100.0V 1A DVD ASSEMBLY RS2640 20415050 D005 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D401 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D402 248145 DIODE ZENER 7.5V 1/2W BZX55C7V MAIN CBA RS2640 80444150 D501 248140 DIODE ZENER 5.1V 1/2W 1N5231B MAIN CBA RS2640 20526960 D502L 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D502R 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D503 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D504 261441 D-ZENER 1N5221B 2.4V 1/2W MAIN CBA RS2640 20845050 D505 249217 DIODE 1N5402 200.0V 3.0A MAIN CBA RS2640 55041640 D506 249217 DIODE 1N5402 200.0V 3.0A MAIN CBA RS2640 55041640 D507 249217 DIODE 1N5402 200.0V 3.0A MAIN CBA RS2640 55041640 D508 249217 DIODE 1N5402 200.0V 3.0A MAIN CBA RS2640 55041640 D509 198597 DIODE 1N4001 MAIN CBA RS2640 20454670 D510 198597 DIODE 1N4001 MAIN CBA RS2640 20454670 D511 198597 DIODE 1N4001 MAIN CBA RS2640 20454670 D512 198597 DIODE 1N4001 MAIN CBA RS2640 20454670 D513 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D515 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D516 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D701 223783 DIODE ZENER 6.2V .5W MAIN CBA RS2640 20475410 D702 223783 DIODE ZENER 6.2V .5W MAIN CBA RS2640 20475410 D703 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D704 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D712 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D715 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D716 246244 DIODE LED MAIN CBA RS2640 20971500 D718 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D721 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D730 198589 DIODE 1N4148 MAIN CBA RS2640 70436540 D819 248145 DIODE ZENER 7.5V 1/2W BZX55C7V MAIN CBA RS2640 80444150 D820 257133 DIODE ZENER BZX85C27 27V 1.3W MAIN CBA RS2640 S 20741600 D821 198597 DIODE 1N4001 MAIN CBA RS2640 20454670 D822 198597 DIODE 1N4001 MAIN CBA RS2640 20454670 DECK 267111 CASSETTE DECK ASSEMBLY INSTRUMENT ASSEMBLY RS2640 5584148A F503 246839 FUSE SB 5A/125V POWER AMP PCB RS2640 S 20828880 F504 246839 FUSE SB 5A/125V POWER AMP PCB RS2640 S 20828880 FAN 262981 FAN POWER AMP PCB RS2640 S 55634450 FANT NONSTK WIRE JUMPER INSTRUMENT ASSEMBLY RS2640 55380950 FH503 252836 HOLDER FUSE MAIN CBA RS2640 55017140
Page 4 of 11
Page 34
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
FH504 252836 HOLDER FUSE MAIN CBA RS2640 55017140 IC001 217386 IC LB1641 DVD ASSEMBLY RS2640 S 20656300 IC001 251852 IC FAN8082 DVD ASSEMBLY RS2640 S 55116380 IC001 252771 IC TEA5757H AM/FM REC MAIN CBA RS2640 20955120 IC002 251852 IC FAN8082 DVD ASSEMBLY RS2640 S 55116380 IC002 217386 IC LB1641 DVD ASSEMBLY RS2640 S 20656300 IC300 265124 IC, POWER AMP UTC7312 CASSETTE CIRCUIT RS2640 55827080 IC300 265124 IC, POWER AMP UTC7312 MAIN CBA RS2640 55827080 IC401 252772 IC TDA7440D AUDIO MAIN CBA RS2640 55097860 IC501 261309 IC-POWAMP TDA7293 POWER AMP PCB RS2640 55512880 IC502 261309 IC-POWAMP TDA7293 POWER AMP PCB RS2640 55512880 IC503 251567 IC KIA7812API POWER AMP PCB RS2640 55094390 IC701 261444 IC - UPD780205AGF-018-38A MAIN CBA RS2640 55547820 IR701 265123 IC, REMOTE RECEIVER MAIN CBA RS2640 55488350 J101 NONSTK WIRE JUMPER CASSETTE CIRCUIT RS2640 55210010 J101 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J102 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J102 NONSTK WIRE JUMPER CASSETTE CIRCUIT RS2640 55210010 J103 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J104 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J105 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J106 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J107 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J108 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J109 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J110 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J111 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J112 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J113 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J114 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J115 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J116 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J117 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J118 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J119 NONSTK WIRE JUMPER CASSETTE CIRCUIT RS2640 55210010 J119 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J120 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J121 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J122 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J123 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J124 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J125 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J126 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J127 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J128 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J129 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 J201 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J202 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J203 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J204 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J205 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J206 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J207 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J208 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J209 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J210 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J211 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J212 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J213 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J214 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J215 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J216 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J217 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J218 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J219 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J220 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J221 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J222 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J224 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J225 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J226 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J227 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J228 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J229 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J230 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J231 NONSTK WIRE JUMPER MAIN CBA RS2640 20329200 J301 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J301 NONSTK WIRE JUMPER CASSETTE CIRCUIT RS2640 20181860 J302 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J303 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860
Page 5 of 11
Page 35
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
J304 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J305 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J306 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J307 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J308 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J309 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J310 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J311 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J312 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J313 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J314 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J315 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J316 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J317 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J318 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J319 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J320 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J321 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J322 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J323 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J324 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J325 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J326 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J327 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J328 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J329 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J330 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J331 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J332 NONSTK WIRE JUMPER MAIN CBA RS2640 20181860 J401 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J402 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J403 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J404 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J405 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J406 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J407 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J408 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J409 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J410 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J411 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J412 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J413 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J414 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J415 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J416 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J417 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J418 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J419 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J420 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J421 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J422 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J423 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J424 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J425 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J426 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J427 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J428 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J429 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J430 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 J501 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J502 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J503 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J504 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J505 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J506 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J507 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J508 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J509 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J510 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J511 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J512 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J513 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J514 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J515 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J516 NONSTK WIRE JUMPER MAIN CBA RS2640 20181870 J601 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J602 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J603 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J604 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J605 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320
Page 6 of 11
Page 36
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
J606 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J607 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J608 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J609 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J610 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J611 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J612 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J613 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J614 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J615 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J616 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J617 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J618 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J619 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J620 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J621 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J622 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J623 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J624 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J625 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J626 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 J627 NONSTK WIRE JUMPER MAIN CBA RS2640 20637320 JA001 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20535600 JA002 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20535600 JB001 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20329200 JB002 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20329200 JB003 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20329200 JB004 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20329200 JB006 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20329200 JC002 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181860 JD001 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20329290 JE001 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20637320 JE002 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE003 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE004 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE005 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE006 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE007 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE008 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JE009 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20181870 JP02 256783 RES CMF 0 OHM 0% 1/16W MAIN CBA RS2640 10328750 L001 260945 COIL AIR 0.812MM 4.0MM 4.5 R MAIN CBA RS2640 20289390 L001 261319 COIL LF 39UH 10% 1.5A DVD ASSEMBLY RS2640 55326960 L003 262528 COIL AIR MAIN CBA RS2640 55156120 L004 260947 COIL AIR .85MM 4.5MM 2.5 LEFT MAIN CBA RS2640 55109060 L007 190729 COIL 47UH MAIN CBA RS2640 30944670 L301 175411 COIL 220UH CASSETTE CIRCUIT RS2640 40438480 L301 175411 COIL 220UH MAIN CBA RS2640 40438480 L302 261449 COIL LF 470UH +5% 7.7 OHM CASSETTE CIRCUIT RS2640 13080530 L302 261449 COIL LF 470UH +5% 7.7 OHM MAIN CBA RS2640 13080530 L303 261449 COIL LF 470UH +5% 7.7 OHM MAIN CBA RS2640 13080530 L303 261449 COIL LF 470UH +5% 7.7 OHM CASSETTE CIRCUIT RS2640 13080530 L501L 250600 COIL AIR 1MM 10MM 7 TURNS MAIN CBA RS2640 21070690 L501R 250600 COIL AIR 1MM 10MM 7 TURNS MAIN CBA RS2640 21070690 L602 NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 L602L NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 L602R NONSTK WIRE JUMPER MAIN CBA RS2640 20329290 L701 160186 COIL 100UH MAIN CBA RS2640 30944680 N002 249907 CONNECTOR 2.5MM 2 MA MAIN CBA RS2640 S 20366830 N005 248206 CONN 2.0MM 9 MA DVD ASSEMBLY RS2640 20368920 N006 255420 CABLE, 3P 220MM DVD ASSEMBLY RS2640 20365440 N300 253190 CONNECTOR 4P MAIN CBA RS2640 55109170 N300 253190 CONNECTOR 4P CASSETTE CIRCUIT RS2640 55109170 N301 265134 CONNECTORS, 10 PIN CASSETTE CIRCUIT RS2640 20368810 N301 265134 CONNECTORS, 10 PIN MAIN CBA RS2640 20368810 N302 253190 CONNECTOR 4P CASSETTE CIRCUIT RS2640 55109170 N302 253190 CONNECTOR 4P MAIN CBA RS2640 55109170 N501 265218 CONNECTOR, 2-PIN MAIN CBA RS2640 55078300 N516 248203 CONN 2.5MM 3P MAIN CBA RS2640 20368290 N601 265131 CONNECTOR, 4 PIN MAIN CBA RS2640 20368280 N701 267093 CONNECTOR 6PIN MAIN CBA RS2640 20368740 N702 267094 CONNECTOR 2.5MM 9PIN MAIN CBA RS2640 20368840 N801B 265130 CONNECTOR, 5 PIN MAIN CBA RS2640 55123640 NJ501 248096 CONNECTOR SPEAKER 4X MAIN CBA RS2640 20604680 NJ503 248103 3.5MM PHONE JACK MAIN CBA RS2640 20369030 NJ504 262244 CON PHONO SCKT RCA 2 PINS MAIN CBA RS2640 5554881A P002 265132 CONNECTOR, 3 PIN DVD ASSEMBLY RS2640 20368710 P003 265135 CONNECTOR, 6 PIN DVD ASSEMBLY RS2640 20683150 P004 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20818500 P006 265132 CONNECTOR, 3 PIN DVD ASSEMBLY RS2640 20368710
Page 7 of 11
Page 37
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
P007 249907 CONNECTOR 2.5MM 2 MA DVD ASSEMBLY RS2640 S 20366830 P008 265128 CONNECTOR, 8 PIN DVD ASSEMBLY RS2640 20368720 P009 265129 CONNECTOR, 7 PIN DVD ASSEMBLY RS2640 20366610 P026 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20818500 P027 252838 CABLE 6 PIN DVD ASSEMBLY RS2640 55089690 P101 257276 CABLE 2P 360MM MAIN CBA RS2640 20364270 P300 267113 RIBBON CABLE CASSETTE CIRCUIT RS2640 55843050 P301 267095 CABLE 10 PIN 250MM MAIN CBA RS2640 20685000 P302 267114 RIBBON CABLE CASSETTE CIRCUIT RS2640 55843040 P401 257347 CABLE 3P 350MM MAIN CBA RS2640 55092650 P516 257204 CABLE 3P 280MM MAIN CBA RS2640 20368990 P601 262529 CABLE 4P 100MM MAIN CBA RS2640 20365490 P701 267096 CABLE 6 PIN 220MM MAIN CBA RS2640 20862510 P702 267092 CABLE RIBBON MAIN CBA RS2640 S 55009710 P705 257341 CABLE 7P 200MM MAIN CBA RS2640 20939490 P706 257342 CABLE 8P 200MM MAIN CBA RS2640 55075100 PI001 250652 DIODE-PHOTO RPI-576 DVD ASSEMBLY RS2640 55098050 PI002 250652 DIODE-PHOTO RPI-576 DVD ASSEMBLY RS2640 55098050 PI003 238359 DIODE PHOTO RPI-574 DVD ASSEMBLY RS2640 20586840 PI004 251851 DIODE TYPE ITR2002 DVD ASSEMBLY RS2640 5508631A PI005 250652 DIODE-PHOTO RPI-576 DVD ASSEMBLY RS2640 55098050 PI006 250652 DIODE-PHOTO RPI-576 DVD ASSEMBLY RS2640 55098050 Q301 253887 TRANSISTOR KTC3203Y CASSETTE CIRCUIT RS2640 20538220 Q302 250627 TRANSISTOR KTA1271Y CASSETTE CIRCUIT RS2640 20685080 Q303 248202 TRANSISTOR 2SC1815Y CASSETTE CIRCUIT RS2640 20508030 Q401 253887 TRANSISTOR KTC3203Y MAIN CBA RS2640 20538220 Q410 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q410L 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q410R 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q501 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q502 250627 TRANSISTOR KTA1271Y MAIN CBA RS2640 20685080 Q503 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q602L 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q602R 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q603L 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q603R 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q701 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q702 253887 TRANSISTOR KTC3203Y MAIN CBA RS2640 20538220 Q703 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q704 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 Q705 248090 TRANSISTOR KTC3875GR MAIN CBA RS2640 20779850 R001 NONSTK WIRE JUMPER DVD ASSEMBLY RS2640 20535600 R002 210245 RES CF 1/4W 5% 100R DVD ASSEMBLY RS2640 50882950 R003 248167 RES CFF 2.2R 5% 1/4W DVD ASSEMBLY RS2640 S 20549430 R004 248167 RES CFF 2.2R 5% 1/4W DVD ASSEMBLY RS2640 S 20549430 R005 260685 RES CMF 56R +5% 1/16W MAIN CBA RS2640 10134680 R005 210245 RES CF 1/4W 5% 100R DVD ASSEMBLY RS2640 50882950 R006 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R006 253139 RES CF 150R 5% 1/4W DVD ASSEMBLY RS2640 50882960 R007 179297 RES CF 1/2W 5% 68R DVD ASSEMBLY RS2640 20469670 R007 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R008 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R009 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R010 256761 RES CMF 2.2K OHM 5% 1/16W MAIN CBA RS2640 10135860 R011 256751 RES CMF 68K OHM 5% 1/16W MAIN CBA RS2640 10135290 R013 256757 RES CMF 220K OHM 5% 1/16W MAIN CBA RS2640 10135420 R014 256757 RES CMF 220K OHM 5% 1/16W MAIN CBA RS2640 10135420 R015 256761 RES CMF 2.2K OHM 5% 1/16W MAIN CBA RS2640 10135860 R017 256768 RES CMF 8.2K OHM 5% 1/16W MAIN CBA RS2640 10136000 R021 256768 RES CMF 8.2K OHM 5% 1/16W MAIN CBA RS2640 10136000 R030 256730 RES CMF 100 OHM 5% 1/16W MAIN CBA RS2640 10134740 R031 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R034 256725 RES CMF 22 OHM +5% 1/16W MAIN CBA RS2640 10134540 R035 256744 RES CMF 18K OHM 5% 1/16W MAIN CBA RS2640 10135080 R036 256756 RES CMF 150K OHM 5% 1/16W MAIN CBA RS2640 10135380 R045 256737 RES CMF 470 OHM 5% 1/16W MAIN CBA RS2640 10134910 R046 256737 RES CMF 470 OHM 5% 1/16W MAIN CBA RS2640 10134910 R047 256737 RES CMF 470 OHM 5% 1/16W MAIN CBA RS2640 10134910 R097 256730 RES CMF 100 OHM 5% 1/16W MAIN CBA RS2640 10134740 R300 175324 RES CF 1/4W 5% 220R CASSETTE CIRCUIT RS2640 20469450 R301 176801 RES CF 1/4W 5% 56K CASSETTE CIRCUIT RS2640 11059710 R301L 240936 RES CF 1/4W 5% 12K CASSETTE CIRCUIT RS2640 90571120 R301R 240936 RES CF 1/4W 5% 12K CASSETTE CIRCUIT RS2640 90571120 R302 175322 RES CF 1/4W 5% 47K CASSETTE CIRCUIT RS2640 40435670 R302L 175317 RES CF 1/4W 5% 10K CASSETTE CIRCUIT RS2640 30939480 R302R 175317 RES CF 1/4W 5% 10K CASSETTE CIRCUIT RS2640 30939480 R303L 265122 RES CF 7.5 OHMS 1/4 WATT CASSETTE CIRCUIT RS2640 55223890 R303R 265122 RES CF 7.5 OHMS 1/4 WATT CASSETTE CIRCUIT RS2640 55223890 R304 175361 RES CF 1/4W 5% 120R CASSETTE CIRCUIT RS2640 11059600 R304L 175308 RES CF 1/4W 5% 1.2K CASSETTE CIRCUIT RS2640 80437000
Page 8 of 11
Page 38
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
R304R 175308 RES CF 1/4W 5% 1.2K CASSETTE CIRCUIT RS2640 80437000 R305 175054 RES CF 1/4W 5% 22K CASSETTE CIRCUIT RS2640 60441580 R305L 175314 RES CF 1/4W 5% 33K CASSETTE CIRCUIT RS2640 30939490 R305R 175314 RES CF 1/4W 5% 33K CASSETTE CIRCUIT RS2640 30939490 R306 175317 RES CF 1/4W 5% 10K CASSETTE CIRCUIT RS2640 30939480 R306L 202069 RES CF 1/4W 5% 1K CASSETTE CIRCUIT RS2640 11059640 R306R 202069 RES CF 1/4W 5% 1K CASSETTE CIRCUIT RS2640 11059640 R307 175317 RES CF 1/4W 5% 10K CASSETTE CIRCUIT RS2640 30939480 R307L 239019 RES CF 1/4W 5% 220K CASSETTE CIRCUIT RS2640 30939530 R307R 239019 RES CF 1/4W 5% 220K CASSETTE CIRCUIT RS2640 30939530 R308 175317 RES CF 1/4W 5% 10K CASSETTE CIRCUIT RS2640 30939480 R309 175324 RES CF 1/4W 5% 220R CASSETTE CIRCUIT RS2640 20469450 R310 175317 RES CF 1/4W 5% 10K CASSETTE CIRCUIT RS2640 30939480 R315L 175047 RCF 5K6 OHM +5% 250MI0W CASSETTE CIRCUIT RS2640 70430560 R315R 175047 RCF 5K6 OHM +5% 250MI0W CASSETTE CIRCUIT RS2640 70430560 R316L 175047 RCF 5K6 OHM +5% 250MI0W CASSETTE CIRCUIT RS2640 70430560 R316R 175047 RCF 5K6 OHM +5% 250MI0W CASSETTE CIRCUIT RS2640 70430560 R401 175769 RES CF 1/2W 5% 390R MAIN CBA RS2640 70430860 R401L 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R401R 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R402L 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R402R 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R403L 256765 RES CMF 5.6K OHM 5% 1/16W MAIN CBA RS2640 10135960 R403R 256765 RES CMF 5.6K OHM 5% 1/16W MAIN CBA RS2640 10135960 R407 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R408 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R410 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R410L 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R410R 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R411 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R412 175317 RES CF 1/4W 5% 10K MAIN CBA RS2640 30939480 R413L 244090 RES CMF 7.5K 5% 1/10W MAIN CBA RS2640 10135990 R413R 244090 RES CMF 7.5K 5% 1/10W MAIN CBA RS2640 10135990 R414L 256764 RES CMF 3.3K OHM 5% 1/16W MAIN CBA RS2640 10135900 R414R 256764 RES CMF 3.3K OHM 5% 1/16W MAIN CBA RS2640 10135900 R420 260685 RES CMF 56R +5% 1/16W MAIN CBA RS2640 10134680 R501L 256748 RES CMF 33K OHM 5% 1/16W MAIN CBA RS2640 10135170 R501R 256748 RES CMF 33K OHM 5% 1/16W MAIN CBA RS2640 10135170 R502 256737 RES CMF 470 OHM 5% 1/16W MAIN CBA RS2640 10134910 R502L 256748 RES CMF 33K OHM 5% 1/16W MAIN CBA RS2640 10135170 R502R 256748 RES CMF 33K OHM 5% 1/16W MAIN CBA RS2640 10135170 R503 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R503L 243486 RES CMF 390 OHMS 5% 1/10W MAIN CBA RS2640 10134890 R503R 243486 RES CMF 390 OHMS 5% 1/10W MAIN CBA RS2640 10134890 R504 202069 RES CF 1/4W 5% 1K MAIN CBA RS2640 11059640 R505 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R506L 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R506R 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R507L 256754 RES CMF 100K OHM 5% 1/16W MAIN CBA RS2640 10135340 R507R 256754 RES CMF 100K OHM 5% 1/16W MAIN CBA RS2640 10135340 R509 220568 RES CF 1/4W 5% 10R MAIN CBA RS2640 30939360 R510 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R510L 220568 RES CF 1/4W 5% 10R MAIN CBA RS2640 30939360 R510R 220568 RES CF 1/4W 5% 10R MAIN CBA RS2640 30939360 R511 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R512 256767 RES CMF 6.8K OHM 5% 1/16W MAIN CBA RS2640 10135980 R512L 261306 RES CMF 4.7 OHM +5% 1/16W MAIN CBA RS2640 20538660 R512R 261306 RES CMF 4.7 OHM +5% 1/16W MAIN CBA RS2640 20538660 R525 256748 RES CMF 33K OHM 5% 1/16W MAIN CBA RS2640 10135170 R527 256783 RES CMF 0 OHM 0% 1/16W MAIN CBA RS2640 10328750 R529 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R530 267073 RESISTOR MAIN CBA RS2640 90571460 R531 267073 RESISTOR MAIN CBA RS2640 90571460 R532 256759 RES CMF 1.5K 5% 1/10W MAIN CBA RS2640 10135820 R600 175040 RES CF 1/4W 5% 47R MAIN CBA RS2640 70430510 R610L 262525 RES CMF 680K 5% 1/6W MAIN CBA RS2640 10135570 R610R 262525 RES CMF 680K 5% 1/6W MAIN CBA RS2640 10135570 R611L 256760 RES CMF 2K OHM 5% 1/16W MAIN CBA RS2640 10135850 R611R 256760 RES CMF 2K OHM 5% 1/16W MAIN CBA RS2640 10135850 R612L 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R612R 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R613L 256942 RES CMF 220 OHM 5% 1/16W MAIN CBA RS2640 10134830 R613R 256942 RES CMF 220 OHM 5% 1/16W MAIN CBA RS2640 10134830 R615L 249039 RES CMF 1.8K 5% 1/10W MAIN CBA RS2640 10135840 R615R 249039 RES CMF 1.8K 5% 1/10W MAIN CBA RS2640 10135840 R616L 176646 RES CF 1/4W 5% 180R MAIN CBA RS2640 60441540 R616R 176646 RES CF 1/4W 5% 180R MAIN CBA RS2640 60441540 R617L 256761 RES CMF 2.2K OHM 5% 1/16W MAIN CBA RS2640 10135860 R617R 256761 RES CMF 2.2K OHM 5% 1/16W MAIN CBA RS2640 10135860 R700 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120
Page 9 of 11
Page 39
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
R701 175312 RES CF 1/4W 5% 680R MAIN CBA RS2640 11059630 R702 256730 RES CMF 100 OHM 5% 1/16W MAIN CBA RS2640 10134740 R703 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R704 256730 RES CMF 100 OHM 5% 1/16W MAIN CBA RS2640 10134740 R705 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R706 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R707 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R708 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R709 256742 RES CMF 12K OHM 5% 1/16W MAIN CBA RS2640 10135030 R710 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R712 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R714 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R716 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R717 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R718 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R725 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R726 256760 RES CMF 2K OHM 5% 1/16W MAIN CBA RS2640 10135850 R728 256762 RES CMF 2.7K OHM 5% 1/16W MAIN CBA RS2640 10135880 R729 256759 RES CMF 1.5K 5% 1/10W MAIN CBA RS2640 10135820 R734 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R735 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R736 256764 RES CMF 3.3K OHM 5% 1/16W MAIN CBA RS2640 10135900 R737 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R739 256751 RES CMF 68K OHM 5% 1/16W MAIN CBA RS2640 10135290 R740 256761 RES CMF 2.2K OHM 5% 1/16W MAIN CBA RS2640 10135860 R741 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R742 256761 RES CMF 2.2K OHM 5% 1/16W MAIN CBA RS2640 10135860 R743 256764 RES CMF 3.3K OHM 5% 1/16W MAIN CBA RS2640 10135900 R744 244090 RES CMF 7.5K 5% 1/10W MAIN CBA RS2640 10135990 R745 256753 RES CMF 82K OHM 5% 1/16W MAIN CBA RS2640 10135320 R746 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R747 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R748 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R749 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R750 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R751 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R752 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R753 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R754 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R755 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R756 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R757 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R759 249041 RES CMF 1.2K 5% 1/10W MAIN CBA RS2640 10135790 R760 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R761 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R762 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R763 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R764 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R765 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R766 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R767 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R768 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R769 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R770 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R771 256746 RES CMF 22K OHM 5% 1/16W MAIN CBA RS2640 10135120 R780 249338 RESMF 47K OHM +5% 62.5MW MAIN CBA RS2640 10135220 R783 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R784 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R786 256735 RES CMF 330 OHM 5% 1/16W MAIN CBA RS2640 10134870 R788 260305 RES CHIP 1K 5% 1/16W MAIN CBA RS2640 10135770 R790 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R791 256760 RES CMF 2K OHM 5% 1/16W MAIN CBA RS2640 10135850 R792 256768 RES CMF 8.2K OHM 5% 1/16W MAIN CBA RS2640 10136000 R793 243375 RES CMF 4.7K 5% 1/10W MAIN CBA RS2640 10135940 R794 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R795 249041 RES CMF 1.2K 5% 1/10W MAIN CBA RS2640 10135790 R796 256759 RES CMF 1.5K 5% 1/10W MAIN CBA RS2640 10135820 R797 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R798 249041 RES CMF 1.2K 5% 1/10W MAIN CBA RS2640 10135790 R799 256759 RES CMF 1.5K 5% 1/10W MAIN CBA RS2640 10135820 R805 256741 RES CMF 10K OHM 5% 1/16W MAIN CBA RS2640 10135010 R881 256435 RES CF 3.3M 10% 1/2W MAIN CBA RS2640 S 55180100 R885 175317 RES CF 1/4W 5% 10K MAIN CBA RS2640 30939480 R886 176651 RES CF 1/2W 5% 220R MAIN CBA RS2640 50883190 R888 186819 RESISTOR 1R 5% 1/4W MAIN CBA RS2640 11067570 R889 NONSTK WIRE JUMPER MAIN CBA RS2640 55210010 REMO 267108 REM301-RS2640 REMOTE INSTRUMENT ASSEMBLY RS2640 55237400 RF505 262527 RES FUSE 1W MAIN CBA RS2640 S 55780020 RV001 257759 RES VAR 47K0 OHM +25% MAIN CBA RS2640 55276190 SPK 267109 MAIN SPEAKER BOX ASSEMBLY INSTRUMENT ASSEMBLY RS2640 55857990
Page 10 of 11
Page 40
RS2640
Symbol Stock Description Circuit Model TypeCode Drawing Notes
SW1 265121 SWITCH, ON/OFF CASSETTE CIRCUIT RS2640 S 55830210 SW1 265121 SWITCH, ON/OFF INSTRUMENT ASSEMBLY RS2640 S 55830210 SW701 245481 SWITCH MAIN CBA RS2640 20404730 SW702 245481 SWITCH MAIN CBA RS2640 20404730 SW703 245481 SWITCH MAIN CBA RS2640 20404730 SW704 245481 SWITCH MAIN CBA RS2640 20404730 SW705 245481 SWITCH MAIN CBA RS2640 20404730 SW706 245481 SWITCH MAIN CBA RS2640 20404730 SW707 245481 SWITCH MAIN CBA RS2640 20404730 SW708 245481 SWITCH MAIN CBA RS2640 20404730 SW709 245481 SWITCH MAIN CBA RS2640 20404730 SW710 245481 SWITCH MAIN CBA RS2640 20404730 SW711 245481 SWITCH MAIN CBA RS2640 20404730 SW712 245481 SWITCH MAIN CBA RS2640 20404730 SW713 245481 SWITCH MAIN CBA RS2640 20404730 SW714 245481 SWITCH MAIN CBA RS2640 20404730 SW715 245481 SWITCH MAIN CBA RS2640 20404730 SW716 245481 SWITCH MAIN CBA RS2640 20404730 SW717 245481 SWITCH MAIN CBA RS2640 20404730 SW718 245481 SWITCH MAIN CBA RS2640 20404730 T001 267072 TF POWER-TRANSFORMER 120V POWER AMP PCB RS2640 S 5551308A TF001 255404 COIL, ADJUSTABLE MAIN CBA RS2640 55103950 TF003 255405 COIL, ADJUSTABLE MAIN CBA RS2640 55103970 TF005 260949 COIL ADJUSTABLE MAIN CBA RS2640 55624150 TF006 255407 COIL, ADJUSTABLE MAIN CBA RS2640 55103940 TF007 260950 COIL ADJUSTABLE MAIN CBA RS2640 55624250 TF008 260950 COIL ADJUSTABLE MAIN CBA RS2640 55624250 X001 252832 CRYSTAL 75KHZ MAIN CBA RS2640 55106010 X401 NONSTK WIRE JUMPER MAIN CBA RS2640 55079290 X701 257781 DISPLAY HNA-09SS31 MAIN CBA RS2640 55226440 Y001 245476 FILTER 10.7MHZ MAIN CBA RS2640 20906450 Y002 245476 FILTER 10.7MHZ MAIN CBA RS2640 20906450 Y701 231718 RESONATOR 4.194MHZ MAIN CBA RS2640 20496690 Y702 251563 FILTER 32.768KHZ MAIN CBA RS2640 55093470
Page 11 of 11
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
