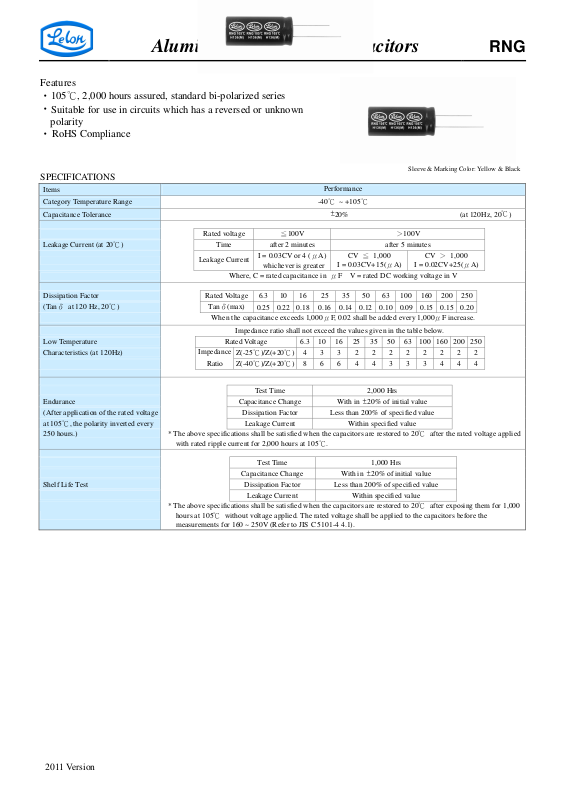

Aluminum Electrolytic Capacitors
Features
‧
105℃, 2,000 hours assured, standard bi-polarized series
‧
Suitable for use in circuits which has a reversed or unknown
polarity
‧
RoHS Compliance
SPECIFICATIONS
Items
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδ at 120 Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
(After application of the rated voltage
at 105℃, the polarity inverted every
250 hours.)
Shelf Life Test
Impedance
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000
Rated voltage
Time after 2 minutes after 5 minutes
Leakage Current
Where, C = rated capacitance in μF V = rated DC working voltage in V
Rated Voltage 6.3 10 16 25 35 50 63 100 160 200 250
Tanδ(max)
When the capacitance exceeds 1,000μF, 0.02 shall be added every 1,000μF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 6.3 10 16 25 35 50 63 100 160 200 250
Z(-25℃)/Z(+20℃)
Ratio
with rated ripple current for 2,000 hours at 105℃.
hours at 105℃ without voltage applied. The rated voltage shall be applied to the capacitors before the
measurements for 160 ~ 250V (Refer to JIS C 5101-4 4.1).
Z(-40℃)/Z(+20℃)
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
≦
100V
I = 0.03CV or 4 (μA)
whichever is greater
0.25 0.22 0.18 0.16 0.14 0.12 0.10 0.09 0.15 0.15 0.20
Test Time 2,000 Hrs
Test Time 1,000 Hrs
Performance
-40℃ ~ +105℃
±
20% (at 120Hz, 20℃)
I = 0.03CV+15(μA)
4 3 3 2 2 2 2 2 2 2 2
With in ±20% of initial value
With in ±20% of initial value
CV ≦ 1,000
Sleeve & Marking Color: Yellow & Black
＞
100V
CV ＞ 1,000
I = 0.02CV+25(μA)
RNG
2011 Version
Page 2
V. DC
Contents
V. DC
Aluminum Electrolytic Capacitors
RNG

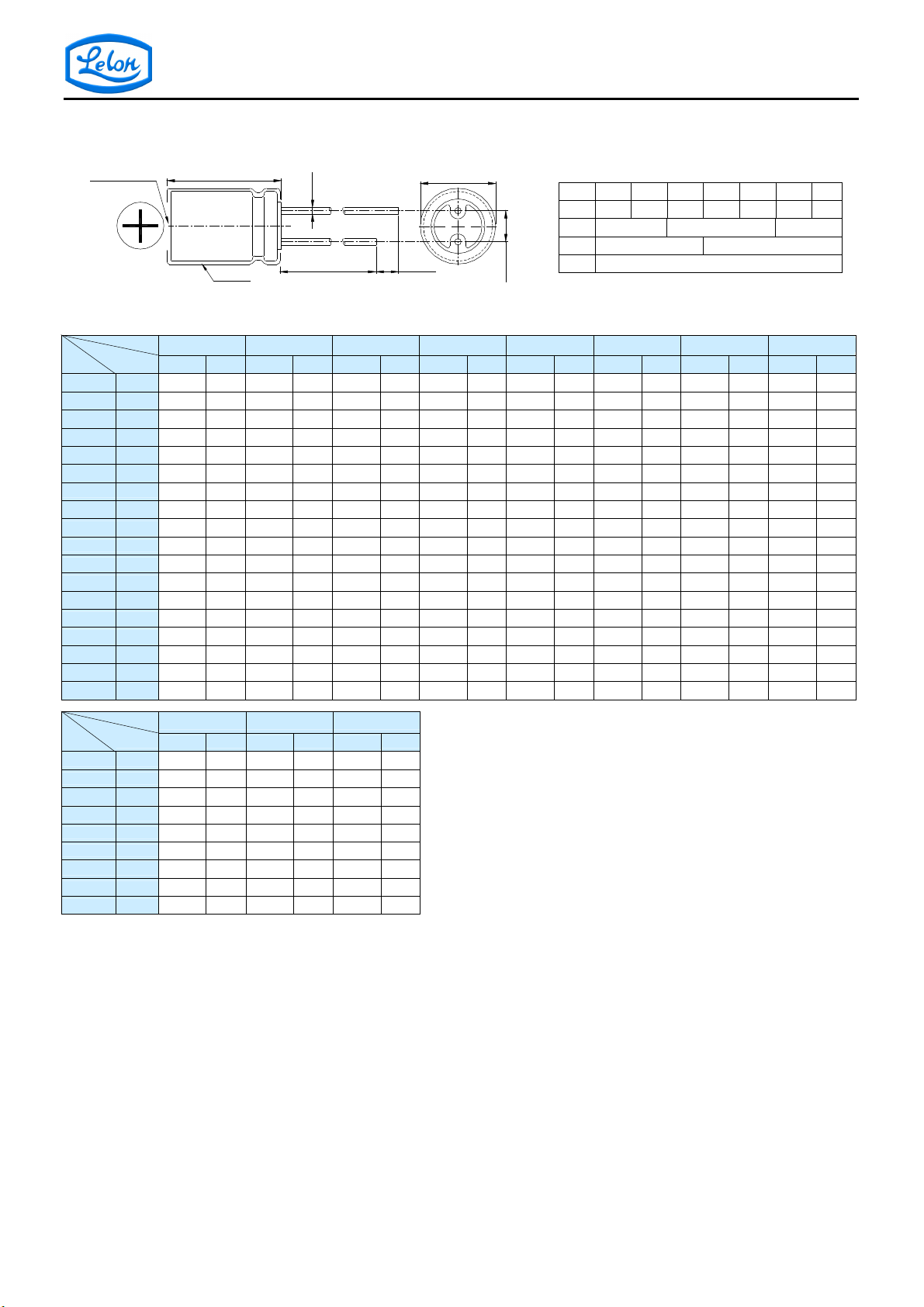

DIAGRAM OF DIMENSIONS
Vent≧6.3
φ
L+α max
Sleeve
d
φ
15 min
4 min
φD+β
max
LEAD SPACING AND DIAMETER
5 6.3 8 10 12.5 16 18
φD
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
φd
α
0.5
±
P
β
0.5 0.6 0.8
1.0 1.5
0.5
Unit: mm
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT Ripple Current: mA/rms at 120 Hz, 105℃
6.3V (0J) 10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H) 63V (1J) 100V (2A)
µF
0.1 0R1 5×11 4 5×11 5 5×11 5
0.22 R22 5×11 5 5×11 6 5×11 6
0.33 R33 5×11 6 5×11 6 5×11 7
0.47 R47 5×11 7 5×11 8 5×11 8
1 010 5×11 10 5×11 11 5×11 12
2.2 2R2 5×11 15 5×11 16 6.3×11 20
3.3 3R3 5×11 18 5×11 20 6.3×11 25
4.7 4R7 5×11 21 5×11 22 6.3×11 24 6.3×11 30
10 100 5×11 27 5×11 27 5×11 30 6.3×11 37 6.3×11 40 8×11.5 50
22 220 5×11 34 5×11 34 5×11 40 6.3×11 46 6.3×11 51 8×11.5 63 8×11.5 68 10×16 97
33 330 5×11 45 5×11 45 5×11 49 6.3×11 56 8×11.5 72 8×11.5 77 10×12.5 98 10×20 140
47 470 5×11 54 5×11 54 6.3×11 67 6.3×11 67 8×11.5 86 10×12.5 105 10×16 130 12.5×20 170
100 101 6.3×11 90 6.3×11 90 8×11.5 110 8×11.5 110 10×16 160 10×20 190 12.5×20 225 16×25 300
220 221 8×11.5 150 8×11.5 150 10×12.5 195 10×16 215 12.5×20 290 12.5×25 340 16×25 405 16×35.5 510
330 331 8×11.5 185 10×16 240 10×16 265 12.5×20 320 12.5×20 350 16×25 460 16×31.5 535
470 471 10×12.5 260 10×20 290 10×20 345 12.5×25 380 12.5×25 465 16×31.5 590 18×35.5 680
1,000 102 10×20 460 12.5×20 510 12.5×25 605 16×25 670 16×31.5 805
2,200 222 12.5×25 820 16×25 940 16×31.5 1,070 18×35.5 1,140
µF
Contents
0.47 R47 5×11 8 5×11 9 6.3×11 10
1 010 6.3×11 11 8×11.5 12 8×11.5 13
2.2 2R2 8×11.5 18 8×11.5 22 10×12.5 26
3.3 3R3 8×11.5 26 10×12.5 30 10×16 37
4.7 4R7 10×12.5 31 10×16 37 10×20 50
10 100 10×16 60 10×20 66 10×20 79
22 220 12.5×20 117 12.5×20 117 12.5×25 138
33 330 12.5×20 143 12.5×25 158 16×25 169
47 470 16×25 188
φD×L
φD×L
mA
φD×L
160V (2C) 200V (2D) 250V (2E)
mA
φD×L
mA
mA
φD×L
φD×L
mA
mA
φD×L
mA
φD×L
mA
φD×L
mA
φD×L
mA
φD×L
mA
2011 Verison
