Page 1
Raytheon RF Components
362 Lowell Street
Andover, MA 01810
www.raytheon.com/micro
ADVANCED INFORMATION
Revised November 14, 2001
Page 1
Characteristic performance data and specifications are subject to change without notice.
MHEMTHigh bandwidth: 40 GHzLow group delayLow power dissipation: ~450mW.Single ended outputDC coupledEffective wideband gain stageChip size 3.71 mm x 1.70 mm
Features
The Raytheon RMLA00400 is a very high speed Transimpedance Amplifier (TIA) MMIC for 40 Gb/s (OC768) fiber optic systems. It is available in die form, and is manufactured using Raytheon’s advanced MHEMT process. The TIA is used in conjunction with a photodetector to convert optical signals into a voltage output, or as a general purpose low noise wideband gain stage.
RMLA00400
40 Gb/s Transimpedance Amplifier
Electrical
Characteristics
2,3
Parameter Min Typ Max Unit
Frequency Bandwidth (1 dB) 40 GHz Frequency Bandwidth (3 dB) 45 GHz Low frequency Cut-off 30 KHz Gain 16 dB Gain Flatness ±0.75 dB Transimpedance 300 Ohms Group Delay 30 pS p-p Noise Figure 2.5 dB
Parameter Min Typ Max Unit
Output Voltage 400 mV p-p Output Return Loss 15 dB Quiescent Current 130 mA
Input Noise Current Density 25 pA/ √Hz
Vd 3.5 V Vg
1 -3.5 V
Vg
2 2.5 V
Case Operating Temp -40 +85 °C
Notes:
1. No permanent damage with only one parameter set at extreme limit. Other parameters set to typical values.
2. All parameters met at Tc = 25°C, Vd = 3.5V.
3. Measured in a 50 ohm system.
Absolute
Maximum
Ratings
1
Parameter Symbol Value Unit
Supply Voltage Vd +3.5 V RF Input Power Pin -10 dBm
Case Operating Temperature Tc -40 to +85 °C Storage Temperature Tstg -40 to +100 °C
Page 2
Raytheon RF Components
362 Lowell Street
Andover, MA 01810
www.raytheon.com/micro
ADVANCED INFORMATION
Revised November 14, 2001
Page 2
Characteristic performance data and specifications are subject to change without notice.
RMLA00400
40 Gb/s Transimpedance Amplifier
Figure 1
Functional Block
Diagram
Vg1 Vg2
Vd
RFin
RFout
Figure 2
Recommended
Application Schematic
Circuit Diagram
Vg1
Vd=Vg2=+3.5 V
RFin
RFout
100 pF
10,000 pF
L
Photodetector
Vb
R=125 Ω
Vg2
Vd
L= Bond Wire
L
100 pF
10,000 pF
Figure 3
Chip Layout and
Bond Pad Locations
(Chip Size=3.710
mm x 1.700 mm x
100 µm Typical,
Back of Chip is RF
and DC Ground)
Dimensions in mm
0.0 0.887 1.219 3.710
3.602
0.0
0.147
0.981
1.137
1.288
2.702
0.301
0.0
0.454
1.264
1.545
1.700
0.607
Page 3
Raytheon RF Components
362 Lowell Street
Andover, MA 01810
www.raytheon.com/micro
ADVANCED INFORMATION
Revised November 14, 2001
Page 3
Characteristic performance data and specifications are subject to change without notice.
RMLA00400
40 Gb/s Transimpedance Amplifier
Vd, Vg2 (Positive)
Vg1 (Negative)
RF Input
RF Output
5 mil Thick Alumina 50-Ohm
L< 0.015”
100pF
10000pF
C
Photodetector
Vb
~ 0.1mF
125Ω
100pF
10000pF

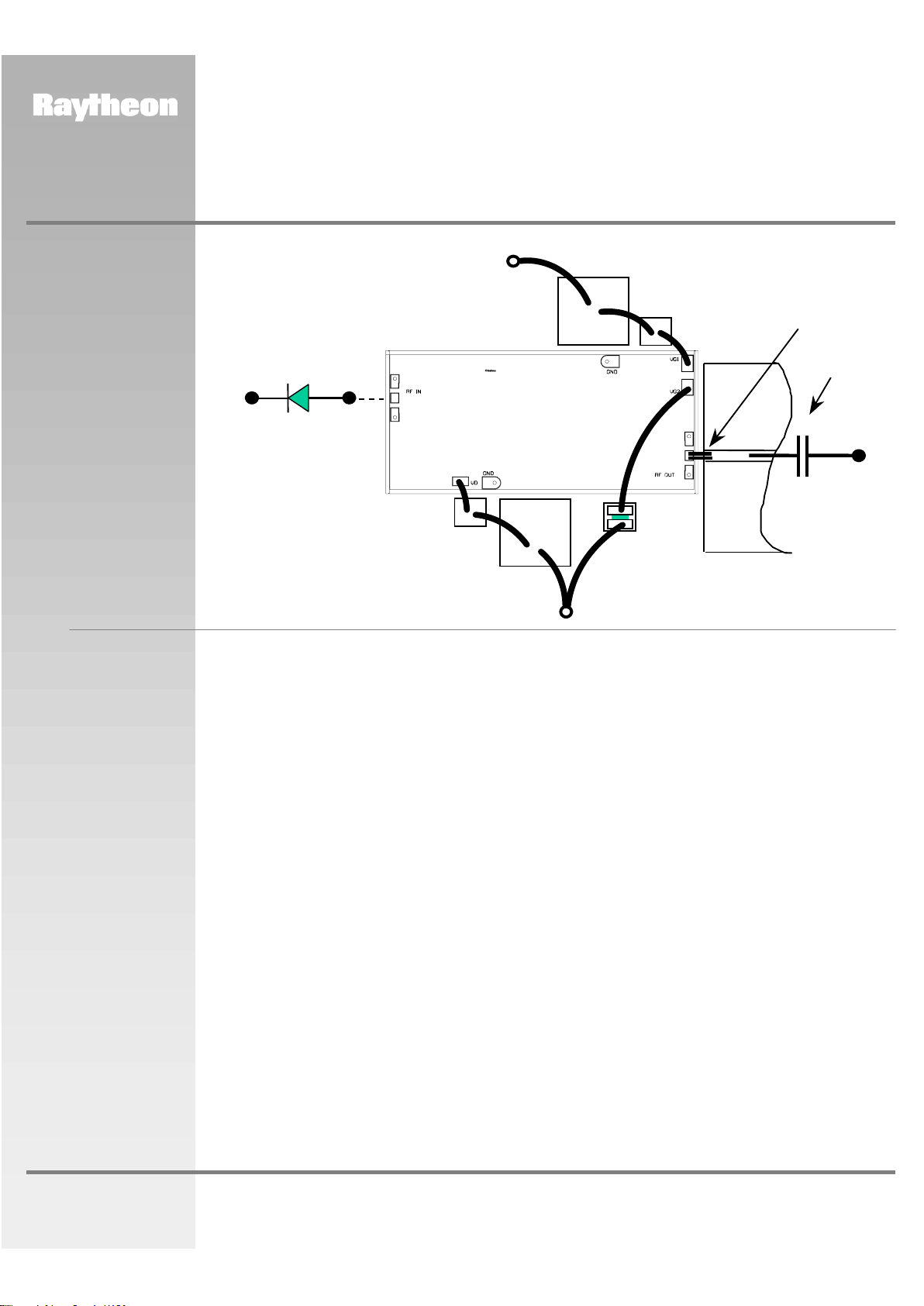

Figure 4
Recommended
Assembly Diagram
CAUTION: LOSS OF GATE VOLTAGE (Vg1) WHILE DRAIN VOLTAGE (Vd) IS PRESENT MAY DAMAGE THE
AMPLIFIER CHIP.
The following sequence of steps must be followed to properly test the amplifier.
Recommended
Procedure
for Biasing and
Operation
Step 1: Turn off RF input power.
Step 2: Connect the DC supply grounds to the grounds
of the chip carrier. Apply negative gate 1 bias supply voltage of -5.0 V to Vg1.
Step 3: Apply positive bias supply voltage of +3.5 V to
Vd, Vg2 connection.
Step 4: Adjust gate 1 bias voltage Vg1 to set the
quiescent current of Idq ~ 130 mA.
Step 5: After the bias condition is established, the RF
input signal may now be applied at the appropriate frequency band. Adjust Vg1 for best gain flatness.
Step 6: Follow turn-off sequence of:
(i) Turn off RF input power, (ii) Turn down and off drain voltage (Vd, Vg2), (iii) Turn down and off gate bias voltage (Vg1).
Page 4
Raytheon RF Components
362 Lowell Street
Andover, MA 01810
www.raytheon.com/micro
ADVANCED INFORMATION
Revised November 14, 2001
Page 4
Characteristic performance data and specifications are subject to change without notice.
RMLA00400
40 Gb/s Transimpedance Amplifier
Performance
Data
0
5
10
15
20
01020304050

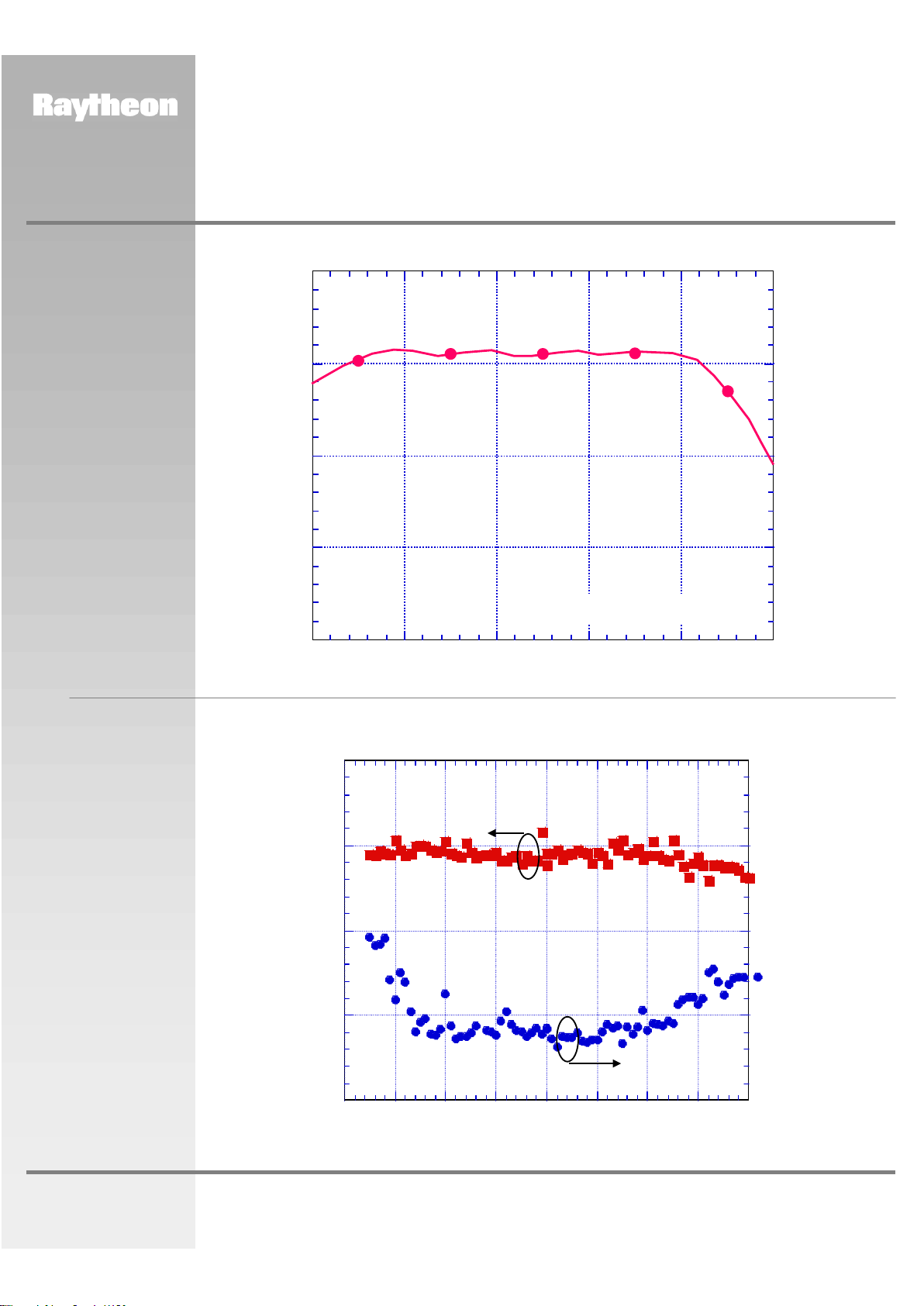

Typical Measured Gain Response
Frequency (GHz)
|S21| (dB)
Measured in a 50 ohm system
Gain & Noise Figure Vs. Frequency
Fixtured Measurement
0
5
10
15
20
0
2.5
5
7.5
10
0 5 10 15 20 25 30 35 40
Gain (dB)
NF (dB)
Frequency (GHz)
NF
Gain
Page 5
Raytheon RF Components
362 Lowell Street
Andover, MA 01810
www.raytheon.com/micro
ADVANCED INFORMATION
Revised November 14, 2001
Page 5
Characteristic performance data and specifications are subject to change without notice.
RMLA00400
40 Gb/s Transimpedance Amplifier
Performance
Data

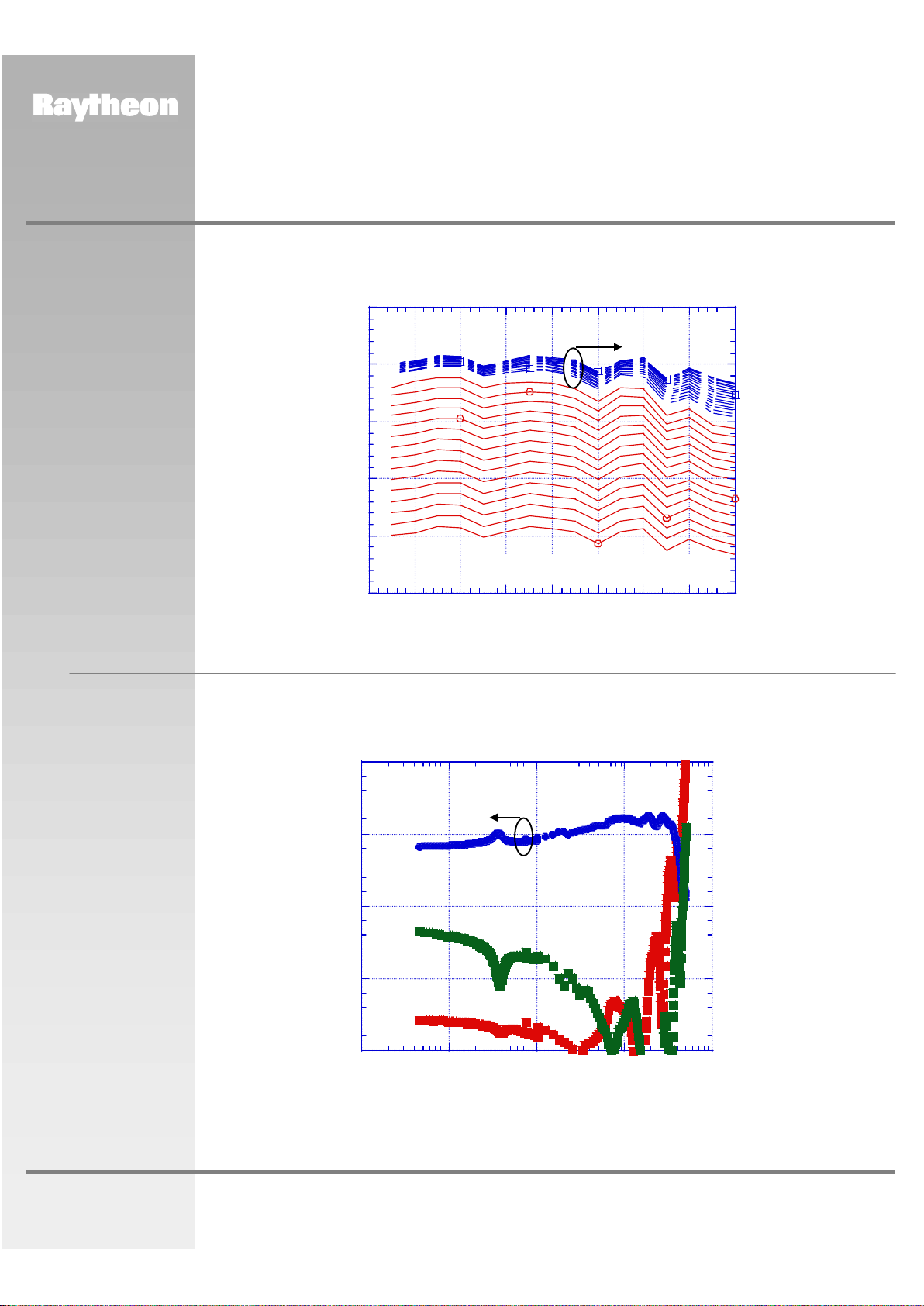

Power & Gain Vs. Frequency
with Input Power as a Parameter
-15
-10
-5
0
5
10
-5
0
5
10
15
20
0 5 10 15 20 25 30 35 40
Frequency (GHz)
Pout (dBm)
Gain (dB)
Gain
Measured in a 50 ohm test system
Gain & Return Loss Vs. Frequency
Fixtured Measurement
Frequency (GHz)
0
5
10
15
20
-20
-15
-10
-5
0
0.01 0.1 1 10 100
Gain (dB)
|S11| and |S22| (dB)
Gain
Measured in a 50 ohm test system
Page 6
Raytheon RF Components
362 Lowell Street
Andover, MA 01810
www.raytheon.com/micro
ADVANCED INFORMATION
Revised November 14, 2001
Page 6
Characteristic performance data and specifications are subject to change without notice.
D&L Technical Sales
6139 S. Rural Road, #102 Tempe, AZ 85283 480-730-9553 fax: 480-730-9647 Nicholas Delvecchio, Jr. dlarizona@aol.com
Hi-Peak Technical Sales
P.O. Box 6067 Amherst, NH 03031 866-230-5453 fax: 603-672-9228 sales@hi–peak.com
North
America
Spartech South
2115 Palm Bay Road, NE, Suite 4 Palm Bay, FL 32904 321-727-8045 fax: 321-727-8086 Jim Morris jim@spartech-south.com
TEQ Sales, Inc.
920 Davis Road, Suite 304 Elgin, IL 60123 847-742-3767 fax: 847-742-3947 Dennis Culpepper dculpepper@teqsales.com
Cantec Representatives
8 Strathearn Ave, No. 18 Brampton, Ontario Canada L6T 4L9 905-791-5922 fax: 905-791-7940 Dave Batten cantec-ott@cantec-o.net
Sangus OY
Lunkintie 21, 90460 Oulunsalo Finland 358-8-8251-100 fax: 358-8-8251-110 Juha Virtala juha.virtala@sangus.fi
ITX Corporation
2–5, Kasumigaseki 3–Chome Chiyoda–Ku Tokyo 100-6014 Japan 81-3-4288-7073 fax: 81-3-4288-7243 Maekawa Ryosuke maekawa.ryosuke@ itx–corp.co.jp
MTI Engineering Ltd.
Afek Industrial Park Hamelacha 11 New Industrial Area Rosh Hayin 48091 Israel 972-3-902-5555 fax: 972-3-902-5556 Adi Peleg adi_p@mti-group.co.il
Sirces srl
Via C. Boncompagni, 3B 20139 Milano Italy 3902-57404785 fax: 3902-57409243 Nicola Iacovino nicola.iacovino@sirces.it
Sea Union
9F-1, Building A, No 19-3 San-Chung Road Nankang Software Park Taiwan, ROC Taipei 115 02-2655-3989 fax: 02-2655-3918 Murphy Su murphy@seaunionweb.com.tw
Globes Elektronik & Co.
Klarastrabe 12 74072 Heilbronn Germany 49-7131-7810-0 fax: 49-7131-7810-20 Ulrich Blievernicht hfwelt@globes.de
Headquarters
Avnet-MCS 6321 San Ignacio Drive San Jose, CA 95119 408-360-4073 fax: 408-281-8802 Art Herbig art.herbig@avnet.com
Belgium and Luxembourg
BFI Optilas Cipalstraat 2440 GEEL Belgium 32 14 570670 fax: 32 14 570679 sales.be@bfioptilas.avnet.com
United States
(East Coast)
Raytheon 362 Lowell Street Andover, MA 01810 978-684-8628 fax: 978-684-8646 Walter Shelmet wshelmet@ rrfc.raytheon.com
Sales Office
Headquarters
978-684-8900 fax: 978-684-5452 customer_support@rrfc.raytheon.com
Customer
Support
Europe
Raytheon AM Teckenberg 53 40883 Ratingen Germany 49-2102-706-155 fax: 49-2102-706-156 Peter Hales peter_j_hales@ raytheon.com
Asia
Raytheon Room 601, Gook Je Ctr. Bldg 191 Hangang Ro 2-GA Yongsan-Gu, Seoul, Korea 140-702 82-2-796-5797 fax: 82-2-796-5790 T.G. Lee tg_lee@ rrfc.raytheon.com
United States
(West Coast)
Raytheon 362 Lowell Street Andover, MA 01810 978-684-8919 fax: 978-684-8646 Rob Sinclair robert_w_sinclair@ rrfc.raytheon.com
United Kingdom
BFI Optilas Burnt Ash Road Aylesford, Kent England ME207XB 44 1622882467 fax: 44 1622882469 rfsales.uk@ bfioptilas.avnet.com
France
BFI Optilas 4 Allee du Cantal Evry, Cedex France 33 16079 5900 fax: 33 16079 8903 sales.fr@ bfioptilas.avnet.com
Holland
BFI Optilas Chr. Huygensweg 17 2400 AJ ALPHEN AAN DEN RIJN The Netherlands 31 172 446060 fax: 33 172 443414 sales.nl@ bfioptilas.avnet.com
Spain
BFI Optilas C/Isobel Colbrand, 6 – 4a 28050 Madrid Spain 34 913588611 fax: 34 913589271 sales.es@ bfioptilas.avnet.com
Europe
Asia
Steward Technology
6990 Village Pkwy #206 Dublin, CA 94568 925-833-7978 fax: 925-560-6522 John Steward johnsteward1@msn.com
Sangus AB
Berghamnvagen 68 Box 5004 S–165 10 Hasselby Sweden Ronny Gustafson 468-0-380210 fax: 468-0-3720954
Worldwide
Distribution
Worldwide Sales Representatives
