Datasheet RMDA00400 Datasheet (Raytheon)

Download

Page 1

Raytheon RF Components

362 Lowell Street

Andover, MA 01810

Revised November 21, 2001

Page 1

www.raytheon.com/micro

Characteristic performance data and specifications are subject to change without notice.

ADVANCED INFORMATION

Description

Features

Notes:

1. Off-chip decoupling and blocking capacitors required.

2. All parameters met at T = 25°C, Vd = 8.0V, IDQ= 130mA. Measured in 50 ohm system

Absolute

Maximum

Ratings

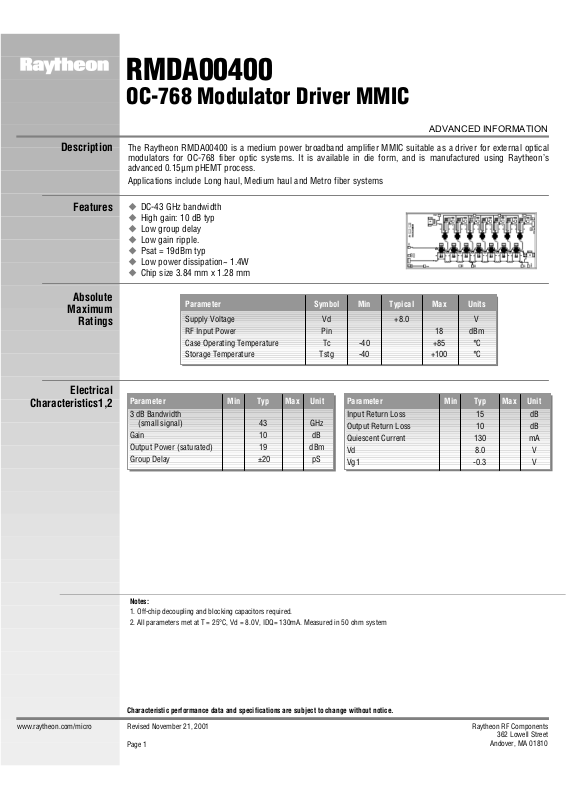

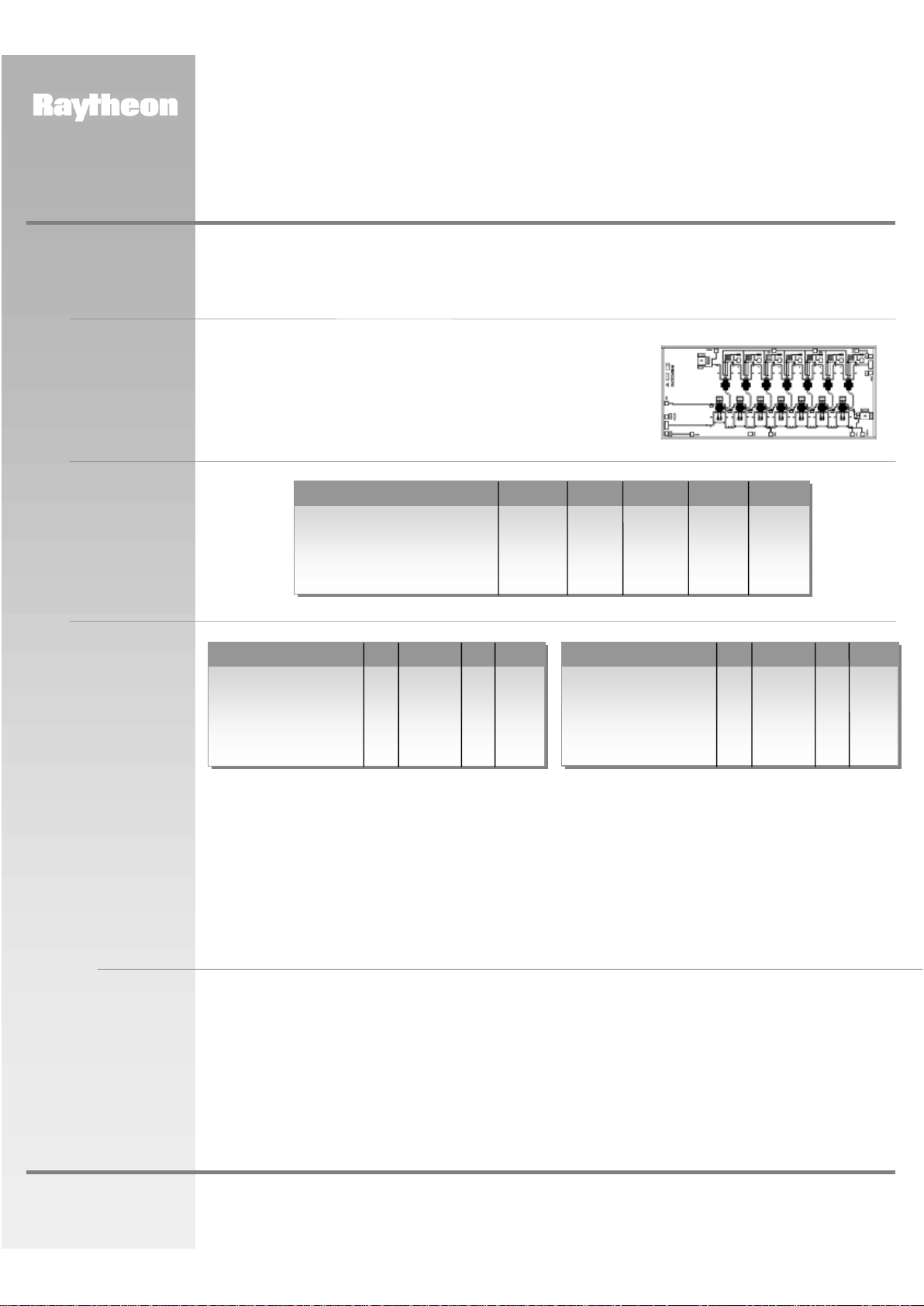

 DC-43 GHz bandwidth  High gain: 10 dB typ  Low group delay  Low gain ripple.  Psat = 19dBm typ  Low power dissipation~ 1.4W  Chip size 3.84 mm x 1.28 mm

Electrical

Characteristics1,2

The Raytheon RMDA00400 is a medium power broadband amplifier MMIC suitable as a driver for external optical modulators for OC-768 fiber optic systems. It is available in die form, and is manufactured using Raytheon’s advanced 0.15µm pHEMT process.

Applications include Long haul, Medium haul and Metro fiber systems

Parameter Symbol Min Typical Max Units

Supply Voltage Vd +8.0 V RF Input Power Pin 18 dBm

Case Operating Temperature Tc -40 +85 °C Storage Temperature Tstg -40 +100 °C

Parameter Min Typ Max Unit

3 dB Bandwidth

(small signal) 43 GHz Gain 10 dB Output Power (saturated) 19 dBm Group Delay ±20 pS

Parameter Min Typ Max Unit

Input Return Loss 15 dB Output Return Loss 10 dB Quiescent Current 130 mA Vd 8.0 V Vg1 -0.3 V

RMDA00400

OC-768 Modulator Driver MMIC

Page 2

Raytheon RF Components

362 Lowell Street

Andover, MA 01810

Revised November 21, 2001

Page 2

www.raytheon.com/micro

Characteristic performance data and specifications are subject to change without notice.

ADVANCED INFORMATION

Performance

Data

RMDA00400

OC-768 Modulator Driver MMIC

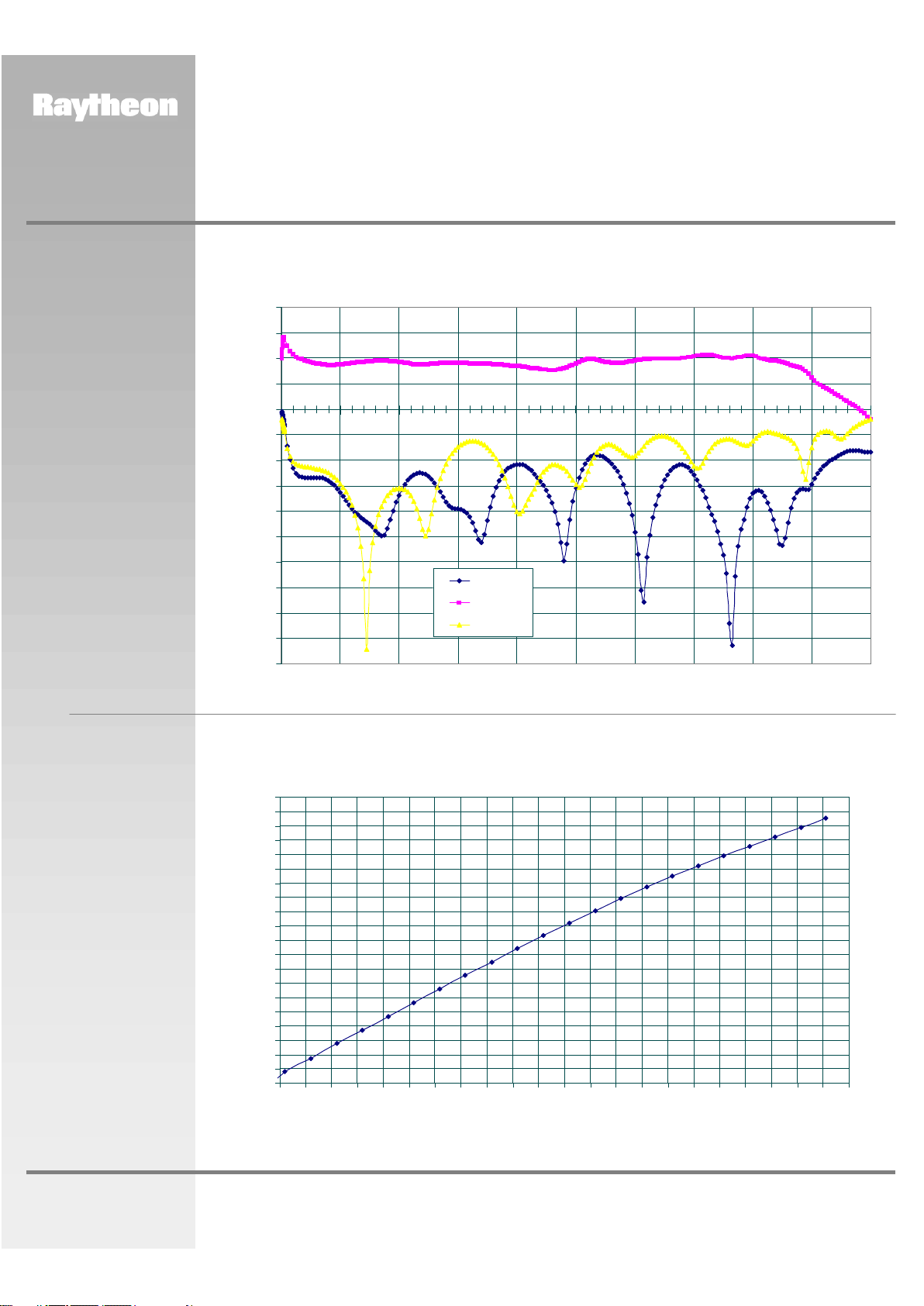

Small Signal Frequency Response

Vd= 8.0V, Idq= 130mA

-50

-45

-40

-35

-30

-25

-20

-15

-10

-5

0 5 10 15 20 25 30 35 40 45 50

Frequency (GHz)

(dB)

S11 dB S21 dB S22 dB

Pin VS Pout at 30 GHz,

Vd=8.0V, Idq=130mA

-9-8-7-6-5-4-3-2-1012345678910111213

Pin (dBm)

Pout (dBm)

Page 3

Raytheon RF Components

362 Lowell Street

Andover, MA 01810

Revised November 21, 2001

Page 3

www.raytheon.com/micro

Characteristic performance data and specifications are subject to change without notice.

ADVANCED INFORMATION

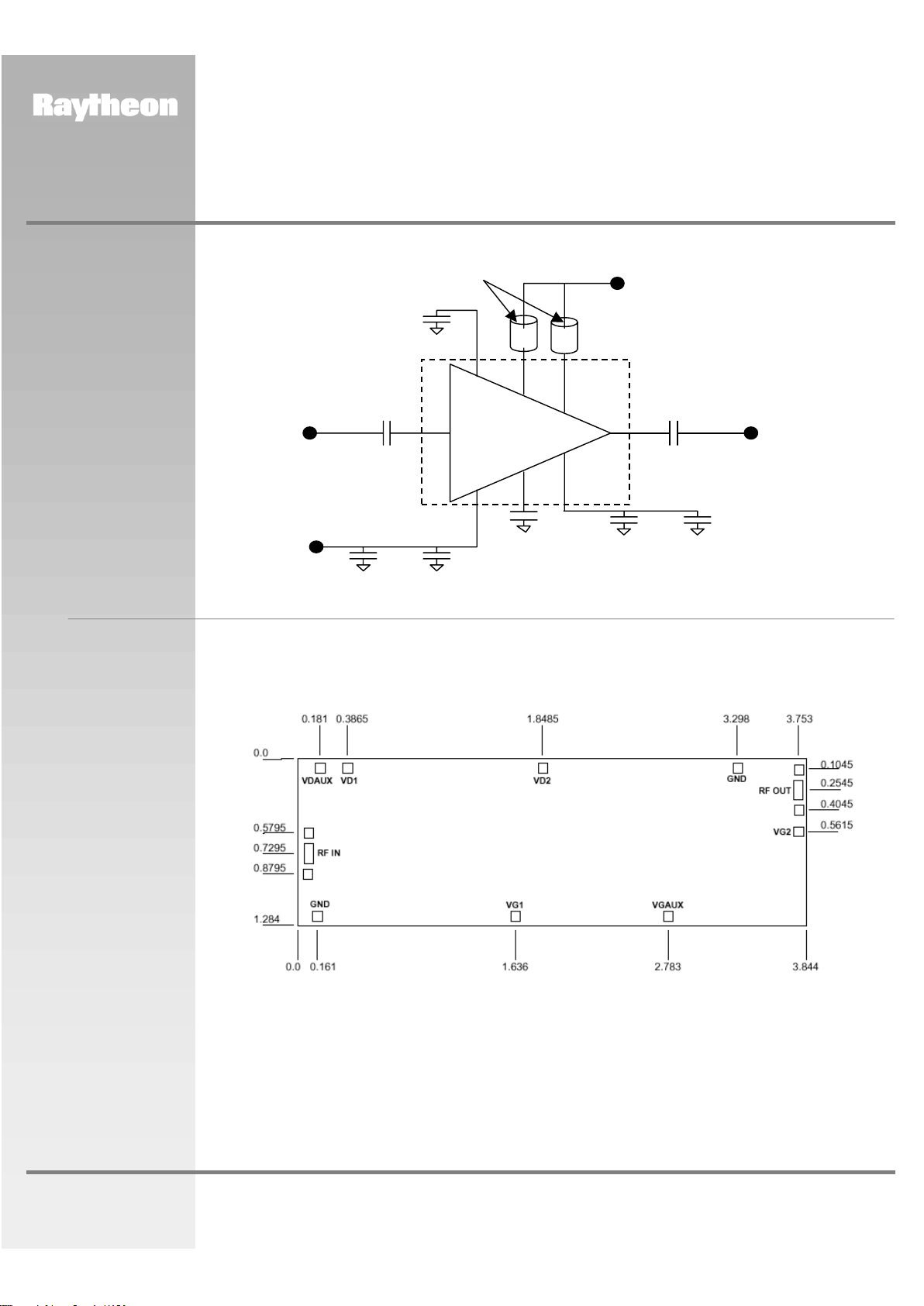

Chip Layout

and Bond Pad

Locations

CAUTION: THIS IS AN ESD SENSITIVE DEVICE.

RF In RF Out

10,000 pF

Vd (+ve)

10,000 pF

100 pF

Vg1

(-ve)

100 pF 10,000 pF10,000 pF

Piconics

spiral

inductors

VG1

VGAUX

VG2

VDAUX

VD1

VD2

Recommended

Application

Schematic Circuit

Diagram

Dimensions in mm

RMDA00400

OC-768 Modulator Driver MMIC

Page 4

Raytheon RF Components

362 Lowell Street

Andover, MA 01810

Revised November 21, 2001

Page 4

www.raytheon.com/micro

Characteristic performance data and specifications are subject to change without notice.

ADVANCED INFORMATION

Recommended

Procedure

for Biasing and

Operation

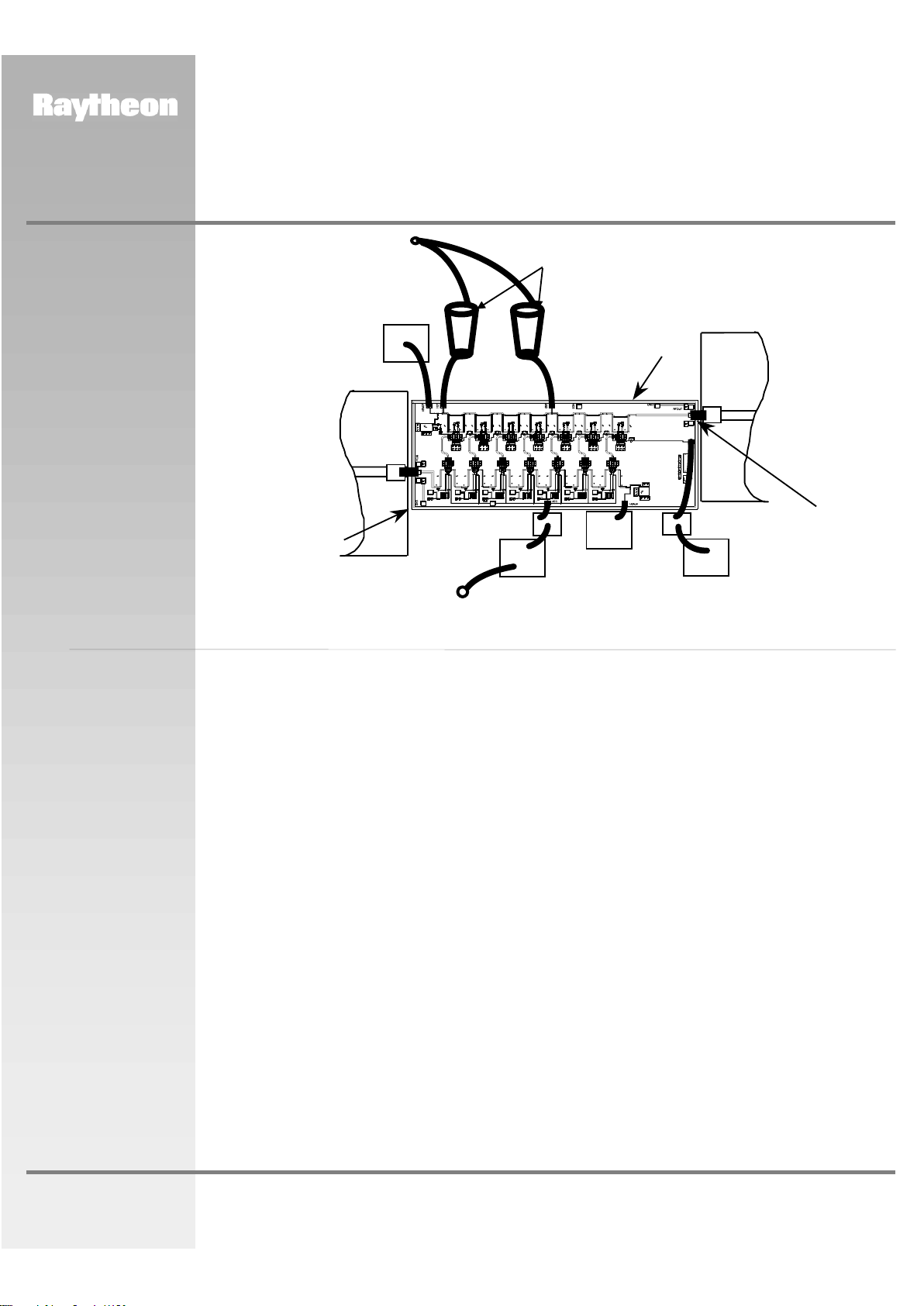

Recommended

Assembly Diagram

RF Input

RF Output

5mil Thick Alumina 50-Ohm

5 mil Thick Alumina 50-Ohm

2 mil Gap

L< 0.015” (2 Places)

Die-Attach 80Au/20Sn

10,000pF

Piconics Spiral Inductors

Vd (+8V)

10,000pF

100pF

Vg1

(-ve)

100pF

10,000pF

CAUTION: THIS IS AN ESD SENSITIVE DEVICE. LOSS OF GATE VOLTAGE (VG1) WHILE DRAIN VOLTAGE (VD) IS

PRESENT MAY DAMAGE THE AMPLIFIER CHIP.

The following sequence of steps must be followed to properly test the amplifier:

Step 1: Turn off RF input power. Step 2: Connect the DC supply grounds to the ground

of the chip carrier. Apply negative gate bias supply voltage of

–1.0 V to Vg1.

Step 3: Apply positive drain bias supply voltage of

+8.0 V to Vd, and monitor drain current Id.

Step 4: Adjust gate bias voltage Vg1 to set the

quiescent current of Idq ~ 130 mA.

Step 5: After the bias condition is established, the RF

input signal may now be applied at the appropriate frequency band. Adjust Vg1 for best gain flatness.

Note: When the device is under RF operation, the supply current Id will increase depending upon output power required.

Step 6: Follow turn-off sequence of:

(i) Turn off RF input power. (ii) Turn down and off drain voltage (Vd). (iv) Turn down and off gate bias voltage (Vg1).

RMDA00400

OC-768 Modulator Driver MMIC

Page 5

Raytheon RF Components

362 Lowell Street

Andover, MA 01810

Revised November 21, 2001

Page 5

www.raytheon.com/micro

Characteristic performance data and specifications are subject to change without notice.

ADVANCED INFORMATION
