Product Data Sheet

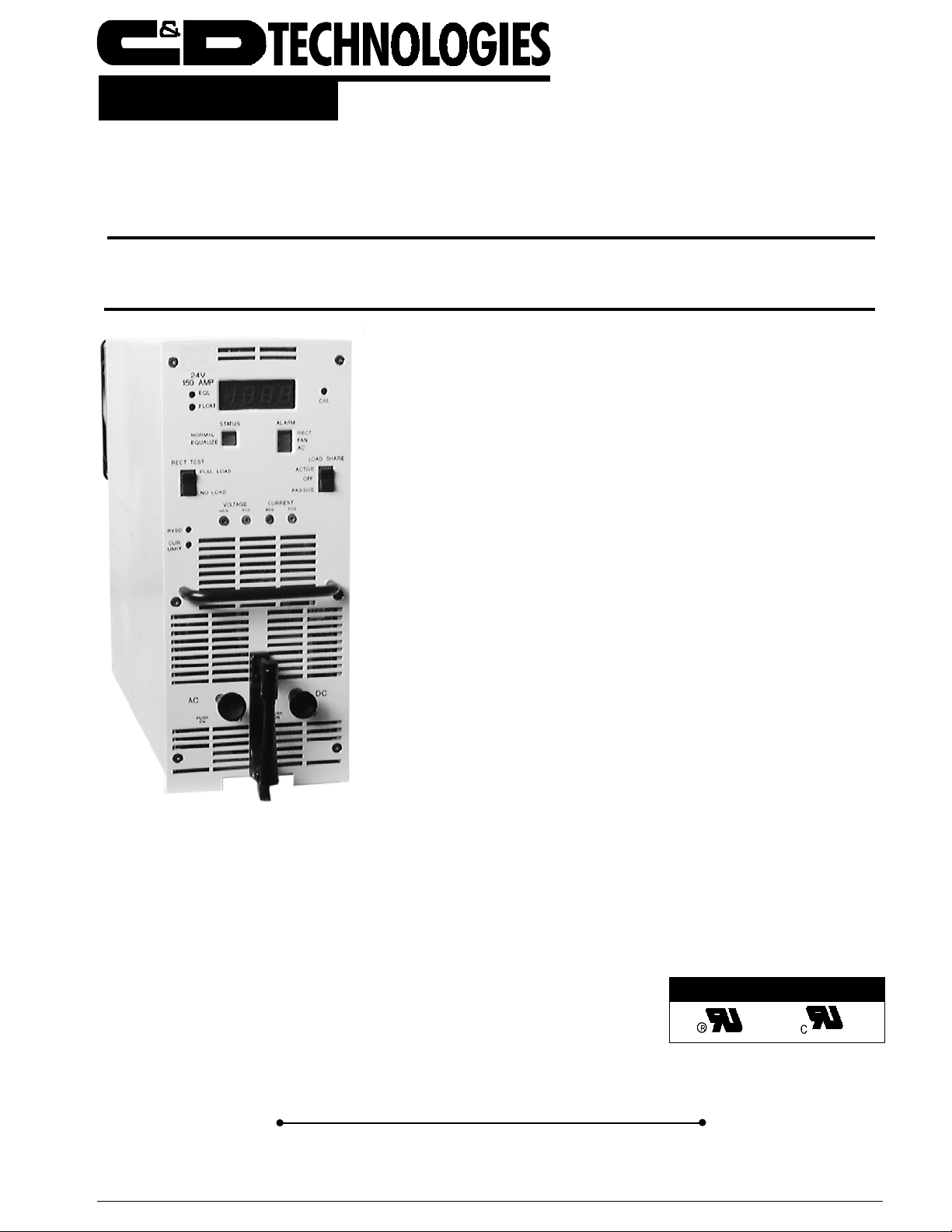

MODULAR SWITCHED MODE RECTIFIER
150 AMP
RM24150
FEATURES
• SWITCHED MODE
• >.99 PFC
• >85% EFFICIENCY
• AUTOMATIC LOAD SHARING
• HOT-SWAP CAPABLE
• COMPACT SIZE
• SHELF MOUNTED
DESCRIPTION
The RM24150 Modular Switch-Mode Rectifier is one of
C&D Technologies’ family of rectifiers that may be used
in modular power plants. This high power unit will function
in parallel with any rectifier with similar current sharing
capacities. This versatile and efficient rectifier is ideal
for use in advanced telecommunications applications. Its
small size allows the user to plan economically for system
expansion at minimum cost and makes it ideal for use in
fiber optic, microwave and other applications where space
is at a premium.
• TELECOM BULK POWER RATED!
•
BELLCORE BASED DESIGN
• SOFT START TURN-ON!
• INFINITE, FULL CURRENT SHORT CIRCUIT
CAPABLE!
• BUILT IN AC & DC DISCONNECTS!
• INTELLIGENT HIGH VOLTAGE SENSE
PROTECTION
• BATTERY OR BATTERYLESS OPERATION
• GUARANTEED NO SINGLE PART FAILURE CAN
LEAD TO OUTPUT HIGH VOLTAGE
• GUARANTEED SAFE OPERATION TO 300 VAC!
• FRONT PANEL METER!
• THD <5%
AGENCY APPROVALS
A4RM24150 5/98 REV A
Power Electronics Division, United States
3400 E Britannia Drive, Tucson, Arizona 85706
Phone: 800.547.2537 Fax: 520.770.9369
Internet: http://www.cdpowerelectronics.com
Power Electronics Division, Europe
C&D Technologies (Power Electronics) Ltd.
132 Shannon Industrial Estate, Shannon, Co. Clare, Ireland
Tel: +353.61.474.133 Fax:+353.61.474.141
Page 1
Page 2
Input Specifications
Parameter Conditions Min Typ Max Units
Operating Range 45 - 65 Hz, single phase, no taps required 183 264 VAC
Current Adjustable 27 A
Efficiency >85 %
Power Factor Correction (PFC) >.99
MEASUREMENTS OF RM24150
Module
Weight 25 lbs.
Height 7U (12.25”)
Depth 15.25”
Width 5.1”
Shelf* Weight 18 lbs.
Height 7U (12.25”)
Depth 15..25” maximum
Width 23” rack mount
*These measurements are specifically for the 600A Power Shelf for up to 4 quantity RM24150.
Please consult factory for other shelf and power plant options.
GENERAL FEATURES
Hot Swappable Modules
These shelf-mounted modules are easy and safe to install
or remove while system is operational without affecting
the overall system’s performance.
Parallel Operation and Automatic Load Sharing
Forced or passive load sharing is available between
modules of the same operating voltages in parallel
applications.
Alarm Outputs
Rectifier Fail Alarm (RFA)
Thermal Shutdown Occurring (THSD)
Open Sense Lead Has Occurred (OS)
AC Power Has Failed Alarm (ACF)
DC Breaker Is Open Alarm (DCBKR)
AC Breaker Is Open Alarm (ACBKR)
Note: All alarms are “Form A” relay type contacts
Current Limit
The Current Limit is adjustable between 0A to 150A. Upon
exceeding this limit, the rectifier automatically reduces
output voltage.
Safety
UL/CUL Recognized: UL 1950/CSA 950
File Number: E181908.
Control Inputs
High Voltage Shutdown (HVSD)
Restart (RS)
Equalize (EQ)
Temporary Restraint (TR)
Emergency Shutdown (EMSD)
All control inputs
are initiated with
a ground closure
}
24VAC voltage
reference to
}
ground
Page 2
A4RM24150 5/98 REV A
Page 3
Output Specifications
Parameter Conditions Min Typ Max Units
Voltage Adjustment Range
float voltage 24 28 VDC
equalize voltage 24 30 VDC
Regulation 0-100% load within
specified input voltage and frequency range ± 0.5 %
Load Current within a 10 - 100% rating ±10 %
Hold-Up Time nominal AC line >16 mS
Filtering
Voice band <32 dBrnc
Wide band noise @ 20MHz <350 mV p-p
ENVIRONMENTAL
Temperature
Operating -0 +50 °C
+32 122 °F
Storage -50 +85 °C
-58 185 °F
Humidity non-condensing 0 95 %
Altitude 0 7000 ft.
0 2133 m
Heat Dissipation @27V 2440 Btu/hr
Audible Noise 5 ft. from any vertical surface <55 dBa
PROTECTION, ALARM AND CONTROL SYSTEMS
Rectifier Failure Alarm (RFA)
Problems occurring because of an unacceptable relationship between the output power and load conditions will
cause a Rectifier Failure Alarm (RFA). This alarm consists
of a red LED and a flashing green OK LED. Conditions
which may lead to an RFA are:
Low Current - Output current has decreased to below
5% of its rated value.
Unit Shutdown - Any shutdown occurrence due to
overvoltage, external shutdown command, unacceptable
ambient temperature conditions or low AC input voltage.
Fan Malfunction - The fan has stopped operating or is
not providing the airflow needed to cool the unit.
Over Temperature - The ambient temperature has
exceeded 50°C.
High Voltage Shutdown (HVSD)
The unit’s high voltage limit is adjustable up to 30VDC.
When internal shutdown occurs, the unit may be restarted by a local switch or by a remote signal.
Surge Protection
The unit will withstand lightning and input surges of
6000V/3000A.
Under Voltage Protection
When input voltage is below 183 VAC, the rectifier’s
operation is automatically inhibited.
A4RM24150 5/98 REV A
Page 3
Page 4
Mechanical
All measurements are in inches
Standard Options are shown, consult factory for other available options.
The information provided herein is believed to be reliable; however, C&D Technologies assumes no responsibility for inaccuracies or omissions. C&D Technologies assumes no
responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without notice. No
patent rights or licenses to any of the circuits described herein are implied or granted to any third party. C&D Technologies does not authorize or warrant any C&D Technologies product
for use in life support devices/systems or in aircraft control applications.
