Datasheet RM Datasheet

Page 1

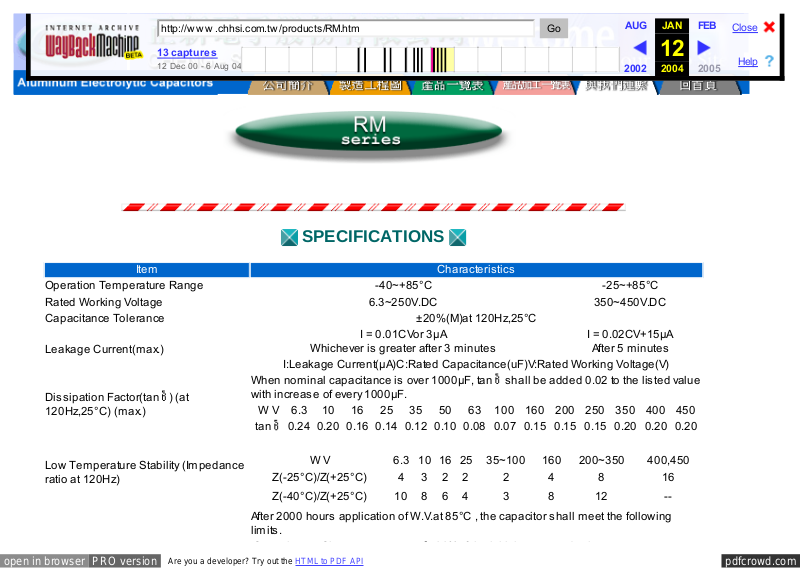

SPECIFICATIONS

Item Characteris tics

Operation Temperature Range 40~+85°C 25~+85°C Rated Working Voltage 6.3~250V.DC 350~450V.DC Capacitance Tolerance ±20%(M)at 120Hz,25°C

Leakage Current(max.)

I = 0.01CVor 3µA

Whichever is greater after 3 minutes

I = 0.02CV+15µA

After 5 minutes

I:Leakage Current(µA)C:Rated Capacitance(uF)V:Rated Working Voltage(V)

Dis sipation Factor(tan ) (at 120Hz,25°C) (max.)

When nominal capacitance is over 1000µF, tan shall be added 0.02 to the listed value with increas e of every 1000µF.

W V 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

tan 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.07 0.15 0.15 0.15 0.20 0.20 0.20

Low Temperature Stability (Impedance ratio at 120Hz)

W V 6.3 10 16 25 35~100 160 200~350 400,450

Z(25°C)/Z(+25°C) 4 3 2 2 2 4 8 16

Z(40°C)/Z(+25°C) 10 8 6 4 3 8 12 

After 2000 hours application of W.V.at 85°C , the capacitor shall meet the following lim its.

http://w w w .chhsi.com.tw /products/RM.htm

AUG JAN FEB

2002 2004 2005

13 captures

12 Dec 00  6 Aug 04

Help

Are you a developer? Try out the HTML to PDF API

pdfcrowd.comopen in browser PRO version

Page 2

Load Life

Capacitance Change ≦±20%of the initial measured value. Dis sipation Factor ≦200%of initial specified value. Leakage Current ≦the initial specified value.

Shelf Life

At 85°C no voltage applied after 500 hours, the capacitor shall meet the following lim its.

Capacitance Change ≦±20%of the initial measured value. Dis sipation Factor ≦200%of initial specified value. Leakage Current (6.3 to 100 VDC) ≦the initial specified value. Leakage Current (160 to 450 VDC) ≦500% of the initial specified value.

Reference Standard JIS C5141



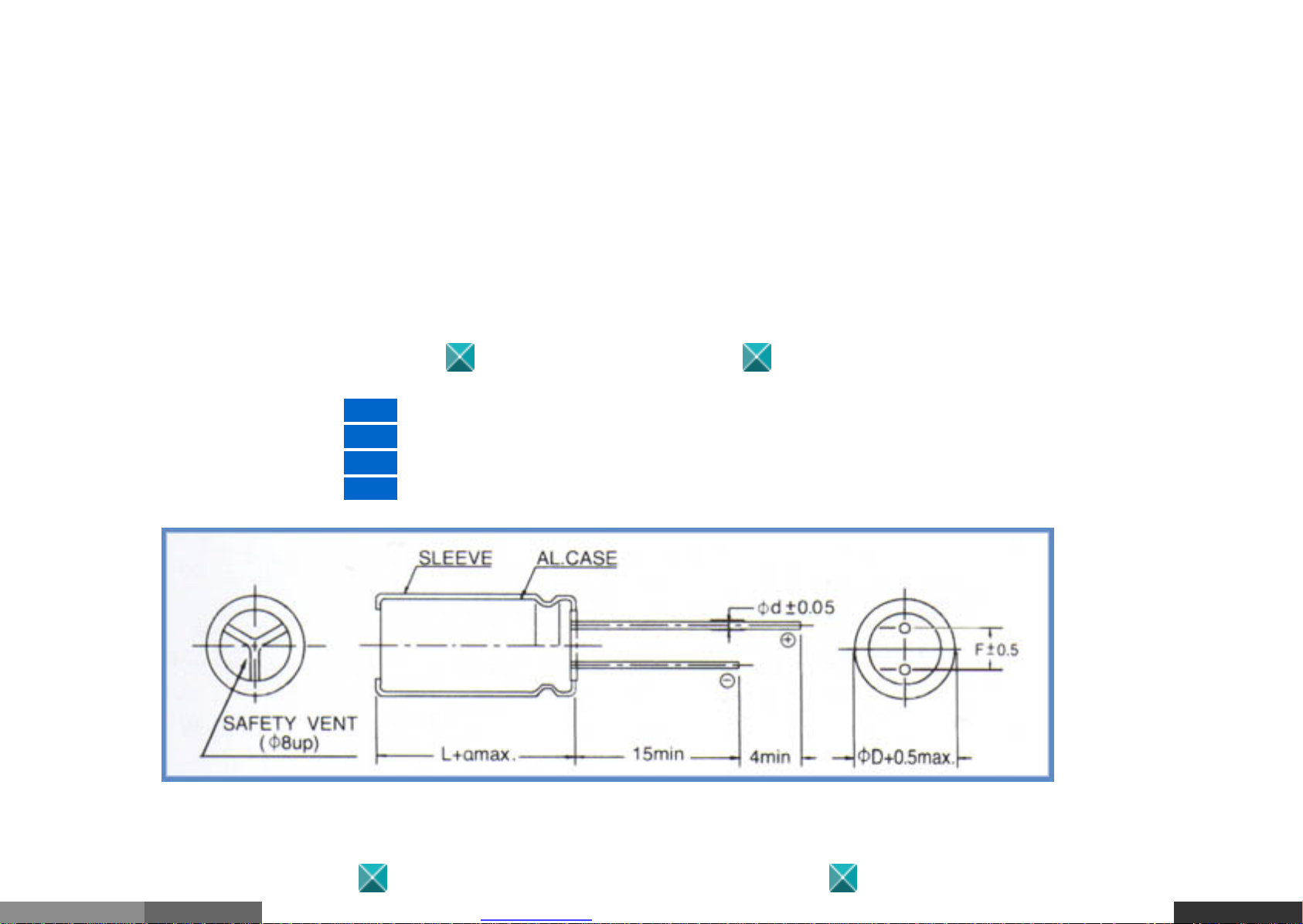

DRAWING:(UNIT=mm)

ØD 5 6.3 8 10 13 16 18 22 25

F 2.0 2.5 3.5 5.0 7.5 10 12.5

ød 0.5 0.6 0.8 1.0

α 1.0 1.5 2.0



MULTIPLIER FOR RIPPLE CURRENT

Are you a developer? Try out the HTML to PDF API

pdfcrowd.comopen in browser PRO version

Page 3

Frequency Multipliers Temperature Multipliers

50Hz 120Hz 300Hz 1KHz ≧10KHz

0.1~47 0.75 1 1.35 1.55 2.0

68~680 0.80 1 1.25 1.34 1.5

1000~15000 0.85 1 1.10 1.13 1.15

Temp.(°C) 40 60 70 85

Coefficient 2.0 1.5 1.3 1.0



DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

6.3 10 16 25 35 50 63

SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.

0.1 5X11 6.4 5X11 7

0.22 5X11 9.5 5X11 11

0.33 5X11 11 5X11 13

0.47 5X11 14 5X11 15

0.68 5X11 17 5X11 19

1.0 5X11 20 5X11 22

2.2 5X11 25 5X11 34

3.3 5X11 35 5X11 40

4.7 5X11 42 5X11 48

6.8 5X11 50 5X11 60 10 5X11 65 5X11 60 5X11 65 5X11 65 22 5X11 50 5X11 55 5X11 90 5X11 95 5X11 100 6.3X11 120 33 5X11 65 5X11 85 5X11 95 5X11 110 6.3X11 128 6.3X11 145 47 5X11 105 5X11 130 5X11 130 6.3X11 151 6.3X11 159 8X11 200 68 5X11 132 5X11 134 5X11 158 6.3X11 182 8X11 225 8X11 290

100 5X11 134 5X11 165 5X11 180 6.3X11 190 6.3X11 247 8X11 260 10X13 335 220 6.3X11 240 6.3X11 250 6.3X11 290 8X12 320 10X13 375 10X16 460 10X20 490 330 6.3X11 300 6.3X11 330 8X12 360 10X13 415 10X16 490 10X20 560 13X21 700

Are you a developer? Try out the HTML to PDF API

pdfcrowd.comopen in browser PRO version

Page 4

470 6.3X11 360 8X11 400 8X12 470 10X13 530 10X16 620 13X21 765 13X21 880

680 8X11 468 8X14 500 8X16 560 10X18 610 10X20 700 13X21 786 13X26 1110 1000 8X14 580 10X13 630 10X18 770 10X20 935 13X21 1060 13X26 1350 16X26 1500 2200 10X20 980 10X20 1130 13X21 1310 13X26 1550 16X26 1770 16X32 2070 18X36 2200 3300 10X20 1200 13X21 1410 13X26 1710 16X26 1965 16X32 2200 18X36 2380 22X40 2590 4700 13X21 1650 13X26 1800 16X26 2100 16X32 2370 18X36 2390 22X40 2540 25X40 3200 6800 13X26 1900 16X26 2160 16X32 2500 18X36 2640 22X40 3215 25X40 3640

10000 16X26 2200 16X32 2530 18X36 2750 22X40 3060 15000 16X32 2652 18X36 2960 22X40 3240 22000 18X36 3140

100 160 200 250 350 400 450

SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C. SIZE R.C.

0.1 5X11 7.2

0.22 5X11 11

0.33 5X11 13

0.47 5X11 16 6.3X11 12 6.3X11 12 6.3X11 12 6.3X11 16 6.3X11 17

0.68 5X11 20 6.3X11 15 6.3X11 15 6.3X11 15 6.3X11 20 6.3X11 20

1 5X11 25 6.3X11 18 6.3X11 18 6.3X11 18 6.3X11 24 6.3X11 24 8X12 24

2.2 5X11 30 6.3X11 25 6.3X11 25 8X11 28 8X12 37 8X12 37 10X12 37

3.3 5X11 38 6.3X11 35 8X11 35 8X12 40 10X12 45 10X12 45 10X20 50

4.7 5X11 44 8X11 42 8X11 45 8X14 45 10X12 52 10X20 56 13X21 60

6.8 5X11 55 8X11 58 10X13 58 10X12 58 10X20 70 13X21 76 13X26 76 10 6.3X11 80 8X14 71 10X16 80 10X20 80 13X21 92 13X26 108 16X26 108 22 8X11 124 10X16 124 10X20 124 13X21 139 13X26 170 16X26 170 16X26 190 33 8X14 177 10X20 170 13X21 170 13X26 186 16X26 210 16X26 232 16X32 254 47 10X13 230 13X21 210 13X21 225 16X26 246 16X26 270 16X32 312 18X36 312 68 10X16 278 13X21 265 13X26 310 16X26 310 16X32 376 18X36 403 22X40 424

100 10X20 405 16X26 380 16X26 380 16X32 416 22X40 520 22X40 586 22X40 586 220 13X26 680 16X32 700 18X36 720 22X40 780 25X50 1058 330 16X26 860 18X36 900 22X35 900 25X40 910 470 16X26 1117 22X40 1130 25X40 1130

Are you a developer? Try out the HTML to PDF API

pdfcrowd.comopen in browser PRO version

Page 5

680 18X36 1573 25X40 1667

1000 22X40 1800


