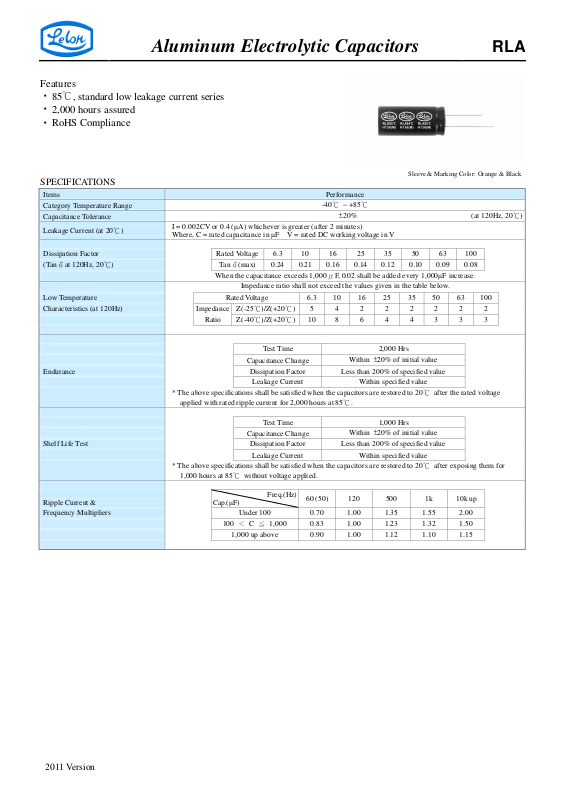

Aluminum Electrolytic Capacitors
Features
‧ 85℃
‧
‧
, standard low leakage current series
2,000 hours assured
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Capacitance Change
Endurance
Shelf Life Test
Ripple Current &
Frequency Multipliers
I = 0.002CV or 0.4 (µA) whichever is greater (after 2 minutes)
Where, C = rated capacitance in µF V = rated DC working voltage in V
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage
applied with rated ripple current for 2,000 hours at 85℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for
1,000 hours at 85℃ without voltage applied.
Freq.(Hz)
Rated Voltage 6.3 10 16 25 35 50 63 100
Tanδ(max)
When the capacitance exceeds 1,000μF, 0.02 shall be added every 1,000µF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 6.3 10 16 25 35 50 63 100
Impedance
Ratio
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
Cap.(µF)
Under 100 0.70 1.00 1.35 1.55 2.00
100 ＜ C ≦ 1,000
1,000 up above 0.90 1.00 1.12 1.10 1.15
0.24 0.21 0.16 0.14 0.12 0.10 0.09 0.08
Test Time 2,000 Hrs
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
-40℃ ~ +85℃
±
20% (at 120Hz, 20℃)
5 4 2 2 2 2 2 2
10 8 6 4 4 3 3 3
Within ±20% of initial value
Within ±20% of initial value
60 (50) 120 500 1k 10k up
0.83 1.00 1.23 1.32 1.50
Sleeve & Marking Color: Orange & Black
RLA
2011 Version
Page 2
V. DC
Contents
Aluminum Electrolytic Capacitors

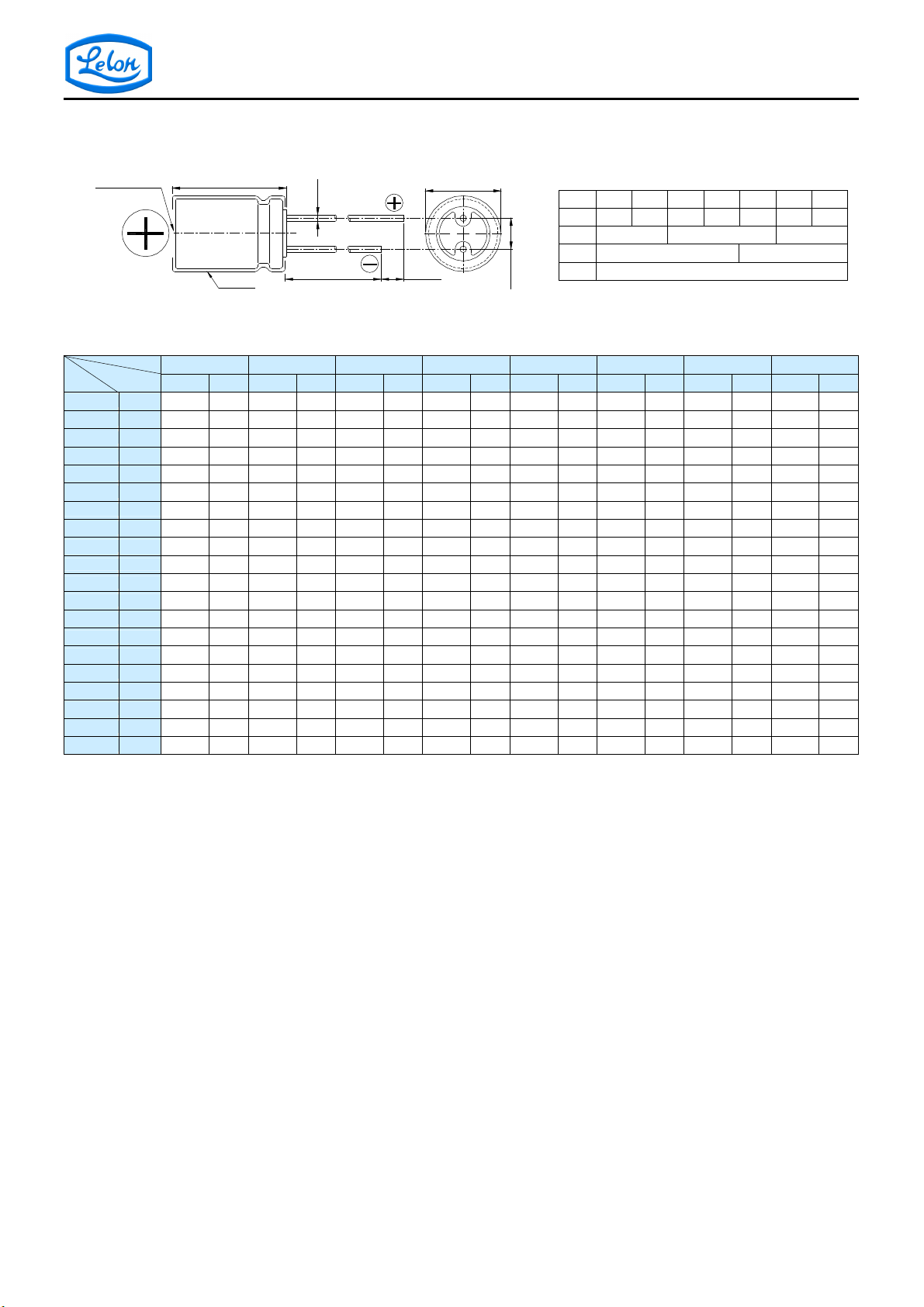

DIAGRAM OF DIMENSIONS
Vent≧6.3
LEAD SPACING AND DIAMETER
φ
L+α max
Sleeve
DIMENSION & PERMISSIBLE RIPPLE CURRENT
6.3V (0J) 10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H) 63V (1J) 100V (2A)
µF
0.1 0R1 5×11 1.3 5×11 2.6
0.22 R22 5×11 2.9 5×11 5.8
0.33 R33 5×11 4.4 5×11 8.8
0.47 R47 5×11 7 5×11 12
1 010 5×11 13 5×11 22
2.2 2R2 5×11 29 5×11 33
3.3 3R3 5×11 35 5×11 40
4.7 4R7 5×11 31 5×11 40 5×11 42 5×11 45 5×11 48
10 100 5×11 44 5×11 54 5×11 58 5×11 65 5×11 70 6.3×11 80
22 220 5×11 59 5×11 75 5×11 80 5×11 87 5×11 95 6.3×11 115 8×11.5 135
33 330 5×11 55 5×11 84 5×11 90 5×11 97 5×11 105 6.3×11 125 6.3×11 140 10×12.5 195
47 470 5×11 79 5×11 100 5×11 110 5×11 115 6.3×11 145 6.3×11 150 8×11.5 190 10×16 255
100 101 5×11 130 5×11 145 6.3×11 180 6.3×11 190 8×11.5 240 8×11.5 255 10×12.5 320 12.5×20 450
220 221 6.3×11 230 6.3×11 250 8×11.5 300 8×11.5 320 10×12.5 420 10×16 490 10×20 565 16×25 810
330 331 6.3×11 280 8×11.5 350 8×11.5 370 10×12.5 470 10×16 570 10×20 650 12.5×20 765 16×25 990
470 471 8×11.5 380 8×11.5 415 10×12.5 520 10×16 620 10×20 740 12.5×20 860 12.5×25 990 16×31.5 1,250
1,000 102 10×12.5 650 10×16 790 10×20 910 12.5×20 1,090 12.5×25 1,300 16×25 1,530 16×31.5 1,700
2,200 222 12.5×20 1,150 12.5×20 1,240 12.5×25 1,420 16×25 1,660 16×31.5 1,890 18×35.5 2,160
3,300 332 12.5×20 1,380 12.5×25 1,590 16×25 1,840 16×31.5 2,070 18×35.5 2,340
4,700 472 16×25 1,880 16×25 1,980 16×31.5 2,260 18×35.5 2,520 18×40 2,690
φD×L
mA
φD×L
d
φ
15 min
mA
φD×L
φD+β
4 min
max
5 6.3 8 10 12.5 16 18
φD
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
φd
α
0.5
±
P
β
0.5 0.6 0.8
1.0 1.5
0.5
Unit: mm
Dimension: φD × L(mm)
Ripple Current: mA/rms at 120 Hz, 85°C
mA
φD×L
mA
φD×L
mA
φD×L
mA
φD×L
mA
φD×L
RLA
mA
2011 Verison
