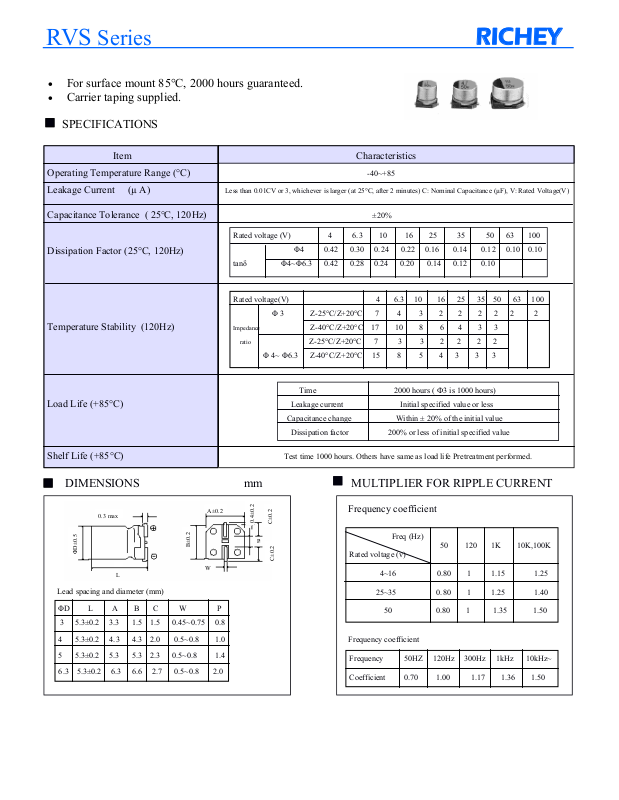

Page 1
RVS Series
• For surface mount 85°C, 2000 hours guaranteed.
• Carrier taping supplied.
SPECIFICATIONS
Item Characteristics
RICHEY
Operating Temperature Range (°C)
-40~+85
Leakage Current (µ A) Less than 0.01CV or 3, whichever is larger (at 25°C, after 2 minutes) C: Nominal Capacitance (µF), V: Rated Voltage(V)
Capacitance Tolerance ( 25°C, 120Hz) ±20%
Dissipation Factor (25°C, 120Hz)
Temperature Stability (120Hz)
Load Life (+85°C)
Rated voltage (V) 4 6.3 10 16 25 35 50 63 100
Φ4 0.42 0.30 0.24 0.22 0.16 0.14 0.12 0.10 0.10
tanδ Φ4~Φ6.3 0.42 0.28 0.24 0.20 0.14 0.12 0.10
Rated voltage(V) 4 6.3 10 16 25 35 50 63 100
Φ 3 Z-25°C/Z+20°C 7 4 3 2 2 2 2 2 2
Impedance Z-40°C/Z+20°C 17 10 8 6 4 3 3
ratio Z-25°C/Z+20°C 7 3 3 2 2 2 2
Φ 4~ Φ6.3 Z-40°C/Z+20°C 15 8 5 4 3 3 3
Time 2000 hours ( Ф3 is 1000 hours)
Leakage current Initial specified value or less
Capacitance change Within ± 20% of the initial value
Dissipation factor 200% or less of initial specified value
Shelf Life (+85°C) Test time 1000 hours. Others have same as load life Pretreatment performed.
DIMENSIONS MULTIPLIER FOR RIPPLE CURRENT
0.3 max
ΦD±0.5
L
Lead spacing and diameter (mm)
ΦD L A B C W P
3 5.3±0.2 3.3 1.5 1.5 0.45~0.75 0.8
4 5.3±0.2 4.3 4.3 2.0 0.5~0.8 1.0
5 5.3±0.2 5.3 5.3 2.3 0.5~0.8 1.4
6.3 5.3±0.2 6.3 6.6 2.7 0.5~0.8 2.0
A±0.2
B±0.2
W
mm
0.4±0.2
P
Frequency coefficient
C±0.2
Freq (Hz)
50 120 1K 10K,100K
C±0.2
Rated voltage (v)
4~16 0.80 1 1.15 1.25
25~35 0.80 1 1.25 1.40
50 0.80 1 1.35 1.50
Frequency coefficient
Frequency 50HZ 120Hz 300Hz 1kHz 10kHz~
Coefficient 0.70 1.00 1.17 1.36 1.50
Page 2
RICHEY
STANDARD RATINGS
WV
CAP (µF)
4.7 4R7 4x5.4 19
6.3 4 10 16 25
RVS Series
10 10R 4x5.4 25 5x5.4
4x5.4
15 15R 4x5.4 28 5x5.4 34
22 22R 4x5.4 31 5x5.4
4x5.4
33 33R 4x5.4 26 5x5.4
4x5.4
47 47R 4x5.4 34 5x5.4
4x5.4
56 56R 4x5.4 39 5x5.4 46 6.3x5.4 57 6.3x5.4 74 6.3x5.4 82
68 68R 5x5.4 45 6.3x5.4
5x5.4
100 101 5x5.4 61 6.3x5.4
5x5.4
150 151 6.3x5.4 74 6.3x5.4 78 6.3x5.4 88 6.3x7.7 135 8x10.5 200
220 221 6.3x5.4 82 6.3x5.4 95 6.3x7.7 150 8x10.5
330 331 6.3x7.7 150 6.3x5.4 150 8x10.5 280 8x10.5 280 10x10.5
39
(31)
47
(36)
62
(52)
71
(55)
5x5.4
4x5.4
6.3x5.4
5x5.4
6.3x5.4 72 6.3x5.4 80 6.3x5.4 94
6.3x5.4 76 6.3x5.4 86 6.3x7.7 130
35
(28)
43
(32)
59
(43)
5x5.4
4x5.4
6.3x5.4
5x5.4
6.3x5.4
5x5.4
6.3x7.7
39
(28)
57
(40)
68
(44)
215
(150)
6.3x54
5x5.4
6.3x5.4
5x5.4
6.3x54 68
8x10.5 250
8x10.5
28
(20)
52
(35)
63
(42)
340
(310)
470 471 6.3x7.7 150 8x10.5 300 8x10.5 300 10x10.5
8x10.5
680 681 8x10.5 300 8x10.5 300 10x10.5 380 10x10.5 450
1000 102 8x10.5 330 10x10.5
8x10.5
1500 152 10x10.5 450 10x10.5 450
2200 222 10x10.5 480
430
(330)
10x10.5 450 10x10.5 490
420
(330)
10x10.5 400
Page 3
RVS Series
STANDARD RATINGS
WV
CAP (µF)
0.1 OR1 4x5.4 1.0 4x5.4 1.0
0.22 R22 4x5.4 2.3 4x5.4 2.3
0.33 R33 4x5.4 3.5 4x5.4 3.5
0.47 R47 4x5.4 5.0 4x5.4 5.0
1 1R0 4x5.4 10 4x5.4 10 4x5.4 10
1.5 1R5 4x5.4 12 4x5.4 12 6.3x5.4 15
2.2 2R2 4x5.4 15 4x5.4 15 6.3x5.4 20
35 63 100
50
RICHEY
3.3 3R3 4x5.4 18 4x5.4 18 5x5.4 20 6.3x7.7
6.3x5.4
4.7 4R7 4x5.4 20 5x5.4
4x5.4
10 10R 5x5.4
4x5.4
22 22R 6.3x5.4 54 6.3x5.4 60 8x10.5
33 33R 6.3x5.4 60 6.3x7.7 85 8x10.5 160 10x10.5 190
47 47R 6.3x5.4 70 6.3x7.7 90 10x10.5
56 56R 6.3x7.7 80 6.3x7.7 110 10x10.5 250
68 68R 6.3x7.7 110 8x10.5 170 10x10.5 260
100 101 8x10.5
6.3x7.7
150 151 8x10.5 220 10x10.5 240
220 221 10x10.5
(8x10.5)
330 331 10x10.5 350
470 471 10x10.5 400
30
(20)
175
(120)
310
(270)
6.3x5.4 34 6.3x7.7
8x10.5 200 10x10.5 280
10x10.5 320
23
19
6.3x5.4
5x5.4
6.3x5.4
6.3x7.7
8x10.5
30
(23)
55
(34)
140
(70)
230
(170)
6.3x7.7
6.3x5.4
8x10.5
6.3x7.7
10x10.5
8x10.5
10x10.5 200
Case Allowable
Size Ripple
45
(28)
50
(30)
110
(50)
180
(120)
