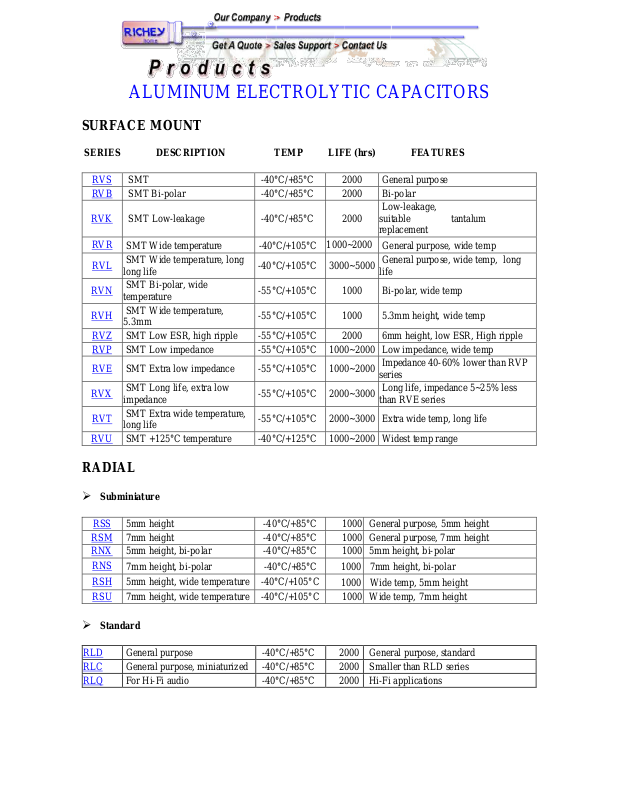

ALUMINUM ELECTROLYTIC CAPACITORS
SURFACE MOUNT
SERIES DESCRIPTION TEMP LIFE (hrs) FEATURES
RVS
SMT
-40°C/+85°C
2000
General purpose
RVB
SMT Bi-polar
-40°C/+85°C
2000
Bi-polar
RVK
SMT Low-leakage
-40°C/+85°C
2000
Low-leakage,
suitable tantalum
replacement
RVR
SMT Wide temperature
-40°C/+105°C
1000~2000
General purpose, wide temp
RVL
SMT Wide temperature, long
long life
-40°C/+105°C
3000~5000
General purpose, wide temp, long
life
RVN
SMT Bi-polar, wide
temperature
-55°C/+105°C
1000
Bi-polar, wide temp
RVH
SMT Wide temperature,
5.3mm
-55°C/+105°C
1000
5.3mm height, wide temp
RVZ
SMT Low ESR, high ripple
-55°C/+105°C
2000
6mm height, low ESR, High ripple
RVP
SMT Low impedance
-55°C/+105°C
1000~2000
Low impedance, wide temp
RVE
SMT Extra low impedance
-55°C/+105°C
1000~2000
Impedance 40-60% lower than RVP
series
RVX
SMT Long life, extra low
impedance
-55°C/+105°C
2000~3000
Long life, impedance 5~25% less
than RVE series
RVT
SMT Extra wide temperature,
long life
-55°C/+105°C
2000~3000
Extra wide temp, long life
RVU
SMT +125°C temperature
-40°C/+125°C
1000~2000
Widest temp range
RADIAL
Subminiature
RSS
5mm height
-40°C/+85°C
1000
General purpose, 5mm height
RSM
7mm height
-40°C/+85°C
1000
General purpose, 7mm height
RNX
5mm height, bi-polar
-40°C/+85°C
1000
5mm height, bi-polar
RNS
7mm height, bi-polar
-40°C/+85°C
1000
7mm height, bi-polar
RSH
5mm height, wide temperature
-40°C/+105°C
1000
Wide temp, 5mm height
RSU
7mm height, wide temperature
-40°C/+105°C
1000
Wide temp, 7mm height
Standard
RLD
General purpose
-40°C/+85°C
2000
General purpose, standard
RLC
General purpose, miniaturized
-40°C/+85°C
2000
Smaller than RLD series
RLQ
For Hi-Fi audio
-40°C/+85°C
2000
Hi-Fi applications
Page 2
Wide Temperature
RHH
General purpose, wide temp.
-55°C/+105°C
1000
General purpose, wide temp
RHK
Wide temperature, longer hours
-40°C/+105°C
1000~2000
For ballast applications
Low Leakage
RLL
Low-leakage
-40°C/+85°C
2000
General purpose, low-leakage
RPQ
Low-leakage, wide temperature
-40°C/+105°C
2000
Low-leakage, wide temp
Non-polar
RNC
General Purpose, bi-polar
-40°C/+85°C
2000
Bi-polar
RNH
Bi-polar, wide temperature
-55°C/+105°C
1000
Bi-polar, wide temperature
RNL
Bi-polar, for speaker networks
-40°C/+85°C
1000
Bi-polar, speaker networks
RNV
Bi-polar, wide temperature
-55°C/+105°C
1000
For horizontal deflection
Low Impedance
RPZ
Low impedance, high ripple
-55°C/+105°C
2000
For switching power supplies
RPS
Low impedance, high ripple,
miniaturized
-55°C/+105°C
2000
Smaller then RPZ series
RPL
Ultra low impedance, high
ripple
-55°C/+105°C
2000
Lower impedance and higher ripple
than RPZ and RPS series
RPM
Ultra low impedance, high
ripple, miniaturized
-55°C/+105°C
2000
Smaller than the RPL series
RPX
Ultra low impedance, high
ripple, longer hours
-55°C/+105°C
2000~3000
Longer hour ratings
RPE
Ultra low impedance, high
ripple, longest hours
-55°C/+105°C
2000~8000
Longest hour ratings
RPR
Lowest impedance
-40°C/+105°C
2000~5000
Lowest available impedance
RPU
Extra Low impedance
-40°C/+105°C
8000
Low ESR and long hours
RPB
DISCONTINUED: SEE RPK
SERIES
RPK
For ballasts, 5000 hours
-40°C/+105°C
5000
Ballast applications
Extreme Temperature
RUR
+125°C, 1000 hours
-40°C/+125°C
1000
High temp
RUL
+125°C, 2000 hours
-40°C/+125°C
2000
High temp, longer hours
RUX
+125°C, 2000 hours, high
voltage
-40°C/+125°C
2000
High temp, longer hours, higher voltage
than RUL series
Extra Long Life
RHL
Extremely long hours at
+105°C
-25°C/+105°C
8000~10000
Extra-long life
Photo Flash
RFR
Radial, for photo flash
-20°C/+55°C
n/a
High stability, low df, low leakage
RFL
Snap-in or lug for photo flash
-20°C/+65°C
Polymer
REV
Solid polymer, very low ESR
-55°C/+105°C
2000
Very low ESR, very high ripple
REU
Solid polymer, ultra low ESR
-55°C/+105°C
2000
Ultra low ESR, ultra high ripple
Page 3
SNAP-IN
RTR
General purpose
-40°C/+85°C
2000
Available in 2, 3, or 4-pins
RTX
Long hours
-40°C/+85°C
5000
High ripple, small size
RTH
General purpose, wide temp
-40°C/+105°C
2000
High ripple, high temp
RTZ
Wide temperature, long hours
-40°C/+105°C
3000
Long hours, high temp
RTE
Wide temp, longer hours
-40°C/+105°C
5000
Very long hours, high temp
RTB
Wide temp, extreme hours
-40°C/+105°C
7000
Suitable for ballast applications
RTP
High temp, low profile
-40°C/+105°C
2000
Low profile, high ripple
COMPUTER GRADE (SCREW TERMINAL)
RCT
General purpose
-40°C/+85°C
2000
General purpose
RCP
General purpose, smaller size
-40°C/+85°C
2000
14% smaller than RCT series
RCX
Long life
-40°C/+85°C
5000
Long life, general purpose inverter
RCE
Long life, high voltage
-40°C/+85°C
5000
Long life, voltages to 500vdc and
550vdc
RCZ
Extreme long life
-40°C/+85°C
20,000
Longest life available
RCH
General purpose, high
temperature
-40°C/+105°C
2000
High temp, general purpose
RCB
Long life, high temperature
-40°C/+105°C
5000
High temp, long life
AXIAL
RMD
Axial, general purpose
-40°C/+85°C
2000
General purpose
RHA
Axial, wide temperature
-40°C/+105°C
2000
General Purpose, wide temperature
RMN
Axial, bi-polar
-40°C/+85°C
2000
Suitable for reversal circuits
RMX
Axial, bi-polar, for speaker
-40°C/+85°C
2000
Suitable for speaker networks,
amplifiers, and audio
RNA
Axial, bi-polar, double plug
-40°C/+85°C
2000
Suitable for reversal circuits
RNK
Axial, bi-polar, for speaker,
double plug
-40°C/+85°C
2000
Suitable for speaker networks,
amplifiers, and audio
RPA
Axial, high temp, low ESR
-55°C/+105°C
2000
Low ESR, high ripple
Please see the new PART NUMBER SYSTEM in the following page to see how Richey
part numbers are explained.
Page 4

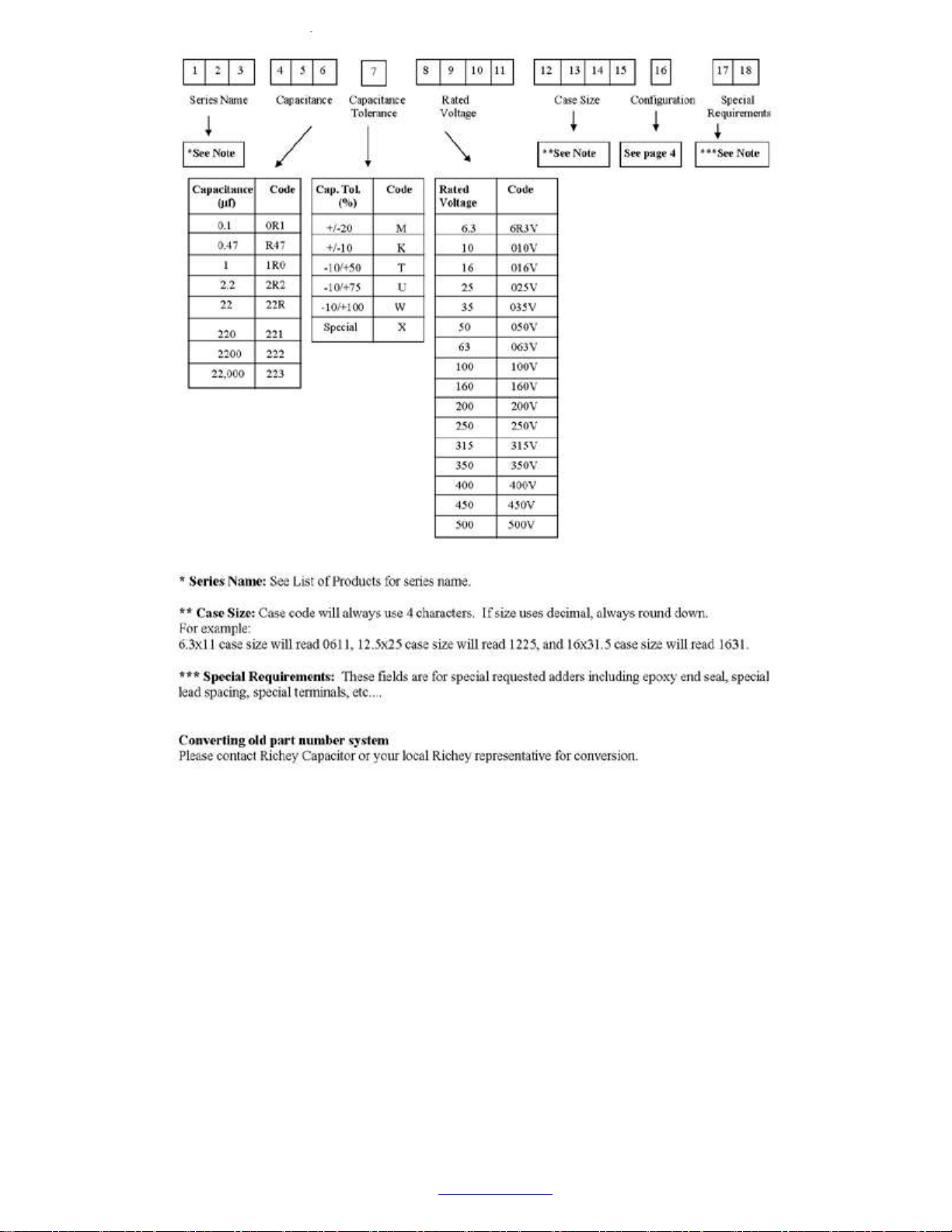

New Richey Aluminum Electrolytic Capacitor Part Numbering System
©R i c h e y C a p a c i t o r, I n c.
P.O. Box 100296
Nashville, TN 37224
615/254-3561
fax: 615/255-7673
E-mail: [email protected]
