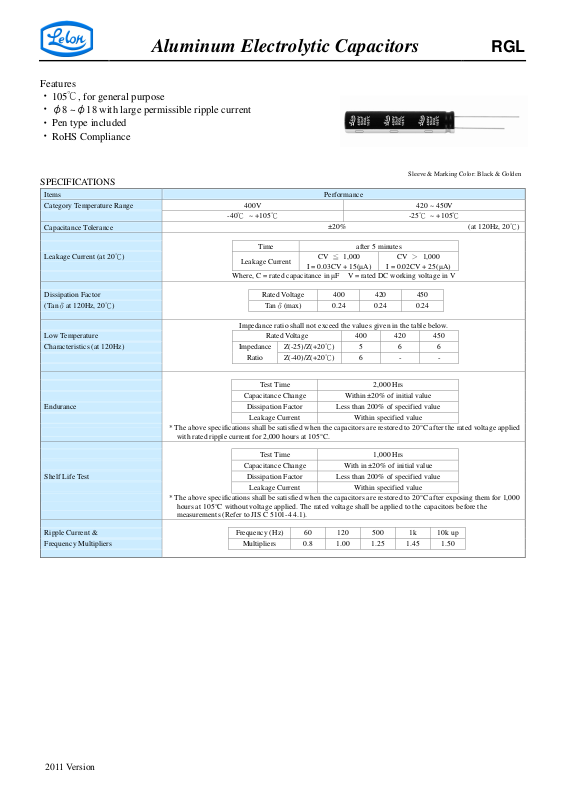

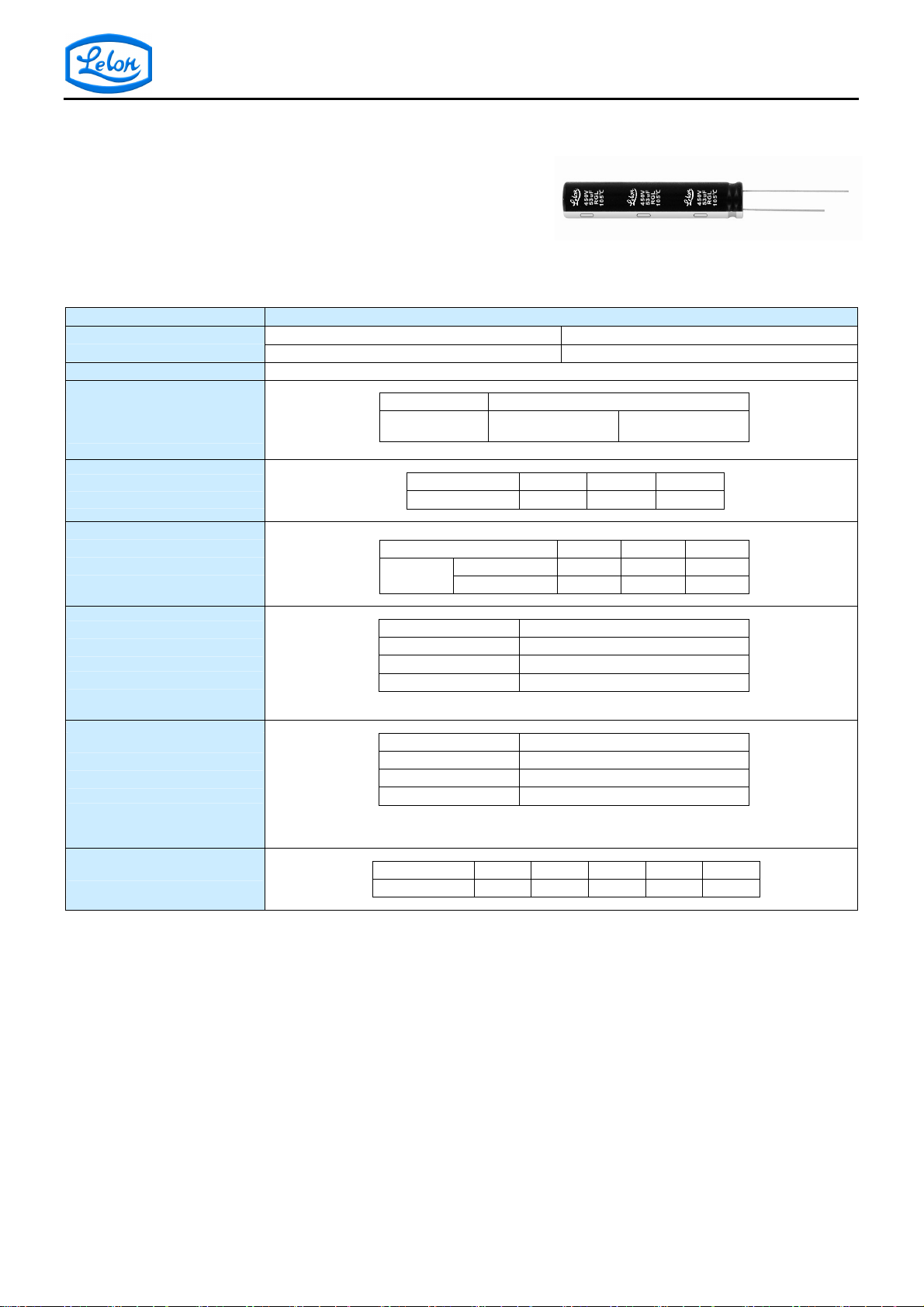

Aluminum Electrolytic Capacitors
Features
‧
105℃, for general purpose
‧
φ8 ~φ18 with large permissible ripple current
‧
Pen type included
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range 400V 420 ~ 450V
Capacitance Tolerance
Time after 5 minutes
Leakage Current (at 20℃)
Where, C = rated capacitance in µF V = rated DC working voltage in V
Dissipation Factor Rated Voltage 400 420 450
(Tanδat 120Hz, 20℃)
Low Temperature Rated Voltage 400 420 450
Characteristics (at 120Hz) Impedance
Ratio
Test Time 2,000 Hrs
Capacitance Change Within ±20% of initial value
Endurance Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change With in ±20% of initial value
Shelf Life Test Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Ripple Current & Frequency (Hz)
Frequency Multipliers Multipliers 0.8 1.00 1.25 1.45 1.50
Leakage Current
* The above specifications shall be satisfied when the capacitors are restored to 20°C after the rated voltage applied
with rated ripple current for 2,000 hours at 105°C.
* The above specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000
hours at 105°C without voltage applied. The rated voltage shall be applied to the capacitors before the
measurements (Refer to JIS C 5101-4 4.1).
Sleeve & Marking Color: Black & Golden
-40℃ ~ +105℃ -25℃ ~ +105℃
±20% (at 120Hz, 20℃)
CV ≦ 1,000
I = 0.03CV + 15(µA)
Tanδ(max)
Impedance ratio shall not exceed the values given in the table below.
Z(-25)/Z(+20℃)
Z(-40)/Z(+20℃)
0.24 0.24 0.24
5 6 6
6 - -
60 120 500 1k 10k up
CV ＞ 1,000
I = 0.02CV + 25(µA)
RGL
2011 Version
Page 2
Aluminum Electrolytic Capacitors
RGL

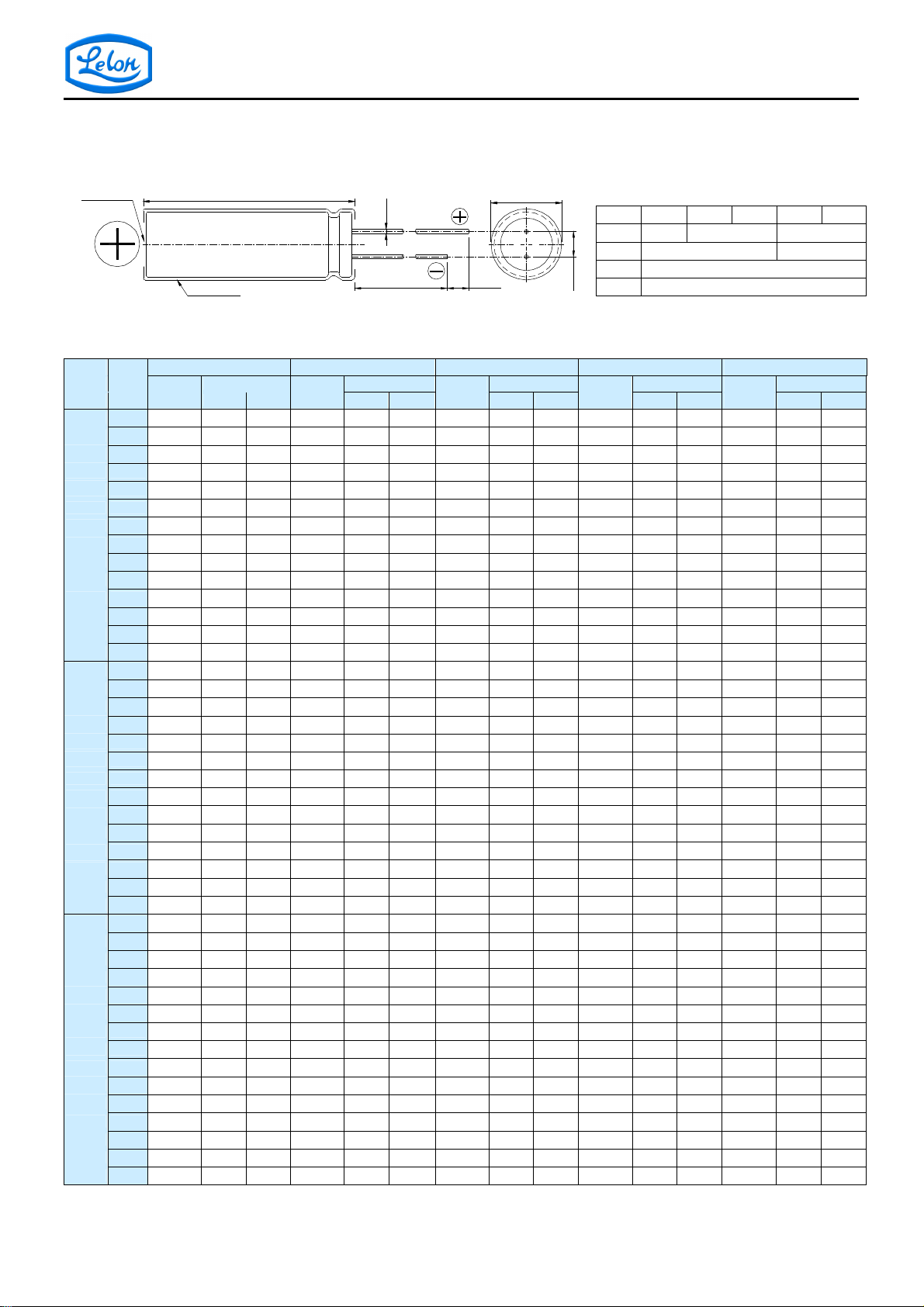

DIAGRAM OF DIMENSIONS
Unit: mm
Vent≧10
LEAD SPACING AND DIAMETER
φ
PET Sleeve
L+α Max
φD+β
d
φ
Max
φD
8 10 12.5 16 18
P 3.5 5.0 7.5
0.6 0.8
2.0
0.5
15 min
4 min
φd
α
0.5
±
P
β
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V. DC Cap.
15
22
27
33
39
47 10×40 430 645
400V 56 10×45 480 720 12.5×30 470 705
(2G) 68 10×50 520 780 12.5×35 540 810
82 12.5×40 620 930
100 12.5×50 730 1,095
120 16×35.5 800 1,200
150 16×40 920 1,380
180 16×50 1,080 1,620 18×40 1,060 1,590
220 18×45 1,200 1,800
15 8×30 195 293
22 8×35 255 383
27 8×45 320 480
33 8×50 370 555 10×30 330 495
39 10×35 370 555
47 10×40 430 645
420V) 56 10×50 490 735 12.5×30 470 705
(2P 68 12.5×35 540 810
82 12.5×45 630 945
100 12.5×50 730 1,095
120 16×35.5 800 1,200
150 16×45 940 1,410 18×35.5 920 1,380
180 16×50 1,050 1,575 18×40 1,060 1,590
220 18×50 1,220 1,830
15 8×30 195 293
22 8×40 270 405
27 8×45 320 480 10×30 300 450
33 8×50 370 555 10×35 340 510
39 10×40 390 585
47 10×45 440 660 12.5×30 430 645
450V 53 10×50 470 705
(2W) 56 12.5×35 490 735
68 12.5×40 560 840
82 12.5×45 630 945
100 16×35.5 730 1,095
120 16×40 820 1,230
150 16×50 980 1,470 18×40 970 1,455
180 18×45 1,090 1,635
220 18×50 1,220 1,830
Remark: Other sizes and specification are available, please contact us for detail.
φD×L
(μF)
8φ 10φ 12.5φ 16φ 18φ
8×30
8×35
8×40
8×45
8×50
Ripple Current
120 Hz 100k Hz
190 285
250 375
300 450
350 525 10×30 330 495
390 585 10×35 370 555
φD×L
120 Hz 100k Hz
Ripple Current: mA/rms at 105°C
Ripple Current
φD×L
Ripple Current
120 Hz 100k Hz
φD×L
Dimension: φD × L(mm)
Ripple Current
120 Hz 100k Hz
φD×L
Ripple Current
120 Hz 100k Hz
2011 Verison
