Nr. / No. Kabellänge / cable length (m) Verpackung / Packaging

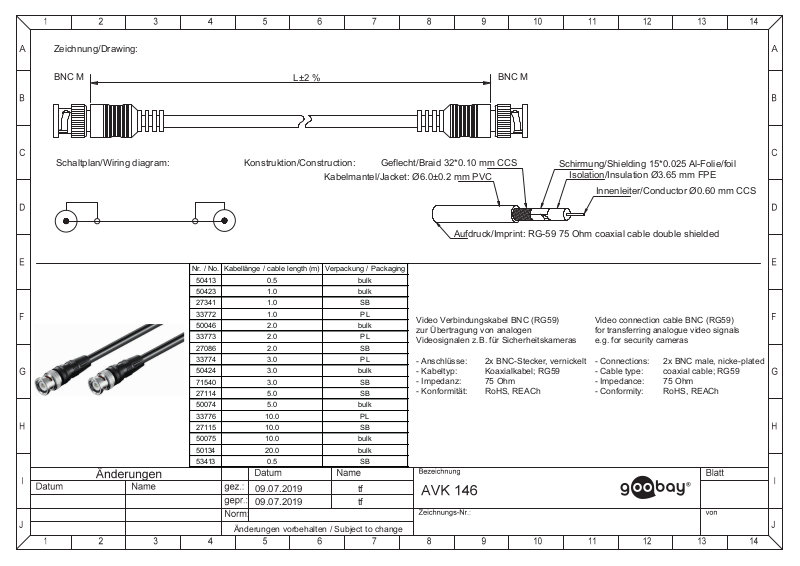

Zeichnung/Drawing:
BNC M
Schaltplan/Wiring diagram:
50413 0.5 bulk
50423 1.0 bulk
27341 1.0 SB
33772 1.0 PL
50046 2.0 bulk
33773 2.0 PL
27086 2.0 SB
33774 3.0 PL
50424 3.0 bulk
71540 3.0 SB
27114 5.0 SB
50074 5.0 bulk
33776 10.0 PL
27115 10.0 SB
50075 10.0 bulk
50134 20.0 bulk
53413 0.5 SB
L±2 %
BNC M
Konstruktion/Construction: Geflecht/Braid 32*0.10 mm CCS
Kabelmantel/Jacket: Ø6.0±0.2 mm PVC
Aufdruck/Imprint: RG-59 75 Ohm coaxial cable double shielded
Video Verbindungskabel BNC (RG59)
zur Übertragung von analogen
Videosignalen z.B. für Sicherheitskameras
- Anschlüsse: 2x BNC-Stecker, vernickelt
- Kabeltyp: Koaxialkabel; RG59
- Impedanz: 75 Ohm
- Konformität: RoHS, REACh
Schirmung/Shielding 15*0.025 Al-Folie/foil
Isolation/Insulation Ø3.65 mm FPE
Innenleiter/Conductor Ø0.60 mm CCS
Video connection cable BNC (RG59)
for transferring analogue video signals
e.g. for security cameras
- Connections: 2x BNC male, nicke-plated
- Cable type: coaxial cable; RG59
- Impedance: 75 Ohm
- Conformity: RoHS, REACh
09.07.2019 tf
09.07.2019 tf
Änderungen vorbehalten / Subject to change
