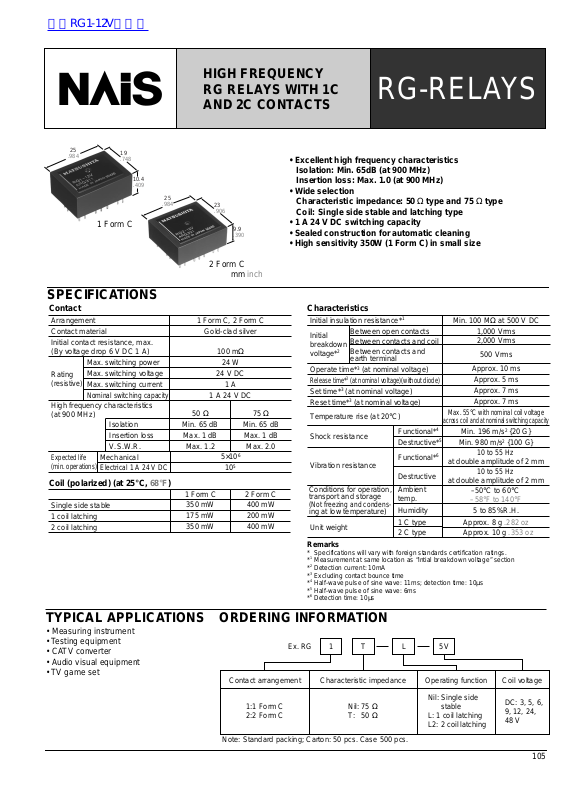

HIGH FREQUENCY
RG RELAYS WITH 1C
RG-RELA YS
AND 2C CONTACTS
25
.984
19
.748
10.4
.409
1 Form C
SPECIFICATIONS
Contact
Arrangement
Contact material
Initial contact resistance, max.
(By voltage drop 6 V DC 1 A)
Max. switching power
Rating
(resistive)
High frequency characteristics
(at 900 MHz)
Expected life
(min. operations)
Coil (polarized) (at 25°C, 68°F)
Single side stable
1 coil latching
2 coil latching
Max. switching voltage
Max. switching current
Nominal switching capacity
Isolation
Insertion loss
V.S.W.R. Max. 2.0
Mechanical
Electrical 1 A 24 V DC
25
.984
23
.906
2 Form C
mm inch
1 Form C, 2 Form C
Gold-clad silver
100 mΩ
24 W
24 V DC
1 A
1 A 24 V DC
Min. 65 dB Min. 65 dB
Max. 1 dB Max. 1 dB
Max. 1.2
5×10
10
1 Form C 2 Form C
350 mW 400 mW
175 mW 200 mW
350 mW 400 mW
9.9
.390
5
• Excellent high frequency characteristics
Isolation: Min. 65dB (at 900 MHz)
Insertion loss: Max. 1.0 (at 900 MHz)
• Wide selection
Characteristic impedance: 50 Ω type and 75 Ω type
Coil: Single side stable and latching type
• 1 A 24 V DC switching capacity
• Sealed construction for automatic cleaning
• High sensitivity 350W (1 Form C) in small size
Characteristics
Initial insulation resistance*
Initial
breakdown
voltage*
Operate time*3 (at nominal voltage)
Release time*3 (at nominal voltage)(without diode)
Set time*
Reset time*
75 Ω50 Ω
6
Temperature rise (at 20°C)
Shock resistance
Vibration resistance
Conditions for operation,
transport and storage
(Not freezing and condensing at low temperature)
Unit weight
Remarks
* Specifications will vary with foreign standards certification ratings.
1
Measurement at same location as “Intial breakdown voltage” section
*
2
Detection current: 10mA
*
3
Excluding contact bounce time
*
4
Half-wave pulse of sine wave: 11ms; detection time: 10µs
*
5
Half-wave pulse of sine wave: 6ms
*
6
Detection time: 10µs
*
Between open contacts
Between contacts and coil
2
Between contacts and
earth terminal
3
(at nominal voltage)
3
(at nominal voltage)
1
Functional*
Destructive*
Functional*
Destructive
Ambient
temp.
Humidity 5 to 85%R.H.
1 C type
2 C type
Min. 100 MΩ at 500 V DC
1,000 Vrms
2,000 Vrms
500 Vrms
Approx. 10 ms
Approx. 5 ms
Approx. 7 ms
Approx. 7 ms
Max. 55°C with nominal coil voltage
across coil and at nominal switching capacity
4
Min. 196 m/s
5
Min. 980 m/s2 {100 G}
6
at double amplitude of 2 mm
at double amplitude of 2 mm
–50°C to 60°C
–58°F to 140°F
Approx. 8 g .282 oz
Approx. 10 g .353 oz
2
{20 G}
10 to 55 Hz
10 to 55 Hz
TYPICAL APPLICATIONS
• Measuring instrument
• T esting equipment
• CATV converter
• Audio visual equipment
• TV game set
ORDERING INFORMATION
1T L 5VEx. RG
Contact arrangement Characteristic impedance Operating function Coil voltage
1:1 Form C
2:2 Form C
Note: Standard packing; Carton: 50 pcs. Case 500 pcs.
Nil: 75 Ω
T: 50 Ω
Nil: Single side
Nil: stable
L: 1 coil latching
L2: 2 coil latching
DC: 3, 5, 6,
9, 12, 24,
48 V
105
Page 2
RG
TYPES ANE COIL DATA (at 20°C 68°F)
1 Form C
Single side stable
Part No.
RG1-3V
RG1T-3V
RG1-5V
RG1T-5V
RG1-6V
RG1T-6V
RG1-9V
RG1T-9V
RG1-12V
RG1T-12V
RG1-24V
RG1T-24V
RG1-48V
RG1T-48V
1 coil latching
Part No.
RG1-L-3V
RG1T-L-3V
RG1-L-5V
RG1T-L-5V
RG1-L-6V
RG1T-L-6V
RG1-L-9V
RG1T-L-9V
RG1-L-12V
RG1T-L-12V
RG1-L-24V
RG1T-L-24V
RG1-L-48V
RG1T-L-48V
2 coil latching
Part No.
RG1-L2-3V
RG1T-L2-3V
RG1-L2-5V
RG1T-L2-5V
RG1-L2-6V
RG1T-L2-6V
RG1-L2-9V
RG1T-L2-9V
RG1-L2-12V
RG1T-L2-12V
RG1-L2-24V
RG1T-L2-24V
RG1-L2-48V
RG1T-L2-48V
Nominal
voltage
V DC
3
5
6
9
12
24
48
Nominal
voltage
V DC
3
5
6
9
12
24
48
Nominal
voltage
V DC
3
5
6
9
12
24
48
Pick-up
voltage, max.
V DC
2.4
4.0
4.8
7.2
9.6
19.2
38.4
Set and reset
voltage,
V DC (max.)
2.4
4.0
4.8
7.2
9.6
19.2
38.4
Set and reset
voltage,
V DC (max.)
2.4
4.0
4.8
7.2
9.6
19.2
38.4
Drop-out
voltage, min.
V DC
0.3
0.5
0.6
0.9
1.2
2.4
4.8
Coil
resistance,
Ω (±10%)
51.4
142.8
206.8
462.8
822.8
3,292.8
13,166.8
Coil resistance, Ω (±10%)
Coil 1 Coil 2
25.7
71.4
103
231
411
1,646
6,583
Coil
resistance,
Ω (±10%)
25.7
71.4
103
231
411
1,646
6,583
Nominal
operating
current, mA
58.3
35.8
29.2
19.4
14.6
7.3
3.6
25.7
71.4
103
231
411
1,646
6,583
Nominal
operating
current, mA
117.3
70.3
58.3
38.9
29.2
14.6
7.3
Nominal
operating
power, mW
175
175
175
175
175
175
175
Nominal
operating
current, mA
117.8
70.8
58.3
38.9
29.2
14.6
7.3
Nominal
operating
power, mW
350
350
350
350
350
350
350
Maximum
allowable
voltage, V DC
(40°C 104°F)
3.6
6.0
7.2
10.8
14.4
28.8
57.6
Nominal
operating
power, mW
350
350
350
350
350
350
350
Maximum
allowable
voltage, V DC
(40°C 104°F)
3.6
6.0
7.2
10.8
14.4
28.8
57.6
Maximum
allowable
voltage, V DC
(40°C 104°F)
3.6
6.0
7.2
10.8
14.4
28.8
57.6
2 Form C
Single side stable
Part No.
RG2-3V
RG2T-3V
RG2-5V
RG2T-5V
RG2-6V
RG2T-6V
RG2-9V
RG2T-9V
RG2-12V
RG2T-12V
RG2-24V
RG2T-24V
RG2-48V
RG2T-48V
106
Nominal
voltage
V DC
3
5
6
9
12
24
48
Pick-up
voltage, max.
V DC
2.4
4.0
4.8
7.2
9.6
19.2
38.4
Drop-out
voltage, min.
V DC
0.3
0.5
0.6
0.9
1.2
2.4
4.8
Coil
resistance,
Ω (±10%)
22.5
62.5
90
202.5
360
1,440
5,760
Nominal
operating
current, mA
133.8
80.8
66.7
44.4
33.3
16.7
8.3
Nominal
operating
power, mW
400
400
400
400
400
400
400
Maximum
allowable
voltage, V DC
(40°C 104°F)
3.6
6.0
7.2
10.8
14.4
28.8
57.6
Page 3
1 coil latching
Part No.
RG2-L-3V
RG2T-L-3V
RG2-L-5V
RG2T-L-5V
RG2-L-6V
RG2T-L-6V
RG2-L-9V
RG2T-L-9V
RG2-L-12V
RG2T-L-12V
RG2-L-24V
RG2T-L-24V
RG2-L-48V
RG2T-L-48V
2 coil latching
Part No.
RG2-L2-3V
RG2T-L2-3V
RG2-L2-5V
RG2T-L2-5V
RG2-L2-6V
RG2T-L2-6V
RG2-L2-9V
RG2T-L2-9V
RG2-L2-12V
RG2T-L2-12V
RG2-L2-24V
RG2T-L2-24V
RG2-L2-48V
RG2T-L2-48V
RG
Nominal
voltage
V DC
3
5
6
9
12
24
48
Nominal
voltage
V DC
3
5
6
9
12
24
48
Set and reset
voltage,
V DC (max.)
2.4
4.0
4.8
7.2
9.6
19.2
38.4
Set and reset
voltage,
V DC (max.)
2.4
4.0
4.8
7.2
9.6
19.2
38.4
Coil
resistance,
Ω (±10%)
45
125
180
405
720
2,880
11,520
Nominal
operating
current, mA
66.7
40.8
33.3
22.2
16.7
8.3
4.2
Coil resistance, Ω (±10%)
Coil 1 Coil 2
22.5
62.5
90
203
360
1,440
5,760
202.5
360
1,440
5,760
22.5
62.5
90
Nominal
operating
power, mW
200
200
200
200
200
200
200
Nominal
operating
current, mA
133.8
80.8
66.7
44.4
33.3
16.7
8.3
Maximum
allowable
voltage, V DC
(40°C 104°F)
3.6
6.0
7.2
10.8
14.4
28.8
57.6
Nominal
operating
power, mW
400
400
400
400
400
400
400
Maximum
allowable
voltage, V DC
(40°C 104°F)
3.6
6.0
7.2
10.8
14.4
28.8
57.6
DIMENSIONS
4–0.4×0.25
.016×.010
4–0.4×0.4
.016×.016
21
.827
15.24
.600
20.32
.800
5.08
.200
25
.984
2.61
7.62
.103
.300
3–0.5×0.4
.020×.016
Tolerance: ±0.3 ±.012
15
.591
19
.748
2.54
.100
9.9
.390
0.5
.020
3.7
.146
mm inch
PC board pattern (Copper-side view)1 Form C type
11-1 DIA
11-.039 DIA.
Schematic (Bottom view)
Deenergized condition Reset condition Reset condition
1 2 345 6 7
–
15
+
16
Single side stable
2.54
.100
2.54
.100
Tolerance: ±0.1 ±.004
1 2 345 6 7
17
18
+
15
–
16
17
18
1 2 345 6 7
–
15
Set coil
+
16
17
18
1 coil latching 2 coil latching
+
–
Reset coil
107
Page 4
RG
2 Form C type
21
.827
5.08
.200
15.24
.600
20.32
.800
25
6–0.5×0.4
.984
.020×.016
8–0.4×0.25
.016×.010
4–0.4×0.4
.016×.016
General tolerance: ±0.3 ±.012
REFERENCE DATA
1. Isolation
RG2-12V
75 Ω characteristic impedance
100
19
.748
9.4
.370
0.5
.020
100
3.7
.146
2.54
.100
17.78
.700
23
.906
RG2T-12V
50 Ω
characteristic impedance
PC board pattern (Copper-side view)
2.54
.100
2.54
.100
18-1 DIA
18-.039 DIA.
Tolerance: ±0.1 ±.004
Schematic (Bottom view)
1 2 345 6 7
–
+
8 9
15
16
17
18
10 11 12 13 14
Single side stable
1 2 345 6 7
+
15
–
16
8 9
10 11 12 13 14
17
18
1 2 345 6 7
–
15
Set coil
+
16
8 9
10 11 12 13 14
1 coil latching 2 coil latching
17
18
Deenergized condition Reset condition Reset condition
mm inch
+
–
Reset coil
50
Isolation, dB
Isolation, dB
5000 1000
Frequency, MHz
Frequency, MHz
2. Insertion loss
RG2-12V
75 Ω characteristic impedance
5
Insertion loss, dB
0
5000 1000
Frequency, MHz
50
Isolation, dB
RG2T-12V
50 Ω characteristic impedance
5
Insertion loss, dB
0
Frequency, MHz
5000 1000
Frequency, MHz
5000 1000
108
Page 5
3. Return loss
RG2-12V
75 Ω characteristic impedance
100
50
Return loss, dB
5000 1000
Frequency, MHz
4-(1). Operate and release time (1C)
RG1-12V 6 pcs.
15
10
5
Operate and release time, ms
Operate time
Release time
Max.
Max.
x
x
Min.
Min.
RG2T-12V
50 Ω characteristic impedance
100
50
Return loss, dB
5000 1000
Frequency, MHz
4-(2). Set and reset time (1C)
RG1-L2-12V 6 pcs.
15
10
5
Set and reset time, ms
Set time
Reset time
Max.
Max.
x
x
Min.
Min.
4-(3). Operate and release time
(Without diode) (2C)
RG2-12V 6 pcs.
15
10
5
Operate and release time, ms
Operate time
Release time
RG
Max.
Max.
x
x
Min.
Min.
0
80
100 120
Coil voltage, %V
4-(4). Set and reset time (2C)
RG2-L2-12V 6 pcs.
15
10
5
Set and reset time, ms
0
80
100 120
Coil voltage, %V
5-(2). Bounce time (2C)
RG2-L2-12V 100 pcs.
Nominal voltage is applied.
100
Set bounce
Set time
Reset time
Max.
Max.
x
x
Min.
Min.
0
80 100 120
5-(1). Bounce time (2C)
RG2-12V 100 pcs.
Nominal voltage is applied.
100
50
Frequency
100
Operate bounce
000.5 1.0 1.5 2.0 2.5
Operate bounce, ms
Reset bounce
Coil voltage, %V
0
80
100
50
Frequency
00 0.5 1.0 1.5 2.0 2.5
100 120
Coil voltage, %V
Release bounce
Release bounce, ms
50
Frequency
000.5 1.0 1.5 2.0 2.5
Set bounce, ms
50
Frequency
000.5 1.0 1.5 2.0 2.5
Reset bounce, ms
109
Page 6
RG
6-(1). Mechanical life (1C)
RG1-12V 12 pcs.
6-(2). Mechanical life (1C latching type)
RG1-L2-12V 6 pcs.
10
8
6
4
Pick-up and drop-out voltage
2
Pick-up voltage
Drop-out voltage
100 200 300 4000
No. of operations, ×10
7-(1). Electrical life (10 mA 24 V DC
resistive load)
RG2-12V 6 pcs.
100
80
60
40
Contact resistance, mΩ
20
Max.
x
Min.
Max.
x
Min.
500
4
10
8
6
4
Set and reset voltage, V
2
100 200 300 400 5000
No. of operations, ×10
Set voltage
Reset voltage
4
Max.
Max.
x
x
Min.
Min.
7-(2). Electrical life (1 A 24 V DC resistive load)
RG2-12V 6 pcs.
100
80
Max.
60
Max.
x
Min.
40
Contact resistance, mΩ
20
x
Min.
2468100
No. of operations, ×10
4
8-(1). Rate of change in pick-up and drop-out
voltage (1C)
RG1-12V 5 pcs.
40
30
20
10
0
Rate of change, %
–10
–20
–30
–40 –20 0 20 40 60 80
Pick-up voltage
Drop-out voltage
Ambient temperature, °C
8-(2). Rate of change in pick-up and dropout voltage (2C)
RG2-12V 5 pcs.
40
30
20
10
0
Rate of change, %
–10
–20
–30
–40 –20 0 20 40 60 80
Pick-up voltage
Drop-out voltage
Ambient temperature, °C
110
RG1-L2-12V 5 pcs.
40
30
20
10
0
Rate of change, %
–10
–20
–30
–40 –20 0 20 40 60 80
RG2-L2-12V 5 pcs.
40
30
20
10
0
Rate of change, %
–10
–20
–30
–40 –20 0 20 40 60 80
2468100
No. of operations, ×10
Ambient temperature, °C
Set voltage
Ambient temperature, °C
4
Set voltage
Reset voltage
Reset voltage
Page 7
Test condition
RG
mm inch
Spectrum analyzer
1. Characteristic impedance of all the
measuring devices (signal generator and cable) is 50 Ω or 75 Ω .
2. The PC board for the test is double
side copper clad phenolic paper
laminate with thickness of 1.6 mm.
3. Grounding terminal holes are plated
through.
4. Grounding terminal and one of the
coil terminals are soldered to the PC
board to be grounded.
5. Connection with measurement instrument is made with semi-rigid cable (Uniform Tube UT 141A) and
high frequency NM type connector.
NOTES
1. Soldering
Perform soldering under the conditions below.
• Within 10s at 250°C 482°F
• Within 5s at 300°C 572°F
• Within 3s at 350°C 662°F
2. Counter voltage of DC relays
If input is cut off in DC relays, a
counter voltage is developed across
the coil as a result of the collapse of
the magnetic field. If the coil is used in
a transistor circuit, the reverse voltage
produced from the coil can cause a
serious circuit malfunction.
RG relay
Measurement tool
50 Ω or 75 Ω
70
2.756
40
1.575
NM type connector
PC board pattern
This counter voltage can be reduced
considerably by connecting a capacitor or a diode in parallel with the coil.
The level of reduction must be determined either by calculation if the coil
data is available or by experiment.
(1) Capacitor
SW
Relay
E
r
Capacitor
Ry
(2) Diode
SW
Relay
E
Diode
Ry
40
1.575
70
2.756
A
1.5 dia.
.059
1.0 dia.
.039
2.5
.098
3.5
.138
Expanslon of A
3. Latching relay
In order to assure proper operating
regardless of changes in the ambient
usage temperature and usage conditions,
nominal operating voltage should be
applied to the coil for more than 40 ms to
set/reset the latching type relay.
For Cautions for Use, see Relay Technical Information (Page 48 to 76).
9/1/2000 All Rights Reserved, © Copyright Matsushita Electric Works, Ltd.
Go To Online Catalog
111
Page 8
WWW.ALLDATASHEET.COM
Copyright © Each Manufacturing Company.
All Datasheets cannot be modified without permission.
This datasheet has been download from :
www.AllDataSheet.com
100% Free DataSheet Search Site.
Free Download.
No Register.
Fast Search System.
www.AllDataSheet.com
Loading...
