Page 1
MILAN S.r.l. a socio unico
290
Ω/Km
50 MHz
17,50
50 Ω 400 MHz
54,90
Cable Properties
Attenuation dB/100 m.
Head Office – Export department: Ufficio Commerciale e Centro Distribuzione
Viale Europa, 74 Viale Europa 72 Strada F12
20090 Cusago (MI) Italy 20090 Cusago (MI) Italy
T. +39 02 9039.4556-4158 T. +39 02 9039.0037-0059
F. +39 02 9039.4551 F. +39 02 9039.0049
www.taskercables.com www.tasker.it

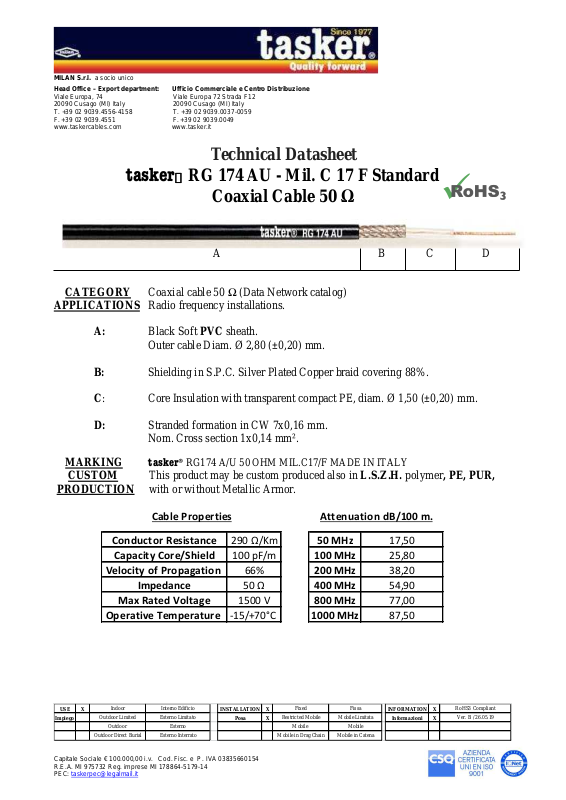

Technical Datasheet
tasker
RG 174 AU - Mil. C 17 F Standard
Coaxial Cable 50 Ω
A B C D
CATEGORY Coaxial cable 50 Ω (Data Network catalog)
APPLICATIONS Radio frequency installations.
A: Black Soft PVC sheath.
Outer cable Diam. Ø 2,80 (±0,20) mm.
B: Shielding in S.P.C. Silver Plated Copper braid covering 88%.
C: Core Insulation with transparent compact PE, diam. Ø 1,50 (±0,20) mm.
D: Stranded formation in CW 7x0,16 mm.
Nom. Cross section 1x0,14 mm².
MARKING tasker
CUSTOM This product may be custom produced also in L.S.Z.H. polymer, PE, PUR,
PRODUCTION with or without Metallic Armor.
Conductor Resistance
Capacity Core/Shield 100 pF/m 100 MHz 25,80
Velocity of Propagation 66% 200 MHz 38,20
Impedance
Max Rated Voltage 1500 V 800 MHz 77,00
Operative Temperature -15/+70°C 1000 MHz 87,50
® RG174 A/U 50 OHM MIL.C17/F MADE IN ITALY
USE X
Impiego
Capitale Sociale € 100.000,00 i.v. Cod. Fisc. e P. IVA 03835660154
R.E.A. MI 975732 Reg. imprese MI 178864-5179-14
PEC:
Outdoor Limited Esterno Limitato
Outdoor Direct Burial Esterno Interrato Mobile in Drag Chain Mobile in Catena
taskerpec@legalmail.it
Indoor Interno Edificio
Outdoor Esterno Mobile M obile
INSTALLATION X
Posa X
Fixed Fissa
Restricted Mobile Mobile Limitata
INFORMATION X
Informazioni X
RoHS3 Compliant
Ver. B / 26.05.19
