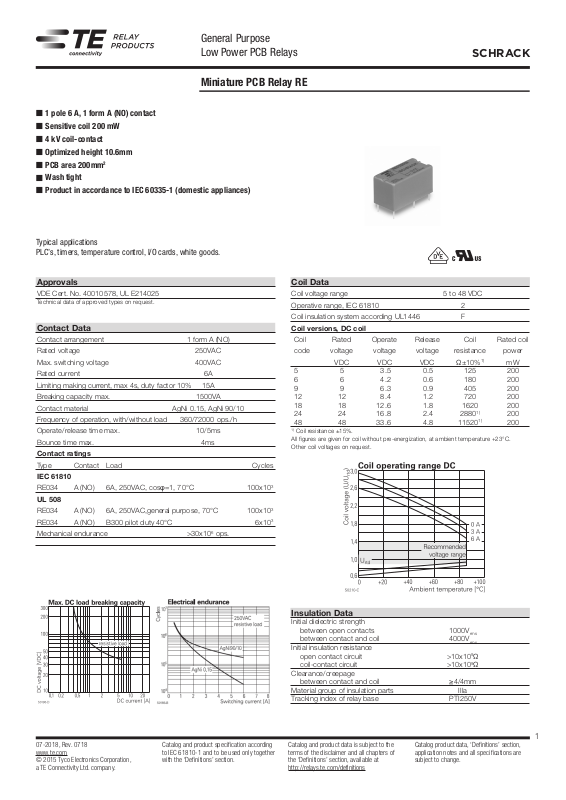

Page 1
General Purpose
Z
Low Power PCB Relays
Miniature PCB Relay RE
n
1 pole 6 A, 1 form A (NO) contact
n
Sensitive coil 200 mW
n
4 kV coil-contact
n
Optimized height 10.6mm
n
PCB area 200mm
n
Wash tight
n
Product in accordance to IEC 60335-1 (domestic appliances)
Typical applications
PLC’s, timers, temperature control, I/O cards, white goods.
2
SCHRACK
Approvals
VDE Cert. No. 40010578, UL E214025
Technical data of approved types on request.
Contact Data
Contact arrangement 1 form A (NO)
Rated voltage 250VAC
Max. switching voltage 400VAC
Rated current 6A
Limiting making current, max 4s, duty factor 10% 15A
Breaking capacity max. 1500VA
Contact material AgNi 0.15, AgNi 90/10
Frequency of operation, with/without load 360/72000 ops./h
Operate/release time max. 10/5ms
Bounce time max. 4ms
Contact ratings
Type Contact Load Cycles
IEC 61810
RE034 A (NO) 6A, 250VAC, cosφ=1, 70°C 100x10
UL 508
RE034 A (NO) 6A, 250VAC,general purpose, 70°C 100x103
RE034 A (NO) B300 pilot duty 40°C 6x10
Mechanical endurance >30x106 ops.
Coil Data
Coil voltage range 5 to 48 VDC
Operative range, IEC 61810 2
Coil insulation system according UL1446 F
Coil versions, DC coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10%1) mW
5 5 3.5 0.5 125 200
6 6 4.2 0.6 180 200
9 9 6.3 0.9 405 200
12 12 8.4 1.2 720 200
18 18 12.6 1.8 1620 200
24 24 16.8 2.4 28801) 200
48 48 33.6 4.8 115201) 200
1)
Coil resistance ±15%.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
3
3
07-2018, Rev. 0718
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Insulation Data
Initial dielectric strength
between open contacts 1000V
between contact and coil 4000V
Initial insulation resistance
open contact circuit >10x109Ω
coil-contact circuit >10x109Ω
Clearance/creepage
between contact and coil ≥4/4mm
Material group of insulation parts IIIa
Tracking index of relay base PTI250V
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
rms
rms
1
Page 2
General Purpose
Low Power PCB Relays
Miniature PCB Relay RE (Continued)
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire according EN 60335, par.30
Ambient temperature -40 to +70°C
-40 to +85°C at 4A
Category of environmental protection
IEC 61810 RTIII - wash tight
Vibration resistance (functional) 10g
Terminal type PCB-THT
Resistance to soldering heat THT
IEC 60068-2-20 260°C/5s
Packaging/unit tube/25 pcs., box/500 pcs.
SCHRACK
PCB layout / terminal assignment
Bottom view on solder pins
Dimensions
Product code structure Typical product code RE 0 3 2 012
Type
RE Miniature PCB Relay RE
Version
0 Wash tight
Contact Configuration
3 form A (NO) contact
Contact material
1 AgNi 0.15 2 AgNi 0.15 gold plated 5 AgNi 90/10 gold plated
4 AgNi 90/10
Coil
Coil code: please refer to coil versions table
Product code Version Contacts Contact material Coil Part Number
RE031005 wash tight NO contacts AgNi 0.15
RE031006 6VDC 1-1393217-3
RE031012 12VDC 1-1393217-5
RE031024 24VDC 1-1393217-8
RE032005
RE032006 gold plated 6VDC 2-1393217-0
RE032012 12VDC 2-1393217-2
RE032024 24VDC 2-1393217-4
RE032048 48VDC 2-1393217-5
RE034005
RE034006 6VDC 2-1416010-4
RE034012 12VDC 2-1416010-6
RE034024 24VDC 2-1416010-7
RE034048 48VDC 2-1416010-8
RE035012
RE035024
AgNi 0.15
AgNi 90/10
AgNi 90/10 gold plated
5VDC
5VDC 1-1393217-9
5VDC 2-1416010-3
12VDC 1956226-1
24VDC
2-1415402-1
1956226-2
2
07-2018, Rev. 0718
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
