Control components 2 - 83

RAFIX

22 QR

RAFIX 22 QR

General data

RAFIX 22QR control component range

• For a mounting hole diameter of 22.3 mm to IEC 60947

• 250V/10A max.

• Water-jet proof IP65

• 2 collar shapes

• The lamps of the pushbuttons can also be replaced from the front

• The contact blocks (silver or gold contacts) snap onto the actuators with a coupling

• Screw, cage clamp, quick connect terminals or RJ12 connector

• 3 NC + 3 NO max.

The specified data apply only if actuators/signal indicators are combined with contact blocks and lamp sockets within the same product range.

Content

RAFIX 22 QR pushbutton 2 - 88

RAFIX 22 QR pushbutton, flush lens, round collar 2 - 89 RAFIX 22 QR pushbutton, protruding lens, round collar 2 - 90 RAFIX 22 QR pushbutton, protruding front ring, round collar 2 - 91 RAFIX 22 QR pushbutton, flush lens, square collar 2 - 92 RAFIX 22 QR pushbutton, protruding lens, square collar 2 - 93 RAFIX 22 QR pushbutton, protruding front ring, square collar 2 - 94

RAFIX 22 QR selector switch 2 - 96

RAFIX 22 QR selector switch, round collar, short handle 2 - 97 RAFIX 22 QR selector switch, round collar, long handle 2 - 98 RAFIX 22 QR selector switch, square collar, short handle 2 - 99 RAFIX 22 QR selector switch, square collar, long handle 2 - 100

RAFIX 22 QR keylock switch 2 - 102

RAFIX 22 QR keylock switch, round collar 2 - 103 RAFIX 22 QR keylock switch, square collar 2 - 104

RAFIX 22 QR mushroom-headed pushbutton 2 - 106

RAFIX 22 QR mushroom-headed pushbutton 40 mm, round collar 2 - 107 RAFIX 22 QR mushroom-headed pushbutton 40 mm, illuminated, round collar 2 - 107 RAFIX 22 QR mushroom-headed pushbutton 60 mm, round collar 2 - 108 RAFIX 22 QR mushroom-headed pushbutton 40 mm, square collar 2 - 108 RAFIX 22 QR mushroom-headed pushbutton 40 mm, illuminated, square collar 2 - 109 RAFIX 22 QR mushroom-headed pushbutton 60 mm, square collar 2 - 109

2 - 84 Control components

RAFIX

22 QR

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418 2 - 110

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418 2 - 111 RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, with indication to EN 60947-1 2 - 112 RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, with keylock 2 - 112 RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, illuminated 2 - 113 RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, illuminated 2 - 113

RAFIX 22 QR toggle switch 2 - 114

RAFIX 22 QR, toggle switch, round collar 2 - 115 RAFIX 22 QR, toggle switch, square collar 2 - 115

RAFIX 22 QR twin pushbutton 2 - 116

RAFIX 22 QR twin pushbutton, oval collar 2 - 117 RAFIX 22 QR twin pushbutton, rectangular collar 2 - 117

RAFIX 22 QR potentiometer drive 2 - 118

RAFIX 22 QR potentiometer drive, round collar 2 - 119 RAFIX 22 QR potentiometer drive, square collar 2 - 119

RAFIX 22 QR buzzer 2 - 120

RAFIX 22 QR buzzer, round collar 2 - 121 RAFIX 22 QR buzzer, square collar 2 - 121

RAFIX 22 QR signal indicator 2 - 122

RAFIX 22 QR signal indicator, round collar 2 - 123 RAFIX 22 QR signal indicator, square collar 2 - 123

RAFIX 22 QR contact blocks with silver contacts 2 - 124

RAFIX 22 QR contact block with silver contacts 2 - 125 RAFIX 22 QR contact block assembly, with coupling, without lamp socket, silver contacts 2 - 126 RAFIX 22 QR contact block assembly, with coupling and lamp socket, silver contacts 2 - 127 RAFIX 22 QR contact blocks with gold contacts 2 - 128 RAFIX 22 QR contact block with gold contacts 2 - 129 RAFIX 22 QR contact block assembly, with coupling, without lamp socket, gold contacts 2 - 130 RAFIX 22 QR contact block assembly, with coupling and lamp socket, gold contacts 2 - 131

Contact blocks with coupling, gold contacts, RJ 12 connector, integrated LED 2 - 132

Contact block with coupling, gold contacts, RJ 12 connector, integrated LED 2 - 133

RAFIX 22 QR lamp sockets BA 9s (MBC/MCC), screw terminals and cage clamp terminals 2 - 134

RAFIX 22 QR lamp socket, without coupling 2 - 135 RAFIX 22 QR lamp socket assembly, with coupling 2 - 136

RAFIX 22 QR lamp sockets with integrated LED, screw terminals 2 - 138

RAFIX 22 QR lamp socket with integrated LED, without coupling 2 - 139

RAFIX 22 QR special accessories 2 - 140

Housings for flush pushbuttons 2 - 140 Lenses for flush pushbuttons 2 - 141 Front ring 2 - 142 RAFIX 22 QR plastic front ring with thermoflex protective cap 2 - 142 Label holder 2 - 143 Legend label to clip into label holder 5.07.620.xxx 2 - 143 Coupling 2 - 143 Blanking cap 2 - 144 Ring nut 2 - 144 Lamp tester 2 - 144 Protective cover, suitable for pushbuttons with flush lens 2 - 145 Marking tag 2 - 145 Insulating housing IP65 for RAFIX 22 QR 2 - 146 Emergency stop label plate 2 - 146

RAFIX 22 QR

cast-on collar seal

Contact blocks marked with different colours for ease of identification in stock and when connecting.

• NC contacts: red

• NO contacts: green

• NC/NO contacts: red/green

• Lamp socket: black

• Silver contacts: basic housing colour is black

• Gold contacts: basic housing colour is grey

• The terminals associated with a contact pair are colour coded on the connection side and marked with the respective contact numbers.

The lamps of pushbuttons and signal lamps can be replaced from the front. This method saves time and increases safety since it eliminates the need for accessing the machine/ control station interior and handling live cables for lamp replacement. After unscrewing the front ring, the lens can be removed and the lamp replaced.

The components feature a removable locating lug. If installed without locating lug, the ring nut with claw can be used. Accurate alignment of the actuator can be achieved behind the front panel. The cast-on collar seal can not get lost nor be twisted during installation and allows single-person assembly: the actuator is held in the mounting hole by the cast-on seal and can then be fixed by screwing from the rear.

First, snap the lamp socket and contact blocks into the coupling. Then snap the assembly on to the actuator. To release it, the bayonet

must be pressed (prevents inadver-

tent releasing at the same time).

➭

Control Components 2 - 85

RAFIX

22 QR

Screw terminals

Cage clamp terminals

Insert the wire. Open the terminal.

Tighten the screw. Insert the wire.

Done. Remove the screwdriver.

Assembly

Versatility of design for customized panels

The RAFIX 22 QR system does not only have a

particularly low profile and is also available in

many different versions. Your design options for

your customized panels are nearly unlimited

thanks to the interchangeable front rings and

lenses. In this way you can achieve an attrac-

tive design while ensuring safe operation of

your equipment at the same time.

RAFIX 22 QR components are available

either with a round or with a square collar.

Terminals

The RAFIX 22 QR contact blocks are available in different connection styles as required for your application:

• Screw terminals The terminals are open and the captive screws are mounted in the terminal recess.

• Quick connect/solder terminals 6.3 x 0.8 mm

• Cage clamp terminals Simply insert a screwdriver to open the terminal, insert the cable and remove the screwdriver to close the terminal.

• RJ 12-terminal Just plug in the cable with a RJ 12 connector.

Your

advantage:

This offers your savings in three ways:

• Drastically reduced assembly time thanks to wire insertion from the rear, i.e. no more bending and lateral insertion of the wires required.

• You save material: No wire end sleeves are required.

• You save the time previously required for mounting the wire end sleeves.

Sealed for life against humidity and dirt

The special seal reliably

prevents moisture, oil and dust from penetrating to the contact block. In contrast to

other sealing types which

move up and down the shaft, this special seal is firmly seated on the housing (degree of protection IP 65 to DIN).

2 - 86 Control Components

RAFIX

22 QR

RAFIX 22 QR

The RAFIX 22 QR control component range meets all the technical requirements and current standards for control units. The system is of modular design. Actuators, contact blocks and lamp sockets can be combined freely. This means that you may

implement modifications of design or configuration even at the last minute. An additional positive effect is the reduction of stockholding costs.

• Fix the actuator in the front panel with the ring nut.

• Snap the individual elements (a maximum three contact blocks or two contact blocks together with a lamp socket) in the coupling. You can install them on any assembling axis.

• Insert the lamp or LED into the lamp socket.

• Snap the coupling with the contact blocks on to the actuator.

• Connect the cables.

• Disassembly is performed in reverse order. To remove the coupling from the actuator, the latch lever must be pressed (by hand or with a screwdriver).

Panel cut-out according to IEC 60947-5-1

All actuators are provided with a locating lug which may be removed using a screwdriver for installation into mounting holes if required.

With a grid spacing of 30 mm horizontally and 50 mm vertically, the collars of the square actuators touch each other. We revommend to use the same grid spacing also for the round collar shapes (IEC 947).

Approvals ● = approved, ●● = pending

Sequence of assembly/disassembly at screw, cage clamp and quick connect terminals

1.20 124.– – –

●● ●● ● ● ●●

1.20 125.– – –

●● ●● ● ● ●●

1.30 243.– – –

●● ●

1.71 213.– – –

●● ● ● ●●

1.71 214.– – –

●● ● ● ●●

Part no.

zert.

VDE

0660 10/15

ULc GL

Assembly Disassembly

Dimensioned drawing

RAFIX

22 QR

Control Components 2 - 87

RAFIX 22 QR

30.00

50.00

Stock items are marked

by bold printed order numbers.

2 - 88 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR pushbutton

Panel cut-out to IEC 60947-5-1with contact blockPict.: transparent green

Technical data

General information

Form of lens see order block Colour of lens see order block Colout of front ring see order block Form of collar see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height see order block Mounting depth with contact block without cable 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut Contact function see order block Illuminability see order block

Mechanical characteristics

Operating travel 4 mm

Operating force max. approx. 5 N for

1 switching element

Robustness min. 100 N

Other specifications

Operating life (operations) 1 million momentary/

0.5 million latching Degree of protection from front side IP65 Ambient temp. operating min. -25 °C Ambient temp. operating max. +70 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no.

Page

Accessories RAFIX 22 QR pushbutton

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, screw terminals, 1 NO

1.20.124.002/0000 2 - 126

RAFIX 22 QR contact block with silver contacts, with coupling and lamp socket, screw terminals, 1 NC + 1 NO

1.20.124.027/0000 2 - 127

RAFIX 22 QR contact block with gold contacts, with coupling and lamp socket, screw terminals, 1 NO

1.20.124.122/0000 2 - 131

RAFIX 22 QR contact block with silver contacts, with coupling and lamp socket, cage clamp terminals, 1 NO, 1 NC

1.20.125.025/0000 2 - 127

Contact block with RJ 12 connector, 2 NO, white LED 1.20.128.015/0000 2 - 133

Filament lamp, BA 9s base (MBC/MCC), 24 - 30 V 1.90.060.133/0000 5 - 8

LED BA 9s (MBC/MCC) superbright, white, 24 V 1.90.690.345/0000 5 - 19

Stock items are marked

by bold printed order numbers.

Control components 2 - 89

RAFIX

22 QR

RAFIX 22 QR

Description Photo Order no.

Page

Accessories RAFIX 22 QR pushbutton

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

Label holder, round collar, with adhesive tape and release liner on back

5.07.620.010/0000 2 - 143

For other contact blocks, refer to the chapter „Contact blocks“; for additional accessories, refer to „RAFIX 22 QR special accessories“.

RAFIX 22 QR pushbutton, flush lens, round collar

Pict.: transparent green Panel cut-out to IEC 60947-5-1

Colour of lensIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes transparent white 1.30.240.001/10xx 1.30.240.021/1000 1.30.240.011/10xx 1.30.240.031/1000

yes transparent red 1.30.240.001/13xx 1.30.240.021/1300 1.30.240.011/13xx 1.30.240.031/1300

yes transparent yellow 1.30.240.001/14xx 1.30.240.021/1400 1.30.240.011/14xx 1.30.240.031/1400

yes transparent green 1.30.240.001/15xx 1.30.240.021/1500 1.30.240.011/15xx 1.30.240.031/1500

yes transparent blue 1.30.240.001/16xx 1.30.240.021/1600 1.30.240.011/16xx 1.30.240.031/1600

no opaque black 1.30.240.101/01xx 1.30.240.121/0100 1.30.240.111/01xx 1.30.240.131/0100

no opaque white 1.30.240.101/02xx 1.30.240.121/0200 1.30.240.111/02xx 1.30.240.131/0200

no opaque red 1.30.240.101/03xx 1.30.240.121/0300 1.30.240.111/03xx 1.30.240.131/0300

no opaque yellow 1.30.240.101/04xx 1.30.240.121/0400 1.30.240.111/04xx 1.30.240.131/0400

no opaque green 1.30.240.101/05xx 1.30.240.121/0500 1.30.240.111/05xx 1.30.240.131/0500

no opaque blue 1.30.240.101/06xx 1.30.240.121/0600 1.30.240.111/06xx 1.30.240.131/0600

no opaque slate-grey 1.30.240.101/07xx 1.30.240.121/0700 1.30.240.111/07xx 1.30.240.131/0700

Technical data see page 2 - 88

Accessories:

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08 Pushbuttons with plastic front ring and white lens are also available with the following front ring colours: red = 03, yellow = 04, green =

05, blue = 06. Other colour combinations on request. Order numbers 1.30.240.001/--08, 1.30.240.011/--08 and 1.30.240.101/--08 (with silver grey plastic front ring) are stock items.

Front ring, plastic with thermoflex protective cap, black: 5.05.004.914/0100 Front ring, plastic with protective cap, slate grey: 5.05.004.914/0700 Front ring, plastic with thermoflex protective cap, silver grey: 5.05.004.914/0800 Schutzklappe, selbstschließend: 5.05.511.194/0000 Protective cover, latching: 5.05.511.195/0000

1...6mm

29.80

M22x1.5

22.90

21.80

9.40

Stock items are marked

by bold printed order numbers.

2 - 90 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR pushbutton, protruding lens, round collar

Pict.: transparent red Panel cut-out to IEC 60947-5-1

Colour of lensIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes transparent white 1.30.240.201/10xx 1.30.240.221/1000 1.30.240.211/10xx 1.30.240.231/1000

yes transparent red 1.30.240.201/13xx 1.30.240.221/1300 1.30.240.211/13xx 1.30.240.231/1300

yes transparent yellow 1.30.240.201/14xx 1.30.240.221/1400 1.30.240.211/14xx 1.30.240.231/1400

yes transparent green 1.30.240.201/15xx 1.30.240.221/1500 1.30.240.211/15xx 1.30.240.231/1500

yes transparent blue 1.30.240.201/16xx 1.30.240.221/1600 1.30.240.211/16xx 1.30.240.231/1600

no opaque black 1.30.240.301/01xx 1.30.240.321/0100 1.30.240.311/01xx 1.30.240.331/0100

no opaque white 1.30.240.301/02xx 1.30.240.321/0200 1.30.240.311/02xx 1.30.240.331/0200

no opaque red 1.30.240.301/03xx 1.30.240.321/0300 1.30.240.311/03xx 1.30.240.331/0300

no opaque yellow 1.30.240.301/04xx 1.30.240.321/0400 1.30.240.311/04xx 1.30.240.331/0400

no opaque green 1.30.240.301/05xx 1.30.240.321/0500 1.30.240.311/05xx 1.30.240.331/0500

no opaque blue 1.30.240.301/06xx 1.30.240.321/0600 1.30.240.311/06xx 1.30.240.331/0600

no opaque slate-grey 1.30.240.301/07xx 1.30.240.321/0700 1.30.240.311/07xx 1.30.240.331/0700

Technical data see page 2 - 88

Accessories:

Legend insert without legend: 5.70.802.000/2000

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Pushbuttons with plastic front ring and white lens are also available with the following front ring colours: red = 03, yellow = 04, green = 05, blue = 06. Other colour combinations on request.

Order numbers 1.30.240.201/--08 and 1.30.240.211/--08 (with silver grey plastic front ring) are stock items.

1...6mm

29.80

M22x1.5

22.90

22.00

12.45

Stock items are marked

by bold printed order numbers.

Control components 2 - 91

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR pushbutton, protruding front ring, round collar

Pict.: transparent red Panel cut-out to IEC 60947-5-1

Colour of lensIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes transparent white 1.30.240.401/10xx 1.30.240.421/1000 - -

yes transparent red 1.30.240.401/13xx 1.30.240.421/1300 - -

yes transparent yellow 1.30.240.401/14xx 1.30.240.421/1400 - -

yes transparent green 1.30.240.401/15xx 1.30.240.421/1500 - -

yes transparent blue 1.30.240.401/16xx 1.30.240.421/1600 - -

no opaque black 1.30.240.501/01xx 1.30.240.521/0100 - -

no opaque white 1.30.240.501/02xx 1.30.240.521/0200 - -

no opaque red 1.30.240.501/03xx 1.30.240.521/0300 - -

no opaque yellow 1.30.240.501/04xx 1.30.240.521/0400 - -

no opaque green 1.30.240.501/05xx 1.30.240.521/0500 - -

no opaque blue 1.30.240.501/06xx 1.30.240.521/0600 - -

no opaque slate-grey 1.30.240.501/07xx 1.30.240.521/0700 - -

Technical data see page 2 - 88

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

The protruding collar offers protection against inadvertent operation and thereby fulfils the safety requirements of various machinery manufacturers, particularly from the printing industry.

1...6mm

29.80

M22x1.5

22.90

24.30

12.60

Stock items are marked

by bold printed order numbers.

2 - 92 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR pushbutton, flush lens, square collar

Pict.: transparent red Panel cut-out to IEC 60947-5-1

Colour of lensIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes transparent white 1.30.240.051/10xx 1.30.240.071/1000 1.30.240.061/10xx 1.30.240.081/1000

yes transparent red 1.30.240.051/13xx 1.30.240.071/1300 1.30.240.061/13xx 1.30.240.081/1300

yes transparent yellow 1.30.240.051/14xx 1.30.240.071/1400 1.30.240.061/14xx 1.30.240.081/1400

yes transparent green 1.30.240.051/15xx 1.30.240.071/1500 1.30.240.061/15xx 1.30.240.081/1500

yes transparent blue 1.30.240.051/16xx 1.30.240.071/1600 1.30.240.061/16xx 1.30.240.081/1600

no opaque black 1.30.240.151/01xx 1.30.240.171/0100 1.30.240.161/01xx 1.30.240.181/0100

no opaque white 1.30.240.151/02xx 1.30.240.171/0200 1.30.240.161/02xx 1.30.240.181/0200

no opaque red 1.30.240.151/03xx 1.30.240.171/0300 1.30.240.161/03xx 1.30.240.181/0300

no opaque yellow 1.30.240.151/04xx 1.30.240.171/0400 1.30.240.161/04xx 1.30.240.181/0400

no opaque green 1.30.240.151/05xx 1.30.240.171/0500 1.30.240.161/05xx 1.30.240.181/0500

no opaque blue 1.30.240.151/06xx 1.30.240.171/0600 1.30.240.161/06xx 1.30.240.181/0600

no opaque slate-grey 1.30.240.151/07xx 1.30.240.171/0700 1.30.240.161/07xx 1.30.240.181/0700

Technical data see page 2 - 88

Accessories:

Front ring, plastic with thermoflex protective cap, black: 5.05.004.914/0100 Front ring, plastic with protective cap, slate grey: 5.05.004.914/0700

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Pushbuttons with plastic front ring and white lens are also available with the following front ring colours: red = 03, yellow = 04, green = 05, blue = 06. Other colour combinations on request.

Order numbers 1.30.240.051/--08, 1.30.240.061/--08 and 1.30.240.151/--08 (with silver grey plastic front ring) are stock items.

Front ring, plastic with thermoflex protective cap, silver grey: 5.05.004.914/0800

1...6mm

29.80

M22x1.5

22.90

21.80

9.40

Stock items are marked

by bold printed order numbers.

Control components 2 - 93

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR pushbutton, protruding lens, square collar

Pict.: transparent red Panel cut-out to IEC 60947-5-1

Colour of lensIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes transparent white 1.30.240.251/10xx 1.30.240.271/1000 1.30.240.261/10xx 1.30.240.281/1000

yes transparent red 1.30.240.251/13xx 1.30.240.271/1300 1.30.240.261/13xx 1.30.240.281/1300

yes transparent yellow 1.30.240.251/14xx 1.30.240.271/1400 1.30.240.261/14xx 1.30.240.281/1400

yes transparent green 1.30.240.251/15xx 1.30.240.271/1500 1.30.240.261/15xx 1.30.240.281/1500

yes transparent blue 1.30.240.251/16xx 1.30.240.271/1600 1.30.240.261/16xx 1.30.240.281/1600

no opaque black 1.30.240.351/01xx 1.30.240.371/0100 1.30.240.361/01xx 1.30.240.381/0100

no opaque white 1.30.240.351/02xx 1.30.240.371/0200 1.30.240.361/02xx 1.30.240.381/0200

no opaque red 1.30.240.351/03xx 1.30.240.371/0300 1.30.240.361/03xx 1.30.240.381/0300

no opaque yellow 1.30.240.351/04xx 1.30.240.371/0400 1.30.240.361/04xx 1.30.240.381/0400

no opaque green 1.30.240.351/05xx 1.30.240.371/0500 1.30.240.361/05xx 1.30.240.381/0500

no opaque blue 1.30.240.351/06xx 1.30.240.371/0600 1.30.240.361/06xx 1.30.240.381/0600

no opaque slate-grey 1.30.240.351/07xx 1.30.240.371/0700 1.30.240.361/07xx 1.30.240.381/0700

Technical data see page 2 - 88

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Pushbuttons with plastic front ring and white lens are also available with the following front ring colours: red = 03, yellow = 04, green = 05, blue = 06. Other colour combinations on request.

Order numbers 1.30.240.251/--08 and 1.30.240.261/--08 (with silver grey plastic front ring) are stock items.

1...6mm

29.80

M22x1.5

22.90

22.00

12.45

Stock items are marked

by bold printed order numbers.

2 - 94 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR pushbutton, protruding front ring, square collar

Pict.: transparent green Panel cut-out to IEC 60947-5-1

Colour of lensIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes transparent white 1.30.240.451/10xx 1.30.240.471/1000 - -

yes transparent red 1.30.240.451/13xx 1.30.240.471/1300 - -

yes transparent yellow 1.30.240.451/14xx 1.30.240.471/1400 - -

yes transparent green 1.30.240.451/15xx 1.30.240.471/1500 - -

yes transparent blue 1.30.240.451/16xx 1.30.240.471/1600 - -

no opaque black 1.30.240.551/01xx 1.30.240.571/0100 - -

no opaque white 1.30.240.551/02xx 1.30.240.571/0200 - -

no opaque red 1.30.240.551/03xx 1.30.240.571/0300 - -

no opaque yellow 1.30.240.551/04xx 1.30.240.571/0400 - -

no opaque green 1.30.240.551/05xx 1.30.240.571/0500 - -

no opaque blue 1.30.240.551/06xx 1.30.240.571/0600 - -

no opaque slate-grey 1.30.240.551/07xx 1.30.240.571/0700 - -

Technical data see page 2 - 88

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

The protruding collar offers protection against inadvertent operation and thereby fulfils the safety requirements of various machinery manufacturers, particularly in the industry.

1...6mm

29.80

M22x1.5

22.90

24.30

12.60

Stock items are marked

by bold printed order numbers.

2 - 96 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR selector switch

Panel cut-out to IEC 60947-5-1Front ring, metallized, illuminatedPict.: Front ring, black, non-illuminated

General data

The illuminated selector switches are provided with translucent handle markings. These are opaque on the non-illuminated versions.

Technical data

General information

Actuator handle Marking of handle white Colout of front ring see order block Form of collar see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height 22.2 mm Mounting depth with contact block without cable 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut Contact function see order block Illuminability see order block Rotating angle see order block

Mechanical characteristics

Operating force max. approx. 5 N for

1 switching element

Torque max. 2 Nm

Electrical characteristics

Protection class II

Other specifications

Operating life 0.5 million Degree of protection from front side IP65 Ambient temp. operating min. -27 °C Ambient temp. operating max. +70 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no. Page

Accessories RAFIX 22 QR selector switch

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, screw terminals, 1 NC + 1 NO

1.20.124.017/0000 2 - 126

RAFIX 22 QR contact block with silver contacts, with coupling and lamp socket, screw terminals, 1 NC + 1 NO

1.20.124.027/0000 2 - 127

RAFIX 22 QR contact block with gold contacts, with coupling and lamp socket, screw terminals, 1 NC + 1 NO, 1 NC + 1 NO

1.20.124.128/0000 2 - 131

Contact block with coupling, gold contacts, RJ 12 connector, 1 NC + 1 NO, white LED

1.20.128.013/0000 2 - 133

RAFIX 22 QR

Stock items are marked

by bold printed order numbers.

Control components 2 - 97

RAFIX

22 QR

Description Photo Order no.

Page

Accessories RAFIX 22 QR selector switch

Label holder, round collar, with adhesive tape and release liner on back

5.07.620.010/0000 2 - 143

For other contact blocks, refer to the chapter „Contact blocks“; for additional accessories, refer to „RAFIX 22 QR special accessories“.

RAFIX 22 QR selector switch, round collar, short handle

Pict.: Front ring, silver grey, non-illuminated Panel cut-out to IEC 60947-5-1

Illuminability Rotating

angle

Order no.

Plastic front ring Metal front ring

Contact function Rotating angle

yes momentary 1 x 40° 1Ö + 1S 1.30.242.001/22xx 1.30.242.002/2200

yes momentary 2 x 40° 1Ö + 1S 1.30.242.026/22xx 1.30.242.027/2200

yes latching 1 x 90°, form L 1Ö + 1S 1.30.242.101/22xx 1.30.242.102/2200

yes latching 1 x 90°, form V 1Ö + 1S 1.30.242.201/22xx 1.30.242.202/2200

yes latching 2 x 60° 1Ö + 1S 1.30.242.301/22xx 1.30.242.302/2200

yes latching 2 x 90° 1Ö + 1S 1.30.242.126/22xx 1.30.242.127/2200

no momentary 1 x 40° 1Ö + 1S 1.30.242.501/02xx 1.30.242.502/0200

no momentary 2 x 40° 1Ö + 1S 1.30.242.526/02xx 1.30.242.527/0200

no latching 1 x 90°, form L 1Ö + 1S 1.30.242.601/02xx 1.30.242.602/0200

no latching 1 x 90°, form V 1Ö + 1S 1.30.242.701/02xx 1.30.242.702/0200

no latching 2 x 60° 1Ö + 1S 1.30.242.801/02xx 1.30.242.802/0200

no latching 2 x 90° 1Ö + 1S 1.30.242.626/02xx 1.30.242.627/0200

Technical data see page 2 - 96

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08; other colours on request.

Included: Ring nut with claw.

Other contact versions on request

On keylock switches with 3 switching positions (e.g. 2 x 90 degrees), either the left-hand or right-hand contact block is activated, depending on the sense of rotation. A third contact block arranged in the centre would be actuated with either sense of rotation.

The following selector switches with silver grey plastic front ring are stock items: Illuminated: 1.30.252.001/2208, 1.30.252.026/2208, 1.30.252.101/2208, 1.30.252.201/2208, 1.30.252.301/2208 Non-illuminated: 1.30.252.501/0208, 1.30.252.526/0208, 1.30.252.601/0208, 1.30.252.701/0208, 1.30.252.801/0208

Stock items are marked

by bold printed order numbers.

2 - 98 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR selector switch, round collar, long handle

Pict.: Front ring, metallized, illuminated Panel cut-out to IEC 60947-5-1

Illuminability Rotating

angle

Order no.

Plastic front ring Metal front ring

Contact function Rotating angle

yes momentary 1 x 40° 1Ö + 1S 1.30.242.011/22xx 1.30.242.012/2200

yes momentary 2 x 40° 1Ö + 1S 1.30.242.036/22xx 1.30.242.037/2200

yes latching 1 x 90°, form L 1Ö + 1S 1.30.242.111/22xx 1.30.242.112/2200

yes latching 1 x 90°, form V 1Ö + 1S 1.30.242.211/22xx 1.30.242.212/2200

yes latching 2 x 60° 1Ö + 1S 1.30.242.311/22xx 1.30.242.312/2200

yes latching 2 x 90° 1Ö + 1S 1.30.242.136/22xx 1.30.242.137/2200

no momentary 1 x 40° 1Ö + 1S 1.30.242.511/02xx 1.30.242.512/0200

no momentary 2 x 40° 1Ö + 1S 1.30.242.536/02xx 1.30.242.537/0200

no latching 1 x 90°, form L 1Ö + 1S 1.30.242.611/02xx 1.30.242.612/0200

no latching 1 x 90°, form V 1Ö + 1S 1.30.242.711/02xx 1.30.242.712/0200

no latching 2 x 60° 1Ö + 1S 1.30.242.811/02xx 1.30.242.812/0200

no latching 2 x 90° 1Ö + 1S 1.30.242.636/02xx 1.30.242.637/0200

Technical data see page 2 - 96

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08; other colours on request.

Included: Ring nut with claw.

At selector switches with 3 switching positions (e.g. 2 x 90 degrees), either the left-hand or right-hand contact block is activated, depending on the sense of rotation. A third contact block arranged in the centre would be actuated with either sense of rotation. Other contact versions on request.

1...6

29.80

M 22x1.5

9.10

22.90

22.20

RAFIX 22 QR

Stock items are marked

by bold printed order numbers.

Control components 2 - 99

RAFIX

22 QR

RAFIX 22 QR selector switch, square collar, short handle

Pict.: Front ring, red, non-illuminated Panel cut-out to IEC 60947-5-1

Illuminability Rotating

angle

Order no.

Plastic front ring Metal front ring

Contact function Rotating angle

yes momentary 1 x 40° 1Ö + 1S 1.30.242.051/22xx 1.30.242.052/2200

yes momentary 2 x 40° 1Ö + 1S 1.30.242.076/22xx 1.30.242.077/2200

yes latching 1 x 90°, form L 1Ö + 1S 1.30.242.151/22xx 1.30.242.152/2200

yes latching 1 x 90°, form V 1Ö + 1S 1.30.242.251/22xx 1.30.242.252/2200

yes latching 2 x 60° 1Ö + 1S 1.30.242.351/22xx 1.30.242.352/2200

yes latching 2 x 90° 1Ö + 1S 1.30.242.176/22xx 1.30.242.177/2200

no momentary 1 x 40° 1Ö + 1S 1.30.242.551/02xx 1.30.242.552/0200

no momentary 2 x 40° 1Ö + 1S 1.30.242.576/02xx 1.30.242.577/0200

no latching 1 x 90°, form L 1Ö + 1S 1.30.242.651/02xx 1.30.242.652/0200

no latching 1 x 90°, form V 1Ö + 1S 1.30.242.751/02xx 1.30.242.752/0200

no latching 2 x 60° 1Ö + 1S 1.30.242.851/02xx 1.30.242.852/0200

no latching 2 x 90° 1Ö + 1S 1.30.242.676/02xx 1.30.242.677/0200

Technical data see page 2 - 96

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08; other colours on request.

Included: Ring nut with claw.

The following selector switches with silver grey plastic front ring are stock items: Illuminated: 1.30.242.051/2208, 1.30.242.076/2208, 1.30.242.151/2208, 1.30.242.251/2208, 1.30.242.351/2208 Non-illuminated: 1.30.242.551/0208, 1.30.242.576/0208, 1.30.242.651/0208, 1.30.242.751/0208, 1.30.242.851/0208

Stock items are marked

by bold printed order numbers.

2 - 100 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR selector switch, square collar, long handle

Pict.: Front ring, black, non-illuminated Panel cut-out to IEC 60947-5-1

Illuminability Rotating

angle

Order no.

Plastic front ring Metal front ring

Contact function Rotating angle

yes momentary 1 x 40° 1Ö + 1S 1.30.242.061/22xx 1.30.242.062/2200

yes momentary 2 x 40° 1Ö + 1S 1.30.242.086/22xx 1.30.242.087/2200

yes latching 1 x 90°, form L 1Ö + 1S 1.30.242.161/22xx 1.30.242.162/2200

yes latching 1 x 90°, form V 1Ö + 1S 1.30.242.261/22xx 1.30.242.262/2200

yes latching 2 x 60° 1Ö + 1S 1.30.242.361/22xx 1.30.242.362/2200

yes latching 2 x 90° 1Ö + 1S 1.30.242.186/22xx 1.30.242.187/2200

no momentary 1 x 40° 1Ö + 1S 1.30.242.561/02xx 1.30.242.562/0200

no momentary 2 x 40° 1Ö + 1S 1.30.242.586/02xx 1.30.242.587/0200

no latching 1 x 90°, form L 1Ö + 1S 1.30.242.661/02xx 1.30.242.662/0200

no latching 1 x 90°, form V 1Ö + 1S 1.30.242.761/02xx 1.30.242.762/0200

no latching 2 x 60° 1Ö + 1S 1.30.242.861/02xx 1.30.242.862/0200

no latching 2 x 90° 1Ö + 1S 1.30.242.686/02xx 1.30.242.687/0200

Technical data see page 2 - 96

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08; other colours on request.

Included: Ring nut with claw.

Stock items are marked

by bold printed order numbers.

2 - 102 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR keylock switch

Panel cut-out to IEC 60947-5-1operating element and contact blockPict.: Front ring, metallized

Technical data

General information

Form of lens see order block Colout of front ring see order block Form of collar see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height 30.6 mm Mounting depth with contact block without cable 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut Contact function see order block Illuminability no Lock Ronis Wafers 4 Lock type 455 Main key no Symmetric key no Rotating angle see order block Key removal position see order block

Mechanical characteristics

Operating force max. approx. 5 N for

1 switching element Torque max. 2 Nm

Electrical characteristics

Protection class II

Other specifications

Operating life 0.3 million momentary /

50000 latching Degree of protection from front side IP65 Ambient temp. operating min. -25 ° Ambient temp. operating max. +70 ° Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no. Page

Accessories RAFIX 22 QR keylock switch

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, screw terminals, 1 NC + 1 NO

1.20.124.017/0000 2 - 126

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, cage clamp terminals, 1 NO

1.20.125.002/0000 2 - 126

Contact block with coupling, gold contacts, RJ 12 connector, 1 NC + 1 NO, without LED

1.20.128.003/0000 2 - 133

Label holder, round collar, with adhesive tape and release liner on back

5.07.620.010/0000 2 - 143

Spare key for RAFIX 22 QR 5.58.017.001/0000

For other contact blocks, refer to the chapter „Contact blocks“; for additional accessories, refer to „RAFIX 22 QR special accessories“.

Stock items are marked

by bold printed order numbers.

Control components 2 - 103

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR keylock switch, round collar

Pict.: Front ring, metallized Panel cut-out to IEC 60947-5-1

Contact function

Rotating angle

Order no.

Plastic front ring Metal front ring

Rotating angle Key removal position

momentary 2 x 40° 0 1Ö + 1S 1.30.245.101/xxxx 1.30.245.102/0000

latching 2 x 90° 0 1Ö + 1S 1.30.245.401/xxxx 1.30.245.402/0000

latching 2 x 90° 0+1+2 1Ö + 1S 1.30.245.431/xxxx 1.30.245.432/0000

latching 2 x 60° 0+1+2 1Ö + 1S 1.30.245.731/xxxx 1.30.245.732/0000

latching 1 x 90°, form V 0 1Ö + 1S 1.30.245.301/xxxx 1.30.245.302/0000

latching 1 x 90°, form V 0+1 1Ö + 1S 1.30.245.321/xxxx 1.30.245.322/0000

latching 1 x 90°, form L 0 1Ö + 1S 1.30.245.201/xxxx 1.30.245.202/0000

latching 1 x 90°, form L 0+1 1Ö + 1S 1.30.245.221/xxxx 1.30.245.222/0000

Technical data see page 2 - 102

xxxx = Front ring colour: black = 0100, slate grey = 0700, silver grey = 0800. Other versions on request.

Other versions on request.

Included: Ring nut with claw.

On selector switches with 3 switching positions (e.g. 2 x 90 degrees), either the left-hand or right-hand contact block is activated, depending on the sense of rotation. A third contact block arranged in the centre would be actuated with either sense of rotation.

The following keylock switches with silver grey plastic front ring are stock items:

1.30.245.001/0800, 1.30.245.201/0800, 1.30.245.221/0800, 1.30.245.301/0800, 1.30.245.321/0800, 1.30.245.731/0800

momentary 1 x 40° 0 1Ö + 1S 1.30.245.001/xxxx 1.30.245.002/0000

Stock items are marked

by bold printed order numbers.

2 - 104 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR keylock switch, square collar

Pict.: Front ring, metallized Panel cut-out to IEC 60947-5-1

Contact function

Rotating angle

Order no.

Plastic front ring Metal front ring

Rotating angle Key removal position

momentary 2 x 40° 0 1Ö + 1S 1.30.245.151/xxxx 1.30.245.152/0000

latching 2 x 90° 0 1Ö + 1S 1.30.245.451/xxxx 1.30.245.452/0000

latching 2 x 90° 0+1+2 1Ö + 1S 1.30.245.481/xxxx 1.30.245.482/0000

latching 2 x 60° 0+1+2 1Ö + 1S 1.30.245.781/xxxx 1.30.245.782/0000

Technical data see page 2 - 102

momentary 1 x 40° 0 1Ö + 1S 1.30.245.051/xxxx 1.30.245.052/0000

latching 1 x 90°, form L 0 1Ö + 1S 1.30.245.251/xxxx 1.30.245.252/0000

latching 1 x 90°, form L 0+1 1Ö + 1S 1.30.245.271/xxxx 1.30.245.272/0000

latching 1 x 90°, form V 0 1Ö + 1S 1.30.245.351/xxxx 1.30.245.352/0000

latching 1 x 90°, form V 0+1 1Ö + 1S 1.30.245.371/xxxx 1.30.245.372/0000

xxxx = Front ring colour: black = 0100, slate grey = 0700, silver grey = 0800. Other versions on request.

Included: Ring nut with claw.

The following keylock switches with silver grey plastic front ring are stock items:

1.30.245.051/0800, 1.30.245.251/0800, 1.30.245.271/0800, 1.30.245.351/0800, 1.30.245.371/0800, 1.30.245.781/0800

Stock items are marked

by bold printed order numbers.

2 - 106 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR mushroom-headed pushbutton

Panel cut-out to IEC 60947-5-1Front ring, slate greyPict.: Front ring, metallized

Technical data

General information

Actuator mushroom Colour of mushroom see order block Colout of front ring see order block Form of collar see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height 20.10 mm Mounting depth 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut Contact function see order block Illuminability see order block

Mechanical characteristics

Operating force max. approx. 5 N for

1 switching element Robustness min. 100 N

Electrical characteristics

Protection class II

Other specifications

Operating life 1,000,000 Degree of protection from front side IP65 Storage temperature min. -40 °C Storage temperature max. 80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no.

Page

Accessories RAFIX 22 QR mushroom-headed pushbutton

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, screw terminals, 1 NC + 1 NO

1.20.124.017/0000 2 - 126

RAFIX 22 QR contact block with gold contacts, with coupling, without lamp socket, cage clamp terminals, 1 NO

1.20.125.102/0000 2 - 130

Contact block with coupling, gold contacts, RJ 12 connector, 1 NO, without LED

1.20.128.002/0000 2 - 133

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

For other contact blocks, refer to the chapter „Contact blocks“; for additional accessories, refer to „RAFIX 22 QR special accessories“.

Stock items are marked

by bold printed order numbers.

Control components 2 - 107

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR mushroom-headed pushbutton 40 mm, round collar

Pict.: Front ring, metallized Panel cut-out to IEC 60947-5-1

Colour of mushroomIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

no opaque black 1.30.246.501/01xx 1.30.246.502/0100 1.30.246.511/01xx 1.30.246.512/0100

no opaque red 1.30.246.501/03xx 1.30.246.502/0300 1.30.246.511/03xx 1.30.246.512/0300

Technical data see page 2 - 106

RAFIX 22 QR mushroom-headed pushbutton 40 mm, illuminated, round collar

Pict.: Front ring, slate grey Panel cut-out to IEC 60947-5-1

Colour of mushroomIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes opaque red/

transparent red

1.30.246.001/03xx 1.30.246.002/0300 1.30.246.011/03xx 1.30.246.012/0300

Technical data see page 2 - 106

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08 Order number 1.30.246.501/0308 (with silver grey plastic front ring) is a stock item.

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08 Order number 1.30.246.001/0308 (with silver grey plastic front ring) is a stock item.

Stock items are marked

by bold printed order numbers.

2 - 108 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR mushroom-headed pushbutton 60 mm, round collar

Pict.: Front ring, metallized Panel cut-out to IEC 60947-5-1

Colour of mushroomIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

no opaque red 1.30.246.601/03xx 1.30.246.602/0300 - -

Technical data see page 2 - 106

RAFIX 22 QR mushroom-headed pushbutton 40 mm, square collar

Pict.: Front ring, slate grey Panel cut-out to IEC 60947-5-1

Colour of mushroomIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

no opaque black 1.30.246.551/01xx 1.30.246.552/0100 1.30.246.561/01xx 1.30.246.562/0100

no opaque red 1.30.246.551/03xx 1.30.246.552/0300 1.30.246.561/03xx 1.30.246.562/0300

Technical data see page 2 - 106

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Order number 1.30.246.551/0308 (with silver grey plastic front ring) is a stock item.

Stock items are marked

by bold printed order numbers.

Control components 2 - 109

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR mushroom-headed pushbutton 40 mm, illuminated, square collar

Pict.: Front ring, slate grey Panel cut-out to IEC 60947-5-1

Colour of mushroomIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

yes opaque red/

transparent red

1.30.246.051/03xx 1.30.246.052/0300 1.30.246.061/03xx 1.30.246.062/0300

Technical data see page 2 - 106

RAFIX 22 QR mushroom-headed pushbutton 60 mm, square collar

Pict.: Front ring, slate grey Panel cut-out to IEC 60947-5-1

Colour of mushroomIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

no opaque red 1.30.246.651/03xx 1.30.246.652/0300 - -

Technical data see page 2 - 106

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Order number 1.30.246.051/0308 (with silver grey plastic front ring) is a stock item.

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Stock items are marked

by bold printed order numbers.

2 - 110 Control components

RAFIX

22 QR

RAFIX 22 QR

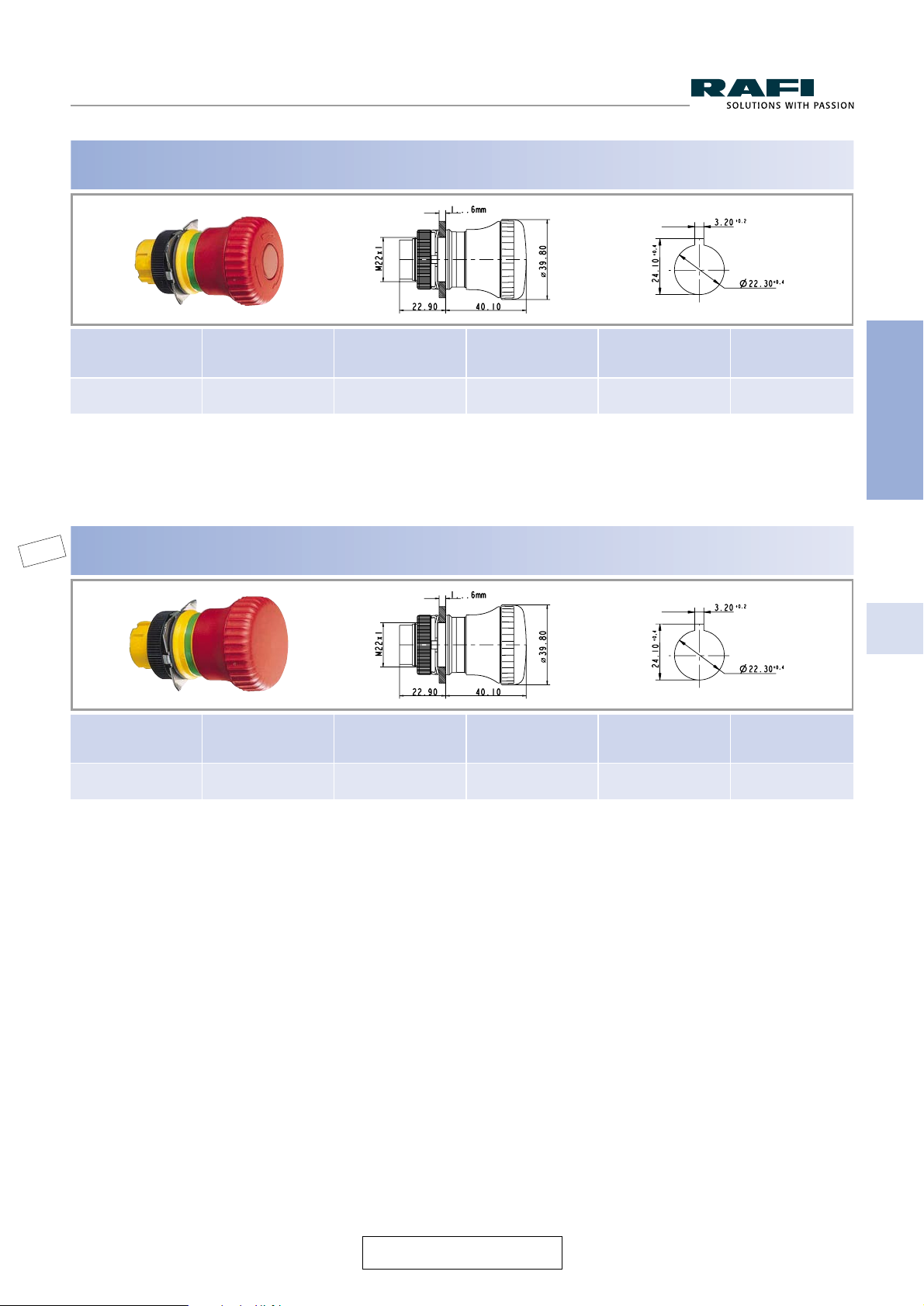

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418

Panel cut-out to IEC 60947-5-1

General data

The emergency stop pushbuttons comply with IEC 60 204, IEC 60 073, IEC 60 947 and VDE 0113 Part 1. They are designed dupe-proof according to EN 418 with a positive mechanical movement sequence. A certain operating force must be exerted at the action point in order to prevent inadvertent operation.The pushbutton latches when pressed. The special shape of the actuator prevents the emergency stop pushbutton from being blocked. This means that the emergency stop process - once initiated - cannot be impeded by any jamming objects.

Technical data

General information

Actuator mushroom Colour of mushroom see order block Form of collar round

Dimensions

Overall height see order block Mounting depth with contact block without cable see order block Mounting hole see order block Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut Contact function latching Illuminability see order block Reset see order block

Mechanical characteristics

Operating force max. approx. 5 N for

1 switching element Robustness min. 100 N Robustness acc. IEC 60947-5-5

Other specifications

Operating life see order block Degree of protection from front side see order block Ambient temp. operating min. -25 °C Ambient temp. operating max. +70 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no.

Page

Accessories RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, screw terminals, 1 NC

1.20.124.001/0000 2 - 126

RAFIX 22 QR contact block with silver contacts, with coupling, without lamp socket, screw terminals, 2 NC

1.20.124.019/0000 2 - 126

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

Stock items are marked

by bold printed order numbers.

Control components 2 - 111

RAFIX

22 QR

RAFIX 22 QR

Description Photo Order no.

Page

Accessories RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418

Emergency stop label, yellow, round 60 mm, PVC adhesive, without legend

5.76.204.100/0400 2 - 146

Emergency stop label, yellow, round 60 mm, PVC adhesive, with legend „NOT-AUS“

5.76.204.101/0400 2 - 146

Emergency stop label, yellow, round 60 mm, PVC adhesive, with legend „ARRET D’URGENCE“

5.76.204.102/0400 2 - 146

Emergency stop label, yellow, round 60 mm, PVC adhesive, with legend „EMERGENCY-STOP“

5.76.204.103/0400 2 - 146

Emergency stop label, yellow 36 x 64 mm, PVC adhesive, without legend

5.76.205.011/0400 2 - 146

Emergency stop label, yellow, round 60 mm, rigid PVC, with legend „EMERGENCY-STOP/ARRET D’URGENCE“

5.76.207.002/0400 2 - 146

For other contact blocks, refer to the chapter „Contact blocks“; for additional accessories, refer to „RAFIX 22 QR special accessories“.

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418

Panel cut-out to IEC 60947-5-1

Degree of protection from front side

Reset Colour of mushroom Illuminability Operating life

Order no.

IP65 by clockwise

rotation

opaque red no 100000 1.30.243.501/0300

Technical data see page 2 - 110

Included: Ring nut with claw. Switching position indication: In the non-operated condition, a green ring is visible on the side.

Stock items are marked

by bold printed order numbers.

2 - 112 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, with indication to EN 60947-1

Panel cut-out to IEC 60947-5-1

Degree of protection from front side

Reset Colour of mushroom Illuminability Operating life

Order no.

IP65 by clockwise

rotation

opaque red no 100000 1.30.243.601/0300

Technical data see page 2 - 110

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, with keylock

Panel cut-out to IEC 60947-5-1

Degree of protection from front side

Reset Colour of mushroom Illuminability Operating life Order no.

IP40 by clockwise

rotation

opaque red no 50000 1.30.243.701/0300

Technical data see page 2 - 110

Included: Ring nut with claw. Switching position indication: In the non-operated condition, a green ring is visible on the side. This switching position is visible in addition from the front; a mechanical indicator integrated into the mushroom head changes from green to red when actuated.

Included: Ring nut with claw, 2 keys. Switching position indication: In the non-operated condition, a green ring is visible on the side. Once actuated, the emergency stop pushbutton can only be reset with the key.

Accessories:

Spare key for RAFIX 22 QR: 5.58.017.001/0000

Stock items are marked

by bold printed order numbers.

Control components 2 - 113

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418, illuminated

Panel cut-out to IEC 60947-5-1

Degree of protection from front side

Reset Colour of mushroom Illuminability Operating life

Order no.

IP65 by clockwise

rotation

opaque red/ translucent red

yes 100000 1.30.243.001/0300

Technical data see page 2 - 110

NEW

Panel cut-out to IEC 60947-5-1

Degree of protection from front side

Reset Colour of mushroom Illuminability Operating life

Order no.

IP65 by pulling opaque red no 100000 1.30.243.901/0300

Technical data see page 2 - 110

Included: Ring nut with claw. Switching position indication: In the non-operated condition, a green ring is visible on the side.

RAFIX 22 QR emergency stop pushbutton, dupe-proof to EN 418

Stock items are marked

by bold printed order numbers.

2 - 114 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR toggle switch

Panel cut-out to IEC 60947-5-1Pict.: Front ring, metallized

Technical data

General information

Form of lens toggle Colour of toggle opaque white Front ring see order block Form of collar see order block

Dimensions

Length of collar see order block Witdth of collar see order block Overall height 22 mm Mounting depth 56.4 mm Mounting hole 22.3 mm

Mechanical design

Mounting ring nut

Dimensions

Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Contact function latching Illmuniabilitiy no

Mechanical characteristics

Robustness min. 100 N

Electrical characteristics

Protection class II

Other specifications

Operating life 100000 Degree of protection IP54 Storage temperature min. -40 °C Storage temperature max. 80 °C Resistance to constant environment according to

IEC 60068-2-3 and 2-30 Resistance at variable environment according to

IEC 60068-2-14 and 2-33

Description Photo Order no. Page

Accessories RAFIX 22 QR toggle switch

RAFIX 22 QR contact block with gold contacts, with coupling, without lamp socket, screw terminals, 1 NC + 1 NO

1.20.124.117/0000 2 - 130

RAFIX 22 QR contact block with gold contacts, with coupling, without lamp socket, cage clamp terminals, 1 NO

1.20.125.102/0000 2 - 130

Contact block with coupling, gold contacts, RJ 12 connector, 1 NO, without LED

1.20.128.002/0000 2 - 133

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

1 ... 6mm

Mx122

22.70 ca. 22.20

Ø/ 29.80

9.40

Stock items are marked

by bold printed order numbers.

Control components 2 - 115

RAFIX

22 QR

RAFIX 22 QR

NEW

RAFIX 22 QR, toggle switch, round collar

Pict.: Front ring, slate grey Panel cut-out to IEC 60947-5-1

Colour of toggleIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

no opaque white - - 1.30.247.501/02xx 1.30.247.502/0200

Technical data see page 2 - 114

NEW

RAFIX 22 QR, toggle switch, square collar

Pict.: Front ring, metallized Panel cut-out to IEC 60947-5-1

Colour of toggleIlluminability Order no. momentary

Plastic front ring Metallized front ring

Order no. latching

Plastic front ring Metallized front ring

no opaque white - - 1.30.247.551/02xx 1.30.247.552/0200

Technical data see page 2 - 114

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Mx122

22.70 ca. 22.20

1 ... 6mm

Ø/ 29.80

9.40

1 ... 6mm

Mx122

22.70 ca. 22.20

Ø/ 29.80

9.40

Stock items are marked

by bold printed order numbers.

2 - 116 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR twin pushbutton

Pict.: illuminated

General data

Lens legends are oriented for vertical installation of the twin pushbutton. Only the signal indicator is illuminated on twin pushbuttons prepared for illumination. This area is opaque slate grey on versions which cannot be illuminated.

Technical data

General information

Legending see order block Colour of lens opaque green/opaque red Colout of front ring see order block Form of collar see order block

Dimensions

Length of collar 59.6 mm Width of collar 29.8 mm Overall height 9.1 mm Mounting depth with contact block without cable 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm

Mechanical design

Mounting ring nut Contact function momentary Illuminability see order block

Mechanical characteristics

Operating force max. approx. 5 N for

1 switching element Robustness min. 100 N

Other specifications

Degree of protection from front side IP65 Ambient temp. operating min. -25 °C Ambient temp. operating max. +70 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no.

Page

Accessories RAFIX 22 QR twin pushbutton

RAFIX 22 QR contact block with silver contacts, with coupling and lamp socket, screw terminals, 1 NO, 1 NC

1.20.124.025/0000 2 - 127

RAFIX 22 QR contact block with gold contacts, with coupling and lamp socket, cage clamp terminals, 1 NO, 1 NC

1.20.125.125/0000 2 - 131

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

For other contact blocks, refer to the chapter "Contact blocks"; for additional accessories, refer to "RAFIX 22 QR special accessories".

22.30

+0.40

Stock items are marked

by bold printed order numbers.

Control components 2 - 117

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR twin pushbutton, oval collar

Pict.: illuminated

Colour of lensIlluminability Order no.

Plastic front ring Metal front ring

Legending

no opaque green/opaque red none 1.30.241.101/07xx 1.30.241.121/0700

no opaque green/opaque red red 0, green I 1.30.241.102/07xx 1.30.241.122/0700

Technical data see page 2 - 116

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

Either the left-hand or right-hand contact block is actuated, depending on the button pressed. For illuminated versions the centre position of the coupling is reserved for the lamp socket. A third contact block arranged in the centre would be actuated by either button.

RAFIX 22 QR twin pushbutton, rectangular collar

Pict.: non-illuminated

Colour of lensIlluminability Order no.

Plastic front ring Metal front ring

Legending

no opaque green/opaque red none 1.30.241.151/07xx 1.30.241.171/0700

no opaque green/opaque red red 0, green I 1.30.241.152/07xx 1.30.241.172/0700

yes opaque green/opaque red none 1.30.241.051/22xx 1.30.241.071/2200

yes opaque green/opaque red red 0, green I 1.30.241.052/22xx 1.30.241.072/2200

Technical data see page 2 - 116

xx = Front ring colour: black = 01, slate grey = 07, silver grey = 08

yes opaque green/opaque red none 1.30.241.001/22xx 1.30.241.021/2200

yes opaque green/opaque red red 0, green I 1.30.241.002/22xx 1.30.241.022/2200

+0.40

22.30

+0.40

22.30

Stock items are marked

by bold printed order numbers.

2 - 118 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR potentiometer drive

Panel cut-out to IEC 60947-5-1Pict.: slate grey with potentiometer

Technical data

General information

Actuator knob size Colour of handle see order block Front ring see order block Form of collar see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height 26 mm Mounting depth according to

potentiometer Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut

Mechanical characteristics

Robustness min. 100 N

Other specifications

Degree of protection from front side IP65 Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no. Page

Accessories RAFIX 22 QR potentiometer drive

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

26.2034.30

17.00

29.80

Mx122

1 ... 6

Stock items are marked

by bold printed order numbers.

Control components 2 - 119

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR potentiometer drive, round collar

Pict.: slate grey with potentiometer Panel cut-out to IEC 60947-5-1

Front ring Colour of handle

Order no.

metal opaque slate-grey 1.30.248.051/0000

plastic slate-grey opaque slate-grey 1.30.248.001/0700

plastic silber opaque slate-grey 1.30.248.001/0800

metal opaque black 1.30.248.061/0000

plastic slate-grey opaque black 1.30.248.011/0700

plastic silber opaque black 1.30.248.011/0800

Technical data see page 2 - 118

RAFIX 22 QR potentiometer drive, square collar

Pict.: state grey, delivery content Panel cut-out to IEC 60947-5-1

Front ring Colour of handle

Order no.

metal opaque slate-grey 1.30.248.071/0000

plastic slate-grey opaque slate-grey 1.30.248.021/0700

plastic silber opaque slate-grey 1.30.248.021/0800

metal opaque black 1.30.248.081/0000

plastic slate-grey opaque black 1.30.248.031/0700

plastic silber opaque black 1.30.248.031/0800

Technical data see page 2 - 118

For potentiometers with 6 mm shaft diameter and 50 mm shaft length. Potentiometer not included.

Mx122

26.2034.30

17.00

29.80

1...6

26.2034.30

17.00

Ø 22.00

29.80

1 ... 6

Stock items are marked

by bold printed order numbers.

2 - 120 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR buzzer

Panel cut-out to IEC 60947-5-1

Technical data

General information

Form of lens flat lens Colour of lens opaque slate-grey Form of collar see order block Sound see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height 9.8 mm Mounting depth 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut

Acoustic characteristics

Sonic pressure, 1 m distance min. see order block

Electrical characteristics

Operating voltage DC see order block Input current see order block Sound frequency see order block

Mechanical characteristics

Robustness min. 100 N

Other specifications

Degree of protection from front side IP65 Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no.

Page

Accessories RAFIX 22 QR buzzer

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

Stock items are marked

by bold printed order numbers.

Control components 2 - 121

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR buzzer, round collar

Panel cut-out to IEC 60947-5-1

Operating voltageDCInput current Sound Sonic pressure, 1 m

distance min.

Sound frequency

Order no.

12 V 25 mA continuos beep 70 dB 1.30.249.002/0000

24 V 25 mA continuos beep 70 dB 1.30.249.001/0000

Technical data see page 2 - 120

RAFIX 22 QR buzzer, square collar

Panel cut-out to IEC 60947-5-1

Operating voltageDCInput current Sound Sonic pressure, 1 m

distance min.

Sound frequency

Order no.

12 V 25 mA continuos beep 70 dB 1.30.249.022/0000

24 V 25 mA continuos beep 70 dB 1.30.249.021/0000

Technical data see page 2 - 120

Stock items are marked

by bold printed order numbers.

2 - 122 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR signal indicator

Panel cut-out to IEC 60947-5-1redPict.: yellow

Technical data

General information

Form of lens flat lens Colour of lens see order block Form of collar see order block

Dimensions

Length of collar see order block Width of collar see order block Overall height 9.4 mm Mounting depth 56.4 mm Mounting hole 22.3 mm Key grid 50 x 30 mm Diameter of collar see order block

Mechanical design

Mounting ring nut Illuminability yes

Electrical characteristics

Protection class II

Other specifications

Degree of protection from front side IP65 Ambient temp. operating min. -25 °C Ambient temp. operating max. +70 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment according to

IEC 600 68-2-3 and 2-30 Resistance at variable environment according to

IEC 600 68-2-14 and 2-33

Description Photo Order no.

Page

Accessories RAFIX 22 QR signal indicator

RAFIX 22 QR lamp socket assembly, screw terminals, with coupling

1.71.213.001/0000 2 - 136

RAFIX 22 QR lamp socket assembly, screw terminals, with coupling, diode and series resistor 130 V

1.71.213.004/0000 2 - 136

RAFIX 22 QR lamp socket assembly, cage clamp terminals, with coupling

1.71.214.001/0000 2 - 136

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

Legend insert without legend 5.70.803.000/2000

Stock items are marked

by bold printed order numbers.

Control components 2 - 123

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR signal indicator, round collar

Pict.: yellow Panel cut-out to IEC 60947-5-1

Colour of lens Form of collar

Order no.

transparent colourless round 1.74.505.501/1000

transparent red round 1.74.505.501/1300

transparent yellow round 1.74.505.501/1400

transparent green round 1.74.505.501/1500

transparent blue round 1.74.505.501/1600

Technical data see page 2 - 122

RAFIX 22 QR signal indicator, square collar

Pict.: red Panel cut-out to IEC 60947-5-1

Colour of lens Form of collar Order no.

transparent colourless square 1.74.505.551/1000

transparent red square 1.74.505.551/1300

transparent yellow square 1.74.505.551/1400

transparent green square 1.74.505.551/1500

transparent blue square 1.74.505.551/1600

Technical data see page 2 - 122

1...6mm

29.80

M22x1.5

22.90

21.80

9.40

1...6mm

29.80

M22x1.5

22.90

22.00

12.45

2 - 124 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR contact blocks with silver contacts

Silver contacts, 1NC+1NO, lamp socket, 1NC+1NOSilver contacts, 2 NC, screw terminalsPict.: Silver contacts, 1 NC, cage clamp terminals

General data

Most of the values specified apply to all terminal versions. Any deviating values specific to the cage clamp or quickconnect version are given in parentheses ( ).

Technical data

Dimensions

Length 39.5 mm Width 10 mm Height 46 mm Mounting depth without cable 56.4 mm

Mechanical design

Mounting snap on coupling and

actuator

Contact system bridgecontact self

cleaning Contact materials Ag Contact arrangement see order block NC contact forcibly actuated acc. to IEC 60947-5-1 yes Terminals see order block Terminal marking colour encoded Robustness 100 N Operating force approx. 5 N for 1 contact

element Wire range solid wires without wire end sleeves 2 x 0.75 ... 2.5 mm

Wire range stranded wires without end sleeves 2 x 1.0 ... 1.5

(2 x 0.08 ... 2.5) mm

Stripping length, solid or stranded 8 mm Wire range with wire end sleeves 2 x 0.75 ... 1.5 mm

Electrical characteristics acc. to IEC 60947

Rated insulation voltage AC/DC 400 V Rated peak voltage 6000 V Rated operating current I

AC 12 10 A Rated operating current I

AC-15 125 V/10 A, 250 V/6 A, 400

V/3.5 A Rated operating current I

DC-13 Q300 24V/2.75A, 60V/1.1A,

125V/0.55A, 250V/0.275A Degree of pollution 3

Positive opening travel 3 mm Operating speed 5 ... 1000 mm/s

Electrical characteristics acc. to IEC 61058

Resistive load AC 10 A/250 V; 7,5 A/400 V Motor load AC 6 A/250 V; 4 A/400 V

(5 A/250 V) Peak input current filament lamp AC 36 A Peak capacity input current AC 100 A Protection class II

Lamp characteristics

Lamp characteristics BA 9 s

Other specifications

Operating life at 10 A/250 V AC 500000 (70000) Switching reliability at 24V/5mA DC 10 x 10

-6

Approvals ENEC, cURus (UL + CSA) Robustness acc. IEC 60947-5-5 Corresponding to CE acc. EU-guideline N

72/73 Shock resistance acc. to IEC 600 68-2-27 50 g at 11 ms, amplitude

half sinusoidal Resistance to vibrations acc. to IEC 600 68-2-6 10 g at 40 ... 500 Hz Ambient temp. operating min. -25 °C Ambient temp. operating max. +70°C (+50°C) Storage temperature min. -40 °C Storage temperature max. +80 °C Flame class acc. to UL 94 V 0 Hot wire ignition acc. to IEC 60695-2-1 yes Resistance to constant environment IEC 600 68-2-3 and 2-30 Resistance at variable environment IEC 600 68-2-14 and 2-33

Stock items are marked

by bold printed order numbers.

Control components 2 - 125

RAFIX

22 QR

RAFIX 22 QR

Description Photo Order no.

Page

Accessories RAFIX 22 QR contact blocks with silver contacts, screw terminals and cage clamp terminals

Coupling with reference numbers 1-3-2, for contact blocks with single contacts

5.05.510.935/0000 2 - 143

Coupling with reference numbers 1/2-5/6-3/4, for contact blocks with double contacts

5.05.510.936/0000 2 - 143

Marking tag for contact blocks/lamp sockets with screw terminals

5.40.010.131/0000 2 - 145

NEW

RAFIX 22 QR contact block with silver contacts

Pict.: Silver contacts, 2 NC, screw terminals Au contacts, quick connector, 1SSilver contacts, 1 NC, screw terminals

Terminals

Order no.

Contact arrangement Contact materials Lamp characteristics

screw terminals 1 NC Ag 5.00.100.139/0000

screw terminals 1 NO Ag 5.00.100.140/0000

screw terminals 2 NC Ag 5.00.100.141/0000

screw terminals 2 NO Ag 5.00.100.142/0000

screw terminals 1 NC + 1 NO Ag 5.00.100.143/0000

clamp cage 1 NC Ag 5.00.100.144/0000

clamp cage 1 NO Ag 5.00.100.145/0000

solder/quick connector

6.3 x 0.8 mm

1 NC Ag 5.00.100.194/0000

solder/quick connector

6.3 x 0.8 mm

1 NO Ag 5.00.100.196/0000

Technical data see page 2 - 124

Stock items are marked

by bold printed order numbers.

2 - 126 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR contact block assembly, with coupling, without lamp socket, silver contacts

Pict.: Silver contacts, 1 NO

Terminals

Order no.

Contact arrangement Contact materials Lamp characteristics

screw terminals 1 NC Ag 1.20.124.001/0000

screw terminals 1 NO Ag 1.20.124.002/0000

screw terminals 1 NC, 1 NC Ag 1.20.124.003/0000

screw terminals 1 NO , 1 NO Ag 1.20.124.004/0000

screw terminals 1 NO , 1 NC Ag 1.20.124.005/0000

screw terminals 1 NC + 1 NO Ag 1.20.124.017/0000

screw terminals 1 NC + 1 NO ,

1 NC + 1 NO

Ag 1.20.124.018/0000

screw terminals 2 NC Ag 1.20.124.019/0000

screw terminals 2 NO Ag 1.20.124.020/0000

clamp cage 1 NC Ag 1.20.125.001/0000

clamp cage 1 NO Ag 1.20.125.002/0000

clamp cage 1 NC, 1 NC Ag 1.20.125.003/0000

clamp cage 1 NO , 1 NO Ag 1.20.125.004/0000

clamp cage 1 NO , 1 NC Ag 1.20.125.005/0000

Technical data see page 2 - 124

Contact arrangement example (1 NO = 1 normally open contact, 1 NC = 1 normally closed contact)

1 NO, 1 NC = Two separate contact blocks are mounted on the coupling: One with a normally open contact and one with a normally closed contact 1 NC + 1 NO = One contact block with double contacts (1 normally closed and 1 normally open) is mounted on the coupling.

Stock items are marked

by bold printed order numbers.

Control components 2 - 127

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR contact block assembly, with coupling and lamp socket, silver contacts

Pict.: lamp socket

Terminals

Order no.

Contact arrangement Contact materials Lamp characteristics

screw terminals 1 NC Ag BA 9 s 1.20.124.021/0000

screw terminals 1 NO Ag BA 9 s 1.20.124.022/0000

screw terminals 1 NC, 1 NC Ag BA 9 s 1.20.124.023/0000

screw terminals 1 NO , 1 NO Ag BA 9 s 1.20.124.024/0000

screw terminals 1 NO , 1 NC Ag BA 9 s 1.20.124.025/0000

screw terminals 1 NC + 1 NO Ag BA 9 s 1.20.124.027/0000

screw terminals 1 NC + 1 NO ,

1 NC + 1 NO

Ag BA 9 s 1.20.124.028/0000

screw terminals 2 NC Ag BA 9 s 1.20.124.029/0000

screw terminals 2 NO Ag BA 9 s 1.20.124.030/0000

clamp cage 1 NC Ag BA 9 s 1.20.125.021/0000

clamp cage 1 NO Ag BA 9 s 1.20.125.022/0000

clamp cage 1 NC, 1 NC Ag BA 9 s 1.20.125.023/0000

clamp cage 1 NO , 1 NO Ag BA 9 s 1.20.125.024/0000

clamp cage 1 NO , 1 NC Ag BA 9 s 1.20.125.025/0000

Technical data see page 2 - 124

Accessories:

Filament lamp, BA 9s base (MBC/MCC), 12 - 15 V: 1.90.060.132/0000 Filament lamp, BA 9s base (MBC/MCC), 24 - 30 V: 1.90.060.133/0000 Filament lamp, BA 9s base (MBC/MCC), 110 - 130 V: 1.90.060.137/0000 LED BA 9s (MBC/MCC) superbright, red, 24 V: 1.90.690.341/0000 LED BA 9s (MBC/MCC) superbright, green, 24 V: 1.90.690.342/0000 LED BA 9s (MBC/MCC) superbright, yellow, 24 V: 1.90.690.343/0000 LED BA 9s (MBC/MCC) superbright, blue, 24 V: 1.90.690.344/0000 LED BA 9s (MBC/MCC) superbright, white, 24 V: 1.90.690.345/0000

Contact arrangement example (1 NO = 1 normally open contact, 1 NC = 1 normally closed contact)

BA 9s (MBC/MCC) = Lamp socket snaps onto coupling centre. More technical data see "Lamp sockets".

Stock items are marked

by bold printed order numbers.

2 - 128 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR contact blocks with gold contacts

Assembly: Gold contacts, 1NC + 1NOGold contacts, 1 NO, cage clamp terminalsPict.: Gold contacts, 1 NC, screw terminals

General data

Most of the values specified apply to all terminal and cage clamp terminal versions. Any deviating values specific to the cage clamp or quick connect version are given in parentheses ( ).

Technical data

Dimensions

Length 39.5 mm Width 10 mm Height 46 mm Mounting depth without cable 56.4 mm

Mechanical design

Mounting snap on coupling and

actuator

Contact system bridgecontact self

cleaning Contact materials Au Contact arrangement see order block NC contact forcibly actuated acc. to IEC 60947-5-1 yes Terminals see order block Terminal marking colour encoded Robustness 100 N Operating force approx. 5 N for 1 contact

element Wire range solid wires without wire end sleeves 2 x 0,75 ... 2,5 mm

Wire range stranded wires without wire end sleeves

2 x 1,0 ... 1,5 mm

Stripping length, solid or stranded 8 mm Wire range with wire end sleeves 2 x 0,75 ... 1,5 mm

Electrical characteristics

Operating voltage AC/DC 1 ... 42 V Operating current AC/DC 0,01 ... 100 mA Rated power max. 1W (ohmic load)

Lamp characteristics

Lamp socket BA 9 s

Other specifications

Operating life 1 million at 10 mA/

24 V DC Switching reliability at 24V/5mA DC 10 x 10

-6

Robustness acc. IEC 60947-5-5 Corresponding to CE acc. EU-guideline N

72/73 Shock resistance acc. to IEC 600 68-2-27 50 g at 11 ms, amplitude

half sinusoidal Resistance to vibrations acc. to IEC 600 68-2-6 10 g at 40 ... 500 Hz Ambient temp. operating min. -25 °C Ambient temp. operating max. +70 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Resistance to constant environment IEC 600 68-2-3 and 2-30 Resistance at variable environment IEC 600 68-2-14 and 2-33

Description Photo Order no. Page

Accessories RAFIX 22 QR contact blocks with gold contacts, screw terminals and cage clamp terminals

Filament lamp, BA 9s base (MBC/MCC), 24 - 30 V 1.90.060.133/0000 5 - 8

Stock items are marked

by bold printed order numbers.

Control components 2 - 129

RAFIX

22 QR

RAFIX 22 QR

Description Photo Order no.

Page

Accessories RAFIX 22 QR contact blocks with gold contacts, screw terminals and cage clamp terminals

Neon lamp BA 9s (MBC/MCC), 220 V AC (red) 1.90.560.102/0000 5 - 9

LED BA 9s (MBC/MCC) superbright, white, 24 V 1.90.690.345/0000 5 - 19

Coupling with reference numbers 1-3-2, for contact blocks with single contacts

5.05.510.935/0000 2 - 143

Coupling with reference numbers 1/2-5/6-3/4, for contact blocks with double contacts

5.05.510.936/0000 2 - 143

Marking tag for contact blocks/lamp sockets with screw terminals

5.40.010.131/0000 2 - 145

NEW

RAFIX 22 QR contact block with gold contacts

Pict.: Gold contacts, 1 NC, screw terminals Gold contacts, quick connector, 1NOGold contacts, 1 NO, cage clamp terminals

Terminals

Order no.

Contact arrangement Contact materials Lamp socket

screw terminals 2 NC Au 5.00.100.161/0000

screw terminals 2 NO Au 5.00.100.162/0000

screw terminals 1 NC + 1 NO Au 5.00.100.163/0000

screw terminals 1 NC Au 5.00.100.164/0000

screw terminals 1 NO Au 5.00.100.165/0000

clamp cage 1 NC Au 5.00.100.159/0000

clamp cage 1 NO Au 5.00.100.160/0000

solder/quick connector

6.3 x 0.8 mm

1 NC Au 5.00.100.193/0000

solder/quick connector

6.3 x 0.8 mm

1 NO Au 5.00.100.195/0000

Technical data see page 2 - 128

Stock items are marked

by bold printed order numbers.

2 - 130 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR contact block assembly, with coupling, without lamp socket, gold contacts

Pict.: Gold contacts, 1NC + 1NO

Terminals

Order no.

Contact arrangement Contact materials Lamp socket

screw terminals 1 NC Au 1.20.124.101/0000

screw terminals 1 NO Au 1.20.124.102/0000

screw terminals 1 NC, 1 NC Au 1.20.124.103/0000

screw terminals 1 NO , 1 NO Au 1.20.124.104/0000

screw terminals 1 NO , 1 NC Au 1.20.124.105/0000

screw terminals 1 NC + 1 NO Au 1.20.124.117/0000

screw terminals 1 NC + 1 NO ,

1 NC + 1 NO

Au 1.20.124.118/0000

screw terminals 2 NC Au 1.20.124.119/0000

screw terminals 2 NO Au 1.20.124.120/0000

clamp cage 1 NC Au 1.20.125.101/0000

clamp cage 1 NO Au 1.20.125.102/0000

clamp cage 1 NC, 1 NC Au 1.20.125.103/0000

clamp cage 1 NO , 1 NO Au 1.20.125.104/0000

clamp cage 1 NO , 1 NC Au 1.20.125.105/0000

Technical data see page 2 - 128

Contact arrangement example (1 NO = 1 normally open contact, 1 NC = 1 normally closed contact)

1 NO, 1 NC = Two separate contact blocks are mounted on the coupling: One with a normally open contact and one with a normally clo- sed contact 1 NC + 1 NO = One contact block with double contacts (1 normally closed and 1 normally open) are mounted on the coupling.

Stock items are marked

by bold printed order numbers.

Control components 2 - 131

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR contact block assembly, with coupling and lamp socket, gold contacts

Pict.: Silver contacts, 1NC+1NO, lamp socket, 1NC+1NO

Terminals

Order no.

Contact arrangement Contact materials Lamp socket

screw terminals 1 NC Au BA 9 s 1.20.124.121/0000

screw terminals 1 NO Au BA 9 s 1.20.124.122/0000

screw terminals 1 NC, 1 NC Au BA 9 s 1.20.124.123/0000

screw terminals 1 NO , 1 NO Au BA 9 s 1.20.124.124/0000

screw terminals 1 NO , 1 NC Au BA 9 s 1.20.124.125/0000

screw terminals 1 NC + 1 NO Au BA 9 s 1.20.124.127/0000

screw terminals 1 NC + 1 NO ,

1 NC + 1 NO

Au BA 9 s 1.20.124.128/0000

screw terminals 2 NC Au BA 9 s 1.20.124.129/0000

screw terminals 2 NO Au BA 9 s 1.20.124.130/0000

clamp cage 1 NC Au BA 9 s 1.20.125.121/0000

clamp cage 1 NO Au BA 9 s 1.20.125.122/0000

clamp cage 1 NC, 1 NC Au BA 9 s 1.20.125.123/0000

clamp cage 1 NO , 1 NO Au BA 9 s 1.20.125.124/0000

clamp cage 1 NO , 1 NC Au BA 9 s 1.20.125.125/0000

Technical data see page 2 - 128

Accessories:

Contact arrangement example (1 NO = 1 normally open contact, 1 NC = 1 normally closed contact)

BA 9s (MBC/MCC) = Lamp socket snaps onto coupling centre. Technical data see "Lamp sockets".

Stock items are marked

by bold printed order numbers.

2 - 132 Control components

RAFIX

22 QR

RAFIX 22 QR

Contact blocks with coupling, gold contacts, RJ 12 connector, integrated LED

wiringwith LEDPict.: with RJ 12 adapter

Technical data

Dimensions

Length 49.4 mm Width 29.95 mm Height 42.1 mm Mounting depth 62 mm

Mechanical design

Mounting snap on actuator Contact system bridgecontact self

cleaning Contact materials Au Contact arrangement see order block NC contact forcibly actuated acc. to IEC 60947-5-1 yes Terminals RJ-12 Terminal marking RJ-12 plug Mounting grid 30 x 50 Robustness 100 N

Electrical characteristics

Operating voltage AC/DC 24 V Operating current AC/DC 0,01 ... 50 mA

Other specifications

Operating life 1000000 at 50 mA/24 V DC Switching reliability at 24V/5mA DC 10 x 10

-6

Ambient temp. operating min. -25 °C Ambient temp. operating without LED max. +70 °C Ambient temp. operating with LED max. +50 °C Storage temperature min. -30 °C Storage temperature max. +80 °C Integrated LED see order block LED colour see order block Resistance to constant environment IEC 600 68-2-3 and 2-30 Resistance at variable environment IEC 600 68-2-14 and 2-33

Stock items are marked

by bold printed order numbers.

Control components 2 - 133

RAFIX

22 QR

RAFIX 22 QR

Contact block with coupling, gold contacts, RJ 12 connector, integrated LED

Pict.: with RJ 12 adapter Wiring

Contact arrangement Integrated LED

Order no.

Operating voltage AC/DC LED colour

1 NO 24 V no 1.20.128.002/0000

1 NO 24 V whiteyes 1.20.128.012/0000

1 NO 24 V greenyes 1.20.128.042/0000

1 NC + 1 NO 24 V no 1.20.128.003/0000

1 NC + 1 NO 24 V whiteyes 1.20.128.013/0000

1 NC + 1 NO 24 V redyes 1.20.128.023/0000

2 NC 24 V no 1.20.128.004/0000

2 NC 24 V whiteyes 1.20.128.014/0000

2 NC 24 V redyes 1.20.128.024/0000

2 NO 24 V no 1.20.128.005/0000

2 NO 24 V whiteyes 1.20.128.015/0000

2 NO 24 V greenyes 1.20.128.045/0000

Technical data see page 2 - 132

Other contact arrangement versions available on request.

Stock items are marked

by bold printed order numbers.

2 - 134 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR lamp sockets BA 9s (MBC/MCC), screw terminals and cage clamp terminals

with contact block

Technical data

Dimensions

Length 46 mm Width 10 mm Height 39.5 mm Mounting depth without cable 56.4 mm

Mechanical design

Mounting snap on coupling and

actuator Terminals see order block Terminal marking X1 = anode, X2 = cathode

Lamp characteristics

Lamp socket BA 9 s Operating voltage AC/DC see order block Lamp power max. 2 W Lamp voltage see order block

Other specifications

Approvals see order block Robustness acc. IEC 60947-5-5 Shock resistance acc. to IEC 600 68-2-27 50 g at 11 ms, amplitude

half sinusoidal Resistance to vibrations acc. to IEC 600 68-2-6 10 g at 40 ... 500 Hz Resistance to constant environment IEC 600 68-2-3 and 2-30 Resistance at variable environment IEC 600 68-2-14 and 2-33 Ambient temp. operating min. -25 °C Ambient temp. operating max. +70 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Flame class acc. to UL 94 V 0 Hot wire ignition acc. to IEC 60695-2-1 yes

Description Photo Order no.

Page

Accessories RAFIX 22 QR lamp sockets BA 9s (MBC/MCC), screw terminals and cage clamp terminals

Filament lamp, BA 9s base (MBC/MCC), 12 - 15 V 1.90.060.132/0000 5 - 8

Filament lamp, BA 9s base (MBC/MCC), 24 - 30 V 1.90.060.133/0000 5 - 8

Filament lamp, BA 9s base (MBC/MCC), 110 - 130 V 1.90.060.137/0000 5 - 8

Neon lamp BA 9s (MBC/MCC), 220 V AC (red) 1.90.560.102/0000 5 - 9

LED BA 9s (MBC/MCC) superbright, red, 24 V 1.90.690.341/0000 5 - 19

LED BA 9s (MBC/MCC) superbright, green, 24 V 1.90.690.342/0000 5 - 19

LED BA 9s (MBC/MCC) superbright, yellow, 24 V 1.90.690.343/0000 5 - 19

Stock items are marked

by bold printed order numbers.

Control components 2 - 135

RAFIX

22 QR

RAFIX 22 QR

Description Photo Order no.

Page

Accessories RAFIX 22 QR lamp sockets BA 9s (MBC/MCC), screw terminals and cage clamp terminals

LED BA 9s (MBC/MCC) superbright, blue, 24 V 1.90.690.344/0000 5 - 19

LED BA 9s (MBC/MCC) superbright, white, 24 V 1.90.690.345/0000 5 - 19

Coupling with reference numbers 1-3-2, for contact blocks with single contacts

5.05.510.935/0000 2 - 143

Coupling with reference numbers 1/2-5/6-3/4, for contact blocks with double contacts

5.05.510.936/0000 2 - 143

Marking tag for contact blocks/lamp sockets with screw terminals

5.40.010.131/0000 2 - 145

NEW

RAFIX 22 QR lamp socket, without coupling

Terminals Approvals

Order no.

Diode and resistor

Lamp socket Operating

voltage AC/DC

Lamp voltage

screw terminals no BA 9 s 6 ... 250 V 6 ... 250 VENEC 10/15;

ULc

5.00.070.074/0000

screw terminals yes BA 9 s 250 V 130 VENEC 10/15;

ULc

5.00.070.080/0000

clamp cage no BA 9 sBA 9 s 6 ... 250 V 6 ... 250 VENEC 10/15;

ULc

5.00.070.078/0000

solder/quick connector 6.3 x 0.8 mm

no BA 9 s 6 ... 250 V 6 ... 250 VENEC 10/15;

ULc

5.00.070.087/0000

Technical data see page 2 - 134

Stock items are marked

by bold printed order numbers.

2 - 136 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR lamp socket assembly, with coupling

Pict.: Lamp socket with cage clamp terminals

Terminals Approvals

Order no.

Diode and resistor

Lamp socket Operating

voltage AC/DC

Lamp voltage

screw terminals no BA 9 s 6 ... 250 V 6 ... 250 VENEC 10/15;

ULc

1.71.213.001/0000

screw terminals yes BA 9 s 250 V 130 VENEC 10/15;

ULc

1.71.213.004/0000

clamp cage no BA 9 s 6 ... 250 V 6 ... 250 VENEC 10/15;

ULc

1.71.214.001/0000

Technical data see page 2 - 134

Stock items are marked

by bold printed order numbers.

2 - 138 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR lamp sockets with integrated LED, screw terminals

Technical data

Dimensions

Length 46 mm Width 10 mm Height 39.5 mm Mounting depth without cable 56.4 mm

Mechanical design

Mounting snap on coupling and

actuator Diode and resistor see order block LED colour see order block Terminals screw terminals Terminal marking X1 = anode, X2 = cathode

Lamp characteristics

Operating voltage see order block Max. current, I

see order block

Other specifications

Approvals ENEC 10/15; ULc Robustness acc. IEC 60947-5-5 Shock resistance acc. to IEC 600 68-2-27 50 g at 11 ms, amplitude

half sinusoidal Resistance to vibrations acc. to IEC 600 68-2-6 10 g at 40 ... 500 Hz Resistance to constant environment IEC 600 68-2-3 and 2-30 Resistance at variable environment IEC 600 68-2-14 and 2-33 Ambient temp. operating min. -20 °C Ambient temp. operating max. +65 °C Storage temperature min. -40 °C Storage temperature max. +80 °C Flame class acc. to UL 94 V 0 Hot wire ignition acc. to IEC 60695-2-1 yes

Description Photo Order no.

Page

Accessories RAFIX 22 QR lamp sockets with integrated LED, screw terminals

Coupling with reference numbers 1-3-2, for contact blocks with single contacts

5.05.510.935/0000 2 - 143

Coupling with reference numbers 1/2-5/6-3/4, for contact blocks with double contacts

5.05.510.936/0000 2 - 143

Marking tag for contact blocks/lamp sockets with screw terminals

5.40.010.131/0000 2 - 145

Stock items are marked

by bold printed order numbers.

Control components 2 - 139

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR lamp socket with integrated LED, without coupling

Terminals LED colour

Order no.

Diode and resistor Max. current, I

Operating voltage

screw terminals 15 mA AC/DC 24 Vwhite 5.00.070.083/0200

screw terminals 15 mA AC/DC 24 Vred 5.00.070.083/0300

screw terminals 15 mA AC/DC 24 Vyellow 5.00.070.083/0400

screw terminals 15 mA AC/DC 24 Vgreen 5.00.070.083/0500

screw terminals 15 mA AC/DC 24 Vblue 5.00.070.083/0600

screw terminals 16 mA AC 115 Vwhite 5.00.070.085/0200

screw terminals 16 mA AC 115 Vred 5.00.070.085/0300

screw terminals 16 mA AC 115 Vyellow 5.00.070.085/0400

screw terminals 16 mA AC 115 Vgreen 5.00.070.085/0500

screw terminals 16 mA AC 115 Vblue 5.00.070.085/0600

screw terminals 16 mA AC 230 Vwhite 5.00.070.086/0200

screw terminals 16 mA AC 230 Vred 5.00.070.086/0300

screw terminals 16 mA AC 230 Vyellow 5.00.070.086/0400

screw terminals 16 mA AC 230 Vgreen 5.00.070.086/0500

screw terminals 16 mA AC 230 Vblue 5.00.070.086/0600

Technical data see page 2 - 138

Stock items are marked

by bold printed order numbers.

2 - 140 Control components

RAFIX

22 QR

RAFIX 22 QR

RAFIX 22 QR special accessories

light grey/dark grey

Description Photo Order no.

Page

Accessories RAFIX 22 QR special accessories

Fixing spanner for ring nut and front ring 5.05.800.062/0000 5 - 23

Housings for flush pushbuttons

Order no.Short text Feature 1 Feature 2

Housings for pushbuttons, round collar, flush lens, momentary 1.30.240.601/0000

Housings for pushbuttons, square collar, flush lens, momentary 1.30.240.602/0000

Stock items are marked

by bold printed order numbers.

Control components 2 - 141

RAFIX

22 QR

RAFIX 22 QR

Lenses for flush pushbuttons

Pict.: yellow

Order no.Short text Feature 1 Feature 2

Lens, with diffuser transparent

colourless

flat lens 5.04.926.008/1000

Lens, with diffuser transparent red flat lens 5.04.926.008/1300

Lens, with diffuser transparent

yellow

flat lens 5.04.926.008/1400

Lens, with diffuser transparent

green

flat lens 5.04.926.008/1500

Lens, with diffuser transparent blue flat lens 5.04.926.008/1600

Lens opaque black flat lens 5.49.263.019/0100

Lens opaque white flat lens 5.49.263.019/0200

Lens opaque red flat lens 5.49.263.019/0300

Lens opaque yellow flat lens 5.49.263.019/0400

Lens opaque green flat lens 5.49.263.019/0500

Lens opaque blue flat lens 5.49.263.014/0600

Lens opaque

slate-grey

flat lens 5.49.263.019/0700

Stock items are marked

by bold printed order numbers.

2 - 142 Control components

RAFIX

22 QR

RAFIX 22 QR

Front ring

Pict.: metal

Order no.Short text Feature 1 Feature 2

Front ring, metal 5.45.638.015/6030

Front ring, plastic, black 5.45.639.020/0100

Front ring, plastic, red 5.45.639.020/0300

Front ring, plastic, yellow 5.45.639.020/0400

Front ring, plastic, green 5.45.639.020/0500

Front ring, plastic, blue 5.45.639.020/0600

Front ring, plastic, slate grey 5.45.639.020/0700

Front ring, plastic, silver grey 5.45.639.020/0800

RAFIX 22 QR plastic front ring with thermoflex protective cap

Pict.: slate-grey

Order no.Short text Feature 1 Feature 2

Front ring, plastic with protective cap, slate grey slate-grey 5.05.004.914/0700

Front ring, plastic with thermoflex protective cap, silver grey silver-

grey

5.05.004.914/0800

Front ring, plastic with thermoflex protective cap, black black 5.05.004.914/0100

Stock items are marked

by bold printed order numbers.

Control components 2 - 143

RAFIX

22 QR

RAFIX 22 QR

Label holder

Order no.Short text Feature 1 Feature 2

Label holder, round collar, with adhesive tape and release liner on back 50 x 30 x 3.6 mm

5.07.620.010/0000

Label holder, square collar, with adhesive tape and release liner on back 50 x 30 x 3.6 mm

5.07.620.011/0000

Legend label to clip into label holder 5.07.620.xxx

Order no.Short text Feature 1 Feature 2

Label for label holder, without legend, 16 x 28 x 0,9 mm 5.73.110.000/0000

Coupling

Order no.Short text Feature 1 Feature 2

Coupling with reference numbers 1-3-2, for contact blocks with single contacts

5.05.510.935/0000

Coupling with reference numbers 1/2-5/6-3/4, for contact blocks with double contacts

5.05.510.936/0000

Stock items are marked

by bold printed order numbers.

2 - 144 Control components

RAFIX

22 QR

RAFIX 22 QR

Blanking cap

Order no.Short text Feature 1 Feature 2

Blanking cap IP65, ring nut, square 5.05.800.065/0000

Blanking cap IP65, ring nut, round 5.05.800.064/0000

Ring nut

Order no.Short text Feature 1 Feature 2

Ring nut (spare part) 5.24.279.012/0100

Ring nut with claw (spare part) 5.02.420.001/0000

Lamp tester

Order no.Short text Feature 1 Feature 2

Lamp tester 5.03.771.678/0000

Stock items are marked

by bold printed order numbers.

Control components 2 - 145

RAFIX

22 QR

RAFIX 22 QR

Protective cover, suitable for pushbuttons with flush lens

Pict.: protective lid

Order no.Short text Feature 1 Feature 2

Protective cover, latching 5.05.511.195/0000

Protective cover, auto-closing 5.05.511.194/0000

Marking tag

Order no.Short text Feature 1 Feature 2

Marking tag for contact blocks/lamp sockets with screw terminals 5.40.010.131/0000

Stock items are marked

by bold printed order numbers.

2 - 146 Control components

RAFIX

22 QR

RAFIX 22 QR

Insulating housing IP65 for RAFIX 22 QR

Pict.: 3-module

Order no.Short text Feature 1 Feature 2

Insulating housing IP65 for 22 QR, 1-module, light grey/dark grey 100 mm 55 mm 1.20.810.201/0000

Insulating housing IP65 for 22 QR, 1-module, yellow/yellow 100 mm 55 mm 1.20.810.202/0000

Insulating housing IP65 for 22 QR, 2-module, light grey/dark grey 100 mm 115 mm 1.20.820.201/0000

Insulating housing IP65 for 22 QR, 3-module, light grey/dark grey 100 mm 115 mm 1.20.830.201/0000

Insulating housing IP65 for 22 QR, 4-module, light grey/dark grey 100 mm 145 mm 1.20.840.201/0000

Emergency stop label plate

Order no.Short text Feature 1 Feature 2

Emergency stop label, yellow, round 60 mm, rigid PVC, with legend „NOT-AUS“

60 mm 5.76.207.001/0400

Emergency stop label, yellow, round 60 mm, rigid PVC, with legend „EMERGENCY-STOP/ARRET D’URGENCE“

60 mm 5.76.207.002/0400

Emergency stop label, yellow, round 60 mm, PVC adhesive, without legend 60 mm 5.76.204.100/0400

Emergency stop label, yellow, round 60 mm, PVC adhesive, with legend „NOT-AUS“

60 mm 5.76.204.101/0400

Emergency stop label, yellow, round 60 mm, PVC adhesive, with legend „ARRET D’URGENCE“

60 mm 5.76.204.102/0400

Emergency stop label, yellow, round 60 mm, PVC adhesive, with legend „EMERGENCY-STOP“

60 mm 5.76.204.103/0400

Emergency stop label, yellow 36 x 64 mm, PVC adhesive, without legend 64 mm 36 mm 5.76.205.011/0400

• Attractive plastic housing to accommodate up to 4 control components

• 2 cable entries prepared: 1-,2-,3-part: M20x1,5, 4-part: M25x1,5

• Degree of protection IP 65 to DIN

• All grey housings with overlay, legending possible with legend inserts

• Wall mounting with 2 screws through housing bottom prepared

• Dimensions: (feature 2) x 100 mm x 74 mm

• Accessories: 50 pre-perforated legend inserts on a DIN A4 sheet for printing with a PC printer

Degree of protection: Rigid PVC: IP 40, adhesive foil: IP65.

Datasheet RAFIX 22 QR Datasheet (RAFI)

Specifications and Main Features

Frequently Asked Questions

User Manual
