Page 1
24
2

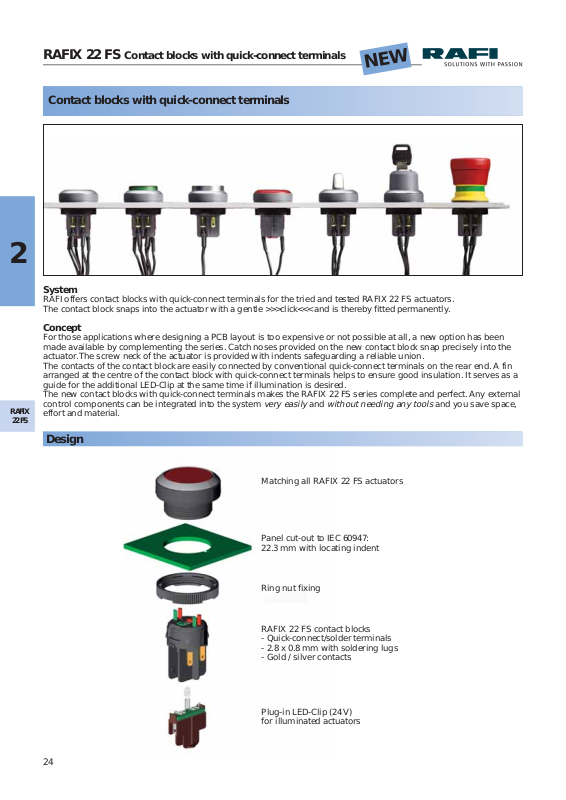

RAFIX
22 FS
System
RAFI offers contact blocks with quick-connect terminals for the tried and tested RAFIX 22 FS actuators.
The contact block snaps into the actuator with a gentle >>>click<<< and is thereby fitted permanently.
Concept
For those applications where designing a PCB layout is too expensive or not possible at all, a new option has been
made available by complementing the series. Catch noses provided on the new contact block snap precisely into the
actuator. The screw neck of the actuator is provided with indents safeguarding a reliable union.
The contacts of the contact block are easily connected by conventional quick-connect terminals on the rear end. A fin
arranged at the centre of the contact block with quick-connect terminals helps to ensure good insulation. It serves as a
guide for the additional LED-Clip at the same time if illumination is desired.
The new contact blocks with quick-connect terminals makes the RAFIX 22 FS series complete and perfect. Any external
control components can be integrated into the system
very easily
and
without needing any tools
and you save space,
effort and material.
Matching all RAFIX 22 FS actuators
Panel cut-out to IEC 60947:
22.3 mm with locating indent
Ring nut fixing
RAFIX 22 FS contact blocks
- Quick-connect/solder terminals
- 2.8 x 0.8 mm with soldering lugs
- Gold / silver contacts
Plug-in LED-Clip (24 V)
for illuminated actuators
RAFIX 22 FS Contact blocks with quick-connect terminals
Contact blocks with quick-connect terminals
Design
NEW
Page 2
fl
29.80
Allgemeintoleranzen
mittel
2001 Datum Name
Drucktaste
Rafix FS
Bearb. 24.01 Gl ck
Ma stab: 5:1 Gepr. 24.01 gl ck
Originalformat: A2
FZ FZ 1.30 250.---
Modellname:
9.90
25.70
27.00
25
2
RAFIX
22 FS
RAFIX 22 FS Contact blocks with quick-connect terminals
• Depth behind panel only 27 mm including LED-Clip
and cable lugs
• Quick-connect/solder terminals 2.8 x 0.8 mm
• The contact block engages permanently with the
actuator only at the time of final assembly
• Compatible with all RAFIX 22 FS actuators:
Pushbuttons, selector switc hes, keylock switches, emergency stop buttons and signal indicators, with all advantages this series offers:
- Large actuating and indicating areas
- Round or square collar shape
- Panel cut-out to IEC 60947: 22.3 mm with locating
indent
- Degree of protection IP 65 (water-jet proof)
• Protection against contact for quick-connect terminals
and cable lugs: Short-circuit proof even when the
connection cables are under tensile strain
Reliable assembly method
Essential features
• Gold contacts for 100% reliable switching of low
voltage (min. 5 V / 1 mA) or
• Silver contacts (max. 250 V/4 A) for mains voltage
• Contact arrangements: 1 NC, 1 NO, 2 NC, 2 NO,
1 NC + 1 NO
• Illumination with replaceable superbright LED-Clips
in various LED colours, with quick-connect terminals
2.8 x 0.8 mm
• Actuators / contact blocks, signal indicators / lamp
sockets and LED-Clips are stocked separately and
only assembled at final assembly. This ensures
utmost flexibility and most economic stockkeeping
for this product range.
27.00
25.70
29.80
9.90
NEW
Page 3
26 Control components
2
RAFIX
22 FS
RAFIX 22 FS Contact blocks with quick-connect terminals

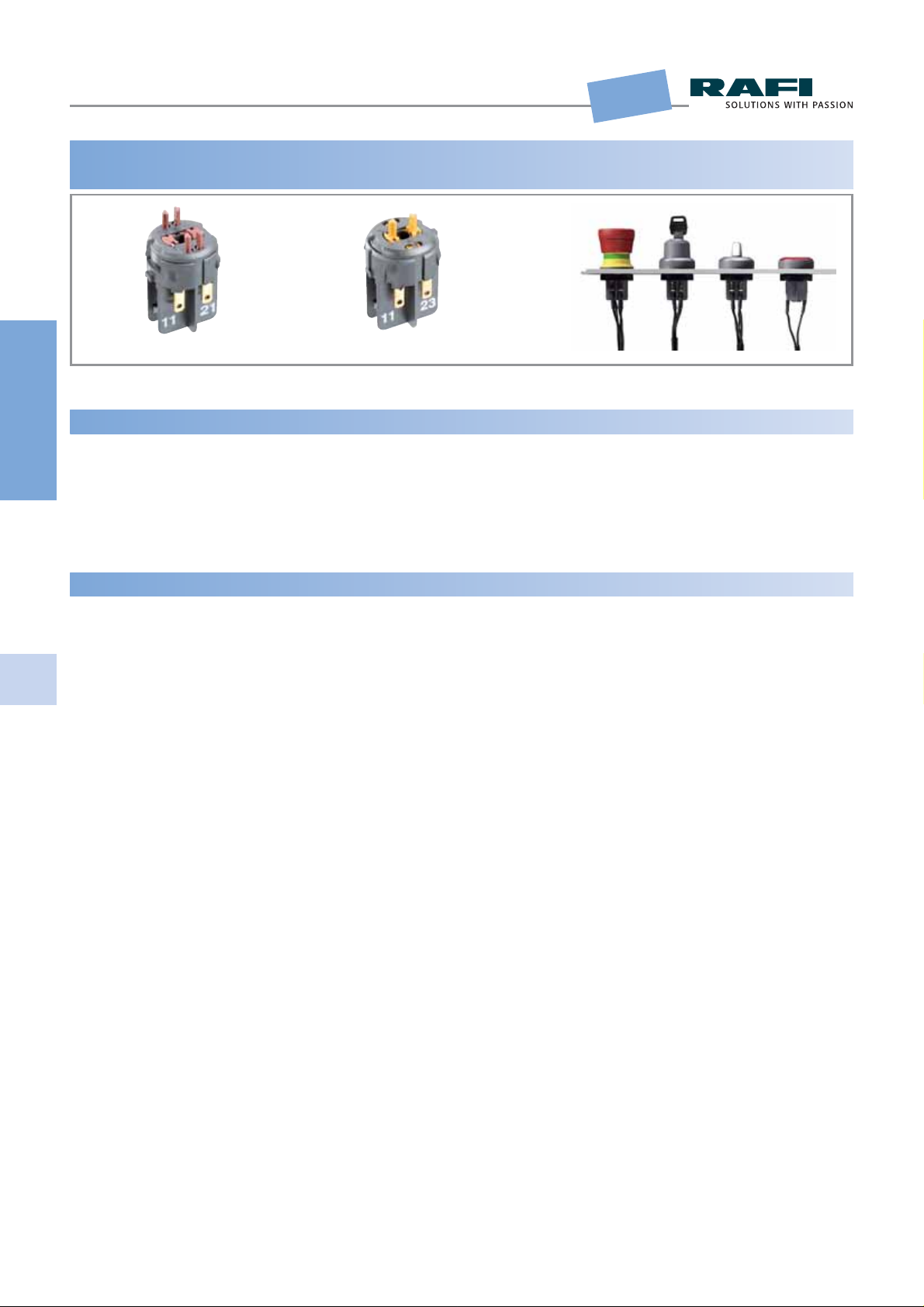

RAFIX 22 FS, Contact blocks with quick-connect terminals, gold contacts
Pict.: Emergency stop, Au-contact, 1 NC + 1 NO
Pict.: Universal, Au-contact, 2 NC
General data
The contact blocks are inserted into the actuators and latch there permanently. Emergency stop pushbuttons require
special contact blocks which you can recognise by the plungers being in the interior. In addition, the emergency stop
contact blocks and actuators feature two assembly guides which prevent rotation during assembly. We recommend to
choose the LED colour in the same colour as the lens of the actuator in order to ensure satisfactory illumination.
Technical data
General information
Lamp LED-Clip
Dimensions
Diameter 17.3 mm
Recommended key grid 30 mm
Mounting depth 27 mm
Mechanical design
Mounting soldering in PCB
Contact system bridgecontact self
cleaning
Contact materials Au
Contact arrangement see order block
NC contact
forcibly actuated acc. to
IEC 947-5-1 yes
Terminals quick-connect/solder
terminals 2.8 x 0.8 mm
Robustness 100 N
Electrice characteristics acc. to IEC 60947, AC-15, DC-13
Operating voltage min. 5 V
Operating current min. 1 mA
Rated power max. 250 mW
Other specifications
Operating life 1 million at 10 mA/24 V DC
Switching reliability at
24V/5mA DC 10 x 10
-6
Approvals acc. to IEC 60947 -5-1/-5, 60204, 60073
Approvals, other cURus (UL + CSA)
Ambient temp. operating min. -25 °C
Ambient temp. operating max.+70 °C
Storage temperature min. -40 °C
Storage temperature max. +80 °C
Colour of plunger see order block
Robustness acc. to IEC 60947-5-5
(TÜV)
Shock resistance acc. to
IEC 600 68-2-27 15 g bei 11 ms amplitude
half sinusoidal
Resistance to vibrations
acc. to IEC 600 68-2-6 5 g at 10 ... 500 Hz
Resistance to constant
environment IEC 600 68-2-3 und 2-30
Restistance at variable
environment IEC 600 68-2-14 und 2-33
Salt spray IEC 600 68-2-11
Colour of housing grey
NEW
Page 4
Stock items are marked
by bold printed order numbers.
Control components 27
2
RAFIX
22 FS
RAFIX 22 FS Contact blocks with quick-connect terminals
Discription Photo Order no.
Additional accessories see page
Typical accessories RAFIX 22 FS
contact blocks
LED-Clip, LED red 5.05.511.359/0300 38
LED-Clip, LED blue 5.05.511.359/0600 38
LED-Clip, LED green 5.05.511.359/0500 38
LED-Clip, LED white 5.05.511.359/0200 38
LED-Clip, LED yellow 5.05.511.359/0400 38
For additional accessories, refer to the chapter "RAFIX 22 FS special accessories".

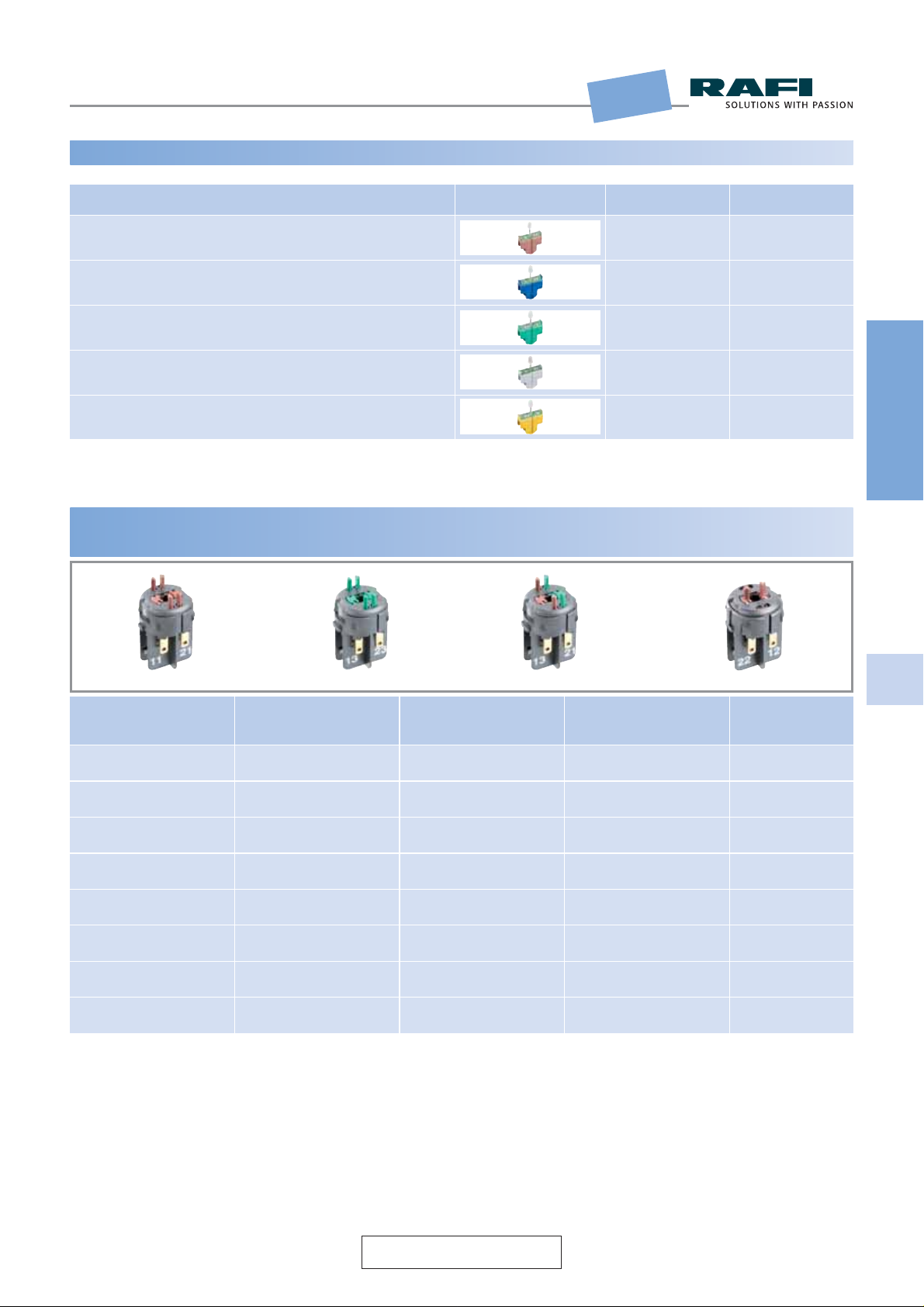

RAFIX 22 FS contact blocks with quick-connect terminals
Pict.: Universal, Au-contact, 2 NC
Pict.: Universal, Au-contact, 2 NO
Contact arrangement Colour of housing
Order no.
Type Colour of plunger
1 NC Universal redgrey 1.20.126.101/0000
1 NO Universal greengrey 1.20.126.102/0000
1 NC + 1 NO Universal red and greengrey 1.20.126.103/0000
2 NC Universal redgrey 1.20.126.104/0000
2 NO Universal greengrey 1.20.126.105/0000
1 NC Emergency stop redgrey 1.20.126.501/0000
1 NC + 1 NO Emergency stop yellowgrey 1.20.126.503/0000
2 NC Emergency stop redgrey 1.20.126.504/0000
Caution: Emergency stop contact blocks can only be used with emergency stop pushbuttons. Universal contact blocks are not suitable
for emergency stop pushbuttons.
Pict.: Universal, Au-contact, 1 NC + 1 NO
Pict.: Emergency stop, Au-contact, 2 NC
NEW
Page 5
28 Control components
2
RAFIX
22 FS
RAFIX 22 FS Contact blocks with quick-connect terminals

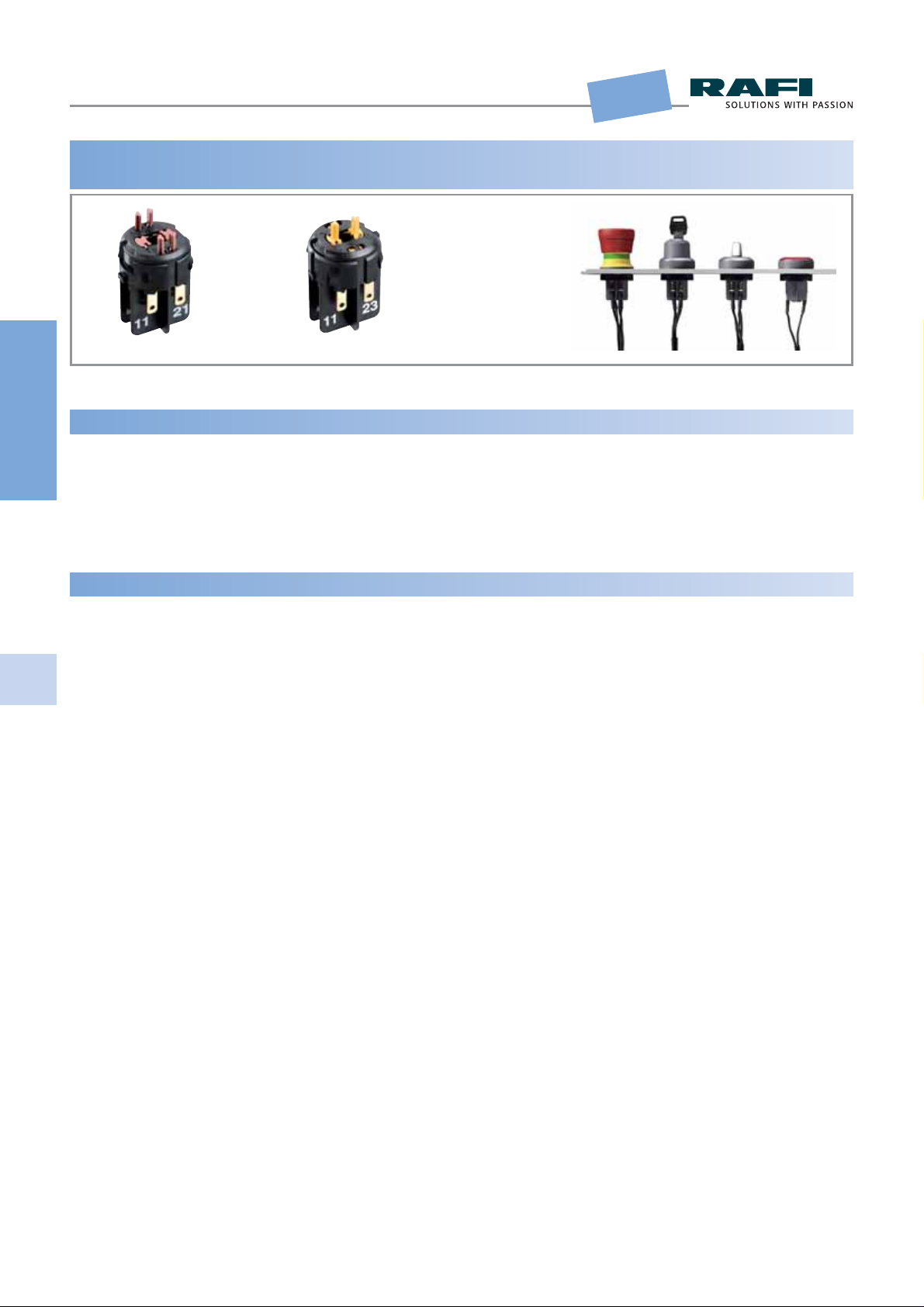

RAFIX 22 FS contact blocks with silver contacts
Pict.: Emergency stop, Ag-contact, 1 NC + 1 NO
Pict.: Universal, Ag-contact, 2 NC
General data
The contact blocks are inserted into the actuators and latch there permanently. Emergency stop pushbuttons require
special contact blocks which you can recognise by the plungers being in the interior. In addition, the emergency stop
contact blocks and actuators feature two assembly guides which prevent rotation during assembly. We recommend to
choose the LED colour in the same colour as the lens of the actuator in order to ensure satisfactory illumination.
Technical data
General information
Lamp LED-Clip
Dimensions
Diameter 17.3 mm
Recommended key grid 30 mm
Mounting depth 27 mm
Mechanical design
Mounting soldering in PCB
Betätigungselement
Contact system bridgecontact self
cleaning
Contact materials Ag
Contact arrangement see order block
NC contact forcibly
actuated acc. to
IEC 60947-5-1 yes
Terminals quick-connect/solder
terminals 2.8 x 0.8 mm
Robustness 100 N
Electrice characteristics acc. to IEC 60947, AC-15, DC-13
Rated insulation voltage
AC/DC 250 V
Rated peak voltage 2,500 V
Rated operating current
IE , AC15 B300 3 A/120 V ; 1,5 A/240 V;
Ithe: 5 A
Rated operating current
IE , DC13 Q300 550 mA/120 V; 270 mA/240
V; Ithe: 2,5 A
Other specifications
Operating life at 250V / 1A 1,000,000
Operating life at 250V / 2A 100,000
Operating life at 250V / 4A 30,000
Switching reliability at
24V/5mA DC 10 x 10
-6
Ambient temp. operating
min. -25 °C
Ambient temp. operating
max. +70 °C
Storage temperature min. -40 °C
Storage temperature max. +80 °C
Colour of plunger see order block
Approvals acc. to IEC 60947 -5-1/-5, 60204, 60073
Approvals, other
pending: cURus (UL + CSA)
Marine approvals on request
Robustness acc. to IEC 60947-5-5
(TÜV)
Shock resistance acc. to
IEC 600 68-2-27 15 g at 11 ms, amplitude
half sinusoidal
Resistance to vibrations
acc. to IEC 600 68-2-6 5 g bei 0 ... 500 Hz
Konstantklimafestigkeit IEC 600 68-2-3 und 2-30
Wechselklimafestigkeit IEC 600 68-2-14 und 2-33
Salznebel IEC 600 68-2-11
Flame class acc. to UL 94 V 0
Hot wire ignition acc. to
IEC 695-2-1 yes
Colour of housing black
NEW
Page 6
Stock items are marked
by bold printed order numbers.
Control components 29
2
RAFIX
22 FS
RAFIX 22 FS Contact blocks with quick-connect terminals
Bezeichnung Photo Order no.
Additional accessories see page
Typical accessories RAFIX 22 FS contact blocks
LED-Clip, LED red 5.05.511.359/0300 38
LED-Clip, LED blue 5.05.511.359/0600 38
LED-Clip, LED green 5.05.511.359/0500 38
LED-Clip, LED white 5.05.511.359/0200 38
LED-Clip, LED yellow 5.05.511.359/0400 38
For additional accessories, refer to the chapter "RAFIX 22 FS special accessories".

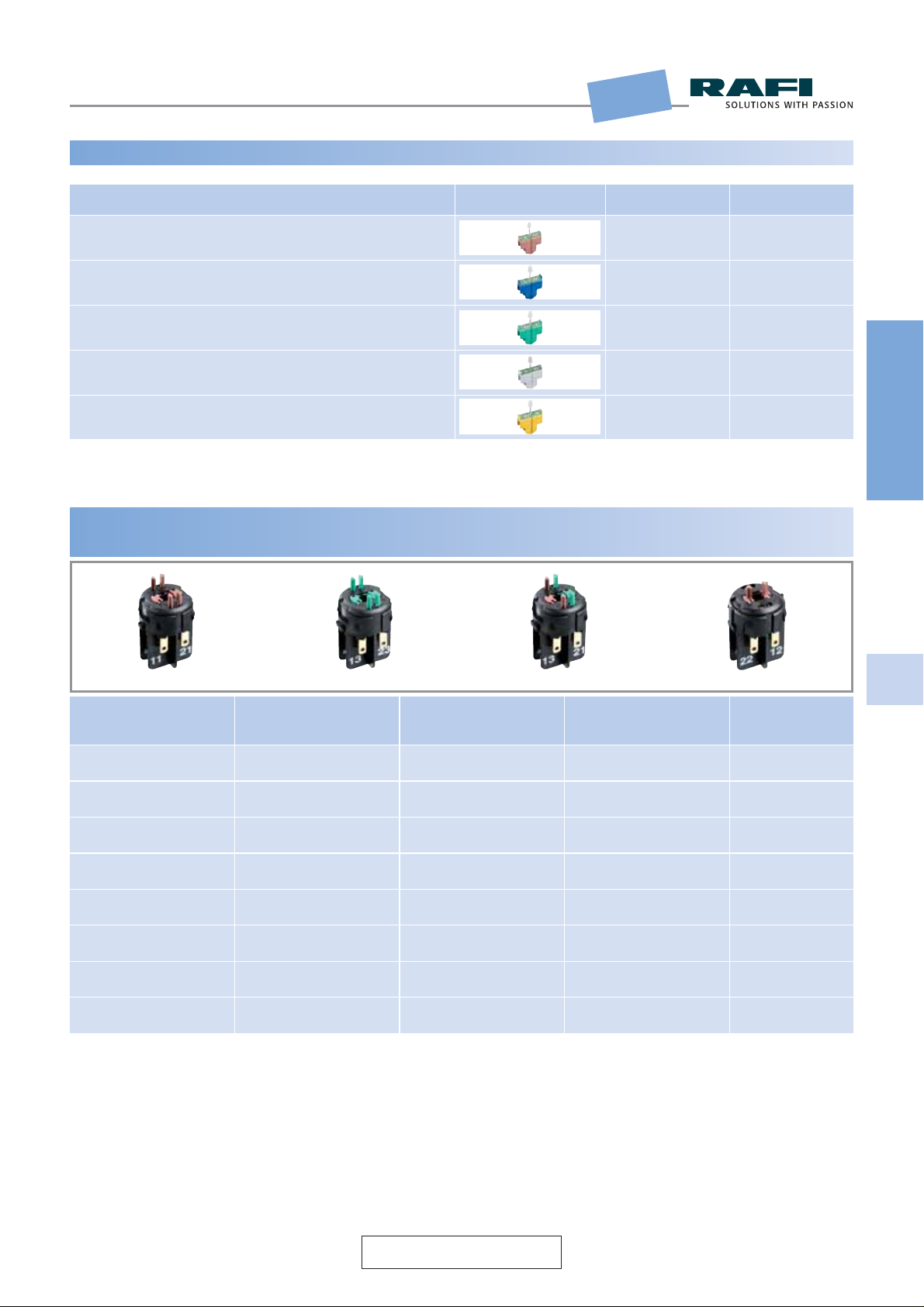

RAFIX 22 FS contact blocks with quick-connect terminals, silver contacts
Contact arrangement Colour of housing
Order no.
Type Colour of plunger
1 NC Universal redblack 1.20.126.301/0000
1 NO Universal greenblack 1.20.126.302/0000
1 NC + 1 NO Universal red and greenblack 1.20.126.303/0000
2 NC Universal redblack 1.20.126.304/0000
2 NO Universal greenblack 1.20.126.305/0000
1 NC Emercency stop redblack 1.20.126.701/0000
1 NC + 1 NO Emercency stop yellowblack 1.20.126.703/0000
2 NC Emercency stop redblack 1.20.126.704/0000
Caution: Emergency stop contact blocks can only be used with emergency stop pushbuttons. Universal contact blocks are not suitable
for emergency stop pushbuttons.
Pict.: Universal, Ag-contact, 2 NC Pict.: Universal, Ag-contact, 2 NO
Pict.: Universal, Ag-contact, 1 NC + 1 NO
Pict.: Emergency stop, Ag-contact, 2 NC
NEW
