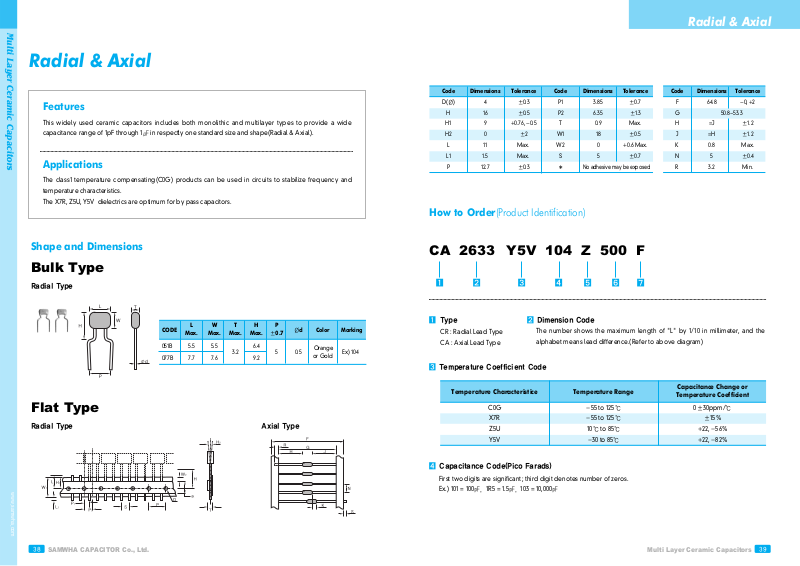

Multi Layer Ceramic Capacitors

Features

This widely used ceramic capacitors includes both monolithic and multilayer types to provide a wide

capacitance range of 1pF through 1㎌ in respectly one standard size and shape(Radial & Axial).

Applications

The class1 temperature compensating(C0G) products can be used in circuits to stabilize frequency and

temperature characteristics.

The X7R, Z5U, Y5V dielectrics are optimum for by pass capacitors.

Radial & Axial

CODE

LWTHP

Ød Color

Marking

Max. Max. Max. Max. ±0.7

051B 5.5 5.5

3.2

6.4
5 0.5

Orange

Ex) 104

077B 7.7 7.6 9.2

or Gold

Shape and Dimensions

Bulk Type

Radial Type

Flat Type

Radial Type Axial Type

Multi Layer Ceramic Capacitors

39

Radial & Axial

CA 2633 Y5V 104 Z 500 F

󳟵 󳟶 󳟷 󳟸 󳟹 󳟺 󳟻

How to Order(Product Identification)

󳟵 Type

CR : Radial Lead Type

CA : Axial Lead Type

󳟸 Capacitance Code(Pico Farads)

First two digits are significant ; third digit denotes number of zeros.

Ex.) 101 = 100㎊, 1R5 = 1.5㎊, 103 = 10,000㎊

󳟶 Dimension Code

The number shows the maximum length of "L" by 1/10 in millimeter, and the

alphabet means lead difference.(Refer to above diagram)

󳟷 Temperature Coefficient Code

Temperature Characteristice Temperature Range

Capacitance Change or

Temperature Coefficient

C0G -55 to 125℃ 0±30ppm/℃

X7R -55 to 125℃±15%

Z5U 10℃ to 85℃+22, -56%

Y5V -30 to 85℃+22, -82%

Code Dimensions Tolerance Code Dimensions Tolerance Code Dimensions Tolerance

D(Ø)4 ±0.3 P1 3.85 ±0.7 F 64.8 -0, +2

H16±0.5 P2 6.35 ±1.3 G 50.8~53.3

H1 9 +0.76, -0.5 T 0.9 Max. H =J ±1.2

H2 0 ±2W1 18±0.5 J =H ±1.2

L 11 Max. W2 0 +0.6 Max. K 0.8 Max.

L1 1.5 Max. S 5 ±0.7 N 5 ±0.4

P 12.7 ±0.3 󳢬 R 3.2 Min.

No adhesive may be exposed

www.samwha.com

Multi Layer Ceramic Capacitors

SAMWHA CAPACITOR Co., Ltd.

40

󳟺 Rated Voltage Code

Code 250 500 101

Volt DC 25V DC 50V DC 100V

󳟻 Packing Code

Code B R F

Packing Bulk Reel Pack Flat Pack

1. Operating Temperature C0G : -55 to +125℃

X7R : -55 to +125℃ Z5U : +10 to +85℃

Range

Y5V : -30 to 85℃

2. Insulation Resistance More than 10,000MΩ or 500Ω.F(whichever is smaller) Applied the rated voltage for

2 minute

3. Dielectric Strength No detects or abnormalities - C0G : The rated voltage×300%

- X7R, Z5U, Y5V : 〃×250%

4. Capacitance Within the specified tolerance Temperature Compensating Type

5. Dissipation Factor

6. Terminal Strength No evidence of damage to body of device of looseness
of terminals.

No.

Item

Characteristic

Temperature

Compensating Type

High Dielectric Constant Type

Test Methods

and Conditions

Reliability and Test Conditions

Char.

50V

Min.

25V 16V 10V

X7R≤2.5%≤3%≤3.5%≤5.0%

Z%V ≤4.0%

---

≤

5%

≤

9%

Y5V

(<220㎋)

≤

(<220㎋)

≤

12.5%

≤

7% 7%≤12.5%

(≥220㎋)(≥220㎋)

30㎊ Min. :
Q≥1,000(DF≤0.1%)

30㎊ Max. :
Q≥400+20C
(DF≤1/(400+20C))

Cap.

Testing Testing

Frequency Voltage

C0G

1±0.1M㎐

0.5 to

(C≤1000pF)

5V

rms

C0G

1±0.1

k㎐ 1±0.2V rms

(C >1000pF)

X7R, Z5U, Y5V
(C≤10㎌ 1±0.1k㎐ 1±0.2V rms
10V Min.)

A static load of 10N(1kgf) :
applied to one terminal in the
axial direction and acting in a
direction away from the body for
1 to 5 secs.

󳟹 Capacitance Tolerance Code

Code Tolerance Remark

J ± 5.0 % C0G

K ±10 % X7R, C0G

M ± 20 % Z5U, X7R

Z +80, -20% Z5U, Y5V

Multi Layer Ceramic Capacitors

41

Radial & Axial

7. Appearance No marked defect

Capacitance

Within ±2.5% or ±0.25pF

X7R : ≤±7.5%

Change (whichever is larger) Z5U, Y5V : ≤

±

20%

Dissipation
Factor(or Q)

I.R. More than 10,000

MΩ or 500Ω.F (whichever & smaller)

8.

Temperature

Appearance No marking defects

Cycle

Capacitance

Within

±

2.5% or ±0.25pF

X7R :

Within

+ 7.5%

Change Z5U, Y5V :

Within ±20%

Dissipation
Factor(or Q)

I.R. More than 10,000

MΩ or 500Ω.F (Whichever is smaller)

9. Humidity Appearance No marking defects
Load

Capacitance

Within ±7.5% or±0.75

㎊ X7R : Within ±12.5%

Change (whichever is larger) Z5U : Within ±30%

Y5V : Within + 30%, -40%
(Y5V/1.0μF, 2.2μF, 4.7μF/10V)
Within ±30% (others)

Dissipation
Factor(or Q)

I.R. More than 500

MΩ or 25Ω.F(whichever is smaller)

10. Appearance No marked defect

Capacitance Within

±

3% or±0.3㎊

X7R : Within ±12.5% , Z5U : Within ±30%

change (whichever is larger) Y5V : Within ±30%(Cap. < 1.0μF)

Within +30% , -40%(Cap. ≥ 1.0μF)

No.

Item

Characteristic

Temperature

Compensating Type

High Dielectric Constant Type

Test Methods

and Conditions

Char.

50V

Min.

25V 16V 10V

X7R

≤

2.5%≤3%≤3.5%≤5.0%

Z5U ≤4.0%

---

≤

5%

≤

9%

Y5V

(<220㎋)

≤

7%

(<220㎋)

≤

12.5%

≤

7%

≤

12.5%

(≥220㎋)(≥220㎋)

Char.

50V

Min.

25V 16V 10V

X7R ≤2.5%≤3%≤3.5%≤5.0%

Z5U ≤4.0%

---

≤

5%

≤

9%

Y5V

(<220㎋)

≤

7%

(<220㎋)

≤

12.5%

≤

7%

≤

12.5%

(≥220㎋)(≥220㎋)

Char.

50V

Min.

25V 16V 10V

X7R ≤5%≤5%≤5%≤5%

Z5U

≤

4.0%

---

≤

10%

Y5V≤7.5%

(<1㎌)

≤

12.5%≤15%

≤

12.5%

(≥1㎌)

30㎊ Min. :
Q≥1,000 (DF≤0.1%)

30㎊ Max. :
Q≥400+20C
(DF≤1/(400+20C))

30㎊ Min. :
Q≥1,000 (DF≤0.1%)

30㎊ Max. :
Q≥400+20C
(DF≤1/(400+20C))

30㎊ Min. :
Q≥200 (DF≤0.5%)

30㎊ Max. :
Q≥100+10/3C
(DF≤1/(100+10/3C))

- Soldering Temp : 260±5℃

- Immersion Time : 5±0.5sec

- Take it out and set it for 24±2
hours(temperature compensating
type)or 48±4hours(high dielectric
constant type) then measure.

Take it out and set it for 24±2 hours
[tempeature compensating or 48±4
hours(high dielectric Type) at room
temperature, than measure.

- Temperature : 40±2℃

- Humidity : 90~95%RH

- Hour : 500±12hrs

- Test Voltage : Tge rated voltage

- Take it out and set it for 24±2 hours
(temperature compensatig)

or 48±4
hours(high dielectric constant type)
at room temperature, then measure.
The charge/discharge current is less
than 50mA.

Step 1 2 3 4

Min. Max.

Temp. Operating Room Operating Room

(

℃

) Temp. Temp. Temp. Temp.

+0, -3 +3, -0

Time

30±3 2 to 3 30±32 to 3

(min)

Resistance
to
Soldering
Heat

High
Temperature
Load

- Testing Time : 1000±12hrs

- Applied Voltage : Rated Voltage×200%

- Temperature :
C0G, X7R → 125±3℃
Z5U, Y5V → 85±3℃

www.samwha.com

Multi Layer Ceramic Capacitors

SAMWHA CAPACITOR Co., Ltd.

42

10 Dissipation

Factor(or Q)

I.R. More than 1000

MΩ or 50ΩF(Whichever is smaller)

11

Capacitance

Capacitance

Temperature

Change

Characteristics

12 The regulation of

environmental
pollution materials

13 The regulation about

destructive materials
of the ozone layer

No.

Item

Characteristic

Temperature

Compensating Type

High Dielectric Constant Type

Test Methods

and Conditions

30㎊ Min. :
Q≥350 (DF≤0.3%)

10㎊≤Cp≤30㎊:
Q≥275+5/2C
(DF≤1/(275+5/2C))

10㎊ Max. :
Q≥200+10C
(DF≤1/(200+10C))

Take it out and set it for 24±2 hours
(temperature compensatig) or 48±4
hours(high dielectric constant type)
at room temperature, then measure.
The charge/discharge current is less
than 50mA.

(1) Temperature Compensating Type :

The temperature coefficient is
determined using the capacitance
measured in step 3 as a reference.
When cycling the temperature
sequentially from step 1 through 5.
(SL: +25 to 85℃) the capacitance shall
be with in the specified tolerance for
the temperature coefficient.
The capacitance drift is calculated
dividing the difference between the
maximum measured values in the
step 1, 3 and 5 by Cap, value in step 3.

Char.

Temp. Reference Cap.
Range Temp. Change

X7R

-55 to Within

+125

℃

±

15%

Z5U

-10 to

Within

+85

℃

+

22%

-

56%

Y5V

-30 to

Within

+85

℃

+

22%

-

82%

Step Temperature(℃)

125±2

2 -55±3

325±2

4 125±3(for C0G)

525±2

(2) High Dielectric Constant Type :

The ranges of capacitance
change compared with the 25℃
value over the temperature
range shown in the table shall
be in the specified range.

Temperature
Coefficient

Char.

Temp.

Temperature

Range Coefficient

C0G

-55 to

±30ppm/℃

+125℃

※Never use materials mentioned below in leaded MLCC products regulated this document.

Pb, Cd, Hg, Cr

+6

, PBB(polybromida biphenyl), PBDE(polybrominated diphenyl ethers), asbestos.

Never use the ODS(ozone depleting substance) materials below in leaded MLCC products
regulated this document.

High
Temperature
Load

Char.

50V

Min.

25V 16V 10V

X7R ≤5%≤5%≤5%≤5%

Z5U ≤4.0%

---

≤

10%

Y5V≤7.5%

(<1㎌)

≤

12.5%≤15%

≤

7%

(≥1㎌)

25

℃

Packing Quantity

Radial Type Axial Type

Inner Box Outer Box Remark Inner Box Outer Box Remark

2,500 15,000 Packing set on the basis of flat tapping 5,000 50,000 Packing set on the basis of flat tapping

Unit : pcs

Multi Layer Ceramic Capacitors

43

Radial & Axial

Type Radial Axial

Char. C0G X7R Z5U Y5V C0G X7R Z5U Y5V

Cap(pF) Volt 50 100 50 100 50 16 50 50 50 50 50

1
2
3
4
5
6
7
8
9

10
12
15
16

18
20
22
24
27
30
33
36
39
43
47

51
56
62
68
75
82

91

100
120
150

180
220
270
330
390
470
560
680
820

1.000

1.200

1.500

1.800

2.200

2.700

3.300

3.900

4.700

5.600

6.800

8.200

10.000

15.000

22.000

33.000

47.000

68.000

100.000

150.000

220.000

330.000

470.000

680.000

1.000.000

Capacitance Range
