Datasheet R76 series Specification

Download

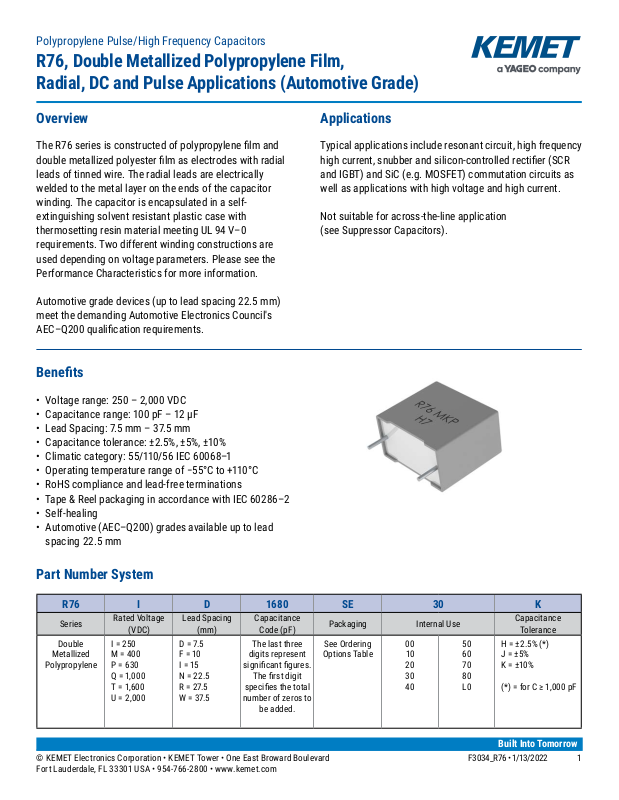

Page 1
Polypropylene Pulse/High Frequency Capacitors
Rated Voltage
(VDC)
Lead Spacing
(mm)
Capacitance
Code (pF)
Capacitance
Tolerance
signicantgures.
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Overview

TheR76seriesisconstructedofpolypropylenelmand doublemetallizedpolyesterlmaselectrodeswithradial
leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a self­extinguishing solvent resistant plastic case with thermosetting resin material meeting UL 94 V–0 requirements. Two different winding constructions are used depending on voltage parameters. Please see the Performance Characteristics for more information.
Automotive grade devices (up to lead spacing 22.5 mm) meet the demanding Automotive Electronics Council's
AEC–Q200qualicationrequirements.
Benets
• Voltage range: 250 – 2,000 VDC
• Capacitance range: 100 pF – 12 µF
• Lead Spacing: 7.5 mm – 37.5 mm
• Capacitance tolerance: ±2.5%, ±5%, ±10%
• Operatingtemperaturerangeof−55°Cto+110°C
• RoHS compliance and lead-free terminations
• Tape & Reel packaging in accordance with IEC 60286–2
• Self-healing
• Automotive (AEC–Q200) grades available up to lead spacing 22.5 mm

Applications

Typical applications include resonant circuit, high frequency
highcurrent,snubberandsilicon-controlledrectier(SCR
and IGBT) and SiC (e.g. MOSFET) commutation circuits as well as applications with high voltage and high current.
Not suitable for across-the-line application (see Suppressor Capacitors).

Part Number System

R76 I D 1680 SE 30 K
Series
Double
Metallized
Polypropylene
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
I = 250 M = 400 P = 630 Q = 1,000 T = 1,600 U = 2,000
D = 7.5 F = 10 I = 15 N = 22.5 R = 27.5 W = 37.5
The last three
digits represent
Therstdigit
speciesthetotal
number of zeros to
be added.
Packaging Internal Use
See Ordering
Options Table
00 10 20 30 40
50 60 70 80 L0
H = ±2.5% (*) J = ±5% K = ±10%
(*)=forC≥1,000pF
Built Into Tomorrow
1© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 2
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Bulk – Short Leads
4+2/−0SEAmmo Pack
H0 = 18.5±0.5
DQ
Tape & Reel (Standard Reel Ø 355 mm)
H0 = 18.5±0.5CKBulk – Short Leads
2.7+0.5/−0JABulk – Short Leads
3.5+0.5/−0JBBulk – Short Leads
4.0+0.5/−0JEBulk – Short Leads
3.2+0.3/−0.2JHBulk – Long Leads
18±1
JM
Bulk – Long Leads
17+1/−2
Z3
Bulk (Bag) – Short Leads
4+2/−0SEAmmo Pack
H0 = 18.5±0.5
DQ
Bulk (Tray) – Short Leads
4+2/−0
SE
Tape & Reel (Standard Reel Ø 355 mm)
H0 = 18.5±0.5
GY
Tape & Reel (Large Reel Ø 500 mm)
H0 = 18.5±0.5
CK1Bulk (Tray) – Short Leads
3.5+0.5/−0
JB
Bulk (Tray) – Short Leads
4.0+0.5/−0
JE
Bulk (Tray) – Short Leads
3.2+0.3/−0.2
JH
Bulk (Tray) – Long Leads
30+5/−0
40
Bulk (Tray) – Long Leads
25+2/−1
50
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Ordering Options Table

Lead Spacing
Nominal (mm)
7.5
10
15
22.5
Type of Leads and Packaging
Standard Lead and Packaging Options
Other Lead and Packaging Options
Standard Lead and Packaging Options
Other Lead and Packaging Options
Tape & Reel (Standard Reel Ø 355 mm) H0 = 18.5±0.5 GY
Tape & Reel (Large Reel Ø 500 mm) H0 = 18.5±0.5 CK
Bulk (Bag) – Short Leads 2.7+0.5/−0 JA
Bulk (Bag) – Short Leads 3.5+0.5/−0 JB
Bulk (Bag) – Short Leads 10±1 JC
Bulk (Bag) – Short Leads 4.0+0.5/−0 JE
Bulk (Bag) – Short Leads 3.2+0.3/−0.2 JH
Bulk (Bag) – Long Leads 18±1 JM
Bulk (Bag) – Long Leads 30+5/−0 40
Bulk (Bag) – Long Leads 25+2/−1 50
Lead Length
(mm)
Packaging Code
Lead and
Standard Lead and Packaging Options
Other Lead and Packaging Options
27.5
1
= Not for all sizes, see "Packaging Quantities" table.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
2© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 3
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Bulk (Tray) – Short Leads
4+2/−0
SE
Bulk (Tray) – Short Leads
3.5+0.5/−0
JB
Bulk (Tray) – Short Leads
4.0+0.5/−0
JE
Bulk (Tray) – Short Leads
3.2+0.3/−0.2
JH
Bulk (Tray) – Long Leads
30+5/−0
40
Bulk (Tray) – Long Leads
25+2/−1
50
7.5
±0.4
3.0
+0.1/−0.5
8.0
+0.1/−0.5
10.0
+0.2/−0.5
0.5
±0.05
7.5
±0.4
4.0
+0.1/−0.5
9.0
+0.1/−0.5
10.0
+0.2/−0.5
0.6
±0.05
7.5
±0.4
5.0
+0.1/−0.5
10.5
+0.1/−0.5
10.0
+0.2/−0.5
0.6
±0.05
7.5
±0.4
6.0
+0.1/−0.5
12.0
+0.1/−0.5
10.5
+0.2/−0.5
0.6
±0.05
10.0
±0.4
4.0
+0.2/−0.5
9.0
+0.1/−0.5
13.0
+0.2/−0.5
0.6
±0.05
10.0
±0.4
5.0
+0.2/−0.5
11.0
+0.1/−0.5
13.0
+0.2/−0.5
0.6
±0.05
10.0
±0.4
6.0
+0.2/−0.5
12.0
+0.1/−0.5
13.0
+0.2/−0.5
0.6
±0.05
15.0
±0.4
4.0
+0.2/−0.5
10.0
+0.1/−0.5
18.0
+0.3/−0.5
0.8
±0.05
15.0
±0.4
5.0
+0.2/−0.5
11.0
+0.1/−0.5
18.0
+0.3/−0.5
0.8
±0.05
15.0
±0.4
6.0
+0.2/−0.5
12.0
+0.1/−0.5
18.0
+0.3/−0.5
0.8
±0.05
15.0
±0.4
7.5
+0.2/−0.5
13.5
+0.1/−0.5
18.0
+0.5/−0.5
0.8
±0.05
15.0
±0.4
8.5
+0.2/−0.5
14.5
+0.1/−0.5
18.0
+0.5/−0.5
0.8
±0.05
15.0
±0.4
9.0
+0.2/−0.5
12.5
+0.1/−0.5
18.0
+0.5/−0.5
0.8
±0.05
15.0
±0.4
10.0
+0.2/−0.5
16.0
+0.1/−0.5
18.0
+0.5/−0.5
0.8
±0.05
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Ordering Options Table cont.
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Other Lead and Packaging Options
37.5

Dimensions – Millimeters

Loose Taped
L
T
H
Lead Length
(mm)
H
0
Lead and
Packaging Code
S
F
LL
P
2
P
2
P
2
S T H L F
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/Ho) options.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
3© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 4
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
15.0
±0.4
11.0
+0.2/−0.5
19.0
+0.1/−0.5
18.0
+0.5/−0.5
0.8
±0.05
15.0
±0.4
13.0
+0.2/−0.5
12.0
+0.1/−0.5
18.0
+0.5/−0.5
0.8
±0.05
22.5
±0.4
6.0
+0.2/−0.5
15.0
+0.1/−0.5
26.5
+0.3/−0.5
0.8
±0.05
22.5
±0.4
7.0
+0.2/−0.5
16.0
+0.1/−0.5
26.5
+0.3/−0.5
0.8
±0.05
22.5
±0.4
8.5
+0.2/−0.5
17.0
+0.1/−0.5
26.5
+0.3/−0.5
0.8
±0.05
22.5
±0.4
10.0
+0.2/−0.5
18.5
+0.1/−0.5
26.5
+0.3/−0.5
0.8
±0.05
22.5
±0.4
11.0
+0.2/−0.5
20.0
+0.1/−0.5
26.5
+0.3/−0.5
0.8
±0.05
22.5
±0.4
13.0
+0.2/−0.5
22.0
+0.1/−0.5
26.5
+0.3/−0.5
0.8
±0.05
27.5
±0.4
9.0
+0.2/−0.7
17.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
11.0
+0.2/−0.7
20.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
13.0
+0.2/−0.7
22.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
13.0
+0.2/−0.7
25.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
14.0
+0.2/−0.7
28.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
18.0
+0.2/−0.7
33.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
22.0
+0.2/−0.7
37.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
27.5
±0.4
24.0
+0.2/−0.7
15.0
+0.1/−0.7
32.0
+0.3/−0.7
0.8
±0.05
37.5
±0.4
11.0
+0.3/−0.7
22.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
13.0
+0.3/−0.7
24.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
16.0
+0.3/−0.7
28.5
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
19.0
+0.3/−0.7
32.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
20.0
+0.3/−0.7
40.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
24.0
+0.3/−0.7
44.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
24.0
+0.3/−0.7
15.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
24.0
+0.3/−0.7
19.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
37.5
±0.4
30.0
+0.3/−0.7
45.0
+0.1/−0.7
41.5
+0.3/−0.7
1.0
±0.05
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Dimensions – Millimeters cont.
Loose Taped
L
S
F
T
H
LL
H
0
P
2
P
2
P
2
S T H L F
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/Ho) options.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
4© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 5
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Maximum0.5%aftera2yearstorageperiodatatemperatureof+10°Cto+40°Candarelativehumidityof40%to
60%
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Performance Characteristics

Dielectric Polypropylenelm
Plates Doublesidedmetallizedpolyesterlm
Winding Non-inductive type
Leads Tinned wire
Protection Plasticcase,thermosettingresinlled.BoxmaterialissolventresistantandameretardantaccordingtoUL94.
Related Documents IEC 6 0384 –16
Sections 1 2
Rated Voltage V
Capacitance Range (µF)
250 VDC
R
180 VAC
0.0068– 12 0.0027 – 8.2 0.00068 – 0.012 0.0039 – 3.9 0.00022 – 0.0033 0.00047 – 2.2 0.0022 – 1.2 0.0001 – 0.56
400 VDC 250 VAC
630 VDC 250 VAC
Capacitance Values E12series(IEC60063)measuredat1kHzand+20±1°C
Capacitance Tolerance ±2.5%, ±5%, ±10%
Operating Temperature
Range
−55°Cto+110°C
Rated Temperature TR+85°CforVR (DC and AC)
Voltage Derating
The following decreasing factor has to be applied on the rated voltage:
+85°Cto+110°C:1.25%per°CforVR (DC and AC)
Climatic Category 55/110/56 IEC 60068–1
Storagetime:≤24monthsfromthedatemarkedonthelabelpackage
Averagerelativehumidityperyear≤70%
Storage Conditions
RH≤85%for30daysrandomlydistributedthroughouttheyear
Dew is absent
Temperature:−40to80°C(see"MaximumHumidityinStorageConditions"graphbelow)
Test Voltage 1.6 x VRVDCfor2seconds(betweenterminations)at+25°C±5°C
Capacitance Drift
630 VDC 400 VAC
1,000 VDC
400 VAC
1,000 VDC
600 VAC
1,600 VDC
650 VAC
2,000 VDC
700 VAC
Maximum Pulse
Steepness
dV/dt according to Table 1. For working voltages lower than rated voltage (V < VR),thespecieddV/dt can be multiplied by the factor VR/V.
Operationallife>200,000hoursat85°C
Reliability
(Reference IEC 61709)
Failurerate≤1FIT,T=+40°C,V=0.5xV
R
Failure criteria: open or short circuit, cap. change > 10%, DF 2 times the catalog limits, IR < 0.005 x initial limit
TemperatureCoecient −(200±100)ppm/°Cat1kHz
Lead Spacing (mm) 7.5 10 15 22.5 27.5 37.5
Self-Inductance
(Lead Length ~ 2 mm)
L(nH)≈ 8 9 10 16 18 20
Max 1 nH per 1 mm lead and capacitor length
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
5© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 6
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
≥100,000MΩ
(≥500,000MΩ)*
≥30,000MΩ•µF
(≥150,000MΩ•µF)*
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Performance Characteristics cont.
Measuredat25°C±5°C
Frequency C≤0.1µF 0.1µF<C≤1.0µF C > 1µF
DissipationFactortanδ
Insulation Resistance
* Typical value
100
90
80
70
60
50
40
30
Relative Humidity (%)
20
10
0
−
40
1 kHz ≤0.03% ≤0.03% ≤0.04%
10 kHz ≤0.04% ≤0.06% –
100 kHz ≤0.10% – –
C≤0.33μF C>0.33μF
Maximum Humidity in Storage Condition
30 Days Annual Average
−
20 0 20 40 60 80
Temperature (°C)
Measuredat+25°C,100VDC60seconds
Minimum Values Between Terminals
Maximum Overtemperature ∆T
1015202530354045505560657075808590
(°C)
∆T
45
40
35
30
25
lim
20
15
10
5
0
0
5
Temperature Th(°C)
vs Th
lim
95
100
120
115
110
105
160%
140%
120%
100%
rms
80%
60%
Maximum I
40%
20%
0%
60 70 80 90 100 110 120
Maximum I
Temperature Th(°C)
rms
vs. T
h
Th is the maximum ambient temperature surrounding the capacitor or hottest contact point (e.g. tracks), whichever is higher, in the worst operation conditions in °C.
Qualication
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regardingtestmethodsandconditionsarereferencedindocumentAEC–Q200,StressTestQualicationforPassive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
6© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 7
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
1
10
100
1,000
0 1 10 100 1,000
Voltage (V
rms
)
Frequency (kHz)
250 Vdc / 180 Vac
0.015 µF p = 7.5
0.033 µF p = 10
0.1 µF p = 15
0.47 µF p = 22.5
2.2 µF p = 27.5
5.6 µF p = 37.5
1
10
100
1,000
0 1 10 100 1,000
Voltage (V
rms
)
Frequency (kHz)
400 Vdc / 250 Vac
0.015 µF p = 7.5
0.047 µF p = 10
0.1 µF p = 15
0.22 µF p = 22.5 1 µF p = 27.5
5.6 µF p = 37.5
1
10
100
1,000
0.1 1 10 100 1000
Voltage (V
rms
)
Frequency (kHz)
630 VDC/400 VAC
2200 pF p=7.5
0.033 µF p=15
0.1 µF p=22.5
0.22 µF p=27.5
0.47 µF p=37.5
2.2 µF p=37.5
1
10
100
1,000
0.1 1 10 100 1000
Voltage (V
rms
)
Frequency (kHz)
1,000 VDC/600 VAC
1000 pF p=7.5
0.015 µF p=15
0.047 µF p=22.5
0.22 µF p=27.5
0.47 µF p=27.5
1.5 µF p=37.5
1
10
100
1,000
0.1 1 10 100 1000
Voltage (V
rms
)
Frequency (kHz)
1,600 VDC/650 VAC
3300 pF p=15
0.01 µF p=15
0.047 µF p=22.5
0.22 µF p=27.5
0.33 µF p=27.5
1.5 µF p=37.5
1
10
100
1,000
0.1 1 10 100 1000
Voltage (V
rms
)
Frequency (kHz)
2,000 VDC/700 VAC
1000 pF p=15
0.01 µF p=15
0.022 µF p=22.5
0.047 µF p=27.5
0.1 µF p=27.5
0.47 µF p=37.5
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Maximum Voltage (V
) Versus Frequency (Sinusoidal Waveform/Th ≤ 85°C)
rms
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
7© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 8
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
0.01
0.1
1
10
100
0 1 10 100 1,000
Current (A
rms
)
Frequency (kHz)
250 Vdc / 180 Vac
0.015 µF p = 7.5
0.033 µF p = 10
0.1 µF p = 15
0.47 µF p = 22.5
2.2 µF p = 27.5
5.6 µF p = 37.5
0.01
0.1
1
10
100
0 1 10 100 1,000
Current (A
rms
)
Frequency (kHz)
400 Vdc / 250 Vac
0.015 µF p = 7.5
0.047 µF p = 10
0.1 µF p = 15
0.22 µF p = 22.5 1 µF p = 27.5
5.6 µF p = 37.5
0.01
0.1
1
10
100
0.1 1 10 100 1000
Current (A
rms
)
Frequency (kHz)
630 VDC/400 VAC
2200 pF p=7.5
0.033 µF p=15
0.1 µF p=22.5
0.22 µF p=27.5
0.47 µF p=37.5
2.2 µF p=37.5
0.01
0.1
1
10
100
0.1 1 10 100 1000
Current (A
rms
)
Frequency (kHz)
1,000 VDC/600 VAC
1000 pF p=7.5
0.015 µF p=15
0.047 µF p=22.5
0.22 µF p=27.5
0.47 µF p=27.5
1.5 µF p=37.5
0.01
0.1
1
10
100
0.1 1 10 100 1000
Current (A
rms
)
Frequency (kHz)
1,600 VDC/650 VAC
3300 pF p=15
0.01 µF p=15
0.047 µF p=22.5
0.22 µF p=27.5
0.33 µF p=27.5
1.5 µF p=37.5
0.01
0.1
1
10
100
0.1 1 10 100 1000
Current (A
rms
)
Frequency (kHz)
2,000 VDC/700 VAC
1000 pF p=15
0.01 µF p=15
0.022 µF p=22.5
0.047 µF p=27.5
0.1 µF p=27.5
0.47 µF p=37.5
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Maximum Current (I
) Versus Frequency (Sinusoidal Waveform/Th ≤ 85°C)
rms
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
8© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 9
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Damp Heat, Steady
State Test
|ΔC/C|≤2%,
IRaftertest≥50%ofinitiallimit
Resistance to Soldering
Heat Test
|ΔC/C|≤1%,
IRaftertest≥initiallimit
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Environmental Test Data

Test Conditions: Performances
Temperature:
Relative humidity (RH):
Test duration:
+40°C±2°C 93% ±2% 56 days
|ΔC/C|≤2%, Δtanδ≤0.001at1kHz IRaftertest≥50%ofinitiallimit
Endurance Test Test Conditions Performances
Temperature:
Voltage applied:
Test duration:
+85°C±2°C
1.25 x VR (DC) 2,000 hours
Δtanδ≤0.001at10kHzforC≤1µF Δtanδ≤0.001at1kHzforC>1µF
Test Conditions Performances
Solder bath temperature:
Dipping time (with heat
screen):
260°C±5°C 10 seconds ±1 second
Δtanδ≤0.001at10kHzforC≤1µF Δtanδ≤0.001at1kHzforC>1µF

Environmental Compliance

All KEMET pulse capacitors are RoHS compliant.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
9© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 10
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Table 1 – Ratings & Part Number Reference

ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
250 180 0.0068 3.0 8.0 10.0 7. 5 1,100 550,000 7 8 94 0.8 98 76ID1680(1)30(2) R76ID1680(1)30(2) 250 180 0.0082 3.0 8.0 10.0 7. 5 1,100 550,000 9 8 78 0.9 98 76ID1820(1)30(2) R76ID1820(1)30(2) 250 180 0.01 3.0 8.0 10.0 7. 5 1,100 550,000 11 8 64 1.1 98 76ID2100(1)30(2) R76ID2100(1)30(2) 250 180 0.012 4.0 9.0 10.0 7. 5 1,100 550,000 13 8 53 1.4 88 76ID2120(1)40(2) R76ID2120(1)40(2) 250 180 0.015 4.0 9.0 10.0 7.5 1,100 550,000 17 8 42 1.7 88 76ID2150(1)40(2) R76ID2150(1)40(2) 250 180 0.018 4.0 9.0 10.0 7. 5 1,100 550,000 20 8 35 2.0 88 76ID2180(1)40(2) R76ID2180(1)40(2) 250 180 0.022 4.0 9.0 10.0 7. 5 1,100 550,000 24 8 29 2.5 88 76ID2220(1)40(2) R76ID2220(1)40(2) 250 180 0.027 5.0 10.5 10.0 7.5 1,100 550,000 30 8 24 3 .1 78 76ID2270(1)40(2) R76ID2270(1)40(2) 250 180 0.033 5.0 10.5 10.0 7.5 1,100 550,000 36 8 19 3.6 78 76ID2330(1)40(2) R76ID2330(1)40(2) 250 180 0.039 6.0 12.0 10.5 7.5 1,100 550,000 43 8 16 4.2 69 76ID2390(1)30(2) R76ID2390(1)30(2) 250 180 0.047 6.0 12.0 10.5 7.5 1,100 550,000 52 8 14 4.6 69 76ID2470(1)30(2) R76ID2470(1)30(2) 250 180 0.027 4.0 9.0 13.0 10.0 1,000 500,000 27 9 24 3.1 79 76IF2270(1)30(2) R76IF2270(1)30(2) 250 180 0.033 4.0 9.0 13.0 10.0 1,000 500,000 33 9 19 3.6 79 76IF2330(1)30(2) R76IF2330(1)30(2) 250 180 0.039 4.0 9.0 13.0 10.0 1,000 500,000 39 9 16 3.9 79 76IF2390(1)30(2) R76IF2390(1)30(2) 250 180 0.047 5.0 11.0 13.0 10.0 1,000 500,000 47 9 14 4.6 69 76IF2470(1)30(2) R76IF2470(1)30(2) 250 180 0.056 5.0 11.0 13.0 10.0 1,000 500,000 56 9 20 3.8 69 76IF2560(1)30(2) R76IF2560(1)30(2) 250 180 0.068 6.0 12.0 13.0 10.0 1,000 500,000 68 9 16 4.4 64 76IF2680(1)30(2) R76IF2680(1)30(2) 250 180 0.082 6.0 12 .0 13.0 10.0 1,000 500,000 82 9 14 4.8 64 76IF2820(1)30(2) R76IF2820(1)30(2) 250 180 0.068 5.0 11.0 18.0 15.0 550 275,000 37 10 16 4.5 60 76II2680(1)30(2) R76II2680(1)30(2) 250 180 0.082 5.0 11.0 18.0 15.0 550 275,000 45 10 14 4.9 60 76II2820(1)30(2) R76II2820(1)30(2) 250 180 0.1 5.0 11. 0 18.0 15. 0 550 275,000 55 10 11 5.5 60 76II3100(1)30(2) R76II3100(1)30(2) 250 180 250 180 0.15 6.0 12.0 18.0 15.0 550 275,000 83 10 11 5.8 56 76II3150(1)30(2) R76II3150(1)30(2) 250 180 0.18 7.5 13.5 18 .0 15.0 550 275,000 99 10 9 6.7 51 76II3180(1)30(2) R76II3180(1)30(2) 250 180 0.18 9.0 12.5 18.0 15.0 550 275,000 99 10 9 6.8 50 76II3180(1)70(2) R76II3180(1)70(2) 250 180 0.22 7.5 13.5 18.0 15. 0 550 275,000 121 10 7 7. 4 51 76II3220(1)30(2) R76II3220(1)30(2) 250 180 0.22 9.0 12.5 18.0 15.0 550 275,000 121 10 7 7. 5 50 76II3220(1)70(2) R76II3220(1)70(2) 250 180 0.27 8.5 14.5 18.0 15.0 550 275,000 149 10 6 8.4 48 76II3270(1)30(2) R76II3270(1)30(2) 250 180 0.27 9.0 12.5 18.0 15.0 550 275,000 149 10 6 8.3 50 76II3270(1)70(2) R76II3270(1)70(2) 250 180 0.33 10.0 16.0 18.0 15.0 550 275,000 182 10 5 9.7 44 76II3330(1)30(2) R76II3330(1)30(2) 250 180 0.33 13.0 12.0 18 .0 15.0 550 275,000 182 10 5 9.6 45 76II3330(1)70(2) R76II3330(1)70(2) 250 180 0.39 10.0 16.0 18.0 15.0 550 275,000 215 10 4 10.5 44 76II3390(1)30(2) R76II3390(1)30(2) 250 180 0.47 11.0 19.0 18.0 15.0 550 275,000 259 10 3 12.1 40 76II3470(1)30(2) R76II3470(1)30(2) 250 180 0.22 6.0 15.0 26.5 22.5 300 150,000 66 16 11 6.5 43 76IN3220(1)00(2) R76IN3220(1)00(2) 250 180 0.27 6.0 15.0 26.5 22.5 300 150,000 81 16 9 7.2 43 76IN3270(1)30(2) R76IN3270(1)30(2) 250 180 0.33 6.0 15.0 26.5 22.5 300 150,000 99 16 7 8.0 43 76IN3330(1)30(2) R76IN3330(1)30(2) 250 180 0.39 7.0 16.0 26.5 22.5 300 150,000 117 16 8 7.7 41 76IN3390(1)30(2) R76IN3390(1)30(2) 250 180 0.47 7.0 16.0 26.5 22.5 300 150,000 141 16 7 8.5 41 76IN3470(1)30(2) R76IN3470(1)30(2) 250 180 0.56 8.5 17. 0 26.5 22.5 300 150,000 168 16 6 9.6 38 76IN3560(1)30(2) R76IN3560(1)30(2) 250 180 0.68 10.0 18.5 26.5 22.5 300 150,000 204 16 4.7 10.9 36 76IN3680(1)30(2) R76IN3680(1)30(2) 250 180 0.82 10.0 18.5 26.5 22.5 300 150,000 246 16 3.9 12.0 36 76IN3820(1)30(2) R76IN3820(1)30(2) 250 180 1 11.0 20.0 26.5 22.5 300 150,000 300 16 5.6 10.3 34 76IN4100(1)30(2) R76IN4100(1)30(2) 250 180 1.2 13.0 22.0 26.5 22.5 300 150,000 360 16 4.6 11.7 31 76IN4120(1)30(2) R76IN4120(1)30(2) 250 180 0.82 9.0 17. 0 32.0 27. 5 200 100,000 164 18 6 9.9 35 76IR3820(1)30(2) R76IR3820(1)30(2) 250 180 1 11.0 20.0 32.0 27.5 200 100,000 200 18 6 10.7 31 76IR4100(1)30(2) R76IR4100(1)30(2) 250 180 1 24.0 15.0 32.0 2 7.5 200 100,000 200 18 6 11.5 27 76IR4100(1)L0(2) R76IR4100(1)L0(2) 250 180 250 180 1.2 24.0 15.0 32.0 27.5 200 100,000 240 18 5 11.8 27 76IR4120(1)L0(2) R76IR4120(1)L0(2) 250 180 1.5 13.0 22.0 32.0 27.5 200 100,000 300 18 4.2 12.7 29 76IR4150(1)30(2) R76IR4150(1)30(2) 250 180 1.5 24.0 15.0 32.0 27.5 200 100,000 300 18 4 13.2 27 76IR4150(1)L0(2) R76IR4150(1)L0(2)
VDC VAC
0.12 6.0 12 .0 18.0 15.0 550 275,000 66 10 13 5.2 56 76II3120(1)30(2) R76II3120(1)30(2)
1.2 11.0 2
Cap
Value
0.0 32.0 27.5 200 100,000 240 18 5.3 11.0 31 76IR4120(1)40(2) R76IR4120(1)40(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
10© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 11
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
250 180 1.8 13.0 25.0 32.0 27.5 200 100,000 360 18 3.5 11.7 28 76IR4180(1)20(2) R76IR4180(1)20(2) 250 180 1.8 24.0 15.0 32.0 27.5 200 100,000 360 18 4 11.8 27 76IR4180(1)L0(2) R76IR4180(1)L0(2) 250 180 2.2 14.0 28.0 32.0 2 7.5 200 100,000 440 18 2 .9 13.3 26 76IR4220(1)40(2) R76IR4220(1)40(2) 250 180 2.7 18.0 33.0 32.0 2 7.5 200 100,000 540 18 2.4 11.1 23 76IR4270(1)30(2) R76IR4270(1)30(2) 250 180 3.3 18.0 33.0 32.0 27. 5 200 100,000 660 18 1.9 12 .3 23 76IR4330(1)30(2) R76IR4330(1)30(2) 250 180 3.9 18.0 33.0 32.0 2 7.5 200 100,000 780 18 1.6 13.3 23 76IR4390(1)30(2) R76IR4390(1)30(2) 250 180 4.7 22.0 37.0 32.0 27.5 200 100,000 940 18 1.4 15 .4 21 76IR4470(1)30(2) R76IR4470(1)30(2) 250 180 5.6 22.0 37. 0 32.0 27.5 200 100,000 1,120 18 1.1 16.8 21 76IR4560(1)40(2) R76IR4560(1)40(2) 250 180 1.2 11. 0 22.0 41.5 37. 5 100 50,000 120 20 5.3 11.8 27 76IW4120(1)30(2) R76IW4120(1)30(2) 250 180 1.5 11. 0 22.0 41.5 37. 5 100 50,000 150 20 4.2 13.2 27 76IW4150(1)30(2) R76IW4150(1)30(2) 250 180 1.5 24.0 15.0 41.5 3 7.5 100 50,000 150 20 4.2 13.9 24 76IW4150(1)L0(2) R76IW4150(1)L0(2) 250 180 1.8 11. 0 22.0 41.5 37. 5 100 50,000 180 20 3.5 11.8 27 76IW4180(1)30(2) R76IW4180(1)30(2) 250 180 1.8 24.0 15.0 41.5 3 7.5 100 50,000 180 20 3.5 12.4 24 76IW4180(1)L0(2) R76IW4180(1)L0(2) 250 180 2.2 13.0 24.0 41.5 3 7.5 10 0 50,000 220 20 2.9 13.5 25 76IW4220(1)30(2) R76IW4220(1)30(2) 250 180 2.2 24.0 15.0 41.5 37.5 100 50,000 220 20 2.9 13.7 24 76IW4220(1)L0(2) R76IW4220(1)L0(2) 250 180 2.7 16.0 28.5 41.5 3 7.5 100 50,000 270 20 2.4 11.2 23 76IW4270(1)20(2) R76IW4270(1)20(2) 250 180 2.7 24.0 19.0 41.5 37. 5 100 50,000 270 20 2.4 11.1 23 76IW4270(1)L0(2) R76IW4270(1)L0(2) 250 180 3.3 16.0 28.5 41.5 37. 5 100 50,000 330 20 1.9 12 .4 23 76IW4330(1)30(2) R76IW4330(1)30(2) 250 180 3.3 24.0 19.0 41.5 3 7.5 100 50,000 330 20 1.9 12 .3 23 76IW4330(1)L0(2) R76IW4330(1)L0(2) 250 180 3.9 16.0 28.5 41.5 3 7.5 100 50,000 390 20 1.6 13.5 23 76IW4390(1)30(2) R76IW4390(1)30(2) 250 180 4.7 19.0 32.0 41.5 3 7.5 100 50,000 470 20 1.4 15.4 21 76IW4470(1)30(2) R76IW4470(1)30(2) 250 180 250 180 6.8 20.0 40.0 41.5 37.5 100 50,000 680 20 0.9 19.5 19 76IW4680(1)30(2) R76IW4680(1)30(2) 250 180 8.2 24.0 44.0 41.5 3 7.5 100 50,000 820 20 0.8 22.3 17 76IW4820(1)20(2) R76IW4820(1)20(2) 250 180 10 24.0 44.0 41.5 3 7.5 100 50,000 1,000 20 0.6 24.7 17 76IW5100(1)30(2) R76IW5100(1)30(2) 250 180 12 30.0 45.0 41.5 37. 5 10 0 50,000 1,200 20 0.5 28.0 16 76IW5120(1)30(2) R76IW5120(1)30(2) 400 250 0.0027 3.0 8.0 10.0 7.5 1,700 1,360,000 5 8 236 0.4 98 76MD1270(1)30(2) R76MD1270(1)30(2) 400 250 0.0033 3.0 8.0 10.0 7.5 1,700 1,360,000 6 8 19 3 0.5 98 76MD1330(1)30(2) R76MD1330(1)30(2) 400 250 0.0039 3.0 8.0 10.0 7.5 1,700 1,360,000 7 8 16 3 0.6 98 76MD1390(1)30(2) R76MD1390(1)30(2) 400 250 0.0047 3.0 8.0 10.0 7.5 1,700 1,360,000 8 8 135 0.7 98 76MD1470(1)30(2) R76MD1470(1)30(2) 400 250 0.0056 3.0 8.0 10.0 7.5 1,700 1,360,000 10 8 114 0.9 98 76MD1560(1)30(2) R76MD1560(1)30(2) 400 250 0.0068 4.0 9.0 10.0 7.5 1,700 1,360,000 12 8 94 1.1 88 76MD1680(1)40(2) R76MD1680(1)40(2) 400 250 0.0082 4.0 9.0 10.0 7.5 1,700 1,360,000 14 8 78 1.3 88 76MD1820(1)40(2) R76MD1820(1)40(2) 400 250 0.01 4.0 9.0 10.0 7.5 1,70 0 1,360,000 17 8 64 1.6 88 76MD2100(1)40(2) R76MD2100(1)40(2) 400 250 0.012 4.0 9.0 10.0 7.5 1,700 1,360,000 20 8 53 1.9 88 76MD2120(1)40(2) R76MD2120(1)40(2) 400 250 0.015 5.0 10.5 10.0 7.5 1,700 1,360,000 26 8 42 2.4 78 76MD2150(1)40(2) R76MD2150(1)40(2) 400 250 0.018 5.0 10.5 10.0 7.5 1,70 0 1,360,000 31 8 35 2.7 78 76MD2180(1)40(2) R76MD2180(1)40(2) 400 250 0.022 6.0 12.0 10.5 7.5 1,700 1,360,000 37 8 29 3.2 69 76MD2220(1)30(2) R76MD2220(1)30(2) 400 250 0.027 6.0 12.0 10.5 7.5 1,700 1,360,000 46 8 24 3.5 69 76MD2270(1)30(2) R76MD2270(1)30(2) 400 250 0.01 4.0 9.0 13.0 10.0 1,500 1,200,000 15 9 64 1.6 79 76MF2100(1)00(2) R76MF2100(1)00(2) 400 250 0.012 4.0 9.0 13.0 10.0 1,5 00 1,200,000 18 9 53 1.9 79 76MF2120(1)00(2) R76MF2120(1)00(2) 400 250 0.015 4.0 9.0 13.0 10.0 1,500 1,200,000 23 9 42 2.4 79 76MF2150(1)30(2) R76MF2150(1)30(2) 400 250 0.018 4.0 9.0 13.0 10.0 1,5 00 1,200,000 27 9 35 2.7 79 76MF2180(1)30(2) R76MF2180(1)30(2) 400 250 0.022 4.0 9.0 13.0 10.0 1,500 1,200,000 33 9 29 3.0 79 76MF2220(1)30(2) R76MF2220(1)30(2) 400 250 0.027 5.0 11.0 13.0 10.0 1,500 1,200,000 41 9 24 3.5 69 76MF2270(1)30(2) R76MF2270(1)30(2) 400 250 0.027 4.0 9.0 13.0 10.0 1,500 1,200,000 41 9 24 3.3 79 76MF2270(1)50(2) R76MF2270(1)50(2) 400 250 400 250 0.039 5.0 11.0 13.0 10.0 1,500 1,200,000 59 9 16 4.2 69 76MF2390(1)50(2) R76MF2390(1)50(2) 400 250 0.039 6.0 12.0 13.0 10.0 1,500 1,200,000 59 9 16 4.4 64 76MF2390(1)30(2) R76MF2390(1)30(2)
VDC VAC
5.6 20.0 40.0 41.5 37.5 10 0 50,000 560 20 1.1 17.7 19 76IW4560(1)20(2) R76IW4560(1)20(2)
0.033 5.0 1
Cap
Value
1.0 13.0 10.0 1,5 00 1,200,000 50 9 19 3.9 69 76MF2330(1)30(2) R76MF2330(1)30(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
11© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 12
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
400 250 0.047 5.0 11.0 13.0 10.0 1,500 1,200,000 71 9 14 4.6 69 76MF2470(1)50(2) R76MF2470(1)50(2) 400 250 0.047 6.0 12.0 13.0 10.0 1,500 1,200,000 71 9 14 4.8 64 76MF2470(1)30(2) R76MF2470(1)30(2)
400 250 0.056 6.0 12.0 13.0 10.0 1,500 1,200,000 84 9 20 4.0 64 76MF2560(1)50(2) R76MF2560(1)50(2) 400 250 0.068 6.0 12.0 13.0 10.0 1,500 1,200,000 102 9 16 4.4 64 76MF2680(1)50(2) R76MF2680(1)50(2) 400 250 0.033 5.0 11.0 18.0 15.0 900 720,000 30 10 19 4 .1 60 76MI2330(1)00(2) R76MI2330(1)00(2) 400 250 0.039 5.0 11.0 18.0 15.0 900 720,000 35 10 16 4.5 60 76MI2390(1)30(2) R76MI2390(1)30(2) 400 250 0.047 5.0 11.0 18.0 15.0 900 720,000 42 10 14 5.0 60 76MI2470(1)30(2) R76MI2470(1)30(2) 400 250 0.056 5.0 11.0 18.0 15.0 900 720,000 50 10 20 4.1 60 76MI2560(1)30(2) R76MI2560(1)30(2) 400 250 0.068 6.0 12.0 18 .0 15.0 900 720,000 61 10 16 4.7 56 76MI2680(1)30(2) R76MI2680(1)30(2) 400 250 0.068 5.0 11.0 18.0 15.0 900 720,000 61 10 16 4.5 60 76MI2680(1)50(2) R76MI2680(1)50(2) 400 250 0.082 6.0 12.0 18.0 15.0 900 720,000 74 10 14 5.1 56 76MI2820(1)30(2) R76MI2820(1)30(2) 400 250 0.1 6.0 12.0 18.0 15.0 900 720,000 90 10 11 5.7 56 76MI3100(1)50(2) R76MI3100(1)50(2) 400 250 0.1 7.5 13.5 18.0 15.0 900 720,000 90 10 11 6.0 51 76MI3100(1)30(2) R76MI3100(1)30(2) 400 250 0.1 9.0 12.5 18.0 15.0 900 720,000 90 10 11 6.0 50 76MI3100(1)70(2) R76MI3100(1)70(2) 400 250 0.12 7.5 13.5 18.0 15 .0 900 720,000 108 10 13 5.5 51 76MI3120(1)30(2) R76MI3120(1)30(2) 400 250 0.12 9.0 12 .5 18.0 15.0 900 720,000 108 10 13 5.5 50 76MI3120(1)70(2) R76MI3120(1)70(2) 400 250 0.15 7.5 13.5 18.0 15 .0 900 720,000 135 10 11 6 .1 51 76MI3150(1)50(2) R76MI3150(1)50(2) 400 250 0.15 8.5 14.5 18.0 15.0 900 720,000 135 10 11 6.3 48 76MI3150(1)30(2) R76MI3150(1)30(2) 400 250 0.15 13.0 12.0 18.0 15.0 900 720,000 135 10 11 6.5 45 76MI3150(1)70(2) R76MI3150(1)70(2) 400 250 0.18 8.5 14.5 18.0 15.0 900 720,000 162 10 9 6.9 48 76MI3180(1)50(2) R76MI3180(1)50(2) 400 250 0.18 10.0 16.0 18.0 15.0 900 720,000 162 10 9 7.2 44 76MI3180(1)30(2) R76MI3180(1)30(2) 400 250 400 250 0.22 10.0 16.0 18.0 15 .0 900 720,000 198 10 7 7.9 44 76MI3220(1)30(2) R76MI3220(1)30(2) 400 250 0.27 10.0 16.0 18.0 15 .0 900 720,000 243 10 6 8.8 44 76MI3270(1)50(2) R76MI3270(1)50(2) 400 250 0.27 11.0 19.0 18.0 15.0 900 720,000 243 10 6 9.2 40 76MI3270(1)30(2) R76MI3270(1)30(2) 400 250 0.33 11.0 19.0 18.0 15.0 900 720,000 297 10 5 10.2 40 76MI3330(1)50(2) R76MI3330(1)50(2) 400 250 0.39 11.0 19.0 18.0 15.0 900 720,000 351 10 4 11.0 40 76MI3390(1)50(2) R76MI3390(1)50(2) 400 250 0.12 6.0 15.0 26.5 22.5 500 400,000 60 16 20 4.8 43 76MN3120(1)30(2) R76MN3120(1)30(2) 400 250 0.15 6.0 15.0 26.5 22.5 500 400,000 75 16 16 5.4 43 76MN3150(1)30(2) R76MN3150(1)30(2) 400 250 0.18 6.0 15.0 26.5 22.5 500 400,000 90 16 13 5.9 43 76MN3180(1)30(2) R76MN3180(1)30(2) 400 250 0.22 7.0 16.0 26.5 22.5 500 400,000 110 16 11 6.7 41 76MN3220(1)30(2) R76MN3220(1)30(2) 400 250 0.22 6.0 15 .0 26.5 22.5 500 400,000 110 16 11 6.5 43 76MN3220(1)50(2) R76MN3220(1)50(2) 400 250 0.27 8.5 17.0 26.5 22.5 500 400,000 135 16 9 7.7 38 76MN3270(1)30(2) R76MN3270(1)30(2) 400 250 0.27 7.0 16.0 26.5 22.5 500 400,000 135 16 9 7.4 41 76MN3270(1)50(2) R76MN3270(1)50(2) 400 250 0.33 8.5 17.0 26.5 22.5 500 400,000 165 16 7 8.5 38 76MN3330(1)30(2) R76MN3330(1)30(2) 400 250 0.39 8.5 17.0 26.5 22.5 500 400,000 195 16 8 8.0 38 76MN3390(1)50(2) R76MN3390(1)50(2) 400 250 0.39 10.0 18.5 26.5 22.5 500 400,000 195 16 8 8.3 36 76MN3390(1)30(2) R76MN3390(1)30(2) 400 250 0.47 10.0 18.5 26.5 22.5 500 400,000 235 16 7 9.1 36 76MN3470(1)30(2) R76MN3470(1)30(2) 400 250 0.56 10.0 18.5 26.5 22.5 500 400,000 280 16 6 9.9 36 76MN3560(1)50(2) R76MN3560(1)50(2) 400 250 0.56 11.0 20.0 26.5 22.5 500 400,000 280 16 6 10.2 34 76MN3560(1)30(2) R76MN3560(1)30(2) 400 250 0.68 11.0 20.0 26.5 22.5 500 400,000 340 16 5 11.2 34 76MN3680(1)50(2) R76MN3680(1)50(2) 400 250 0.68 13.0 22.0 26.5 22.5 500 400,000 340 16 4.7 11.7 31 76MN3680(1)30(2) R76MN3680(1)30(2) 400 250 0.82 13.0 22.0 26.5 22.5 500 400,000 410 16 4 12.8 31 76MN3820(1)50(2) R76MN3820(1)50(2) 400 250 0.39 9.0 17.0 32.0 27.5 300 240,000 117 18 8 8.4 35 76MR3390(1)30(2) R76MR3390(1)30(2) 400 250 0.47 9.0 17.0 32.0 2 7.5 300 240,000 141 18 7 9.2 35 76MR3470(1)30(2) R76MR3470(1)30(2) 400 250 0.56 11.0 20.0 32.0 2 7.5 300 240,000 168 18 6 10.6 31 76MR3560(1)30(2) R76MR3560(1)30(2) 400 250 400 250 0.68 24.0 15.0 32.0 27.5 300 240,000 204 18 7 10.2 27 76MR3680(1)L0(2) R76MR3680(1)L0(2) 400 250 0.82 13.0 22.0 32.0 27. 5 300 240,000 246 18 6 10.9 29 76MR3820(1)30(2) R76MR3820(1)30(2)
VDC VAC
0.18 13.0 12 .0 18.0 15.0 900 720,000 162 10 9 7.1 45 76MI3180(1)70(2) R76MI3180(1)70(2)
0.68 11.0 2
Cap
Value
0.0 32.0 2 7.5 300 240,000 204 18 7 9.5 31 76MR3680(1)30(2) R76MR3680(1)30(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
12© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 13
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
400 250 0.82 24.0 15.0 32.0 27. 5 300 240,000 246 18 6 11.3 27 76MR3820(1)L0(2) R76MR3820(1)L0(2) 400 250 1 13.0 22.0 32.0 2 7.5 300 240,000 300 18 6 11.1 29 76MR4100(1)40(2) R76MR4100(1)40(2) 400 250 1 24.0 15.0 32.0 27.5 300 240,000 300 18 6 11.5 27 76MR4100(1)L0(2) R76MR4100(1)L0(2) 400 250 1.2 14.0 28.0 32.0 27.5 300 240,000 360 18 5 12.0 26 76MR4120(1)40(2) R76MR4120(1)40(2) 400 250 1.2 24.0 15.0 32.0 27.5 300 240,000 360 18 5.3 11.8 27 76MR4120(1)L0(2) R76MR4120(1)L0(2) 400 250 1.5 18.0 33.0 32.0 27.5 300 240,000 450 18 4.2 14.3 23 76MR4150(1)30(2) R76MR4150(1)30(2) 400 250 1.8 18.0 33.0 32.0 27.5 300 240,000 540 18 3.5 12.8 23 76MR4180(1)30(2) R76MR4180(1)30(2) 400 250 2.2 22.0 3 7.0 32.0 2 7.5 300 240,000 660 18 2.9 14.9 21 76MR4220(1)30(2) R76MR4220(1)30(2) 400 250 2.7 22.0 3 7.0 32.0 2 7.5 300 240,000 810 18 2.4 11.7 21 76MR4270(1)30(2) R76MR4270(1)30(2) 400 250 1 11.0 22.0 41.5 37. 5 18 0 144,000 180 20 6 11.5 27 76MW4100(1)30(2) R76MW4100(1)30(2) 400 250 1 24.0 15.0 41.5 37.5 180 144,000 180 20 6 12 .1 24 76MW4100(1)L0(2) R76MW4100(1)L0(2) 400 250 1.2 13.0 24.0 41.5 37. 5 180 144,000 216 20 5 12.2 25 76MW4120(1)30(2) R76MW4120(1)30(2) 400 250 1.2 24.0 15.0 41.5 37. 5 180 144,000 216 20 5 12.4 24 76MW4120(1)L0O2)R76MW4120(1)L0O2) 400 250 1.5 13.0 24.0 41.5 37. 5 180 144,000 270 20 4 13.7 25 76MW4150(1)30(2) R76MW4150(1)30(2) 400 250 1.5 24.0 15.0 41.5 37. 5 180 144,000 270 20 4 13.9 24 76MW4150(1)L0(2) R76MW4150(1)L0(2) 400 250 1.8 16.0 28.5 41.5 37.5 180 144,000 324 20 4 12.9 23 76MW4180(1)30(2) R76MW4180(1)30(2) 400 250 1.8 24.0 19.0 41.5 37.5 180 144,000 324 20 3.5 12.8 23 76MW4180(1)L0(2) R76MW4180(1)L0(2) 400 250 2.2 19.0 32.0 41.5 37.5 180 144,000 396 20 2.9 14.9 21 76MW4220(1)30(2) R76MW4220(1)30(2) 400 250 2.2 24.0 19.0 41.5 37.5 180 144,000 396 20 2.9 14.2 23 76MW4220(1)L0(2) R76MW4220(1)L0(2) 400 250 2.7 19.0 32.0 41.5 37. 5 18 0 144,000 486 20 2.4 11.7 21 76MW4270(1)30(2) R76MW4270(1)30(2) 400 250 3.3 19.0 32.0 41.5 3 7.5 180 144,000 594 20 1.9 12.9 21 76MW4330(1)30(2) R76MW4330(1)30(2) 400 250 400 250 4.7 20.0 40.0 41.5 37. 5 180 144,000 846 20 1.4 16.2 19 76MW4470(1)30(2) R76MW4470(1)30(2) 400 250 5.6 24.0 44.0 41.5 37. 5 18 0 144,000 1,008 20 1.1 18.4 17 76MW4560(1)30(2) R76MW4560(1)30(2) 400 250 6.8 30.0 45.0 41.5 37.5 180 144,000 1,224 20 0.9 2 1.1 16 76MW4680(1)30(2) R76MW4680(1)30(2) 400 250 8.2 30.0 45.0 41.5 37. 5 18 0 144,000 1,476 20 0.8 2 3.1 16 76MW4820(1)30(2) R76MW4820(1)30(2) 630 250 0.00068 3.0 8.0 10.0 7.5 2,800 3,528,000 2 8 936 0.1 98 76PD0680(1)00(2) R76PD0680(1)00(2) 630 250 0.00082 3.0 8.0 10.0 7.5 2,800 3,528,000 2 8 776 0 .1 98 76PD0820(1)00(2) R76PD0820(1)00(2) 630 250 0.001 3.0 8.0 10.0 7.5 2,800 3,528,000 3 8 637 0.2 98 76PD1100(1)00(2) R76PD1100(1)00(2) 630 250 0.0 012 3.0 8.0 10.0 7. 5 2,800 3,528,000 3 8 531 0.2 98 76PD1120(1)00(2) R76PD1120(1)00(2) 630 250 0.0015 3.0 8.0 10.0 7.5 2,800 3,528,000 4 8 424 0.2 98 76PD1150(1)00(2) R76PD1150(1)00(2) 630 250 0.0 018 3.0 8.0 10.0 7. 5 2,800 3,528,000 5 8 354 0.3 98 76PD1180(1)00(2) R76PD1180(1)00(2) 630 250 0.0022 3.0 8.0 10.0 7.5 2,800 3,528,000 6 8 289 0.3 98 76PD1220(1)00(2) R76PD1220(1)00(2) 630 250 0.0027 4.0 9.0 10.0 7.5 2,800 3,528,000 8 8 236 0.4 88 76PD1270(1)40(2) R76PD1270(1)40(2) 630 250 0.0033 4.0 9.0 10.0 7.5 2,800 3,528,000 9 8 193 0.5 88 76PD1330(1)40(2) R76PD1330(1)40(2) 630 250 0.0039 4.0 9.0 10.0 7.5 2,800 3,528,000 11 8 163 0.6 88 76PD1390(1)40(2) R76PD1390(1)40(2) 630 250 0.0047 4.0 9.0 10.0 7.5 2,800 3,528,000 13 8 135 0.7 88 76PD1470(1)40(2) R76PD1470(1)40(2) 630 250 0.0056 4.0 9.0 10.0 7.5 2,800 3,528,000 16 8 114 0.9 88 76PD1560(1)40(2) R76PD1560(1)40(2) 630 250 0.0068 5.0 10.5 10.0 7.5 2,800 3,528,000 19 8 94 1.1 78 76PD1680(1)40(2) R76PD1680(1)40(2) 630 250 0.0082 5.0 10.5 10.0 7.5 2,800 3,528,000 23 8 78 1.3 78 76PD1820(1)40(2) R76PD1820(1)40(2) 630 250 0.01 6.0 12.0 10.5 7.5 2,800 3,528,000 28 8 64 1.6 69 76PD2100(1)30(2) R76PD2100(1)30(2) 630 250 0.012 6.0 12.0 10.5 7.5 2,800 3,528,000 34 8 53 1.9 69 76PD2120(1)30(2) R76PD2120(1)30(2) 630 400 0.0039 4.0 9.0 13.0 10.0 4,000 5,040,000 16 9 163 1.0 79 76PF1390(1)00(2) R76PF1390(1)00(2) 630 400 0.00 47 4.0 9.0 13.0 10.0 4,000 5,040,000 19 9 135 1.2 79 76PF1470(1)00(2) R76PF1470(1)00(2) 630 400 0.0056 4.0 9.0 13.0 10.0 4,000 5,040,000 22 9 114 1.4 79 76PF1560(1)00(2) R76PF1560(1)00(2) 630 400 0.0068 4.0 9.0 13.0 10.0 4,000 5,040,000 27 9 94 1.6 79 76PF1680(1)00(2) R76PF1680(1)00(2) 630 400 630 400 0.01 4.0 9.0 13.0 10.0 4,000 5,040,000 40 9 64 2.0 79 76PF2100(1)50(2) R76PF2100(1)50(2) 630 400 0.01 5.0 11.0 13.0 10.0 4,000 5,040,000 40 9 64 2.1 69 76PF2100(1)30(2) R76PF2100(1)30(2)
VDC VAC
3.9 20.0 40.0 41.5 37. 5 180 144,000 702 20 1.6 14.8 19 76MW4390(1)30(2) R76MW4390(1)30(2)
0.0082 4.0 9.
Cap
Value
0 13.0 10.0 4,000 5,040,000 33 9 78 1.8 79 76PF1820(1)00(2) R76PF1820(1)00(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
13© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 14
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
630 400 0.012 5.0 11.0 13.0 10.0 4,000 5,040,000 48 9 53 2.3 69 76PF2120(1)30(2) R76PF2120(1)30(2) 630 400 0.015 5.0 11.0 13.0 10.0 4,000 5,040,000 60 9 42 2.6 69 76PF2150(1)50(2) R76PF2150(1)50(2) 630 400 0.015 6.0 12.0 13.0 10.0 4,000 5,040,000 60 9 42 2.7 64 76PF2150(1)30(2) R76PF2150(1)30(2) 630 400 0.018 5.0 11.0 13.0 10.0 4,000 5,040,000 72 9 35 2 .9 69 76PF2180(1)50(2) R76PF2180(1)50(2) 630 400 0.018 6.0 12.0 13.0 10.0 4,000 5,040,000 72 9 35 3.0 64 76PF2180(1)30(2) R76PF2180(1)30(2) 630 400 0.027 6.0 12.0 13.0 10.0 4,000 5,040,000 108 9 24 3.6 64 76PF2270(1)50(2) R76PF2270(1)50(2) 630 400 0.012 5.0 11.0 18.0 15.0 3,000 3,780,000 36 10 53 2.5 60 76PI2120(1)00(2) R76PI2120(1)00(2) 630 400 0.015 5.0 11.0 18.0 15 .0 3,000 3,780,000 45 10 42 2.8 60 76PI2150(1)00(2) R76PI2150(1)00(2) 630 400 0.018 5.0 11.0 18.0 15.0 3,000 3,780,000 54 10 35 3.1 60 76PI2180(1)00(2) R76PI2180(1)00(2) 630 400 0.022 5.0 11.0 18.0 15.0 3,000 3,780,000 66 10 29 3.4 60 76PI2220(1)30(2) R76PI2220(1)30(2) 630 400 0.027 5.0 11.0 18.0 15.0 3,000 3,780,000 81 10 24 3.8 60 76PI2270(1)30(2) R76PI2270(1)30(2) 630 400 0.033 6.0 12.0 18.0 15.0 3,000 3,780,000 99 10 19 4.3 56 76PI2330(1)30(2) R76PI2330(1)30(2) 630 400 0.033 5.0 11.0 18.0 15.0 3,000 3,780,000 99 10 19 4.1 60 76PI2330(1)50(2) R76PI2330(1)50(2) 630 400 0.039 6.0 12.0 18.0 15.0 3,000 3,780,000 117 10 16 4.7 56 76PI2390(1)30(2) R76PI2390(1)30(2) 630 400 0.047 6.0 12.0 18.0 15.0 3,000 3,780,000 141 10 14 5.1 56 76PI2470(1)50(2) R76PI2470(1)50(2) 630 400 0.047 7. 5 13.5 18.0 15.0 3,000 3,780,000 141 10 14 5.4 51 76PI2470(1)30(2) R76PI2470(1)30(2) 630 400 0.047 9.0 12.5 18.0 15.0 3,000 3,780,000 141 10 14 5.5 50 76PI2470(1)70(2) R76PI2470(1)70(2) 630 400 0.056 7. 5 13.5 18.0 15.0 3,000 3,780,000 168 10 20 4.5 51 76PI2560(1)30(2) R76PI2560(1)30(2) 630 400 0.056 9.0 12.5 18.0 15.0 3,000 3,780,000 168 10 20 4.5 50 76PI2560(1)70(2) R76PI2560(1)70(2) 630 400 0.068 7. 5 13.5 18.0 15.0 3,000 3,780,000 204 10 16 4.9 51 76PI2680(1)50(2) R76PI2680(1)50(2) 630 400 0.068 8.5 14.5 18.0 15.0 3,000 3,780,000 204 10 16 5 .1 48 76PI2680(1)30(2) R76PI2680(1)30(2) 630 400 630 400 0.082 7.5 13.5 18.0 15 .0 3,000 3,780,000 246 10 14 5.4 51 76PI2820(1)50(2) R76PI2820(1)50(2) 630 400 0.082 8.5 14.5 18.0 15.0 3,000 3,780,000 246 10 14 5.6 48 76PI2820(1)30(2) R76PI2820(1)30(2) 630 400 0.082 13.0 12.0 18.0 15.0 3,000 3,780,000 246 10 14 5.7 45 76PI2820(1)70(2) R76PI2820(1)70(2) 630 400 0.1 8.5 14.5 18.0 15.0 3,000 3,780,000 300 10 11 6 .1 48 76PI3100(1)50(2) R76PI3100(1)50(2) 630 400 0.1 10.0 16.0 18.0 15.0 3,000 3,780,000 300 10 11 6.4 44 76PI3100(1)30(2) R76PI3100(1)30(2) 630 400 0 .12 10.0 16.0 18.0 15.0 3,000 3,780,000 360 10 13 5.8 44 76PI3120(1)50(2) R76PI3120(1)50(2) 630 400 0 .12 11.0 19.0 18.0 15.0 3,000 3,780,000 360 10 13 6 .1 40 76PI3120(1)30(2) R76PI3120(1)30(2) 630 400 0.047 6.0 15.0 26.5 22.5 1,500 1,890,000 71 16 14 5.8 43 76PN2470(1)00(2) R76PN2470(1)00(2) 630 400 0.056 6.0 15.0 26.5 22.5 1,500 1,890,000 84 16 20 4.8 43 76PN2560(1)00(2) R76PN2560(1)00(2) 630 400 0.068 6.0 15.0 26.5 22.5 1,500 1,890,000 102 16 16 5.3 43 76PN2680(1)00(2) R76PN2680(1)00(2) 630 400 0.082 6.0 15.0 26.5 22.5 1,500 1,890,000 123 16 14 5.8 43 76PN2820(1)30(2) R76PN2820(1)30(2) 630 400 0.1 6.0 15.0 26.5 22.5 1, 500 1,890,000 150 16 11 6.4 43 76PN3100(1)30(2) R76PN3100(1)30(2) 630 400 0 .12 6.0 15 .0 26.5 22.5 1,50 0 1,890,000 180 16 20 4.8 43 76PN3120(1)50(2) R76PN3120(1)50(2) 630 400 0 .12 7.0 16.0 26.5 22.5 1,500 1,890,000 180 16 20 4.9 41 76PN3120(1)30(2) R76PN3120(1)30(2) 630 400 0 .15 7.0 16.0 26.5 22.5 1,500 1,890,000 225 16 16 5.5 41 76PN3150(1)50(2) R76PN3150(1)50(2) 630 400 0 .15 8.5 17.0 26.5 22.5 1,500 1,890,000 225 16 16 5.7 38 76PN3150(1)30(2) R76PN3150(1)30(2) 630 400 0 .18 8.5 17.0 26.5 22.5 1,500 1,890,000 270 16 13 6.3 38 76PN3180(1)30(2) R76PN3180(1)30(2) 630 400 0.22 8.5 17.0 26.5 22.5 1,5 00 1,890,000 330 16 11 6.9 38 76PN3220(1)50(2) R76PN3220(1)50(2) 630 400 0.22 10.0 18.5 26.5 22.5 1,50 0 1,890,000 330 16 11 7. 2 36 76PN3220(1)30(2) R76PN3220(1)30(2) 630 400 0.27 10.0 18.5 26.5 22.5 1,50 0 1,890,000 405 16 9 7.9 36 76PN3270(1)50(2) R76PN3270(1)50(2) 630 400 0.27 11.0 20.0 26.5 22.5 1,500 1,890,000 405 16 9 8.2 34 76PN3270(1)30(2) R76PN3270(1)30(2) 630 400 0.33 11.0 20.0 26.5 22.5 1,500 1,890,000 495 16 7 9.0 34 76PN3330(1)30(2) R76PN3330(1)30(2) 630 400 0.39 11.0 20.0 26.5 22.5 1,500 1,890,000 585 16 8 8.5 34 76PN3390(1)50(2) R76PN3390(1)50(2) 630 400 0.39 13.0 22.0 26.5 22.5 1,500 1,890,000 585 16 8 8.8 31 76PN3390(1)30(2) R76PN3390(1)30(2) 630 400 630 400 0 .15 9.0 17.0 32.0 2 7.5 900 1,134,000 13 5 18 16 6.0 35 76PR3150(1)30(2) R76PR3150(1)30(2) 630 400 0 .18 9.0 17.0 32.0 2 7.5 900 1,134,000 16 2 18 13 6.6 35 76PR3180(1)30(2) R76PR3180(1)30(2)
VDC VAC
0.068 9.0 12.5 18.0 15.0 3,000 3,780,000 204 10 16 5.0 50 76PI2680(1)70(2) R76PI2680(1)70(2)
0.47 13.0 2
Cap
Value
2.0 26.5 22.5 1,50 0 1,890,000 705 16 7 9.7 31 76PN3470(1)50(2) R76PN3470(1)50(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
14© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 15
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
630 400 0.22 9.0 17.0 32.0 27.5 900 1,134,000 198 18 11 7.3 35 76PR3220(1)30(2) R76PR3220(1)30(2) 630 400 0.27 9.0 17.0 32.0 27.5 900 1,134,000 243 18 9 8.0 35 76PR3270(1)30(2) R76PR3270(1)30(2) 630 400 0.33 11.0 20.0 32.0 27.5 900 1,134,000 297 18 7 9.4 31 76PR3330(1)40(2) R76PR3330(1)40(2) 630 400 0.39 11.0 20.0 32.0 27.5 900 1,134,000 351 18 8 8.8 31 76PR3390(1)30(2) R76PR3390(1)30(2) 630 400 0.39 24.0 15.0 32.0 27.5 900 1,134,000 351 18 8 9.5 27 76PR3390(1)L0(2) R76PR3390(1)L0(2) 630 400 0.47 13.0 22.0 32.0 27.5 900 1,134,000 423 18 7 10.1 29 76PR3470(1)30(2) R76PR3470(1)30(2) 630 400 0.47 24.0 15.0 32.0 2 7.5 900 1,134,000 423 18 7 10.4 27 76PR3470(1)L0(2) R76PR3470(1)L0(2) 630 400 0.56 13.0 22.0 32.0 27. 5 900 1,134,000 504 18 6 11.0 29 76PR3560(1)30(2) R76PR3560(1)30(2) 630 400 0.56 24.0 15.0 32.0 27. 5 900 1,134,000 504 18 6 11.4 27 76PR3560(1)L0(2) R76PR3560(1)L0(2) 630 400 0.68 13.0 25.0 32.0 27.5 900 1,134,000 612 18 7 10.1 28 76PR3680(1)40(2) R76PR3680(1)40(2) 630 400 0.68 24.0 15.0 32.0 27.5 900 1,134,000 612 18 7 10.2 27 76PR3680(1)L0(2) R76PR3680(1)L0(2) 630 400 0.82 14.0 28.0 32.0 27.5 900 1,134,000 738 18 6 11.5 26 76PR3820(1)30(2) R76PR3820(1)30(2) 630 400 1 18.0 33.0 32.0 27.5 900 1,134,000 900 18 5.6 12.5 23 76PR4100(1)30(2) R76PR4100(1)30(2) 630 400 1.2 18.0 33.0 32.0 27.5 900 1,134,000 1,080 18 5.3 12.8 23 76PR4120(1)30(2) R76PR4120(1)30(2) 630 400 1.5 22.0 3 7.0 32.0 2 7.5 900 1,134,000 1,350 18 4.2 15 .1 21 76PR4150(1)30(2) R76PR4150(1)30(2) 630 400 1.8 22.0 3 7.0 32.0 2 7.5 900 1,134,000 1,620 18 3.5 13.5 21 76PR4180(1)30(2) R76PR4180(1)30(2) 630 400 0.33 11.0 22.0 41.5 37.5 450 567,000 149 20 7 10.1 27 76PW3330(1)30(2) R76PW3330(1)30(2) 630 400 0.39 11.0 22.0 41.5 37.5 450 567,000 176 20 8 9.5 27 76PW3390(1)30(2) R76PW3390(1)30(2) 630 400 0.47 11.0 22.0 41.5 37.5 450 567,000 212 20 7 10.4 27 76PW3470(1)30(2) R76PW3470(1)30(2) 630 400 0.56 11.0 22.0 41.5 3 7.5 450 567,000 252 20 6 11.4 27 76PW3560(1)30(2) R76PW3560(1)30(2) 630 400 0.68 11.0 22.0 41.5 37.5 450 567,000 306 20 7 10.3 27 76PW3680(1)30(2) R76PW3680(1)30(2) 630 400 630 400 0.82 13.0 24.0 41.5 37.5 450 567,000 369 20 6 11.7 25 76PW3820(1)30(2) R76PW3820(1)30(2) 630 400 0.82 24.0 15.0 41.5 37.5 450 567,000 369 20 6 11.9 24 76PW3820(1)L0(2) R76PW3820(1)L0(2) 630 400 1 16.0 28.5 41.5 37.5 450 567,000 450 20 6 12.6 23 76PW4100(1)30(2) R76PW4100(1)30(2) 630 400 1 24.0 15.0 41.5 3 7.5 450 567,000 450 20 6 12.1 24 76PW4100(1)L0(2) R76PW4100(1)L0(2) 630 400 1.2 16.0 28.5 41.5 37. 5 450 567,000 540 20 5 12.9 23 76PW4120(1)30(2) R76PW4120(1)30(2) 630 400 1.2 24.0 19.0 41.5 3 7.5 450 567,000 540 20 5 12.8 23 76PW4120(1)L0(2) R76PW4120(1)L0(2) 630 400 1.5 16.0 28.5 41.5 37. 5 450 567,000 675 20 4 14.5 23 76PW4150(1)30(2) R76PW4150(1)30(2) 630 400 1.5 24.0 19.0 41.5 3 7.5 450 567,000 675 20 4 14.4 23 76PW4150(1)L0(2) R76PW4150(1)L0(2) 630 400 1.8 19.0 32.0 41.5 37. 5 450 567,000 810 20 3.5 13.5 21 76PW4180(1)30(2) R76PW4180(1)30(2) 630 400 2.2 20.0 40.0 41.5 37. 5 450 567,000 990 20 2.9 15 .7 19 76PW4220(1)30(2) R76PW4220(1)30(2) 630 400 2.7 20.0 40.0 41.5 37. 5 450 567,000 1,215 20 2.4 12.3 19 76PW4270(1)30(2) R76PW4270(1)30(2) 630 400 3.3 24.0 44.0 41.5 37. 5 450 567,000 1,485 20 1.9 14.2 17 76PW4330(1)30(2) R76PW4330(1)30(2) 630 400 3.9 30.0 45.0 41.5 37. 5 450 567,000 1,755 20 1.6 16.0 16 76PW4390(1)30(2) R76PW4390(1)30(2)
1,000 400 0.00022 3.0 8.0 10.0 7. 5 6,000 12,000,000 1 8 2,894 0.1 98 76QD0220(1)00(2) R76QD0220(1)00(2) 1,000 400 0.00027 3.0 8.0 10.0 7. 5 6,000 12,000,000 2 8 2,358 0 .1 98 76QD0270(1)00(2) R76QD0270(1)00(2) 1,000 400 0.00033 3.0 8.0 10.0 7. 5 6,000 12,000,000 2 8 1,929 0.1 98 76QD0330(1)00(2) R76QD0330(1)00(2) 1,000 400 0.00039 3.0 8.0 10.0 7. 5 6,000 12,000,000 2 8 1,632 0.1 98 76QD0390(1)00(2) R76QD0390(1)00(2) 1,000 400 0.00047 3.0 8.0 10.0 7. 5 6,000 12,000,000 3 8 1,355 0.1 98 76QD0470(1)00(2) R76QD0470(1)00(2) 1,000 400 0.00056 3.0 8.0 10.0 7. 5 6,000 12,000,000 3 8 1,137 0.1 98 76QD0560(1)00(2) R76QD0560(1)00(2) 1,000 400 0.00068 4.0 9.0 10.0 7.5 6,000 12,000,000 4 8 936 0.2 88 76QD0680(1)40(2) R76QD0680(1)40(2) 1,000 400 0.00082 4.0 9.0 10.0 7.5 6,000 12,000,000 5 8 776 0.2 88 76QD0820(1)40(2) R76QD0820(1)40(2) 1,000 400 0.001 4.0 9.0 10.0 7.5 6,000 12,000,000 6 8 637 0.3 88 76QD1100(1)40(2) R76QD1100(1)40(2) 1,000 400 0.0012 4.0 9.0 10.0 7.5 6,000 12,000,000 7 8 531 0.3 88 76QD1120(1)40(2) R76QD1120(1)40(2) 1,000 400 0. 0015 5.0 10.5 10.0 7.5 6,000 12,000,000 9 8 424 0.4 78 76QD1150(1)40(2) R76QD1150(1)40(2) 1,000 400 1,000 400 0.0022 5.0 10.5 10.0 7.5 6,000 12,000,000 13 8 289 0.6 78 76QD1220(1)40(2) R76QD1220(1)40(2) 1,000 400 0.0027 6.0 12 .0 10.5 7. 5 6,000 12,000,000 16 8 236 0.7 69 76QD1270(1)00(2) R76QD1270(1)00(2)
VDC VAC
0.68 24.0 15.0 41.5 37.5 450 567,000 306 20 7 10.8 24 76PW3680(1)L0(2) R76PW3680(1)L0(2)
0.0018 5.0 1
Cap
Value
0.5 10.0 7. 5 6,000 12,000,000 11 8 354 0.5 78 76QD1180(1)40(2) R76QD1180(1)40(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
15© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 16
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
1,000 400 0.0033 6.0 12 .0 10.5 7. 5 6,000 12,000,000 20 8 193 0.8 69 76QD1330(1)00(2) R76QD1330(1)00(2) 1,000 600 0.00047 4.0 9.0 13.0 10.0 6,500 13,000,000 3 9 1,355 0.2 79 76QF0470(1)00(2) R76QF0470(1)00(2) 1,000 600 0.00056 4.0 9.0 13.0 10.0 6,500 13,000,000 4 9 1,137 0.2 79 76QF0560(1)00(2) R76QF0560(1)00(2) 1,000 600 0.00068 4.0 9.0 13.0 10.0 6,500 13,000,000 4 9 936 0.3 79 76QF0680(1)00(2) R76QF0680(1)00(2) 1,000 600 0.00082 4.0 9.0 13.0 10.0 6,500 13,000,000 5 9 776 0.3 79 76QF0820(1)00(2) R76QF0820(1)00(2) 1,000 600 0.001 4.0 9.0 13.0 10.0 6,500 13,000,000 7 9 637 0.4 79 76QF1100(1)00(2) R76QF1100(1)00(2) 1,000 600 0.0012 4.0 9.0 13.0 10.0 6,500 13,000,000 8 9 531 0.5 79 76QF1120(1)00(2) R76QF1120(1)00(2) 1,000 600 0.0015 4.0 9.0 13.0 10.0 6,500 13,000,000 10 9 424 0.6 79 76QF1150(1)00(2) R76QF1150(1)00(2) 1,000 600 0.0018 4.0 9.0 13.0 10.0 6,500 13,000,000 12 9 354 0.7 79 76QF1180(1)00(2) R76QF1180(1)00(2) 1,000 600 0.0022 4.0 9.0 13.0 10.0 6,500 13,000,000 14 9 289 0.8 79 76QF1220(1)00(2) R76QF1220(1)00(2) 1,000 600 0.0027 4.0 9.0 13.0 10.0 6,500 13,000,000 18 9 236 1.0 79 76QF1270(1)00(2) R76QF1270(1)00(2) 1,000 600 0.0033 4.0 9.0 13.0 10.0 6,500 13,000,000 21 9 193 1.1 79 76QF1330(1)30(2) R76QF1330(1)30(2) 1,000 600 0.0039 5.0 11.0 13.0 10.0 6,500 13,000,000 25 9 163 1. 3 69 76QF1390(1)30(2) R76QF1390(1)30(2) 1,000 600 0.0047 4.0 9.0 13.0 10.0 6,500 13,000,000 31 9 135 1.4 79 76QF1470(1)50(2) R76QF1470(1)50(2) 1,000 600 0.0047 5.0 11.0 13.0 10.0 6,500 13,000,000 31 9 135 1.5 69 76QF1470(1)30(2) R76QF1470(1)30(2) 1,000 600 0.0056 4.0 9.0 13.0 10.0 6,500 13,000,000 36 9 114 1.5 79 76QF1560(1)50(2) R76QF1560(1)50(2) 1,000 600 0.0056 6.0 12 .0 13.0 10.0 6,500 13,000,000 36 9 114 1.7 64 76QF1560(1)30(2) R76QF1560(1)30(2) 1,000 600 0.0068 4.0 9.0 13.0 10.0 6,500 13,000,000 44 9 94 1.6 79 76QF1680(1)50(2) R76QF1680(1)50(2) 1,000 600 0.0068 6.0 12 .0 13.0 10.0 6,500 13,000,000 44 9 94 1.8 64 76QF1680(1)30(2) R76QF1680(1)30(2) 1,000 600 0.0082 5.0 11.0 13.0 10.0 6,500 13,000,000 53 9 78 1.9 69 76QF1820(1)50(2) R76QF1820(1)50(2) 1,000 600 0.01 5.0 11.0 13.0 10.0 6,500 13,000,000 65 9 64 2.1 69 76QF2100(1)50(2) R76QF2100(1)50(2) 1,000 600 1,000 600 0.015 6.0 12.0 13.0 10.0 6,500 13,000,000 98 9 42 2.7 64 76QF2150(1)50(2) R76QF2150(1)50(2) 1,000 600 0.0082 4.0 10.0 18.0 15.0 3,500 7,000,000 29 10 78 2.0 65 76QI1820(1)40(2) R76QI1820(1)40(2) 1,000 600 0.0082 5.0 11.0 18.0 15.0 3,500 7,000,000 29 10 78 2.1 60 76QI1820(1)00(2) R76QI1820(1)00(2) 1,000 600 0.01 4.0 10.0 18.0 15.0 3,500 7,000,000 35 10 64 2.2 65 76QI2100(1)40(2) R76QI2100(1)40(2) 1,000 600 0.01 5.0 11.0 18.0 15 .0 3,500 7,000,000 35 10 64 2.3 60 76QI2100(1)30(2) R76QI2100(1)30(2) 1,000 600 0.012 5.0 11.0 18.0 15.0 3,500 7,000,000 42 10 53 2.5 60 76QI2120(1)30(2) R76QI2120(1)30(2) 1,000 600 0.015 5.0 11.0 18.0 15.0 3,500 7,000,000 53 10 42 2.8 60 76QI2150(1)40(2) R76QI2150(1)40(2) 1,000 600 0.018 5.0 11.0 18.0 15.0 3,500 7,000,000 63 10 35 3.1 60 76QI2180(1)40(2) R76QI2180(1)40(2) 1,000 600 0.022 6.0 12 .0 18.0 15.0 3,500 7,000,000 77 10 29 3.5 56 76QI2220(1)40(2) R76QI2220(1)40(2) 1,000 600 0.022 9.0 12.5 18.0 15.0 3,500 7,000,000 77 10 29 3.7 50 76QI2220(1)70(2) R76QI2220(1)70(2) 1,000 600 0.027 6.0 12 .0 18.0 15.0 3,500 7,000,000 95 10 24 3.9 56 76QI2270(1)50(2) R76QI2270(1)50(2) 1,000 600 0.027 7.5 13.5 18.0 15.0 3,500 7,000,000 95 10 24 4.1 51 76QI2270(1)40(2) R76QI2270(1)40(2) 1,000 600 0.027 9.0 12.5 18.0 15.0 3,500 7,000,000 95 10 24 4.1 50 76QI2270(1)70(2) R76QI2270(1)70(2) 1,000 600 0.033 6.0 12 .0 18.0 15.0 3,500 7,000,000 116 10 19 4.3 56 76QI2330(1)50(2) R76QI2330(1)50(2) 1,000 600 0.033 7.5 13.5 18.0 15.0 3,500 7,000,000 116 10 19 4.5 51 76QI2330(1)40(2) R76QI2330(1)40(2) 1,000 600 0.033 13.0 12 .0 18.0 15.0 3,500 7,000,000 116 10 19 4.8 45 76QI2330(1)70(2) R76QI2330(1)70(2) 1,000 600 0.039 7.5 13.5 18.0 15.0 3,500 7,000,000 137 10 16 4.9 51 76QI2390(1)50(2) R76QI2390(1)50(2) 1,000 600 0.039 8.5 14.5 18.0 15.0 3,500 7,000,000 137 10 16 5 .1 48 76QI2390(1)40(2) R76QI2390(1)40(2) 1,000 600 0.047 7.5 13.5 18.0 15.0 3,500 7,000,000 165 10 14 5.4 51 76QI2470(1)50(2) R76QI2470(1)50(2) 1,000 600 0.047 8.5 14.5 18.0 15.0 3,500 7,000,000 165 10 14 5.6 48 76QI2470(1)40(2) R76QI2470(1)40(2) 1,000 600 0.056 8.5 14.5 18.0 15.0 3,500 7,000,000 196 10 20 4.6 48 76QI2560(1)50(2) R76QI2560(1)50(2) 1,000 600 0.068 8.5 14.5 18.0 15.0 3,500 7,000,000 238 10 16 5 .1 48 76QI2680(1)50(2) R76QI2680(1)50(2) 1,000 600 0.082 10.0 16.0 18.0 15.0 3,500 7,000,000 287 10 14 5.8 44 76QI2820(1)50(2) R76QI2820(1)50(2) 1,000 600 0.1 11.0 19.0 18.0 15.0 3,500 7,000,000 350 10 11 6.7 40 76QI3100(1)50(2) R76QI3100(1)50(2) 1,000 600 1,000 600 0.027 6.0 15.0 26.5 22.5 2,100 4,200,000 57 16 24 4.4 43 76QN2270(1)00(2) R76QN2270(1)00(2) 1,000 600 0.033 6.0 15.0 26.5 22.5 2,100 4,200,000 69 16 19 4.9 43 76QN2330(1)30(2) R76QN2330(1)30(2)
VDC VAC
0.012 5.0 11.0 13.0 10.0 6,500 13,000,000 78 9 53 2.3 69 76QF2120(1)50(2) R76QF2120(1)50(2)
0.12 11.0 19
Cap
Value
.0 18.0 15.0 3,500 7,000,000 420 10 13 6 .1 40 76QI3120(1)50(2) R76QI3120(1)50(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
16© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 17
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
1,000 600 0.039 6.0 15.0 26.5 22.5 2,100 4,200,000 82 16 16 5.3 43 76QN2390(1)30(2) R76QN2390(1)30(2) 1,000 600 0.047 6.0 15.0 26.5 22.5 2,100 4,200,000 99 16 14 5.8 43 76QN2470(1)50(2) R76QN2470(1)50(2) 1,000 600 0.047 7.0 16.0 26.5 22.5 2,100 4,200,000 99 16 14 6.0 41 76QN2470(1)30(2) R76QN2470(1)30(2) 1,000 600 0.056 6.0 15.0 26.5 22.5 2,100 4,200,000 118 16 20 4.8 43 76QN2560(1)50(2) R76QN2560(1)50(2) 1,000 600 0.056 7.0 16.0 26.5 22.5 2,100 4,200,000 118 16 20 4.9 41 76QN2560(1)30(2) R76QN2560(1)30(2) 1,000 600 0.068 7.0 16.0 26.5 22.5 2,100 4,200,000 143 16 16 5.5 41 76QN2680(1)50(2) R76QN2680(1)50(2) 1,000 600 0.068 8.5 17.0 26.5 22.5 2 ,100 4,200,000 143 16 16 5.6 38 76QN2680(1)30(2) R76QN2680(1)30(2) 1,000 600 0.082 7.0 16.0 26.5 22.5 2,100 4,200,000 172 16 14 6.0 41 76QN2820(1)50(2) R76QN2820(1)50(2) 1,000 600 0.082 10.0 18.5 26.5 22.5 2,100 4,200,000 172 16 14 6.4 36 76QN2820(1)30(2) R76QN2820(1)30(2) 1,000 600 0.1 8.5 17.0 26.5 22.5 2 ,100 4,200,000 210 16 11 6.8 38 76QN3100(1)50(2) R76QN3100(1)50(2) 1,000 600 0.1 10.0 18.5 26.5 22.5 2,100 4,200,000 210 16 11 7.1 36 76QN3100(1)30(2) R76QN3100(1)30(2) 1,000 600 0.12 8.5 17.0 26.5 22.5 2,100 4,200,000 252 16 20 5.1 38 76QN3120(1)50(2) R76QN3120(1)50(2) 1,000 600 0.12 11.0 20.0 26.5 22.5 2 ,100 4,200,000 252 16 20 5.4 34 76QN3120(1)30(2) R76QN3120(1)30(2) 1,000 600 0.15 10.0 18.5 26.5 22.5 2,100 4,200,000 315 16 16 5.9 36 76QN3150(1)50(2) R76QN3150(1)50(2) 1,000 600 0.15 13.0 22.0 26.5 22.5 2 ,100 4,200,000 315 16 16 6.3 31 76QN3150(1)30(2) R76QN3150(1)30(2) 1,000 600 0.18 11.0 20.0 26.5 22.5 2 ,100 4,200,000 378 16 13 6.7 34 76QN3180(1)50(2) R76QN3180(1)50(2) 1,000 600 0.22 11.0 20.0 26.5 22.5 2,100 4,200,000 462 16 11 7.4 34 76QN3220(1)50(2) R76QN3220(1)50(2) 1,000 600 0.27 13.0 22.0 26.5 22.5 2,10 0 4,200,000 567 16 9 8.5 31 76QN3270(1)50(2) R76QN3270(1)50(2) 1,000 600 0.33 13.0 22.0 26.5 22.5 2,10 0 4,200,000 693 16 7 9.4 31 76QN3330(1)50(2) R76QN3330(1)50(2) 1,000 600 0.1 9.0 17.0 32.0 27.5 1,000 2,000,000 10 0 18 11 7.2 35 76QR3100(1)40(2) R76QR3100(1)40(2) 1,000 600 0.12 9.0 17. 0 32.0 27.5 1,000 2,000,000 120 18 20 5.4 35 76QR3120(1)40(2) R76QR3120(1)40(2) 1,000 600 1,000 600 0.18 13.0 22.0 32.0 27.5 1,000 2,000,000 18 0 18 13 7.2 29 76QR3180(1)30(2) R76QR3180(1)30(2) 1,000 600 0.18 24.0 15 .0 32.0 2 7.5 1,000 2,000,000 180 18 13 7. 5 27 76QR3180(1)L0(2) R76QR3180(1)L0(2) 1,000 600 0.22 13.0 22.0 32.0 2 7.5 1,000 2,000,000 220 18 11 8.0 29 76QR3220(1)30(2) R76QR3220(1)30(2) 1,000 600 0.22 24.0 15.0 32.0 2 7.5 1,000 2,000,000 220 18 11 8.2 27 76QR3220(1)L0(2) R76QR3220(1)L0(2) 1,000 600 0.27 13.0 25.0 32.0 27.5 1,000 2,000,000 270 18 9 9.0 28 76QR3270(1)40(2) R76QR3270(1)40(2) 1,000 600 0.27 24.0 15.0 32.0 2 7.5 1,000 2,000,000 270 18 9 9.1 27 76QR3270(1)L0(2) R76QR3270(1)L0(2) 1,000 600 0.33 14.0 28.0 32.0 27.5 1,000 2,000,000 330 18 7 10.3 26 76QR3330(1)30(2) R76QR3330(1)30(2) 1,000 600 0.39 18.0 33.0 32.0 27.5 1,000 2,000,000 390 18 8 10.3 23 76QR3390(1)30(2) R76QR3390(1)30(2) 1,000 600 0.47 18.0 33.0 32.0 27.5 1,000 2,000,000 470 18 7 11.3 23 76QR3470(1)30(2) R76QR3470(1)30(2) 1,000 600 0.56 22.0 3 7.0 32.0 2 7.5 1,000 2,000,000 560 18 6 13.0 21 76QR3560(1)30(2) R76QR3560(1)30(2) 1,000 600 0.68 22.0 3 7.0 32.0 2 7.5 1,000 2,000,000 680 18 7 11.7 21 76QR3680(1)30(2) R76QR3680(1)30(2) 1,000 600 0.18 11.0 22.0 41.5 37. 5 500 1,000,000 90 20 13 7. 5 27 76QW3180(1)30(2) R76QW3180(1)30(2) 1,000 600 0.22 11.0 22.0 41.5 37.5 500 1,000,000 110 20 11 8.2 27 76QW3220(1)30(2) R76QW3220(1)30(2) 1,000 600 0.27 13.0 24.0 41.5 37.5 500 1,000,000 135 20 9 9.5 25 76QW3270(1)30(2) R76QW3270(1)30(2) 1,000 600 0.27 24.0 15.0 41.5 37.5 500 1,000,000 135 20 9 9.6 24 76QW3270(1)L0(2) R76QW3270(1)L0(2) 1,000 600 0.33 13.0 24.0 41.5 37.5 500 1,000,000 165 20 7 10.5 25 76QW3330(1)30(2) R76QW3330(1)30(2) 1,000 600 0.33 24.0 15.0 41.5 37.5 500 1,000,000 165 20 7 10.6 24 76QW3330(1)L0(2) R76QW3330(1)L0(2) 1,000 600 0.39 16.0 28.5 41.5 37. 5 500 1,000,000 195 20 8 10.4 23 76QW3390(1)30(2) R76QW3390(1)30(2) 1,000 600 0.39 24.0 15.0 41.5 37.5 500 1,000,000 195 20 8 10.0 24 76QW3390(1)L0(2) R76QW3390(1)L0(2) 1,000 600 0.47 16.0 28.5 41.5 37. 5 500 1,000,000 235 20 7 11.4 23 76QW3470(1)30(2) R76QW3470(1)30(2) 1,000 600 0.47 24.0 19.0 41.5 3 7.5 500 1,000,000 235 20 7 11.4 23 76QW3470(1)L0(2) R76QW3470(1)L0(2) 1,000 600 0.56 16.0 28.5 41.5 37. 5 500 1,000,000 280 20 6 12.5 23 76QW3560(1)30(2) R76QW3560(1)30(2) 1,000 600 0.56 24.0 19.0 41.5 37.5 500 1,000,000 280 20 6 12.4 23 76QW3560(1)L0(2) R76QW3560(1)L0(2) 1,000 600 0.68 19.0 32.0 41.5 37.5 500 1,000,000 340 20 7 11.7 21 76QW3680(1)30(2) R76QW3680(1)30(2) 1,000 600 1,000 600 1 20.0 40.0 41.5 37. 5 500 1,000,000 500 20 5.6 13.8 19 76QW4100(1)30(2) R76QW4100(1)30(2) 1,000 600 1.2 24.0 4 4.0 41.5 37.5 500 1,000,000 600 20 5.3 14.8 17 76QW4120(1)30(2) R76QW4120(1)30(2)
VDC VAC
0.15 11.0 20.0 32.0 27. 5 1,000 2,000,000 150 18 16 6.3 31 76QR3150(1)30(2) R76QR3150(1)30(2)
0.82 20.0 40.0 4
Cap
Value
T H L
Lead
Spacing
(S)
1.5 3 7.5 500 1,000,000 410 20 6 13.5 19 76QW3820(1)30(2) R76QW3820(1)30(2)
dV/dt
(V/µs)
Max K0 (V2/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
Lead
Spacing
(S)
dV/dt
(V/µs)
Max K
2
(V
/µs)
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
17© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 18
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
1,000 600 1.5 24.0 4 4.0 41.5 37.5 500 1,000,000 750 20 4.2 16.5 17 76QW4150(1)30(2) R76QW4150(1)30(2) 1,000 600 1.8 30.0 45.0 41.5 37. 5 500 1,000,000 900 20 3.5 15.3 16 76QW4180(1)30(2) R76QW4180(1)30(2) 1,000 600 2.2 30.0 45.0 41.5 37. 5 500 1,000,000 1,100 20 2.9 17.0 16 76QW4220(1)30(2) R76QW4220(1)30(2) 1,60 0 650 0.0022 4.0 9.0 13.0 10.0 8000 25,600,000 18 9 289.4 0.9 79 76TF1220(1)50(2) R76TF1220(1)50(2) 1,60 0 650 0.0027 4.0 9.0 13.0 10.0 8000 25,600,000 22 9 235.8 1.0 79 76TF1270(1)50(2) R76TF1270(1)50(2) 1,60 0 650 0.0033 5.0 11.0 13.0 10.0 8000 25,600,000 26 9 192 .9 1.2 69 76TF1330(1)50(2) R76TF1330(1)50(2) 1,60 0 650 0.0039 5.0 11.0 13.0 10.0 8000 25,600,000 31 9 163.2 1.3 69 76TF1390(1)50(2) R76TF1390(1)50(2) 1,60 0 650 0.0047 5.0 11.0 13.0 10.0 8000 25,600,000 38 9 135.5 1.5 69 76TF1470(1)50(2) R76TF1470(1)50(2) 1,60 0 650 0.0056 6.0 12.0 13.0 10.0 8000 25,600,000 45 9 113.7 1.7 64 76TF1560(1)50(2) R76TF1560(1)50(2) 1,60 0 650 0.0068 6.0 12.0 13.0 10.0 8000 25,600,000 54 9 93.6 1.8 64 76TF1680(1)50(2) R76TF1680(1)50(2) 1,60 0 650 0.0033 4.0 10.0 18.0 15.0 6,000 19,200,000 20 10 193 1.3 65 76TI1330(1)40(2) R76TI1330(1)40(2) 1,60 0 650 0.0033 5.0 11.0 18.0 15. 0 6,000 19,200,000 20 10 193 1.3 60 76TI1330(1)30(2) R76TI1330(1)30(2) 1,60 0 650 0.0039 4.0 10.0 18.0 15.0 6,000 19,200,000 23 10 163 1.4 65 76TI1390(1)40(2) R76TI1390(1)40(2) 1,60 0 650 0.0039 5.0 11.0 18.0 15.0 6,000 19,200,000 23 10 163 1.4 60 76TI1390(1)30(2) R76TI1390(1)30(2) 1,60 0 650 0.0047 4.0 10.0 18.0 15.0 6,000 19,200,000 28 10 135 1.5 65 76TI1470(1)40(2) R76TI1470(1)40(2) 1,60 0 650 0.0047 5.0 11.0 18.0 15.0 6,000 19,200,000 28 10 135 1.6 60 76TI1470(1)30(2) R76TI1470(1)30(2) 1,60 0 650 0.0056 4.0 10.0 18.0 15.0 6,000 19,200,000 34 10 114 1.6 65 76TI1560(1)40(2) R76TI1560(1)40(2) 1,60 0 650 0.0056 5.0 11.0 18.0 15.0 6,000 19,200,000 34 10 114 1.7 60 76TI1560(1)30(2) R76TI1560(1)30(2) 1,60 0 650 0.0068 5.0 11.0 18.0 15.0 6,000 19,200,000 41 10 94 1.9 60 76TI1680(1)30(2) R76TI1680(1)30(2) 1,60 0 650 0.0082 5.0 11.0 18.0 15. 0 6,000 19,200,000 49 10 78 2.1 60 76TI1820(1)40(2) R76TI1820(1)40(2) 1,60 0 650 0.01 5.0 11.0 18.0 15.0 6,000 19,200,000 60 10 64 2.3 60 76TI2100(1)40(2) R76TI2100(1)40(2) 1,60 0 650 1,60 0 650 0.015 6.0 12.0 18.0 15.0 6,000 19,200,000 90 10 42 2.9 56 76TI2150(1)40(2) R76TI2150(1)40(2) 1,60 0 650 0.018 7.5 13.5 18.0 15.0 6,000 19,200,000 108 10 35 3.3 51 76TI2180(1)40(2) R76TI2180(1)40(2) 1,60 0 650 0.018 9.0 12.5 18.0 15.0 6,000 19,200,000 108 10 35 3.4 50 76TI2180(1)70(2) R76TI2180(1)70(2) 1,60 0 650 0.022 7. 5 13.5 18.0 15.0 6,000 19,200,000 132 10 29 3.7 51 76TI2220(1)40(2) R76TI2220(1)40(2) 1,60 0 650 0.022 13.0 12 .0 18.0 15.0 6,000 19,200,000 132 10 29 3.9 45 76TI2220(1)70(2) R76TI2220(1)70(2) 1,60 0 650 0.027 8.5 14.5 18.0 15.0 6,000 19,200,000 162 10 24 4.2 48 76TI2270(1)40(2) R76TI2270(1)40(2) 1,60 0 650 0.033 8.5 14.5 18.0 15.0 6,000 19,200,000 198 10 19 4.7 48 76TI2330(1)40(2) R76TI2330(1)40(2) 1,60 0 650 0.039 10.0 16.0 18.0 15.0 6,000 19,200,000 234 10 16.3 5.3 44 76TI2390(1)50(2) R76TI2390(1)50(2) 1,60 0 650 0.047 11.0 19.0 18.0 15 .0 6,000 19,200,000 282 10 13.5 6 .1 40 76TI2470(1)50(2) R76TI2470(1)50(2) 1,60 0 650 0.056 11.0 19.0 18.0 15 .0 6,000 19,200,000 336 10 19.9 5.0 40 76TI2560(1)50(2) R76TI2560(1)50(2) 1,60 0 650 0.015 6.0 15.0 26.5 22.5 3,000 9,600,000 45 16 42 3.3 43 76TN2150(1)30(2) R76TN2150(1)30(2) 1,60 0 650 0.018 6.0 15.0 26.5 22.5 3,000 9,600,000 54 16 35 3.6 43 76TN2180(1)30(2) R76TN2180(1)30(2) 1,60 0 650 0.022 6.0 15.0 26.5 22.5 3,000 9,600,000 66 16 29 4.0 43 76TN2220(1)30(2) R76TN2220(1)30(2) 1,60 0 650 0.027 6.0 15.0 26.5 22.5 3,000 9,600,000 81 16 24 4.4 43 76TN2270(1)30(2) R76TN2270(1)30(2) 1,60 0 650 0.033 6.0 15.0 26.5 22.5 3,000 9,600,000 99 16 19 4.9 43 76TN2330(1)40(2) R76TN2330(1)40(2) 1,60 0 650 0.039 7. 0 16.0 26.5 22.5 3,000 9,600,000 117 16 16 5.5 41 76TN2390(1)40(2) R76TN2390(1)40(2) 1,60 0 650 0.047 7. 0 16.0 26.5 22.5 3,000 9,600,000 141 16 14 6.0 41 76TN2470(1)40(2) R76TN2470(1)40(2) 1,60 0 650 0.056 8.5 17.0 26.5 22.5 3,000 9,600,000 168 16 20 5.1 38 76TN2560(1)40(2) R76TN2560(1)40(2) 1,60 0 650 0.068 10.0 18.5 26.5 22.5 3,000 9,600,000 204 16 16 5.8 36 76TN2680(1)40(2) R76TN2680(1)40(2) 1,60 0 650 0.068 8.5 17.0 26.5 22.5 3,000 9,600,000 204 16 16.4 5.6 38 76TN2680(1)50(2) R76TN2680(1)50(2) 1,60 0 650 0.082 10.0 18.5 26.5 22.5 3,000 9,600,000 246 16 14 6.4 36 76TN2820(1)40(2) R76TN2820(1)40(2) 1,60 0 650 0.1 11.0 20.0 26.5 22.5 3,000 9,600,000 300 16 11 7.3 34 76TN3100(1)40(2) R76TN3100(1)40(2) 1,60 0 650 0 .15 13.0 22.0 26.5 22.5 3,000 9,600,000 450 16 15.9 6.3 31 76TN3150(1)50(2) R76TN3150(1)50(2) 1,60 0 650 0.039 9.0 17.0 32.0 27.5 2,000 6,400,000 78 18 20 5.3 35 76TR2390(1)30(2) R76TR2390(1)30(2) 1,60 0 650 1,60 0 650 0.056 9.0 17.0 32.0 27.5 2,000 6,400,000 112 18 20 5.4 35 76TR2560(1)30(2) R76TR2560(1)30(2) 1,60 0 650 0.068 9.0 17.0 32.0 27.5 2,000 6,400,000 136 18 16 5.9 35 76TR2680(1)30(2) R76TR2680(1)30(2)
VDC VAC
0.012 6.0 12.0 18 .0 15.0 6,000 19,200,000 72 10 53 2.6 56 76TI2120(1)40(2) R76TI2120(1)40(2)
0.047 9.0 1
Cap
Value
7.0 32.0 27. 5 2,000 6,400,000 94 18 17 5.8 35 76TR2470(1)30(2) R76TR2470(1)30(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
18© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 19
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
1,60 0 650 0.082 11.0 20.0 32.0 27.5 2,000 6,400,000 16 4 18 14 6.8 31 76TR2820(1)30(2) R76TR2820(1)30(2) 1,60 0 650 0.1 11.0 20.0 32.0 27.5 2,000 6,400,000 200 18 11 7.6 31 76TR3100(1)30(2) R76TR3100(1)30(2) 1,60 0 650 0 .12 13.0 22.0 32.0 27. 5 2,000 6,400,000 240 18 20 5.9 29 76TR3120(1)30(2) R76TR3120(1)30(2) 1,60 0 650 0 .12 24.0 15.0 32.0 27. 5 2,000 6,400,000 240 18 20 6.1 27 76TR3120(1)L0(2) R76TR3120(1)L0(2) 1,60 0 650 0 .15 13.0 25.0 32.0 27.5 2,000 6,400,000 300 18 16 6.7 28 76TR3150(1)40(2) R76TR3150(1)40(2) 1,60 0 650 0 .15 24.0 15.0 32.0 27. 5 2,000 6,400,000 300 18 16 6.8 27 76TR3150(1)L0(2) R76TR3150(1)L0(2) 1,60 0 650 0 .18 14.0 28.0 32.0 27. 5 2,000 6,400,000 360 18 13 7.6 26 76TR3180(1)40(2) R76TR3180(1)40(2) 1,60 0 650 0 .18 24.0 15.0 32.0 27. 5 2,000 6,400,000 360 18 13 7.5 27 76TR3180(1)L0(2) R76TR3180(1)L0(2) 1,60 0 650 0.22 18.0 33.0 32.0 27.5 2,000 6,400,000 440 18 11 9.0 23 76TR3220(1)30(2) R76TR3220(1)30(2) 1,60 0 650 0.27 18.0 33.0 32.0 27.5 2,000 6,400,000 540 18 9 9.9 23 76TR3270(1)30(2) R76TR3270(1)30(2) 1,60 0 650 0.33 18.0 33.0 32.0 27.5 2,000 6,400,000 660 18 7 11.0 23 76TR3330(1)30(2) R76TR3330(1)30(2) 1,60 0 650 0.39 22.0 3 7.0 32.0 2 7.5 2,000 6,400,000 780 18 8 10.9 21 76TR3390(1)30(2) R76TR3390(1)30(2) 1,60 0 650 0.47 22.0 3 7.0 32.0 2 7.5 2,000 6,400,000 940 18 7 11.9 21 76TR3470(1)30(2) R76TR3470(1)30(2) 1,60 0 650 0.082 11.0 22.0 41.5 37.5 1,20 0 3,840,000 98 20 14 7. 4 27 76TW2820(1)30(2) R76TW2820(1)30(2) 1,60 0 650 0.1 11.0 22.0 41.5 37.5 1,20 0 3,840,000 120 20 11 8.1 27 76TW3100(1)30(2) R76TW3100(1)30(2) 1,60 0 650 0 .12 11.0 22.0 41.5 3 7.5 1,200 3,840,000 144 20 20 6.1 27 76TW3120(1)30(2) R76TW3120(1)30(2) 1,60 0 650 0 .15 11.0 22.0 41.5 3 7.5 1,200 3,840,000 180 20 16 6.8 27 76TW3150(1)30(2) R76TW3150(1)30(2) 1,60 0 650 0 .18 13.0 24.0 41.5 37.5 1,20 0 3,840,000 216 20 13 7.7 25 76TW3180(1)30(2) R76TW3180(1)30(2) 1,60 0 650 0 .18 24.0 15.0 41.5 37.5 1,20 0 3,840,000 216 20 13 7.9 24 76TW3180(1)L0(2) R76TW3180(1)L0(2) 1,60 0 650 0.22 13.0 24.0 41.5 3 7.5 1,200 3,840,000 264 20 11 8.5 25 76TW3220(1)30(2) R76TW3220(1)30(2) 1,60 0 650 0.22 24.0 15.0 41.5 37. 5 1,200 3,840,000 264 20 11 8.7 24 76TW3220(1)L0(2) R76TW3220(1)L0(2) 1,60 0 650 1,60 0 650 0.27 24.0 19.0 41.5 37.5 1,20 0 3,840,000 324 20 9 9.9 23 76TW3270(1)L0(2) R76TW3270(1)L0(2) 1,60 0 650 0.33 16.0 28.5 41.5 37.5 1,200 3,840,000 396 20 7 11.1 23 76TW3330(1)30(2) R76TW3330(1)30(2) 1,60 0 650 0.33 24.0 19.0 41.5 37.5 1,20 0 3,840,000 396 20 7 11.0 23 76TW3330(1)L0(2) R76TW3330(1)L0(2) 1,60 0 650 0.39 16.0 28.5 41.5 37.5 1,200 3,840,000 468 20 8 10.4 23 76TW3390(1)30(2) R76TW3390(1)30(2) 1,60 0 650 0.47 19.0 32.0 41.5 37.5 1,200 3,840,000 564 20 7 12.0 21 76TW3470(1)30(2) R76TW3470(1)30(2) 1,60 0 650 0.56 20.0 40.0 41.5 37.5 1,200 3,840,000 672 20 6 13.7 19 76TW3560(1)30(2) R76TW3560(1)30(2) 1,60 0 650 0.68 20.0 40.0 41.5 37. 5 1,200 3,840,000 816 20 7 12.3 19 76TW3680(1)30(2) R76TW3680(1)30(2) 1,60 0 650 0.82 24.0 44.0 41.5 37. 5 1,200 3,840,000 984 20 6 14.1 17 76TW3820(1)30(2) R76TW3820(1)30(2) 1,60 0 650 1 24.0 44.0 41.5 37. 5 1,200 3,840,000 1,200 20 5.6 14.4 17 76TW4100(1)30(2) R76TW4100(1)30(2) 1,60 0 650 1.2 30.0 45.0 41.5 37. 5 1, 200 3,840,000 1,440 20 5.3 15 .3 16 76TW4120(1)30(2) R76TW4120(1)30(2) 2,000 700 0.0001 4.0 10.0 18.0 15.0 11,000 44,000,000 1 10 6,366 0.0 65 76UI0100(1)40(2) R76UI0100(1)40(2) 2,000 700 0.00012 4.0 10.0 18.0 15.0 11,000 44,000,000 1 10 5,305 0.1 65 76UI0120(1)40(2) R76UI0120(1)40(2) 2,000 700 0.00015 4.0 10.0 18.0 15.0 11,000 44,000,000 2 10 4,244 0.1 65 76UI0150(1)40(2) R76UI0150(1)40(2) 2,000 700 0.00018 4.0 10.0 18.0 15.0 11,000 44,000,000 2 10 3,537 0.1 65 76UI0180(1)40(2) R76UI0180(1)40(2) 2,000 700 0.00022 4.0 10.0 18.0 15.0 11,000 44,000,000 2 10 2,894 0.1 65 76UI0220(1)40(2) R76UI0220(1)40(2) 2,000 700 0.00022 5.0 11.0 18.0 15.0 11,000 44,000,000 2 10 2,894 0.1 60 76UI0220(1)00(2) R76UI0220(1)00(2) 2,000 700 0.00027 4.0 10.0 18.0 15.0 11,000 44,000,000 3 10 2,358 0.1 65 76UI0270(1)40(2) R76UI0270(1)40(2) 2,000 700 0.00027 5.0 11.0 18.0 15.0 11,000 44,000,000 3 10 2,358 0 .1 60 76UI0270(1)00(2) R76UI0270(1)00(2) 2,000 700 0.00033 4.0 10.0 18.0 15.0 11,000 44,000,000 4 10 1,929 0.1 65 76UI0330(1)40(2) R76UI0330(1)40(2) 2,000 700 0.00033 5.0 11.0 18.0 15.0 11,000 44,000,000 4 10 1,929 0.1 60 76UI0330(1)00(2) R76UI0330(1)00(2) 2,000 700 0.00039 4.0 10.0 18.0 15.0 11,000 44,000,000 4 10 1, 632 0.2 65 76UI0390(1)40(2) R76UI0390(1)40(2) 2,000 700 0.00039 5.0 11.0 18.0 15.0 11,000 44,000,000 4 10 1,632 0.2 60 76UI0390(1)00(2) R76UI0390(1)00(2) 2,000 700 0.00047 4.0 10.0 18.0 15.0 9,500 38,000,000 4 10 1,355 0.2 65 76UI0470(1)40(2) R76UI0470(1)40(2) 2,000 700 0.00047 5.0 11.0 18.0 15.0 9,500 38,000,000 4 10 1, 355 0.2 60 76UI0470(1)00(2) R76UI0470(1)00(2) 2,000 700 2,000 700 0.00056 5.0 11.0 18.0 15.0 9,500 38,000,000 5 10 1,137 0.2 60 76UI0560(1)00(2) R76UI0560(1)00(2) 2,000 700 0.00068 4.0 10.0 18.0 15.0 9,500 38,000,000 6 10 936 0.3 65 76UI0680(1)40(2) R76UI0680(1)40(2)
VDC VAC
0.27 13.0 24.0 41.5 3 7.5 1,200 3,840,000 324 20 9 9.5 25 76TW3270(1)30(2) R76TW3270(1)30(2)
0.00056 4.0 1
Cap
Value
0.0 18.0 15.0 9,500 38,000,000 5 10 1,137 0.2 65 76UI0560(1)40(2) R76UI0560(1)40(2)
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
19© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 20
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
2,000 700 0.00068 5.0 11.0 18.0 15.0 9,500 38,000,000 6 10 936 0.3 60 76UI0680(1)00(2) R76UI0680(1)00(2) 2,000 700 0.00082 4.0 10.0 18.0 15.0 9,500 38,000,000 8 10 776 0.4 65 76UI0820(1)40(2) R76UI0820(1)40(2) 2,000 700 0.00082 5.0 11.0 18.0 15.0 9,500 38,000,000 8 10 776 0.4 60 76UI0820(1)00(2) R76UI0820(1)00(2) 2,000 700 0.001 4.0 10.0 18.0 15.0 9,500 38,000,000 10 10 637 0.4 65 76UI1100(1)40(2) R76UI1100(1)40(2) 2,000 700 0.001 5.0 11.0 18.0 15.0 9,500 38,000,000 10 10 637 0.4 60 76UI1100(1)30(2) R76UI1100(1)30(2) 2,000 700 0.0012 4.0 10.0 18.0 15.0 9,500 38,000,000 11 10 531 0.5 65 76UI1120(1)40(2) R76UI1120(1)40(2) 2,000 700 0.0012 5.0 11.0 18.0 15.0 9,500 38,000,000 11 10 531 0.5 60 76UI1120(1)30(2) R76UI1120(1)30(2) 2,000 700 0.0015 4.0 10.0 18.0 15.0 9,500 38,000,000 14 10 424 0.7 65 76UI1150(1)40(2) R76UI1150(1)40(2) 2,000 700 0.0015 5.0 11.0 18.0 15.0 9,500 38,000,000 14 10 424 0.7 60 76UI1150(1)30(2) R76UI1150(1)30(2) 2,000 700 0.0018 4.0 10.0 18.0 15 .0 9,500 38,000,000 17 10 354 0.8 65 76UI1180(1)40(2) R76UI1180(1)40(2) 2,000 700 0.0018 5.0 11.0 18.0 15.0 9,500 38,000,000 17 10 354 0.8 60 76UI1180(1)30(2) R76UI1180(1)30(2)
2,000 700 0.0022 4.0 10.0 18.0 15.0 9,500 38,000,000 21 10 289
2,000 700 0.0022 5.0 11.0 18.0 15 .0 9,500 38,000,000 21 10 289 1.0 60 76UI1220(1)30(2) R76UI1220(1)30(2) 2,000 700 0.0027 4.0 10.0 18.0 15.0 9,500 38,000,000 26 10 236 1.1 65 76UI1270(1)40(2) R76UI1270(1)40(2) 2,000 700 0.0027 5.0 11.0 18.0 15 .0 9,500 38,000,000 26 10 236 1.2 60 76UI1270(1)30(2) R76UI1270(1)30(2) 2,000 700 0.0033 5.0 11.0 18.0 15 .0 9,500 38,000,000 31 10 19 3 1.3 60 76UI1330(1)40(2) R76UI1330(1)40(2) 2,000 700 0.0039 5.0 11.0 18.0 15 .0 9,500 38,000,000 37 10 163 1.4 60 76UI1390(1)40(2) R76UI1390(1)40(2) 2,000 700 0.0047 5.0 11.0 18.0 15 .0 9,500 38,000,000 45 10 135 1.6 60 76UI1470(1)40(2) R76UI1470(1)40(2) 2,000 700 0.0056 6.0 12.0 18.0 15.0 9,500 38,000,000 53 10 114 1.8 56 76UI1560(1)40(2) R76UI1560(1)40(2) 2,000 700 0.0068 6.0 12.0 18.0 15.0 9,500 38,000,000 65 10 94 2.0 56 76UI1680(1)40(2) R76UI1680(1)40(2) 2,000 700 0.0082 6.0 12.0 18.0 15.0 9,500 38,000,000 78 10 78 2.1 56 76UI1820(1)40(2) R76UI1820(1)40(2) 2,000 700 2,000 700 0.01 13.0 12.0 18.0 15.0 9,500 38,000,000 95 10 64 2.6 45 76UI2100(1)70(2) R76UI2100(1)70(2) 2,000 700 0.012 7. 5 13.5 18.0 15.0 9,500 38,000,000 114 10 5 3.1 2.7 51 76UI2120(1)50(2) R76UI2120(1)50(2) 2,000 700 0.012 8.5 14.5 18.0 15.0 9,500 38,000,000 114 10 53 2.8 48 76UI2120(1)40(2) R76UI2120(1)40(2) 2,000 700 0.015 8.5 14.5 18.0 15.0 9,500 38,000,000 143 10 42 3.1 48 76UI2150(1)40(2) R76UI2150(1)40(2) 2,000 700 0.018 10.0 16 .0 18.0 15.0 9,500 38,000,000 171 10 35.4 3.6 44 76UI2180(1)50(2) R76UI2180(1)50(2) 2,000 700 0.022 10.0 16.0 18.0 15.0 9,500 38,000,000 209 10 28.9 4.0 44 76UI2220(1)50(2) R76UI2220(1)50(2) 2,000 700 0.027 11.0 19.0 18.0 15.0 9,500 38,000,000 257 10 23.6 4.6 40 76UI2270(1)50(2) R76UI2270(1)50(2) 2,000 700 0.001 6.0 15.0 26.5 22.5 4,500 18,000,000 5 16 637 0.4 43 76UN1100(1)00(2) R76UN1100(1)00(2) 2,000 700 0.0012 6.0 15 .0 26.5 22.5 4,500 18,000,000 5 16 531 0.5 43 76UN1120(1)00(2) R76UN1120(1)00(2) 2,000 700 0.0015 6.0 15.0 26.5 22.5 4,500 18,000,000 7 16 424 0.7 43 76UN1150(1)00(2) R76UN1150(1)00(2) 2,000 700 0.0018 6.0 15 .0 26.5 22.5 4,500 18,000,000 8 16 354 0.8 43 76UN1180(1)00(2) R76UN1180(1)00(2) 2,000 700 0.0022 6.0 15.0 26.5 22.5 4,500 18,000,000 10 16 289 1.0 43 76UN1220(1)00(2) R76UN1220(1)00(2) 2,000 700 0.0027 6.0 15.0 26.5 22.5 4,500 18,000,000 12 16 236 1.2 43 76UN1270(1)00(2) R76UN1270(1)00(2) 2,000 700 0.0033 6.0 15.0 26.5 22.5 4,500 18,000,000 15 16 193 1.5 43 76UN1330(1)00(2) R76UN1330(1)00(2) 2,000 700 0.0039 6.0 15.0 26.5 22.5 4,500 18,000,000 18 16 163 1.7 43 76UN1390(1)00(2) R76UN1390(1)00(2) 2,000 700 0.0047 6.0 15.0 26.5 22.5 4,500 18,000,000 21 16 135 1.8 43 76UN1470(1)00(2) R76UN1470(1)00(2) 2,000 700 0.0056 6.0 15.0 26.5 22.5 4,500 18,000,000 25 16 114 2.0 43 76UN1560(1)00(2) R76UN1560(1)00(2) 2,000 700 0.0068 6.0 15.0 26.5 22.5 4,500 18,000,000 31 16 94 2.2 43 76UN1680(1)00(2) R76UN1680(1)00(2) 2,000 700 0.0082 6.0 15.0 26.5 22.5 4,500 18,000,000 37 16 78 2.4 43 76UN1820(1)30(2) R76UN1820(1)30(2) 2,000 700 0.01 6.0 15.0 26.5 22.5 4,500 18,000,000 45 16 64 2.7 43 76UN2100(1)30(2) R76UN2100(1)30(2) 2,000 700 0.012 6.0 15.0 26.5 22.5 4,500 18,000,000 54 16 53 2.9 43 76UN2120(1)30(2) R76UN2120(1)30(2) 2,000 700 0.015 6.0 15 .0 26.5 22.5 4,500 18,000,000 68 16 42 3.3 43 76UN2150(1)40(2) R76UN2150(1)40(2) 2,000 700 0.018 6.0 15.0 26.5 22.5 4,500 18,000,000 81 16 35 3.6 43 76UN2180(1)40(2) R76UN2180(1)40(2) 2,000 700 0.022 7.0 16.0 26.5 2 2.5 4,500 18,000,000 99 16 29 4 .1 41 76UN2220(1)40(2) R76UN2220(1)40(2) 2,000 700 2,000 700 0.033 8.5 17. 0 26.5 22.5 4,500 18,000,000 149 16 19 5.2 38 76UN2330(1)40(2) R76UN2330(1)40(2) 2,000 700 0.039 8.5 17. 0 26.5 22.5 4,500 18,000,000 176 16 16.3 5.6 38 76UN2390(1)50(2) R76UN2390(1)50(2)
VDC VAC
0.01 7.5 1
0.027 7.0 1
Cap
Value
T H L
3.5 18 .0 15.0 9,500 38,000,000 95 10 64 2.5 51 76UI2100(1)40(2) R76UI2100(1)40(2)
6.0 26.5 22.5 4,500 18,000,000 12 2 16 24 4.5 41 76UN2270(1)40(2) R76UN2270(1)40(2)
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
1.0
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
65 76UI1220(1)40(2) R76UI1220(1)40(2)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
20© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 21
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Table 1 – Ratings & Part Number Reference cont.
ESL
Dimensions
VDC VAC
Cap
Value
in mm
(µF)
T H L A
2,000 700 0.039 10.0 18.5 26.5 22.5 4,500 18,000,000 176 16 16 5.9 36 76UN2390(1)40(2) R76UN2390(1)40(2) 2,000 700 0.047 10.0 18.5 26.5 22.5 4,500 18,000,000 212 16 14 6.4 36 76UN2470(1)40(2) R76UN2470(1)40(2) 2,000 700 0.056 11.0 20.0 26.5 22.5 4,500 18,000,000 252 16 20 5.4 34 76UN2560(1)40(2) R76UN2560(1)40(2) 2,000 700 0.068 11.0 20.0 26.5 22.5 4,500 18,000,000 306 16 16.4 6.0 34 76UN2680(1)50(2) R76UN2680(1)50(2) 2,000 700 0.082 13.0 22.0 26.5 22.5 4,500 18,000,000 369 16 13.6 6.8 31 76UN2820(1)50(2) R76UN2820(1)50(2) 2,000 700 0.022 9.0 17.0 32.0 27. 5 2,500 10,000,000 55 18 36 4.0 35 76UR2220(1)30(2) R76UR2220(1)30(2) 2,000 700 0.027 9.0 17.0 32.0 27. 5 2,500 10,000,000 68 18 29 4.4 35 76UR2270(1)30(2) R76UR2270(1)30(2) 2,000 700 0.033 9.0 17.0 32.0 27. 5 2,500 10,000,000 83 18 24 4.9 35 76UR2330(1)30(2) R76UR2330(1)30(2) 2,000 700 0.039 11.0 20.0 32.0 27.5 2,500 10,000,000 98 18 20 5.6 31 76UR2390(1)20(2) R76UR2390(1)20(2) 2,000 700 0.047 11.0 20.0 32.0 27.5 2,500 10,000,000 118 18 17 6.1 31 76UR2470(1)30(2) R76UR2470(1)30(2) 2,000 700 0.047 24.0 15.0 32.0 2 7.5 2,500 10,000,000 118 18 17 6.6 27 76UR2470(1)L0(2) R76UR2470(1)L0(2) 2,000 700 0.056 13.0 22.0 32.0 2 7.5 2,500 10,000,000 140 18 20 5.9 29 76UR2560(1)30(2) R76UR2560(1)30(2) 2,000 700 0.056 24.0 15.0 32.0 2 7.5 2,500 10,000,000 140 18 20 6.1 27 76UR2560(1)L0(2) R76UR2560(1)L0(2) 2,000 700 0.068 13.0 22.0 32.0 2 7.5 2,500 10,000,000 170 18 16 6.5 29 76UR2680(1)30(2) R76UR2680(1)30(2) 2,000 700 0.068 24.0 15.0 32.0 2 7.5 2,500 10,000,000 170 18 16 6.7 27 76UR2680(1)L0(2) R76UR2680(1)L0(2) 2,000 700 0.082 13.0 25.0 32.0 27. 5 2,500 10,000,000 205 18 14 7. 3 28 76UR2820(1)40(2) R76UR2820(1)40(2) 2,000 700 0.082 24.0 15.0 32.0 27. 5 2,500 10,000,000 205 18 14 7. 4 27 76UR2820(1)L0(2) R76UR2820(1)L0(2) 2,000 700 0.1 14.0 28.0 32.0 27.5 2,500 10,000,000 250 18 11 8.3 26 76UR3100(1)30(2) R76UR3100(1)30(2) 2,000 700 0.12 18.0 33.0 32.0 27. 5 2,500 10,000,000 300 18 20 6.6 23 76UR3120(1)30(2) R76UR3120(1)30(2) 2,000 700 0.15 18.0 33.0 32.0 27. 5 2,500 10,000,000 375 18 16 7.4 23 76UR3150(1)30(2) R76UR3150(1)30(2) 2,000 700 0.18 22.0 3 7.0 32.0 2 7.5 2,500 10,000,000 450 18 13 8.5 21 76UR3180(1)30(2) R76UR3180(1)30(2) 2,000 700 2,000 700 0.033 11.0 22.0 41.5 37.5 1,50 0 6,000,000 50 20 24 5.5 27 76UW2330(1)30(2) R76UW2330(1)30(2) 2,000 700 0.039 11.0 22.0 41.5 37.5 1,50 0 6,000,000 59 20 20 6.0 27 76UW2390(1)30(2) R76UW2390(1)30(2) 2,000 700 0.047 11.0 22.0 41.5 37.5 1,50 0 6,000,000 71 20 17 6.6 27 76UW2470(1)30(2) R76UW2470(1)30(2) 2,000 700 0.056 11.0 22.0 41.5 37.5 1,50 0 6,000,000 84 20 20 6.1 27 76UW2560(1)30(2) R76UW2560(1)30(2) 2,000 700 0.068 11.0 22.0 41.5 37.5 1,50 0 6,000,000 102 20 16 6.7 27 76UW2680(1)30(2) R76UW2680(1)30(2) 2,000 700 0.082 11.0 22.0 41.5 37. 5 1,500 6,000,000 123 20 14 7. 4 27 76UW2820(1)30(2) R76UW2820(1)30(2) 2,000 700 0.082 24.0 15.0 41.5 37. 5 1,500 6,000,000 123 20 14 7.8 24 76UW2820(1)L0(2) R76UW2820(1)L0(2) 2,000 700 0.1 13.0 24.0 41.5 3 7.5 1,500 6,000,000 150 20 11 8.4 25 76UW3100(1)30(2) R76UW3100(1)30(2) 2,000 700 0.1 24.0 15.0 41.5 37. 5 1,500 6,000,000 15 0 20 11 8.6 24 76UW3100(1)L0(2) R76UW3100(1)L0(2) 2,000 700 0.12 13.0 24.0 41.5 37.5 1,50 0 6,000,000 180 20 20 6.3 25 76UW3120(1)30(2) R76UW3120(1)30(2) 2,000 700 0.12 24.0 15.0 41.5 37. 5 1,500 6,000,000 180 20 20 6.4 24 76UW3120(1)L0(2) R76UW3120(1)L0(2) 2,000 700 0.15 16.0 28.5 41.5 37. 5 1,500 6,000,000 225 20 16 7.5 23 76UW3150(1)30(2) R76UW3150(1)30(2) 2,000 700 0.15 24.0 19.0 41.5 37.5 1,50 0 6,000,000 225 20 16 7.4 23 76UW3150(1)L0(2) R76UW3150(1)L0(2) 2,000 700 0.18 16.0 28.5 41.5 37. 5 1,500 6,000,000 270 20 13 8.2 23 76UW3180(1)30(2) R76UW3180(1)30(2) 2,000 700 0.18 24.0 19.0 41.5 37.5 1,50 0 6,000,000 270 20 13 8 .1 23 76UW3180(1)L0(2) R76UW3180(1)L0(2) 2,000 700 0.22 19.0 32.0 41.5 37. 5 1,500 6,000,000 330 20 11 9.4 21 76UW3220(1)30(2) R76UW3220(1)30(2) 2,000 700 0.27 20.0 40.0 41.5 37. 5 1,500 6,000,000 405 20 9 11.0 19 76UW3270(1)30(2) R76UW3270(1)30(2) 2,000 700 0.33 20.0 40.0 41.5 37. 5 1,500 6,000,000 495 20 7 12.1 19 76UW3330(1)30(2) R76UW3330(1)30(2) 2,000 700 0.39 24.0 44.0 41.5 37.5 1,50 0 6,000,000 585 20 8 11.9 17 76UW3390(1)30(2) R76UW3390(1)30(2) 2,000 700 0.47 24.0 44.0 41.5 37. 5 1,500 6,000,000 705 20 7 13.1 17 76UW3470(1)30(2) R76UW3470(1)30(2) 2,000 700 0.56 30.0 45.0 41.5 37.5 1,5 00 6,000,000 840 20 6 14.8 16 76UW3560(1)30(2) R76UW3560(1)30(2)
VDC VAC
0.22 22.0 3 7.0 32.0 27.5 2,500 10,000,000 550 18 11 9.4 21 76UR3220(1)30(2) R76UR3220(1)30(2)
Cap
Value
T H L
Lead
Spacing
(S)
Lead
Spacing
(S)
dV/dt
(V/µs)
dV/dt
(V/µs)
Max K0 (V2/µs)
Max K
2
(V
/µs)
I
pkr
Lead
Length
2x 4 mm
nH mΩ A
pk
Lead
Length
A
pk
0
2x 4 mm
I
ESL
pkr
ESR max
at
100
kHz
at
100
kHz
ESR
max
I
rms max
at
100 kHz
85°C
rms
at
100 kHz
85°C
(*) R
I
rms max
(*) Rth
(°C/W)
(°C/W)
th
KEMET
Internal
Part Number
KEMET
Internal
Part Number
Customer
Part
Number
Customer
Part Number
(1) Insert lead and packaging code. See Ordering Options Table for available options.
(2) H = 2.5% (only for C ≥ 1,000 pF), J = 5%, K = 10%
(*) I
value that leads to a ΔT of ≈ 20°C in the hot spot > THS = T
rms
+ ΔT = 85°C + 20°C = 105°C
AMB
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
21© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 22
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Recommended Soldering Temperature
0
50
100
150
200
250
300
350
400
0 1 2 3 4 5 6 7 8
Soldering Time (seconds)
Soldering Iron Bit Temperature (°C)
0
50
100
150
200
250
300
0 40 80 120 160 200 240
Temperature (°C)
Time (seconds)
Cooling
2+3 seconds max
260°C
First Wave
Second Wave
∆ T < 150°C
ca. 2°C/second ca. 3.5°C/second typical ca. 5°C/second
Preheating
T
preheat
Typical
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Soldering Process

The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder.
Thishasincreasedtheliquidustemperaturefromthatof183°CforSnPbeutecticalloyto217–221°Cforthenewalloys.Asa
result, the heat stress to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave
temperatures.Polypropylenecapacitorsareespeciallysensitivetoheat(themeltingpointofpolypropyleneis160–170°C).
Wave soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 mm to
15mm),andgreatcarehastobetakenduringsoldering.TherecommendedsolderprolesfromKEMETshouldbeused.Please
consult KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760–1 Edition 2 serves as a solid guideline for successful soldering. Please see Figure 1.
Reowsolderingisnotrecommendedforthrough-holelmcapacitors.Exposingcapacitorstoasolderingproleinexcessofthe
above recommended limits may result in degradation or permanent damage to the capacitors.
Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert
through-holepartsafterthecuringofsurfacemountparts.ConsultKEMETtodiscusstheactualtemperatureproleintheoven,
if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended. Please allow time for the capacitor surface temperature to return to a normal temperature before the second soldering cycle.
Manual Soldering Recommendations
Following is the recommendation for manual soldering with a soldering iron.
The soldering iron tip temperature should
besetat350°C(+10°Cmaximum)withthe
soldering duration not to exceed more than 3 seconds.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Wave Soldering Recommendations
22© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 23
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Single Metallized
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Soldering Process cont.
Wave Soldering Recommendations cont.
1. The table indicates the maximum set-up temperature of the soldering process
Figure 1
Film
Material
Double
Metallized
Polystyrene and
Polypropylene
Maximum
Preheat
Temperature
Capacitor
Pitch
≤15mm
110°C 130°C 260°C 270°C
Capacitor
Pitch
> 15 mm
Maximum
Peak Soldering
Temperature
Capacitor
Pitch
≤15mm
Capacitor
Pitch
> 15 mm
2. The maximum temperature measured on the capacitor body: Set the temperature so that the maximum temperature is below the limit:
Maximum
Film Material
Temperature Measured
on the Capacitor Body
Double Metallized
Polystyrene and Single
Metallized Polypropylene
120°C(forseriesR76)
Sensor Position
Duration: < 60 seconds
Selective Soldering Recommendations
Selectivedipsolderingisavariationofreowsoldering.Inthismethod,theprintedcircuitboardwiththrough-hole componentstobesolderedispreheatedandtransportedoverthesolderbathasinnormalowsolderingwithouttouching
the solder. When the board is over the bath, it is stopped and pre-designed solder pots are lifted from the bath with molten solder only at the places of the selected components, and pressed against the lower surface of the board to solder the components.
Thetemperatureproleforselectivesolderingissimilartothedoublewaveowsolderingoutlinedinthisdocument,
however, instead of two baths, there is only one bath with a time from 3 to 10 seconds. In selective soldering, the risk of
overheatingisgreaterthanindoublewaveowsoldering,andgreatcaremustbetakensothatthepartsarenotoverheated.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
23© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 24
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Detailed Cross Section
Self-Extinguishing
Resin
Molded Plastic
Case
Leads
Metal Contact
Layer
Metal Contact
Layer
Margin
Margin
Molded Plastic
Case
Margin
Double-Sided Metallized
Polyester Film
(Second Layer)
Polypropylene Film
(First Layer)
Polypropylene Film (Third Layer)
Double-Sided Metallized
Polyester Film (Fourth Layer)
1 Section
Double-sided Metallized Polyester Film
Polypropylene
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Construction

Winding Schemes
Double-sided
Metallized
Polyester
Carrier
Film
Low Prole Version
Double-sided
Metallized
Polyester Carrier
Film
1 Section
Polypropylene
Film Dielectric
2 Sections
Film Dielectric
Single-sided
Metallized
Polypropylene
Film
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
24© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 25
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
Capacitance Capacitance
Tolerance
Voltage
Code
Optional Pitch 7.5
Series
Series
Dielectric
Date Code
Can also be style “19-26”
(Year, Calendar Week)
Manufacturer’s
Logo
Manufacturer’s
Logo
Series
Manufacturer’s
Logo
Dielectric
Dielectric
Date Code
Date Code
Can also be style “19-26”
(Year, Calendar Week)
TOPFRONT
Capacitance
Capacitance
Tolerance
Dielectric
Voltage
Code
Date Code
Can also be style “19-26”
(Year, Calendar Week)
Series

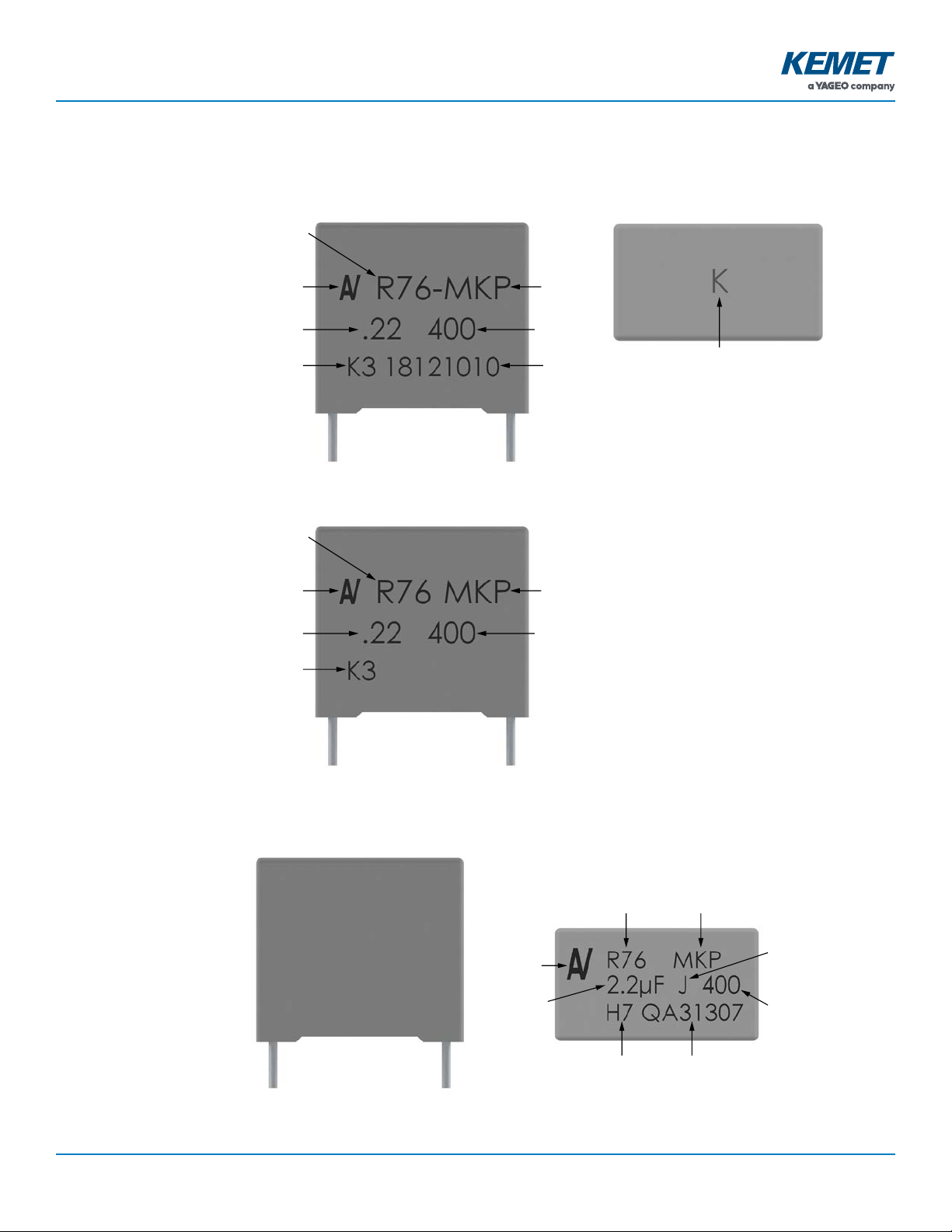

Marking Variants*
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

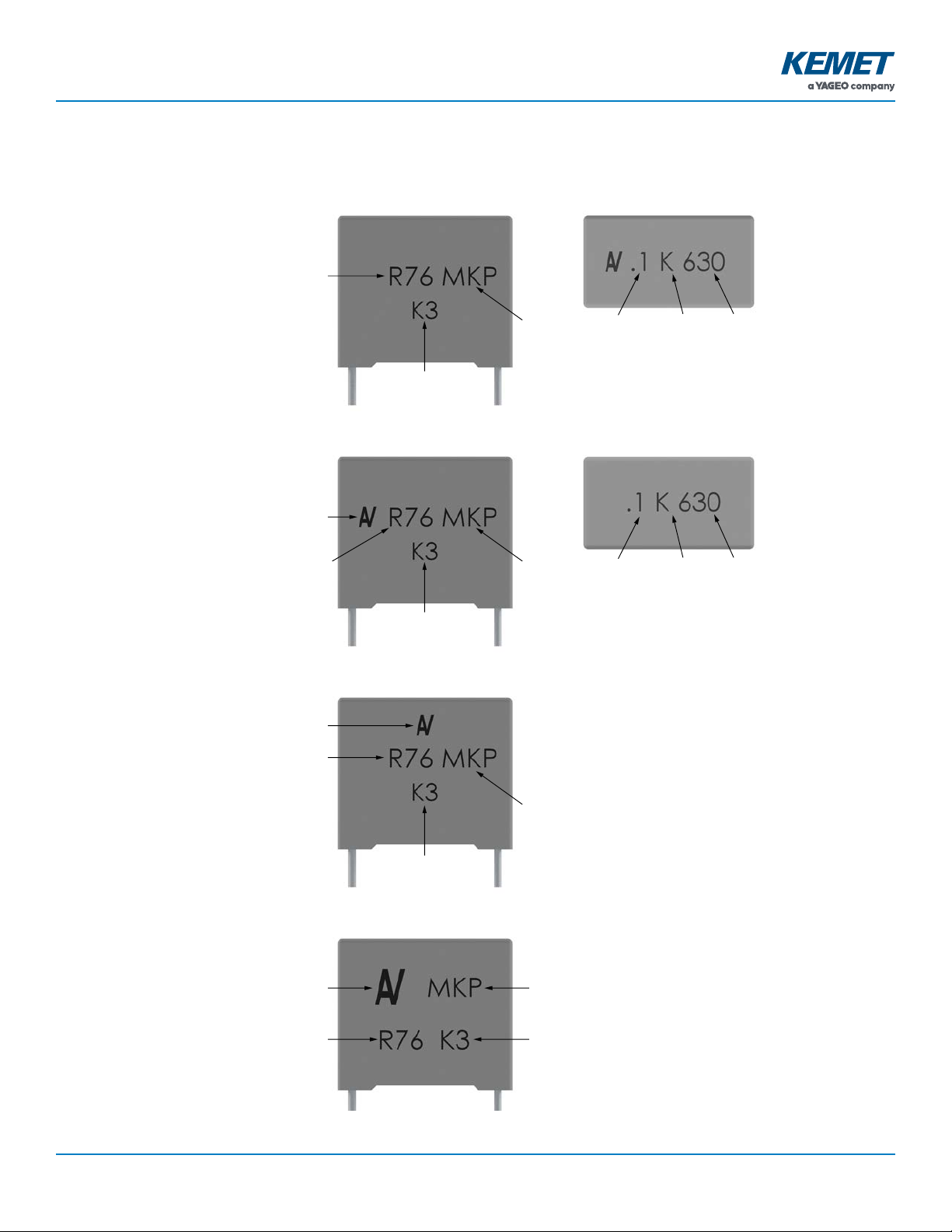

Marking

Pitch – 7.5, 10, 15, & 22.5
*Differences are caused by technology (clichee, laser, or ink) and technic (production line)
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
25© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 26
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
TOPFRONT
Capacitance
Tolerance
Series
Dielectric
Manufacturer’s
Logo
Rated VoltageCapacitance
Date Code QA-Number
Series
Dielectric
Manufacturer’s
Logo
Rated VoltageCapacitance
Date Code
Hot marking imprinting
with or without color
Marking Variants*
TOPFRONT
Series Dielectric
Manufacturer’s
Logo
Rated
Voltage
Capacitance
Capacitance
Tolerance
QA-Number
Date Code
Marking Variants*
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Marking cont.
Pitch – 7.5, 10, 15, 22.5, 27.5, & 37.5
Pitch – 22.5, 27.5, & 37.5
* Differences are caused by technology (clichee, laser, or ink) and technic (production line)
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
26© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 27
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
2010
A
January
1
2011
B
February
2
2012CMarch
3
2013DApril42014EMay52015FJune62016HJuly72017
J
August
8
2018
K
September
9
2019
L
October
O
2020
M
November
N
2021
N
December
D
2022P2023R2024S2025T2026U2027V2028W2029
X
2030
A
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Marking cont.
Manufacturing Date Code (IEC–60062)
Year Code Month Code
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
27© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 28
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
3.0
8.0
10.0
1,500
1,750-2,10 0-2,800
4.0
9.0
10.0
2,000
1,500-1,500-2,10 0
5.0
10.5
10.0
1,500
1,000-1,200-1,600
6.0
12.0
10.5
1,000
800-1,000-1,350
4.0
9.0
13.0
2,000
2,200
1,800
750
1,500
1,000
5.0
11.0
13.0
1,300
2,000
1,500
600
1,250
800
6.0
12.0
13.0
1,000
1,800
1,200
500
1,000
680
4.0
10.0
18.0
2,500
1,500
1,500
750
1,500
1,000
5.0
11.0
18.0
2,000
1,250
1,000
600
1,250
800
6.0
12.0
18.0
1,750
1,000
900
500
1,000
680
7.5
13.5
18.0
1,000
800
700
350
800
500
8.5
14.5
18.0
1,000
650
500
300
700
440
9.0
12.5
18.0
1,000
700
520
270
650
410
10.0
16.0
18.0
750
550
500
270
600
380
11.0
19.0
18.0
450
400
350
270
500
340
13.0
12.0
18.0
750
520
490
200
480
280
6.0
15.0
26.5
805
450
500
300
700
464
7.0
16.0
26.5
700
450
500
250
550
380
8.5
17.0
26.5
468
350
300
250
450
280
10.0
18.5
26.5
396
350
300
160
350
235
11.0
20.0
26.5
360
200
250
160
350
217
13.0
22.0
26.5
300
150
200
130
300
-
9.0
17.0
32.0
816
-
408
230
450
-
11.0
20.0
32.0
560
-
336
190
350
-
13.0
12.0
32.0
672
-
288
---
13.0
22.0
32.0
480
-
288
150
300
-
13.0
25.0
32.0
480
-
288
-
300
-
14.0
28.0
32.0
352
-
176
-
-
-
18.0
33.0
32.0
256
-
128
-
-
-
22.0
37.0
32.0
168
-
112
-
-
-
24.0
15.0
32.0
336
-
144
---
11.0
22.0
41.5
420
-
252
-
-
-
13.0
24.0
41.5
360
-
216
-
-
-
16.0
28.5
41.5
216
-
108
-
-
-
19.0
32.0
41.5
192
-96-
-
-
20.0
40.0
41.5
126
-84-
-
-
24.0
15.0
41.5
252
-
108
---
24.0
19.0
41.5
216
-
108
---
24.0
44.0
41.5
108
-72-
-
-
30.0
45.0
41.590-60-
-
-
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Packaging Quantities

Lead
Spacing
7.5
10
15
22.5
Thickness
(mm)
Height
(mm)
Lead and Packaging Code
Length
(mm)
Bulk
Short Leads
JA - JB
JE - JH - SE
Long Leads
Z31 - JM
Bulk
2
Standard
Reel
ø 355 mm
40 - 50 GY - CK
1
Large Reel
ø 500 mm
CK DQ
Ammo
Taped
27.5
37.5
1 Only for 7.5 mm lead spacing.
2 Only for > 7.5 mm lead spacing.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
28© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 29
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
7.5
10.0
15.0
22.5
27.5
0
2
0
1
2
0
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)

Lead Taping & Packaging (IEC 60286–2)

Figure 1 — Lead Spacing 7.5 mm
P
2
P
1
H
0
F
PP
∆h∆h
W
2
BA
W
W
0
P
0
t
D
A−B
0
Ød
1
W
t
Lead Spacing 10 & 15 mm Lead Spacing 22.5 & 27.5 mm
P
P
2
W
H
0
P
P
F
1
0
2
W
W
0
D
0
Taping Specication
Dimensions (mm)
Description Symbol
Lead wire diameter d 0.5 – 0.6 0.6 0.6 – 0.8 0.8 0.8 ±0.05
Taping lead space P 12.7 25.4 25.4 38.1 38.1 ±1
Feed hole lead space * P
Centering of the lead
wire
P
1
Centering of the body P
Lead spacing *** F 7.5 10.0 15.0 22.5 27.5 +0.6/−0.1
Component alignment Δh 0 0 0 0 0 ±2
Component deviation Δp 0 0 0 0 0 ±1
Height of component
from tape center
H0**** 18.5 18.5 18.5 18.5 18.5 ±0.5
Carrier tape width W 18 18 18 18 18 +1/−0.5
Hold down tape width W
Hole position W
Hold down tape position W
Feed hole diameter D
Total Tape thickness t 0.7 0.7 0.7 0.7 0.7 ±0.2
12.7 12.7 12.7 12.7 12.7 ±0.2 **
2.6 7.7 5.2 7.8 5.3 ±0.7
6.35 12.7 12.7 19.05 19.05 ±1.3
6 9 10 10 10 Minimum
9 9 9 9 9 ±0.5
3 3 3 3 3 Maximum
4 4 4 4 4 ±0.2
Lead Spacing
∆h ∆h
1
W
Ød
t
Tolerance
P
BA
A−B
t
P1P
2
* Available also 15 mm.
** Maximum 1 mm on 20 lead spacing. *** 15 mm and 10 mm taped to 7.5 mm (crimped leads) available upon request.
**** H
= 16.5 mm is available upon request.
0
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
29© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Page 30
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
355 500
30 25
D
W
H
H
T
W
R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
Lead Taping & Packaging (IEC 60286–2) cont.
Ammo Specications
Dimensions (mm)
H W T
360 340 59
Reel Specications
Dimensions (mm)
D H W
55 Maximum
30© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Page 31
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76, Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade)
KEMET Electronics Corporation Sales Offi ces
Foracompletelistofourglobalsalesoces,pleasevisitwww.kemet.com/sales.

Disclaimer

Allproductspecications,statements,informationanddata(collectively,the“Information”)inthisdatasheetaresubjecttochange.Thecustomerisresponsiblefor
checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
StatementsofsuitabilityforcertainapplicationsarebasedonKEMETElectronicsCorporation’s(“KEMET”)knowledgeoftypicaloperatingconditionsforsuch applications,butarenotintendedtoconstitute–andKEMETspecicallydisclaims–anywarrantyconcerningsuitabilityforaspeciccustomerapplicationoruse.
The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained.
Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards
(suchasinstallationofprotectivecircuitryorredundancies)inordertoensurethatthefailureofanelectricalcomponentdoesnotresultinariskofpersonalinjury
or property damage.
Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required.
KEMET is a registered trademark of KEMET Electronics Corporation.
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
31© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard F3034_R76 • 1/13/2022
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
