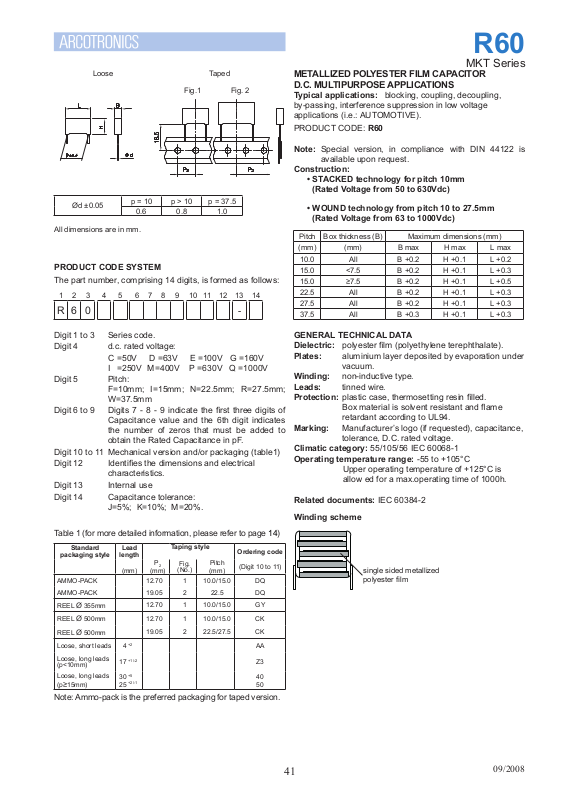

Page 1

Loose Taped

Fig.1 Fig. 2

Ød ±0.05

All dimensions are in mm.

p = 10 p > 10 p = 37.5

0.6 0.8 1.0

PRODUCT CODE SYSTEM

The part number, comprising 14 digits, is formed as follows:

1 2 3 4 5 6 7 8 9 10 11 12 13 14

R 6 0

R60

MKT Series

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

Typical applications: blocking, coupling, decoupling,

by-passing, interference suppression in low voltage applications (i.e.: AUTOMOTIVE).

PRODUCT CODE:

Note: Special version, in compliance with DIN 44122 is

available upon request.

Construction:

• STACKED technology for pitch 10mm (Rated Voltage from 50 to 630Vdc)

• WOUND technology from pitch 10 to 27.5mm (Rated Voltage from 63 to 1000Vdc)

Pitch Box thickness (B) Maximum dimensions (mm) (mm) (mm) B max H max L max

10.0 All B +0.2 H +0.1 L +0.2

15.0 <7.5 B +0.2 H +0.1 L +0.3

15.0 ≥7.5 B +0.2 H +0.1 L +0.5

22.5 All B +0.2 H +0.1 L +0.3

27.5 All B +0.2 H +0.1 L +0.3

37.5 All B +0.3 H +0.1 L +0.3

R60

Digit 1 to 3 Series code. Digit 4 d.c. rated voltage:

C = 50V D = 63V E = 100V G = 160V I = 250V M = 400V P = 630V Q = 1000V

Digit 5 Pitch:

F=10mm; I=15mm; N=22.5mm; R=27.5mm; W=37.5mm

Digit 6 to 9 Digits 7 - 8 - 9 indicate the rst three digits of

Capacitance value and the 6th digit indicates the number of zeros that must be added to obtain the Rated Capacitance in pF.

Digit 10 to 11 Mechanical version and/or packaging (table1)

Digit 12 Identies the dimensions and electrical

characteristics. Digit 13 Internal use Digit 14 Capacitance tolerance:

J=5%; K=10%; M=20%.

Table 1 (for more detailed information, please refer to page 14)

Standard

packaging style

AMMO-PACK

Ø 355mm

REEL

Ø 500mm

REEL

Ø 500mm

REEL

Loose, short leads 4

Loose, long leads (p<10mm)

Loose, long leads (p≥15mm)

length

30 25

Lead

(mm)

+1/-2

+2/-1

Taping style

Fig.

(No.)

(mm)

12.70 1 10.0/15.0 DQ

19.05 2 22.5 DQ

12.70 1 10.0/15.0 GY

12.70 1 10.0/15.0 CK

19.05 2 22.5/27.5 CK

Pitch (mm)

Ordering code

(Digit 10 to 11)

40 50

Note: Ammo-pack is the preferred packaging for taped version.

GENERAL TECHNICAL DATA Dielectric:

polyester lm (polyethylene terephthalate).

Plates: aluminium layer deposited by evaporation under

vacuum.

Winding: non-inductive type. Leads: tinned wire. Protection: plastic case, thermosetting resin lled.

Box material is solvent resistant and ame

retardant according to UL94.

Marking:

Manufacturer’s logo (if requested), capacitance, tolerance, D.C. rated voltage.

Climatic category: 55/105/56 IEC 60068-1 Operating temperature range: -55 to +105°C

Upper operating temperature of +125°C is

allow ed for a max.operating time of 1000h.

Related documents: IEC 60384-2

Winding scheme

single sided metallized

polyester lm

09/2008

Page 2

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

STACKED VERSION

R60

MKT Series

Rated

Cap.

1.5 µF 4.0 9.0 13.0 10.0 30 3 E3

2.2 µF 4.0 9.0 13.0 10.0 30 3 E3

3.3 µF 5.0 11.0 13.0 10.0 30 3 E3

4.7 µF 6.0 12.0 13.0 10.0 30 3 E3

5.6 µF 6.0 12.0 13.0 10.0 30 3 E3

Rated

Cap.

1.0 µF 4.0 9.0 13.0 10.0 50 6.3 E3

1.5 µF 5.0 11.0 13.0 10.0 50 6.3 E3

2.2 µF 5.0 11.0 13.0 10.0 50 6.3 E3

3.3 µF 6.0 12.0 13.0 10.0 50 6.3 E3

Rated

Cap.

0.33 µF 4.0 9.0 13.0 10.0 75 15 E3

0.47 µF 4.0 9.0 13.0 10.0 75 15 E3

0.68 µF 4.0 9.0 13.0 10.0 75 15 E3

1.0 µF 5.0 11.0 13.0 10.0 75 15 E3

1.5 µF 5.0 11.0 13.0 10.0 75 15 E3

Rated

Cap.

0.22 µF 4.0 9.0 13.0 10.0 100 32 E3

0.33 µF 4.0 9.0 13.0 10.0 100 32 E3

0.47 µF 5.0 11.0 13.0 10.0 100 32 E3

0.68 µF 6.0 12.0 13.0 10.0 100 32 E3

50Vdc/30Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

63Vdc/40Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

100Vdc/63Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

160Vdc/90Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

Max

dv/dt

Max

dv/dt

Max

dv/dt

Max

dv/dt

Max K

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

Part Number

R60CF4150--6-- R60CF4220--6-- R60CF4330--6-- R60CF4470--6-- R60CF4560--6--

Part Number

R60DF 4100--6-- R60DF 4150--6-- R60DF 4220--6--

R60DF 4330

Part Number

R60EF 3330--6-- R60EF 3470--6-- R60EF 3680--6-- R60EF 4100--6-- R60EF 4150--6--

Part Number

R60GF 3220--6-- R60GF 3330--6--

R60GF 3470 R60GF 3680--6--

--6--

Rated

Cap.

0.10 µF 4.0 9.0 13.0 10.0 150 75 E3

0.15 µF 4.0 9.0 13.0 10.0 150 75 E3

0.22 µF 5.0 11.0 13.0 10.0 150 75 E3

0.33 µF 5.0 11.0 13.0 10.0 150 75 E3

0.47 µF 6.0 12.0 13.0 10.0 150 75 E3

Rated

Cap.

0.033 µF 4.0 9.0 13.0 10.0 175 140 E3

0.047 µF 4.0 9.0 13.0 10.0 175 140 E3

0.068 µF 4.0 9.0 13.0 10.0 175 140 E3

0.10 µF 5.0 11.0 13.0 10.0 175 140 E3

0.15 µF 6.0 12.0 13.0 10.0 175 140 E3

Rated

Cap.

0.010 µF 4.0 9.0 13.0 10.0 200 250 E3

0.015 µF 4.0 9.0 13.0 10.0 200 250 E3

0.022 µF 4.0 9.0 13.0 10.0 200 250 E3

0.033 µF 5.0 11.0 13.0 10.0 200 250 E3

0.047 µF 5.0 11.0 13.0 10.0 200 250 E3

250Vdc/160Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

400Vdc/200Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

630Vdc/220Vac

Std dimensions

B H L p (V/ µs) (V2/ µs)

Max

Max K0Part Number

dv/dt

Max

Max K0Part Number

dv/dt

Max

Max K0Part Number

dv/dt

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

R60IF 3100--6-- R60IF 3150--6-- R60IF 3220--6-- R60IF 3330--6-- R60IF 3470--6--

R60ΜF 2330--6-R60ΜF 2470--6-R60ΜF 2680--6-R60ΜF 3100--6--

R60ΜF 3150

R60PF 2100--6-- R60PF 2150--6-- R60PF 2220--6-- R60PF 2330--6--

R60PF 2470

--6--

All dimensions are in mm.

Note: If the working voltage (V) is lower than the rated voltage (VR), the capacitor may work at higher dv/dt. In this case the

maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio VR /V.

The pulse characteristic K0 depends on the voltage wave-form and in any case it cannot overcome the value given in

the above table.

*Not suitable for across-the-line applications. Please refer to Interference Suppression Capacitors (page 145).

09/2008

Page 3

Rated

Cap.

0.68 µF 5.0 11.0 18.0 15.0 2.5 0.32 E3

1.0 µF 5.0 11.0 18.0 15.0 2.5 0.32 E3

1.5 µF 5.0 11.0 18.0 15.0 2.5 0.32 E3

2.2 µF 6.0 12.0 18.0 15.0 2.5 0.32 E3

3.3 µF 7.5 13.5 18.0 15.0 2.5 0.32 E3

3.3 µF 9.0 12.5 18.0 15.0 2.5 0.32 E3

4.7 µF 8.5 14.5 18.0 15.0 2.5 0.32 E3

4.7 µF 13.0 12.0 18.0 15.0 2.5 0.32 E3

6.8 µF 10.0 16.0 18.0 15.0 2.5 0.32 E3

3.3 µF 6.0 15.0 26.5 22.5 1.5 0.19 E3

4.7 µF 7.0 16.0 26.5 22.5 1.5 0.19 E3

6.8 µF 7.0 16.0 26.5 22.5 1.5 0.19 E3

10.0 µF 8.5 17.0 26.5 22.5 1.5 0.19 E3

15.0 µF 11.0 20.0 26.5 22.5 1.5 0.19 E3

10.0 µF 9.0 17.0 32.0 27.5 1.0 0.13 E3

15.0 µF 9.0 17.0 32.0 27.5 1.0 0.13 E3

22.0 µF 11.0 20.0 32.0 27.5 1.0 0.13 E3

33.0 µF 13.0 22.0 32.0 27.5 1.0 0.13 E3

47.0 µF 14.0 28.0 32.0 27.5 1.0 0.13 E3

68.0 µF 18.0 33.0 32.0 27.5 1.0 0.13 E3

100.0 µF 22.0 37.0 32.0 27.5 1.0 0.13 E3

22.0 µF 11.0 22.0 41.5 37.5 0.8 0.10 E3

33.0 µF 11.0 22.0 41.5 37.5 0.8 0.10 E3

47.0 µF 13.0 24.0 41.5 37.5 0.8 0.10 E3

68.0 µF 19.0 32.0 41.5 37.5 0.8 0.10 E3

100.0 µF 19.0 32.0 41.5 37.5 0.8 0.10 E3

150.0 µF 20.0 40.0 41.5 37.5 0.8 0.10 E3

220.0 µF 24.0 44.0 41.5 37.5 0.8 0.10 E3

Rated

Cap.

0.33 µF 5.0 11.0 18.0 15.0 3.0 0.6 E3

0.47 µF 5.0 11.0 18.0 15.0 3.0 0.6 E3

0.68 µF 5.0 11.0 18.0 15.0 3.0 0.6 E3

1.0 µF 5.0 11.0 18.0 15.0 3.0 0.6 E3

1.5 µF 7.5 13.5 18.0 15.0 3.0 0.6 E3

2.2 µF 8.5 14.5 18.0 15.0 3.0 0.6 E3

2.2 µF 9.0 12.5 18.0 15.0 3.0 0.6 E3

3.3 µF 10.0 16.0 18.0 15.0 3.0 0.6 E3

3.3 µF 13.0 12.0 18.0 15.0 3.0 0.6 E3

4.7 µF 11.0 19.0 18.0 15.0 3.0 0.6 E3

1.5 µF 6.0 15.0 26.5 22.5 2.0 0.4 E3

2.2 µF 6.0 15.0 26.5 22.5 2.0 0.4 E3

3.3 µF 7.0 16.0 26.5 22.5 2.0 0.4 E3

4.7 µF 8.5 17.0 26.5 22.5 2.0 0.4 E3

6.8 µF 10.0 18.5 26.5 22.5 2.0 0.4 E3

10.0 µF 13.0 22.0 26.5 22.5 2.0 0.4 E3

4.7 µF 9.0 17.0 32.0 27.5 1.5 0.3 E3

6.8 µF 9.0 17.0 32.0 27.5 1.5 0.3 E3

10.0 µF 9.0 17.0 32.0 27.5 1.5 0.3 E3

15.0 µF 11.0 20.0 32.0 27.5 1.5 0.3 E3

22.0 µF 13.0 22.0 32.0 27.5 1.5 0.3 E3

33.0 µF 14.0 28.0 32.0 27.5 1.5 0.3 E3

47.0 µF 18.0 33.0 32.0 27.5 1.5 0.3 E3

68.0 µF 22.0 37.0 32.0 27.5 1.5 0.3 E3

15.0 µF 11.0 22.0 41.5 37.5 1.0 0.2 E3

22.0 µF 11.0 22.0 41.5 37.5 1.0 0.2 E3

33.0 µF 13.0 24.0 41.5 37.5 1.0 0.2 E3

47.0 µF 16.0 28.5 41.5 37.5 1.0 0.2 E3

68.0 µF 19.0 32.0 41.5 37.5 1.0 0.2 E3

100.0 µF 20.0 40.0 41.5 37.5 1.0 0.2 E3

150.0 µF 24.0 44.0 41.5 37.5 1.0 0.2 E3

63Vdc/40Vac

Std dimensions

B H L p (V/µs) (V2/µs)

100Vdc/63Vac

Std dimensions

B H L p (V/µs) (V2/µs)

Max dv/dt Max K

Max

Max K

dv/dt

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

All dimensions are in mm.

Part Number

R60DI 3680--3-- R60DI 4100--3-- R60DI 4150--3-- R60DI 4220--3-- R60DI 4330--3-- R60DI 4330--L-- R60DI 4470--3-- R60DI 4470--L-- R60DI 4680--3-- R60DN4330--3-- R60DN4470--3-- R60DN4680--3-- R60DN5100--3-- R60DN5150--3-- R60DR5100--3-- R60DR5150--4-- R60DR5220--4-- R60DR5330--4-- R60DR5470--4-- R60DR5680--4-- R60DR6100--0-- R60DW5220--3-- R60DW5330--4-- R60DW5470--4-- R60DW5680--3-- R60DW6100--4-- R60DW6150--0-- R60DW6220--0--

Part Number

R60EI 3330--3-- R60EI 3470--3-- R60EI 3680 R60EI 4100--3-- R60EI 4150--3-- R60EI 4220--3-- R60EI 4220 R60EI 4330--3-- R60EI 4330--L-- R60EI 4470--3-- R60EN 4150 R60EN 4220--3-- R60EN 4330--3-- R60EN 4470 R60EN 4680--3-- R60EN 5100--3-- R60ER 4470--3-- R60ER 4680 R60ER 5100--4-- R60ER 5150--4-- R60ER 5220--4-- R60ER 5330 R60ER 5470--4-- R60ER 5680--0-- R60EW5150 R60EW5220--4-- R60EW5330--4-- R60EW5470--4-- R60EW5680 R60EW6100 R60EW6150--0--

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

WOUND VERSION

Rated

Cap.

0.33 µF 5.0 11.0 18.0 15.0 9.0 2.90 E3

0.47 µF 5.0 11.0 18.0 15.0 9.0 2.90 E3

0.68 µF 5.0 11.0 18.0 15.0 9.0 2.90 E3

1.0 µF 7.5 13.5 18.0 15.0 9.0 2.90 E3

1.5 µF 8.5 14.5 18.0 15.0 9.0 2.90 E3

1.5 µF 9.0 12.5 18.0 15.0 9.0 2.90 E3

2.2 µF 10.0 16.0 18.0 15.0 9.0 2.90 E3

2.2 µF 13.0 12.0 18.0 15.0 9.0 2.90 E3

3.3 µF 11.0 19.0 18.0 15.0 9.0 2.90 E3

1.5 µF 6.0 15.0 26.5 22.5 5.5 1.70 E3

2.2 µF 7.0 16.0 26.5 22.5 5.5 1.70 E3

3.3 µF 8.5 17.0 26.5 22.5 5.5 1.70 E3

4.7 µF 11.0 20.0 26.5 22.5 5.5 1.70 E3

6.8 µF 13.0 22.0 26.5 22.5 5.5 1.70 E3

3.3 µF 9.0 17.0 32.0 27.5 3.0 0.96 E3

4.7 µF 9.0 17.0 32.0 27.5 3.0 0.96 E3

6.8 µF 9.0 17.0 32.0 27.5 3.0 0.96 E3

10.0 µF 9.0 17.0 32.0 27.5 3.0 0.96 E3

15.0 µF 11.0 20.0 32.0 27.5 3.0 0.96 E3

22.0 µF 13.0 22.0 32.0 27.5 3.0 0.96 E3

33.0 µF 14.0 28.0 32.0 27.5 3.0 0.96 E3

47.0 µF 18.0 33.0 32.0 27.5 3.0 0.96 E3

68.0 µF 22.0 37.0 32.0 27.5 3.0 0.96 E3

10.0 µF 11.0 22.0 41.5 37.5 2.0 0.64 E3

15.0 µF 11.0 22.0 41.5 37.5 2.0 0.64 E3

22.0 µF 11.0 22.0 41.5 37.5 2.0 0.64 E3

33.0 µF 13.0 24.0 41.5 37.5 2.0 0.64 E3

47.0 µF 16.0 28.5 41.5 37.5 2.0 0.64 E3

68.0 µF 19.0 32.0 41.5 37.5 2.0 0.64 E3

100.0 µF 20.0 40.0 41.5 37.5 2.0 0.64 E3

150.0 µF 30.0 45.0 41.5 37.5 2.0 0.64 E3

Rated

Cap.

--3--

--L--

--3--

--4--

--5--

--0--

0.10 µF 5.0 11.0 18.0 15.0 12 6.0 E3

0.15 µF 5.0 11.0 18.0 15.0 12 6.0 E3

0.22 µF 5.0 11.0 18.0 15.0 12 6.0 E3

0.33 µF 5.0 11.0 18.0 15.0 12 6.0 E3

0.47 µF 6.0 12.0 18.0 15.0 12 6.0 E3

0.68 µF 7.5 13.5 18.0 15.0 12 6.0 E3

0.68 µF 9.0 12.5 18.0 15.0 12 6.0 E3

1.0 µF 8.5 14.5 18.0 15.0 12 6.0 E3

1.0 µF 13.0 12.0 18.0 15.0 12 6.0 E3

1.5 µF 10.0 16.0 18.0 15.0 12 6.0 E3

0.47 µF 6.0 15.0 26.5 22.5 8 4.0 E3

0.68 µF 6.0 15.0 26.5 22.5 8 4.0 E3

1.0 µF 6.0 15.0 26.5 22.5 8 4.0 E3

1.5 µF 7.0 16.0 26.5 22.5 8 4.0 E3

2.2 µF 10.0 18.5 26.5 22.5 8 4.0 E3

3.3 µF 11.0 20.0 26.5 22.5 8 4.0 E3

1.5 µF 9.0 17.0 32.0 27.5 5 2.5 E3

2.2 µF 9.0 17.0 32.0 27.5 5 2.5 E3

3.3 µF 9.0 17.0 32.0 27.5 5 2.5 E3

4.7 µF 9.0 17.0 32.0 27.5 5 2.5 E3

6.8 µF 11.0 20.0 32.0 27.5 5 2.5 E3

10.0 µF 13.0 22.0 32.0 27.5 5 2.5 E3

15.0 µF 14.0 28.0 32.0 27.5 5 2.5 E3

22.0 µF 18.0 33.0 32.0 27.5 5 2.5 E3

33.0 µF 22.0 37.0 32.0 27.5 5 2.5 E3

4.7 µF 11.0 22.0 41.5 37.5 4 2.0 E3

6.8 µF 11.0 22.0 41.5 37.5 4 2.0 E3

10.0 µF 11.0 22.0 41.5 37.5 4 2.0 E3

15.0 µF 13.0 24.0 41.5 37.5 4 2.0 E3

22.0 µF 16.0 28.5 41.5 37.5 4 2.0 E3

33.0 µF 19.0 32.0 41.5 37.5 4 2.0 E3

47.0 µF 20.0 40.0 41.5 37.5 4 2.0 E3

68.0 µF 24.0 44.0 41.5 37.5 4 2.0 E3

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

160Vdc/90Vac

Std dimensions

B H L p (V/µs) (V2/µs)

250Vdc/160Vac

Std dimensions

B H L p (V/µs) (V2/µs)

Max dv/dt Max K0Part Number

R60

MKT Series

R60GI 3330 R60GI 3470 R60GI 3680 R60GI 4100 R60GI 4150 R60GI 4150 R60GI 4220 R60GI 4220 R60GI 4330 R60GN4150--3-- R60GN4220--3-- R60GN4330--3-- R60GN4470--3-- R60GN4680--3-- R60GR4330--3-- R60GR4470--3-- R60GR4680--4-- R60GR5100--4-- R60GR5150--4-- R60GR5220--4-- R60GR5330--0-- R60GR5470--0-- R60GR5680--0-- R60GW5100--3-- R60GW5150--4-- R60GW5220--4-- R60GW5330--4-- R60GW5470--4-- R60GW5680--0-- R60GW6100--0-- R60GW6150--0--

R60II 3100--3-- R60II 3150--3-- R60II 3220--3-- R60II 3330--3-- R60II 3470--3-- R60II 3680--3-- R60II 3680--L-- R60II 4100--3-- R60II 4100--L-- R60II 4150--3-- R60IN 3470--3-- R60IN 3680--3-- R60IN 4100--3-- R60IN 4150--3-- R60IN 4220--3-- R60IN 4330--3-- R60IR 4150--3-- R60IR 4220--3-- R60IR 4330--4-- R60IR 4470--4-- R60IR 4680--4-- R60IR 5100--4-- R60IR 5150--4-- R60IR 5220--0-- R60IR 5330 R60IW 4470 R60IW 4680 R60IW 5100 R60IW 5150 R60IW 5220 R60IW 5330 R60IW 5470 R60IW 5680

--3--

--L--

--3--

--L--

--3--

--0--

--3--

--4--

--0--

Note: If the working voltage (V) is lower than the rated voltage (V

maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio VR /V.

), the capacitor may work at higher dv/dt. In this case the

The pulse characteristic K0 depends on the voltage wave-form and in any case it cannot overcome the value given in

the above table.

09/2008

Page 4

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

WOUND VERSION

R60

MKT Series

Rated

Cap.

0.015 µF 4.0 9.0 13.0 10.0 30.0 24.0 E3

0.022 µF 4.0 9.0 13.0 10.0 30.0 24.0 E3

0.033 µF 4.0 9.0 13.0 10.0 30.0 24.0 E3

0.047 µF 4.0 9.0 13.0 10.0 30.0 24.0 E3

0.068 µF 4.0 9.0 13.0 10.0 30.0 24.0 E3

0.068 µF 5.0 11.0 13.0 10.0 30.0 24.0 E3

0.10 µF 5.0 11.0 13.0 10.0 30.0 24.0 E3

0.10 µF 6.0 12.0 13.0 10.0 30.0 24.0 E3

0.15 µF 6.0 12.0 13.0 10.0 30.0 24.0 E3

0.022 µF 5.0 11.0 18.0 15.0 20.0 16.0 E3

0.047 µF 5.0 11.0 18.0 15.0 20.0 16.0 E3

0.068 µF 5.0 11.0 18.0 15.0 20.0 16.0 E3

0.10 µF 5.0 11.0 18.0 15.0 20.0 16.0 E3

0.15 µF 5.0 11.0 18.0 15.0 20.0 16.0 E3

0.22 µF 5.0 11.0 18.0 15.0 20.0 16.0 E3

0.22 µF 6.0 12.0 18.0 15.0 20.0 16.0 E3

0.33 µF 7.5 13.5 18.0 15.0 20.0 16.0 E3

0.33 µF 9.0 12.5 18.0 15.0 20.0 16.0 E3

0.47 µF 7.5 13.5 18.0 15.0 20.0 16.0 E3

0.47 µF 8.5 14.5 18.0 15.0 20.0 16.0 E3

0.47 µF 9.0 12.5 18.0 15.0 20.0 16.0 E3

0.47 µF 13.0 12.0 18.0 15.0 20.0 16.0 E3

0.68 µF 10.0 16.0 18.0 15.0 20.0 16.0 E3

0.68 µF 11.0 19.0 18.0 15.0 20.0 16.0 E3

0.68 µF 13.0 12.0 18.0 15.0 20.0 16.0 E3

1.0 µF 11.0 19.0 18.0 15.0 20.0 16.0 E3

0.22 µF 6.0 15.0 26.5 22.5 10.0 8.0 E3

0.33 µF 6.0 15.0 26.5 22.5 10.0 8.0 E3

0.47 µF 6.0 15.0 26.5 22.5 10.0 8.0 E3

0.68 µF 6.0 15.0 26.5 22.5 10.0 8.0 E3

0.68 µF 7.0 16.0 26.5 22.5 10.0 8.0 E3

1.0 µF 8.5 17.0 26.5 22.5 10.0 8.0 E3

1.0 µF 10.0 18.5 26.5 22.5 10.0 8.0 E3

1.5 µF 10.0 18.5 26.5 22.5 10.0 8.0 E3

1.5 µF 11.0 20.0 26.5 22.5 10.0 8.0 E3

2.2 µF 13.0 22.0 26.5 22.5 10.0 8.0 E3

0.68 µF 9.0 17.0 32.0 27.5 8.5 3.4 E3

1.0 µF 9.0 17.0 32.0 27.5 8.5 3.4 E3

1.5 µF 9.0 17.0 32.0 27.5 8.5 3.4 E3

2.2 µF 11.0 20.0 32.0 27.5 8.5 3.4 E3

3.3 µF 13.0 22.0 32.0 27.5 8.5 3.4 E3

4.7 µF 14.0 28.0 32.0 27.5 8.5 3.4 E3

6.8 µF 18.0 33.0 32.0 27.5 8.5 3.4 E3

10.0 µF 22.0 37.0 32.0 27.5 8.5 3.4 E3

3.3 µF 11.0 22.0 41.5 37.5 6.0 2.4 E3

4.7 µF 11.0 22.0 41.5 37.5 6.0 2.4 E3

6.8 µF 13.0 24.0 41.5 37.5 6.0 2.4 E3

10.0 µF 16.0 28.5 41.5 37.5 6.0 2.4 E3

15.0 µF 24.0 44.0 41.5 37.5 6.0 2.4 E3

22.0 µF 24.0 44.0 41.5 37.5 6.0 2.4 E3

33.0 µF 30.0 45.0 41.5 37.5 6.0 2.4 E3

400Vdc/200Vac

Std dimensions

B H L p (V/µs) (V2/µs)

Max

dv/dt

Max K

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

Part Number

R60MF2150--3-- R60MF 2220--3-- R60MF 2330--3-- R60MF 2470--3-- R60MF 2680--4-- R60MF 2680--3-- R60MF 3100--4-- R60MF 3100--3-- R60MF 3150--3-- R60MI 2220--3-- R60MI 2470--3-- R60MI 2680--3-- R60MI 3100--3-- R60MI 3150--3-- R60MI 3220--4-- R60MI 3220--3-- R60MI 3330--3-- R60MI 3330--L-- R60MI 3470--4-- R60MI 3470--3-- R60MI 3470--L1- R60MI 3470--L-- R60MI 3680--4-- R60MI 3680 R60MI 3680--L-- R60MI 4100--3-- R60MN3220--3-- R60MN3330--3-- R60MN3470--3-- R60MN3680--4-- R60MN3680--3-- R60MN4100--4-- R60MN4100--3-- R60MN4150--4-- R60MN4150--3-- R60MN4220--3-- R60MR3680--3-- R60MR4100--3-- R60MR4150--4-- R60MR4220--4-- R60MR4330--4-- R60MR4470--4-- R60MR4680--4-- R60MR5100--4-- R60MW4330--3-- R60MW4470--4-- R60MW4680--4-- R60MW5100--4-- R60MW5150--3-- R60MW5220--4-- R60MW5330--4--

--3--

Rated

Cap.

4700 pF 4.0 9.0 13.0 10.0 40 50 E3 6800 pF 4.0 9.0 13.0 10.0 40 50 E3

0.010 µF 4.0 9.0 13.0 10.0 40 50 E3

0.015 µF 4.0 9.0 13.0 10.0 40 50 E3

0.022 µF 4.0 9.0 13.0 10.0 40 50 E3

0.022 µF 5.0 11.0 13.0 10.0 40 50 E3

0.033 µF 5.0 11.0 13.0 10.0 40 50 E3

0.033 µF 6.0 12.0 13.0 10.0 40 50 E3

0.047 µF 6.0 12.0 13.0 10.0 40 50 E3

0.033 µF 5.0 11.0 18.0 15.0 25 31 E3

0.047 µF 5.0 11.0 18.0 15.0 25 31 E3

0.068 µF 5.0 11.0 18.0 15.0 25 31 E3

0.068 µF 6.0 12.0 18.0 15.0 25 31 E3

0.10 µF 6.0 12.0 18.0 15.0 25 31 E3

0.10 µF 7.5 13.5 18.0 15.0 25 31 E3

0.10 µF 9.0 12.5 18.0 15.0 25 31 E3

0.15 µF 7.5 13.5 18.0 15.0 25 31 E3

0.15 µF 8.5 14.5 18.0 15.0 25 31 E3

0.22 µF 8.5 14.5 18.0 15.0 25 31 E3

0.22 µF 10.0 16.0 18.0 15.0 25 31 E3

0.33 µF 10.0 16.0 18.0 15.0 25 31 E3

0.10 µF 6.0 15.0 26.5 22.5 12 15 E3

0.15 µF 6.0 15.0 26.5 22.5 12 15 E3

0.22 µF 6.0 15.0 26.5 22.5 12 15 E3

0.22 µF 7.0 16.0 26.5 22.5 12 15 E3

0.33 µF 7.0 16.0 26.5 22.5 12 15 E3

0.33 µF 8.5 17.0 26.5 22.5 12 15 E3

0.33 µF 10.0 18.5 26.5 22.5 12 15 E3

0.47 µF 10.0 18.5 26.5 22.5 12 15 E3

0.47 µF 11.0 20.0 26.5 22.5 12 15 E3

0.68 µF 11.0 20.0 26.5 22.5 12 15 E3

0.68 µF 13.0 22.0 26.5 22.5 12 15 E3

0.33 µF 9.0 17.0 32.0 27.5 10 12 E3

0.47 µF 9.0 17.0 32.0 27.5 10 12 E3

0.68 µF 11.0 20.0 32.0 27.5 10 12 E3

1.0 µF 11.0 20.0 32.0 27.5 10 12 E3

1.5 µF 18.0 33.0 32.0 27.5 10 12 E3

2.2 µF 18.0 33.0 32.0 27.5 10 12 E3

3.3 µF 22.0 37.0 32.0 27.5 10 12 E3

4.7 µF 22.0 37.0 32.0 27.5 10 12 E3

1.0 µF 11.0 22.0 41.5 37.5 8 9.6 E3

1.5 µF 11.0 22.0 41.5 37.5 8 9.6 E3

2.2 µF 13.0 24.0 41.5 37.5 8 9.6 E3

3.3 µF 16.0 28.5 41.5 37.5 8 9.6 E3

4.7 µF 19.0 32.0 41.5 37.5 8 9.6 E3

6.8 µF 20.0 40.0 41.5 37.5 8 9.6 E3

10.0 µF 24.0 44.0 41.5 37.5 8 9.6 E3

630Vdc/220*Vac

Std dimensions

B H L p (V/µs) (V2/µs)

Max

Max K0Part Number

dv/dt

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

R60PF 1470--3-- R60PF 1680--3-- R60PF 2100--3-- R60PF 2150--3-- R60PF 2220--4-- R60PF 2220--3-- R60PF 2330 R60PF 2330 R60PF 2470 R60PI 2330 R60PI 2470 R60PI 2680 R60PI 2680--3-- R60PI 3100--4-- R60PI 3100--3-- R60PI 3100--L-- R60PI 3150--4-- R60PI 3150--3-- R60PI 3220 R60PI 3220 R60PI 3330 R60PN 3100 R60PN 3150 R60PN 3220--4-- R60PN 3220--3-- R60PN 3330--5-- R60PN 3330--4-- R60PN 3330--3-- R60PN 3470--4-- R60PN 3470--3-- R60PN 3680--4-- R60PN 3680 R60PR 3330 R60PR 3470 R60PR 3680--4-- R60PR 4100--5-- R60PR 4150--3-- R60PR 4220--4-- R60PR 4330--4-- R60PR 4470--4-- R60PW4100--3-- R60PW4150--4-- R60PW4220--4-- R60PW4330--4-- R60PW4470--4-- R60PW4680--0-- R60PW5100--4--

--4--

--3--

--4--

--3--

--4--

All dimensions are in mm.

Note: If the working voltage (V) is lower than the rated voltage (VR), the capacitor may work at higher dv/dt. In this case the

maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio VR /V.

The pulse characteristic K0 depends on the voltage wave-form and in any case it cannot overcome the value given in

the above table.

* Not suitable for across-the-line applications. Please refer to Interference Suppression Capacitors (page 145).

09/2008

Page 5

Rated

Cap.

1000 pF 4.0 9.0 13.0 10.0 60 120 E3 1500 pF 4.0 9.0 13.0 10.0 60 120 E3 2200 pF 4.0 9.0 13.0 10.0 60 120 E3 3300 pF 4.0 9.0 13.0 10.0 60 120 E3 4700 pF 5.0 11.0 13.0 10.0 60 120 E3 6800 pF 6.0 12.0 13.0 10.0 60 120 E3

0.010 µF 5.0 11.0 18.0 15.0 30 60 E3

0.015 µF 5.0 11.0 18.0 15.0 30 60 E3

0.022µF 6.0 12.0 18.0 15.0 30 60 E3

0.033 µF 7.5 13.5 18.0 15.0 30 60 E3

0.033 µF 9.0 12.5 18.0 15.0 30 60 E3

0.047 µF 10.0 16.0 18.0 15.0 30 60 E3

0.047 µF 13.0 12.0 18.0 15.0 30 60 E3

0.068 µF 11.0 19.0 18.0 15.0 30 60 E3

0.033 µF 6.0 15.0 26.5 22.5 15 30 E3

0.047 µF 6.0 15.0 26.5 22.5 15 30 E3

0.068 µF 7.0 16.0 26.5 22.5 15 30 E3

0.10 µF 8.5 17.0 26.5 22.5 15 30 E3

0.15 µF 13.0 22.0 26.5 22.5 15 30 E3

0.15 µF 9.0 17.0 32.0 27.5 12 24 E3

0.22 µF 9.0 17.0 32.0 27.5 12 24 E3

0.33 µF 11.0 20.0 32.0 27.5 12 24 E3

0.47 µF 13.0 22.0 32.0 27.5 12 24 E3

0.68 µF 14.0 28.0 32.0 27.5 12 24 E3

1.00 µF 18.0 33.0 32.0 27.5 12 24 E3

1.50 µF 22.0 37.0 32.0 27.5 12 24 E3

0.47 µF 11.0 22.0 41.5 37.5 10 20 E3

0.68 µF 11.0 22.0 41.5 37.5 10 20 E3

1.00 µF 13.0 24.0 41.5 37.5 10 20 E3

1.50 µF 16.0 28.5 41.5 37.5 10 20 E3

2.20 µF 19.0 32.0 41.5 37.5 10 20 E3

3.30 µF 24.0 44.0 41.5 37.5 10 20 E3

4.70 µF 30.0 45.0 41.5 37.5 10 20 E3

1000Vdc/250Vac*

Std dimensions

B H L p (V/µs) (V2/µs)

Max

dv/dt

Max K

Mechanical version and packaging (Table1) Internal use Tolerance: J (±5%); K (±10%); M (±20%)

Part Number

R60QF 1100 R60QF 1150--0-- R60QF 1220--0-- R60QF 1330--0-- R60QF 1470--0-- R60QF 1680--0-- R60QI 2100--0-- R60QI 2150--3-- R60QI 2220--3-- R60QI 2330--3-- R60QI 2330--L-- R60QI 2470--0-- R60QI 2470--L-- R60QI 2680--0-- R60QN2330--0-- R60QN2470--0-- R60QN2680--3-- R60QN3100--3-- R60QN3150--0-- R60QR3150--3-- R60QR3220--4-- R60QR3330--4-- R60QR3470--4-- R60QR3680--4-- R60QR4100--4-- R60QR4150--4-- R60QW3470--3-- R60QW3680--4-- R60QW4100--4-- R60QW4150--4-- R60QW4220--3-- R60QW4330--0-- R60QW4470--4--

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

WOUND VERSION

All dimensions are in mm.

--0--

Note 1: If the working voltage (V) is lower than the rated

Note 2: Rated voltages higher than 1000Vdc are available

* Not suitable for across-the-line applications. Please refer to Interference Suppression Capacitors (page 151).

R60

MKT Series

voltage (VR), the capacitor may work at higher dv/dt. In this case the maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio VR /V. The pulse characteristic K0 depends on the voltage wave-form and in any case it cannot overcome the value given in the above table.

upon request.

09/2008

Page 6

ELECTRICAL CHARACTERISTICS

Rated voltage (VR): 050Vdc - 63Vdc -100Vdc - 160Vdc

- 250Vdc - 400Vdc - 630Vdc-1000Vdc .

Rated temperature (TR): +85°C Temperature derated voltage:

for temperatures between +85°C and +125°C a decreasing factor of 1.25% per degree °C on the rated

voltage VR (d.c. and a.c.) has to be applied.

Capacitance range: 1000pF to 220µF Capacitance values:

E6 series (IEC 60063 Norm). Capacitance tolerances (measured at 1 kHz):

±5% (J); ±10% (K); ±20% (M).

Total self-inductance (L): (lead length ~2mm)

Pitch (mm) 10 15 22.5 27.5 37.5

L(nH) ≈ 9 10 18 18 22

Dissipation factor (DF):

tgδ 10-4 at +25°C ±5°C

kHz C≤1µF C>1µF

1 10

≤100 ≤150

≤100

Insulation resistance:

Test conditions

Temperature: +25°C±5°C Voltage charge time: 1 min Voltage charge: 50 Vdc for V

100 Vdc for V

Performance For V

≤100 Vdc

≥3750 MΩ for C ≤0.33µF (50000 ≥1250 s for C >0.33µF (5000 s)*

For VR >100 Vdc

≥30000 MΩ for C ≤0.33µF (50000 ≥10000 s for C >0.33µF (17000 s)*

<100 Vdc

≥100 Vdc

MΩ)*

*Typical value

Test voltage between terminations:

1.6xVR applied for 2 s at +25°C±5°C

R60

MKT Series

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

TEST METHOD AND PERFORMANCE

Damp heat, steady state:

Test conditions

Temperature: +40°C±2°C Relative humidity (RH): 93% Test duration: 56 days

Performance

Capacitance change |∆C/C|: ≤5% DF change (∆tgδ): ≤50x10-4 at 1kHz

Insulation resistance:

Endurance:

Test conditions

Temperature: +105°C±2°C Test duration: 2000 h Voltage applied: 1.25xV

Performance

Capacitance change |∆C/C|: ≤5% DF change (∆tgδ): ≤50x10-4 at 10kHz for C≤1µF ≤30x10-4 at 01kHz for C>1µF

Insulation resistance:

Resistance to soldering heat:

Test conditions

Solder bath temperature: +260°C±5°C Dipping time (with heat screen):10 s ±1 s

Performance

Capacitance change |∆C/C|: ≤2% DF change (∆tgδ): ≤50x10-4 at 10kHz for C≤1µF ≤30x10-4 at 01kHz for C>1µF

Insulation resistance:

Long term stability

Storage: standard environmental conditions (see page 12).

Performance

(after two years):

Capacitance change |∆C/C|: ≤3% for C ≤0.1µF ≤2% for C >0.1µF

RELIABILITY

Reference MIL HDB 217

Application conditions:

Temperature: +40°C±2°C Voltage: 0.5xV Failure rate: ≤5 FIT (1 FIT = 1x10-9 failures/componentsxh)

Failure criteria:

Short or open circuit Capacitance change |∆C/C|: >10% DF change (∆tgδ): >2xinitial limit. Insulation resistance: <0.005xinitial limit.

±2%

≥50% of initial limit.

≥ initial limit.

09/2008

Page 7

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

MAX. VOLTAGE (Vr.m.s.) VERSUS FREQUENCY (sinusoidal wave-form / Th ≤ 40°C)

R60

MKT Series

Note: p (pitch) in mm.

09/2008

Page 8

METALLIZED POLYESTER FILM CAPACITOR D.C. MULTIPURPOSE APPLICATIONS

PRODUCT CODE: R60

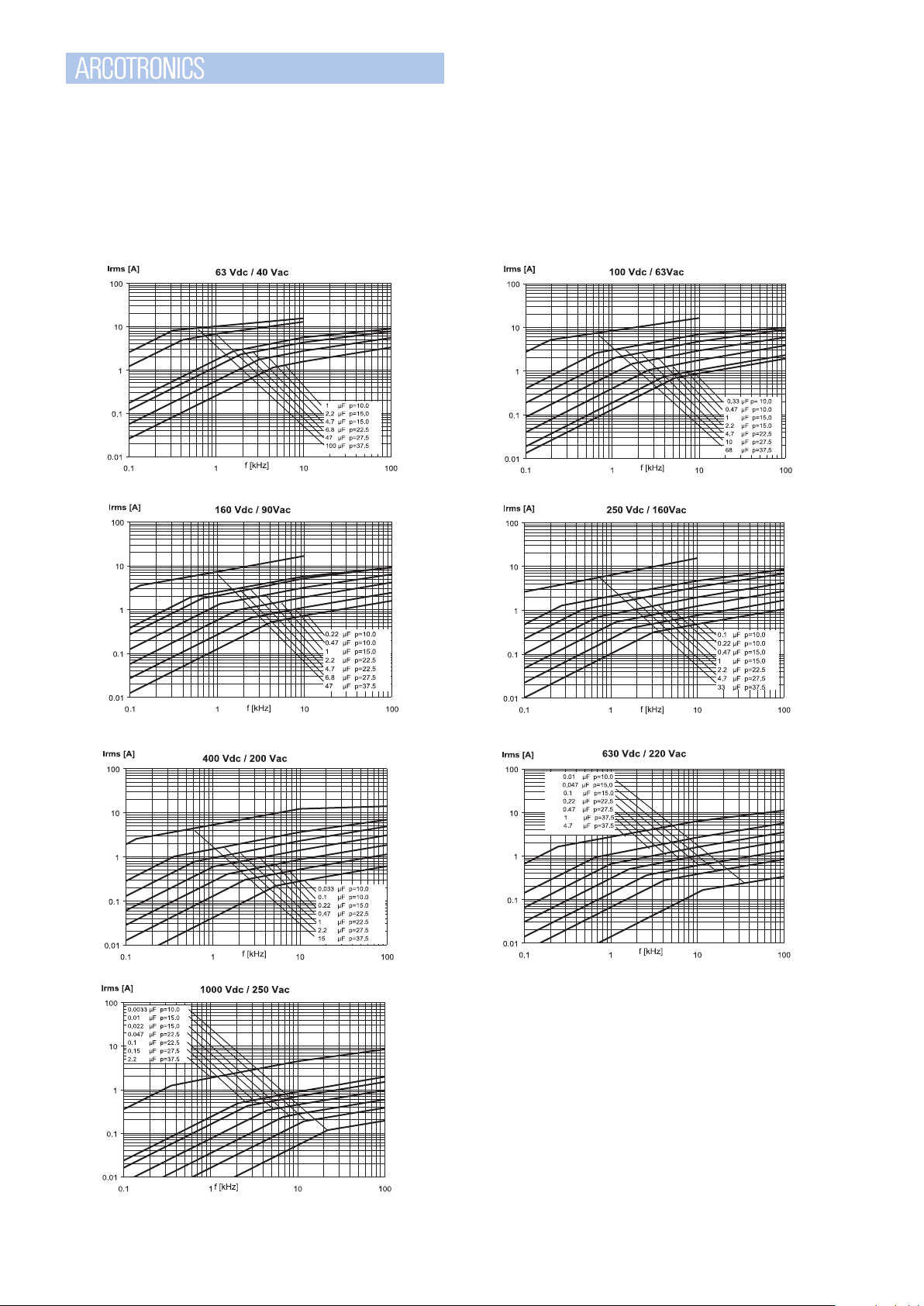

MAX. CURRENT (Ir.m.s.) VERSUS FREQUENCY (sinusoidal wave-form / Th ≤ 40°C)

R60

MKT Series

09/2008

Note: p (pitch) in mm.
