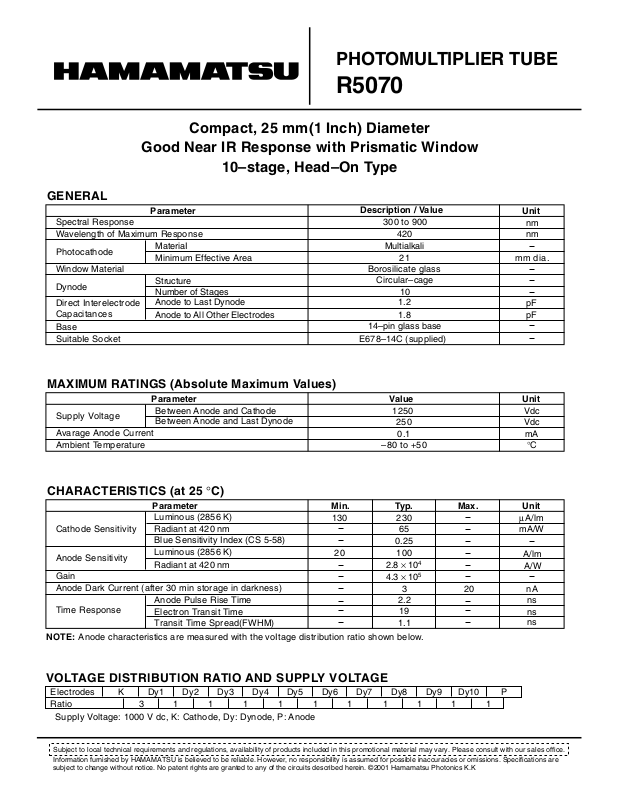

PHOTOMULTlPLlER TUBE
R5070
Compact, 25 mm(1 Inch) Diameter
Good Near IR Response with Prismatic Window
10–stage, Head–On Type
GENERAL
Parameter
Spectral Response 300 to 900
Wavelength of Maximum Response 420 nm
Photocathode
Window Material Borosilicate glass
Dynode
Direct Interelectrode
Capacitances
Base
SuitabIe Socket
MateriaI Multialkali
Minimum Effective Area 21 mm dia.
Structure
Number of Stages
Anode to Last Dynode
Anode to All Other Electrodes
Description / Value
Circular–cage
10
1.2
1.8
14–pin glass base
E678–14C (supplied)
Unit
nm
pF
pF
MAXIMUM RATINGS (Absolute Maximum Values)
Parameter Value
Supply Voltage
Avarage Anode Current
Ambient Temperature
Between Anode and Cathode
Between Anode and Last Dynode
CHARACTERISTlCS (at 25 °C)
Parameter Max.Typ.Min.
Luminous (2856 K)
Cathode Sensitivity
Anode Sensitivity
Gain
Anode Dark Current (after 30 min storage in darkness)
Time Response
Anode characteristics are measured with the voItage distribution ratio shown below.NOTE:
Radiant at 420 nm
Blue Sensitivity Index (CS 5-58)
Luminous (2856 K)
Radiant at 420 nm
Anode Pulse Rise Time
Electron Transit Time
Transit Time Spread(FWHM)
130
20
1250
250
0.1
–80 to +50
230
65
0.25
100
2.8 × 10
4.3 × 10
4
5
3
2.2
19
1.1
20
Unit
Vdc
Vdc
mA
°C
Unit
µA/lm
mA/W
A/lm
A/W
nA
ns
ns
ns
VOLTAGE DlSTRlBUTlON RATlO AND SUPPLY VOLTAGE
Electrodes
Ratio 3 1 1 1 1 1 1 1 1 1 1
SuppIy Voltage: 1000 V dc, K: Cathode, Dy: Dynode, P: Anode
Subject to local technical requirements and regulations, availability of products included in this promotional material may vary. Please consult with our sales office.
Information furnished by HAMAMATSU is believed to be reliable. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications are
subject to change without notice. No patent rights are granted to any of the circuits described herein. ©2001 Hamamatsu Photonics K.K
K Dy1 Dy2 Dy3 Dy4 Dy5 Dy6 Dy7 Dy8 Dy9 Dy10 P
Page 2
PHOTOMULTlPLlER TUBE R5070
Figure 1: Typical Spectral Response
TPMHB0054ED
100
R5070
R5929
10
QUANTUM
EFFICIENCY
STANDARD
MULTIALKALI
1
QUANTUM EFFICIENCY (%)
0.1
CATHODE RADIANT SENSITIVITY (mA/W)
CATHODE
RADIANT
SENSITIVITY
Wavelength
(nm)
Ratio of
Sensitivity
Increase
(%)
400
500 600 700 800
+30 +35 +70 +150 +500
0.01
200
300
400
500
600
700
800
900
1000
WAVELENGTH (nm)
Figure 2: Dimensional Outline and Basing Diagram (Unit: mm)
FACEPLATE
25.4±0.5
21MIN.
P
PHOTOCATHODE
DY9
DY7
DY5
DY3
DY1
6
5
4
3
2
K
SHORT PIN
8
7
14
1
46.0±1.5
BOTTOM VIEW
(BASING DIAGRAM)
Socket
(E678–14C)
IC
IC
9
DY10
10
11
DY8
12
DY6
13
DY4
DY2
2- 3.5
44
35
26
2.5
11.6
7
9
19.1
30
14 PIN BASE
13MAX.
TPMHA0033EA
25
