Page 1

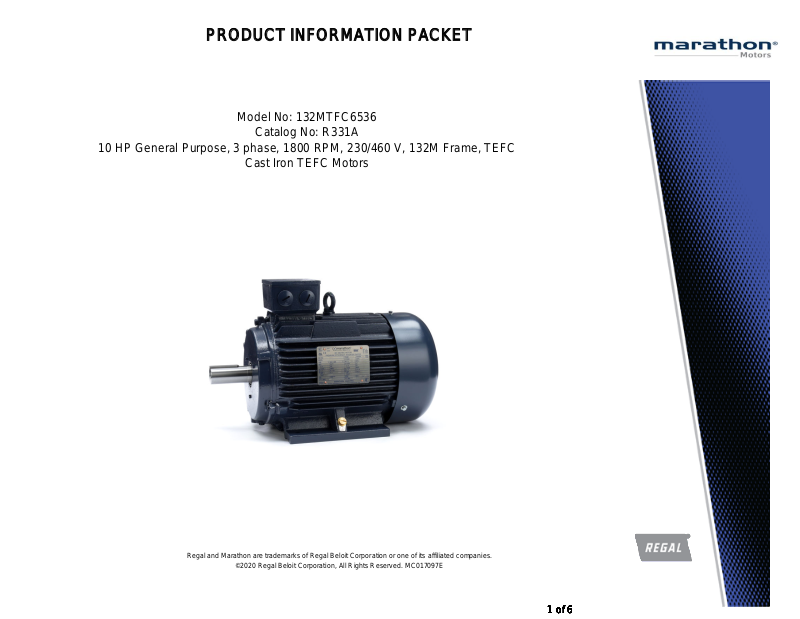

PRODUCT INFORMATION PACKET
Model No: 132MTFC6536
Catalog No: R331A
10 HP General Purpose, 3 phase, 1800 RPM, 230/460 V, 132M Frame, TEFC
Cast Iron TEFC Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6
Page 2
Product Information Packet: Model No: 132MTFC6536, Catalog No:R331A 10 HP General Purpose, 3 phase, 1800 RPM, 230/460 V, 132M Frame,
TEFC
Nameplate Specifications
Output HP 10 Hp Output KW 7.5 kW
Frequency 60 Hz Voltage 230/460 V
Current 24.0/12.0 A Speed 1765 rpm
Service Factor 1.15 Phase 3
Efficiency 91.7 % Power Factor 85
Duty Continuous Insulation Class F
Design Code B KVA Code J
Frame 132M Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6308 Opp Drive End Bearing Size 6207
UL No CSA Y
CE Y IP Code 55
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 4 Rotation Reversible
Resistance Main .8 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Cast Iron
Shaft Type IEC Overall Length 19.76 in
Shaft Diameter 1.500 in Shaft Extension 3.14 in
Assembly/Box Mounting F3

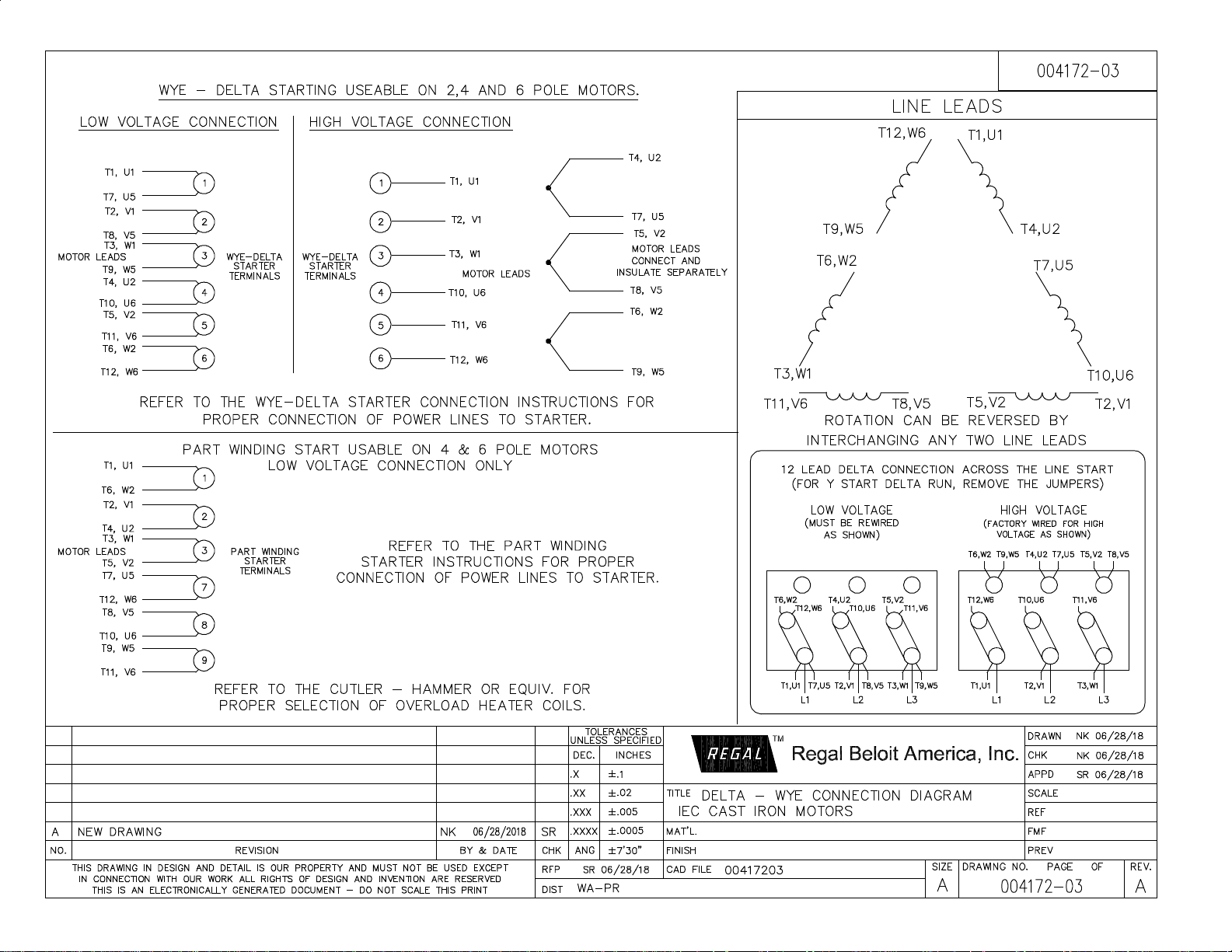

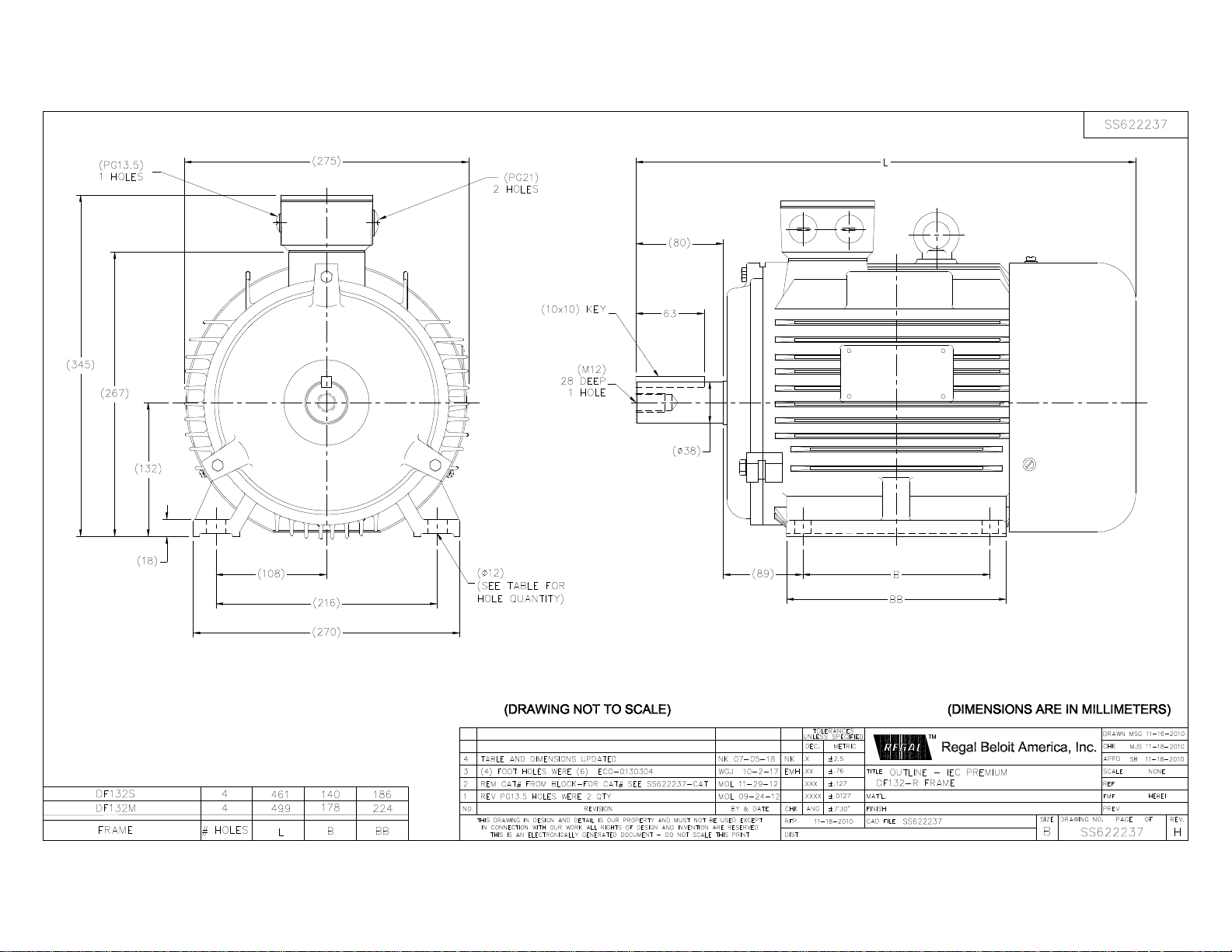

Outline Drawing SS622237 Connection Drawing 004172-03
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:03/11/2020
2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6
Page 3
Uncontrolled Copy
3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6
Page 4
Uncontrolled Copy
4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6
Page 5
²
²
MOUNT
SEVERE
DRIP
PREMIUM SEVERE DUTY
FORM: 3531 REV_4 2/27/06
ODE BRACKET
SOUND PRESSURE
SOUND
MOTOR
HAZARDOUS
1045 HOT ROLLED (C-204)
APROX.
O
N
E
S
T
* NONE PPR
PREPARED BY: EARL BABBITTS
DATE: FT-LB:
13-07-17
*
0 00
THERMOSTATS PROTECTORS
R1 (ohms/ph) R2 (ohms/ph) X1 (ohms/ph)
NONE NOT
BALL BALL
6308 6207
DE ODE
POLYREX EM
GREASE
DE BRACKET TYPE
STANDARD
BEARINGS
STANDARD
TYPE
29.8 LB-FT 59.0 LB-FT 198% 96.5 LB-FT 324% 37
46 dBA 55 dBA 0.00
@ 3 FT. MAX. LOAD WK²ROTOR WK²
F.L. PF
85.0 80.5 71.0 90.2
POWER
89.5
PH HZ INSL S.F. AMB ELEV.
3 60/50 F 1.15 40 3300
F.L. EFF
230/460#200/400 LINE OR INVERTER
91.7 92.4 91.7 GTD EFF
VOLTS
HP KW TYPE DESIGN
10 7.5 TFC N
SYNC RPM FL RPM
1800 1765 132M TEFC
CONN. DIAGRAM: 004172.03
SPEED:
WINDING: T10704027
CUSTOMER: CUSTOMER P.O. #:
ORDER #: REFERENCE MODEL #: 132MTFC6536
WDG RTD's BRG RTD's
NONE NONE NONE FALSE
X2 (ohms/ph) FLOAT
0
THERMISTORS CONTROL
UL:
NONE
VOLTAGE: HZ:
NONE
NONE
BRAKE:
NONE NONE
NONE
NA
INV. HP SPEED RANGE:
NONE
ENCODER:
INVERTER TORQUE:
NONE
1.5 X BASE SPEED
CONSTANT 2:1
Xm (ohms/ph)
0
VIBRATION (in/sec)
0.080 ODE
HEATERS
NA
STANDARD IEC
NONE NONE
CAST IRON
SPACE
RIGID
SHAFT TYPE
HORIZONTAL
SPECIAL DE
SPECIAL ODE
NONE
SHAFT MATERIAL
NO NONE
FRAME MATERIAL
BLUE (ENAMEL)
`
TYPE
LB-FT
*** SUPPLEMENTAL INFORMATION ***
ORIENTATION
0
DUTY
LOCATION
COVER SCREENS
PAINT
LB-FT
15 SEC. 180 LB.
2
460 V
3/4 LD EFF
24/12&21.6/10.8
AMPS
NONE 3
TYPICAL MOTOR PERFORMANCE DATA
CERTIFICATION DATA SHEET
L.R. TORQUEF.L. TORQUE LR AMPS @
START TYPE
1/2 LD EFF
1/2 LD PF3/4 LD PF
CONT
B.D. TORQUE
STARTS/HOURSAFE STALL TIME
SQ CAGE INV RATED
F.L. RISE (
°
C)
MOTOR WGT
DUTY
ELECT. TYPE
FRAME ENCLOSURE
CUSTOMER PART #: OUTLINE: SS622237
MOUNTING: F3
CAT #:
P.O. BOX 8003
WAUSAU, WI 54401-8003
PH. 715-675-3311
R331A
KVA CODE
J
DATA VOLTS: 460
Uncontrolled Copy
5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
460
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
4.8 5.5 7.2 9.5 12.0 13.6 14.8 89.5
Torque (ft-lb)
0.00 7.3 14.7 22.2 29.8 34.3 37.4 59.0
RPM
1800 1790 1785 1775 1765 1,760 1755 0
Efficiency (%)
87.5 91.7 92.4 91.7 91.7 91.0
P.F. (%)
6.0 48.5 71.0 80.5 85.0 86.0 86.5 40.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 750 1575 1765 1800
Information Block
Current (Amps)
89.5 83.0 54.3 12.0 4.8 10.0
Torque (ft-lb)
59.0 57.0 96.5 29.8 0.00 1800
132
TEFC
TFC
V
60
Hz
A
J
1.15
37
°
C
CONT
40
°
C
1,000
feet
0.00
Lb-Ft²
T10704027 NONE
46 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
CONSTANT 2:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg SS622237
Conn. Diag 004172.03
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
29-06-2017 132MTFC6536
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Current (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0.0
20.0
40.0
60.0
80.0
100.0
120.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 66 of 6
