Page 1
0.195 (4.95)
0.040 (1.02)
NOM
0.100 (2.54)
NOM
0.050 (1.25)
0.800 (20.3)
MIN
0.305 (7.75)
0.240 (6.10)
0.215 (5.45)
0.020 (0.51)
SQ. (2X)
REFERENCE
SURFACE
CATHODE

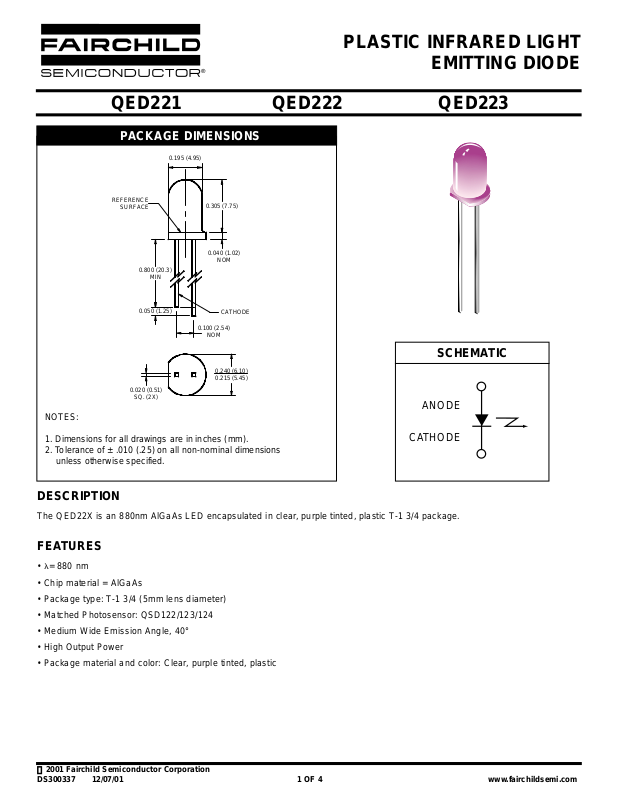

PACKAGE DIMENSIONS
FEATURES
• != 880 nm
• Chip material = AlGaAs
• Package type: T-1 3/4 (5mm lens diameter)
• Matched Photosensor: QSD122/123/124
• Medium Wide Emission Angle, 40°
• High Output Power
• Package material and color: Clear, purple tinted, plastic
NOTES:
1. Dimensions for all drawings are in inches (mm).
2. Tolerance of ± .010 (.25) on all non-nominal dimensions
unless otherwise specified.
SCHEMATIC
PLASTIC INFRARED LIGHT
EMITTING DIODE
2001 Fairchild Semiconductor Corporation
DS300337 12/07/01 1 OF 4 www.fairchildsemi.com
QED221 QED222 QED223
DESCRIPTION
The QED22X is an 880nm AlGaAs LED encapsulated in clear, purple tinted, plastic T-1 3/4 package.
ANODE
CATHODE
Page 2
Parameter Symbol Rating Unit
Operating Temperature T
OPR
-40 to +100 °C
Storage Temperature T
STG
-40 to +100 °C
Soldering Temperature (Iron)
(2,3,4)
T
SOL-I
240 for 5 sec °C
Soldering Temperature (Flow)
(2,3)
T
SOL-F
260 for 10 sec °C
Continuous Forward Current I
F
100 mA
Reverse Voltage V
R
5V
Power Dissipation
(1)
P
D
200 mW
Peak Forward Current
(5)
I
F(Peak)
1.5 A
ABSOLUTE MAXIMUM RATINGS
(TA= 25°C unless otherwise specified)
PARAMETER TEST CONDITIONS SYMBOL MIN TYP MAX UNITS
Peak Emission Wavelength IF= 100 mA !
PE
— 880 — nm
Emission Angle IF= 100 mA " — ±20 — Deg.
Forward Voltage IF= 100 mA, tp = 20 ms V
F
——1.7 V
Reverse Current VR= 5 V I
R
——10 µA
Radiant Intensity QED221 IF= 100 mA, tp = 20 ms I
E
10 — 20 mW/sr
Radiant Intensity QED222 IF= 100 mA, tp = 20 ms I
E
16 — 32 mW/sr
Radiant Intensity QED223 IF= 100 mA, tp = 20 ms I
E
25 ——mW/sr
Rise Time
I
F
= 100 mA
t
r
— 800 — ns
Fall Time t
f
— 800 — ns
ELECTRICAL / OPTICAL CHARACTERISTICS
(TA =25°C)
PLASTIC INFRARED LIGHT
EMITTING DIODE
QED221 QED222 QED223
www.fairchildsemi.com 2 OF 4 12/07/01 DS300337
1. Derate power dissipation linearly 2.67 mW/°C above 25°C.
2. RMA flux is recommended.
3. Methanol or isopropyl alcohols are recommended as cleaning agents.
4. Soldering iron
1/16” (1.6mm) minimum from housing.
5. Pulse conditions; tp = 100 µS, T = 10 ms.
Page 3
PLASTIC INFRARED LIGHT
EMITTING DIODE
QED221 QED222 QED223
DS300337 12/07/01 3 OF 4 www.fairchildsemi.com

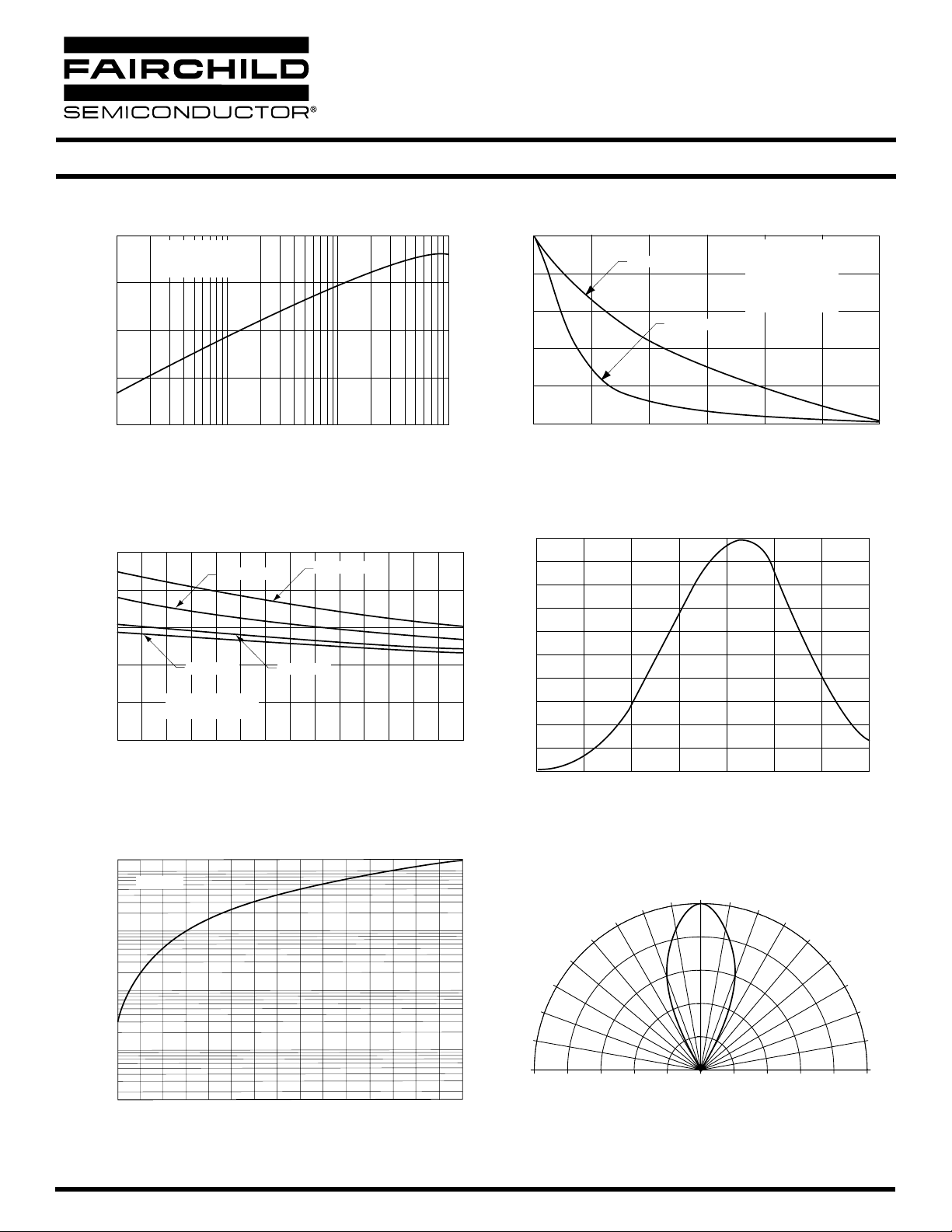

Fig. 1 Normalized Radiant Intensity vs. Input Current
10
1
0.1
0.01
NORMALIZED RADIANT INTENSITY
0.001
110
Normalized to:
= 100 mA, TA = 25˚C
I
F
Pulse Width = 100 µs
IF - INPUT CURRENT (mA)
Fig. 3 Forward Voltage vs. Temperature
2.5
IF = 50 mA
IF = 10 mA
- FORWARD VOLTAGE (V)
F
V
2
1.5
1
0.5
0
Pulse Width = 100 µs
Duty Cycle = 0.1%
-30-40 -20-10 0 102030405060708090100
100 1000
IF = 100 mA
IF = 20 mA
Fig. 2 Coupling Characteristics of QED22X with QSD12X
1
0.8
0.6
0.4
0.2
0
NORMALIZED COLLECTOR CURRENT
01
IF = 100 mA
IF = 20 mA
2345
Normalized to:
Pulse Width = 100 µs
Duty Cycle = 0.1%
= 5 V
V
CC
R
= 100 Ω
L
= 25˚C
T
A
LENS TIP SEPERATION (INCHES)
Fig. 4 Normalized Radiant Intensity vs. Wavelength
1.0
0.9
Y
T
0.8
NSI
E
T
0.7
N
I
T
0.6
N
A
0.5
RADI
0.4
D
E
IZ
0.3
AL
M
0.2
R
NO
0.1
6
TA - TEMPERATURE (˚C)
775 800 825 850 875 900 925 950
λ (nm)
Fig. 5 Forward Current vs. Forward Voltage
1000
TA = 25˚C
100
10
- FORWARD CURRENT (mA)
1
F
I
12
40
50
60
70
80
90
3
4
Fig. 6 Radiation Pattern
0˚
10
20
30
020406080100020406080100
-10
-20
-30
-40
-50
-60
-70
-80
-90
VF - FORWARD VOLTAGE (V)
Page 4
PLASTIC INFRARED LIGHT
EMITTING DIODE
QED221 QED222 QED223
