PZM-NA series

Voltage regulator double diodes

ook, halfpage

M3D114

1999 Jun 11 2

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

FEATURES

• Total power dissipation: max. 220 mW per diode

• Small plastic package suitable for surface mounted

design

• Working voltage: nom. 2.4 V and 15 V (E24 range).

APPLICATIONS

• General regulation functions.

DESCRIPTION

Low power general purpose voltage regulator double
diodes in a SOT346 (SC59) plastic package, suitable for
surface mounted design.

PINNING

PIN DESCRIPTION

1 cathode
2 cathode
3 anode

Fig.1 Simplified outline (SOT346; SC59) and

symbol.

handbook, halfpage

Top view

21

3

MAM407

21

3

MARKING

TYPE NUMBER MARKING CODE TYPE NUMBER MARKING CODE

PZM2.4NBA 2A4 PZM6.2NB2A 6A2
PZM2.7NB2A 2A7 PZM6.8NB2A 6A8
PZM3.0NB2A 3A0 PZM7.5NB2A 7A5
PZM3.3NB2A 3A3 PZM8.2NB2A 8A2
PZM3.6NB2A 3A6 PZM9.1NB2A 9A1
PZM3.9NB2A 3A9 PZM10NB2A 10A
PZM4.3NB2A 4A3 PZM11NB2A 11A
PZM4.7NB2A 4A7 PZM12NB2A 12A
PZM5.1NB2A 5A1 PZM13NB2A 13A
PZM5.6NB2A 5A6 PZM15NB2A 15A

1999 Jun 11 3

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Note

1. Device mounted on an FR4 printed circuit board with Cu clad 5 × 5 mm.

THERMAL CHARACTERISTICS

Notes

1. Solderpoint of cathode tab.

2. Device mounted on an FR4 printed circuit board with Cu clad 5 × 5 mm.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Per diode

I

F

continuous forward current − 200 mA

I

ZSM

non-repetitive peak current tp= 100 µs; square wave see Table 1

P power dissipation; see note 1 T

amb

=25°C − 220 mW

T

stg

storage temperature −65 +150 °C

T

j

operating junction temperature − 150 °C

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th j-s

thermal resistance from junction to soldering point one diode loaded; note 1 350 K/W

R

th j-a

thermal resistance from junction to ambient one diode loaded; note 2 560 K/W

1999 Jun 11 4

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

ELECTRICAL CHARACTERISTICS

T

j

=25°C unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MAX. UNIT

V

F

forward voltage IF= 10 mA; see Fig.2 0.9 V

I

F

= 100 mA; see Fig.2 1.1 V

I

R

reverse current

PZM2.4NBA V

R

=1V 50 µA

PZM2.7NB2A V

R

=1V 20 µA

PZM3.0NB2A V

R

=1V 10 µA

PZM3.3NB2A V

R

=1V 5 µA

PZM3.6NB2A V

R

=1V 5 µA

PZM3.9NB2A V

R

=1V 3 µA

PZM4.3NB2A V

R

=1V 3 µA

PZM4.7NB2A V

R

=1V 3 µA

PZM5.1NB2A V

R

= 1.5 V 3 µA

PZM5.6NB2A V

R

= 2.5 V 2 µA

PZM6.2NB2A V

R

= 3.0 V 2 µA

PZM6.8NB2A V

R

= 3.5 V 2 µA

PZM7.5NB2A V

R

= 4.0 V 1 µA

PZM8.2NB2A V

R

= 5.0 V 700 nA

PZM9.1NB2A V

R

= 6.0 V 500 nA

PZM10NB2A V

R

= 7.0 V 200 nA

PZM11NB2A V

R

= 8.0 V 100 nA

PZM12NB2A V

R

= 9.0 V 100 nA

PZM13NB2A V

R

= 10.0 V 100 nA

PZM15NB2A V

R

= 11.0 V 70 nA

1999 Jun 11 5

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

Table 1 Per type; PZM2.4N to PZM24N
T

j

=25°C unless otherwise specified.

PZM

-XXX

WORKING

VOL TAGE V

Z

(V)

at IZ= 5 mA;

tm= 40 ms;

T

amb

=25°C

DIFFERENTIAL RESISTANCE

r

dif

(Ω)

TEMP.

COEFF.

SZ(mV/K)

at

IZ=5mA

DIODE

CAP.

Cd(pF)

at

f = 1 MHz;

VR=0

NON-REPETITIVE

PEAK REVERSE

CURRENT

I

ZSM

(A)

at tp= 100 µs

IZ= 1 mA IZ=5mA

MIN. MAX. TYP. MAX. TYP. MAX. TYP. MAX. MAX.

2.4NBA 2.30 2.60 275 400 70 100 −1.6 450 8.00

2.7NB2A 2.65 2.90 300 450 75 100 −2.0 440 8.00

3.0NB2A 2.95 3.20 325 500 80 95 −2.1 425 8.00

3.3NB2A 3.25 3.50 350 500 85 95 −2.4 410 8.00

3.6NB2A 3.55 3.80 375 500 85 90 −2.4 390 8.00

3.9NB2A 3.87 4.10 400 500 85 90 −2.5 370 8.00

4.3NB2A 4.15 4.34 410 600 80 90 −2.5 350 8.00

4.7NB2A 4.55 4.75 425 500 50 80 −1.4 325 8.00

5.1NB2A 4.98 5.20 400 480 40 60 −0.8 300 8.00

5.6NB2A 5.49 5.73 80 400 15 40 1.2 275 8.00

6.2NB2A 6.06 6.33 40 150 6 10 2.3 250 8.00

6.8NB2A 6.65 6.93 30 80 6 15 3.0 215 8.00

7.5NB2A 7.28 7.60 15 80 2 10 4.0 170 3.50

8.2NB2A 8.02 8.36 20 80 2 10 4.6 150 3.50

9.1NB2A 8.85 9.23 20 100 2 10 5.5 120 3.50
10NB2A 9.77 10.21 20 150 2 10 6.4 110 3.50
11NB2A 10.76 11.22 25 150 2 10 7.4 110 3.00
12NB2A 11.74 12.24 25 150 2 10 8.4 105 3.00
13NB2A 12.91 13.49 25 170 2 10 9.4 105 2.50
15NB2A 14.34 14.98 25 200 3 15 11.4 100 2.00

1999 Jun 11 6

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

GRAPHICAL DATA

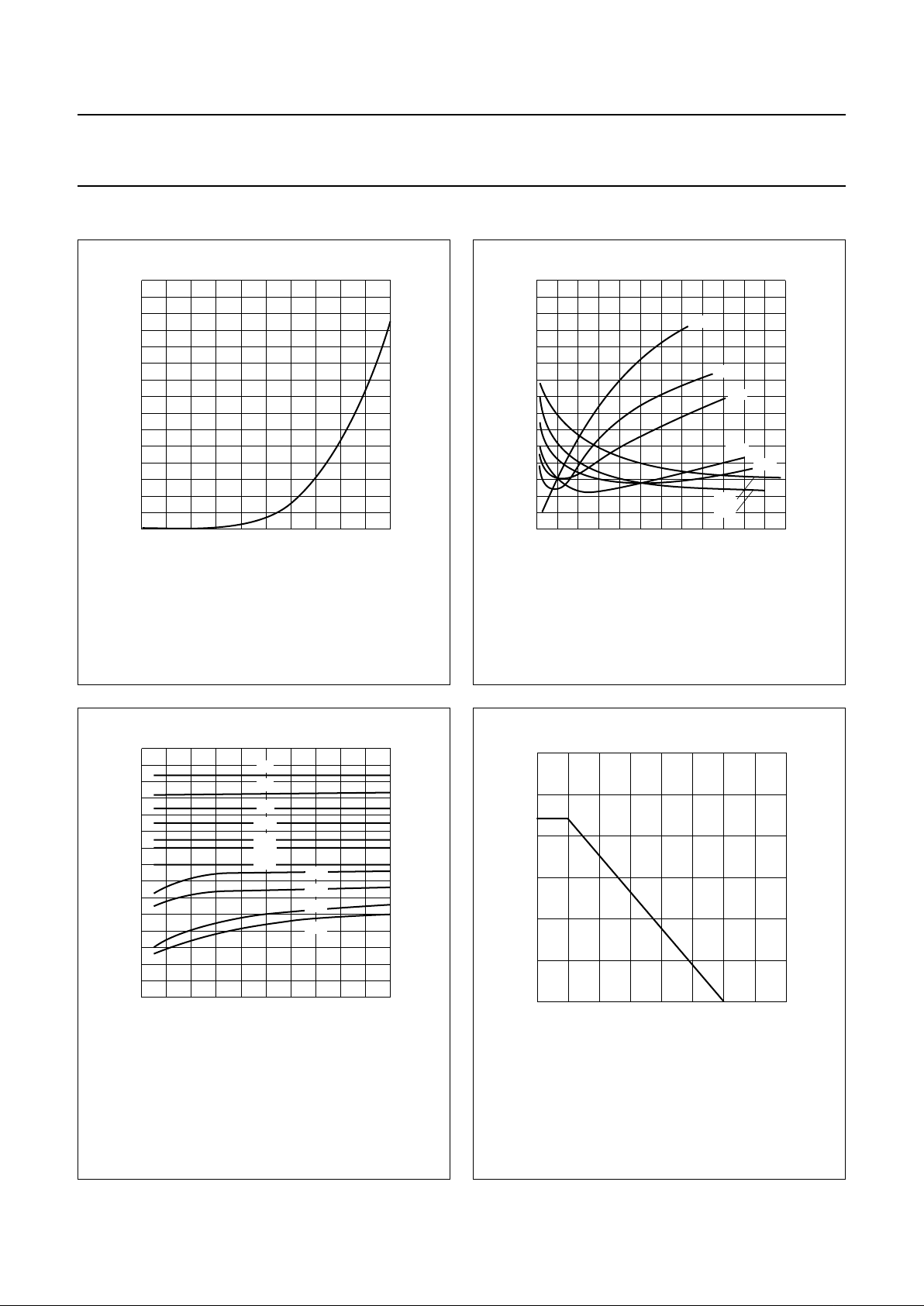

Fig.2 Forward current as a function of forward

voltage; typical values.

Tj=25°C.

handbook, halfpage

0.6 1.0

300

100

0

200

MBG781

0.8

VF (V)

I

F

(mA)

Fig.3 Temperature coefficient as a function of

working current; typical values.

PZM2.4NBA to PZM4.3NB2A.

Tj=25°Cto150°C.

handbook, halfpage

060

0

−2

−3

−1

MBG783

20 40

IZ (mA)

S

Z

(mV/K)

4V3

3V9

3V6

3V0

2V4
2V7

3V3

Fig.4 Temperature coefficient as a function of

working current; typical values.

PZM4.7NB2A to PZM12NB2A.

Tj=25°Cto150°C.

handbook, halfpage

02016

10

0

−5

5

MBG782

4812

I

Z

(mA)

S

Z

(mV/K)

4V7

12
11

10
9V1
8V2

7V5
6V8

6V2
5V6
5V1

Fig.5 Power derating curve per diode.

handbook, halfpage

0

300

200

100

0

50

P

(mW)

100 200

150

T

amb

(°C)

MDA988

1999 Jun 11 7

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

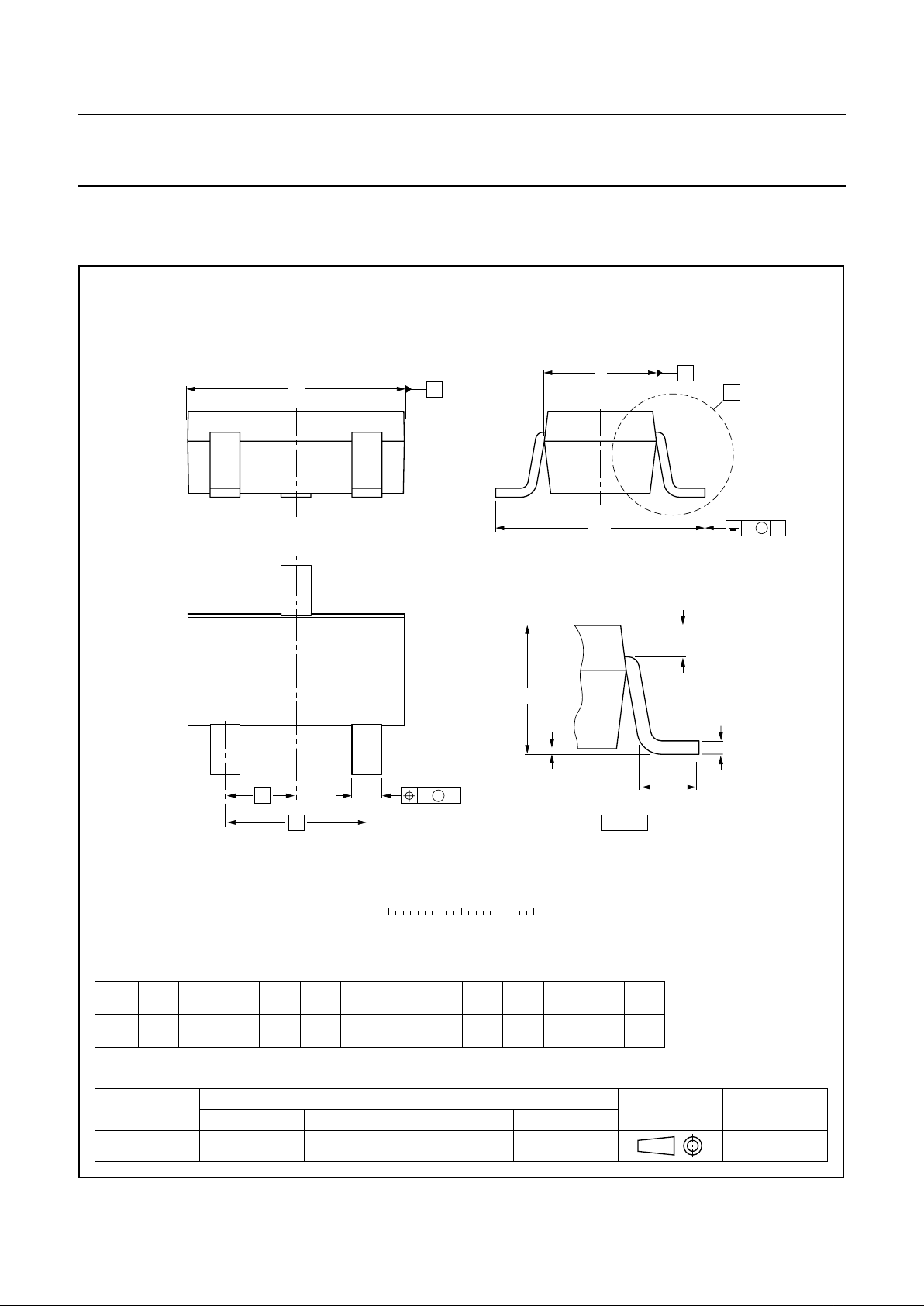

PACKAGE OUTLINE

UNIT

A

1

b

p

cD

E

e

1

H

E

L

p

Qwv

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

0.50

0.35

0.26

0.10

3.1

2.7

1.7

1.3

0.95

e

1.9

3.0

2.5

0.33

0.23

0.2

0.2

DIMENSIONS (mm are the original dimensions)

0.6

0.2

SOT346 TO-236 SC-59

b

p

D

e

1

e

A

A

1

L

p

Q

detail X

H

E

E

w M

v M

A

B

A

B

0 1 2 mm

scale

A

1.3

1.0

0.1

0.013

c

X

12

3

Plastic surface mounted package; 3 leads SOT346

98-07-17

1999 Jun 11 8

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

Data Sheet Status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1999 Jun 11 9

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

NOTES

1999 Jun 11 10

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

NOTES

1999 Jun 11 11

Philips Semiconductors Product specification

Voltage regulator double diodes PZM-NA series

NOTES

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

1999 65

Philips Semiconductors – a worldwide company

Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC,MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax.[phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax.[phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax.[phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax.[phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax.[phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax.[phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie BesantRoad, Worli, MUMBAI 400 025,
Tel. [phone], Fax.[phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext.2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax.[phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax.[phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Printed in The Netherlands 115002/04/pp12 Date of release: 1999 Jun 11 Document order number: 9397 75006096
