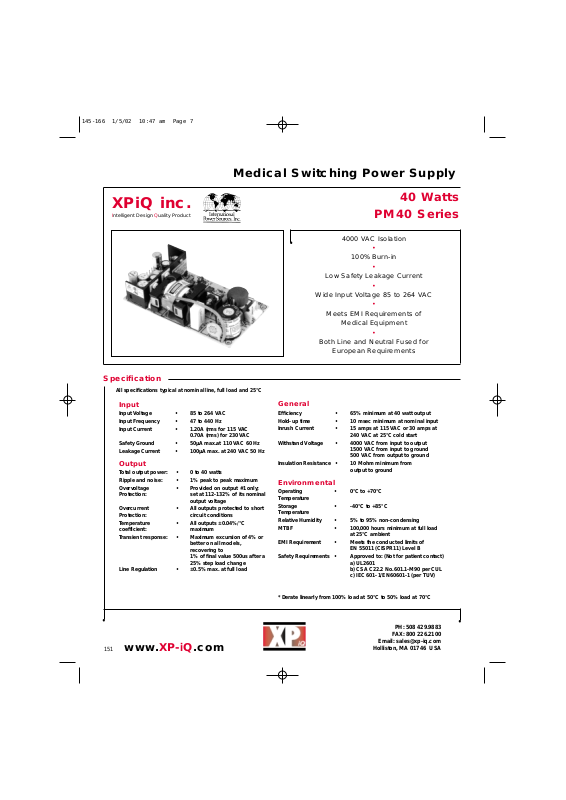

Page 1
40 Watts
PM40 Series
4000 VAC Isolation
•
100% Burn-in
•
Low Safety Leakage Current
•
Wide Input Voltage 85 to 264 VAC
•
Meets EMI Requirements of
Medical Equipment
•
Both Line and Neutral Fused for
European Requirements
•
•
•
Specification
All specifications typical at nominal line, full load and 25°C
Intelligent Design Quality Product
XPiQ inc.
Medical Switching Power Supply
Input
Input Voltage • 85 to 264 VAC
Input Frequency • 47 to 440 Hz
Input Current • 1.20A (rms for 115 VAC
0.70A (rms) for 230 VAC
Safety Ground • 50µA max.at 110 VAC 60 Hz
Leakage Current • 100µA max. at 240 VAC 50 Hz
Output
Total output power: • 0 to 40 watts
Ripple and noise: • 1% peak to peak maximum
Overvoltage • Provided on output #1 only;
Protection: set at 112-132% of its nominal
output voltage
Overcurrent • All outputs protected to short
Protection: circuit conditions
Temperature • All outputs ±0.04%/°C
coefficient: maximum
Transient response: • Maximum excursion of 4% or
better on all models,
recovering to
1% of final value 500us after a
25% step load change
Line Regulation • ±0.5% max. at full load
General
Efficiency • 65% minimum at 40 watt output
Hold-up time • 10 msec minimum at nominal input
Inrush Current • 15 amps at 115 VAC or 30 amps at
240 VAC at 25°C cold start
Withstand Voltage • 4000 VAC from input to output
1500 VAC from input to ground
500 VAC from output to ground
Insulation Resistance • 10 Mohm minimum from
output to ground
Environmental
Operating • 0°C to +70°C
Temperature
Storage • -40°C to +85°C
Temperature
Relative Humidity • 5% to 95% non-condensing
MTBF • 100,000 hours minimum at full load
at 25°C ambient
EMI Requirement • Meets the conducted limits of
EN 55011 (CISPR11) Level B
Safety Requirements • Approved to: (Not for patient contact)
a) UL2601
b) CSA C22.2 No.601.1-M90 per CUL
c) IEC 601-1/EN60601-1 (per TUV)
* Derate linearly from 100% load at 50°C to 50% load at 70°C
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xp-iq.com
Holliston, MA 01746 USA
www.XP-iQ.com
151
Page 2
OUTPUT VOLTAGE & CURRENT RATINGS PM40
All multi-output units may be operated at no-load without damage. At no-load, output tolerance increases to 10%.
Notes
•
Mechanical Details
Pin Chart
Output #1 Output #2 Output #3 Maximum
Output
Model Vnom Imin Imax Tol. Vnom Imin Imax Tol. Vnom Imin Imax Tol. Power
PM40-10AL 5 V 0.0 A 8.0 A 2% 40 W
PM40-12AL 12 V 0.0 A 3.5 A 1% 40 W
PM40-13AL 15 V 0.0 A 3.0 A 1% 40 W
PM40-14AL 24 V 0.0 A 2.0 A 1% 40 W
PM40-23AL +5 V 0.5 A 3.0 A 3% +12 V 0.2 A 2 A 5% 40 W
PM40-25AL +5 V 0.5 A 3.0 A 3% +24 V 0.1 A 1 A 5% 40 W
PM40-30AL +5 V 0.5 A 3.0 A 3% +12 V 0.2 A 2 A 5% -5 V 0.05 A 0.3 A 10% 40 W
PM40-31AL +5 V 0.5 A 3.0 A 3% +12 V 0.2 A 2 A 5% -12 V 0.05 A 0.3 A 10% 40 W
PM40-32AL +5 V 0.5 A 3.0 A 3% +15 V 0.2 A 2 A 5% -15 V 0.05 A 0.3 A 10% 40 W
Model 1 2 3 4 5 6
PM40-10AL PM40-12AL OUTPUT OUTPUT OUTPUT RETURN RETURN RETURN
PM40-13AL PM40-14AL #1 #1 #1
PM40-23AL OUTPUT OUTPUT OUTPUT COMMON COMMON N.C.
PM40-25AL #2 #1 #1 RETURN RETURN
PM40-30AL PM40-31AL OUTPUT OUTPUT OUTPUT COMMON COMMON OUTPUT
PM40-32AL #2 #1 #1 RETURN RETURN #3
Notes:
1. Dimensions shown in inches (mm)
2. Tolerance 0.02 (0.5) maximum
3. Input connector mates with Molex housing 09-50-3031
and Molex 2878 series crimp terminal
4. Output connector mates with Molex housing 09-50-3061
and Molex 2878 series crimp terminal
5. Weight: 300 grams approx.
PH: 508 429.9883
FAX: 800 226.2100
Email: sales@xp-iq.com
Holliston, MA 01746 USA
www.XP-iQ.com
152
