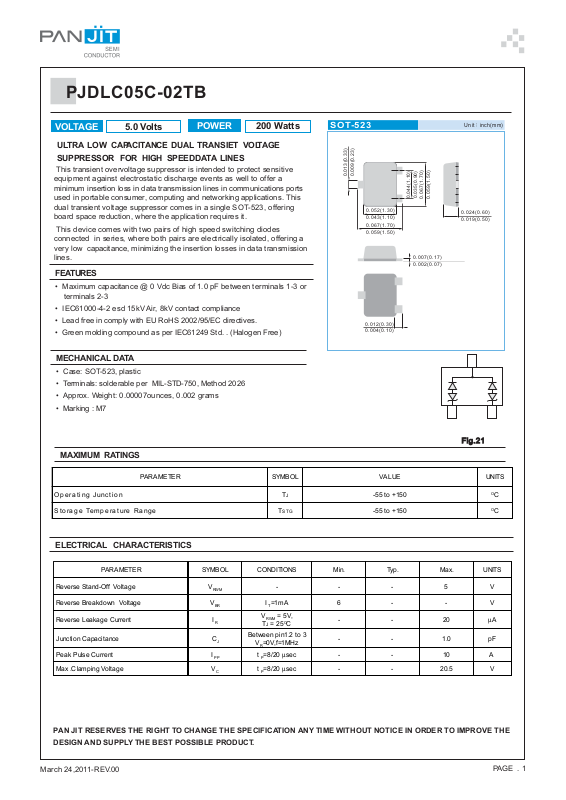

PJDLC05C-02TB
VOLTAGE
5.0 Volts
POWER
200 Watts
ULTRA LOW CAPACITANCE DUAL TRANSIET VOLTAGE
SUPPRESSOR FOR HIGH SPEED DATA LINES
This transient overvoltage suppressor is intended to protect sensitive
equipment against electrostatic discharge events as well to offer a
minimum insertion loss in data transmission lines in communications ports
used in portable consumer, computing and networking applications. This
dual transient voltage suppressor comes in a single SOT-523, offering
board space reduction, where the application requires it.
This device comes with two pairs of high speed switching diodes
connected in series, where both pairs are electrically isolated, offering a
very low capacitance, minimizing the insertion losses in data transmission
lines.
FEATURES
• Maximum capacitance @ 0 Vdc Bias of 1.0 pF between terminals 1-3 or
terminals 2-3
• IEC61000-4-2 esd 15kV Air, 8kV contact compliance
• Lead free in comply with EU RoHS 2002/95/EC directives.
• Green molding compound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA
• Case: SOT-523, plastic
• Terminals: solderable per MIL-STD-750, Method 2026
• Approx. Weight: 0.00007ounces, 0.002 grams
• Marking : M7
SOT-523
0.013(0.33)
0.009(0.23)
0.052(1.30)
0.043(1.10)
0.067(1.70)
0.059(1.50)
0.012(0.30)
0.004(0.10)
0.044(1.10)
0.035(0.90)
0.067(1.70)
0.007(0.17)
0.002(0.07)
0.059(1.50)
Unit inch(mm)：
0.024(0.60)
0.019(0.50)
MAXIMUM RATINGS
PARAMETER SYMBOL VALUE UNITS
Operating Junction T
Storage Temperature Range T
ELECTRICAL CHARACTERISTICS
PARA ME TER SYMBOL COND ITIONS Min. Typ. Max. UNITS
Reverse Stand-Off Voltage V
Reverse Breakdown Voltage V
Reverse Leakage Current I
Junction Capacitance C
Peak Pulse Current I
Max .Clamping Voltage V
RWM
BR
R
J
PP
C
---5V
I T=1mA 6 - - V
V
= 5V,
RWM
T
J
= 25OC
Between pin1.2 to 3
V
=0V,f=1 MHz
R
t P=8/20 μsec - - 10 A
t P=8/20 μsec - - 20.5 V
STG
Fig.21
J
-55 to +150
-55 to +150
--20μA
--1.0pF
O
C
O
C
PAN JIT RESERVES THE RIGHT TO CHANGE THE SPECIFICATION ANY TIME WITHOUT NOTICE IN ORDER TO IMPROVE THE
DESIGN AND SUPPLY THE BEST POSSIBLE PRODUCT.
March 24,2011-REV.00
PAGE . 1
Page 2
PJDLC05C-02TB
1
VR=5V
0.1
0.01
0 50 100 150
, Reverse Leakage Current(uA)
R
I
TJ , Junction Temperature(0C)
Fig.1 TYPICAL LEAKAGE CURRENT
JUNCTION TEMPERATURE
200
T
160
120
,Leakage Current (nA)
R
I
= 25°C
80
40
0
0123456
VR, Reverse Voltage (V)
1.00
0.80
0.60
0.40
0.20
, Junction Capacitance (pF)
0.00
J
C
012345
VR, Reverse Bias Voltage (V)
Fig.2Typical Junction Capacitance
18
16
14
12
10
8
6
4
2
0
5 10152025
,8/20us Peak Pulse Current (A)
PP
I
VC, Clamping Voltage (V)
Fig.3 Typical Reverse Characteristics
March 24,2011-REV.00
Fig.4 Typical Peak Clamping Voltage
PAGE . 2
Page 3
PJDLC05C-02TB
MOUNTING PAD LAYOUT
SOT-523
0.053
(1.35)
0.019
(0.50)
0.016
(0.40)
0.019
(0.50)
0.017
(0.45)
Unit inch(mm)：
ORDER INFORMATION
• Packing information
T/R - 4K per 7" plastic Reel
LEGAL STATEMENT
Copyright PanJit International, Inc 2012
The information presented in this document is believed to be accurate and reliable. The specifications and information herein
are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit
does not convey any license under its patent rights or rights of others.
March 24,2011-REV.00
PAGE . 3
Page 4

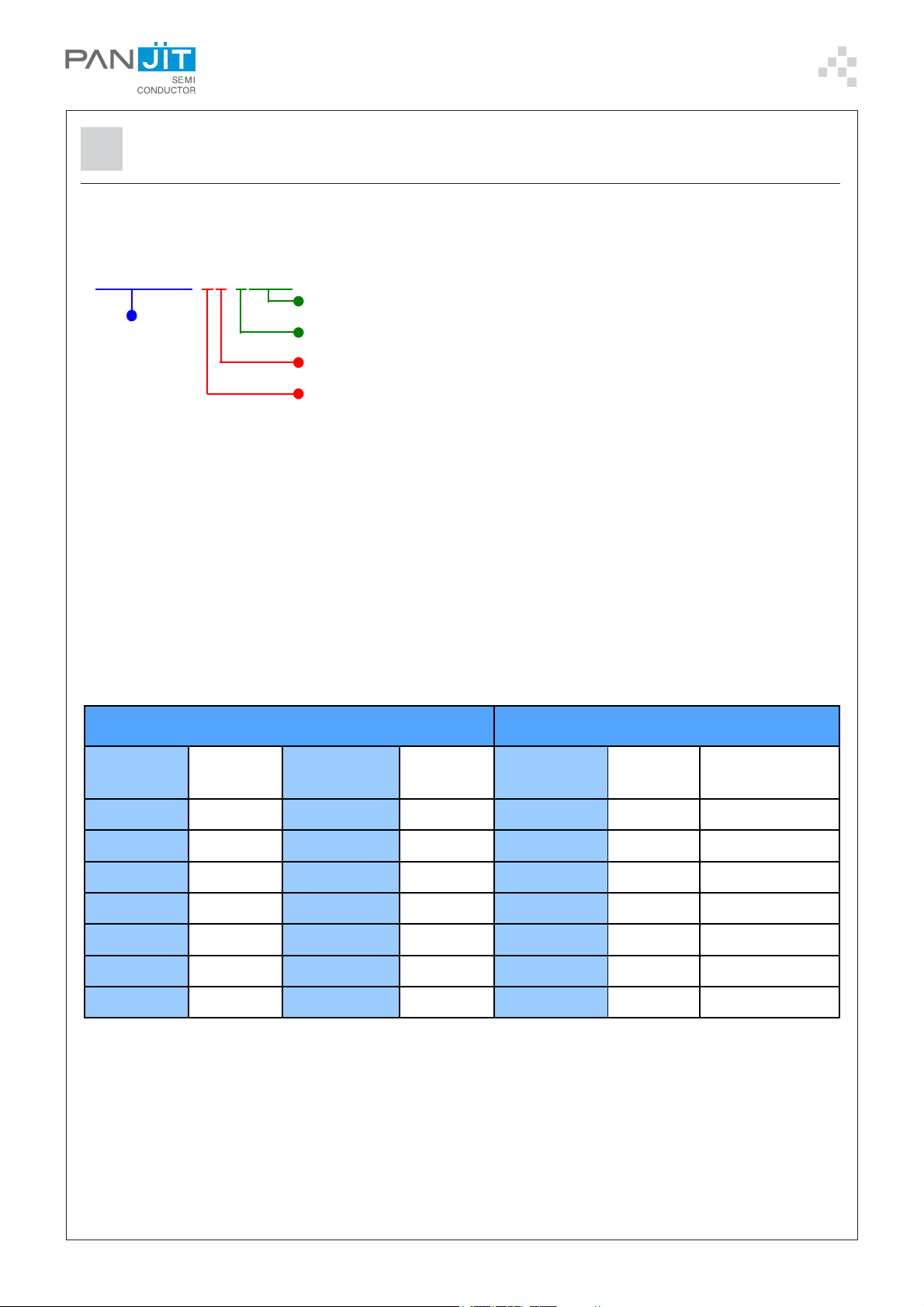

PJDLC05C-02TB
For example :
RB500V-40_R2_
Part No.
00001
Serial number
Version code means HF
Packing size code means 13"
Packing type means T/R
Part No_packing code_Version
PJDLC05C-02TB_R1_00001
