PIC18F2450/4450

Data Sheet

24/40/44-Pin High-Performance,

12 MIPS, Enhanced Flash,

USB Microcontrollers

with nanoWatt Technology

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

• Microchip is willing to work with the customer who is concerned about the integrity of their code.

• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, K

EELOQ, KEELOQ logo, MPLAB, PIC, PICmicro,

PICSTART, PRO MATE, rfPIC and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

FilterLab, Linear Active Thermistor, MXDEV, MXLAB, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, In-Circuit Serial Programming, ICSP, ICEPIC, Mindi, MiWi, MPASM, MPLAB Certified logo, MPLIB, MPLINK, mTouch, PICkit, PICDEM, PICDEM.net, PICtail, PIC

logo, PowerCal, PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB, Select Mode, Total Endurance, UNI/O, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company’s quality system processes and procedures are for its PIC devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

MCUs and dsPIC® DSCs, KEELOQ

code hopping

PIC18F2450/4450

28/40/44-Pin High-Performance, 12 MIPS, Enhanced Flash,

USB Microcontrollers with nanoWatt Technology

Universal Serial Bus Features:

• USB V2.0 Compliant

• Low Speed (1.5 Mb/s) and Full Speed (12 Mb/s)

• Supports Control, Interrupt, Isochronous and Bulk Transfers

• Supports Up to 32 Endpoints (16 bidirectional)

• 256-Byte Dual Access RAM for USB

• On-Chip USB Transceiver with On-Chip Voltage Regulator

• Interface for Off-Chip USB Transceiver

Power-Managed Modes:

• Run: CPU on, Peripherals on

• Idle: CPU off, Peripherals on

• Sleep: CPU off, Peripherals off

• Idle mode Currents Down to 5.8 μA Typical

• Sleep mode Currents Down to 0.1 μA Typical

• Timer1 Oscillator: 1.8 μA Typical, 32 kHz, 2V

• Watchdog Timer: 2.1 μA Typical

• Two-Speed Oscillator Start-up

Flexible Oscillator Structure:

• Four Crystal modes, including High-Precision PLL for USB

• Two External Clock modes, up to 48 MHz

• Internal 31 kHz Oscillator

• Secondary Oscillator using Timer1 @ 32 kHz

• Dual Oscillator Options allow Microcontroller and USB module to Run at Different Clock Speeds

• Fail-Safe Clock Monitor:

- Allows for safe shutdown if any clock stops

Peripheral Highlights:

• High-Current Sink/Source: 25 mA/25 mA

• Three External Interrupts

• Three Timer modules (Timer0 to Timer2)

• Capture/Compare/PWM (CCP) module:

- Capture is 16-bit, max. resolution 5.2 ns

- Compare is 16-bit, max. resolution 83.3 ns

- PWM output: PWM resolution is 1 to 10-bit

• Enhanced USART module:

- LIN bus support

• 10-Bit, Up to 13-Channel Analog-to-Digital Converter module (A/D):

- Up to 100 ksps sampling rate

- Programmable acquisition time

Special Microcontroller Features:

• C Compiler Optimized Architecture with Optional Extended Instruction Set

• Flash Memory Retention: > 40 Years

• Self-Programmable under Software Control

• Priority Levels for Interrupts

• 8 x 8 Single-Cycle Hardware Multiplier

• Extended Watchdog Timer (WDT):

- Programmable period from 4 ms to 131s

• Programmable Code Protection

• Single-Supply In-Circuit Serial Programming™ (ICSP™) via Two Pins

• In-Circuit Debug (ICD) via Two Pins

• Optional Dedicated ICD/ICSP Port (44-pin TQFP devices only)

• Wide Operating Voltage Range (2.0V to 5.5V)

Program Memory Data

Device

PIC18F2450 16K 8192 768* 23 10 1 1 1/2

PIC18F4450 16K 8192 768* 34 13 1 1 1/2

* Includes 256 bytes of dual access RAM used by USB module and shared with data memory.

Flash

(bytes)

# Single-Word

Instructions

Memory

SRAM

(bytes)

I/O

10-Bit A/D

(ch)

CCP EUSART

Timers

8/16-Bit

PIC18F2450/4450

Pin Diagrams

28-Pin SPDIP, SOIC

28-Pin QFN

MCLR/VPP/RE3

RA0/AN0 RA1/AN1

RA2/AN2/V

RA3/AN3/V

RA4/T0CKI/RCV

RA5/AN4/HLVDIN

OSC2/CLKO/RA6

RC0/T1OSO/T1CKI

RC1/T1OSI/UOE

REF-

REF+

OSC1/CLKI

RC2/CCP1

USB

1 2 3 4 5 6 7

8 9 10 11 12 13 14

PIC18F2450

/VPP/RE3

28 27 26 25 24 23 22 21 20 19 18 17 16 15

RB7/KBI3/PGD RB6/KBI2/PGC RB5/KBI1/PGM RB4/AN11/KBI0 RB3/AN9/VPO RB2/AN8/INT2/VMO RB1/AN10/INT1 RB0/AN12/INT0 V

VSS RC7/RX/DT RC6/TX/CK RC5/D+/VP RC4/D-/VM

RA2/AN2/VREF-

RA3/AN3/V

RA4/T0CKI/RCV

RA5/AN4/HLVDIN

OSC2/CLKO/RA6

REF+

OSC1/CLKI

MCLR

RA0/AN0

RA1/AN1

RB7/KBI3/PGD

RB6/KBI2/PGC

RB5/KBI1/PGM

RB4/AN11/KBI0

232425262728

1 2 3

PIC18F2450

4 5 6 7

10 11

12 13 14

USB

RC2/CCP1

RC1/T1OSI/UOE

RC0/T1OSO/T1CKI

RC4/D-/VM

RC5/D+/VP

21 20 19 18 17 16 15

RC6/TX/CK

RB3/AN9/VPO RB2/AN8/INT2/VMO RB1/AN10/INT1 RB0/AN12/INT0 V

VSS RC7/RX/DT

Pin Diagrams (Continued)

40-Pin PDIP

PIC18F2450/4450

44-Pin QFN

MCLR/VPP/RE3

RA0/AN0 RA1/AN1

RA2/AN2/V

RA3/AN3/V

RA4/T0CKI/RCV

RA5/AN4/HLVDIN

OSC2/CLKO/RA6

RC0/T1OSO/T1CKI

RC1/T1OSI/UOE

REF-

REF+

RE0/AN5 RE1/AN6 RE2/AN7

V VSS

OSC1/CLKI

RC2/CCP1

USB

RD0 RD1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

PIC18F4450

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

RB7/KBI3/PGD RB6/KBI2/PGC RB5/KBI1/PGM RB4/AN11/KBI0 RB3/AN9/VPO RB2/AN8/INT2/VMO

RB1/AN10/INT1 RB0/AN12/INT0 V

VSS RD7 RD6

RD5 RD4 RC7/RX/DT RC6/TX/CK RC5/D+/VP RC4/D-/VM RD3 RD2

RC7/RX/DT

RD4 RD5 RD6 RD7

AVDD

RB0/AN12/INT0 RB1/AN10/INT1

RB2/AN8/INT2/VMO

VDD

RC6/TX/CK

RC5/D+/VP

RC4/D-/VM

RD3

414039

1 2 3 4 5

6 7 8 9 10 11

121314

RB3/AN9/VPO

PIC18F4450

RB5/KBI1/PGM

RB4/AN11/KBI0

RD2

RD1

RD0

1819202122

/VPP/RE3

RB7/KBI3/PGD

RB6/KBI2/PGC

MCLR

USB

RA0/AN0

RC2/CCP1

RC1/T1OSI/UOE

363435

REF-

RA1/AN1

RA2/AN2/V

RC0/T1OSO/T1CKI

33 32 31 30 29 28 27 26 25 24 23

REF+

RA3/AN3/V

OSC2/CLKO/RA6 OSC1/CLKI V

AV SS VDD AV DD RE2/AN7 RE1/AN6 RE0/AN5 RA5/AN4/HLVDIN RA4/T0CKI/RCV

PIC18F2450/4450

Pin Diagrams (Continued)

44-Pin TQFP

RC7/RX/DT

RD4 RD5 RD6 RD7

VSS

RB0/AN12/INT0 RB1/AN10/INT1

RB2/AN8/INT2/VMO

RB3/AN9/VPO

VDD

1 2 3 4 5 6 7 8 9 10 11

RC6/TX/CK

121314

RD0

RD1

RD2

RD3

RC4/D-/VM

RC5/D+/VP

414039

PIC18F4450

1819202122

USB

RC1/T1OSI/UOE

RC2/CCP1

363435

(1)

NC/ICPORTS

(1)

33 32 31 30 29 28 27 26 25 24 23

NC/ICRST RC0/T1OSO/T1CKI OSC2/CLKO/RA6 OSC1/CLKI V

VDD RE2/AN7 RE1/AN6 RE0/AN5 RA5/AN4/HLVDIN RA4/T0CKI/RCV

/ICVPP

(1)

/ICPGC

/ICPGD

(1)

NC/ICCK

NC/ICDT

RB6/KBI2/PGC

RB7/KBI3/PGD

RB5/KBI1/PGM

RB4/AN11/KBI0

REF-

RA0/AN0

RA1/AN1

/VPP/RE3

RA2/AN2/V

MCLR

RA3/AN3/VREF+

Note 1: Special ICPORT features are available in select circumstances. For more information, see

Section 18.9 “Special ICPORT Features (Designated Packages Only)”.

PIC18F2450/4450

1.0 Device Overview .......................................................................................................................................................................... 7

2.0 Oscillator Configurations ............................................................................................................................................................ 23

3.0 Power-Managed Modes ............................................................................................................................................................. 33

4.0 Reset.......................................................................................................................................................................................... 41

5.0 Memory Organization ................................................................................................................................................................. 53

6.0 Flash Program Memory.............................................................................................................................................................. 73

7.0 8 x 8 Hardware Multiplier............................................................................................................................................................ 83

8.0 Interrupts.................................................................................................................................................................................... 85

9.0 I/O Ports ..................................................................................................................................................................................... 99

10.0 Timer0 Module ......................................................................................................................................................................... 111

11.0 Timer1 Module ......................................................................................................................................................................... 115

12.0 Timer2 Module ......................................................................................................................................................................... 121

13.0 Capture/Compare/PWM (CCP) Module ................................................................................................................................... 123

14.0 Universal Serial Bus (USB) ...................................................................................................................................................... 129

15.0 Enhanced Universal Synchronous Receiver Transmitter (EUSART) ....................................................................................... 153

16.0 10-Bit Analog-to-Digital Converter (A/D) Module ..................................................................................................................... 175

17.0 High/Low-Voltage Detect (HLVD)............................................................................................................................................. 185

18.0 Special Features of the CPU.................................................................................................................................................... 191

19.0 Instruction Set Summary.......................................................................................................................................................... 213

20.0 Development Support............................................................................................................................................................... 263

21.0 Electrical Characteristics.......................................................................................................................................................... 267

22.0 Packaging Information.............................................................................................................................................................. 295

Appendix A: Revision History............................................................................................................................................................. 307

Appendix B: Device Differences ........................................................................................................................................................ 308

Appendix C: Conversion Considerations ........................................................................................................................................... 309

Appendix D: Migration From Baseline to Enhanced Devices ............................................................................................................ 309

Appendix E: Migration From Mid-Range to Enhanced Devices ......................................................................................................... 310

Appendix F: Migration From High-End to Enhanced Devices............................................................................................................ 310

Index ................................................................................................................................................................................................. 311

The Microchip Web Site..................................................................................................................................................................... 319

Customer Change Notification Service .............................................................................................................................................. 319

Customer Support .............................................................................................................................................................................. 319

Reader Response .............................................................................................................................................................................. 320

Product Identification System ............................................................................................................................................................ 321

PIC18F2450/4450

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors@microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page) When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are

using.

Customer Notification System

PIC18F2450/4450

1.0 DEVICE OVERVIEW

This document contains device-specific information for the following devices:

• PIC18F2450 • PIC18F4450

This family of devices offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory. In addition to these features, the PIC18F2450/4450 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance, power sensitive applications.

1.1 New Core Features

1.1.1 nanoWatt TECHNOLOGY

All of the devices in the PIC18F2450/4450 family incorporate a range of features that can significantly reduce power consumption during operation. Key items include:

• Alternate Run Modes: By clocking the controller

from the Timer1 source or the internal RC oscillator, power consumption during code execution can be reduced by as much as 90%.

• Multiple Idle Modes: The controller can also run

with its CPU core disabled but the peripherals still active. In these states, power consumption can be reduced even further, to as little as 4% of normal operation requirements.

• On-the-Fly Mode Switching: The power-

managed modes are invoked by user code during operation, allowing the user to incorporate power-saving ideas into their application’s software design.

• Low Consumption in Key Modules: The

power requirements for both Timer1 and the Watchdog Timer are minimized. See Section 21.0 “Electrical Characteristics” for values.

1.1.3 MULTIPLE OSCILLATOR OPTIONS

AND FEATURES

All of the devices in the PIC18F2450/4450 family offer twelve different oscillator options, allowing users a wide range of choices in developing application hardware. These include:

• Four Crystal modes using crystals or ceramic resonators.

• Four External Clock modes, offering the option of using two pins (oscillator input and a divide-by-4 clock output) or one pin (oscillator input, with the second pin reassigned as general I/O).

• An INTRC source (approximately 31 kHz, stable over temperature and V oscillator pin for use as an additional general purpose I/O.

• A Phase Lock Loop (PLL) frequency multiplier, available to both the High-Speed Crystal and External Oscillator modes, which allows a wide range of clock speeds from 4 MHz to 48 MHz.

• Asynchronous dual clock operation, allowing the USB module to run from a high-frequency oscillator while the rest of the microcontroller is clocked from an internal low-power oscillator.

The internal oscillator provides a stable reference source that gives the family additional features for robust operation:

• Fail-Safe Clock Monitor: This option constantly monitors the main clock source against a reference signal provided by the internal oscillator. If a clock failure occurs, the controller is switched to the internal oscillator, allowing for continued low-speed operation or a safe application shutdown.

• Two-Speed Start-up: This option allows the internal oscillator to serve as the clock source from Power-on Reset, or wake-up from Sleep mode, until the primary clock source is available.

DD). This option frees an

1.1.2 UNIVERSAL SERIAL BUS (USB)

Devices in the PIC18F2450/4450 family incorporate a fully featured Universal Serial Bus communications module that is compliant with the USB Specification Revision 2.0. The module supports both low-speed and full-speed communication for all supported data transfer types. It also incorporates its own on-chip transceiver and 3.3V regulator and supports the use of external transceivers and voltage regulators.

PIC18F2450/4450

1.2 Other Special Features

• Memory Endurance: The Enhanced Flash cells

for program memory are rated to last for many thousands of erase/write cycles – up to 100,000.

• Self-Programmability: These devices can write

to their own program memory spaces under internal software control. By using a bootloader routine, located in the protected Boot Block at the top of program memory, it becomes possible to create an application that can update itself in the field.

• Extended Instruction Set: The PIC18F2450/

4450 family introduces an optional extension to the PIC18 instruction set, which adds 8 new instructions and an Indexed Literal Offset Addressing mode. This extension, enabled as a device configuration option, has been specifically designed to optimize re-entrant application code originally developed in high-level languages such as C.

• Enhanced Addressable USART: This serial

communication module is capable of standard RS-232 operation and provides support for the LIN bus protocol. Other enhancements include Automatic Baud Rate Detection and a 16-bit Baud Rate Generator for improved resolution.

• 10-Bit A/D Converter: This module incorporates

programmable acquisition time, allowing for a channel to be selected and a conversion to be initiated, without waiting for a sampling period and thus, reducing code overhead.

• Dedicated ICD/ICSP Port: These devices

introduce the use of debugger and programming pins that are not multiplexed with other microcontroller features. Offered as an option in select packages, this feature allows users to develop I/O intensive applications while retaining the ability to program and debug in the circuit.

1.3 Details on Individual Family Members

Devices in the PIC18F2450/4450 family are available in 28-pin and 40/44-pin packages. Block diagrams for the two groups are shown in Figure 1-1 and Figure 1-2.

The devices are differentiated from each other in the following two ways:

1. A/D channels (10 for 28-pin devices, 13 for

40/44-pin devices).

2. I/O ports (3 bidirectional ports and 1 input only

port on 28-pin devices, 5 bidirectional ports on 40/44-pin devices).

All other features for devices in this family are identical. These are summarized in Table 1-1.

The pinouts for all devices are listed in Table 1-2 and Table 1-3.

Like all Microchip PIC18 devices, members of the PIC18F2450/4450 family are available as both standard and low-voltage devices. Standard devices with Enhanced Flash memory, designated with an “F” in the part number (such as PIC18F2450), accommodate an operating V designated by “LF” (such as PIC18LF2450), function over an extended VDD range of 2.0V to 5.5V.

DD range of 4.2V to 5.5V. Low-voltage parts,

PIC18F2450/4450

TABLE 1-1: DEVICE FEATURES

Features PIC18F2450 PIC18F4450

Operating Frequency DC – 48 MHz DC – 48 MHz

Program Memory (Bytes) 16384 16384

Program Memory (Instructions) 8192 8192

Data Memory (Bytes) 768 768

Interrupt Sources 13 13

I/O Ports Ports A, B, C, (E) Ports A, B, C, D, E

Timers 3 3

Capture/Compare/PWM Modules 1 1

Enhanced USART 1 1

Universal Serial Bus (USB) Module 1 1

10-Bit Analog-to-Digital Module 10 Input Channels 13 Input Channels

Resets (and Delays) POR, BOR,

RESET Instruction,

Stack Ful l,

Stack Underflow (PWRT, OST),

(optional),

MCLR

WDT

Programmable Low-Voltage Detect Yes Yes

Programmable Brown-out Reset Yes Yes

Instruction Set 75 Instructions;

83 with Extended Instruction Set

enabled

Packages 28-Pin SPDIP

28-Pin SOIC

28-Pin QFN

Stack Underflow (PWRT, OST),

83 with Extended Instruction Set

POR, BOR,

RESET Instruction,

Stack Full,

MCLR (optional),

WDT

75 Instructions;

enabled

40-Pin PDIP

44-Pin QFN

44-Pin TQFP

PIC18F2450/4450

FIGURE 1-1: PIC18F2450 (28-PIN) BLOCK DIAGRAM

Table Pointer<21>

inc/dec logic

Address Latch

Program Memory

(24/32 Kbytes)

Data Latch

Instruction Bus <16>

(2)

OSC1

(2)

OSC2

T1OSI

T1OSO

(1)

MCLR

VDD,

USB

Table Latch

ROM Latch

Instruction

Internal

Oscillator

Block

INTRC

Oscillator

Single-Supply Programming

In-Circuit

Debugger

PCLATH

PCLATU

PCH PCL

PCU

Program Counter

31 Level Stack

STKPTR

Decode &

Control

Start-up Timer

Clock Monitor

USB Voltage

Regulator

Data Bus<8>

State Machine Control Signals

Power-up

Timer

Oscillator

Power-on

Reset

Watchdog

Timer

Brown-out

Reset

Fail-Safe

Data Latch

Data Memory

(2 Kbytes)

Address Latch

Data Address<12>

FSR0 FSR1 FSR2

logic

8 x 8 Multiply

ALU<8>

Access

Bank

PRODLPRODH

BSR

BITOP

Band Gap Reference

inc/dec

Address Decode

PORTA

RA0/AN0 RA1/AN1 RA2/AN2/VREFRA3/AN3/VREF+ RA4/T0CKI/RCV RA5/AN4/HLVDIN OSC2/CLKO/RA6

PORTB

RB0/AN12/INT0 RB1/AN10/INT1 RB2/AN8/INT2/VMO RB3/AN9/VPO RB4/AN11/KBI0 RB5/KBI1/PGM RB6/KBI2/PGC RB7/KBI3/PGD

PORTC

PORTE

RC0/T1OSO/T1CKI RC1/T1OSI/UOE RC2/CCP1 RC4/D-/VM RC5/D+/VP RC6/TX/CK RC7/RX/DT

MCLR/VPP/RE3

(1)

BOR

HLVD

CCP1

Note 1: RE3 is multiplexed with MCLR and is only available when the MCLR Resets are disabled.

2: OSC1/CLKI and OSC2/CLKO are only available in select oscillator modes and when these pins are not being used as digital I/O. Refer

to Section 2.0 “Oscillator Configurations” for additional information.

EUSART

Timer2Timer1Timer0

ADC

10-Bit

USB

PIC18F2450/4450

FIGURE 1-2: PIC18F4450 (40/44-PIN) BLOCK DIAGRAM

Table Pointer<21>

inc/dec logic

Address Latch

Program Memory

(24/32 Kbytes)

Data Latch

PCLATH

PCLATU

PCU

Program Counter

31 Level Stack

STKPTR

Table Latch

Data Bus<8>

PCH PCL

Data Latch

Data Memory

(2 Kbytes)

Address Latch

Data Address<12>

BSR

FSR0 FSR1

Access

Bank

FSR2

inc/dec

logic

PORTA

RA0/AN0 RA1/AN1 RA2/AN2/VREFRA3/AN3/VREF+ RA4/T0CKI/RCV RA5/AN4/HLVDIN OSC2/CLKO/RA6

PORTB

RB0/AN12/INT0 RB1/AN10/INT1 RB2/AN8/INT2/VMO RB3/AN9/VPO

RB4/AN11/KBI0 RB5/KBI1/PGM RB6/KBI2/PGC RB7/KBI3/PGD

Instruction Bus <16>

VDD,

VSS

(2)

OSC1

(2)

OSC2

T1OSI

T1OSO

(3)

ICPGC

(3)

ICPGD

(3)

ICPORTS

(3)

ICRST

(1)

MCLR

USB

ROM Latch

Instruction Decode &

Internal

Oscillator

Block

INTRC

Oscillator

Single-Supply Programming

In-Circuit

Debugger

Control

Start-up Timer

USB Voltage

Regulator

State Machine Control Signals

Power-up

Timer

Oscillator

Power-on

Reset

Watchdog

Timer

Brown-out

Reset

Fail-Safe

Clock Monitor

BITOP

Band Gap Reference

Address

Decode

8 x 8 Multiply

ALU<8>

PORTC

RC0/T1OSO/T1CKI RC1/T1OSI/UOE RC2/CCP1 RC4/D-/VM

RC5/D+/VP

RC6/TX/CK RC7/RX/DT

PRODLPRODH

PORTD

RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7

PORTE

RE0/AN5 RE1/AN6 RE2/AN7 MCLR/VPP/RE3

(1)

BOR

HLVD

CCP1

Note 1: RE3 is multiplexed with MCLR

EUSART

ADC

10-Bit

and is only available when the MCLR Resets are disabled.

Timer2Timer1Timer0

USB

2: OSC1/CLKI and OSC2/CLKO are only available in select oscillator modes and when these pins are not being used as digital I/O. Refer

to Section 2.0 “Oscillator Configurations” for additional information.

3: These pins are only available on 44-pin TQFP under certain conditions. Refer to Section 18.9 “Special ICPORT Features (Designated

Packages Only)” for additional information.

PIC18F2450/4450

TABLE 1-2: PIC18F2450 PINOUT I/O DESCRIPTIONS

Pin Number

Pin Name

/VPP/RE3

MCLR

VPP RE3

OSC1/CLKI

OSC1 CLKI

OSC2/CLKO/RA6

OSC2

CLKO

RA6

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

SPDIP,

SOIC

126

10 7

QFN

Buffer

Typ e

IIAnalog

Analog

I/O

Type

—

TTL

Description

Master Clear (input) or programming voltage (input).

Master Clear (Reset) input. This pin is an active-low Reset to the device. Programming voltage input. Digital input.

Oscillator crystal or external clock input.

Oscillator crystal input or external clock source input. External clock source input. Always associated with pin function OSC1. (See OSC2/CLKO pin.)

Oscillator crystal or clock output.

Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode. In select modes, OSC2 pin outputs CLKO which has 1/4 the frequency of OSC1 and denotes the instruction cycle rate. General purpose I/O pin.

PIC18F2450/4450

TABLE 1-2: PIC18F2450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Number

Pin Name

RA0/AN0

RA0 AN0

RA1/AN1

RA1 AN1

RA2/AN2/VREF-

RA2 AN2

REF-

RA3/AN3/V

RA3 AN3 V

RA4/T0CKI/RCV

RA4 T0CKI RCV

RA5/AN4/HLVDIN

RA5 AN4 HLVDIN

RA6 — — — — See the OSC2/CLKO/RA6 pin.

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

REF+

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

SPDIP,

SOIC

QFN

227

328

Buffer

Typ e

Type

I/OITTL

Analog

I/OITTL

Analog

I/O

TTL

Analog

I/O

TTL

Analog

I/O

I I

TTL

I/O

TTL

Analog

PORTA is a bidirectional I/O port.

Digital I/O. Analog input 0.

Digital I/O. Analog input 1.

Digital I/O. Analog input 2. A/D reference voltage (low) input.

Digital I/O. Analog input 3. A/D reference voltage (high) input.

ST ST

Digital I/O. Timer0 external clock input. External USB transceiver RCV input.

Digital I/O. Analog input 4. High/Low-Voltage Detect input.

Description

PIC18F2450/4450

TABLE 1-2: PIC18F2450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Number

Pin Name

RB0/AN12/INT0

RB0 AN12 INT0

RB1/AN10/INT1

RB1 AN10 INT1

RB2/AN8/INT2/VMO

RB2 AN8 INT2 VMO

RB3/AN9/VPO

RB3 AN9 VPO

RB4/AN11/KBI0

RB4 AN11 KBI0

RB5/KBI1/PGM

RB5 KBI1 PGM

RB6/KBI2/PGC

RB6 KBI2 PGC

RB7/KBI3/PGD

RB7 KBI3 PGD

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

SPDIP,

SOIC

21 18

22 19

23 20

24 21

25 22

26 23

27 24

28 25

QFN

Typ e

I/O

I I

I/O

I I

I/O

I I

I/O

I I

I/O

Buffer

Type

TTL

Analog

TTL

Analog

TTL

Analog

—

TTL

Analog

—

TTL

Analog

TTL

TTL TTL

Description

PORTB is a bidirectional I/O port. PORTB can be software programmed for internal weak pull-ups on all inputs.

Digital I/O. Analog input 12. External interrupt 0.

Digital I/O. Analog input 10. External interrupt 1.

Digital I/O. Analog input 8. External interrupt 2. External USB transceiver VMO output.

Digital I/O. Analog input 9. External USB transceiver VPO output.

Digital I/O. Analog input 11. Interrupt-on-change pin.

Digital I/O. Interrupt-on-change pin. Low-Voltage ICSP™ Programming enable pin.

Digital I/O. Interrupt-on-change pin. In-Circuit Debugger and ICSP programming clock pin.

Digital I/O. Interrupt-on-change pin. In-Circuit Debugger and ICSP programming data pin.

PIC18F2450/4450

TABLE 1-2: PIC18F2450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Number

Pin Name

RC0/T1OSO/T1CKI

RC0 T1OSO T1CKI

RC1/T1OSI/UOE

RC1 T1OSI UOE

RC2/CCP1

RC2 CCP1

RC4/D-/VM

RC4 DVM

RC5/D+/VP

RC5 D+ VP

RC6/TX/CK

RC6 TX CK

RC7/RX/DT

RC7 RX DT

RE3 — — — — See MCLR

VUSB 14 11 P — Internal USB 3.3V voltage regulator. Output, positive supply

SS 8, 19 5, 16 P — Ground reference for logic and I/O pins.

VDD 20 17 P — Positive supply for logic and I/O pins.

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

SPDIP,

SOIC

11 8

12 9

13 10

15 12

16 13

17 14

18 15

QFN

Buffer

Typ e

I/O

CMOS

I/O I/OSTST

I/O

Type

—

TTL

—

TTL

—

TTL

—

ST ST ST

Description

PORTC is a bidirectional I/O port.

Digital I/O. Timer1 oscillator output. Timer1external clock input.

Digital I/O. Timer1 oscillator input. External USB transceiver OE

Digital I/O. Capture 1 input/Compare 1 output/PWM1 output.

Digital input. USB differential minus line (input/output). External USB transceiver VM input.

Digital input. USB differential plus line (input/output). External USB transceiver VP input.

Digital I/O. EUSART asynchronous transmit. EUSART synchronous clock (see RX/DT).

Digital I/O. EUSART asynchronous receive. EUSART synchronous data (see TX/CK).

/VPP/RE3 pin.

for internal USB transceiver.

output.

PIC18F2450/4450

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS

Pin Name

/VPP/RE3

MCLR

VPP RE3

OSC1/CLKI

OSC1 CLKI

OSC2/CLKO/RA6

OSC2

CLKO

RA6

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

Note 1: These pins are No Connect unless the ICPRT Configuration bit is set. For NC/ICPORTS, the pin is No

Connect unless ICPRT is set and the DEBUG

Pin Number

PDIP QFN TQFP

11818

13 32 30

14 33 31

Typ e

IIAnalog

Analog

I/O

Buffer

Type

Master Clear (input) or programming voltage (input).

—

TTL

Configuration bit is cleared.

Master Clear (Reset) input. This pin is an active-low Reset to the device. Programming voltage input. Digital input.

Oscillator crystal or external clock input.

Oscillator crystal input or external clock source input. External clock source input. Always associated with pin function OSC1. (See OSC2/CLKO pin.)

Oscillator crystal or clock output.

Description

PIC18F2450/4450

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name

RA0/AN0

RA0 AN0

RA1/AN1

RA1 AN1

RA2/AN2/VREF-

RA2 AN2

REF-

RA3/AN3/VREF+

RA3 AN3

REF+

RA4/T0CKI/RCV

RA4 T0CKI RCV

RA5/AN4/HLVDIN

RA5 AN4 HLVDIN

RA6 — — — — — See the OSC2/CLKO/RA6 pin.

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

Note 1: These pins are No Connect unless the ICPRT Configuration bit is set. For NC/ICPORTS, the pin is No

Connect unless ICPRT is set and the DEBUG

Pin Number

PDIP QFN TQFP

21919

32020

42121

52222

62323

72424

Buffer

Typ e

Type

I/OITTL

Analog

I/OITTL

Analog

I/O

Analog

I/O

Analog

I/O

I I

I/O

Analog

PORTA is a bidirectional I/O port.

Digital I/O. Analog input 0.

Digital I/O. Analog input 1.

TTL

ST ST

TTL

Configuration bit is cleared.

Digital I/O. Analog input 2. A/D reference voltage (low) input.

Digital I/O. Analog input 3. A/D reference voltage (high) input.

Digital I/O. Timer0 external clock input. External USB transceiver RCV input.

Digital I/O. Analog input 4. High/Low-Voltage Detect input.

Description

PIC18F2450/4450

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name

RB0/AN12/INT0

RB0 AN12 INT0

RB1/AN10/INT1

RB1 AN10 INT1

RB2/AN8/INT2/VMO

RB2 AN8 INT2 VMO

RB3/AN9/VPO

RB3 AN9 VPO

RB4/AN11/KBI0

RB4 AN11 KBI0

RB5/KBI1/PGM

RB5 KBI1 PGM

RB6/KBI2/PGC

RB6 KBI2 PGC

RB7/KBI3/PGD

RB7 KBI3 PGD

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

Note 1: These pins are No Connect unless the ICPRT Configuration bit is set. For NC/ICPORTS, the pin is No

Connect unless ICPRT is set and the DEBUG

Pin Number

PDIP QFN TQFP

33 9 8

34 10 9

35 11 10

36 12 11

37 14 14

38 15 15

39 16 16

40 17 17

Typ e

I/O

I I

I/O

I I

I/O

I I

I/O

I I

I/O

Buffer

Type

PORTB is a bidirectional I/O port. PORTB can be software programmed for internal weak pull-ups on all inputs.

TTL

Analog

TTL

Analog

TTL

Analog

—

TTL

Analog

—

TTL

Analog

TTL

TTL TTL

Configuration bit is cleared.

Digital I/O. Analog input 12. External interrupt 0.

Digital I/O. Analog input 10. External interrupt 1.

Digital I/O. Analog input 8. External interrupt 2. External USB transceiver VMO output.

Digital I/O. Analog input 9. External USB transceiver VPO output.

Digital I/O. Analog input 11. Interrupt-on-change pin.

Digital I/O. Interrupt-on-change pin. Low-Voltage ICSP™ Programming enable pin.

Digital I/O. Interrupt-on-change pin. In-Circuit Debugger and ICSP programming clock pin.

Digital I/O. Interrupt-on-change pin. In-Circuit Debugger and ICSP programming data pin.

Description

PIC18F2450/4450

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name

RC0/T1OSO/T1CKI

RC0 T1OSO T1CKI

RC1/T1OSI/UOE

RC1 T1OSI UOE

RC2/CCP1

RC2 CCP1

RC4/D-/VM

RC4 DVM

RC5/D+/VP

RC5 D+ VP

RC6/TX/CK

RC6 TX CK

RC7/RX/DT

RC7 RX DT

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

Note 1: These pins are No Connect unless the ICPRT Configuration bit is set. For NC/ICPORTS, the pin is No

Connect unless ICPRT is set and the DEBUG

Pin Number

PDIP QFN TQFP

15 34 32

16 35 35

17 36 36

23 42 42

24 43 43

25 44 44

26 1 1

Buffer

Typ e

I/O

CMOS

I/O I/OSTST

I/O

Type

PORTC is a bidirectional I/O port.

—

TTL

—

TTL

—

TTL

—

ST ST ST

Configuration bit is cleared.

Digital I/O. Timer1 oscillator output. Timer1 external clock input.

Digital I/O. Timer1 oscillator input. External USB transceiver OE

Digital I/O. Capture 1 input/Compare 1 output/PWM1 output.

Digital input. USB differential minus line (input/output). External USB transceiver VM input.

Digital input. USB differential plus line (input/output). External USB transceiver VP input.

Digital I/O. EUSART asynchronous transmit. EUSART synchronous clock (see RX/DT).

Digital I/O. EUSART asynchronous receive. EUSART synchronous data (see TX/CK).

Description

output.

PIC18F2450/4450

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name

RD0 19 38 38 I/O ST Digital I/O.

RD1 20 39 39 I/O ST Digital I/O.

RD2 21 40 40 I/O ST Digital I/O.

RD3 22 41 41 I/O ST Digital I/O.

RD4 27 2 2 I/O ST Digital I/O.

RD5 28 3 3 I/O ST Digital I/O.

RD6 29 4 4 I/O ST Digital I/O.

RD7 30 5 5 I/O ST Digital I/O.

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

Note 1: These pins are No Connect unless the ICPRT Configuration bit is set. For NC/ICPORTS, the pin is No

Connect unless ICPRT is set and the DEBUG

Pin Number

PDIP QFN TQFP

Typ e

Buffer

Type

PORTD is a bidirectional I/O port.

Configuration bit is cleared.

Description

PIC18F2450/4450

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name

RE0/AN5

RE0 AN5

RE1/AN6

RE1 AN6

RE2/AN7

RE2 AN7

RE3 — — — — — See MCLR

VSS 12, 31 6, 30, 316, 29 P — Ground reference for logic and I/O pins.

DD 11, 32 7, 8,

USB 18 37 37 P — Internal USB 3.3V voltage regulator output. Positive

NC/ICCK/ICPGC

ICCK ICPGC

NC/ICDT/ICPGD

ICDT ICPGD

NC/ICRST/ICVPP

ICRST ICVPP

NC/ICPORTS

ICPORTS

NC — 13 — — — No Connect.

Legend: TTL = TTL compatible input CMOS = CMOS compatible input or output

Note 1: These pins are No Connect unless the ICPRT Configuration bit is set. For NC/ICPORTS, the pin is No

(1)

ST = Schmitt Trigger input with CMOS levels I = Input O = Output P = Power

Connect unless ICPRT is set and the DEBUG

Pin Number

PDIP QFN TQFP

82525

92626

10 27 27

7, 28 P — Positive supply for logic and I/O pins.

28, 29

——12

——13

——33

— — 34 P — No Connect or 28-pin device emulation.

Buffer

Typ e

I/OIST

Analog

I/OIST

Analog

I/OIST

Analog

I/O I/OSTST

Type

PORTE is a bidirectional I/O port.

Digital I/O. Analog input 5.

Digital I/O. Analog input 6.

Digital I/O. Analog input 7.

/VPP/RE3 pin.

supply for internal USB transceiver.

No Connect or dedicated ICD/ICSP™ port clock.

In-Circuit Debugger clock. ICSP programming clock.

No Connect or dedicated ICD/ICSP port clock.

In-Circuit Debugger data. ICSP programming data.

No Connect or dedicated ICD/ICSP port Reset. — —

Configuration bit is cleared.

Master Clear (Reset) input. Programming voltage input.

Enable 28-pin device emulation when connected

SS.

to V

Description

PIC18F2450/4450

NOTES:

PIC18F2450/4450

2.0 OSCILLATOR CONFIGURATIONS

2.1 Overview

Devices in the PIC18F2450/4450 family incorporate a different oscillator and microcontroller clock system than the non-USB PIC18F devices. The addition of the USB module, with its unique requirements for a stable clock source, make it necessary to provide a separate clock source that is compliant with both USB low-speed and full-speed specifications.

To accommodate these requirements, PIC18F2450/ 4450 devices include a new clock branch to provide a 48 MHz clock for full-speed USB operation. Since it is driven from the primary clock source, an additional system of prescalers and postscalers has been added to accommodate a wide range of oscillator frequencies. An overview of the oscillator structure is shown in Figure 2-1.

Other oscillator features used in PIC18 enhanced microcontrollers, such as the internal RC oscillator and clock switching, remain the same. They are discussed later in this chapter.

2.1.1 OSCILLATOR CONTROL

The operation of the oscillator in PIC18F2450/4450 devices is controlled through two Configuration registers and two control registers. Configuration registers, CONFIG1L and CONFIG1H, select the oscillator mode and USB prescaler/postscaler options. As Configuration bits, these are set when the device is programmed and left in that configuration until the device is reprogrammed.

The OSCCON register (Register 2-1) selects the Active Clock mode; it is primarily used in controlling clock switching in power-managed modes. Its use is discussed in Section 2.4.1 “Oscillator Control

2.2 Oscillator Types

PIC18F2450/4450 devices can be operated in twelve distinct oscillator modes. In contrast with the non-USB PIC18 enhanced microcontrollers, four of these modes involve the use of two oscillator types at once. Users can program the FOSC3:FOSC0 Configuration bits to select one of these modes:

1. XT Crystal/Resonator

2. XTPLL Crystal/Resonator with PLL Enabled

3. HS High-Speed Crystal/Resonator

4. HSPLL High-Speed Crystal/Resonator with PLL Enabled

5. EC External Clock with F

6. ECIO External Clock with I/O on RA6

7. ECPLL External Clock with PLL Enabled and F

OSC/4 Output on RA6

8. ECPIO External Clock with PLL Enabled, I/O on RA6

9. INTHS Internal Oscillator used as Microcontroller Clock Source, HS Oscillator used as USB Clock Source

10. INTXT Internal Oscillator used as Microcontroller Clock Source, XT Oscillator used as USB Clock Source

11. INTIO Internal Oscillator used as Microcontroller Clock Source, EC Oscillator used as USB Clock Source, Digital I/O on RA6

12. INTCKO Internal Oscillator used as Microcontroller Clock Source, EC Oscillator used as USB Clock Source, FOSC/4 Output on RA6

OSC/4 Output

PIC18F2450/4450

2.2.1 OSCILLATOR MODES AND USB OPERATION

Because of the unique requirements of the USB module, a different approach to clock operation is necessary. In previous PIC and peripheral clocks were driven by a single oscillator source; the usual sources were primary, secondary or the internal oscillator. With PIC18F2450/4450 devices, the primary oscillator becomes part of the USB module and cannot be associated to any other clock source.

microcontrollers, all core

Because of the timing requirements imposed by USB, an internal clock of either 6 MHz or 48 MHz is required while the USB module is enabled. Fortunately, the microcontroller and other peripherals are not required to run at this clock speed when using the primary oscillator. There are numerous options to achieve the USB module clock requirement and still provide flexibility for clocking the rest of the device from the primary oscillator source. These are detailed in Section 2.3 “Oscillator Settings for USB”.

Thus, the USB module must be clocked from the primary clock source; however, the microcontroller core and other peripherals can be separately clocked from the secondary or internal oscillators as before.

FIGURE 2-1: PIC18F2450/4450 CLOCK DIAGRAM

PIC18F2450/4450

PLLDIV<2:0>

÷ 12

111

÷ 10

110

÷ 6

101

OSC2

OSC1

T1OSO

T1OSI

Primary Oscillator

Sleep

XT, HS, EC, ECIO

Secondary Oscillator

T1OSCEN Enable Oscillator

÷ 5 ÷ 4 ÷ 3

PLL Prescaler

÷ 2 ÷ 1

CPUDIV<1:0>

÷ 4 ÷ 3 ÷ 2 ÷ 1

Oscillator Postscaler

100

011

010

001

000

MUX

HSPLL, ECPLL,

XTPLL, ECPIO

(4 MHz Input Only)

OSCCON<6:4>

96 MHz

PLL

PLL Postscaler

CPUDIV<1:0>

÷ 6

÷ 4

÷ 3

÷ 2

FOSC3:FOSC0

USBDIV

÷ 2

Primary Clock

T1OSC

Internal Oscillator

USB Clock Source

FSEN

Peripheral

÷ 4

IDLEN

Peripherals

MUX

USB

CPU

Clock

Internal RC Oscillator

31.25

kHz

FOSC3:FOSC0

Control

OSCCON<1:0>

Clock Source Option for Other Modules

WDT, PWRT, FSCM and Two-Speed Start-up

PIC18F2450/4450

2.2.2 CRYSTAL OSCILLATOR/CERAMIC RESONATORS

In HS, HSPLL, XT and XTPLL Oscillator modes, a crystal or ceramic resonator is connected to the OSC1 and OSC2 pins to establish oscillation. Figure 2-2 shows the pin connections.

The oscillator design requires the use of a parallel cut crystal.

Note: Use of a series cut crystal may give a fre-

quency out of the crystal manufacturer’s specifications.

FIGURE 2-2: CRYSTAL/CERAMIC

RESONATOR OPERATION (XT, HS OR HSPLL CONFIGURATION)

(1)

Note 1: See Table 2-1 and Table 2-2 for initial values of

C1 and C2.

2: A series resistor (R

strip cut crystals.

3: R

OSC1

Internal

XTAL

(2)

OSC2

F varies with the oscillator mode chosen.

(3)

PIC18FXXXX

S) may be required for AT

Logic

Sleep

TABLE 2-1: CAPACITOR SELECTION FOR

CERAMIC RESONATORS

Typical Capacitor Values Used:

Mode Freq OSC1 OSC2

XT 4.0 MHz 33 pF 33 pF

HS 8.0 MHz

16.0 MHz

Capacitor values are for design guidance only.

These capacitors were tested with the resonators listed below for basic start-up and operation. These values are not optimized.

Different capacitor values may be required to produce acceptable oscillator operation. The user should test the performance of the oscillator over the expected

DD and temperature range for the application.

See the notes following Table 2-2 for additional information.

Resonators Used:

16.0 MHz

4.0 MHz

8.0 MHz

27 pF 22 pF

TABLE 2-2: CAPACITOR SELECTION FOR

CRYSTAL OSCILLATOR

Osc Type

Crystal

Freq

XT 4 MHz 27 pF 27 pF

HS 4 MHz 27 pF 27 pF

8 MHz 22 pF 22 pF

20 MHz 15 pF 15 pF

Capacitor values are for design guidance only.

These capacitors were tested with the crystals listed below for basic start-up and operation. These values

are not optimized.

Different capacitor values may be required to produce acceptable oscillator operation. The user should test the performance of the oscillator over the expected

DD and temperature range for the application.

See the notes following this table for additional information.

Crystals Used:

Note 1: Higher capacitance increases the stability

of oscillator but also increases the start-up time.

2: When operating below 3V V

using certain ceramic resonators at any voltage, it may be necessary to use the HS mode or switch to a crystal oscillator.

3: Since each resonator/crystal has its own

characteristics, the user should consult the resonator/crystal manufacturer for appropriate values of external components.

4: Rs may be required to avoid overdriving

crystals with low drive level specification.

5: Always verify oscillator performance over

DD and temperature range that is

the V expected for the application.

An internal postscaler allows users to select a clock frequency other than that of the crystal or resonator. Frequency division is determined by the CPUDIV Configuration bits. Users may select a clock frequency of the oscillator frequency, or 1/2, 1/3 or 1/4 of the frequency.

An external clock may also be used when the microcontroller is in HS Oscillator mode. In this case, the OSC2/CLKO pin is left open (Figure 2-3).

Typical Capacitor Values

Test ed:

C1 C2

4 MHz

8 MHz

20 MHz

DD, or when

PIC18F2450/4450

FIGURE 2-3: EXTERNAL CLOCK INPUT

OPERATION (HS OSC CONFIGURATION)

Clock from Ext. System

Open

OSC1

OSC2

PIC18FXXXX

(HS Mode)

2.2.3 EXTERNAL CLOCK INPUT

The EC, ECIO, ECPLL and ECPIO Oscillator modes require an external clock source to be connected to the OSC1 pin. There is no oscillator start-up time required after a Power-on Reset or after an exit from Sleep mode.

In the EC and ECPLL Oscillator modes, the oscillator frequency divided by 4 is available on the OSC2 pin. This signal may be used for test purposes or to synchronize other logic. Figure 2-4 shows the pin connections for the EC Oscillator mode.

FIGURE 2-4: EXTERNAL CLOCK

INPUT OPERATION (EC AND ECPLL CONFIGURATION)

2.2.4 PLL FREQUENCY MULTIPLIER

PIC18F2450/4450 devices include a Phase Locked Loop (PLL) circuit. This is provided specifically for USB applications with lower speed oscillators and can also be used as a microcontroller clock source.

The PLL is enabled in HSPLL, XTPLL, ECPLL and ECPIO Oscillator modes. It is designed to produce a fixed 96 MHz reference clock from a fixed 4 MHz input. The output can then be divided and used for both the USB and the microcontroller core clock. Because the PLL has a fixed frequency input and output, there are eight prescaling options to match the oscillator input frequency to the PLL.

There is also a separate postscaler option for deriving the microcontroller clock from the PLL. This allows the USB peripheral and microcontroller to use the same oscillator input and still operate at different clock speeds. In contrast to the postscaler for XT, HS and EC modes, the available options are 1/2, 1/3, 1/4 and 1/6 of the PLL output.

The HSPLL, ECPLL and ECPIO modes make use of the HS mode oscillator for frequencies up to 48 MHz. The prescaler divides the oscillator input by up to 12 to produce the 4 MHz drive for the PLL. The XTPLL mode can only use an input frequency of 4 MHz which drives the PLL directly.

Clock from Ext. System

OSC/4

OSC1/CLKI

PIC18FXXXX

OSC2/CLKO

The ECIO and ECPIO Oscillator modes function like the EC and ECPLL modes, except that the OSC2 pin becomes an additional general purpose I/O pin. The I/O pin becomes bit 6 of PORTA (RA6). Figure 2-5 shows the pin connections for the ECIO Oscillator mode.

FIGURE 2-5: EXTERNAL CLOCK

INPUT OPERATION (ECIO AND ECPIO CONFIGURATION)

Clock from Ext. System

RA6

The internal postscaler for reducing clock frequency in XT and HS modes is also available in EC and ECIO modes.

OSC1/CLKI

PIC18FXXXX

I/O (OSC2)

FIGURE 2-6: PLL BLOCK DIAGRAM

(HS MODE)

HS/EC/ECIO/XT Oscillator Enable

(from CONFIG1H Register)

OSC2

Oscillator

OSC1

and

Prescaler

PLL Enable

Phase

Comparator

FOUT

÷24

Loop Filter

VCO

SYSCLK

MUX

PIC18F2450/4450

2.2.5 INTERNAL OSCILLATOR

The PIC18F2450/4450 devices include an internal RC oscillator (INTRC) which provides a nominal 31 kHz output. INTRC is enabled if it is selected as the device clock source; it is also enabled automatically when any of the following are enabled:

• Power-up Timer

• Fail-Safe Clock Monitor

• Watchdog Timer

• Two-Speed Start-up

These features are discussed in greater detail in Section 18.0 “Special Features of the CPU”.

2.2.5.1 Internal Oscillator Modes

When the internal oscillator is used as the microcontroller clock source, one of the other oscillator modes (External Clock or External Crystal/Resonator) must be used as the USB clock source. The choice of USB clock source is determined by the particular internal oscillator mode.

There are four distinct modes available:

1. INTHS mode: The USB clock is provided by the

oscillator in HS mode.

2. INTXT mode: The USB clock is provided by the

oscillator in XT mode.

3. INTCKO mode: The USB clock is provided by an

external clock input on OSC1/CLKI; the OSC2/ CLKO pin outputs F

4. INTIO mode: The USB clock is provided by an

external clock input on OSC1/CLKI; the OSC2/ CLKO pin functions as a digital I/O (RA6).

Of these four modes, only INTIO mode frees up an additional pin (OSC2/CLKO/RA6) for port I/O use.

OSC/4.

2.3 Oscillator Settings for USB

When the PIC18F2450/4450 is used for USB connectivity, it must have either a 6 MHz or 48 MHz clock for USB operation, depending on whether LowSpeed or Full-Speed mode is being used. This may require some forethought in selecting an oscillator frequency and programming the device.

The full range of possible oscillator configurations compatible with USB operation is shown in Table 2-3.

2.3.1 LOW-SPEED OPERATION

The USB clock for Low-Speed mode is derived from the primary oscillator chain and not directly from the PLL. It is divided by 4 to produce the actual 6 MHz clock. Because of this, the microcontroller can only use a clock frequency of 24 MHz when the USB module is active and the controller clock source is one of the primary oscillator modes (XT, HS or EC, with or without the PLL).

This restriction does not apply if the microcontroller clock source is the secondary oscillator or internal oscillator.

2.3.2 RUNNING DIFFERENT USB AND MICROCONTROLLER CLOCKS

The USB module, in either mode, can run asynchronously with respect to the microcontroller core and other peripherals. This means that applications can use the primary oscillator for the USB clock while the microcontroller runs from a separate clock source at a lower speed. If it is necessary to run the entire application from only one clock source, full-speed operation provides a greater selection of microcontroller clock frequencies.

PIC18F2450/4450

TABLE 2-3: OSCILLATOR CONFIGURATION OPTIONS FOR USB OPERATION

Input Oscillator

Frequency

48 MHz N/A

48 MHz ÷12 (111)

40 MHz ÷10 (110)

24 MHz ÷6 (101)

20 MHz ÷5 (100)

16 MHz ÷4 (011)

Legend: All clock frequencies, except 24 MHz, are exclusively associated with full-speed USB operation (USB clock of 48 MHz).

Bold is used to highlight clock selections that are compatible with low-speed USB operation (system clock of 24 MHz,

USB clock of 6 MHz).

Note 1: Only valid when the USBDIV Configuration bit is cleared.

PLL Division

(PLLDIV2:PLLDIV0)

(1)

Clock Mode

(FOSC3:FOSC0)

EC, ECIO

ECPLL, ECPIO

EC, ECIO

ECPLL, ECPIO

HS, EC, ECIO

HSPLL, ECPLL, ECPIO

HS, EC, ECIO

HSPLL, ECPLL, ECPIO

HS, EC, ECIO

HSPLL, ECPLL, ECPIO

MCU Clock Division (CPUDIV1:CPUDIV0)

None (00)48MHz

÷2 (01) 24 MHz ÷3 (10)16MHz ÷4 (11)12MHz

None (00)48MHz

÷2 (01) 24 MHz ÷3 (10)16MHz ÷4 (11)12MHz ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

None (00)40MHz

÷2 (01)20MHz ÷3 (10) 13.33 MHz ÷4 (11)10MHz ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

None (00) 24 MHz

÷2 (01)12MHz ÷3 (10)8MHz ÷4 (11)6MHz ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

None (00)20MHz

÷2 (01)10MHz ÷3 (10)6.67MHz ÷4 (11)5MHz ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

None (00)16MHz

÷2 (01)8MHz ÷3 (10)5.33MHz ÷4 (11)4MHz ÷2 (00)48MHz

3 (01)32MHz

÷ ÷4 (10) 24 MHz ÷6 (11)16MHz

Microcontroller

Clock Frequency

PIC18F2450/4450

TABLE 2-3: OSCILLATOR CONFIGURATION OPTIONS FOR USB OPERATION (CONTINUED)

Input Oscillator

Frequency

12 MHz ÷3 (010)

8MHz ÷2 (001)

4MHz ÷1 (000)

Legend: All clock frequencies, except 24 MHz, are exclusively associated with full-speed USB operation (USB clock of 48 MHz).

Bold is used to highlight clock selections that are compatible with low-speed USB operation (system clock of 24 MHz,

USB clock of 6 MHz).

Note 1: Only valid when the USBDIV Configuration bit is cleared.

PLL Division

(PLLDIV2:PLLDIV0)

Clock Mode

(FOSC3:FOSC0)

HS, EC, ECIO

HSPLL, ECPLL, ECPIO

HS, EC, ECIO

HSPLL, ECPLL, ECPIO

XT, HS, EC, ECIO

HSPLL, ECPLL, XTPLL,

ECPIO

MCU Clock Division

(CPUDIV1:CPUDIV0)

None (00)12MHz

÷2 (01)6MHz ÷3 (10)4MHz ÷4 (11)3MHz ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

None (00)8MHz

÷2 (01)4MHz ÷3 (10)2.67MHz ÷4 (11)2MHz ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

None (00)4MHz

÷2 (01)2MHz ÷3 (10)1.33MHz

)1MHz

÷4 (11 ÷2 (00)48MHz ÷3 (01)32MHz ÷4 (10) 24 MHz ÷6 (11)16MHz

Microcontroller

Clock Frequency

PIC18F2450/4450

2.4 Clock Sources and Oscillator Switching

Like previous PIC18 enhanced devices, the PIC18F2450/4450 family includes a feature that allows the device clock source to be switched from the main oscillator to an alternate, low-frequency clock source. PIC18F2450/4450 devices offer two alternate clock sources. When an alternate clock source is enabled, the various power-managed operating modes are available.

Essentially, there are three clock sources for these devices:

• Primary oscillators

• Secondary oscillators

• Internal oscillator

The primary oscillators include the External Crystal and Resonator modes, the External Clock modes and the internal oscillator. The particular mode is defined by the FOSC3:FOSC0 Configuration bits. The details of these modes are covered earlier in this chapter.

The secondary oscillators are those external sources not connected to the OSC1 or OSC2 pins. These sources may continue to operate even after the controller is placed in a power-managed mode.

PIC18F2450/4450 devices offer the Timer1 oscillator as a secondary oscillator. This oscillator, in all powermanaged modes, is often the time base for functions such as a Real-Time Clock (RTC). Most often, a

32.768 kHz watch crystal is connected between the

RC0/T1OSO/T1CKI and RC1/T1OSI/UOE the XT and HS Oscillator mode circuits, loading capacitors are also connected from each pin to ground. The Timer1 oscillator is discussed in greater detail in Section 11.3 “Timer1 Oscillator”.

In addition to being a primary clock source, the internal oscillator is available as a power-managed mode clock source. The INTRC source is also used as the clock source for several special features, such as the WDT and Fail-Safe Clock Monitor.

2.4.1 OSCILLATOR CONTROL REGISTER

The OSCCON register (Register 2-1) controls several aspects of the device clock’s operation, both in full-power operation and in power-managed modes.

The System Clock Select bits, SCS1:SCS0, select the clock source. The available clock sources are the primary clock (defined by the FOSC3:FOSC0 Configuration bits), the secondary clock (Timer1 oscillator) and the internal oscillator. The clock source changes immediately, after one or more of the bits is written to, following a brief clock transition interval. The SCS bits are cleared on all forms of Reset.

pins. Like

INTRC always remains the clock source for features such as the Watchdog Timer and the Fail-Safe Clock Monitor.

The OSTS and T1RUN bits indicate which clock source is currently providing the device clock. The OSTS bit indicates that the Oscillator Start-up Timer (OST) has timed out and the primary clock is providing the device clock in primary clock modes. The T1RUN bit (T1CON<6>) indicates when the Timer1 oscillator is providing the device clock in secondary clock modes. In power-managed modes, only one of these three bits will be set at any time. If none of these bits are set, the INTRC is providing the clock or the internal oscillator has just started and is not yet stable.

The IDLEN bit determines if the device goes into Sleep mode, or one of the Idle modes, when the SLEEP instruction is executed.

The use of the flag and control bits in the OSCCON register is discussed in more detail in Section 3.0

“Power-Managed Modes”.

Note 1: The Timer1 oscillator must be enabled to

select the secondary clock source. The Timer1 oscillator is enabled by setting the T1OSCEN bit in the Timer1 Control register (T1CON<3>). If the Timer1 oscillator is not enabled, then any attempt to select a secondary clock source will be ignored.

2: It is recommended that the Timer1

oscillator be operating and stable prior to switching to it as the clock source; otherwise, a very long delay may occur while the Timer1 oscillator starts.

2.4.2 OSCILLATOR TRANSITIONS

PIC18F2450/4450 devices contain circuitry to prevent clock “glitches” when switching between clock sources. A short pause in the device clock occurs during the clock switch. The length of this pause is the sum of two cycles of the old clock source and three to four cycles of the new clock source. This formula assumes that the new clock source is stable.

Clock transitions are discussed in greater detail in Section 3.1.2 “Entering Power-Managed Modes”.

PIC18F2450/4450

REGISTER 2-1: OSCCON: OSCILLATOR CONTROL REGISTER

(1)

U-0 R/W-0 R/W-0

R/W-0 U-0 U-0 U-0 R

IDLEN — — —OSTS —SCS1SCS0

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 IDLEN: Idle Enable bit

1 = Device enters Idle mode on SLEEP instruction 0 = Device enters Sleep mode on SLEEP instruction

bit 6-4 Unimplemented: Read as ‘0’

bit 3 OSTS: Oscillator Start-up Time-out Status bit

1 = Oscillator Start-up Timer time-out has expired; primary oscillator is running 0 = Oscillator Start-up Timer time-out is running; primary oscillator is not ready

bit 2 Unimplemented: Read as ‘0’

bit 1-0 SCS1:SCS0: System Clock Select bits

1x = Internal oscillator 01 = Timer1 oscillator 00 = Primary oscillator

Note 1: Depends on the state of the IESO Configuration bit.

PIC18F2450/4450

2.5 Effects of Power-Managed Modes on the Various Clock Sources

When PRI_IDLE mode is selected, the designated primary oscillator continues to run without interruption. For all other power-managed modes, the oscillator using the OSC1 pin is disabled. Unless the USB module is enabled, the OSC1 pin (and OSC2 pin if used by the oscillator) will stop oscillating.

In secondary clock modes (SEC_RUN and SEC_IDLE), the Timer1 oscillator is operating and providing the device clock. The Timer1 oscillator may also run in all power-managed modes if required to clock Timer1.

In internal oscillator modes (RC_RUN and RC_IDLE), the internal oscillator provides the device clock source. The 31 kHz INTRC output can be used directly to provide the clock and may be enabled to support various special features regardless of the power-managed mode (see Section 18.2 “Watchdog Timer (WDT)”,

Section 18.3 “Two-Speed Start-up” and Section 18.4 “Fail-Safe Clock Monitor” for more information on

WDT, Fail-Safe Clock Monitor and Two-Speed Start-up).

Regardless of the Run or Idle mode selected, the USB clock source will continue to operate. If the device is operating from a crystal or resonator-based oscillator, that oscillator will continue to clock the USB module. The core and all other modules will switch to the new clock source.

If the Sleep mode is selected, all clock sources are stopped. Since all the transistor switching currents have been stopped, Sleep mode achieves the lowest current consumption of the device (only leakage currents).

Sleep mode should never be invoked while the USB module is operating and connected. The only exception is when the device has been issued a “Suspend” command over the USB. Once the module has suspended operation and shifted to a low-power state, the microcontroller may be safely put into Sleep mode.

Enabling any on-chip feature that will operate during Sleep will increase the current consumed during Sleep. The INTRC is required to support WDT operation. The Timer1 oscillator may be operating to support a RealTime Clock. Other features may be operating that do not require a device clock source (i.e., PSP, INTx pins and others). Peripherals that may add significant current consumption are listed in Section 21.2 “DC

Characteristics: Power-Down and Supply Current”.

2.6 Power-up Delays

Power-up delays are controlled by two timers, so that no external Reset circuitry is required for most applications. The delays ensure that the device is kept in Reset until the device power supply is stable under normal circumstances and the primary clock is operating and stable. For additional information on power-up delays, see Section 4.5 “Device Reset Timers”.

The first timer is the Power-up Timer (PWRT), which provides a fixed delay on power-up (parameter 33, Table 21-10). It is enabled by clearing (= 0) the PWRTEN

The second timer is the Oscillator Start-up Timer (OST), intended to keep the chip in Reset until the crystal oscillator is stable (XT and HS modes). The OST does this by counting 1024 oscillator cycles before allowing the oscillator to clock the device.

When the HSPLL Oscillator mode is selected, the device is kept in Reset for an additional 2 ms following the HS mode OST delay, so the PLL can lock to the incoming clock frequency.

There is a delay of interval, T Table 21-10), following POR, while the controller becomes ready to execute instructions. This delay runs concurrently with any other delays. This may be the only delay that occurs when any of the EC or internal oscillator modes are used as the primary clock source.

Configuration bit.

CSD (parameter 38,

TABLE 2-4: OSC1 AND OSC2 PIN STATES IN SLEEP MODE

Oscillator Mode OSC1 Pin OSC2 Pin

INTCKO Floating, pulled by external clock At logic low (clock/4 output)

INTIO Floating, pulled by external clock Configured as PORTA, bit 6

ECIO, ECPIO Floating, pulled by external clock Configured as PORTA, bit 6

EC Floating, pulled by external clock At logic low (clock/4 output)

XT and HS Feedback inverter disabled at quiescent

voltage level

Note: See Table 4-2 in Section 4.0 “Reset” for time-outs due to Sleep and MCLR

Feedback inverter disabled at quiescent voltage level

Reset.

PIC18F2450/4450

3.0 POWER-MANAGED MODES

PIC18F2450/4450 devices offer a total of seven operating modes for more efficient power management. These modes provide a variety of options for selective power conservation in applications where resources may be limited (i.e., battery-powered devices).

There are three categories of power-managed modes:

• Run modes

• Idle modes

• Sleep mode

These categories define which portions of the device are clocked and sometimes, what speed. The Run and Idle modes may use any of the three available clock sources (primary, secondary or internal oscillator); the Sleep mode does not use a clock source.

The power-managed modes include several powersaving features offered on previous PIC microcontrollers. One is the clock switching feature, offered in other PIC18 devices, allowing the controller to use the Timer1 oscillator in place of the primary oscillator. Also included is the Sleep mode, offered by all PIC microcontrollers, where all device clocks are stopped.

3.1 Selecting Power-Managed Modes

Selecting a power-managed mode requires two decisions: if the CPU is to be clocked or not and the selection of a clock source. The IDLEN bit (OSCCON<7>) controls CPU clocking, while the SCS1:SCS0 bits (OSCCON<1:0>) select the clock source. The individual modes, bit settings, clock sources and affected modules are summarized in Table 3-1.

3.1.1 CLOCK SOURCES

The SCS1:SCS0 bits allow the selection of one of three clock sources for power-managed modes. They are:

• The primary clock, as defined by the FOSC3:FOSC0 Configuration bits

• The secondary clock (the Timer1 oscillator)

• The internal oscillator (for RC modes)

3.1.2 ENTERING POWER-MANAGED

MODES

Switching from one power-managed mode to another begins by loading the OSCCON register. The SCS1:SCS0 bits select the clock source and determine which Run or Idle mode is to be used. Changing these bits causes an immediate switch to the new clock source, assuming that it is running. The switch may also be subject to clock transition delays. These are

discussed in Section 3.1.3 “Clock Transitions and Status Indicators” and subsequent sections.

Entry to the power-managed Idle or Sleep modes is triggered by the execution of a SLEEP instruction. The actual mode that results depends on the status of the IDLEN bit.

Depending on the current mode and the mode being switched to, a change to a power-managed mode does not always require setting all of these bits. Many transitions may be done by changing the oscillator select bits, or changing the IDLEN bit, prior to issuing a SLEEP instruction. If the IDLEN bit is already configured correctly, it may only be necessary to perform a SLEEP instruction to switch to the desired mode.

TABLE 3-1: POWER-MANAGED MODES

Mode

Sleep 0 N/A Off Off None – all clocks are disabled

PRI_RUN N/A 00 Clocked Clocked Primary – all oscillator modes.

SEC_RUN N/A 01 Clocked Clocked Secondary – Timer1 oscillator

RC_RUN N/A 1x Clocked Clocked Internal oscillator

PRI_IDLE 100Off Clocked Primary – all oscillator modes

SEC_IDLE 101Off Clocked Secondary – Timer1 oscillator

RC_IDLE 11xOff Clocked Internal oscillator

Note 1: IDLEN reflects its value when the SLEEP instruction is executed.

2: Clock is INTRC source.

OSCCON Bits Module Clocking

(1)

IDLEN

SCS1:SCS0 CPU Peripherals

Available Clock and Oscillator Source

This is the normal full-power execution mode.

(2)

PIC18F2450/4450

3.1.3 CLOCK TRANSITIONS AND STATUS INDICATORS

The length of the transition between clock sources is the sum of two cycles of the old clock source and three to four cycles of the new clock source. This formula assumes that the new clock source is stable.

Two bits indicate the current clock source and its status. They are:

• OSTS (OSCCON<3>)

• T1RUN (T1CON<6>)

In general, only one of these bits will be set while in a given power-managed mode. When the OSTS bit is set, the primary clock is providing the device clock. When the T1RUN bit is set, the Timer1 oscillator is providing the clock.

Note: Executing a SLEEP instruction does not

necessarily place the device into Sleep mode. It acts as the trigger to place the controller into either the Sleep mode, or one of the Idle modes, depending on the setting of the IDLEN bit.

3.1.4 MULTIPLE SLEEP COMMANDS

The power-managed mode that is invoked with the SLEEP instruction is determined by the setting of the IDLEN bit at the time the instruction is executed. If another SLEEP instruction is executed, the device will enter the power-managed mode specified by IDLEN at that time. If IDLEN has changed, the device will enter the new power-managed mode specified by the new setting.

3.2.1 PRI_RUN MODE

The PRI_RUN mode is the normal, full-power execution mode of the microcontroller. This is also the default mode upon a device Reset unless Two-Speed Start-up is enabled (see Section 18.3 “Two-Speed Start-up” for details). In this mode, the OSTS bit is set.

3.2.2 SEC_RUN MODE

The SEC_RUN mode is the compatible mode to the “clock switching” feature offered in other PIC18 devices. In this mode, the CPU and peripherals are clocked from the Timer1 oscillator. This gives users the option of lower power consumption while still using a high accuracy clock source.

SEC_RUN mode is entered by setting the SCS1:SCS0 bits to ‘01’. The device clock source is switched to the Timer1 oscillator (see Figure 3-1), the primary oscillator is shut down, the T1RUN bit (T1CON<6>) is set and the OSTS bit is cleared.

Note: The Timer1 oscillator should already be

running prior to entering SEC_RUN mode. If the T1OSCEN bit is not set when the SCS1:SCS0 bits are set to ‘01’, entry to SEC_RUN mode will not occur. If the Timer1 oscillator is enabled but not yet running, device clocks will be delayed until the oscillator has started. In such situations, initial oscillator operation is far from stable and unpredictable operation may result.

3.2 Run Modes

In the Run modes, clocks to both the core and peripherals are active. The difference between these modes is the clock source.

PIC18F2450/4450

On transitions from SEC_RUN mode to PRI_RUN mode, the peripherals and CPU continue to be clocked from the Timer1 oscillator while the primary clock is started. When the primary clock becomes ready, a clock switch back to the primary clock occurs (see

Figure 3-2). When the clock switch is complete, the T1RUN bit is cleared, the OSTS bit is set and the primary clock is providing the clock. The IDLEN and SCS bits are not affected by the wake-up; the Timer1 oscillator continues to run.

FIGURE 3-1: TRANSITION TIMING FOR ENTRY TO SEC_RUN MODE

Q4Q3Q2

T1OSI

OSC1

CPU

Clock

Peripheral

Clock

Program

Counter

Note 1: Clock transition typically occurs within 2-4 T

123

Clock Transition

OSC.

Q4Q3Q2 Q1 Q3Q2

n-1

(1)

PC + 2PC

PC + 4

FIGURE 3-2: TRANSITION TIMING FROM SEC_RUN MODE TO PRI_RUN MODE (HSPLL)

T1OSI

OSC1

PLL Clock

Output

CPU Clock

Q1 Q3 Q4

(1)

TOST

Q3 Q4 Q1

Q2 Q2 Q3

(1)

TPLL

12 n-1n

(2)

Clock

Transition

Peripheral

Clock

Program

Counter

SCS1:SCS0 bits Changed

Note 1: TOST = 1024 TOSC; TPLL = 2 ms (approx). These intervals are not shown to scale.

2: Clock transition typically occurs within 2-4 T

OSTS bit Set

OSC.

PC + 2

PC + 4

PIC18F2450/4450

3.2.3 RC_RUN MODE

In RC_RUN mode, the CPU and peripherals are clocked from the internal oscillator; the primary clock is shut down. When using the INTRC source, this mode provides the best power conservation of all the Run modes while still executing code. It works well for user applications which are not highly timing sensitive or do not require high-speed clocks at all times.

If the primary clock source is the internal oscillator (INTRC), there are no distinguishable differences between the PRI_RUN and RC_RUN modes during execution. However, a clock switch delay will occur during entry to and exit from RC_RUN mode. Therefore, if the primary clock source is the internal oscillator, the use of RC_RUN mode is not recommended.

This mode is entered by setting SCS1 to ‘1’. Although it is ignored, it is recommended that SCS0 also be cleared; this is to maintain software compatibility with future devices. When the clock source is switched to the INTRC (see Figure 3-3), the primary oscillator is shut down and the OSTS bit is cleared.

On transitions from RC_RUN mode to PRI_RUN mode, the device continues to be clocked from the INTRC while the primary clock is started. When the primary clock becomes ready, a clock switch to the primary clock occurs (see Figure 3-4). When the clock switch is complete, the OSTS bit is set and the primary clock is providing the device clock. The IDLEN and SCS bits are not affected by the switch. The INTRC source will continue to run if either the WDT or the Fail-Safe Clock Monitor is enabled.

FIGURE 3-3: TRANSITION TIMING TO RC_RUN MODE

Q4Q3Q2

123 n-1n

Clock Transition

PC + 2PC

(1)

INTRC

OSC1

CPU

Clock

Peripheral

Clock

Program

Counter

Q4Q3Q2 Q1 Q3Q2

PC + 4

Note 1: Clock transition typically occurs within 2-4 T

OSC.

FIGURE 3-4: TRANSITION TIMING FROM RC_RUN MODE TO PRI_RUN MODE

INTRC

OSC1

PLL Clock

Output

CPU Clock

Peripheral

Clock

Program

Counter

SCS1:SCS0 bits Changed

Note 1: TOST = 1024 TOSC; TPLL = 2 ms (approx). These intervals are not shown to scale.

2: Clock transition typically occurs within 2-4 T

TOST

(1)

TPLL

OSTS bit Set

OSC.

12 n-1n

(2)

Clock

Transition

PC + 2

Q3 Q4

PC + 4

PIC18F2450/4450

3.3 Sleep Mode

The power-managed Sleep mode in the PIC18F2450/ 4450 devices is identical to the legacy Sleep mode offered in all other PIC microcontrollers. It is entered by clearing the IDLEN bit (the default state on device Reset) and executing the SLEEP instruction. This shuts down the selected oscillator (Figure 3-5). All clock source status bits are cleared.

Entering the Sleep mode from any other mode does not require a clock switch. This is because no clocks are needed once the controller has entered Sleep. If the WDT is selected, the INTRC source will continue to operate. If the Timer1 oscillator is enabled, it will also continue to run.

When a wake event occurs in Sleep mode (by interrupt, Reset or WDT time-out), the device will not be clocked until the clock source selected by the SCS1:SCS0 bits becomes ready (see Figure 3-6), or it will be clocked from the internal oscillator if either the Two-Speed Start-up or the Fail-Safe Clock Monitor are enabled (see Section 18.0 “Special Features of the CPU”). In either case, the OSTS bit is set when the primary clock is providing the device clocks. The IDLEN and SCS bits are not affected by the wake-up.

3.4 Idle Modes

The Idle modes allow the controller’s CPU to be selectively shut down while the peripherals continue to operate. Selecting a particular Idle mode allows users to further manage power consumption.

If the IDLEN bit is set to ‘1’ when a SLEEP instruction is executed, the peripherals will be clocked from the clock source selected using the SCS1:SCS0 bits; however, the CPU will not be clocked. The clock source status bits are not affected. Setting IDLEN and executing a SLEEP instruction provides a quick method of switching from a given Run mode to its corresponding Idle mode.

If the WDT is selected, the INTRC source will continue to operate. If the Timer1 oscillator is enabled, it will also continue to run.

Since the CPU is not executing instructions, the only exits from any of the Idle modes are by interrupt, WDT time-out or a Reset. When a wake event occurs, CPU execution is delayed by an interval of T (parameter 38, Table 21-10) while it becomes ready to execute code. When the CPU begins executing code, it resumes with the same clock source for the current Idle mode. For example, when waking from RC_IDLE mode, the internal oscillator will clock the CPU and peripherals (in other words, RC_RUN mode). The IDLEN and SCS bits are not affected by the wake-up.

While in any Idle mode or Sleep mode, a WDT time-out will result in a WDT wake-up to the Run mode currently specified by the SCS1:SCS0 bits.

CSD

FIGURE 3-5: TRANSITION TIMING FOR ENTRY TO SLEEP MODE

Q4Q3Q2

Q1Q1

OSC1

CPU

Clock

Peripheral

Clock

Sleep

Program

Counter

PC + 2PC

FIGURE 3-6: TRANSITION TIMING FOR WAKE FROM SLEEP (HSPLL)

PLL Clock

CPU Clock

Peripheral

Program

Counter

Note 1: T

Q1 Q2 Q3 Q4 Q1 Q2

OSC1

(1)

TOST

Output

Clock

Wake Event

OST = 1024 TOSC; TPLL = 2 ms (approx). These intervals are not shown to scale.

(1)

TPLL

OSTS bit Set

PC + 2

Q3 Q4 Q1 Q2

Q3 Q4

PC + 4

Q1 Q2 Q3 Q4

PC + 6

PIC18F2450/4450

3.4.1 PRI_IDLE MODE

This mode is unique among the three low-power Idle modes in that it does not disable the primary device clock. For timing sensitive applications, this allows for the fastest resumption of device operation, with its more accurate primary clock source, since the clock source does not have to “warm up” or transition from another oscillator.

PRI_IDLE mode is entered from PRI_RUN mode by setting the IDLEN bit and executing a SLEEP instruction. If the device is in another Run mode, set IDLEN first, then clear the SCS bits and execute SLEEP. Although the CPU is disabled, the peripherals continue to be clocked from the primary clock source specified by the FOSC3:FOSC0 Configuration bits. The OSTS bit remains set (see Figure 3-7).

When a wake event occurs, the CPU is clocked from the primary clock source. A delay of interval T required between the wake event and when code execution starts. This is required to allow the CPU to become ready to execute instructions. After the wakeup, the OSTS bit remains set. The IDLEN and SCS bits are not affected by the wake-up (see Figure 3-8).

CSD is

3.4.2 SEC_IDLE MODE

In SEC_IDLE mode, the CPU is disabled but the peripherals continue to be clocked from the Timer1 oscillator. This mode is entered from SEC_RUN by setting the IDLEN bit and executing a SLEEP instruction. If the device is in another Run mode, set IDLEN first, then set SCS1:SCS0 to ‘01’ and execute SLEEP. When the clock source is switched to the Timer1 oscillator, the primary oscillator is shut down, the OSTS bit is cleared and the T1RUN bit is set.

When a wake event occurs, the peripherals continue to be clocked from the Timer1 oscillator. After an interval of

CSD following the wake event, the CPU begins execut-

T ing code being clocked by the Timer1 oscillator. The IDLEN and SCS bits are not affected by the wake-up; the Timer1 oscillator continues to run (see Figure 3-8).

Note: The Timer1 oscillator should already be

running prior to entering SEC_IDLE mode. If the T1OSCEN bit is not set when the SLEEP instruction is executed, the SLEEP instruction will be ignored and entry to SEC_IDLE mode will not occur. If the Timer1 oscillator is enabled but not yet running, peripheral clocks will be delayed until the oscillator has started. In such situations, initial oscillator operation is far from stable and unpredictable operation may result.

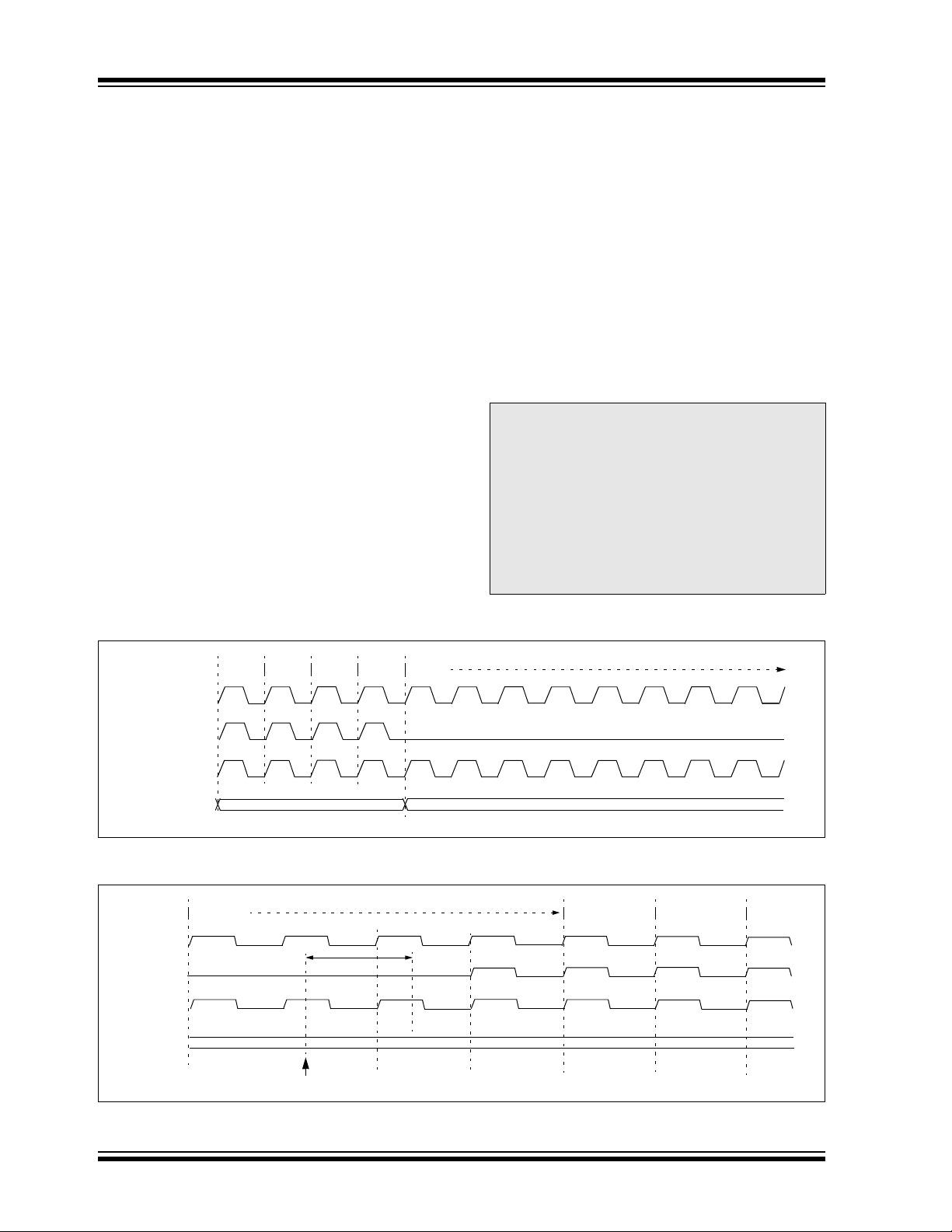

FIGURE 3-7: TRANSITION TIMING FOR ENTRY TO IDLE MODE

OSC1

CPU Clock

Peripheral

Clock

Program

Counter

PC PC + 2

FIGURE 3-8: TRANSITION TIMING FOR WAKE FROM IDLE TO RUN MODE

OSC1

CPU Clock

Peripheral

Clock

Program

Counter

Q1 Q3 Q4

TCSD

Wake Even t

PIC18F2450/4450

3.4.3 RC_IDLE MODE

In RC_IDLE mode, the CPU is disabled but the peripherals continue to be clocked from the internal oscillator, INTRC. This mode allows for controllable power conservation during Idle periods.

From RC_RUN, this mode is entered by setting the IDLEN bit and executing a SLEEP instruction. If the device is in another Run mode, first set IDLEN, then set the SCS1 bit and execute SLEEP. Although its value is ignored, it is recommended that SCS0 also be cleared; this is to maintain software compatibility with future devices. When the clock source is switched to the INTRC, the primary oscillator is shut down and the OSTS bit is cleared.

When a wake event occurs, the peripherals continue to be clocked from the INTRC. After a delay of T following the wake event, the CPU begins executing code being clocked by the INTRC. The IDLEN and SCS bits are not affected by the wake-up. The INTRC source will continue to run if either the WDT or the Fail-Safe Clock Monitor is enabled.

CSD

3.5 Exiting Idle and Sleep Modes

An exit from Sleep mode or any of the Idle modes is triggered by an interrupt, a Reset or a WDT time-out. This section discusses the triggers that cause exits from power-managed modes. The clocking subsystem actions are discussed in each of the power-managed modes (see Section 3.2 “Run Modes”, Section 3.3 “Sleep Mode” and Section 3.4 “Idle Modes”).

3.5.1 EXIT BY INTERRUPT

Any of the available interrupt sources can cause the device to exit from an Idle mode, or the Sleep mode, to a Run mode. To enable this functionality, an interrupt source must be enabled by setting its enable bit in one of the INTCON or PIE registers. The exit sequence is initiated when the corresponding interrupt flag bit is set.

On all exits from Idle or Sleep modes by interrupt, code execution branches to the interrupt vector if the GIE/ GIEH bit (INTCON<7>) is set. Otherwise, code execution continues or resumes without branching (see Section 8.0 “Interrupts”).

A fixed delay of interval, T event, is required when leaving Sleep and Idle modes. This delay is required for the CPU to prepare for execution. Instruction execution resumes on the first clock cycle following this delay.

CSD, following the wake

3.5.2 EXIT BY WDT TIME-OUT

A WDT time-out will cause different actions depending on which power-managed mode the device is in when the time-out occurs.

If the device is not executing code (all Idle modes and Sleep mode), the time-out will result in an exit from the power-managed mode (see Section 3.2 “Run Modes” and Section 3.3 “Sleep Mode”). If the device is executing code (all Run modes), the time-out will result in a WDT Reset (see Section 18.2 “Watchdog Timer (WDT)”).

3.5.3 EXIT BY RESET

Normally, the device is held in Reset by the Oscillator Start-up Timer (OST) until the primary clock becomes ready. At that time, the OSTS bit is set and the device begins executing code.

The exit delay time from Reset to the start of code execution depends on both the clock sources before and after the wake-up and the type of oscillator if the new clock source is the primary clock. Exit delays are summarized in Table 3-2.

Code execution can begin before the primary clock becomes ready. If either the Two-Speed Start-up (see Section 18.3 “Two-Speed Start-up”) or Fail-Safe Clock Monitor (see Section 18.4 “Fail-Safe Clock Monitor”) is enabled, the device may begin execution as soon as the Reset source has cleared. Execution is clocked by the INTRC driven by the internal oscillator. Execution is clocked by the internal oscillator until either the primary clock becomes ready or a powermanaged mode is entered before the primary clock becomes ready; the primary clock is then shut down.

PIC18F2450/4450

3.5.4 EXIT WITHOUT AN OSCILLATOR START-UP DE LAY

Certain exits from power-managed modes do not invoke the OST at all. There are two cases:

• PRI_IDLE mode, where the primary clock source

is not stopped; and

• The primary clock source is not any of the XT or

HS modes

In these instances, the primary clock source either does not require an oscillator start-up delay, since it is already running (PRI_IDLE), or normally does not require an oscillator start-up delay (EC and any internal oscillator modes). However, a fixed delay of interval

CSD following the wake event is still required when

T leaving Sleep and Idle modes to allow the CPU to prepare for execution. Instruction execution resumes on the first clock cycle following this delay.

TABLE 3-2: EXIT DELAY ON WAKE-UP BY RESET FROM SLEEP MODE OR ANY IDLE MODE

(BY CLOCK SOURCES)

Microcontroller Clock Source

Before Wake-up After Wake-up

Primary Device Clock

(PRI_IDLE mode)

T1OSC or INTRC

INTRC

None

(Sleep mode)

Note 1: In this instance, refers specifically to the 31 kHz INTRC clock source.

CSD (parameter 38, Table 21-10) is a required delay when waking from Sleep and all Idle modes and runs

2: T

concurrently with any other required delays (see Section 3.4 “Idle Modes”).

OST is the Oscillator Start-up Timer period (parameter 32, Table 21-10). t

3: T

(parameter F12, Table 21-7); it is also designated as T

4: Execution continues during TIOBST (parameter 39, Table 21-10), the INTRC stabilization period.

(1)

XT, HS

XTPLL, HSPLL

(1)

INTRC

XT, HS TOST

XTPLL, HSPLL T

EC TCSD

(1)

INTRC

XT, HS TOST

XTPLL, HSPLL T

EC TCSD

(1)

INTRC

XT, HS T

XTPLL, HSPLL T

EC TCSD

(1)

INTRC

PLL.

Exit Delay

Clock Ready Status

Bit (OSCCON)

None OSTS

(3)

(2)

(3)

(2)

(3)

(4)

(3)

OST + t

TIOBST

OST + t

None

(3)

OST

OST + t

TIOBST

(3)

(2)

(4)

is the PLL lock time-out

OSTS

PIC18F2450/4450

4.0 RESET

A simplified block diagram of the on-chip Reset circuit is shown in Figure 4-1.

The PIC18F2450/4450 devices differentiate between various kinds of Reset:

a) Power-on Reset (POR) b) MCLR

Reset during normal operation c) MCLR Reset during power-managed modes d) Watchdog Timer (WDT) Reset (during

execution) e) Programmable Brown-out Reset (BOR) f) RESET Instruction g) Stack Full Reset h) Stack Underflow Reset

This section discusses Resets generated by MCLR POR and BOR, and covers the operation of the various start-up timers. Stack Reset events are covered in Section 5.1.2.4 “Stack Full and Underflow Resets”. WDT Resets are covered in Section 18.2 “Watchdog

4.1 RCON Register

Device Reset events are tracked through the RCON register (Register 4-1). The lower five bits of the register indicate that a specific Reset event has occurred. In most cases, these bits can only be cleared by the event and must be set by the application after the event. The state of these flag bits, taken together, can be read to indicate the type of Reset that just occurred. This is described in more detail in Section 4.6 “Reset State of Registers”.

The RCON register also has control bits for setting interrupt priority (IPEN) and software control of the BOR (SBOREN). Interrupt priority is discussed in

Section 8.0 “Interrupts”. BOR is covered in Section 4.4 “Brown-out Reset (BOR)”.

Timer (WDT)”.

FIGURE 4-1: SIMPLIFIED BLOCK DIAGRAM OF ON-CHIP RESET CIRCUIT

RESET Instruction

Stac k

Pointer

Stack Full/Underflow Reset

MCLR

VDD

OSC1

( )_IDLE

Sleep

WDT

Time-out

DD Rise

Detect

Brown-out

Reset

OST/PWRT

32 μs

(1)

INTRC

External Reset

MCLRE

POR Pulse

BOREN

OST

PWRT

1024 Cycles

10-Bit Ripple Counter

65.5 ms

11-Bit Ripple Counter

Chip_Reset

Enable PWRT

Enable OST

(2)

Note 1: This is the INTRC source from the internal oscillator and is separate from the RC oscillator of the CLKI pin.

2: See Table 4-2 for time-out situations.

PIC18F2450/4450

REGISTER 4-1: RCON: RESET CONTROL REGISTER

R/W-0 R/W-1

IPEN SBOREN

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 IPEN: Interrupt Priority Enable bit

1 = Enable priority levels on interrupts 0 = Disable priority levels on interrupts (PIC16CXXX Compatibility mode)

bit 6 SBOREN: BOR Software Enable bit

If BOREN1:BOREN0 =

1 = BOR is enabled 0 = BOR is disabled

If BOREN1:BOREN0 = Bit is disabled and read as ‘0’.

bit 5 Unimplemented: Read as ‘0’

bit 4 RI

1 = The RESET instruction was not executed (set by firmware only) 0 = The RESET instruction was executed causing a device Reset (must be set in software after a

bit 3 TO

1 = Set by power-up, CLRWDT instruction or SLEEP instruction 0 = A WDT time-out occurred

bit 2 PD

1 = Set by power-up or by the CLRWDT instruction 0 = Set by execution of the SLEEP instruction

bit 1 POR

1 = A Power-on Reset has not occurred (set by firmware only) 0 = A Power-on Reset occurred (must be set in software after a Power-on Reset occurs)

bit 0 BOR

1 = A Brown-out Reset has not occurred (set by firmware only) 0 = A Brown-out Reset occurred (must be set in software after a Brown-out Reset occurs)

(1)

: RESET Instruction Flag bit

Brown-out Reset occurs)

: Watchdog Time-out Flag bit

: Power-Down Detection Flag bit

: Power-on Reset Status bit

: Brown-out Reset Status bit

U-0 R/W-1 R-1 R-1 R/W-0

—RITO PD POR BOR

01:

00, 10 or 11:

(2)

(1)

(2)

R/W-0

Note 1: If SBOREN is enabled, its Reset state is ‘1’; otherwise, it is ‘0’.

2: The actual Reset value of POR

Note 1: It is recommended that the POR bit be set after a Power-on Reset has been detected so that subsequent

Power-on Resets may be detected.

2: Brown-out Reset is said to have occurred when BOR

‘1’ by software immediately after a Power-on Rest).

is determined by the type of device Reset. See the notes following this

is ‘0’ and POR is ‘1’ (assuming that POR was set to

PIC18F2450/4450

4.2 Master Clear Reset (MCLR)

The MCLR pin provides a method for triggering an external Reset of the device. A Reset is generated by holding the pin low. These devices have a noise filter in the MCLR

Reset path which detects and ignores small

pulses.

The MCLR

pin is not driven low by any internal Resets,

including the WDT.

In PIC18F2450/4450 devices, the MCLR

input can be disabled with the MCLRE Configuration bit. When MCLR is disabled, the pin becomes a digital input. See

Section 9.5 “PORTE, TRISE and LATE Registers”

for more information.

4.3 Power-on Reset (POR)

A Power-on Reset pulse is generated on-chip whenever V allows the device to start in the initialized state when VDD is adequate for operation.

To take advantage of the POR circuitry, tie the MCLR through a resistor (1 kΩ to 10 kΩ) to V eliminate external RC components usually needed to create a Power-on Reset delay. A minimum rise rate for

DD is specified (parameter D004, Section269 “DC

V Characteristics”). For a slow rise time, see Figure 4-2.

When the device starts normal operation (i.e., exits the Reset condition), device operating parameters (voltage, frequency, temperature, etc.) must be met to ensure operation. If these conditions are not met, the device must be held in Reset until the operating conditions are met.

POR events are captured by the POR The state of the bit is set to ‘0’ whenever a Power-on Reset occurs; it does not change for any other Reset event. POR To capture multiple events, the user manually resets the bit to ‘1’ in software following any Power-on Reset.

DD rises above a certain threshold. This

DD. This will

bit (RCON<1>).

is not reset to ‘1’ by any hardware event.

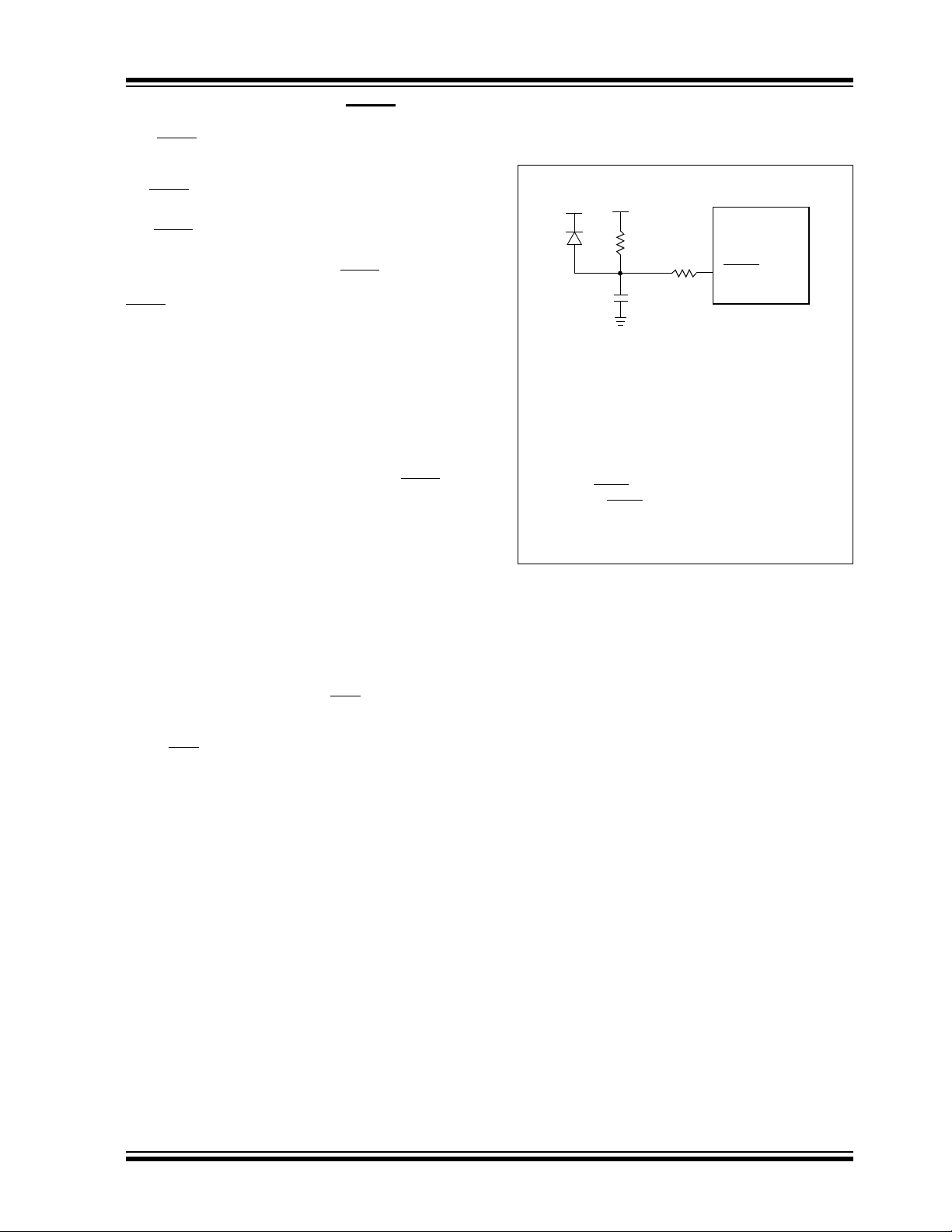

FIGURE 4-2: EXTERNAL POWER-ON

RESET CIRCUIT (FOR SLOW V

VDD

Note 1: External Power-on Reset circuit is required

only if the V The diode D helps discharge the capacitor quickly when V

2: R < 40 kΩ is recommended to make sure that

the voltage drop across R does not violate the device’s electrical specification.

3: R1 ≥ 1 kΩ will limit any current flowing into

MCLR of MCLR static Discharge (ESD) or Electrical Overstress (EOS).

DD power-up slope is too slow.

from external capacitor C, in the event

/VPP pin breakdown, due to Electro-

DD POW E R-U P)

MCLR

PIC18FXXXX

DD powers down.

PIC18F2450/4450

4.4 Brown-out Reset (BOR)

PIC18F2450/4450 devices implement a BOR circuit that provides the user with a number of configuration and power-saving options. The BOR is controlled by the BORV1:BORV0 and BOREN1:BOREN0 Configuration bits. There are a total of four BOR configurations which are summarized in Table 4-1.

The BOR threshold is set by the BORV1:BORV0 bits. If BOR is enabled (any values of BOREN1:BOREN0 except ‘00’), any drop of V D005, Section 269 “DC Characteristics: Supply Volta ge”) for greater than TBOR (parameter 35, Table 21-10) will reset the device. A Reset may or may not occur if V The chip will remain in Brown-out Reset until V above V

If the Power-up Timer is enabled, it will be invoked after

DD rises above VBOR; it then will keep the chip in

V Reset for an additional time delay, T (parameter 33, Table 21-10). If VDD drops below VBOR while the Power-up Timer is running, the chip will go back into a Brown-out Reset and the Power-up Timer will be initialized. Once VDD rises above VBOR, the Power-up Timer will execute the additional time delay.

BOR and the Power-on Timer (PWRT) are independently configured. Enabling BOR Reset does not automatically enable the PWRT.

DD falls below VBOR for less than TBOR.

BOR.

4.4.1 SOFTWARE ENABLED BOR

When BOREN1:BOREN0 = 01, the BOR can be enabled or disabled by the user in software. This is done with the control bit, SBOREN (RCON<6>). Setting SBOREN enables the BOR to function as previously described. Clearing SBOREN disables the BOR entirely. The SBOREN bit operates only in this mode; otherwise, it is read as ‘0’.

DD below VBOR (parameter

DD rises

PWRT

Placing the BOR under software control gives the user the additional flexibility of tailoring the application to its environment without having to reprogram the device to change BOR configuration. It also allows the user to tailor device power consumption in software by eliminating the incremental current that the BOR consumes. While the BOR current is typically very small, it may have some impact in low-power applications.

Note: Even when BOR is under software control,

the BOR Reset voltage level is still set by the BORV1:BORV0 Configuration bits. It cannot be changed in software.

4.4.2 DETECTING BOR

When Brown-out Reset is enabled, the BOR bit always resets to ‘0’ on any Brown-out Reset or Power-on Reset event. This makes it difficult to determine if a Brown-out Reset event has occurred just by reading the state of BOR alone. A more reliable method is to simultaneously check the state of both POR This assumes that the POR immediately after any Power-on Reset event. IF BOR is ‘0’ while POR is ‘1’, it can be reliably assumed that a Brown-out Reset event has occurred.

bit is reset to ‘1’ in software

and BOR.

4.4.3 DISABLING BOR IN SLEEP MODE

When BOREN1:BOREN0 = 10, the BOR remains under hardware control and operates as previously described. Whenever the device enters Sleep mode, however, the BOR is automatically disabled. When the device returns to any other operating mode, BOR is automatically re-enabled.

This mode allows for applications to recover from brown-out situations, while actively executing code, when the device requires BOR protection the most. At the same time, it saves additional power in Sleep mode by eliminating the small incremental BOR current.

TABLE 4-1: BOR CONFIGURATIONS

BOR Configuration Status of

BOREN1 BOREN0

00Unavailable BOR disabled; must be enabled by reprogramming the Configuration bits.

01Available BOR enabled in software; operation controlled by SBOREN.

10Unavailable BOR enabled in hardware in Run and Idle modes, disabled during

11Unavailable BOR enabled in hardware; must be disabled by reprogramming the

SBOREN

(RCON<6>)

Sleep mode.

Configuration bits.

BOR Operation

PIC18F2450/4450

4.5 Device Reset Timers

PIC18F2450/4450 devices incorporate three separate on-chip timers that help regulate the Power-on Reset process. Their main function is to ensure that the device clock is stable before code is executed. These timers are:

• Power-up Timer (PWRT)

• Oscillator Start-up Timer (OST)

• PLL Lock Time-out

4.5.1 POWER-UP TIMER (PWRT)

The Power-up Timer (PWRT) of the PIC18F2450/4450 devices is an 11-bit counter which uses the INTRC source as the clock input. This yields an approximate time interval of 2048 x 32 μs = 65.6 ms. While the PWRT is counting, the device is held in Reset.

The power-up time delay depends on the INTRC clock and will vary from chip to chip due to temperature and process variation. See DC parameter 33 (Table 21-10) for details.

The PWRT is enabled by clearing the PWRTEN Configuration bit.

4.5.2 OSCILLATOR START-UP

TIMER (OST)

The Oscillator Start-up Timer (OST) provides a 1024 oscillator cycle (from OSC1 input) delay after the PWRT delay is over (parameter 33, Table 21-10). This ensures that the crystal oscillator or resonator has started and stabilized.

The OST time-out is invoked only for XT, HS and HSPLL modes and only on Power-on Reset or on exit from most power-managed modes.

4.5.3 PLL LOCK TIME-OUT

With the PLL enabled in its PLL mode, the time-out sequence following a Power-on Reset is slightly different from other oscillator modes. A separate timer is used to provide a fixed time-out that is sufficient for the PLL to lock to the main oscillator frequency. This PLL lock time-out (T

PLL) is typically 2 ms and follows the

oscillator start-up time-out.

4.5.4 TIME-OUT SEQUENCE

On power-up, the time-out sequence is as follows:

1. After the POR condition has cleared, PWRT time-out is invoked (if enabled).

2. Then, the OST is activated.

The total time-out will vary based on oscillator configuration and the status of the PWRT. Figure 4-3, Figure 4-4, Figure 4-5, Figure 4-6 and Figure 4-7 all depict time-out sequences on power-up, with the Power-up Timer enabled and the device operating in HS Oscillator mode. Figure 4-3 through Figure 4-6 also apply to devices operating in XT mode. For devices in RC mode and with the PWRT disabled, on the other hand, there will be no time-out at all.

Since the time-outs occur from the POR pulse, if MCLR is kept low long enough, all time-outs will expire. Bringing MCLR (Figure 4-5). This is useful for testing purposes or to synchronize more than one PIC18FXXXX device operating in parallel.

high will begin execution immediately

TABLE 4-2: TIME-OUT IN VARIOUS SITUATIONS

(2)

and Brown-out

(2)

1024 TOSC + 2 ms

Exit from

Power-Managed Mode

(2)

1024 TOSC + 2 ms

(2)

——

2 ms

(2)

2 ms

(2)

——

Oscillator

Configuration

PWRTEN

HS, XT 66 ms

HSPLL, XTPLL 66 ms

(1)

+ 1024 TOSC + 2 ms

EC, ECIO 66 ms

ECPLL, ECPIO 66 ms

INTIO, INTCKO 66 ms

INTHS, INTXT 66 ms

Power-up

= 0 PWRTEN = 1

(1)

+ 1024 TOSC 1024 TOSC 1024 TOSC

(1)

+ 2 ms

(1)

+ 1024 TOSC 1024 TOSC 1024 TOSC

Note 1: 66 ms (65.5 ms) is the nominal Power-up Timer (PWRT) delay.

2: 2 ms is the nominal time required for the PLL to lock.

PIC18F2450/4450

FIGURE 4-3: TIME-OUT SEQUENCE ON POWER-UP (MCLR TIE D TO VDD, VDD RISE < TPWRT)

VDD

MCLR

INTERNAL POR

TPWRT

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

TOST

FIGURE 4-4: TIME-OUT SEQUENCE ON POWER-UP (MCLR

VDD

MCLR

INTERNAL POR

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

TPWRT

NOT TIED TO VDD): CASE 1

TOST

FIGURE 4-5: TIME-OUT SEQUENCE ON POWER-UP (MCLR

VDD

MCLR

INTERNAL POR

TPWRT

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

NOT TIED TO VDD): CASE 2

TOST

PIC18F2450/4450

FIGURE 4-6: SLOW RISE TIME (MCLR TIED TO VDD, VDD RISE > TPWRT)

VDD

MCLR

INTERNAL POR

PWRT

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

TOST

FIGURE 4-7: TIME-OUT SEQUENCE ON POR w/PLL ENABLED (MCLR

VDD

MCLR

INTERNAL POR

TPWRT

PWRT TIME-OUT

OST TIME-OUT

PLL TIME-OUT

TOST

TPLL

TIED TO VDD)

INTERNAL RESET

Note: TOST = 1024 clock cycles.

PLL ≈ 2 ms max. First three stages of the Power-up Timer.

PIC18F2450/4450

and BOR, are set or cleared differently in different

4.6 Reset State of Registers

Most registers are unaffected by a Reset. Their status is unknown on POR and unchanged by all other Resets. The other registers are forced to a “Reset state” depending on the type of Reset that occurred.

Most registers are not affected by a WDT wake-up, since this is viewed as the resumption of normal operation. Status bits from the RCON register, RI

TABLE 4-3: STATUS BITS, THEIR SIGNIFICANCE AND THE INITIALIZATION CONDITION

FOR RCON REGISTER

Condition

Power-on Reset 0000h 1 11100 0 0

RESET instruction 0000h u

Brown-out Reset 0000h u

Reset during power-managed

MCLR Run modes

MCLR

Reset during power-managed

Idle modes and Sleep mode

WDT time-out during full-power or power-managed Run modes

MCLR

Reset during full-power

execution

Stack Full Reset (STVREN = 1) 0000h u

Stack Underflow Reset (STVREN = 1)

Stack Underflow Error (not an actual Reset, STVREN = 0)

WDT time-out during power-managed Idle or Sleep modes

Interrupt exit from power-managed modes

Legend: u = unchanged Note 1: When the wake-up is due to an interrupt and the GIEH or GIEL bit is set, the PC is loaded with the

interrupt vector (008h or 0018h).

2: Reset state is ‘1’ for POR and unchanged for all other Resets when software BOR is enabled

(BOREN1:BOREN0 Configuration bits = 01 and SBOREN = 1); otherwise, the Reset state is ‘0’.

, TO, PD,

Program

Counter

0000h u

PC + 2 u

(1)

PC + 2

SBOREN RI

POR Reset situations as indicated in Table 4-3. These bits are used in software to determine the nature of the Reset.

Table 4-4 describes the Reset states for all of the Special Function Registers. These are categorized by Power-on and Brown-out Resets, Master Clear and WDT Resets and WDT wake-ups.

RCON Register STKPTR Register

TO PD POR BOR STKFUL STKUNF

(2)

0uuuu u u

111u0 u u

u1uuu u u

u10uu u u

u0uuu u u

uuuuu u u

uuuuu 1 u

uuuuu u 1

u00uu u u

uu0uu u u

PIC18F2450/4450

TABLE 4-4: INITIALIZATION CONDITIONS FOR ALL REGISTERS

MCLR

Resets,

Power-on Reset, Brown-out Reset

TOSU 2450 4450 ---0 0000 ---0 0000 ---0 uuuu

TOSH 2450 4450 0000 0000 0000 0000 uuuu uuuu

TOSL 2450 4450 0000 0000 0000 0000 uuuu uuuu

STKPTR 2450 4450 00-0 0000 uu-0 0000 uu-u uuuu

PCLATU 2450 4450 ---0 0000 ---0 0000 ---u uuuu

PCLATH 2450 4450 0000 0000 0000 0000 uuuu uuuu

PCL 2450 4450 0000 0000 0000 0000 PC + 2

TBLPTRU 2450 4450 --00 0000 --00 0000 --uu uuuu

TBLPTRH 2450 4450 0000 0000 0000 0000 uuuu uuuu

TBLPTRL 2450 4450 0000 0000 0000 0000 uuuu uuuu

TABLAT 2450 4450 0000 0000 0000 0000 uuuu uuuu

PRODH 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

PRODL 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

INTCON 2450 4450 0000 000x 0000 000u uuuu uuuu

INTCON2 2450 4450 1111 -1-1 1111 -1-1 uuuu -u-u

INTCON3 2450 4450 11-0 0-00 11-0 0-00 uu-u u-uu

INDF0 2450 4450 N/A N/A N/A

POSTINC0 2450 4450 N/A N/A N/A

POSTDEC0 2450 4450 N/A N/A N/A

PREINC0 2450 4450 N/A N/A N/A

PLUSW0 2450 4450 N/A N/A N/A

FSR0H 2450 4450 ---- 0000 ---- 0000 ---- uuuu

FSR0L 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

WREG 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

INDF1 2450 4450 N/A N/A N/A

POSTINC1 2450 4450 N/A N/A N/A

POSTDEC1 2450 4450 N/A N/A N/A

PREINC1 2450 4450 N/A N/A N/A

PLUSW1 2450 4450 N/A N/A N/A

FSR1H 2450 4450 ---- 0000 ---- 0000 ---- uuuu

FSR1L 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

BSR 2450 4450 ---- 0000 ---- 0000 ---- uuuu

Legend: u = unchanged, x = unknown, - = unimplemented bit, read as ‘0’, q = value depends on condition.

Shaded cells indicate conditions do not apply for the designated device.

Note 1: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the TOSU, TOSH and TOSL are

updated with the current value of the PC. The STKPTR is modified to point to the next location in the hardware stack.

2: One or more bits in the INTCONx or PIRx registers will be affected (to cause wake-up). 3: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the PC is loaded with the

interrupt vector (0008h or 0018h).

4: See Table 4-3 for Reset value for specific condition. 5: PORTA<6>, LATA<6> and TRISA<6> are enabled depending on the oscillator mode selected. When not

enabled as PORTA pins, they are disabled and read ‘0’.

WDT Reset,

RESET Instruction,

Stack Resets

Wake-up via WDT

or Interrupt

(1)

(3)

(2)

PIC18F2450/4450

TABLE 4-4: INITIALIZATION CONDITIONS FOR ALL REGISTERS (CONTINUED)

Resets,

MCLR

INDF2 2450 4450 N/A N/A N/A

POSTINC2 2450 4450 N/A N/A N/A

POSTDEC2 2450 4450 N/A N/A N/A

PREINC2 2450 4450 N/A N/A N/A

PLUSW2 2450 4450 N/A N/A N/A

FSR2H 2450 4450 ---- 0000 ---- 0000 ---- uuuu

FSR2L 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

STATUS 2450 4450 ---x xxxx ---u uuuu ---u uuuu

TMR0H 2450 4450 0000 0000 0000 0000 uuuu uuuu

TMR0L 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

T0CON 2450 4450 1111 1111 1111 1111 uuuu uuuu

OSCCON 2450 4450 0--- q-00 0--- 0-q0 u--- u-qu

HLVDCON 2450 4450 0-00 0101 0-00 0101 u-uu uuuu

WDTCON 2450 4450 ---- ---0 ---- ---0 ---- ---u

(4)

RCON

TMR1H 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

TMR1L 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

T1CON 2450 4450 0000 0000 u0uu uuuu uuuu uuuu

TMR2 2450 4450 0000 0000 0000 0000 uuuu uuuu

PR2 2450 4450 1111 1111 1111 1111 1111 1111

T2CON 2450 4450 -000 0000 -000 0000 -uuu uuuu

ADRESH 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

ADRESL 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

ADCON0 2450 4450 --00 0000 --00 0000 --uu uuuu

ADCON1 2450 4450 --00 qqqq --00 qqqq --uu uuuu

ADCON2 2450 4450 0-00 0000 0-00 0000 u-uu uuuu

CCPR1H 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

CCPR1L 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

CCP1CON 2450 4450 --00 0000 --00 0000 --uu uuuu

BAUDCON 2450 4450 01-0 0-00 01-0 0-00 uu-u u-uu

SPBRG 2450 4450 0000 0000 0000 0000 uuuu uuuu

RCREG 2450 4450 0000 0000 0000 0000 uuuu uuuu

Legend: u = unchanged, x = unknown, - = unimplemented bit, read as ‘0’, q = value depends on condition.

Shaded cells indicate conditions do not apply for the designated device.

Note 1: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the TOSU, TOSH and TOSL are

updated with the current value of the PC. The STKPTR is modified to point to the next location in the hardware stack.

2: One or more bits in the INTCONx or PIRx registers will be affected (to cause wake-up). 3: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the PC is loaded with the

interrupt vector (0008h or 0018h).

4: See Table 4-3 for Reset value for specific condition. 5: PORTA<6>, LATA<6> and TRISA<6> are enabled depending on the oscillator mode selected. When not

enabled as PORTA pins, they are disabled and read ‘0’.

2450 4450 0q-1 11q0 0q-q qquu uq-u qquu

Power-on Reset,

Brown-out Reset

WDT Reset,

RESET Instruction,

Stack Resets

Wake-up via WDT

or Interrupt

PIC18F2450/4450

TABLE 4-4: INITIALIZATION CONDITIONS FOR ALL REGISTERS (CONTINUED)

Resets,

MCLR

Power-on Reset, Brown-out Reset

TXREG 2450 4450 0000 0000 0000 0000 uuuu uuuu

TXSTA 2450 4450 0000 0010 0000 0010 uuuu uuuu

RCSTA 2450 4450 0000 000x 0000 000x uuuu uuuu

EECON2 2450 4450 0000 0000 0000 0000 0000 0000

EECON1 2450 4450 -x-0 x00- -u-0 u00- -u-0 u00-

IPIR2 2450 4450 1-1- -1-- 1-1- -1-- u-u- -u--

PIR2 2450 4450 0-0- -0-- 0-0- -0-- u-u- -u--

PIE2 2450 4450 0-0- -0-- 0-0- -0-- u-u- -u--

IPR1

2450 4450 -111 -111 -111 -111 -uuu -uuu

PIR1 2450 4450 -000 -000 -000 -000 -uuu -uuu

PIE1 2450 4450 -000 -000 -000 -000 -uuu -uuu

TRISE

2450 4450 ---- -111 ---- -111 ---- -uuu

TRISD 2450 4450 1111 1111 1111 1111 uuuu uuuu

TRISC 2450 4450 11-- -111 11-- -111 uu-- -uuu

TRISB 2450 4450 1111 1111 1111 1111 uuuu uuuu

TRISA

(5)

2450 4450 -111 1111

(5)

LATE 2450 4450 ---- -xxx ---- -uuu ---- -uuu

LATD

2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

LATC 2450 4450 xx-- -xxx uu-- -uuu uu-- -uuu

LATB 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

LATA

(5)

2450 4450 -xxx xxxx

(5)

PORTE 2450 4450 ---- x000 ---- x000 ---- uuuu

PORTD 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

PORTC 2450 4450 xxxx -xxx uuuu -uuu uuuu -uuu

PORTB 2450 4450 xxxx xxxx uuuu uuuu uuuu uuuu

PORTA

(5)

2450 4450 -x0x 0000

(5)

UEP15 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP14 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP13 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP12 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP11 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP10 2450 4450 ---0 0000 ---0 0000 ---u uuuu

Legend: u = unchanged, x = unknown, - = unimplemented bit, read as ‘0’, q = value depends on condition.

Shaded cells indicate conditions do not apply for the designated device.

Note 1: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the TOSU, TOSH and TOSL are

updated with the current value of the PC. The STKPTR is modified to point to the next location in the hardware stack.

2: One or more bits in the INTCONx or PIRx registers will be affected (to cause wake-up). 3: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the PC is loaded with the

interrupt vector (0008h or 0018h).

4: See Table 4-3 for Reset value for specific condition. 5: PORTA<6>, LATA<6> and TRISA<6> are enabled depending on the oscillator mode selected. When not

enabled as PORTA pins, they are disabled and read ‘0’.

WDT Reset,

RESET Instruction,

Stack Resets

-111 1111

-uuu uuuu

-u0u 0000

(5)

Wake-up via WDT

or Interrupt

(2)

-uuu uuuu

(5)

PIC18F2450/4450

TABLE 4-4: INITIALIZATION CONDITIONS FOR ALL REGISTERS (CONTINUED)

Resets,

MCLR

UEP9 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP8 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP7 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP6 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP5 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP4 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP3 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP2 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP1 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UEP0 2450 4450 ---0 0000 ---0 0000 ---u uuuu

UCFG 2450 4450 00-0 0000 00-0 0000 uu-u uuuu

UADDR 2450 4450 -000 0000 -000 0000 -uuu uuuu

UCON 2450 4450 -0x0 000- -0x0 000- -uuu uuu-

USTAT 2450 4450 -xxx xxx- -xxx xxx- -uuu uuu-

UEIE 2450 4450 0--0 0000 0--0 0000 u--u uuuu

UEIR 2450 4450 0--0 0000 0--0 0000 u--u uuuu

UIE 2450 4450 -000 0000 -000 0000 -uuu uuuu

UIR 2450 4450 -000 0000 -000 0000 -uuu uuuu

UFRMH 2450 4450 ---- -xxx ---- -xxx ---- -uuu

UFRML 2450 4450 xxxx xxxx xxxx xxxx uuuu uuuu

Legend: u = unchanged, x = unknown, - = unimplemented bit, read as ‘0’, q = value depends on condition.

Shaded cells indicate conditions do not apply for the designated device.

Note 1: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the TOSU, TOSH and TOSL are

updated with the current value of the PC. The STKPTR is modified to point to the next location in the hardware stack.

2: One or more bits in the INTCONx or PIRx registers will be affected (to cause wake-up). 3: When the wake-up is due to an interrupt and the GIEL or GIEH bit is set, the PC is loaded with the

interrupt vector (0008h or 0018h).

4: See Table 4-3 for Reset value for specific condition. 5: PORTA<6>, LATA<6> and TRISA<6> are enabled depending on the oscillator mode selected. When not

enabled as PORTA pins, they are disabled and read ‘0’.

Power-on Reset,

Brown-out Reset

WDT Reset,

RESET Instruction,

Stack Resets

Wake-up via WDT

or Interrupt

PIC18F2450/4450

5.0 MEMORY ORGANIZATION

There are two types of memory in PIC18F2450/4450 microcontroller devices:

• Program Memory

• Data RAM

As Harvard architecture devices, the data and program memories use separate busses; this allows for concurrent access of the two memory spaces.

Additional detailed information on the operation of the Flash program memory is provided in Section 6.0

“Flash Program Memory”.

5.1 Program Memory Organization

PIC18 microcontrollers implement a 21-bit program counter which is capable of addressing a 2-Mbyte program memory space. Accessing a location between the upper boundary of the physically implemented memory and the 2-Mbyte address will return all ‘0’s (a NOP instruction).

The PIC18F2450 and PIC18F4450 each have 16 Kbytes of Flash memory and can store up to 8192 single-word instructions.

PIC18 devices have two interrupt vectors. The Reset vector address is at 0000h and the interrupt vector addresses are at 0008h and 0018h.

The program memory maps for PIC18F2450 and PIC18F4450 devices are shown in Figure 5-1.

FIGURE 5-1: PROGRAM MEMORY MAP AND STACK FOR PIC18F2450/4450 DEVICES

PIC18F2450/4450

CALL, RCALL, RETURN, RETFIE, RETLW, CALLW, ADDULNK, SUBULNK

PC<20:0>

Stack Level 1

Stack Level 31

•

Reset Vector

High-Priority Interrupt Vector

Low-Priority Interrupt Vector

On-Chip

Program Memory

Read ‘0’

0000h

0008h

0018h

3FFFh 4000h

User Memory Space

1FFFFFh

200000h

PIC18F2450/4450

5.1.1 PROGRAM COUNTER

The Program Counter (PC) specifies the address of the instruction to fetch for execution. The PC is 21 bits wide and is contained in three separate 8-bit registers. The low byte, known as the PCL register, is both readable and writable. The high byte, or PCH register, contains the PC<15:8> bits; it is not directly readable or writable. Updates to the PCH register are performed through the PCLATH register. The upper byte is called PCU. This register contains the PC<20:16> bits; it is also not directly readable or writable. Updates to the PCU register are performed through the PCLATU register.

The contents of PCLATH and PCLATU are transferred to the program counter by any operation that writes PCL. Similarly, the upper two bytes of the program counter are transferred to PCLATH and PCLATU by an operation that reads PCL. This is useful for computed offsets to the PC (see Section 5.1.4.1 “Computed GOTO”).

The PC addresses bytes in the program memory. To prevent the PC from becoming misaligned with word instructions, the Least Significant bit of PCL is fixed to a value of ‘0’. The PC increments by 2 to address sequential instructions in the program memory.

The CALL, RCALL and GOTO program branch instructions write to the program counter directly. For these instructions, the contents of PCLATH and PCLATU are not transferred to the program counter.

5.1.2 RETURN ADDRESS STACK

The return address stack allows any combination of up to 31 program calls and interrupts to occur. The PC is pushed onto the stack when a CALL or RCALL instruction is executed or an interrupt is Acknowledged. The PC value is pulled off the stack on a RETURN, RETLW or a RETFIE instruction. PCLATU and PCLATH are not affected by any of the RETURN or CALL instructions.

The stack operates as a 31-word by 21-bit RAM and a 5-bit Stack Pointer, STKPTR. The stack space is not part of either program or data space. The Stack Pointer is readable and writable and the address on the top of the stack is readable and writable through the Top-ofStack Special Function Registers. Data can also be pushed to, or popped from the stack, using these registers.

A CALL type instruction causes a push onto the stack. The Stack Pointer is first incremented and the location pointed to by the Stack Pointer is written with the contents of the PC (already pointing to the instruction following the CALL). A RETURN type instruction causes a pop from the stack. The contents of the location pointed to by the STKPTR are transferred to the PC and then the Stack Pointer is decremented.

The Stack Pointer is initialized to ‘00000’ after all Resets. There is no RAM associated with the location corresponding to a Stack Pointer value of ‘00000’; this is only a Reset value. Status bits indicate if the stack is full, has overflowed or has underflowed.

5.1.2.1 Top-of-Stack Access

Only the top of the return address stack (TOS) is

readable and writable. A set of three registers,

TOSU:TOSH:TOSL, hold the contents of the stack location pointed to by the STKPTR register (Figure 5-2). This allows users to implement a software stack if necessary. After a CALL, RCALL or interrupt, the software can read the pushed value by reading the TOSU:TOSH:TOSL registers. These values can be placed on a user-defined software stack. At return time, the software can return these values to TOSU:TOSH:TOSL and do a return.

The user must disable the global interrupt enable bits while accessing the stack to prevent inadvertent stack corruption.

FIGURE 5-2: RETURN ADDRESS STACK AND ASSOCIATED REGISTERS

Return Address Stack<20:0>

11111

Top-of-Stack Registers Stack Pointer

TOSLTOSHTOSU

34h1Ah00h

To p- o f -S ta c k

001A34h 000D58h

11110 11101

STKPTR<4:0>

00010

00011 00010 00001 00000

PIC18F2450/4450

5.1.2.2 Return Stack Pointer (STKPTR)

The STKPTR register (Register 5-1) contains the Stack Pointer value, the STKFUL (Stack Full) status bit and the STKUNF (Stack Underflow) status bit. The value of the Stack Pointer can be 0 through 31. The Stack Pointer increments before values are pushed onto the stack and decrements after values are popped off the stack. On Reset, the Stack Pointer value will be zero. The user may read and write the Stack Pointer value. This feature can be used by a Real-Time Operating System (RTOS) for return stack maintenance.

After the PC is pushed onto the stack 31 times (without popping any values off the stack), the STKFUL bit is set. The STKFUL bit is cleared by software or by a POR.

The action that takes place when the stack becomes full depends on the state of the STVREN (Stack Overflow Reset Enable) Configuration bit. (Refer to Section 18.1 “Configuration Bits” for a description of the device Configuration bits.) If STVREN is set (default), the 31st push will push the (PC + 2) value onto the stack, set the STKFUL bit and reset the device. The STKFUL bit will remain set and the Stack Pointer will be set to zero.

If STVREN is cleared, the STKFUL bit will be set on the 31st push and the Stack Pointer will increment to 31. Any additional pushes will not overwrite the 31st push and the STKPTR will remain at 31.

When the stack has been popped enough times to unload the stack, the next pop will return a value of zero to the PC and sets the STKUNF bit, while the Stack Pointer remains at zero. The STKUNF bit will remain set until cleared by software or until a POR occurs.

Note: Returning a value of zero to the PC on an

underflow has the effect of vectoring the program to the Reset vector, where the stack conditions can be verified and appropriate actions can be taken. This is not the same as a Reset, as the contents of the SFRs are not affected.

5.1.2.3 PUSH and POP Instructions

Since the Top-of-Stack is readable and writable, the ability to push values onto the stack and pull values off the stack, without disturbing normal program execution, is a desirable feature. The PIC18 instruction set includes two instructions, PUSH and POP, that permit the TOS to be manipulated under software control. TOSU, TOSH and TOSL can be modified to place data or a return address on the stack.

The PUSH instruction places the current PC value onto the stack. This increments the Stack Pointer and loads the current PC value onto the stack.

The POP instruction discards the current TOS by decrementing the Stack Pointer. The previous value pushed onto the stack then becomes the TOS value.

REGISTER 5-1: STKPTR: STACK POINTER REGISTER

R/C-0 R/C-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

STKFUL

bit 7 bit 0

Legend: C = Clearable bit

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 STKFUL: Stack Full Flag bit

bit 6 STKUNF: Stack Underflow Flag bit

bit 5 Unimplemented: Read as ‘0’

bit 4-0 SP4:SP0: Stack Pointer Location bits

Note 1: Bit 7 and bit 6 are cleared by user software or by a POR.

(1)

STKUNF

1 = Stack became full or overflowed 0 = Stack has not become full or overflowed

1 = Stack underflow occurred 0 = Stack underflow did not occur

(1)

— SP4 SP3 SP2 SP1 SP0

(1)

PIC18F2450/4450

5.1.2.4 Stack Full and Underflow Resets

Device Resets on stack overflow and stack underflow conditions are enabled by setting the STVREN bit in Configuration Register 4L. When STVREN is set, a full or underflow condition will set the appropriate STKFUL or STKUNF bit and then cause a device Reset. When STVREN is cleared, a full or underflow condition will set the appropriate STKFUL or STKUNF bit but not cause a device Reset. The STKFUL or STKUNF bits are cleared by user software or a Power-on Reset.

5.1.3 FAST REGISTER STACK

A Fast Register Stack is provided for the STATUS, WREG and BSR registers to provide a “fast return” option for interrupts. Each stack is only one level deep and is neither readable nor writable. It is loaded with the current value of the corresponding register when the processor vectors for an interrupt. All interrupt sources will push values into the stack registers. The values in the registers are then loaded back into their associated registers if the RETFIE, FAST instruction is used to return from the interrupt.

If both low and high-priority interrupts are enabled, the stack registers cannot be used reliably to return from low-priority interrupts. If a high-priority interrupt occurs while servicing a low-priority interrupt, the stack register values stored by the low-priority interrupt will be overwritten. In these cases, users must save the key registers in software during a low-priority interrupt.

If interrupt priority is not used, all interrupts may use the Fast Register Stack for returns from interrupt. If no interrupts are used, the Fast Register Stack can be used to restore the STATUS, WREG and BSR registers at the end of a subroutine call. To use the Fast Register Stack for a subroutine call, a CALL label, FAST instruction must be executed to save the STATUS, WREG and BSR registers to the Fast Register Stack. A RETURN, FAST instruction is then executed to restore these registers from the Fast Register Stack.

Example 5-1 shows a source code example that uses the Fast Register Stack during a subroutine call and return.

EXAMPLE 5-1: FAST REGISTER STACK

CODE EXAMPLE

CALL SUB1, FAST ;STATUS, WREG, BSR

;SAVED IN FAST REGISTER ;STACK

•

SUB1 •

• RETURN, FAST ;RESTORE VALUES SAVED

;IN FAST REGISTER STACK

5.1.4 LOOK-UP TABLES IN PROGRAM MEMORY

There may be programming situations that require the creation of data structures, or look-up tables, in program memory. For PIC18 devices, look-up tables can be implemented in two ways:

• Computed GOTO

• Table Reads

5.1.4.1 Computed GOTO

A computed GOTO is accomplished by adding an offset to the program counter. An example is shown in Example 5-2.

A look-up table can be formed with an ADDWF PCL instruction and a group of RETLW nn instructions. The W register is loaded with an offset into the table before executing a call to that table. The first instruction of the called routine is the ADDWF PCL instruction. The next instruction executed will be one of the RETLW nn instructions that returns the value ‘nn’ to the calling function.

The offset value (in WREG) specifies the number of bytes that the program counter should advance and should be multiples of 2 (LSb = 0).

In this method, only one data byte may be stored in each instruction location and room on the return address stack is required.

EXAMPLE 5-2: COMPUTED GOTO USING

AN OFFSET VALUE

MOVF OFFSET, W

CALL TABLE ORG nn00h TABLE ADDWF PCL

RETLW nnh

5.1.4.2 Table Reads and Table Writes

A better method of storing data in program memory allows two bytes of data to be stored in each instruction location.

Look-up table data may be stored two bytes per program word by using table reads and writes. The Table Pointer (TBLPTR) register specifies the byte address and the Table Latch (TABLAT) register contains the data that is read from or written to program memory. Data is transferred to or from program memory one byte at a time.

Table read and table write operations are discussed further in Section 6.1 “Table Reads and Table Writes”.

PIC18F2450/4450

5.2 PIC18 Instruction Cycle

5.2.1 CLOCKING SCHEME

The microcontroller clock input, whether from an internal or external source, is internally divided by four to generate four non-overlapping quadrature clocks (Q1, Q2, Q3 and Q4). Internally, the program counter is incremented on every Q1; the instruction is fetched from the program memory and latched into the Instruction Register (IR) during Q4. The instruction is decoded and executed during the following Q1 through Q4. The clocks and instruction execution flow are shown in Figure 5-3.

FIGURE 5-3: CLOCK/INSTRUCTION CYCLE

OSC1

OSC2/CLKO

(RC mode)

Q2 Q3 Q4

PC PC + 2 PC + 4

Execute INST (PC – 2)

Fetch INST (PC)

Q2 Q3 Q4

Execute INST (PC)

Fetch INST (PC + 2)

5.2.2 INSTRUCTION FLOW/PIPELINING

An “Instruction Cycle” consists of four Q cycles: Q1 through Q4. The instruction fetch and execute are pipelined in such a manner that a fetch takes one instruction cycle, while the decode and execute takes another instruction cycle. However, due to the pipelining, each instruction effectively executes in one cycle. If an instruction causes the program counter to change (e.g., GOTO), then two cycles are required to complete the instruction (Example 5-3).

A fetch cycle begins with the Program Counter (PC) incrementing in Q1.

In the execution cycle, the fetched instruction is latched into the Instruction Register (IR) in cycle Q1. This instruction is then decoded and executed during the Q2, Q3 and Q4 cycles. Data memory is read during Q2 (operand read) and written during Q4 (destination write).

Q2 Q3 Q4

Internal Phase Clock

Execute INST (PC + 2)

Fetch INST (PC + 4)

EXAMPLE 5-3: INSTRUCTION PIPELINE FLOW

TCY0TCY1TCY2TCY3TCY4TCY5

1. MOVLW 55h

2. MOVWF PORTB

3. BRA SUB_1

4. BSF PORTA, BIT3 (Forced NOP)

5. Instruction @ address SUB_1

Note: All instructions are single cycle, except for any program branches. These take two cycles since the fetch

instruction is “flushed” from the pipeline while the new instruction is being fetched and then executed.

Fetch 1 Execute 1

Fetch 2 Execute 2

Fetch 3 Execute 3

Fetch 4 Flush (NOP)

Fetch SUB_1 Execute SUB_1

PIC18F2450/4450

5.2.3 INSTRUCTIONS IN PROGRAM MEMORY

The program memory is addressed in bytes. Instructions are stored as two bytes or four bytes in program memory. The Least Significant Byte of an instruction word is always stored in a program memory location with an even address (LSb = 0). To maintain alignment with instruction boundaries, the PC increments in steps of 2 and the LSb will always read ‘0’ (see Section 5.1.1 “Program Counter”).

Figure 5-4 shows an example of how instruction words are stored in the program memory.

The CALL and GOTO instructions have the absolute

program memory address embedded into the

instruction. Since instructions are always stored on word boundaries, the data contained in the instruction is a word address. The word address is written to PC<20:1>, which accesses the desired byte address in program memory. Instruction #2 in Figure 5-4 shows how the instruction, GOTO 0006h, is encoded in the program memory. Program branch instructions, which encode a relative address offset, operate in the same manner. The offset value stored in a branch instruction represents the number of single-word instructions that the PC will be offset by. Section 19.0 “Instruction Set Summary” provides further details of the instruction set.

FIGURE 5-4: INSTRUCTIONS IN PROGRAM MEMORY

LSB = 1 LSB = 0 ↓

F0h 00h 00000Ch

F4h 56h 000010h

Instruction 1: Instruction 2:

Instruction 3:

Program Memory Byte Locations

MOVLW 055h 0Fh 55h 000008h GOTO 0006h EFh 03h 00000Ah

MOVFF 123h, 456h C1h 23h 00000Eh

→

Word Address

000000h 000002h 000004h 000006h

000012h 000014h

5.2.4 TWO-WORD INSTRUCTIONS

The standard PIC18 instruction set has four two-word instructions: CALL, MOVFF, GOTO and LSFR. In all cases, the second word of the instructions always has ‘1111’ as its four Most Significant bits; the other 12 bits are literal data, usually a data memory address.

The use of ‘1111’ in the 4 MSbs of an instruction specifies a special form of NOP. If the instruction is executed in proper sequence, immediately after the first word, the data in the second word is accessed and

used by the instruction sequence. If the first word is skipped for some reason and the second word is executed by itself, a NOP is executed instead. This is necessary for cases when the two-word instruction is preceded by a conditional instruction that changes the PC. Example 5-4 shows how this works.

Note: See Section 5.5 “Program Memory and

the Extended Instruction Set” for

information on two-word instruction in the extended instruction set.

EXAMPLE 5-4: TWO-WORD INSTRUCTIONS

CASE 1:

Object Code Source Code

0110 0110 0000 0000 TSTFSZ REG1 ; is RAM location 0?

1100 0001 0010 0011 MOVFF REG1, REG2 ; No, skip this word

1111 0100 0101 0110 ; Execute this word as a NOP

0010 0100 0000 0000 ADDWF REG3 ; continue code

CASE 2:

Object Code Source Code

0110 0110 0000 0000 TSTFSZ REG1 ; is RAM location 0?

1100 0001 0010 0011 MOVFF REG1, REG2 ; Yes, execute this word

1111 0100 0101 0110 ; 2nd word of instruction

0010 0100 0000 0000 ADDWF REG3 ; continue code

PIC18F2450/4450

5.3 Data Memory Organization

Note: The operation of some aspects of data

memory are changed when the PIC18 extended instruction set is enabled. See

Section 5.6 “Data Memory and the Extended Instruction Set” for more

information.

The data memory in PIC18 devices is implemented as static RAM. Each register in the data memory has a 12-bit address, allowing up to 4096 bytes of data memory. The memory space is divided into as many as 16 banks that contain 256 bytes each. PIC18F2450/ 4450 devices implement three complete banks, for a total of 768 bytes. Figure 5-5 shows the data memory organization for the devices.

The data memory contains Special Function Registers (SFRs) and General Purpose Registers (GPRs). The SFRs are used for control and status of the controller and peripheral functions, while GPRs are used for data storage and scratchpad operations in the user’s application. Any read of an unimplemented location will read as ‘0’s.

The instruction set and architecture allow operations across all banks. The entire data memory may be accessed by Direct, Indirect or Indexed Addressing modes. Addressing modes are discussed later in this subsection.

To ensure that commonly used registers (SFRs and select GPRs) can be accessed in a single cycle, PIC18 devices implement an Access Bank. This is a 256-byte memory space that provides fast access to SFRs and the lower portion of GPR Bank 0 without using the BSR. Section 5.3.3 “Access Bank” provides a detailed description of the Access RAM.

5.3.1 USB RAM

Bank 4 of the data memory is actually mapped to special dual port RAM. When the USB module is disabled, the GPRs in these banks are used like any other GPR in the data memory space.

When the USB module is enabled, the memory in this bank is allocated as buffer RAM for USB operation. This area is shared between the microcontroller core and the USB Serial Interface Engine (SIE) and is used to transfer data directly between the two.

It is theoretically possible to use this area of USB RAM that is not allocated as USB buffers for normal scratchpad memory or other variable storage. In practice, the dynamic nature of buffer allocation makes this risky at best. Bank 4 is also used for USB buffer management when the module is enabled and should not be used for any other purposes during that time.

Additional information on USB RAM and buffer operation is provided in Section 14.0 “Universal Serial Bus (USB)”.

5.3.2 BANK SELECT REGISTER (BSR)

Large areas of data memory require an efficient addressing scheme to make rapid access to any address possible. Ideally, this means that an entire address does not need to be provided for each read or write operation. For PIC18 devices, this is accomplished with a RAM banking scheme. This divides the memory space into 16 contiguous banks of 256 bytes. Depending on the instruction, each location can be addressed directly by its full 12-bit address, or an 8-bit low-order address and a 4-bit Bank Pointer.

Most instructions in the PIC18 instruction set make use of the Bank Pointer, known as the Bank Select Register (BSR). This SFR holds the 4 Most Significant bits of a location’s address; the instruction itself includes the 8 Least Significant bits. Only the four lower bits of the BSR are implemented (BSR3:BSR0). The upper four bits are unused; they will always read ‘0’ and cannot be written to. The BSR can be loaded directly by using the MOVLB instruction.

The value of the BSR indicates the bank in data memory. The eight bits in the instruction show the location in the bank and can be thought of as an offset from the bank’s lower boundary. The relationship between the BSR’s value and the bank division in data memory is shown in Figure 5-6.

Since up to 16 registers may share the same low-order address, the user must always be careful to ensure that the proper bank is selected before performing a data read or write. For example, writing what should be program data to an 8-bit address of F9h, while the BSR is 0Fh, will end up resetting the program counter.

While any bank can be selected, only those banks that are actually implemented can be read or written to. Writes to unimplemented banks are ignored, while reads from unimplemented banks will return ‘0’s. Even so, the STATUS register will still be affected as if the operation was successful. The data memory map in Figure 5-6 indicates which banks are implemented.

In the core PIC18 instruction set, only the MOVFF instruction fully specifies the 12-bit address of the source and target registers. This instruction ignores the BSR completely when it executes. All other instructions include only the low-order address as an operand and must use either the BSR or the Access Bank to locate their target registers.

PIC18F2450/4450

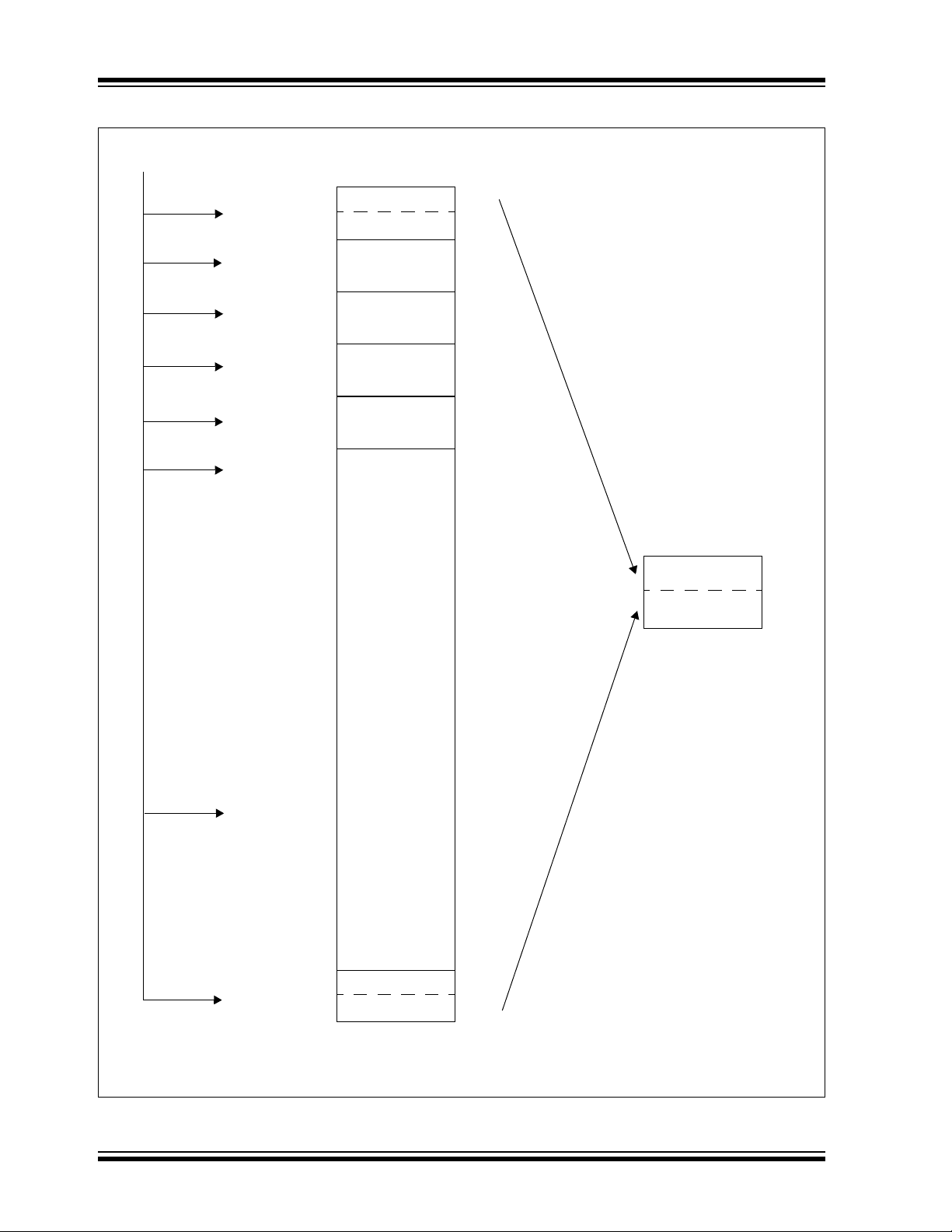

FIGURE 5-5: DATA MEMORY MAP FOR PIC18F2450/4450 DEVICES

BSR<3:0>

= 0000

= 0001

= 0010

= 0011

= 0100

= 0101

Bank 0

Bank 1

Bank 2

Bank 3

Bank 4

Bank 5

Data Memory Map

00h

FFh

00h

FFh

00h

FFh

00h

FFh

00h

FFh

00h

Access RAM

GPR

Unused

Read as 00h

Unused

Read as 00h

GPR

(1)

000h 05Fh 060h 0FFh 100h

1FFh 200h

2FFh 300h

3FFh 400h

4FFh 800h

When a = 0:

The BSR is ignored and the Access Bank is used.

The first 96 bytes are general purpose RAM (from Bank 0).

The remaining 160 bytes are Special Function Registers (from Bank 15).

When a = 1:

The BSR specifies the bank used by the instruction.

Access Bank

Access RAM Low

Access RAM High

(SFRs)

00h

5Fh 60h

FFh

Unused

Read as 00h

= 1110

= 1111

Note 1: This bank also serve as RAM buffer for USB operation. See Section 5.3.1 “USB RAM” for more

information.

Bank 14

Bank 15

FFh

00h

FFh

Unused

SFR

EFFh F00h F5Fh

F60h FFFh

PIC18F2450/4450

FIGURE 5-6: USE OF THE BANK SELECT REGISTER (DIRECT ADDRESSING)

(1)

0000

Bank Select

Note 1: The Access RAM bit of the instruction can be used to force an override of the selected bank (BSR<3:0>) to

2: The MOVFF instruction embeds the entire 12-bit address in the instruction.

BSR

0011

(2)

FFFh

the registers of the Access Bank.

000h

100h

200h

300h

E00h

F00h

Data Memory

Bank 0

Bank 1

Bank 2

Bank 3

through

Bank 13

Bank 14

Bank 15

00h

FFh 00h

FFh

From Opcode

11111111

(2)

5.3.3 ACCESS BANK

While the use of the BSR, with an embedded 8-bit address, allows users to address the entire range of data memory, it also means that the user must always ensure that the correct bank is selected. Otherwise, data may be read from or written to the wrong location. This can be disastrous if a GPR is the intended target of an operation but an SFR is written to instead. Verifying and/or changing the BSR for each read or write to data memory can become very inefficient.

To streamline access for the most commonly used data memory locations, the data memory is configured with an Access Bank, which allows users to access a mapped block of memory without specifying a BSR. The Access Bank consists of the first 96 bytes of memory (00h-5Fh) in Bank 0 and the last 160 bytes of memory (60h-FFh) in Block 15. The lower half is known as the “Access RAM” and is composed of GPRs. The upper half is where the device’s SFRs are mapped. These two areas are mapped contiguously in the Access Bank and can be addressed in a linear fashion by an 8-bit address (Figure 5-5).

The Access Bank is used by core PIC18 instructions that include the Access RAM bit (the ‘a’ parameter in the instruction). When ‘a’ is equal to ‘1’, the instruction uses the BSR and the 8-bit address included in the opcode for the data memory address. When ‘a’ is ‘0’,

however, the instruction is forced to use the Access Bank address map; the current value of the BSR is ignored entirely.

Using this “forced” addressing allows the instruction to operate on a data address in a single cycle without updating the BSR first. For 8-bit addresses of 60h and above, this means that users can evaluate and operate on SFRs more efficiently. The Access RAM below 60h is a good place for data values that the user might need to access rapidly, such as immediate computational results or common program variables. Access RAM also allows for faster and more code efficient context saving and switching of variables.

The mapping of the Access Bank is slightly different when the extended instruction set is enabled (XINST Configuration bit = 1). This is discussed in more detail in Section 5.6.3 “Mapping the Access Bank in Indexed Literal Offset Mode”.

5.3.4 GENERAL PURPOSE REGISTER FILE

PIC18 devices may have banked memory in the GPR area. This is data RAM which is available for use by all instructions. GPRs start at the bottom of Bank 0 (address 000h) and grow upwards towards the bottom of the SFR area. GPRs are not initialized by a Power-on Reset and are unchanged on all other Resets.

PIC18F2450/4450

5.3.5 SPECIAL FUNCTION REGISTERS

The Special Function Registers (SFRs) are registers used by the CPU and peripheral modules for controlling the desired operation of the device. These registers are implemented as static RAM in the data memory space. SFRs start at the top of data memory and extend downward to occupy the top segment of Bank 15, from F60h to FFFh. A list of these registers is given in Table 5-1 and Table 5-2.

peripheral functions. The Reset and interrupt registers are described in their respective chapters, while the ALU’s STATUS register is described later in this section. Registers related to the operation of a peripheral feature are described in the chapter for that peripheral.

The SFRs are typically distributed among the peripherals whose functions they control. Unused SFR locations are unimplemented and read as ‘0’s.

The SFRs can be classified into two sets: those associated with the “core” device functionality (ALU, Resets and interrupts) and those related to the

TABLE 5-1: SPECIAL FUNCTION REGISTER MAP FOR PIC18F2450/4450 DEVICES

Address Name Address Name Address Name Address Name Address Name

FFFh TOSU FDFh INDF2

FFEh TOSH FDEh POSTINC2

FFDh TOSL FDDh POSTDEC2

FFCh STKPTR FDCh PREINC2

FFBh PCLATU FDBh PLUSW2

FFAh PCLATH FDAh FSR2H FBAh

FF9h PCL FD9h FSR2L FB9h

FF8h TBLPTRU FD8h STATUS FB8h BAUDCON F98h

FF7h TBLPTRH FD7h TMR0H FB7h

FF6h TBLPTRL FD6h TMR0L FB6h

FF5h TABLAT FD5h T0CON FB5h

FF4h PRODH FD4h

FF3h PRODL FD3h OSCCON FB3h

FF2h INTCON FD2h HLVDCON FB2h

FF1h INTCON2 FD1h WDTCON FB1h

FF0h INTCON3 FD0h RCON FB0h SPBRGH F90h

FEFh INDF0

(1)

FEEh POSTINC0

FEDh POSTDEC0

FECh PREINC0

FEBh PLUSW0

(1)

FCFh TMR1H FAFh SPBRG F8Fh —

(1)

FCEh TMR1L FAEh RCREG F8Eh —

(1)

FCDh T1CON FADh TXREG F8Dh LATE

FCCh TMR2 FACh TXSTA F8Ch LATD

FCBh PR2 FABh RCSTA F8Bh LATC F6Bh UEIE

FEAh FSR0H FCAh T2CON FAAh

FE9h FSR0L FC9h

FE8h WREG FC8h

FE7h INDF1

FE6h POSTINC1

FE5h POSTDEC1

FE4h PREINC1

FE3h PLUSW1

(1)

FC7h —

(1)

FC6h —

(1)

FC5h —

FC4h ADRESH FA4h —

FC3h ADRESL FA3h —

FE2h FSR1H FC2h ADCON0 FA2h IPR2 F82h PORTC F62h —

FE1h FSR1L FC1h ADCON1 FA1h PIR2 F81h PORTB F61h —

FE0h BSR FC0h ADCON2 FA0h PIE2 F80h PORTA F60h —

(1)

(2)

—

(2)

—

(2)

—

(2)

FBFh CCPR1H F9Fh IPR1 F7Fh UEP15

(1)

FBEh CCPR1L F9Eh PIR1 F7Eh UEP14

(1)

FBDh CCP1CON F9Dh PIE1 F7Dh UEP13

FBCh —

FBBh —

FB4h —

FA9 h —

FA8 h —

FA7 h EEC ON2

FA6h EECON1 F86h —

FA5 h —

(2)

—

(2)

—

(2)

—

(2)

—

(2)

—

(2)

—

(2)

—

(2)

—

(2)

—

(2)

(1)

(2)

F9Ch —

F9Bh —

F9Ah —

F99h —

F97h —

F96h TRISE

F95h TRISD

F94h TRISC F74h UEP4

F93h TRISB F73h UEP3

F92h TRISA F72h UEP2

F91h —

F8Ah LATB F6Ah UEIR

F89h LATA F69h UIE

F88h —

F87h —

F85h —

F84h PORTE F64h —

F83h PORTD

(2)

—

(2)

(3)

(2)

—

(2)

(3)

(2)

(3)

F7Ch UEP12

F7Bh UEP11

F7Ah UEP10

F79h UEP9

F78h UEP8

F77h UEP7

F76h UEP6

F75h UEP5

F71h UEP1

F70h UEP0

F6Fh UCFG

F6Eh UADDR

F6Dh UCON

F6Ch USTAT

F68h UIR

F67h UFRMH

F66h UFRML

F65h —

F63h —

(2)

Note 1: Not a physical register.

2: Unimplemented registers are read as ‘0’. 3: These registers are implemented only on 40/44-pin devices.

PIC18F2450/4450

TABLE 5-2: REGISTER FILE SUMMARY (PIC18F2450/4450)

File Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

TOSU

TOSH Top-of-Stack High Byte (TOS<15:8>) 0000 0000 49, 54

TOSL Top-of-Stack Low Byte (TOS<7:0>) 0000 0000 49, 54

STKPTR STKFUL STKUNF

PCLATU

PCLATH Holding Register for PC<15:8> 0000 0000 49, 54

PCL PC Low Byte (PC<7:0>) 0000 0000 49, 54

TBLPTRU

TBLPTRH Program Memory Table Pointer High Byte (TBLPTR<15:8>) 0000 0000 49, 76

TBLPTRL Program Memory Table Pointer Low Byte (TBLPTR<7:0>) 0000 0000 49, 76

TABLAT Program Memory Table Latch 0000 0000 49, 76

PRODH Product Register High Byte xxxx xxxx 49, 83

PRODL Product Register Low Byte xxxx xxxx 49, 83

INTCON GIE/GIEH PEIE/GIEL TMR0IE INT0IE RBIE TMR0IF INT0IF RBIF 0000 000x 49, 87

INTCON2 RBPU

INTCON3 INT2IP INT1IP

INDF0 Uses contents of FSR0 to address data memory – value of FSR0 not changed (not a physical register) N/A 49, 68

POSTINC0 Uses contents of FSR0 to address data memory – value of FSR0 post-incremented (not a physical register) N/A 49, 69

POSTDEC0 Uses contents of FSR0 to address data memory – value of FSR0 post-decremented (not a physical register) N/A 49, 69

PREINC0 Uses contents of FSR0 to address data memory – value of FSR0 pre-incremented (not a physical register) N/A 49, 69

PLUSW0 Uses contents of FSR0 to address data memory – value of FSR0 pre-incremented (not a physical register) –

FSR0H

FSR0L Indirect Data Memory Address Pointer 0 Low Byte xxxx xxxx 49, 68

WREG Working Register xxxx xxxx 49,

INDF1 Uses contents of FSR1 to address data memory – value of FSR1 not changed (not a physical register) N/A 49, 68

POSTINC1 Uses contents of FSR1 to address data memory – value of FSR1 post-incremented (not a physical register) N/A 49, 69

POSTDEC1 Uses contents of FSR1 to address data memory – value of FSR1 post-decremented (not a physical register) N/A 49, 69

PREINC1 Uses contents of FSR1 to address data memory – value of FSR1 pre-incremented (not a physical register) N/A 49, 69

PLUSW1 Uses contents of FSR1 to address data memory – value of FSR1 pre-incremented (not a physical register) –

FSR1H

FSR1L Indirect Data Memory Address Pointer 1 Low Byte xxxx xxxx 49, 68

BSR

INDF2 Uses contents of FSR2 to address data memory – value of FSR2 not changed (not a physical register) N/A 50, 68

POSTINC2 Uses contents of FSR2 to address data memory – value of FSR2 post-incremented (not a physical register) N/A 50, 69

POSTDEC2 Uses contents of FSR2 to address data memory – value of FSR2 post-decremented (not a physical register) N/A 50, 69

PREINC2 Uses contents of FSR2 to address data memory – value of FSR2 pre-incremented (not a physical register) N/A 50, 69

PLUSW2 Uses contents of FSR2 to address data memory – value of FSR2 pre-incremented (not a physical register) –

FSR2H

FSR2L Indirect Data Memory Address Pointer 2 Low Byte xxxx xxxx 50, 68

STATUS

TMR0H Timer0 Register High Byte 0000 0000 50, 113

TMR0L Timer0 Register Low Byte xxxx xxxx 50, 113

T0CON TMR0ON T08BIT T0CS T0SE PSA T0PS2 T0PS1 T0PS0 1111 1111 5 0 , 111

Legend: x = unknown, u = unchanged, - = unimplemented, q = value depends on condition. Shaded cells are unimplemented, read as ‘0’. Note 1: Bit 21 of the TBLPTRU allows access to the device Configuration bits.

2: The SBOREN bit is only available when BOREN<1:0> = 01; otherwise, the bit reads as ‘0’. 3: These registers and/or bits are not implemented on 28-pin devices and are read as ‘0’. Reset values are shown for 40/44-pin devices;

4: RA6 is configured as a port pin based on various primary oscillator modes. When the port pin is disabled, all of the associated bits read ‘0’. 5: RE3 is only available as a port pin when the MCLRE Configuration bit is clear; otherwise, the bit reads as ‘0’. 6: RC5 and RC4 are only available as port pins when the USB module is disabled (UCON<3> = 0).

— — — Top-of-Stack Upper Byte (TOS<20:16>) ---0 0000 49, 54

— SP4 SP3 SP2 SP1 SP0 00-0 0000 49, 55

— — — Holding Register for PC<20:16> ---0 0000 49, 54

— —bit 21

INTEDG0 INTEDG1 INTEDG2 —TMR0IP—RBIP1111 -1-1 49, 88

value of FSR0 offset by W

— — — — Indirect Data Memory Address Pointer 0 High Byte ---- 0000 49, 68

value of FSR1 offset by W

— — — — Indirect Data Memory Address Pointer 1 High Byte ---- 0000 49, 68

— — — — Bank Select Register ---- 0000 49, 59

value of FSR2 offset by W

— — — — Indirect Data Memory Address Pointer 2 High Byte ---- 0000 50, 68

— — —NOVZDCC---x xxxx 50, 66

individual unimplemented bits should be interpreted as ‘-’.

(1)

Program Memory Table Pointer Upper Byte (TBLPTR<20:16>) --00 0000 49, 76

— INT2IE INT1IE —INT2IFINT1IF11-0 0-00 49, 89

Valu e o n

POR, BOR

N/A 49, 69

N/A 50, 69

Details

on Page:

PIC18F2450/4450

TABLE 5-2: REGISTER FILE SUMMARY (PIC18F2450/4450) (CONTINUED)

File Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

OSCCON IDLEN — — —OSTS— SCS1 SCS0 0--- q-00 50, 31

HLVDCON VDIRMAG

WDTCON

RCON IPEN SBOREN

TMR1H Timer1 Register High Byte xxxx xxxx 50, 120

TMR1L Timer1 Register Low Byte xxxx xxxx 50, 120

T1CON RD16 T1RUN T1CKPS1 T1CKPS0 T1OSCEN T1SYNC

TMR2 Timer2 Register 0000 0000 50, 122

PR2 Timer2 Period Register 1111 1111 50, 122

T2CON

ADRESH A/D Result Register High Byte xxxx xxxx 50, 184

ADRESL A/D Result Register Low Byte xxxx xxxx 50, 184

ADCON0 — — CHS3 CHS2 CHS1 CHS0 GO/DONE ADON --00 0000 50, 175

ADCON1

ADCON2 ADFM

CCPR1H Capture/Compare/PWM Register 1 High Byte xxxx xxxx 50, 124

CCPR1L Capture/Compare/PWM Register 1 Low Byte xxxx xxxx 50, 124

CCP1CON

BAUDCON ABDOVF RCIDL

SPBRGH EUSART Baud Rate Generator Register High Byte 0000 0000 50, 157

SPBRG EUSART Baud Rate Generator Register Low Byte 0000 0000 50, 157

RCREG EUSART Receive Register 0000 0000 50, 165

TXREG EUSART Transmit Register 0000 0000 51, 163

TXSTA CSRC TX9 TXEN SYNC SENDB BRGH TRMT TX9D 0000 0010 51, 154

RCSTA SPEN RX9 SREN CREN ADDEN FERR OERR RX9D 0000 000x 51, 155

EECON2 Data Memory Control Register 2 (not a physical register) 0000 0000 51, 74

EECON1

IPR2 OSCFIP

PIR2 OSCFIF

PIE2 OSCFIE

IPR1

PIR1

PIE1

(3)

TRISE

(3)

TRISD

TRISC TRISC7 TRISC6

TRISB TRISB7 TRISB6 TRISB5 TRISB4 TRISB3 TRISB2 TRISB1 TRISB0 1111 1111 51, 103

TRISA

(3)

LATE

(3)

LATD

LATC LATC7 LATC6

LATB LATB7 LATB6 LATB5 LATB4 LATB3 LATB2 LATB1 LATB0 xxxx xxxx 51, 103

LATA

PORTE

(3)

PORTD

— — — — — — —SWDTEN--- ---0 50, 204

— T2OUTPS3 T2OUTPS2 T2OUTPS1 T2OUTPS0 TMR2ON T2CKPS1 T2CKPS0 -000 0000 50, 121

— — VCFG1 VCFG0 PCFG3 PCFG2 PCFG1 PCFG0 --00 qqqq 50, 176

— — DC1B1 DC1B0 CCP1M3 CCP1M2 CCP1M1 CCP1M0 --00 0000 50, 123,

—CFGS— FREE WRERR WREN WR — -x-0 x00- 51, 75

— ADIP RCIP TXIP — CCP1IP TMR2IP TMR1IP -111 -111 51, 94

— ADIF RCIF TXIF — CCP1IF TMR2IF TMR1IF -000 -000 51, 90

— ADIE RCIE TXIE — CCP1IE TMR2IE TMR1IE -000 -000 51, 92

— — — — — TRISE2 TRISE1 TRISE0 ---- -111 51, 110

TRISD7 TRISD6 TRISD5 TRISD4 TRISD3 TRISD2 TRISD1 TRISD0 1111 1111 51, 108

— TRISA6

— — — — — LATE2 LATE1 LATE0 ---- -xxx 51, 110

LATD7LATD6LATD5LATD4LATD3LATD2LATD1LATD0xxxx xxxx 51, 108

—LATA6

— — — —RE3

RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0 xxxx xxxx 51, 108

individual unimplemented bits should be interpreted as ‘-’.

— IRVST HLVDEN HLVDL3 HLVDL2 HLVDL1 HLVDL0 0-00 0101 50, 185

(2)

—RITO PD POR BOR 0q-1 11q0 50, 42

TMR1CS TMR1ON 0000 0000 50, 115

— ACQT2 ACQT1 ACQT0 ADCS2 ADCS1 ADCS0 0-00 0000 50, 177

— SCKP BRG16 — WUE ABDEN 01-0 0-00 51, 156,

— USBIP — —HLVDIP— — 1-1- -1-- 51, 95

—USBIF— —HLVDIF— — 0-0- -0-- 51, 91

— USBIE — —HLVDIE— — 0-0- -0-- 51, 93

— — — TRISC2 TRISC1 TRISC0 11-- -111 51, 106

(4)

TRISA5 TRISA4 TRISA3 TRISA2 TRISA1 TRISA0 -111 1111 51, 100

— — — LATC2 LATC1 LATC0 xx-- -xxx 51, 106

(4)

LATA5 LATA4 LATA3 LATA2 LATA1 LATA0 -xxx xxxx 51, 100

(5)

RE2

(3)

RE1

(3)

RE0

Value on

POR, BOR

(3)

---- x000 51, 109

Details

on Page:

PIC18F2450/4450

TABLE 5-2: REGISTER FILE SUMMARY (PIC18F2450/4450) (CONTINUED)

File Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

PORTC RC7 RC6 RC5

PORTB RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0 xxxx xxxx 51, 100

PORTA

UEP15

UEP14

UEP13

UEP12

UEP11

UEP10

UEP9

UEP8

UEP7

UEP6

UEP5

UEP4

UEP3

UEP2

UEP1

UEP0

UCFG UTEYE UOEMON

UADDR

UCON

USTAT

UEIE BTSEE

UEIR BTSEF

UIE

UIR

UFRMH

UFRML FRM7 FRM6 FRM5 FRM4 FRM3 FRM2 FRM1 FRM0 xxxx xxxx 52, 136

—RA6

— — — EPHSHK EPCONDIS EPOUTEN EPINEN EPSTALL ---0 0000 51, 135

— — — EPHSHK EPCONDIS EPOUTEN EPINEN EPSTALL ---0 0000 52, 135

— ADDR6 ADDR5 ADDR4 ADDR3 ADDR2 ADDR1 ADDR0 -000 0000 52, 136

— PPBRST SE0 PKTDIS USBEN RESUME SUSPND — -0x0 000- 52, 130

— ENDP3 ENDP2 ENDP1 ENDP0 DIR PPBI — -xxx xxx- 52, 134

— SOFIE STALLIE IDLEIE TRNIE ACTVIE UERRIE URSTIE -000 0000 52, 146

— SOFIF STALLIF IDLEIF TRNIF ACTVIF UERRIF URSTIF -000 0000 52, 144

— — — — — FRM10 FRM9 FRM8 ---- -xxx 52, 136

individual unimplemented bits should be interpreted as ‘-’.

(4)

— — BTOEE DFN8EE CRC16EE CRC5EE PIDEE 0--0 0000 52, 148

— — BTOEF DFN8EF CRC16EF CRC5EF PIDEF 0--0 0000 52, 147

(6)

RA5 RA4 RA3 RA2 RA1 RA0 -x0x 0000 51, 100

— UPUEN UTRDIS FSEN PPB1 PPB0 00-0 0000 52, 132

RC4

(6)

— RC2 RC1 RC0 xxxx -xxx 51, 106

Valu e o n

POR, BOR

Details

on Page:

PIC18F2450/4450

5.3.6 STATUS REGISTER

The STATUS register, shown in Register 5-2, contains the arithmetic status of the ALU. As with any other SFR, it can be the operand for any instruction.

If the STATUS register is the destination for an instruction that affects the Z, DC, C, OV or N bits, the results of the instruction are not written; instead, the STATUS register is updated according to the instruction performed. Therefore, the result of an instruction with the STATUS register as its destination may be different than intended. As an example, CLRF STATUS will set the Z bit and leave the remaining Status bits unchanged (‘000u u1uu’).

It is recommended that only BCF, BSF, SWAPF, MOVFF and MOVWF instructions are used to alter the STATUS register because these instructions do not affect the Z, C, DC, OV or N bits in the STATUS register.

For other instructions that do not affect Status bits, see the instruction set summaries in Table 19-2 and Table 19-3.

Note: The C and DC bits operate as the Borrow

and Digit Borrow bits, respectively, in subtraction.

REGISTER 5-2: STATUS REGISTER

U-0 U-0 U-0 R/W-x R/W-x R/W-x R/W-x R/W-x

— — —NOVZDC

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

(1)

(2)

bit 7-5 Unimplemented: Read as ‘0’

bit 4 N: Negative bit

This bit is used for signed arithmetic (2’s complement). It indicates whether the result was negative (ALU MSB = 1).

1 = Result was negative 0 = Result was positive

bit 3 OV: Overflow bit

This bit is used for signed arithmetic (2’s complement). It indicates an overflow of the 7-bit magnitude which causes the sign bit (bit 7 of the result) to change state.

1 = Overflow occurred for signed arithmetic (in this arithmetic operation) 0 = No overflow occurred

bit 2 Z: Zero bit

1 = The result of an arithmetic or logic operation is zero 0 = The result of an arithmetic or logic operation is not zero

(1)

bit

(2)

bit

bit 1 DC: Digit Carry/Borrow

For ADDWF, ADDLW, SUBLW and SUBWF instructions:

1 = A carry-out from the 4th low-order bit of the result occurred 0 = No carry-out from the 4th low-order bit of the result

bit 0 C: Carry/Borrow

For ADDWF, ADDLW, SUBLW and SUBWF instructions:

1 = A carry-out from the Most Significant bit of the result occurred 0 = No carry-out from the Most Significant bit of the result occurred

Note 1: For borrow

operand. For rotate (RRF, RLF) instructions, this bit is loaded with either bit 4 or bit 3 of the source register.

2: For borrow

operand. For rotate (RRF, RLF) instructions, this bit is loaded with either the high or low-order bit of the source register.

, the polarity is reversed. A subtraction is executed by adding the 2’s complement of the second

PIC18F2450/4450

5.4 Data Addressing Modes

Note: The execution of some instructions in the

core PIC18 instruction set are changed when the PIC18 extended instruction set is enabled. See Section 5.6 “Data

Memory and the Extended Instruction Set” for more information.

While the program memory can be addressed in only one way – through the program counter – information in the data memory space can be addressed in several ways. For most instructions, the addressing mode is fixed. Other instructions may use up to three modes, depending on which operands are used and whether or not the extended instruction set is enabled.

The addressing modes are:

• Inherent

• Literal

•Direct

•Indirect

An additional addressing mode, Indexed Literal Offset, is available when the extended instruction set is enabled (XINST Configuration bit = 1). Its operation is discussed in greater detail in Section 5.6.1 “Indexed Addressing with Literal Offset”.

5.4.1 INHERENT AND LITERAL ADDRESSING

Many PIC18 control instructions do not need any argument at all; they either perform an operation that globally affects the device or they operate implicitly on one register. This addressing mode is known as Inherent Addressing. Examples include SLEEP, RESET and DAW.

Other instructions work in a similar way but require an additional explicit argument in the opcode. This is known as Literal Addressing mode because they require some literal value as an argument. Examples include ADDLW and MOVLW, which respectively, add or move a literal value to the W register. Other examples include CALL and GOTO, which include a 20-bit program memory address.

5.4.2 DIRECT ADDRESSING

Direct Addressing mode specifies all or part of the source and/or destination address of the operation within the opcode itself. The options are specified by the arguments accompanying the instruction.

In the core PIC18 instruction set, bit-oriented and byteoriented instructions use some version of Direct Addressing by default. All of these instructions include some 8-bit literal address as their Least Significant Byte. This address specifies either a register address in one of the banks of data RAM (Section 5.3.4 “General

Purpose Register File”) or a location in the Access Bank (Section 5.3.3 “Access Bank”) as the data source for the instruction.

The Access RAM bit ‘a’ determines how the address is interpreted. When ‘a’ is ‘1’, the contents of the BSR (Section 5.3.2 “Bank Select Register (BSR)”) are used with the address to determine the complete 12-bit address of the register. When ‘a’ is ‘0’, the address is interpreted as being a register in the Access Bank. Addressing that uses the Access RAM is sometimes also known as Direct Forced Addressing mode.

A few instructions, such as MOVFF, include the entire 12-bit address (either source or destination) in their opcodes. In these cases, the BSR is ignored entirely.

The destination of the operation’s results is determined by the destination bit ‘d’. When ‘d’ is ‘1’, the results are stored back in the source register, overwriting its original contents. When ‘d’ is ‘0’, the results are stored in the W register. Instructions without the ‘d’ argument have a destination that is implicit in the instruction; their destination is either the target register being operated on or the W register.

5.4.3 INDIRECT ADDRESSING

Indirect Addressing allows the user to access a location in data memory without giving a fixed address in the instruction. This is done by using File Select Registers (FSRs) as pointers to the locations to be read or written to. Since the FSRs are themselves located in RAM as Special Function Registers, they can also be directly manipulated under program control. This makes FSRs very useful in implementing data structures, such as tables and arrays in data memory.

The registers for Indirect Addressing are also implemented with Indirect File Operands (INDFs) that permit automatic manipulation of the pointer value with auto-incrementing, auto-decrementing or offsetting with another value. This allows for efficient code, using loops, such as the example of clearing an entire RAM bank in Example 5-5.

EXAMPLE 5-5: HOW TO CLEAR RAM

(BANK 1) USING INDIRECT ADDRESSING

LFSR FSR0, 100h ;

NEXT CLRF POSTINC0 ; Clear INDF

; register then ; inc pointer

BTFSS FSR0H, 1 ; All done with

; Bank1?

BRA NEXT ; NO, clear next

CONTINUE ; YES, continue

PIC18F2450/4450

5.4.3.1 FSR Registers and the INDF Operand

At the core of Indirect Addressing are three sets of registers: FSR0, FSR1 and FSR2. Each represents a pair of 8-bit registers: FSRnH and FSRnL. The four upper bits of the FSRnH register are not used, so each FSR pair holds a 12-bit value. This represents a value that can address the entire range of the data memory in a linear fashion. The FSR register pairs, then, serve as pointers to data memory locations.

Indirect Addressing is accomplished with a set of Indirect File Operands, INDF0 through INDF2. These can be thought of as “virtual” registers; they are

FIGURE 5-7: INDIRECT ADDRESSING

Using an instruction with one of the indirect addressing registers as the

operand....

...uses the 12-bit address stored in the FSR pair associated with that

xxxx 1110 11001100

ADDWF, INDF1, 1

mapped in the SFR space but are not physically implemented. Reading or writing to a particular INDF register actually accesses its corresponding FSR register pair. A read from INDF1, for example, reads the data at the address indicated by FSR1H:FSR1L. Instructions that use the INDF registers as operands actually use the contents of their corresponding FSR as a pointer to the instruction’s target. The INDF operand is just a convenient way of using the pointer.

Because Indirect Addressing uses a full 12-bit address, data RAM banking is not necessary. Thus, the current contents of the BSR and the Access RAM bit have no effect on determining the target address.

FSR1H:FSR1L

000h

Bank 0

100h

Bank 1

200h

Bank 2

300h

Bank 3 through

Bank 13

...to determine the data memory location to be used in that operation.

In this case, the FSR1 pair contains ECCh. This means the contents of location ECCh will be added to that of the W register and stored back in ECCh.

E00h

F00h

FFFh

Bank 14

Bank 15

Data Memory

PIC18F2450/4450

5.4.3.2 FSR Registers and POSTINC, POSTDEC, PREINC and PLUSW

In addition to the INDF operand, each FSR register pair also has four additional indirect operands. Like INDF, these are “virtual” registers that cannot be indirectly read or written to. Accessing these registers actually accesses the associated FSR register pair, but also performs a specific action on it stored value. They are:

• POSTDEC: accesses the FSR value, then

automatically decrements it by ‘1’ afterwards

• POSTINC: accesses the FSR value, then

automatically increments it by ‘1’ afterwards

• PREINC: increments the FSR value by ‘1’, then

uses it in the operation

• PLUSW: adds the signed value of the W register

(range of -127 to 128) to that of the FSR and uses the new value in the operation.

In this context, accessing an INDF register uses the value in the FSR registers without changing them. Similarly, accessing a PLUSW register gives the FSR value offset by that in the W register; neither value is actually changed in the operation. Accessing the other virtual registers changes the value of the FSR registers.

Operations on the FSRs with POSTDEC, POSTINC and PREINC affect the entire register pair; that is, rollovers of the FSRnL register from FFh to 00h carry over to the FSRnH register. On the other hand, results of these operations do not change the value of any flags in the STATUS register (e.g., Z, N, OV, etc.).

The PLUSW register can be used to implement a form of Indexed Addressing in the data memory space. By manipulating the value in the W register, users can reach addresses that are fixed offsets from pointer addresses. In some applications, this can be used to implement some powerful program control structure, such as software stacks, inside of data memory.

5.4.3.3 Operations by FSRs on FSRs

Indirect Addressing operations that target other FSRs or virtual registers represent special cases. For example, using an FSR to point to one of the virtual registers will not result in successful operations. As a specific case, assume that FSR0H:FSR0L contains FE7h, the address of INDF1. Attempts to read the value of INDF1, using INDF0 as an operand, will return 00h. Attempts to write to INDF1, using INDF0 as the operand, will result in a NOP.

On the other hand, using the virtual registers to write to an FSR pair may not occur as planned. In these cases, the value will be written to the FSR pair but without any incrementing or decrementing. Thus, writing to INDF2 or POSTDEC2 will write the same value to the FSR2H:FSR2L.

Since the FSRs are physical registers mapped in the SFR space, they can be manipulated through all direct operations. Users should proceed cautiously when working on these registers, particularly if their code uses Indirect Addressing.

Similarly, operations by Indirect Addressing are generally permitted on all other SFRs. Users should exercise the appropriate caution that they do not inadvertently change settings that might affect the operation of the device.

PIC18F2450/4450

5.5 Program Memory and the Extended Instruction Set

The operation of program memory is unaffected by the use of the extended instruction set.

Enabling the extended instruction set adds eight additional two-word commands to the existing PIC18 instruction set: ADDFSR, ADDULNK, CALLW, MOVSF, MOVSS, PUSHL, SUBFSR and SUBULNK. These instructions are executed as described in

Section 5.2.4 “Two-Word Instructions”.

5.6 Data Memory and the Extended Instruction Set

Enabling the PIC18 extended instruction set (XINST Configuration bit = 1) significantly changes certain aspects of data memory and its addressing. Specifically, the use of the Access Bank for many of the core PIC18 instructions is different. This is due to the introduction of a new addressing mode for the data memory space. This mode also alters the behavior of Indirect Addressing using FSR2 and its associated operands.

What does not change is just as important. The size of the data memory space is unchanged, as well as its linear addressing. The SFR map remains the same. Core PIC18 instructions can still operate in both Direct and Indirect Addressing mode; inherent and literal instructions do not change at all. Indirect Addressing with FSR0 and FSR1 also remains unchanged.

5.6.1 INDEXED ADDRESSING WITH

LITERAL OFFSET

Enabling the PIC18 extended instruction set changes the behavior of Indirect Addressing using the FSR2 register pair and its associated file operands. Under the proper conditions, instructions that use the Access Bank – that is, most bit-oriented and byte-oriented instructions – can invoke a form of Indexed Addressing using an offset specified in the instruction. This special addressing mode is known as Indexed Addressing with Literal Offset or Indexed Literal Offset mode.

When using the extended instruction set, this addressing mode requires the following:

• The use of the Access Bank is forced (‘a’ = 0); and

• The file address argument is less than or equal to 5Fh.

Under these conditions, the file address of the instruction is not interpreted as the lower byte of an address (used with the BSR in Direct Addressing), or as an 8-bit address in the Access Bank. Instead, the value is interpreted as an offset value to an Address Pointer specified by FSR2. The offset and the contents of FSR2 are added to obtain the target address of the operation.

5.6.2 INSTRUCTIONS AFFECTED BY

INDEXED LITERAL OFFSET MODE

Any of the core PIC18 instructions that can use Direct Addressing are potentially affected by the Indexed

Literal Offset Addressing mode. This includes all byte-

oriented and bit-oriented instructions, or almost one-half of the standard PIC18 instruction set. Instructions that only use Inherent or Literal Addressing modes are

unaffected.

Additionally, byte-oriented and bit-oriented instructions are not affected if they do not use the Access Bank (Access RAM bit is ‘1’) or include a file address of 60h or above. Instructions meeting these criteria will continue to execute as before. A comparison of the different possible addressing modes when the extended instruction set is enabled in shown in Figure 5-8.

Those who desire to use byte-oriented or bit-oriented instructions in the Indexed Literal Offset mode should note the changes to assembler syntax for this mode. This is described in more detail in Section 19.2.1 “Extended Instruction Syntax”.

PIC18F2450/4450

FIGURE 5-8: COMPARING ADDRESSING OPTIONS FOR BIT-ORIENTED AND

BYTE-ORIENTED INSTRUCTIONS (EXTENDED INSTRUCTION SET ENABLED)

EXAMPLE INSTRUCTION: ADDWF, f, d, a (Opcode: 0010 01da ffff ffff)

When a = 0 and f ≥ 60h:

The instruction executes in Direct Forced mode. ‘f’ is interpreted as a location in the Access RAM between 060h and 0FFh. This is the same as the SFRs or locations F60h to 0FFh (Bank 15) of data memory.

Locations below 60h are not available in this addressing mode.

When a = 0 and f ≤ 5Fh:

The instruction executes in Indexed Literal Offset mode. ‘f’ is interpreted as an offset to the address value in FSR2. The two are added together to obtain the address of the target register for the instruction. The address can be anywhere in the data memory space.

Note that in this mode, the correct syntax is now:

ADDWF [k], d

where ‘k’ is the same as ‘f’.

000h

060h 080h

100h

F00h

F60h

FFFh

000h

080h

100h

F00h

F60h

FFFh

Bank 0

Bank 1 through

Bank 14

Bank 15

SFRs

Data Memory

Bank 0

Bank 1 through

Bank 14

Bank 15

SFRs

Data Memory

00h

60h

Access RAM

FSR2H FSR2L

FFh

ffffffff001001da

Valid range

for ‘f’

BSR

00000000

ffffffff001001da

When a = 1 (all values of f):

The instruction executes in Direct mode (also known as Direct Long mode). ‘f’ is interpreted as a location in one of the 16 banks of the data memory space. The bank is designated by the Bank Select

000h

080h

100h

Bank 0

Bank 1 through

Bank 14

F00h

F60h

FFFh

Bank 15

SFRs

Data Memory

PIC18F2450/4450

5.6.3 MAPPING THE ACCESS BANK IN INDEXED LITERAL OFFSET MODE

The use of Indexed Literal Offset Addressing mode effectively changes how the lower portion of Access RAM (00h to 5Fh) is mapped. Rather than containing just the contents of the bottom half of Bank 0, this mode maps the contents from Bank 0 and a user-defined “window” that can be located anywhere in the data memory space. The value of FSR2 establishes the lower boundary of the addresses mapped into the window, while the upper boundary is defined by FSR2 plus 95 (5Fh). Addresses in the Access RAM above 5Fh are mapped as previously described (see Section 5.3.3 “Access Bank”). An example of Access Bank remapping in this addressing mode is shown in Figure 5-9.

Remapping of the Access Bank applies only to operations using the Indexed Literal Offset mode. Operations that use the BSR (Access RAM bit is ‘1’) will continue to use Direct Addressing as before. Any indirect or indexed operation that explicitly uses any of the indirect file operands (including FSR2) will continue to operate as standard Indirect Addressing. Any instruction that uses the Access Bank, but includes a register address of greater than 05Fh, will use Direct Addressing and the normal Access Bank map.

5.6.4 BSR IN INDEXED LITERAL OFFSET MODE

Although the Access Bank is remapped when the extended instruction set is enabled, the operation of the BSR remains unchanged. Direct Addressing, using the BSR to select the data memory bank, operates in the same manner as previously described.

FIGURE 5-9: REMAPPING THE ACCESS BANK WITH INDEXED LITERAL

OFFSET ADDRESSING

Example Situation:

ADDWF f, d, a

FSR2H:FSR2L = 120h

Locations in the region from the FSR2 Pointer (120h) to the pointer plus 05Fh (17Fh) are mapped to the bottom of the Access RAM (000h-05Fh).

Special Function Registers at F60h through FFFh are mapped to 60h through FFh as usual.

Bank 0 addresses below 5Fh are not available in this mode. They can still be addressed by using the BSR.

000h

100h 120h 17Fh

200h

F00h

F60h

FFFh

Bank 0

Window

Bank 1

Bank 2 through Bank 14

Bank 15

SFRs

Data Memory

00h

Bank 1 “Window”

5Fh 60h

SFRs

FFh

Access Bank

PIC18F2450/4450

6.0 FLASH PROGRAM MEMORY

The Flash program memory is readable, writable and erasable, during normal operation over the entire V range.

A read from program memory is executed on one byte at a time. A write to program memory is executed on blocks of 16 bytes at a time. Program memory is erased in blocks of 64 bytes at a time. A Bulk Erase operation may not be issued from user code.

Writing or erasing program memory will cease instruction fetches until the operation is complete. The program memory cannot be accessed during the write or erase, therefore, code cannot execute. An internal programming timer terminates program memory writes and erases.

A value written to program memory does not need to be a valid instruction. Executing a program memory location that forms an invalid instruction results in a NOP.

6.1 Table Reads and Table Writes

In order to read and write program memory, there are two operations that allow the processor to move bytes between the program memory space and the data RAM:

• Table Read (TBLRD)

• Table Write (TBLWT)

The program memory space is 16 bits wide, while the data RAM space is 8 bits wide. Table reads and table writes move data between these two memory spaces through an 8-bit register (TABLAT).

Table read operations retrieve data from program memory and place it into the data RAM space. Figure 6-1 shows the operation of a table read with program memory and data RAM.

Table write operations store data from the data memory space into holding registers in program memory. The procedure to write the contents of the holding registers into program memory is detailed in Section 6.5 “Writing to Flash Program Memory”. Figure 6-2 shows the operation of a table write with program memory and data RAM.

Table operations work with byte entities. A table block containing data, rather than program instructions, is not required to be word-aligned. Therefore, a table block can start and end at any byte address. If a table write is being used to write executable code into program memory, program instructions will need to be word-aligned.

FIGURE 6-1: TABLE READ OPERATION

Table Pointer

TBLPTRU

Note 1: Table Pointer register points to a byte in program memory.

TBLPTRH TBLPTRL

(1)

Program Memory (TBLPTR)

Instruction: TBLRD*

Program Memory

Table Latch (8-bit)

TAB LAT

PIC18F2450/4450

FIGURE 6-2: TABLE WRITE OPERATION

Instruction: TBLWT*

Program Memory

Holding Registers

TBLPTRU

Table Pointer

TBLPTRH TBLPTRL

(1)

Program Memory (TBLPTR)

Table Latch (8-bit)

TAB LAT

Note 1: Table Pointer actually points to one of 16 holding registers, the address of which is determined by

TBLPTRL<3:0>. The process for physically writing data to the program memory array is discussed in Section 6.5 “Writing to Flash Program Memory”.

6.2 Control Registers

Several control registers are used in conjunction with the TBLRD and TBLWT instructions. These include the:

• EECON1 register

• EECON2 register

• TABLAT register

• TBLPTR registers

6.2.1 EECON1 AND EECON2 REGISTERS

The EECON1 register (Register 6-1) is the control register for memory accesses. The EECON2 register is not a physical register; it is used exclusively in the memory write and erase sequences. Reading EECON2 will read all ‘0’s.

The CFGS control bit determines if the access will be to the Configuration/Calibration registers or to program memory.

The FREE bit, when set, will allow a program memory erase operation. When FREE is set, the erase operation is initiated on the next WR command. When FREE is clear, only writes are enabled.

The WREN bit, when set, will allow a write operation. On power-up, the WREN bit is clear. The WRERR bit is set in hardware when the WREN bit is set and cleared when the internal programming timer expires and the write operation is complete.

Note: During normal operation, the WRERR is

read as ‘1’. This can indicate that a write operation was prematurely terminated by a Reset or a write operation was attempted improperly.

The WR control bit initiates write operations. The bit cannot be cleared, only set, in software; it is cleared in hardware at the completion of the write operation.

PIC18F2450/4450

REGISTER 6-1: EECON1: MEMORY CONTROL REGISTER 1

U-0 R/W-x U-0 R/W-0 R/W-x R/W-0 R/S-0 U-0

—CFGS— FREE WRERR

bit 7 bit 0

Legend: S = Settable bit

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 Unimplemented: Read as ‘0’

bit 6 CFGS: Flash Program or Configuration Select bit

1 = Access Configuration registers 0 = Access Flash program

bit 5 Unimplemented: Read as ‘0’

bit 4 FREE: Flash Row Erase Enable bit

1 = Erase the program memory row addressed by TBLPTR on the next WR command

(cleared by completion of erase operation)

0 = Perform write-only

bit 3 WRERR: Flash Program Error Flag bit

1 = A write operation is prematurely terminated (any Reset during self-timed programming in normal

operation or an improper write attempt)

0 = The write operation completed

bit 2 WREN: Flash Program Write Enable bit

1 = Allows write cycles to Flash program 0 = Inhibits write cycles to Flash program

bit 1 WR: Write Control bit

1 = Initiates a program memory erase cycle or write cycle

(The operation is self-timed and the bit is cleared by hardware once write is complete. The WR bit can only be set (not cleared) in software.)

0 = Write cycle complete

bit 0 Unimplemented: Read as ‘0’

(1)

WREN WR —

Note 1: When a WRERR occurs, the CFGS bit is not cleared. This allows tracing of the error condition.

PIC18F2450/4450

6.2.2 TABLE LATCH REGISTER (TABLAT)

The Table Latch (TABLAT) is an 8-bit register mapped into the SFR space. The Table Latch register is used to hold 8-bit data during data transfers between program memory and data RAM.

6.2.3 TABLE POINTER REGISTER (TBLPTR)

The Table Pointer (TBLPTR) register addresses a byte within the program memory. The TBLPTR is comprised of three SFR registers: Table Pointer Upper Byte, Table Pointer High Byte and Table Pointer Low Byte (TBLPTRU:TBLPTRH:TBLPTRL). These three registers join to form a 22-bit wide pointer. The low-order 21 bits allow the device to address up to 2 Mbytes of program memory space. The 22nd bit allows access to the device ID, the user ID and the Configuration bits.

The Table Pointer, TBLPTR, is used by the TBLRD and TBLWT instructions. These instructions can update the TBLPTR in one of four ways based on the table operation. These operations are shown in Table 6-1. These operations on the TBLPTR only affect the low-order 21 bits.

6.2.4 TABLE POINTER BOUNDARIES

TBLPTR is used in reads, writes and erases of the Flash program memory.

When a TBLRD is executed, all 22 bits of the TBLPTR determine which byte is read from program memory into TABLAT.

When a TBLWT is executed, the four LSbs of the Table Pointer register (TBLPTR<3:0>) determine which of the 16 program memory holding registers is written to. When the timed write to program memory begins (via the WR bit), the 16 MSbs of the TBLPTR (TBLPTR<21:4>) determine which program memory block of 16 bytes is written to. For more detail, see Section 6.5 “Writing to Flash Program Memory”.

When an erase of program memory is executed, the 16 MSbs of the Table Pointer register (TBLPTR<21:6>) point to the 64-byte block that will be erased. The Least Significant bits (TBLPTR<5:0>) are ignored.

Figure 6-3 describes the relevant boundaries of the TBLPTR based on Flash program memory operations.

TABLE 6-1: TABLE POINTER OPERATIONS WITH TBLRD AND TBLWT INSTRUCTIONS

Example Operation on Table Pointer

TBLRD* TBLWT*

TBLRD*+ TBLWT*+

TBLRD*TBLWT*-

TBLRD+* TBLWT+*

TBLPTR is incremented after the read/write

TBLPTR is decremented after the read/write

TBLPTR is incremented before the read/write

TBLPTR is not modified

FIGURE 6-3: TABLE POINTER BOUNDARIES BASED ON OPERATION

21 16 15 87 0

TBLPTRU

TABLE ERASE

TBLPTR<21:6>

TABLE WRITE – TBLPTR<21:4>

TABLE READ – TBLPTR<21:0>

TBLPTRLTBLPTRH

PIC18F2450/4450

6.3 Reading the Flash Program Memory

The TBLRD instruction is used to retrieve data from program memory and places it into data RAM. Table reads from program memory are performed one byte at a time.

TBLPTR points to a byte address in program space. Executing TBLRD places the byte pointed to into TABLAT. In addition, TBLPTR can be modified automatically for the next table read operation.

The internal program memory is typically organized by words. The Least Significant bit of the address selects between the high and low bytes of the word. Figure 6-4 shows the interface between the internal program memory and the TABLAT.

FIGURE 6-4: READS FROM FLASH PROGRAM MEMORY

Program Memory

(Even Byte Address)

(Odd Byte Address)

TBLPTR = xxxxx1

Instruction Register

(IR)

FETCH

TBLRD

EXAMPLE 6-1: READING A FLASH PROGRAM MEMORY WORD

MOVLW CODE_ADDR_UPPER ; Load TBLPTR with the base MOVWF TBLPTRU ; address of the word MOVLW CODE_ADDR_HIGH MOVWF TBLPTRH MOVLW CODE_ADDR_LOW

READ_WORD

MOVWF TBLPTRL

TBLRD*+ ; read into TABLAT and increment MOVF TABLAT, W ; get data MOVWF WORD_EVEN TBLRD*+ ; read into TABLAT and increment MOVF TABLAT, W ; get data MOVF WORD_ODD

TBLPTR = xxxxx0

TAB LAT

Read Register

PIC18F2450/4450

6.4 Erasing Flash Program Memory

The minimum erase block is 32 words or 64 bytes. Only through the use of an external programmer, or through ICSP control, can larger blocks of program memory be Bulk Erased. Word Erase in the Flash array is not supported.

When initiating an erase sequence from the microcontroller itself, a block of 64 bytes of program memory is erased. The Most Significant 16 bits of the TBLPTR<21:6> point to the block being erased. TBLPTR<5:0> are ignored.

The EECON1 register commands the erase operation. The WREN bit must be set to enable write operations. The FREE bit is set to select an erase operation.

For protection, the write initiate sequence for EECON2 must be used.

A long write is necessary for erasing the internal Flash. Instruction execution is halted while in a long write cycle. The long write will be terminated by the internal

6.4.1 FLASH PROGRAM MEMORY ERASE SEQUENCE

The sequence of events for erasing a block of internal program memory is:

1. Load Table Pointer register with address of row

being erased.

2. Set the EECON1 register for the erase operation:

• clear the CFGS bit to access program memory;

• set WREN bit to enable writes;

• set FREE bit to enable the erase.

3. Disable interrupts.

4. Write 55h to EECON2.

5. Write 0AAh to EECON2.

6. Set the WR bit. This will begin the Row Erase

cycle.

7. The CPU will stall for duration of the erase

(about 2 ms using internal timer).

8. Re-enable interrupts.

programming timer.

EXAMPLE 6-2: ERASING A FLASH PROGRAM MEMORY ROW

MOVLW CODE_ADDR_UPPER ; load TBLPTR with the base MOVWF TBLPTRU ; address of the memory block MOVLW CODE_ADDR_HIGH MOVWF TBLPTRH MOVLW CODE_ADDR_LOW

ERASE_ROW

Required MOVLW 55h Sequence MOVWF EECON2 ; write 55h

MOVWF TBLPTRL

BCF EECON1, CFGS ; access Flash program memory BSF EECON1, WREN ; enable write to memory BSF EECON1, FREE ; enable Row Erase operation BCF INTCON, GIE ; disable interrupts

MOVLW 0AAh MOVWF EECON2 ; write 0AAh BSF EECON1, WR ; start erase (CPU stall) BSF INTCON, GIE ; re-enable interrupts

PIC18F2450/4450

6.5 Writing to Flash Program Memory

The minimum programming block is 8 words or 16 bytes. Word or byte programming is not supported.

Table writes are used internally to load the holding registers needed to program the Flash memory. There are 16 holding registers used by the table writes for programming.

Since the Table Latch (TABLAT) is only a single byte, the TBLWT instruction may need to be executed 16 times for each programming operation. All of the table write operations will essentially be short writes because only the holding registers are written. At the end of updating the 16 holding registers, the EECON1 register must be written to in order to start the programming operation with a long write.

The long write is necessary for programming the internal Flash. Instruction execution is halted while in a long write cycle. The long write will be terminated by the internal programming timer.

The write/erase voltages are generated by an on-chip charge pump, rated to operate over the voltage range of the device.

Note: The default value of the holding registers on

device Resets and after write operations is FFh. A write of FFh to a holding register does not modify that byte. This means that individual bytes of program memory may be modified, provided that the change does not attempt to change any bit from a ‘0’ to a ‘1’. When modifying individual bytes, it is not necessary to load all 16 holding registers before executing a write operation.

FIGURE 6-5: TABLE WRITES TO FLASH PROGRAM MEMORY

TAB LAT

Write Register

8 8 8

Holding Register Holding Register Holding Register Holding Register

6.5.1 FLASH PROGRAM MEMORY WRITE SEQUENCE

The sequence of events for programming an internal program memory location should be:

1. Read 64 bytes into RAM.

2. Update data values in RAM as necessary.

3. Load Table Pointer register with address being

erased.

4. Execute the Row Erase procedure.

5. Load Table Pointer register with address of first

byte being written.

6. Write 16 bytes into the holding registers with

auto-increment.

7. Set the EECON1 register for the write operation:

• clear the CFGS bit to access program memory;

• set WREN to enable byte writes.

8. Disable interrupts.

9. Write 55h to EECON2.

TBLPTR = xxxxxFTBLPTR = xxxxx1TBLPTR = xxxxx0 TBLPTR = xxxxx2

Program Memory

10. Write 0AAh to EECON2.

11. Set the WR bit. This will begin the write cycle.

12. The CPU will stall for duration of the write (about 2 ms using internal timer).

13. Re-enable interrupts.

14. Repeat steps 6 through 14 once more to write 64 bytes.

15. Verify the memory (table read).

This procedure will require about 8 ms to update one row of 64 bytes of memory. An example of the required code is given in Example 6-3.

Note: Before setting the WR bit, the Table

Pointer address needs to be within the intended address range of the 16 bytes in the holding register.

PIC18F2450/4450

EXAMPLE 6-3: WRITING TO FLASH PROGRAM MEMORY

MOVLW D'64’ ; number of bytes in erase block MOVWF COUNTER MOVLW BUFFER_ADDR_HIGH ; point to buffer MOVWF FSR0H MOVLW BUFFER_ADDR_LOW MOVWF FSR0L MOVLW CODE_ADDR_UPPER ; Load TBLPTR with the base MOVWF TBLPTRU ; address of the memory block MOVLW CODE_ADDR_HIGH MOVWF TBLPTRH MOVLW CODE_ADDR_LOW

READ_BLOCK

MODIFY_WORD

ERASE_BLOCK

MOVWF TBLPTRL

TBLRD*+ ; read into TABLAT, and inc MOVF TABLAT, W ; get data MOVWF POSTINC0 ; store data DECFSZ COUNTER ; done? BRA READ_BLOCK ; repeat

MOVLW DATA_ADDR_HIGH ; point to buffer MOVWF FSR0H MOVLW DATA_ADDR_LOW MOVWF FSR0L MOVLW NEW_DATA_LOW ; update buffer word MOVWF POSTINC0 MOVLW NEW_DATA_HIGH MOVWF INDF0

MOVLW CODE_ADDR_UPPER ; load TBLPTR with the base MOVWF TBLPTRU ; address of the memory block MOVLW CODE_ADDR_HIGH MOVWF TBLPTRH MOVLW CODE_ADDR_LOW MOVWF TBLPTRL BCF EECON1, CFGS ; access Flash program memory BSF EECON1, WREN ; enable write to memory BSF EECON1, FREE ; enable Row Erase operation BCF INTCON, GIE ; disable interrupts

MOVLW 55h

Required MOVWF EECON2 ; write 55h Sequence MOVLW 0AAh

WRITE_BUFFER_BACK

WRITE_BYTE_TO_HREGS

MOVWF EECON2 ; write 0AAh BSF EECON1, WR ; start erase (CPU stall) BSF INTCON, GIE ; re-enable interrupts TBLRD*- ; dummy read decrement MOVLW BUFFER_ADDR_HIGH ; point to buffer MOVWF FSR0H MOVLW BUFFER_ADDR_LOW MOVWF FSR0L MOVLW D’4’ MOVWF COUNTER1

MOVLW D’16’ ; number of bytes in holding register MOVWF COUNTER

MOVF POSTINC0, W ; get low byte of buffer data MOVWF TABLAT ; present data to table latch TBLWT+* ; write data, perform a short write

; to internal TBLWT holding register. DECFSZ COUNTER ; loop until buffers are full BRA WRITE_WORD_TO_HREGS

PIC18F2450/4450

EXAMPLE 6-3: WRITING TO FLASH PROGRAM MEMORY (CONTINUED)

PROGRAM_MEMORY

BCF EECON1, CFGS ; access Flash program memory BSF EECON1, WREN ; enable write to memory BCF INTCON, GIE ; disable interrupts

Required MOVWF EECON2 ; write 55h

MOVLW 55h

Sequence MOVLW 0AAh

MOVWF EECON2 ; write 0AAh BSF EECON1, WR ; start program (CPU stall) DECFSZ COUNTER1 BRA WRITE_BUFFER_BACK BSF INTCON, GIE ; re-enable interrupts BCF EECON1, WREN ; disable write to memory

6.5.2 WRITE VERIFY

Depending on the application, good programming practice may dictate that the value written to the memory should be verified against the original value. This should be used in applications where excessive writes can stress bits near the specification limit.

6.5.3 UNEXPECTED TERMINATION OF WRITE OPERATION

If a write is terminated by an unplanned event, such as loss of power or an unexpected Reset, the memory location just programmed should be verified and reprogrammed if needed. If the write operation is interrupted by a MCLR Reset or a WDT time-out Reset during normal operation, the user can check the WRERR bit and rewrite the location(s) as needed.

6.5.4 PROTECTION AGAINST SPURIOUS WRITES

To protect against spurious writes to Flash program memory, the write initiate sequence must also be followed. See Section 18.0 “Special Features of the

CPU” for more detail.

6.6 Flash Program Operation During

Code Protection

See Section 18.5 “Program Verification and Code Protection” for details on code protection of Flash

program memory.

TABLE 6-2: REGISTERS ASSOCIATED WITH PROGRAM FLASH MEMORY

Reset

Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

TBLPTRU

TBPLTRH Program Memory Table Pointer High Byte (TBLPTR<15:8>) 49

TBLPTRL Program Memory Table Pointer Low Byte (TBLPTR<7:0>) 49

TABLAT Program Memory Table Latch 49

INTCON GIE/GIEH PEIE/GIEL

EECON2 Data Memory Control Register 2 (not a physical register) 51

EECON1

IPR2 OSCFIP — USBIP — — HLVDIP — —51

PIR2 OSCFIF

PIE2 OSCFIE

Legend: — = unimplemented, read as ‘0’. Shaded cells are not used during Flash access.

— — bit 21 Program Memory Table Pointer Upper Byte (TBLPTR<20:16>) 49

TMR0IE INT0IE RBIE TMR0IF INT0IF RBIF 49

—CFGS— FREE WRERR WREN WR —51

— USBIF — — HLVDIF — —51

— USBIE — — HLVDIE — —51

Val ues

on Page:

PIC18F2450/4450

NOTES:

PIC18F2450/4450

7.0 8 x 8 HARDWARE MULTIPLIER

7.1 Introduction

All PIC18 devices include an 8 x 8 hardware multiplier as part of the ALU. The multiplier performs an unsigned operation and yields a 16-bit result that is stored in the product register pair, PRODH:PRODL. The multiplier’s operation does not affect any flags in the STATUS register.

Making multiplication a hardware operation allows it to be completed in a single instruction cycle. This has the advantages of higher computational throughput and reduced code size for multiplication algorithms and allows the PIC18 devices to be used in many applications previously reserved for digital signal processors. A comparison of various hardware and software multiply operations, along with the savings in memory and execution time, is shown in Table 7-1.

7.2 Operation

Example 7-1 shows the instruction sequence for an 8 x 8 unsigned multiplication. Only one instruction is required when one of the arguments is already loaded in the WREG register.

Example 7-2 shows the sequence to do an 8 x 8 signed multiplication. To account for the sign bits of the arguments, each argument’s Most Significant bit (MSb) is tested and the appropriate subtractions are done.

EXAMPLE 7-1: 8 x 8 UNSIGNED

MULTIPLY ROUTINE

MOVF ARG1, W ; MULWF ARG2 ; ARG1 * ARG2 ->

; PRODH:PRODL

EXAMPLE 7-2: 8 x 8 SIGNED MULTIPLY

ROUTINE

MOVF ARG1, W MULWF ARG2 ; ARG1 * ARG2 ->

; PRODH:PRODL BTFSC ARG2, SB ; Test Sign Bit SUBWF PRODH, F ; PRODH = PRODH

; - ARG1 MOVF ARG2, W BTFSC ARG1, SB ; Test Sign Bit SUBWF PRODH, F ; PRODH = PRODH

; - ARG2

TABLE 7-1: PERFORMANCE COMPARISON FOR VARIOUS MULTIPLY OPERATIONS

Routine Multiply Method

8 x 8 unsigned

8 x 8 signed

16 x 16 unsigned

16 x 16 signed

Without hardware multiply 13 69 6.9 μs27.6 μs69 μs

Hardware multiply 1 1 100 ns 400 ns 1 μs

Without hardware multiply 33 91 9.1 μs36.4 μs91 μs

Hardware multiply 6 6 600 ns 2.4 μs6 μs

Without hardware multiply 21 242 24.2 μs96.8 μs242 μs

Hardware multiply 28 28 2.8 μs 11.2 μs28 μs

Without hardware multiply 52 254 25.4 μs 102.6 μs254 μs

Hardware multiply 35 40 4.0 μs16.0 μs40 μs

Program

Memory (Words)

Cycles

(Max)

@ 40 MHz @ 10 MHz @ 4 MHz

Time

PIC18F2450/4450

Example 7-3 shows the sequence to do a 16 x 16 unsigned multiplication. Equation 7-1 shows the algorithm that is used. The 32-bit result is stored in four registers (RES3:RES0).

EQUATION 7-1: 16 x 16 UNSIGNED

MULTIPLICATION ALGORITHM

RES3:RES0 = ARG1H:ARG1L • ARG2H:ARG2L

= (ARG1H • ARG2H • 2

(ARG1H • ARG2L • 2 (ARG1L • ARG2H • 2 (ARG1L • ARG2L)

) +

EXAMPLE 7-3: 16 x 16 UNSIGNED

MULTIPLY ROUTINE

MOVF ARG1L, W MULWF ARG2L ; ARG1L * ARG2L->

MOVFF PRODH, RES1 ; MOVFF PRODL, RES0 ;

;

MOVF ARG1H, W MULWF ARG2H ; ARG1H * ARG2H->

MOVFF PRODH, RES3 ; MOVFF PRODL, RES2 ;

;

MOVF ARG1L, W MULWF ARG2H ; ARG1L * ARG2H->

MOVF PRODL, W ; ADDWF RES1, F ; Add cross MOVF PRODH, W ; products ADDWFC RES2, F ; CLRF WREG ; ADDWFC RES3, F ;

;

MOVF ARG1H, W ; MULWF ARG2L ; ARG1H * ARG2L->

MOVF PRODL, W ; ADDWF RES1, F ; Add cross MOVF PRODH, W ; products ADDWFC RES2, F ; CLRF WREG ; ADDWFC RES3, F ;

Example 7-4 shows the sequence to do a 16 x 16 signed multiply. Equation 7-2 shows the algorithm used. The 32-bit result is stored in four registers (RES3:RES0). To account for the sign bits of the arguments, the MSb for each argument pair is tested and the appropriate subtractions are done.

; PRODH:PRODL

EQUATION 7-2: 16 x 16 SIGNED

MULTIPLICATION ALGORITHM

RES3:RES0= ARG1H:ARG1L • ARG2H:ARG2L

= (ARG1H • ARG2H • 2

(ARG1H • ARG2L • 2 (ARG1L • ARG2H • 2 (ARG1L • ARG2L) + (-1 • ARG2H<7> • ARG1H:ARG1L • 2 (-1 • ARG1H<7> • ARG2H:ARG2L • 2

) +

EXAMPLE 7-4: 16 x 16 SIGNED

MULTIPLY ROUTINE

MOVF ARG1L, W MULWF ARG2L ; ARG1L * ARG2L ->

MOVFF PRODH, RES1 ; MOVFF PRODL, RES0 ;

;

MOVF ARG1H, W MULWF ARG2H ; ARG1H * ARG2H ->

MOVFF PRODH, RES3 ; MOVFF PRODL, RES2 ;

;

MOVF ARG1L,W MULWF ARG2H ; ARG1L * ARG2H ->

MOVF PRODL, W ; ADDWF RES1, F ; Add cross MOVF PRODH, W ; products ADDWFC RES2, F ; CLRF WREG ; ADDWFC RES3, F ;

;

MOVF ARG1H, W ; MULWF ARG2L ; ARG1H * ARG2L ->

MOVF PRODL, W ; ADDWF RES1, F ; Add cross MOVF PRODH, W ; products ADDWFC RES2, F ; CLRF WREG ; ADDWFC RES3, F ;

;

BTFSS ARG2H, 7 ; ARG2H:ARG2L neg? BRA SIGN_ARG1 ; no, check ARG1 MOVF ARG1L, W ; SUBWF RES2 ; MOVF ARG1H, W ;

SUBWFB RES3 ; SIGN_ARG1

BTFSS ARG1H, 7 ; ARG1H:ARG1L neg?

BRA CONT_CODE ; no, done

MOVF ARG2L, W ;

SUBWF RES2 ;

MOVF ARG2H, W ;

SUBWFB RES3 ; CONT_CODE :

; PRODH:PRODL

) +

)

PIC18F2450/4450

8.0 INTERRUPTS

The PIC18F2450/4450 devices have multiple interrupt sources and an interrupt priority feature that allows each interrupt source to be assigned a high-priority level or a low-priority level. The high-priority interrupt vector is at 000008h and the low-priority interrupt vector is at 000018h. High-priority interrupt events will interrupt any low-priority interrupts that may be in progress.

There are ten registers which are used to control interrupt operation. These registers are:

• RCON

•INTCON

• INTCON2

• INTCON3

• PIR1, PIR2

• PIE1, PIE2

• IPR1, IPR2

It is recommended that the Microchip header files supplied with MPLAB names in these registers. This allows the assembler/ compiler to automatically take care of the placement of these bits within the specified register.

Each interrupt source has three bits to control its operation. The functions of these bits are:

• Flag bit to indicate that an interrupt event occurred

• Enable bit that allows program execution to branch to the interrupt vector address when the flag bit is set

• Priority bit to select high priority or low priority

The interrupt priority feature is enabled by setting the IPEN bit (RCON<7>). When interrupt priority is enabled, there are two bits which enable interrupts globally. Setting the GIEH bit (INTCON<7>) enables all interrupts that have the priority bit set (high priority). Setting the GIEL bit (INTCON<6>) enables all interrupts that have the priority bit cleared (low priority). When the interrupt flag, enable bit and appropriate global interrupt enable bit are set, the interrupt will vector immediately to address 000008h or 000018h, depending on the priority bit setting. Individual interrupts can be disabled through their corresponding enable bits.

When the IPEN bit is cleared (default state), the interrupt priority feature is disabled and interrupts are compatible with PIC Compatibility mode, the interrupt priority bits for each source have no effect. INTCON<6> is the PEIE bit which enables/disables all peripheral interrupt sources. INTCON<7> is the GIE bit which enables/disables all interrupt sources. All interrupts branch to address 000008h in Compatibility mode.

IDE be used for the symbolic bit

mid-range microcontrollers. In

When an interrupt is responded to, the global interrupt enable bit is cleared to disable further interrupts. If the IPEN bit is cleared, this is the GIE bit. If interrupt priority levels are used, this will be either the GIEH or GIEL bit. High-priority interrupt sources can interrupt a lowpriority interrupt. Low-priority interrupts are not processed while high-priority interrupts are in progress.

The return address is pushed onto the stack and the PC is loaded with the interrupt vector address (000008h or 000018h). Once in the Interrupt Service Routine, the source(s) of the interrupt can be determined by polling the interrupt flag bits. The interrupt flag bits must be cleared in software before re-enabling interrupts to avoid recursive interrupts.

The “return from interrupt” instruction, RETFIE, exits the interrupt routine and sets the GIE bit (GIEH or GIEL if priority levels are used) which re-enables interrupts.

For external interrupt events, such as the INTx pins or the PORTB input change interrupt, the interrupt latency will be three to four instruction cycles. The exact latency is the same for one or two-cycle instructions. Individual interrupt flag bits are set regardless of the status of their corresponding enable bit or the GIE bit.

Note: Do not use the MOVFF instruction to modify

any of the interrupt control registers while any interrupt is enabled. Doing so may cause erratic microcontroller behavior.

8.1 USB Interrupts

Unlike other peripherals, the USB module is capable of generating a wide range of interrupts for many types of events. These include several types of normal communication and status events and several module level error events.

To handle these events, the USB module is equipped with its own interrupt logic. The logic functions in a manner similar to the microcontroller level interrupt funnel, with each interrupt source having separate flag and enable bits. All events are funneled to a single device level interrupt, USBIF (PIR2<5>). Unlike the device level interrupt logic, the individual USB interrupt events cannot be individually assigned their own priority. This is determined at the device level interrupt funnel for all USB events by the USBIP bit.

For additional details on USB interrupt logic, refer to Section 14.5 “USB Interrupts”.

PIC18F2450/4450

FIGURE 8-1: INTERRUPT LOGIC

Peripheral Interrupt Flag bit Peripheral Interrupt Enable bit Peripheral Interrupt Priority bit

From USB Interrupt Logic

High-Priority Interrupt Generation

Low-Priority Interrupt Generation

Peripheral Interrupt Flag bit Peripheral Interrupt Enable bit Peripheral Interrupt Priority bit

TMR1IF TMR1IE TMR1IP

From USB Interrupt Logic

USBIF USBIE USBIP

TMR1IF TMR1IE TMR1IP

USBIF USBIE USBIP

Additional Peripheral Interrupts

IPEN

TMR0IF

TMR0IE TMR0IP

RBIF RBIE

RBIP

INT1IF INT1IE

INT1IP INT2IF

INT2IE INT2IP

TMR0IF TMR0IE TMR0IP

INT0IF

INT0IE

INT1IF INT1IE INT1IP

INT2IF INT2IE INT2IP

IPEN

PEIE/GIEL

RBIF RBIE RBIP

IPEN

Wake-up if in Sleep Mode

PEIE/GIEL

GIE/GIEH

Interrupt to CPU Vector to Location

0008h

GIE/GIEH

Interrupt to CPU Vector to Location 0018h

PIC18F2450/4450

8.2 INTCON Registers

The INTCON registers are readable and writable registers which contain various enable, priority and flag bits.

Note: Interrupt flag bits are set when an interrupt

condition occurs regardless of the state of its corresponding enable bit or the global interrupt enable bit. User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt. This feature allows for software polling.

REGISTER 8-1: INTCON: INTERRUPT CONTROL REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-x

GIE/GIEH PEIE/GIEL TMR0IE INT0IE RBIE TMR0IF INT0IF RBIF

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 GIE/GIEH: Global Interrupt Enable bit

When IPEN =

1 = Enables all unmasked interrupts 0 = Disables all interrupts

When IPEN =

1 = Enables all high-priority interrupts 0 = Disables all interrupts

bit 6 PEIE/GIEL: Peripheral Interrupt Enable bit

When IPEN =

1 = Enables all unmasked peripheral interrupts 0 = Disables all peripheral interrupts

When IPEN =

1 = Enables all low-priority peripheral interrupts 0 = Disables all low-priority peripheral interrupts

bit 5 TMR0IE: TMR0 Overflow Interrupt Enable bit

1 = Enables the TMR0 overflow interrupt 0 = Disables the TMR0 overflow interrupt

bit 4 INT0IE: INT0 External Interrupt Enable bit

1 = Enables the INT0 external interrupt 0 = Disables the INT0 external interrupt

bit 3 RBIE: RB Port Change Interrupt Enable bit

1 = Enables the RB port change interrupt 0 = Disables the RB port change interrupt

bit 2 TMR0IF: TMR0 Overflow Interrupt Flag bit

1 = TMR0 register has overflowed (must be cleared in software) 0 = TMR0 register did not overflow

bit 1 INT0IF: INT0 External Interrupt Flag bit

1 = The INT0 external interrupt occurred (must be cleared in software) 0 = The INT0 external interrupt did not occur

bit 0 RBIF: RB Port Change Interrupt Flag bit

1 = At least one of the RB7:RB4 pins changed state (must be cleared in software) 0 = None of the RB7:RB4 pins have changed state

(1)

Note 1: A mismatch condition will continue to set this bit. Reading PORTB and waiting 1 TCY will end the mismatch

condition and allow the bit to be cleared.

PIC18F2450/4450

REGISTER 8-2: INTCON2: INTERRUPT CONTROL REGISTER 2

R/W-1 R/W-1 R/W-1 R/W-1 U-0 R/W-1 U-0 R/W-1

RBPU

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

INTEDG0 INTEDG1 INTEDG2

—

TMR0IP

—

RBIP

bit 7 RBPU

bit 6 INTEDG0: External Interrupt 0 Edge Select bit

bit 5 INTEDG1: External Interrupt 1 Edge Select bit

bit 4 INTEDG2: External Interrupt 2 Edge Select bit

bit 3 Unimplemented: Read as ‘0’

bit 2 TMR0IP: TMR0 Overflow Interrupt Priority bit

bit 1 Unimplemented: Read as ‘0’

bit 0 RBIP: RB Port Change Interrupt Priority bit

Note: Interrupt flag bits are set when an interrupt condition occurs regardless of the state of its corresponding

enable bit or the global interrupt enable bit. User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt. This feature allows for software polling.

: PORTB Pull-up Enable bit

1 = All PORTB pull-ups are disabled 0 = PORTB pull-ups are enabled by individual port latch values

1 = Interrupt on rising edge 0 = Interrupt on falling edge

1 = High priority 0 = Low priority

PIC18F2450/4450

REGISTER 8-3: INTCON3: INTERRUPT CONTROL REGISTER 3

R/W-1 R/W-1 U-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0

INT2IP INT1IP — INT2IE INT1IE — INT2IF INT1IF

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 INT2IP: INT2 External Interrupt Priority bit

1 = High priority 0 = Low priority

bit 6 INT1IP: INT1 External Interrupt Priority bit

1 = High priority 0 = Low priority

bit 5 Unimplemented: Read as ‘0’

bit 4 INT2IE: INT2 External Interrupt Enable bit

1 = Enables the INT2 external interrupt 0 = Disables the INT2 external interrupt

bit 3 INT1IE: INT1 External Interrupt Enable bit

1 = Enables the INT1 external interrupt 0 = Disables the INT1 external interrupt

bit 2 Unimplemented: Read as ‘0’

bit 1 INT2IF: INT2 External Interrupt Flag bit

1 = The INT2 external interrupt occurred (must be cleared in software) 0 = The INT2 external interrupt did not occur

bit 0 INT1IF: INT1 External Interrupt Flag bit

1 = The INT1 external interrupt occurred (must be cleared in software) 0 = The INT1 external interrupt did not occur

Note: Interrupt flag bits are set when an interrupt condition occurs regardless of the state of its corresponding

enable bit or the global interrupt enable bit. User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt. This feature allows for software polling.

PIC18F2450/4450

8.3 PIR Registers

The PIR registers contain the individual flag bits for the peripheral interrupts. Due to the number of peripheral interrupt sources, there are two Peripheral Interrupt Request (Flag) registers (PIR1 and PIR2).

Note 1: Interrupt flag bits are set when an interrupt

condition occurs regardless of the state of its corresponding enable bit or the Global Interrupt Enable bit, GIE (INTCON<7>).

2: User software should ensure the

appropriate interrupt flag bits are cleared prior to enabling an interrupt and after servicing that interrupt.

REGISTER 8-4: PIR1: PERIPHERAL INTERRUPT REQUEST (FLAG) REGISTER 1

U-0 R/W-0 R-0 R-0 U-0 R/W-0 R/W-0 R/W-0

— ADIF RCIF TXIF — CCP1IF TMR2IF TMR1IF

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 Unimplemented: Read as ‘0’

bit 6 ADIF: A/D Converter Interrupt Flag bit

1 = An A/D conversion completed (must be cleared in software) 0 = The A/D conversion is not complete

bit 5 RCIF: EUSART Receive Interrupt Flag bit

1 = The EUSART receive buffer, RCREG, is full (cleared when RCREG is read) 0 = The EUSART receive buffer is empty

bit 4 TXIF: EUSART Transmit Interrupt Flag bit

1 = The EUSART transmit buffer, TXREG, is empty (cleared when TXREG is written) 0 = The EUSART transmit buffer is full

bit 3 Unimplemented: Read as ‘0’

bit 2 CCP1IF: CCP1 Interrupt Flag bit

Capture mode:

1 = A TMR1 register capture occurred (must be cleared in software) 0 = No TMR1 register capture occurred

Compare mode:

1 = A TMR1 register compare match occurred (must be cleared in software) 0 = No TMR1 register compare match occurred

PWM mode: Unused in this mode.

bit 1 TMR2IF: TMR2 to PR2 Match Interrupt Flag bit

1 = TMR2 to PR2 match occurred (must be cleared in software) 0 = No TMR2 to PR2 match occurred

bit 0 TMR1IF: TMR1 Overflow Interrupt Flag bit

1 = TMR1 register overflowed (must be cleared in software) 0 = TMR1 register did not overflow

PIC18F2450/4450

REGISTER 8-5: PIR2: PERIPHERAL INTERRUPT REQUEST (FLAG) REGISTER 2

R/W-0 U-0 R/W-0 U-0 U-0 R/W-0 U-0 U-0

OSCFIF — USBIF — —HLVDIF — —

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 OSCFIF: Oscillator Fail Interrupt Flag bit

1 = System oscillator failed, clock input has changed to INTRC (must be cleared in software) 0 = System clock operating

bit 6 Unimplemented: Read as ‘0’

bit 5 USBIF: USB Interrupt Flag bit

1 = USB has requested an interrupt (must be cleared in software) 0 = No USB interrupt request

bit 4-3 Unimplemented: Read as ‘0’

bit 2 HLVDIF: High/Low-Voltage Detect Interrupt Flag bit

1 = A high/low-voltage condition occurred 0 = No high/low-voltage event has occurred

bit 1-0 Unimplemented: Read as ‘0’

PIC18F2450/4450

8.4 PIE Registers

The PIE registers contain the individual enable bits for the peripheral interrupts. Due to the number of peripheral interrupt sources, there are two Peripheral Interrupt Enable registers (PIE1 and PIE2). When IPEN = 0, the PEIE bit must be set to enable any of these peripheral interrupts.

REGISTER 8-6: PIE1: PERIPHERAL INTERRUPT ENABLE REGISTER 1

U-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0

— ADIE RCIE TXIE — CCP1IE TMR2IE TMR1IE

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 Unimplemented: Read as ‘0’

bit 6 ADIE: A/D Converter Interrupt Enable bit

1 = Enables the A/D interrupt 0 = Disables the A/D interrupt

bit 5 RCIE: EUSART Receive Interrupt Enable bit

1 = Enables the EUSART receive interrupt 0 = Disables the EUSART receive interrupt

bit 4 TXIE: EUSART Transmit Interrupt Enable bit

1 = Enables the EUSART transmit interrupt 0 = Disables the EUSART transmit interrupt

bit 3 Unimplemented: Read as ‘0’

bit 2 CCP1IE: CCP1 Interrupt Enable bit

1 = Enables the CCP1 interrupt 0 = Disables the CCP1 interrupt

bit 1 TMR2IE: TMR2 to PR2 Match Interrupt Enable bit

1 = Enables the TMR2 to PR2 match interrupt 0 = Disables the TMR2 to PR2 match interrupt

bit 0 TMR1IE: TMR1 Overflow Interrupt Enable bit

1 = Enables the TMR1 overflow interrupt 0 = Disables the TMR1 overflow interrupt

PIC18F2450/4450

REGISTER 8-7: PIE2: PERIPHERAL INTERRUPT ENABLE REGISTER 2

R/W-0 U-0 R/W-0 U-0 U-0 R/W-0 U-0 U-0

OSCFIE — USBIE — —HLVDIE — —

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 OSCFIE: Oscillator Fail Interrupt Enable bit

1 = Enabled 0 =Disabled

bit 6 Unimplemented: Read as ‘0’

bit 5 USBIE: USB Interrupt Enable bit

1 = Enabled 0 =Disabled

bit 4-3 Unimplemented: Read as ‘0’

bit 2 HLVDIE: High/Low-Voltage Detect Interrupt Enable bit

1 = Enabled 0 =Disabled

bit 1-0 Unimplemented: Read as ‘0’

PIC18F2450/4450

8.5 IPR Registers

The IPR registers contain the individual priority bits for the peripheral interrupts. Due to the number of peripheral interrupt sources, there are two Peripheral Interrupt Priority registers (IPR1 and IPR2). Using the priority bits requires that the Interrupt Priority Enable (IPEN) bit be set.

REGISTER 8-8: IPR1: PERIPHERAL INTERRUPT PRIORITY REGISTER 1

U-0 R/W-1 R/W-1 R/W-1 U-0 R/W-1 R/W-1 R/W-1

— ADIP RCIP TXIP — CCP1IP TMR2IP TMR1IP

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 Unimplemented: Read as ‘0’

bit 6 ADIP: A/D Converter Interrupt Priority bit

1 = High priority 0 = Low priority

bit 5 RCIP: EUSART Receive Interrupt Priority bit

1 = High priority 0 = Low priority

bit 4 TXIP: EUSART Transmit Interrupt Priority bit

1 = High priority 0 = Low priority

bit 3 Unimplemented: Read as ‘0’

bit 2 CCP1IP: CCP1 Interrupt Priority bit

1 = High priority 0 = Low priority

bit 1 TMR2IP: TMR2 to PR2 Match Interrupt Priority bit

1 = High priority 0 = Low priority

bit 0 TMR1IP: TMR1 Overflow Interrupt Priority bit

1 = High priority 0 = Low priority

PIC18F2450/4450

REGISTER 8-9: IPR2: PERIPHERAL INTERRUPT PRIORITY REGISTER 2

R/W-1 U-0 R/W-1 U-0 U-0 R/W-1 U-0 U-0

OSCFIP — USBIP — —HLVDIP — —

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 OSCFIP: Oscillator Fail Interrupt Priority bit

1 = High priority 0 = Low priority

bit 6 Unimplemented: Read as ‘0’

bit 5 USBIP: USB Interrupt Priority bit

1 = High priority 0 = Low priority

bit 4-3 Unimplemented: Read as ‘0’

bit 2 HLVDIP: High/Low-Voltage Detect Interrupt Priority bit

1 = High priority 0 = Low priority

bit 1-0 Unimplemented: Read as ‘0’

PIC18F2450/4450

8.6 RCON Register

The RCON register contains flag bits which are used to determine the cause of the last Reset or wake-up from Idle or Sleep modes. RCON also contains the IPEN bit which enables interrupt priorities.

REGISTER 8-10: RCON: RESET CONTROL REGISTER

R/W-0 R/W-1

IPEN SBOREN

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’

-n = Value at POR ‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 7 IPEN: Interrupt Priority Enable bit

1 = Enable priority levels on interrupts 0 = Disable priority levels on interrupts (PIC16CXXX Compatibility mode)

bit 6 SBOREN: BOR Software Enable bit

For details of bit operation, see Register 4-1.

bit 5 Unimplemented: Read as ‘0’

bit 4 RI: RESET Instruction Flag bit

For details of bit operation, see Register 4-1.

bit 3 TO: Watchdog Time-out Flag bit

For details of bit operation, see Register 4-1.

bit 2 PD: Power-Down Detection Flag bit

For details of bit operation, see Register 4-1.

bit 1 POR: Power-on Reset Status bit

For details of bit operation, see Register 4-1.

bit 0 BOR: Brown-out Reset Status bit

For details of bit operation, see Register 4-1.

(1)

U-0 R/W-1 R-1 R-1 R/W-0

—RITO PD POR BOR

(1)

(2)

R/W-0

Note 1: If SBOREN is enabled, its Reset state is ‘1’; otherwise, it is ‘0’. See Register 4-1 for additional information.

2: The actual Reset value of POR

information.

is determined by the type of device Reset. See Register 4-1 for additional

PIC18F2450/4450

8.7 INTx Pin Interrupts

External interrupts on the RB0/AN12/INT0, RB1/AN10/ INT1and RB2/AN8/INT2/VMO pins are edge-triggered. If the corresponding INTEDGx bit in the INTCON2 register is set (= 1), the interrupt is triggered by a rising edge; if the bit is clear, the trigger is on the falling edge. When a valid edge appears on the RBx/INTx pin, the corresponding flag bit, INTxIF, is set. This interrupt can be disabled by clearing the corresponding enable bit, INTxIE. Flag bit, INTxIF, must be cleared in software in the Interrupt Service Routine before re-enabling the interrupt.

All external interrupts (INT0, INT1 and INT2) can wakeup the processor from the power-managed modes if bit, INTxIE, was set prior to going into the power-managed modes. If the Global Interrupt Enable bit, GIE, is set, the processor will branch to the interrupt vector following wake-up.

Interrupt priority for INT1 and INT2 is determined by the value contained in the interrupt priority bits, INT1IP (INTCON3<6>) and INT2IP (INTCON3<7>). There is no priority bit associated with INT0. It is always a high-priority interrupt source.

8.8 TMR0 Interrupt

In 8-bit mode (which is the default), an overflow in the TMR0 register (FFh → 00h) will set flag bit, TMR0IF. In 16-bit mode, an overflow in the TMR0H:TMR0L register pair (FFFFh → 0000h) will set TMR0IF. The interrupt can be enabled/disabled by setting/clearing enable bit, TMR0IE (INTCON<5>). Interrupt priority for Timer0 is determined by the value contained in the interrupt priority bit, TMR0IP (INTCON2<2>). See Section 12.0 “Timer2 Module” for further details on the Timer0 module.

8.9 PORTB Interrupt-on-Change

An input change on PORTB<7:4> sets flag bit, RBIF (INTCON<0>). The interrupt can be enabled/disabled by setting/clearing enable bit, RBIE (INTCON<3>). Interrupt priority for PORTB interrupt-on-change is determined by the value contained in the interrupt priority bit, RBIP (INTCON2<0>).

8.10 Context Saving During Interrupts

During interrupts, the return PC address is saved on the stack. Additionally, the WREG, STATUS and BSR registers are saved on the Fast Return Stack. If a fast return from interrupt is not used (see Section 5.3 “Data Memory Organization”), the user may need to save the WREG, STATUS and BSR registers on entry to the Interrupt Service Routine. Depending on the user’s application, other registers may also need to be saved. Example 8-1 saves and restores the WREG, STATUS and BSR registers during an Interrupt Service Routine.

EXAMPLE 8-1: SAVING STATUS, WREG AND BSR REGISTERS IN RAM

MOVWF W_TEMP ; W_TEMP is in virtual bank MOVFF STATUS, STATUS_TEMP ; STATUS_TEMP located anywhere MOVFF BSR, BSR_TEMP ; BSR_TMEP located anywhere ; ; USER ISR CODE ; MOVFF BSR_TEMP, BSR ; Restore BSR MOVF W_TEMP, W ; Restore WREG MOVFF STATUS_TEMP, STATUS ; Restore STATUS

PIC18F2450/4450

NOTES:

Datasheet PIC18F2450, PIC18F4450 Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual

Universal Serial Bus Features:

Power-Managed Modes:

Flexible Oscillator Structure:

Peripheral Highlights:

Special Microcontroller Features:

Pin Diagrams

Pin Diagrams (Continued)

Table of Contents

Most Current Data Sheet

Errata

Customer Notification System

1.0 DEVICE OVERVIEW

1.1 New Core Features

1.1.1 nanoWatt TECHNOLOGY

1.1.2 UNIVERSAL SERIAL BUS (USB)

1.2 Other Special Features

1.3 Details on Individual Family Members

TABLE 1-1: DEVICE FEATURES

FIGURE 1-1: PIC18F2450 (28-PIN) BLOCK DIAGRAM

FIGURE 1-2: PIC18F4450 (40/44-PIN) BLOCK DIAGRAM

TABLE 1-2: PIC18F2450 PINOUT I/O DESCRIPTIONS

TABLE 1-3: PIC18F4450 PINOUT I/O DESCRIPTIONS

2.0 OSCILLATOR CONFIGURATIONS

2.1 Overview

2.1.1 OSCILLATOR CONTROL

2.2 Oscillator Types

2.2.1 OSCILLATOR MODES AND USB OPERATION

FIGURE 2-1: PIC18F2450/4450 CLOCK DIAGRAM

2.2.2 CRYSTAL OSCILLATOR/CERAMIC RESONATORS

2.2.3 EXTERNAL CLOCK INPUT

2.2.4 PLL FREQUENCY MULTIPLIER

2.2.5 INTERNAL OSCILLATOR

2.3 Oscillator Settings for USB

2.3.1 LOW-SPEED OPERATION

2.3.2 RUNNING DIFFERENT USB AND MICROCONTROLLER CLOCKS

TABLE 2-3: OSCILLATOR CONFIGURATION OPTIONS FOR USB OPERATION

2.4 Clock Sources and Oscillator Switching

2.4.1 OSCILLATOR CONTROL REGISTER

2.4.2 OSCILLATOR TRANSITIONS

REGISTER 2-1: OSCCON: OSCILLATOR CONTROL REGISTER

2.5 Effects of Power-Managed Modes on the Various Clock Sources

2.6 Power-up Delays

TABLE 2-4: OSC1 AND OSC2 PIN STATES IN SLEEP MODE

3.0 POWER-MANAGED MODES

3.1 Selecting Power-Managed Modes

3.1.1 CLOCK SOURCES

TABLE 3-1: POWER-MANAGED MODES

3.1.3 CLOCK TRANSITIONS AND STATUS INDICATORS

3.1.4 MULTIPLE SLEEP COMMANDS

3.2.1 PRI_RUN MODE

3.2.2 SEC_RUN MODE

3.2 Run Modes

FIGURE 3-1: TRANSITION TIMING FOR ENTRY TO SEC_RUN MODE

FIGURE 3-2: TRANSITION TIMING FROM SEC_RUN MODE TO PRI_RUN MODE (HSPLL)

3.2.3 RC_RUN MODE

FIGURE 3-3: TRANSITION TIMING TO RC_RUN MODE

FIGURE 3-4: TRANSITION TIMING FROM RC_RUN MODE TO PRI_RUN MODE

3.3 Sleep Mode

3.4 Idle Modes

FIGURE 3-5: TRANSITION TIMING FOR ENTRY TO SLEEP MODE

FIGURE 3-6: TRANSITION TIMING FOR WAKE FROM SLEEP (HSPLL)

3.4.1 PRI_IDLE MODE

3.4.2 SEC_IDLE MODE

FIGURE 3-7: TRANSITION TIMING FOR ENTRY TO IDLE MODE

FIGURE 3-8: TRANSITION TIMING FOR WAKE FROM IDLE TO RUN MODE

3.4.3 RC_IDLE MODE

3.5 Exiting Idle and Sleep Modes

3.5.1 EXIT BY INTERRUPT

3.5.2 EXIT BY WDT TIME-OUT

3.5.3 EXIT BY RESET

3.5.4 EXIT WITHOUT AN OSCILLATOR START-UP DE LAY

4.0 RESET

4.1 RCON Register

FIGURE 4-1: SIMPLIFIED BLOCK DIAGRAM OF ON-CHIP RESET CIRCUIT

REGISTER 4-1: RCON: RESET CONTROL REGISTER

4.2 Master Clear Reset (MCLR)
