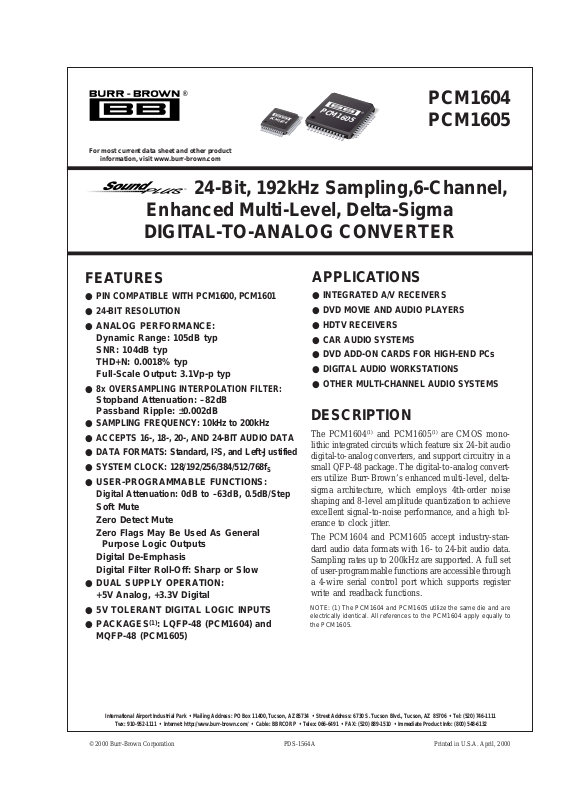

Datasheet PCM1604Y, PCM1604Y-2K, PCM1605Y, PCM1605Y-1K Datasheet (Burr Brown)

24-Bit, 192kHz Sampling,6-Channel,

Enhanced Multi-Level, Delta-Sigma

DIGITAL-TO-ANALOG CONVERTER

PCM1604
PCM1605

®

TM

DESCRIPTION

The PCM1604

(1)

and PCM1605

(1)

are CMOS mono­lithic integrated circuits which feature six 24-bit audio
digital-to-analog converters, and support circuitry in a
small QFP-48 package. The digital-to-analog convert­ers utilize Burr-Brown’s enhanced multi-level, delta­sigma architecture, which employs 4th-order noise
shaping and 8-level amplitude quantization to achieve
excellent signal-to-noise performance, and a high tol­erance to clock jitter.

The PCM1604 and PCM1605 accept industry-stan­dard audio data formats with 16- to 24-bit audio data.
Sampling rates up to 200kHz are supported. A full set
of user-programmable functions are accessible through
a 4-wire serial control port which supports register
write and readback functions.

FEATURES

● PIN COMPATIBLE WITH PCM1600, PCM1601

● 24-BIT RESOLUTION

●

ANALOG PERFORMANCE:
Dynamic Range: 105dB typ
SNR: 104dB typ
THD+N: 0.0018% typ
Full-Scale Output: 3.1Vp-p typ

●

8x OVERSAMPLING INTERPOLATION FILTER:
Stopband Attenuation: –82dB
Passband Ripple: ±0.002dB

● SAMPLING FREQUENCY: 10kHz to 200kHz

● ACCEPTS 16-, 18-, 20-, AND 24-BIT AUDIO DATA

● DATA FORMATS: Standard, I2S, and Left-Justified

● SYSTEM CLOCK: 128/192/256/384/512/768f

S

●

USER-PROGRAMMABLE FUNCTIONS:
Digital Attenuation: 0dB to –63dB, 0.5dB/Step

Soft Mute
Zero Detect Mute
Zero Flags May Be Used As General

Purpose Logic Outputs
Digital De-Emphasis
Digital Filter Roll-Off: Sharp or Slow

●

DUAL SUPPLY OPERATION:
+5V Analog, +3.3V Digital

●

5V TOLERANT DIGITAL LOGIC INPUTS

●

PACKAGES

(1)

: LQFP-48 (PCM1604) and

MQFP-48 (PCM1605)

© 2000 Burr-Brown Corporation PDS-1564A Printed in U.S.A. April, 2000

APPLICATIONS

● INTEGRATED A/V RECEIVERS

● DVD MOVIE AND AUDIO PLAYERS

● HDTV RECEIVERS

● CAR AUDIO SYSTEMS

● DVD ADD-ON CARDS FOR HIGH-END PCs

● DIGITAL AUDIO WORKSTATIONS

● OTHER MULTI-CHANNEL AUDIO SYSTEMS

International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: [phone]

Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: [phone] • Immediate Product Info: [phone]

NOTE: (1) The PCM1604 and PCM1605 utilize the same die and are
electrically identical. All references to the PCM1604 apply equally to
the PCM1605.

For most current data sheet and other product

information, visit www.burr-brown.com

PCM1605

PCM1604

®

2

PCM1604, PCM1605

SPECIFICATIONS

All specifications at +25°C, +VCC = +5V, +V

DD

= +3.3V, system clock = 384fS (fS = 44.1kHz) and 24-bit data, unless otherwise noted.

PCM1604Y, PCM1605Y

PARAMETER CONDITIONS MIN TYP MAX UNITS
RESOLUTION 24 Bits

DATA FORMAT

Audio Data Interface Formats User Selectable Standard, I

2

S, Left-Justified

Data Bit Length User Selectable 16, 18, 20, 24-Bit
Audio Data Format MSB-First, Binary Two’s Complement

Sampling Frequency (f

S

) 10 200 kHz

System Clock Frequency 128, 192, 256, 384, 512, 768f

S

DIGITAL INPUT/OUTPUT

Logic Family TTL-Compatible
Input Logic Level

V

IH

2.0 V

V

IL

0.8 V

Input Logic Current

I

IH

(1)

VIN = V

DD

10 µA

I

IL

(1)

VIN = 0V –10 µA

I

IH

(2)

VIN = V

DD

65 100 µA

I

IL

(2)

VIN = 0V –10 µA

Output Logic Level

V

OH

(3)

I

OH

= –4mA 2.4 V

V

OL

(3)

I

OL

= +4mA 1.0 V

DYNAMIC PERFORMANCE

(4)

THD+N, V

OUT

= 0dB fS = 44.1kHz 0.0018 0.0045 %

f

S

= 96kHz 0.0035 %

V

OUT

= –60dB fS = 44.1kHz 0.65 %

f

S

= 96kHz 0.75 %

Dynamic Range EIAJ, A-Weighted, f

S

=44.1kHz 100 105 dB

A-Weighted, f

S

= 96kHz 104 dB

Signal-to-Noise Ratio

(5)

EIAJ, A-Weighted, fS =44.1kHz 98 104 dB

A-Weighted, f

S

= 96kHz 103 dB

Channel Separation fS = 44.1kHz 96 102 dB

f

S

= 96kHz 101 dB

Level Linearity Error V

OUT

= –90dB ±0.5 dB

DC ACCURACY

Gain Error ±1.0 % of FSR
Gain Mismatch, Channel-to-Channel ±1.0 % of FSR
Bipolar Zero Error V

O

= 0.5VCC at Bipolar Zero ±30 mV

ANALOG OUTPUT

Output Voltage Full Scale (0dB) 62% of V

CC

Vp-p

Center Voltage 50% V

CC

V

Load Impedance AC Load 5 kΩ

DIGITAL FILTER PERFORMANCE
Filter Characteristics, Sharp Roll-Off

Passband ±0.002dB 0.454f

S

Hz

–3dB 0.490f

S

Hz

Stopband 0.546f

S

Hz
Passband Ripple ±0.002 dB
Stopband Attenuation Stopband = 0.546f

S

–75 dB

Stopband = 0.567f

S

–82 dB

Filter Characteristics, Slow Roll-Off

Passband ±0.002dB 0.274f

S

Hz

–3dB 0.454f

S

Hz
Stopband 0.732f

S

Hz
Passband Ripple ±0.002 dB
Stopband Attenuation Stopband = 0.732f

S

–82 dB

Delay Time 34/f

S

sec

De-Emphasis Error ±0.1 dB

ANALOG FILTER PERFORMANCE

Frequency Response f = 20kHz –0.03 dB

f = 44kHz –0.20 dB

®

3 PCM1604, PCM1605

The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.

POWER SUPPLY REQUIREMENTS

Voltage Range, V

DD

+3.0 +3.3 +3.6 V

V

CC

+4.5 +5.0 +5.5 V

Supply Current, I

DD

(6)

fS = 44.1kHz 20 28 mA

f

S

= 96kHz 42 mA

I

CC

fS = 44.1kHz 40 56 mA

f

S

= 96kHz 42 mA

Power Dissipation f

S

= 44.1kHz 266 409 mW

f

S

= 96kHz 349 mW

TEMPERATURE RANGE

Operation –25 +85 °C
Storage –55 +125 °C
Thermal Resistance,

θ

JA

100 °C/W

NOTES: (1) Pins 38, 40, 41, 45-47 (SCKI, BCK, LRCK, DATA1, DATA2, DATA3). (2) Pins 34-37 (MDI, MC, ML, RST). (3) Pins 1-6, 48 (ZERO1-6, ZEROA),
Pin 39 (SCKO). (4) Analog performance specifications are tested with Shibasoku #725 THD Meter 400Hz HPF, 30kHz LPF on, average mode with 20kHz
bandwidth limiting. The load connected to the analog output is 5kΩ or larger, AC-coupled. (5) SNR is tested with Infinite Zero Detection off. (6) SCKO is disabled.

SPECIFICATIONS (Cont.)

All specifications at +25°C, +VCC = +5V, +V

DD

= +3.3V, system clock = 384fS (fS = 44.1kHz) and 24-bit data, unless otherwise noted.

PCM1604Y, PCM1605Y

PARAMETER CONDITIONS MIN TYP MAX UNITS

ELECTROSTATIC
DISCHARGE SENSITIVITY

This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.

ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.

Power Supply Voltage, VDD.............................................................. +4.0V

V

CC

.............................................................. +6.5V

Digital Input Voltage........................................................... –0.2V to +5.5V

Digital Output Voltage

(1)

........................................... –0.2V to (VDD + 0.2V)

Input Current (except power supply)............................................... ±10mA

Power Dissipation .......................................................................... 650mW

Operating Temperature Range ......................................... –25°C to +85°C

Storage Temperature...................................................... –55°C to +125°C

Lead Temperature (soldering, 5s)................................................. +260°C

Package Temperature (IR reflow, 10s) .......................................... +235°C

NOTE: (1) Pin 33 (MDO) when output is disabled.

ABSOLUTE MAXIMUM RATINGS

PACKAGE SPECIFIED
DRAWING TEMPERATURE PACKAGE ORDERING TRANSPORT

PRODUCT PACKAGE NUMBER RANGE MARKING NUMBER

(1)

MEDIA

PCM1604Y LQFP-48 340 –25°C to +85°C PCM1604Y PCM1604Y 250-Piece Tray

"""""PCM1604Y/2K Tape and Reel

PCM1605Y MQFP-48 359 –25°C to +85°C PCM1605Y PCM1605Y 84-Piece Tray

"""""PCM1605Y/1K Tape and Reel

NOTE: (1) Models with a slash (/) are available only in Tape and Reel in the quantities indicated (e.g., /2K indicates 2000 devices per reel). Ordering 2000 pieces
of “PCM1604Y/2K” will get a single 2000-piece Tape and Reel.

PACKAGE/ORDERING INFORMATION

®

4

PCM1604, PCM1605

PIN CONFIGURATION

Top View LQFP, MQFP

BLOCK DIAGRAM

Audio
Serial

I/F

Output Amp and

Low-Pass Filter

DAC

DAC

DAC

DAC

DAC

DAC

4x/8x

Oversampling

Digital Filter

with

Function

Controller

Enhanced
Multi-level

Delta-Sigma

Modulator

Output Amp and

Low-Pass Filter

Output Amp and

Low-Pass Filter

Output Amp and

Low-Pass Filter

Output Amp and

Low-Pass Filter

Output Amp and

Low-Pass Filter

BCK

LRCK

DATA1
DATA2
DATA3

Serial

Control

I/F

System Clock

Manager

Zero Detect

Power Supply

TEST

RST

ML

MC

MDI

MDO

V

OUT

1

V

OUT

2

V

OUT

5

V

OUT

6

V

OUT

3

V

COM

1

V

COM

2

V

OUT

4

ZERO1/GPO1

ZERO2/GPO2

ZERO3/GPO3

ZERO4/GPO4

ZERO5/GPO5

ZERO6/GPO6

V

DD

DGND

ZEROA

SCKI

System Clock

SCKO

V

CC

AGND

V

CC

0

AGND0

V

CC

1-6

AGND1-6

36
35
34
33
32
31
30
29
28
27
26
25

ML
MC
MDI
MDO
NC
NC
V

CC

0
AGND0
V

CC

1
AGND1
V

CC

2
AGND2

ZEROA

DATA3

DATA2

DATA1

DGND

VDDTEST

LRCK

BCK

SCKO

SCKI

RST

V

OUT

2

V

OUT

1

V

COM

2

V

COM

1

AGND6

V

CC

6

AGND5

V

CC

5

AGND4

V

CC

4

AGND3

V

CC

3

1
2
3
4
5
6
7
8

9
10
11
12

ZERO1/GPO1
ZERO2/GPO2
ZERO3/GPO3
ZERO4/GPO4
ZERO5/GPO5
ZERO6/GPO6

AGND

V

CC

V

OUT

6

V

OUT

5

V

OUT

4

V

OUT

3

48 47 46 45 44 43 42

41 40 39 38

13 14 15 16 17 18 19 20 21 22 233724

PCM1604
PCM1605

®

5 PCM1604, PCM1605

PIN NAME I/O DESCRIPTION

1 ZERO1/GPO1 O Zero Data Flag for V

OUT

1. Can also be used as GPO pin.

2 ZERO2/GPO2 O Zero Data Flag for V

OUT

2. Can also be used as GPO pin.

3 ZERO3/GPO3 O Zero Data Flag for V

OUT

3. Can also be used as GPO pin.

4 ZERO4/GPO4 O Zero Data Flag for V

OUT

4. Can also be used as GPO pin.

5 ZERO5/GPO5 O Zero Data Flag for V

OUT

5. Can also be used as GPO pin.

6 ZERO6/GPO6 O Zero Data Flag for V

OUT

6. Can also be used as GPO pin.
7 AGND — Analog Ground
8V

CC

— Analog Power Supply, +5V

9V

OUT

6 O Voltage Output for Audio Signal Corresponding to Rch on DATA3.

10 V

OUT

5 O Voltage Output for Audio Signal Corresponding to Lch on DATA3.

11 V

OUT

4 O Voltage Output for Audio Signal Corresponding to Rch on DATA2.

12 V

OUT

3 O Voltage Output for Audio Signal Corresponding to Lch on DATA2.

13 V

OUT

2 O Voltage Output for Audio Signal Corresponding to Rch on DATA1.

14 V

OUT

1 O Voltage Output for Audio Signal Corresponding to Lch on DATA1.

15 V

COM

2 O Common Voltage Output. This pin should be bypassed with a 10µF capacitor to AGND.

16 V

COM

1 O Common Voltage Output. This pin should be bypassed with a 10µF capacitor to AGND.
17 AGND6 — Analog Ground
18 V

CC

6 — Analog Power Supply, +5V
19 AGND5 — Analog Ground
20 V

CC

5 — Analog Power Supply, +5V
21 AGND4 — Analog Ground
22 V

CC

4 — Analog Power Supply, +5V
23 AGND3 — Analog Ground
24 V

CC

3 — Analog Power Supply, +5V
25 AGND2 — Analog Ground
26 V

CC

2 — Analog Power Supply, +5V
27 AGND1 — Analog Ground
28 V

CC

1 — Analog Power Supply, +5V
29 AGND0 — Analog Ground
30 V

CC

0 — Analog Power Supply, +5V
31 NC — No Connection. Must be open.
32 NC — No Connection. Must be open.
33 MDO O Serial Data Output for Function Register Control Port

(3)

34 MDI I Serial Data Input for Function Register Control Port

(1)

35 MC I Shift Clock for Function Register Control Port

(1)

36 ML I Latch Enable for Function Register Control Port

(1)

37 RST I System Reset, Active LOW

(1)

38 SCKI I System Clock In. Input frequency is 128, 192, 256, 384, 512 or 768fS.

(2)

39 SCKO O Buffered Clock Output. Output frequency is 128, 192, 256, 384, 512, or 768fS or one-half of 128, 192, 256, 384, 512,

or 768f

S.

40 BCK I Shift Clock Input for Serial Audio Data

(2)

41 LRCK I Left and Right Clock Input. This clock is equal to the sampling rate, fS.

(2)

42 TEST — Test Pin. This pin should be connected to DGND.

(1)

43 V

DD

— Digital Power Supply, +3.3V
44 DGND — Digital Ground for +3.3V
45 DATA1 I Serial Audio Data Input for V

OUT

1 and V

OUT

2

(2)

46 DATA2 I Serial Audio Data Input for V

OUT

3 and V

OUT

4

(2)

47 DATA3 I Serial Audio Data Input for V

OUT

5 and V

OUT

6

(2)

48 ZEROA O Zero Data Flag. Logical “AND” of ZERO1 through ZERO6.

NOTES: (1) Schmitt-Trigger input with internal pull-down, 5V tolerant. (2) Schmitt-Trigger input, 5V tolerant. (3) Tri-state output.

PIN ASSIGNMENTS

®

6

PCM1604, PCM1605

TYPICAL PERFORMANCE CURVES

All specifications at +25°C, VCC = 5V, VDD = 3.3V, SYSCLK = 384fS (fS = 44.1kHz), and 24-bit input data, unless otherwise noted.

DIGITAL FILTER

Digital Filter (De-Emphasis Off, fS = 44.1kHz)

0 0.5 1 1.5 2 2.5 3 3.5 4

0
–20
–40
–60
–80

–100
–120
–140
–160

Amplitude (dB)

FREQUENCY RESPONSE

(Sharp Roll-Off)

Frequency (x f

S

)

PASSBAND RIPPLE

(Sharp Roll-Off)

Frequency (x f

S

)

Amplitude (dB)

0.003

0.002

0.001

0

–0.001

–0.002

–0.003

0 0.1 0.2 0.3 0.4 0.5

FREQUENCY RESPONSE

(Slow Roll-Off)

Frequency (x f

S

)

Amplitude (dB)

0

–20

–40

–60

–80

–100

–120

–140

0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0

TRANSITION CHARACTERISTICS

(Slow Roll-Off)

Frequency (x f

S

)

Amplitude (dB)

0
–2
–4
–6
–8

–10
–12
–14
–16
–18
–20

0 0.1 0.2 0.3 0.4 0.5 0.6

DE-EMPHASIS FREQUENCY RESPONSE (fS = 32kHz)

02468101214

Frequency (kHz)

0
–2
–4
–6
–8

–10

Level (dB)

DE-EMPHASIS FREQUENCY RESPONSE (fS = 48kHz)

0246810121416182022

Frequency (kHz)

0
–2
–4
–6
–8

–10

Level (dB)

DE-EMPHASIS FREQUENCY RESPONSE (fS = 44.1kHz)

02468101214161820

Frequency (kHz)

0
–2
–4
–6
–8

–10

Level (dB)

DE-EMPHASIS ERROR (fS = 32kHz)

02468101214

Frequency (kHz)

0.5

0.3

0.1
–0.1
–0.3
–0.5

0.5

0.3

0.1
–0.1
–0.3
–0.5

0.5

0.3

0.1
–0.1
–0.3
–0.5

Level (dB)

DE-EMPHASIS ERR0R (fS = 48kHz)

0246810121416182022

Frequency (kHz)

Level (dB)

DE-EMPHASIS ERROR (fS = 44.1kHz)

02468101214161820

Frequency (kHz)

Level (dB)

De-Emphasis Error

®

7 PCM1604, PCM1605

TYPICAL PERFORMANCE CURVES (Cont.)

All specifications at +25°C, VCC = 5V, VDD = 3.3V, SYSCLK = 384fS (fS = 44.1kHz), and 24-bit input data, unless otherwise noted.

ANALOG DYNAMIC PERFORMANCE

Supply Voltage Characteristics

TOTAL HARMONIC DISTORTION + NOISE

vs POWER SUPPLY (V

DD

= 3.3V)

V

CC

(V)

THD+N (%)

10

1

0.1

0.01

0.001

4.0 4.5 5.0 5.5 6.0

44.1kHz, 384f

S

44.1kHz, 384f

S

96kHz, 384f

S

–60dB

0dB

96kHz, 384f

S

DYNAMIC RANGE

vs POWER SUPPLY (V

DD

= 3.3V)

V

CC

(V)

Dynamic Range (dB)

110

108

106

104

102

100

98

96

4.0 4.5 5.0 5.5 6.0

96kHz, 384f

S

44.1kHz, 384f

S

SIGNAL-TO-NOISE RATIO

vs POWER SUPPLY (V

DD

= 3.3V)

V

CC

(V)

SNR (dB)

110

108

106

104

102

100

98

96

4.0 4.5 5.0 5.5 6.0

96kHz, 384f

S

44.1kHz, 384f

S

CHANNEL SEPARATION

vs POWER SUPPLY (V

DD

= 3.3V)

V

CC

(V)

Channel Separation (dB)

110

108

106

104

102

100

98

96

4.0 4.5 5.0 5.5 6.0

96kHz, 384f

S

44.1kHz, 384f

S

®

8

PCM1604, PCM1605

TYPICAL PERFORMANCE CURVES (Cont.)

All specifications at VDD = +3.3V, 128fS system clock, 64x oversampling, and 24-bit data. Only two channels (V

OUT

1 and V

OUT

2) are operated. All other channels

are set to all zero input data and DAC operation is disabled (bits DAC3 through DAC6 of Register 8 are set to 1).

TOTAL HARMONIC DISTORTION + NOISE

vs POWER SUPPLY (V

DD

= 3.3V)

THD+N (%)

VCC (V)

10

1

0.1

0.01

0.001

54.54 5.5 6

–60dB/192kHz-128f

S

0dB/192kHz-128f

S

DYNAMIC RANGE

vs POWER SUPPLY (V

DD

= 3.3V)

Dynamic Range (dB)

VCC (V)

110

108

106

104

102

100

98

96

54.54 5.5 6

192kHz-128f

S

CHANNEL SEPARATION

vs POWER SUPPLY (V

DD

= 3.3V)

Channel Separation (dB)

VCC (V)

110

108

106

104

102

100

98

96

54.54 5.5 6

192kHz-128f

S

SIGNAL-TO-NOISE RATIO

vs POWER SUPPLY (V

DD

= 3.3V)

SNR (dB)

VCC (V)

110

108

106

104

102

100

98

96

54.54 5.5 6

192kHz-128f

S

®

9 PCM1604, PCM1605

TOTAL HARMONIC DISTORTION + NOISE

vs TEMPERATURE

Temperature (°C)

THD+N (%)

10

1

0.1

0.01

0.001
–25 0 25 50 75 100

44.1kHz, 384f

S

44.1kHz, 384f

S

96kHz, 384f

S

–60dB

0dB

96kHz, 384f

S

DYNAMIC RANGE vs TEMPERATURE

Temperature (°C)

Dynamic Range (dB)

110

108

106

104

102

100

98

96

–25 0 25 50 75 100

96kHz, 384f

S

44.1kHz, 384f

S

TYPICAL PERFORMANCE CURVES (Cont.)

All specifications at +25°C, VCC = 5V, VDD = 3.3V, SYSCLK = 384fS (fS = 44.1kHz), and 24-bit input data, unless otherwise noted.

ANALOG DYNAMIC PERFORMANCE (Cont.)

Temperature Characteristics

SIGNAL-TO-NOISE RATIO vs TEMPERATURE

Temperature (°C)

SNR (dB)

110

108

106

104

102

100

98

96

–25 0 25 50 10075

96kHz, 384f

S

44.1kHz, 384f

S

CHANNEL SEPARATION vs TEMPERATURE

Temperature (°C)

Channel Separation (dB)

110

108

106

104

102

100

98

96

–25 0 25 50 75 100

96kHz, 384f

S

44.1kHz, 384f

S

®

10

PCM1604, PCM1605

TYPICAL PERFORMANCE CURVES (Cont.)

All specifications at VCC = +5V, VDD = +3.3V, 128fS system clock, 64x oversampling, and 24-bit data. Only two channels (V

OUT

1 and V

OUT

2) are operated. All other

channels are set to all zero input data and DAC operation is disabled (bits DAC3 through DAC6 of Register 8 are set to 1).

CHANNEL SEPARATION vs TEMPERATURE

Channel Separation (dB)

Temperature (°C)

110

108

106

104

102

100

98

96

250–25–50 50 75 100

192kHz-128f

S

SIGNAL-TO-NOISE RATIO vs TEMPERATURE

SNR (dB)

Temperature (°C)

110

108

106

104

102

100

98

96

250–25–50 50 75 100

192kHz-128f

S

DYNAMIC RANGE vs TEMPERATURE

Dynamic Range (dB)

Temperature (°C)

110

108

106

104

102

100

98

96

250–25–50 50 75 100

192kHz-128f

S

TOTAL HARMONIC DISTORTION + NOISE

vs TEMPERATURE

THD+N (%)

Temperature (°C)

10

1

0.1

0.01

0.001
25–25 0–50 7550 100

192kHz-128fS/–60dB

192kHz-128fS/0dB

®

11 PCM1604, PCM1605

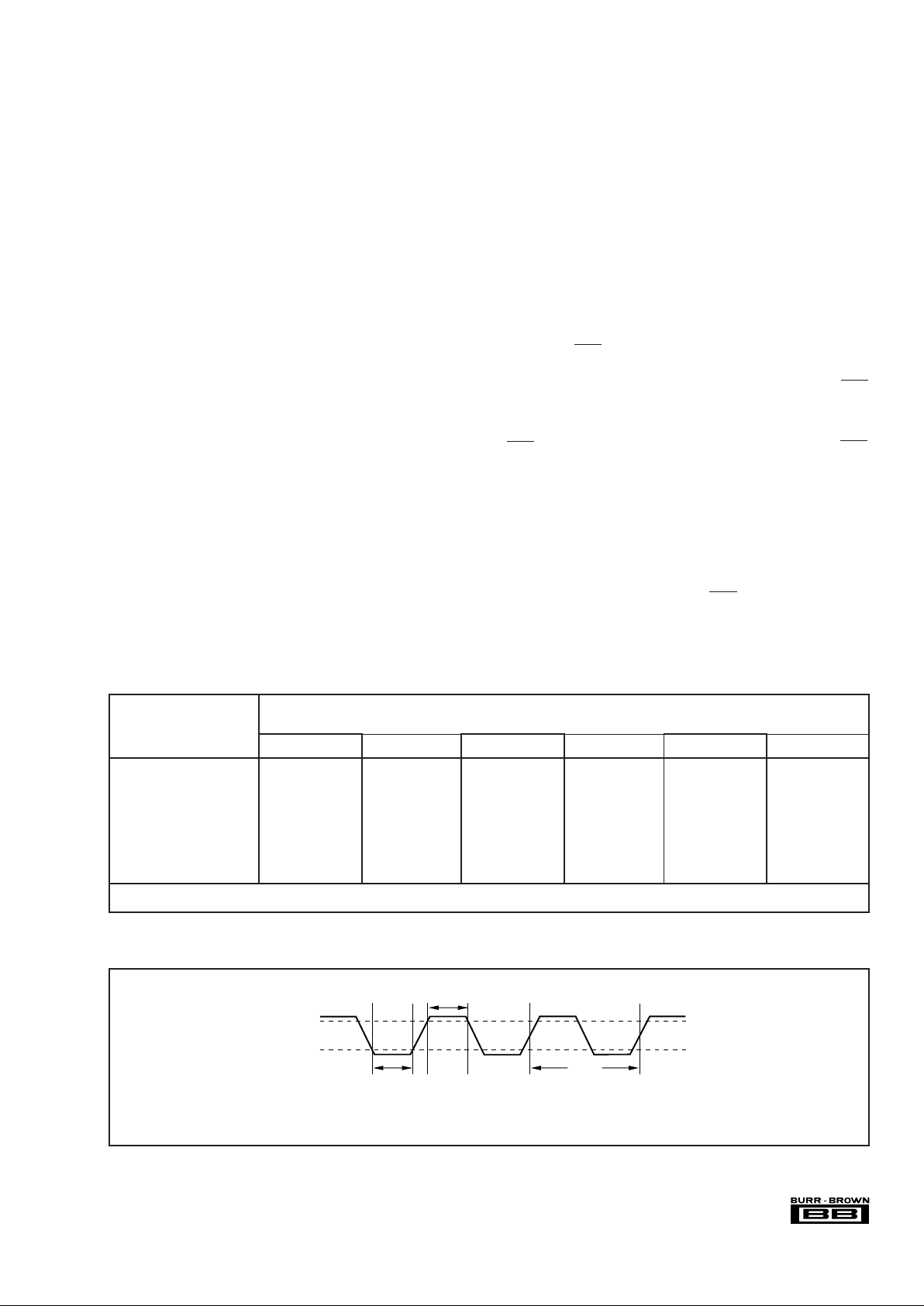

FIGURE 1. System Clock Input Timing.

SYSTEM CLOCK AND RESET
FUNCTIONS

SYSTEM CLOCK INPUT

The PCM1604 and PCM1605 require a system clock for
operating the digital interpolation filters and multi-level
delta-sigma modulators. The system clock is applied at the
SCKI input (pin 38). Table I shows examples of system
clock frequencies for common audio sampling rates.

Figure 1 shows the timing requirements for the system clock
input. For optimal performance, it is important to use a clock
source with low phase jitter and noise. Burr-Brown’s
PLL1700 multi-clock generator is an excellent choice for
providing the PCM1604 system clock source.

To obtain optimal dynamic performance when operating
with a 192kHz sampling frequency, it is recommended that
only two channels be enabled for operation (V

OUT

1 and

V

OUT

2). The remaining four channels should be disabled by
setting bits DAC3 through DAC6 of control register 8 to
logic 1 state.

SYSTEM CLOCK OUTPUT

A buffered version of the system clock input is available at
the SCKO output (pin 39). SCKO can operate at either full
(f

SCKI

) or half (f

SCKI

/2) rate. The SCKO output frequency
may be programmed using the CLKD bit of Control Regis­ter 9. The SCKO output pin can also be enabled or disabled
using the CLKE bit of Control Register 9. The default is
SCKO enabled.

POWER-ON AND EXTERNAL RESET FUNCTIONS

The PCM1604 includes a power-on reset function. Figure 2
shows the operation of this function.

The system clock input at SCKI should be active for at least
one clock period prior to VDD = 2.0V. With the system clock
active and VDD > 2.0V, the power-on reset function will be
enabled. The initialization sequence requires 1024 system
clocks from the time VDD > 2.0V. After the initialization
period, the PCM1604 will be set to its reset default state, as
described in the Mode Control Register section of this data
sheet.

The PCM1604 also includes an external reset capability
using the RST input (pin 37). This allows an external
controller or master reset circuit to force the PCM1604 to
initialize to its reset default state. For normal operation, RST
should be set to a logic ‘1’.

Figure 3 shows the external reset operation and timing. The
RST pin is set to logic ‘0’ for a minimum of 20ns. The RST
pin is then set to a logic ‘1’ state, which starts the initializa­tion sequence, which lasts for 1024 system clock periods.
After the initialization sequence is completed, the PCM1604
will be set to its reset default state, as described in the Mode
Control Registers section of this data sheet.

The external reset is especially useful in applications where
there is a delay between PCM1604 power up and system
clock activation. In this case, the RST pin should be held at
a logic ‘0’ level until the system clock has been
activated.

t

SCKIH

t

SCKIH

f

SCKI

System Clock Pulse Width High t

SCKIH

: 7ns min

System Clock Pulse Width Low t

SCKIL

: 7ns min

2.0V

0.8V

“H”

“L”

SCKI

SAMPLING FREQUENCY

(f

S

) 128f

S

192f

S

256f

S

384f

S

512f

S

768f

S

16kHz — — 4.0960 6.1440 8.1920 12.2880
32kHz — — 8.1920 12.2880 16.3840 24.5760

44.1kHz — — 11.2896 16.9344 22.5792 33.8688
48kHz — —

12.2880 18.4320 24.5760 36.8640

88.2kHz — — 22.5792 33.8688 45.1584 See Note 1
96kHz 12.2880 18.4320 24.5760 36.8640 49.1520 See Note 1

176.4kHz 22.5792 33.8688 See Note 2 See Note 2 See Note 2 See Note 2
192 24.5760 36.8640 See Note 2 See Note 2 See Note 2 See Note 2

NOTE: (1) The 768f

S

system clock rate is not supported for fS > 64kHz. (2) This system clock rate is not supported for the given sampling frequency.

TABLE I. System Clock Rates for Common Audio Sampling Frequencies.

SYSTEM CLOCK FREQUENCY (f

SCKI

)

(MHz)

®

12

PCM1604, PCM1605

FIGURE 2. Power-On Reset Timing.

FIGURE 3. External Reset Timing.

AUDIO SERIAL INTERFACE

The audio serial interface for the PCM1604 is comprised
of a 5-wire synchronous serial port. It includes LRCK (pin

41), BCK (pin 40), DATA1 (pin 45), DATA2 (pin 46) and
DATA3 (pin 47). BCK is the serial audio bit clock, and is
used to clock the serial data present on DATA1, DATA2
and DATA3 into the audio interface’s serial shift registers.
Serial data is clocked into the PCM1604 on the rising edge
of BCK. LRCK is the serial audio left/right word clock. It
is used to latch serial data into the serial audio interface’s
internal registers.

Both LRCK and BCK must be synchronous to the system
clock. Ideally, it is recommended that LRCK and BCK be
derived from the system clock input or output, SCKI or
SCKO. The left/right clock, LRCK, is operated at the
sampling frequency (fS). The bit clock, BCK, may be
operated at 48 or 64 times the sampling frequency.

AUDIO DATA FORMATS AND TIMING

The PCM1604 supports industry-standard audio data for­mats, including Standard, I2S, and Left-Justified. The data
formats are shown in Figure 4. Data formats are selected
using the format bits, FMT[2:0], in Control Register 9. The
default data format is 24-bit Standard. All formats require
Binary Two’s Complement, MSB-first audio data. Figure
5 shows a detailed timing diagram for the serial audio
interface.

DATA1, DATA2 and DATA3 each carry two audio channels,
designated as the Left and Right channels. The Left channel
data always precedes the Right channel data in the serial data
stream for all data formats. Table II shows the mapping of the
digital input data to the analog output pins.

DATA INPUT CHANNEL ANALOG OUTPUT

DATA1 Left V

OUT

1

DATA1 Right V

OUT

2

DATA2 Left V

OUT

3

DATA2 Right V

OUT

4

DATA3 Left V

OUT

5

DATA3 Right V

OUT

6

TABLE II. Audio Input Data to Analog Output Mapping.

1024 system clocks

Reset

Reset Removal

V

CC

= V

DD

Internal Reset

2.4V

2.0V

1.6V

System Clock

(SCKI)

1024 system clocks

Reset

Reset Removal

System Clock

(SCKI)

Internal Reset

RST

t

RST

(1)

NOTE: (1) t

RST

= 20ns min.

SERIAL CONTROL INTERFACE

The serial control interface is a 4-wire synchronous serial port
which operates asynchronously to the serial audio interface.
The serial control interface is utilized to program and read the
on-chip mode registers. The control interface includes MDO
(pin 33), MDI (pin 34), MC (pin 35), and ML (pin 36). MDO
is the serial data output, used to read back the values of the
mode registers; MDI is the serial data input, used to program
the mode registers; MC is the serial bit clock, used to shift
data in and out of the control port and ML is the control port
latch clock.

®

13 PCM1604, PCM1605

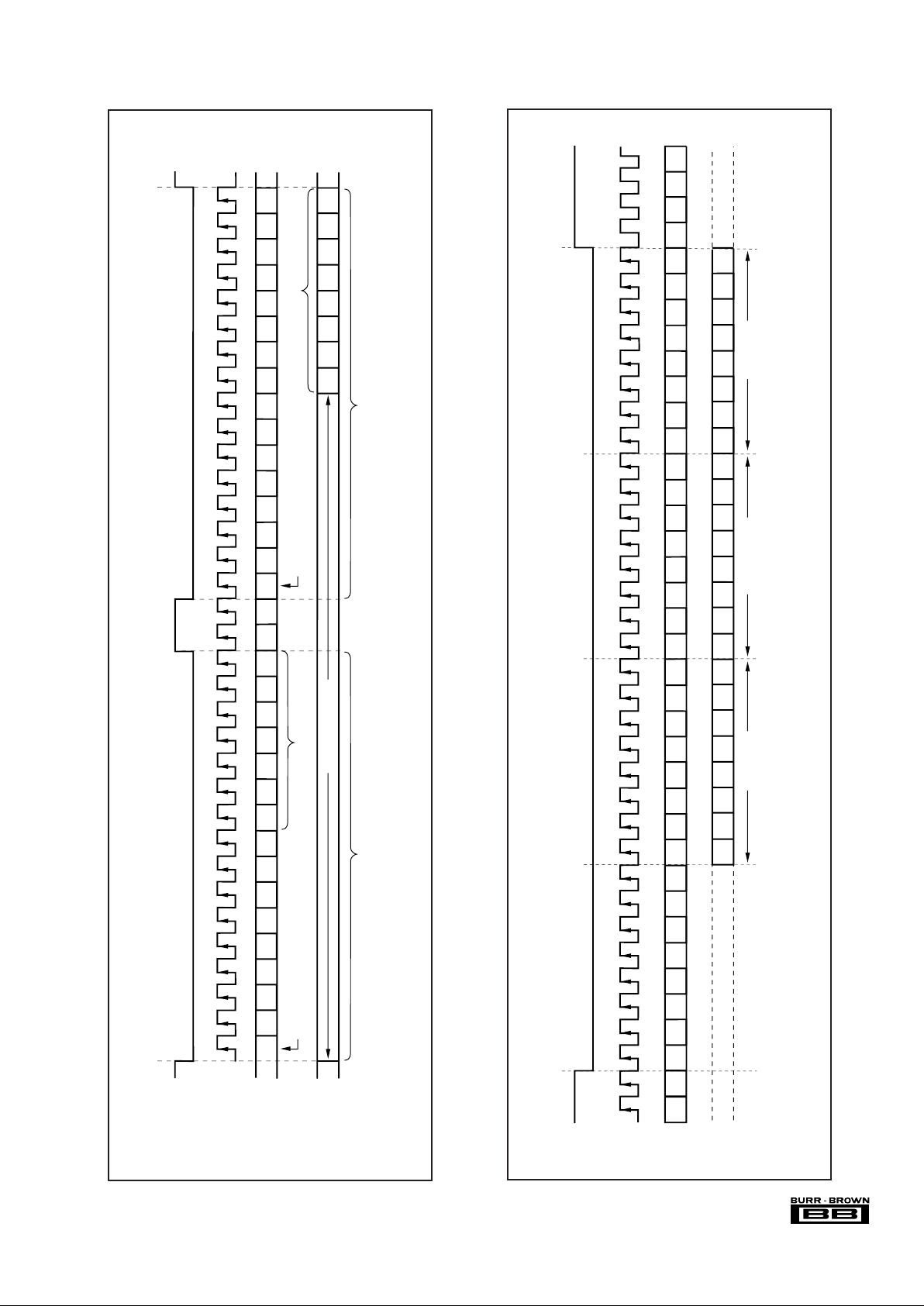

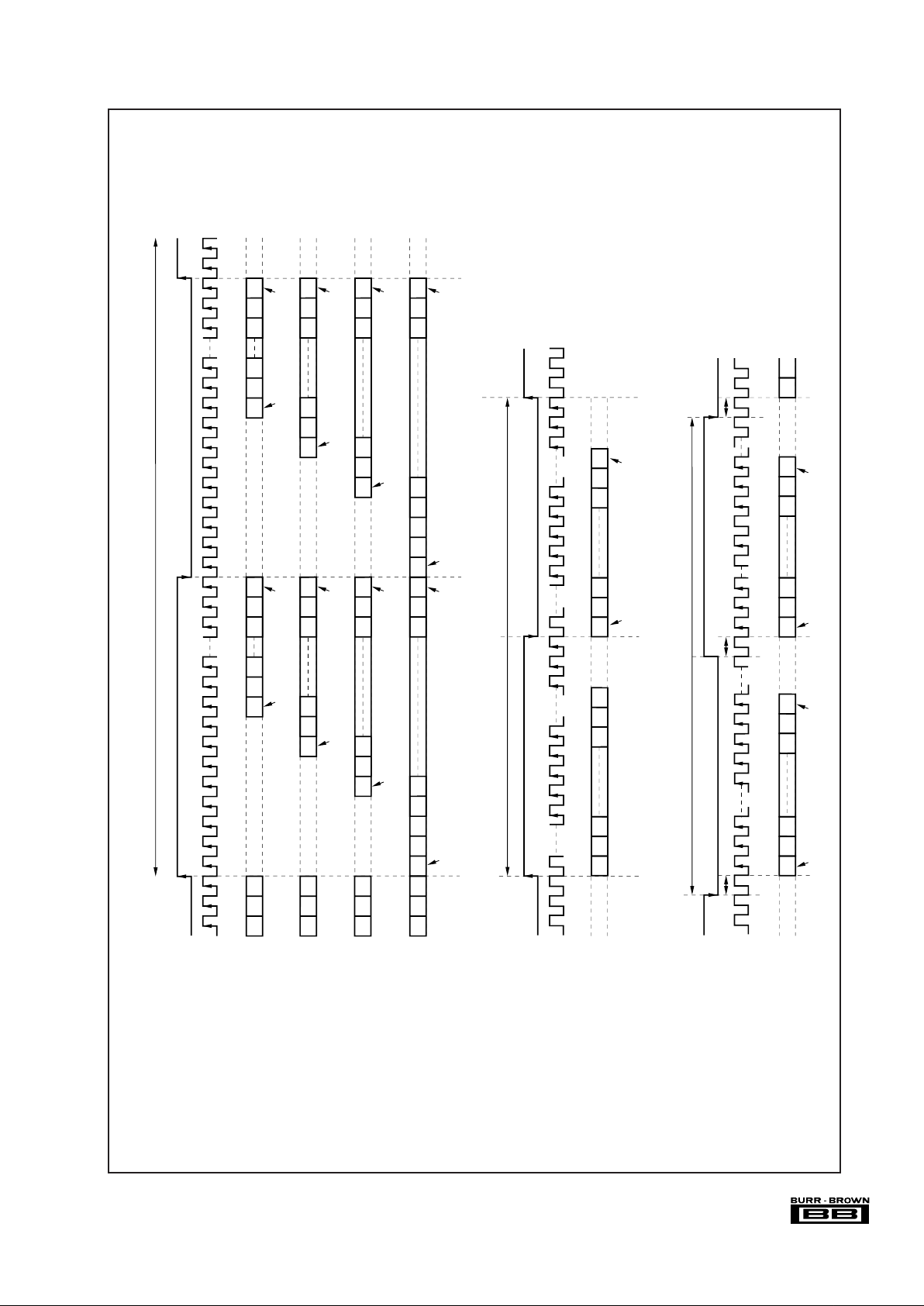

FIGURE 4. Audio Data Input Formats.

1/f

S

Lch

Rch

LRCK

BCK

(= 48f

S

or 64f

S

)

16-Bit Right-Justified

18-Bit Right-Justified

DATA1-DATA3

DATA1-DATA3

(2) 24-Bit Left-Justified Data Format; Lch = HIGH, Rch = LOW

(3) 24-Bit I

2

S Data Format; Lch = LOW, Rch = HIGH

(1) Standard Data Format; Lch = HIGH, Rch = LOW

1/f

S

Lch

Rch

LRCK

BCK

(= 48f

S

or 64f

S

)

1

2 3

22 23 24

1 2 3

22

23 24

1/f

S

Lch

Rch

LRCK

BCK

(= 48f

S

or 64f

S

)

21

1

2 3

22 23 24

1 2 3

22 23

24

14 15 16

16 17 18

18 19 20

14 15 16

123

DATA1-DATA3

22 23 24 22 23 24123

45

DATA1-DATA3

18 19 20

1 23

DATA1-DATA3

16 17 18

1 23

DATA1-DATA3

24-Bit Right-Justified

14 15 16

123

22 23 24

123

45

18 19 20

1 23

16 17 18

1 23

20-Bit Right-Justified

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

LSBMSB

®

14

PCM1604, PCM1605

REGISTER WRITE OPERATION

All Write operations for the serial control port use 16-bit data
words. Figure 6 shows the control data word format. The most
significant bit is the Read/Write (R/W) bit. When set to ‘0’, this
bit indicates a Write operation. There are seven bits, labeled
IDX[6:0], that set the register index (or address) for the Write
operation. The least significant eight bits, D[7:0], contain the
data to be written to the register specified by IDX[6:0].

Figure 7 shows the functional timing diagram for writing the
serial control port. ML is held at a logic ‘1’ state until a register
needs to be written. To start the register write cycle, ML is set
to logic ‘0’. Sixteen clocks are then provided on MC, corre­sponding to the 16-bits of the control data word on MDI. After
the sixteenth clock cycle has completed, ML is set to logic ‘1’
to latch the data into the indexed mode control register.

IDX5IDX6R/W IDX4 IDX2IDX3 IDX1 IDX0 D7 D6 D5 D4 D3 D2 D1 D0

MSB

Register Index (or Address)

Read/Write Operation
0 = Write Operation
1 = Read Operation (register index is ignored)

Register Data

LSB

FIGURE 6. Control Data Word Format for MDI.

FIGURE 7. Write Operation Timing.

SINGLE REGISTER READ OPERATION

Read operations utilize the 16-bit control word format shown
in Figure 6. For Read operations, the Read/Write (R/W) bit is
set to ‘1’. Read operations ignore the index bits, IDX[6:0], of
the control data word. Instead, the REG[6:0] bits in Control
Register 11 are used to set the index of the register that is to be
read during the Read operation. Bits IDX[6:0] should be set to
00H for Read operations.

Figure 8 details the Read operation. First, Control Register 11
must be written with the index of the register to be read back.
Additionally, the INC bit must be set to logic ‘0’ in order to
disable the Auto-Increment Read function. The Read cycle is
then initiated by setting ML to logic ‘0’ and setting the R/W bit
of the control data word to logic ‘1’, indicating a Read
operation. MDO remains at a high-impedance state until the

0 D7 D6 D5 D4 D3 D2 D15 D14D1 D0X XX

IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0

ML

MC

MDI

FIGURE 5. Audio Interface Timing.

SYMBOL PARAMETER MIN MAX UNITS

t

BCY

BCK Pulse Cycle Time 48 or 64f

S

(1)

t

BCH

BCK High Level Time 35 ns

t

BCL

BCK Low Level Time 35 ns

t

BL

BCK Rising Edge to LRCK Edge 10 ns

t

LB

LRCK Falling Edge to BCK Rising Edge 10 ns

t

DS

DIN Set Up Time 10 ns

t

DH

DIN Hold Time 10 ns

NOTE: (1) f

S

is the sampling frequency (e.g., 44.1kHz, 48kHz, 96kHz, etc.)

LRCK

BCK

DATA1-DATA3

50% of V

DD

50% of V

DD

50% of V

DD

t

BCH

t

BCL

t

LB

t

BL

t

DS

t

DH

t

BCY

®

15 PCM1604, PCM1605

FIGURE 8. Read Operation Timing with INC = 0 (Single Register Read).

FIGURE 9. Read Operation Timing with INC = 1 (Auto-Increment Read).

0 00

0010

11 XX XXXXXXXX10000000

REG6 REG5 REG4 REG3 REG2 REG1 REG0

ML

I

O

I

O

I

O

I

O

High Impedance

Read Register Index

Write

MC

MDI

MDO

D7 D6 D5 D4 D3 D2 D1 D0

Read

Writing Register 11 with INC and REG[6:0] Data

X = Don't care

Register Read Cycle

Data from Register Indexed by REG[6:0]

1000

0000 XXXXXXXXX XXXXXXXXXXXXXX XX

High Impedance

ML

MC

MDI

MDO

D7D0 D6 D5 D4 D3 D2 D1 D0 High Impedance

D7 D6 D5 D4

INDEX “N – 1”

D3 D2 D1D6D7 D5 D4 D3 D2 D1 D0

INDEX “1”

INDEX “N”

®

16

PCM1604, PCM1605

last 8 bits of the 16-bit read cycle, which corresponds to the
8 data bits of the register indexed by the REG[6:0] bits of
Control Register 11. The Read cycle is completed when ML
is set to ‘1’, immediately after the MC clock cycle for the
least significant bit of indexed control register has com­pleted.

AUTO-INCREMENT READ OPERATION

The Auto-Increment Read function allows for multiple reg­isters to be read sequentially. The Auto-Increment Read
function is enabled by setting the INC bit of Control Register
11 to ‘1’. The sequence always starts with Register 1, and
ends with the register indexed by the REG[6:0] bits in
Control Register 11.

Figure 9 shows the timing for the Auto-Increment Read
operation. The operation begins by writing Control Register
11, setting INC to ‘1’ and setting REG[6:0] to the last
register to be read in the sequence. The actual Read opera-

50% of V

DD

50% of V

DD

50% of V

DD

50% of V

DD

ML

MC

MDI

MDO

t

MLS

t

MCH

t

MCY

t

MOS

t

MDS

t

MCH

t

MCL

t

MHH

t

MLH

LSB

LSB

tion starts on the next HIGH to LOW transition of the ML
pin. The Read cycle starts by setting the R/W bit of the
control word to ‘1’, and setting all of the IDX[6:0] bits to
‘0.’. All subsequent bits input on the MDI are ignored while
ML is set to ‘0.’ For the first 8 clocks of the Read cycle,
MDO is set to a high-impedance state. This is followed by
a sequence of 8-bit words, each corresponding to the data
contained in Control Registers 1 through N, where N is
defined by the REG[6:0] bits in Control Register 11. The
Read cycle is completed when ML is set to ‘1’, immediately
after the MC clock cycle for the least significant bit of
Control Register N has completed.

CONTROL INTERFACE TIMING REQUIREMENTS

Figure 10 shows a detailed timing diagram for the Serial
Control interface. Pay special attention to the setup and hold
times, as well as t

MLS

and t

MLH

, which define minimum delays
between edges of the ML and MC clocks. These timing
parameters are critical for proper control port operation.

SYMBOL PARAMETER MIN MAX UNITS

t

MCY

MC Pulse Cycle Time 100 ns

t

MCL

MC Low Level Time 50 ns

t

MCH

MC High Level Time 50 ns

t

MHH

ML High Level Time 300 ns

t

MLS

ML Falling Edge to MC Rising Edge 20 ns

t

MLH

ML Hold Time

(1)

20 ns

t

MDI

Hold Time 15 ns

t

MDS

MDL Set Up Time 20 ns

t

MOS

MC Falling Edge to MDSO Stable 30 ns

NOTE: (1) MC rising edge for LSB to ML rising edge.

FIGURE 10. Control Interface Timing.

®

17 PCM1604, PCM1605

MODE CONTROL REGISTERS
User-Programmable Mode Controls

The PCM1604 includes a number of user-programmable
functions which are accessed via control registers. The
registers are programmed using the Serial Control Interface
which was previously discussed in this data sheet. Table III
lists the available mode control functions, along with their
reset default conditions and associated register index.

FUNCTION RESET DEFAULT CONTROL REGISTER INDEX, IDX[6:0]

Digital Attenuation Control, 0dB to –63dB in 0.5dB Steps 0dB, No Attenuation 1 through 6 01H - 07

H

Digital Attenuation Load Control Data Load Disabled 7 07

H

Digital Attenuation Rate Select 2/f

S

707

H

Soft Mute Control Mute Disabled 7 07

H

DAC 1-6 Operation Control DAC 1-6 Enabled 8 08

H

Infinite Zero Detect Mute Disabled 8 08

H

Audio Data Format Control 24-Bit Standard Format 9 09

H

Digital Filter Roll-Off Control Sharp Roll-Off 9 09

H

SCKO Frequency Selection Full Rate (= f

SCKI

)9 09

H

SCKO Output Enable SCKO Enabled 9 09

H

De-Emphasis Function Control De-Emphasis Disabled 10 0A

H

De-Emphasis Sample Rate Selection 44.1kHz 10 0A

H

Output Phase Reversal Disabled 10 0A

H

Read Register Index Control REG[6:0] = 01

H

11 0B

H

Read Auto-Increment Control Auto-Increment Disabled 11 0B

H

General Purpose Output Enable Zero Flags Enabled 12 0C

H

General Purpose Output Bits (GPO1-GPO6) Disabled 12 0C

H

Oversampling Rate Control 64x (32x for 192kHz) 12 0C

H

TABLE III. User-Programmable Mode Controls.

TABLE IV. Mode Control Register Map.

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Register 0 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 N/A N/A N/A N/A N/A N/A N/A N/A

Register 1 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT17 AT16 AT15 AT14 AT13 AT12 AT11 AT10

Register 2 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT27 AT26 AT25 AT24 AT23 AT22 AT21 AT20

Register 3 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT37 AT36 AT35 AT34 AT33 AT32 AT31 AT30

Register 4 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT47 AT46 AT45 AT44 AT43 AT42 AT41 AT40

Register 5 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT57 AT56 AT55 AT54 AT53 AT52 AT51 AT50

Register 6 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT67 AT66 AT65 AT64 AT63 AT62 AT61 AT60

Register 7 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 ATLD ATTS MUT6 MUT5 MUT4 MUT3 MUT2 MUT1

Register 8 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 res INZD DAC6 DAC5 DAC4 DAC3 DAC2 DAC1

Register 9 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 res res FLT0 CLKD CLKE FMT2 FMT1 FMT0

Register 10 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 res res REV DMF1 DMF0 DM56 DM34 DM12

Register 11 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 INC REG6 REG5 REG4 REG3 REG2 REG1 REG0

Register 12 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 OVER GPOE GPO6 GPO5 GPO4 GPO3 GPO2 GPO1

Register Map

The mode control register map is shown in Table IV. Each
register includes a R/W bit, which determines whether a
register read (R/W =1) or write (R/W = 0) operation is
performed. Each register also includes an index (or address)
indicated by the IDX[6:0] bits.

®

18

PCM1604, PCM1605

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Register 1 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT17 AT16 AT15 AT14 AT13 AT12 AT11 AT10

Register 2 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT27 AT26 AT25 AT24 AT23 AT22 AT21 AT20

Register 3 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT37 AT36 AT35 AT34 AT33 AT32 AT31 AT30

Register 4 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT47 AT46 AT45 AT44 AT43 AT42 AT41 AT40

Register 5 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT57 AT56 AT55 AT54 AT53 AT52 AT51 AT50

Register 6 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 AT67 AT66 AT65 AT64 AT63 AT62 AT61 AT60

REGISTER DEFINITIONS

R/W Read/Write Mode Select

When R/W = 0, a Write operation is performed.
When R/W = 1, a Read operation is performed.
Default Value: 0

ATx[7:0] Digital Attenuation Level Setting

where x = 1-6, corresponding to the DAC output V

OUT

x.
These bits are Read/Write.
Default Value: 1111 1111

B

Each DAC output, V

OUT

1 through V

OUT

6, has a digital attenuator associated with it. The attenuator may be
set from 0dB to –63dB, in 0.5dB steps. Alternatively, the attenuator may be set to infinite attenuation (or
mute).

The attenuation data for each channel can be set individually. However, the data load control (ATLD bit of
Control Register 7) is common to all six attenuators. ATLD must be set to ‘1’ in order to change an
attenuator’s setting. The attenuation level may be set using the formula below.

Attenuation Level (dB) = 0.5 (ATx [7:0]

DEC

– 255)

where: ATx [7:0]

DEC

= 0 through 255

for: ATx [7:0]

DEC

= 0 through 128, the attenuator is set to infinite attenuation.

The following table shows attenuator levels for various settings.

ATx[7:0] Decimal Value Attenuator Level Setting

1111 1111

B

255 0dB, No Attenuation (default)

1111 1110

B

254 –0.5dB

1111 1101

B

253 –1.0dB

•• •

•• •

•• •

1000 0010

B

130 –62.5dB

1000 0001

B

129 –63.0dB

1000 0000

B

128 Mute

•• •

•• •

•• •

0000 0000

B

0 Mute

®

19 PCM1604, PCM1605

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Register 7 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 ATLD ATTS MUT6 MUT5 MUT4 MUT3 MUT2 MUT1

R/W Read/Write Mode Select

When R/W = 0, a Write operation is performed.
When R/W = 1, a Read operation is performed.
Default Value: 0

ATLD Attenuation Load Control

This bit is Read/Write.
Default Value: 0

ATLD = 0 Attenuation Control Disabled (default)
ATLD = 1 Attenuation Control Enabled

The ATLD bit is used to enable loading of attenuation data set by registers 1 through 6. When ATLD = 0, the
attenuation settings remain at the previously programmed level, ignoring new data loaded to registers 1 through

6. When ATLD = 1, attenuation data written to registers 1 through 6 is loaded normally.

ATTS Attenuation Rate Select

This bit is Read/Write.
Default Value: 0

ATTS = 0 Attenuation rate is 2/fS (default)
ATTS = 1 Attenuation rate is 4/f

S

Changes in attenuator levels are made by incrementing or decrementing the attenuator by one step (0.5dB) for
every 2/fS or 4/fS time interval until the programmed attenuator setting is reached. This helps to minimize
audible ‘clicking’, or zipper noise, while the attenuator is changing levels. The ATTS bit allows you to select
the rate at which the attenuator is decremented/incremented during level transitions.

MUTx Soft Mute Control

where x = 1-6, corresponding to the DAC output V

OUT

x.
These bits are Read/Write.
Default Value: 0

MUTx = 0 Mute Disabled (default)
MUTx = 1 Mute Enabled

The mute bits, MUT1 through MUT6, are used to enable or disable the Soft Mute function for the
corresponding DAC outputs, V

OUT

1 through V

OUT

6. The Soft Mute function is incorporated into the digital
attenuators. When Mute is disabled (MUTx = 0), the attenuator and DAC operate normally. When Mute
is enabled by setting MUTx = 1, the digital attenuator for the corresponding output will be decremented
from the current setting to the infinite attenuation setting one attenuator step (0.5dB) at a time, with the rate
of change programmed by the ATTS bit. This provides a quiet, ‘pop’ free muting of the DAC output. Upon
returning from Soft Mute, by setting MUTx = 0, the attenuator will be incremented one step at a time to
the previously programmed attenuator level.

®

20

PCM1604, PCM1605

R/W Read/Write Mode Select

When R/W = 0, a Write operation is performed.
When R/W = 1, a Read operation is performed.
Default Value: 0

INZD Infinite Zero Detect Mute Control

This bit is Read/Write.
Default Value: 0

INZD = 0 Infinite Zero Detect Mute Disabled (default)
INZD = 1 Infinite Zero Detect Mute Enabled

The INZD bit is used to enable or disable the Zero Detect Mute function described in the Zero Flag and Infinite
Zero Detect Mute section in this data sheet. The Zero Detect Mute function is independent of the Zero Flag
output operation, so enabling or disabling the INZD bit has no effect on the Zero Flag outputs (ZERO1-ZERO6,
ZEROA).

DACx DAC Operation Control

where x = 1-6, corresponding to the DAC output V

OUT

x.
These bits are Read/Write.
Default Value: 0

DACx = 0 DAC Operation Enabled (default)
DACx = 1 DAC Operation Disabled

The DAC operation controls are used to enable and disable the DAC outputs, V

OUT

1 through V

OUT

6. When
DACx = 0, the output amplifier input is connected to the DAC output. When DACx = 1, the output amplifier
input is switched to the DC common-mode voltage (V

COM

1 or V

COM

2), equal to VCC/2.

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

REGISTER 8 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 res INZD DAC6 DAC5 DAC4 DAC3 DAC2 DAC1

®

21 PCM1604, PCM1605

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

REGISTER 9 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 res res FLT0 CLKD CLKE FMT2 FMT1 FMT0

R/W Read/Write Mode Select

When R/W = 0, a Write operation is performed.
When R/W = 1, a Read operation is performed.
Default Value: 0

FLT0 Digital Filter Roll-Off Control

These bits are Read/Write.
Default Value: 000

B

FLT0 = 0 Sharp Roll-Off (default)
FLT0 = 1 Slow Roll-Off

Bit FLT0 allows the user to select the digital filter roll-off that is best suited to their application. Two filter roll­off sections are available: Sharp or Slow. The filter responses for these selections are shown in the Typical
Performance Curves section of this data sheet.

CLKD SCKO Frequency Selection

This bit is Read/Write.
Default Value: 0

CLKD = 0 Full Rate, f

SCKO

= f

SCKI

(default)

CLKD = 1 Half Rate, f

SCKO

= f

SCKI

/2

The CLKD bit is used to determine the clock frequency at the system clock output pin, SCKO.

CLKE SCKO Output Enable

This bit is Read/Write.
Default Value: 0

CLKE = 0 SCKO Enabled (default)
CLKE = 1 SCKO Disabled

The CLKE bit is used to enable or disable the system clock output pin, SCKO. When SCKO is enabled, it will
output either a full or half rate clock, based upon the setting of the CLKD bit.

FMT[2:0] Audio Interface Data Format

These bits are Read/Write.
Default Value: 000

B

FMT[2:0] Audio Data Format Selection

000 24-Bit Standard Format, Right-Justified Data (default)
001 20-Bit Standard Format, Right-Justified Data
010 18-Bit Standard Format, Right-Justified Data
011 16-Bit Standard Format, Right-Justified Data
100 I2S Format, 16- to 24-bits
101 Left-Justified Format, 16- to 24-Bits
110 Reserved
111 Reserved

The FMT[2:0] bits are used to select the data format for the serial audio interface.

®

22

PCM1604, PCM1605

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

REGISTER 10 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 res res REV DMF1 DMF0 DM56 DM34 DM12

R/W Read/Write Mode Select

When R/W = 0, a Write operation is performed.
When R/W = 1, a Read operation is performed.
Default Value: 0

DMF[1:0] Sampling Frequency Selection for the De-Emphasis Function

These bits are Read/Write.
Default Value: 00

B

DMF[1:0] De-Emphasis Same Rate Selection

00 44.1 kHz (default)
01 48 kHz
10 32 kHz
11 Reserved

The DMF[1:0] bits are used to select the sampling frequency used for the Digital De-Emphasis function when
it is enabled. The de-emphasis curves are shown in the Typical Performance Curves section of this data sheet.

DM12 Digital De-Emphasis Control for Channels 1 and 2

This bit is Read/Write.
Default Value: 0

DM12 = 0 De-Emphasis Disabled for Channels 1 and 2 (default)
DM12 = 1 De-Emphasis Enabled for Channels 1 and 2

The DM12 bit is used to enable or disable the De-emphasis function for V

OUT

1 and V

OUT

2, which correspond

to the Left and Right channels of the DATA1 input.

DM34 Digital De-Emphasis Control for Channels 3 and 4

This bit is Read/Write.
Default Value: 0

DM34 = 0 De-Emphasis Disabled for Channels 3 and 4 (default)
DM34 = 1 De-Emphasis Enabled for Channels 3 and 4

The DM34 bit is used to enable or disable the De-Emphasis function for V

OUT

3 and V

OUT

4, which correspond

to the Left and Right channels of the DATA2 input.

DM56 Digital De-Emphasis Control for Channels 5 and 6

This bit is Read/Write.
Default Value: 0

DM56 = 0 De-Emphasis Disabled for Channels 5 and 6 (default)
DM56 = 1 De-Emphasis Enabled for Channels 5 and 6

The DM56 bit is used to enable or disable the de-emphasis function for V

OUT

5 and V

OUT

6, which correspond

to the Left and Right channels of the DATA3 input.

REV Output Phase Reversal

This bit is Read/Write.
Default Value: 0

REV = 0 Normal Output (non-inverted)
REV = 1 Inverted Output

The REV bit is used to invert the output phase for V

OUT

1 through V

OUT

6. When the REV bit is enabled, the zero-

detect functions (including zero-detect mute and the zero flags) are not available.

®

23 PCM1604, PCM1605

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

REGISTER 11 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 INC REG6 REG5 REG4 REG3 REG2 REG1 REG0

R/W Read/Write Mode Select

When R/W = 0, a Write operation is performed.
When R/W = 1, a Read operation is performed.
Default Value: 0

INC Auto-Increment Read Control

This bit is Read/Write.
Default Value: 0

INC = 0 Auto-Increment Read Disabled (default)
INC = 1 Auto-Increment Read Enabled

The INC bit is used to enable or disable the Auto-Increment Read feature of the Serial Control Interface. Refer
to the Serial Control Interface section of this data sheet for details regarding Auto-Increment Read operation.

REG[6:0] Read Register Index

These bits are Read/Write.
Default Value: 01

H

Bits REG[6:0] are used to set the index of the register to be read when performing a Single Register Read
operation. In the case of an Auto-Increment Read operation, bits REG[6:0] indicate the index of the last register
to be read in the in the Auto-Increment Read sequence. For example, if Registers 1 through 6 are to be read
during an Auto-Increment Read operation, bits REG[6:0] would be set to 06H.

Refer to the Serial Control Interface section of this data sheet for details regarding the Single Register and Auto­Increment Read operations.

®

24

PCM1604, PCM1605

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

REGISTER 12 R/W IDX6 IDX5 IDX4 IDX3 IDX2 IDX1 IDX0 OVER GPOE GPO6 GPO5 GPO4 GPO3 GPO2 GPO1

GPOx General Purpose Logic Output

Where: x = 1 through 6, corresponding to pins GPO1 through GPO6.
These bits are Read/Write.
Default Value: 0

GPOx = 0 Set GPOx to ‘0’.
GPOx = 1 Set GPOx to ‘1’.

The general-purpose output pins, GPO1 through GPO6, are enabled by setting GPOE = 1. These pins are used
as general-purpose outputs for controlling user-defined logic functions. When general-purpose outputs are
disabled (GPOE = 0), they default to the zero-flag function, ZERO1 through ZERO6.

GPOE General Purpose Output Enable

This bit is Read/Write.
Default Value: 0

GPOE = 0 General-Purpose Outputs Disabled.

Pins default to zero-flag function (ZERO1 through ZERO6).

GPOE = 1 General-Purpose Outputs Enabled.

Data written to GPO1 through GPO6 will appear at the corresponding pins.

OVER Oversampling Rate Control

This bit is Read/Write.
Default Value: 0

OVER = 0 64x oversampling for fS ≤ 96kHz, and 32x oversampling for fS > 96kHz.
OVER = 1 128x oversampling for fS ≤ 96kHz, and 64x oversampling for fS > 96kHz.

The OVER bit is utilized to control the total oversampling performed by the D/A converter, including the digital
interpolation filter and delta-sigma DAC. This is useful for controlling the D/A out-of-band noise spectrum, and
designing a single, fixed value low-pass filter for use with all sampling frequencies.

®

25 PCM1604, PCM1605

ANALOG OUTPUTS

The PCM1604 includes six independent output channels,
V

OUT

1 through V

OUT

6. These are unbalanced outputs, each

capable of driving 3.1Vp-p typical into a 5kΩ AC load with
VCC = +5V. The internal output amplifiers for V

OUT

1 through

V

OUT

6 are DC biased to the common-mode (or bipolar zero)

voltage, equal to VCC/2.
The output amplifiers include a RC continuous-time filter,

which helps to reduce the out-of-band noise energy present
at the DAC outputs due to the noise shaping characteristics
of the PCM1604’s delta-sigma D/A converters. The fre­quency response of this filter is shown in Figure 11. By
itself, this filter is not enough to attenuate the out-of-band
noise to an acceptable level for most applications. An
external low-pass filter is required to provide sufficient out­of-band noise rejection. Further discussion of DAC post­filter circuits is provided in the Applications Information
section of this data sheet.

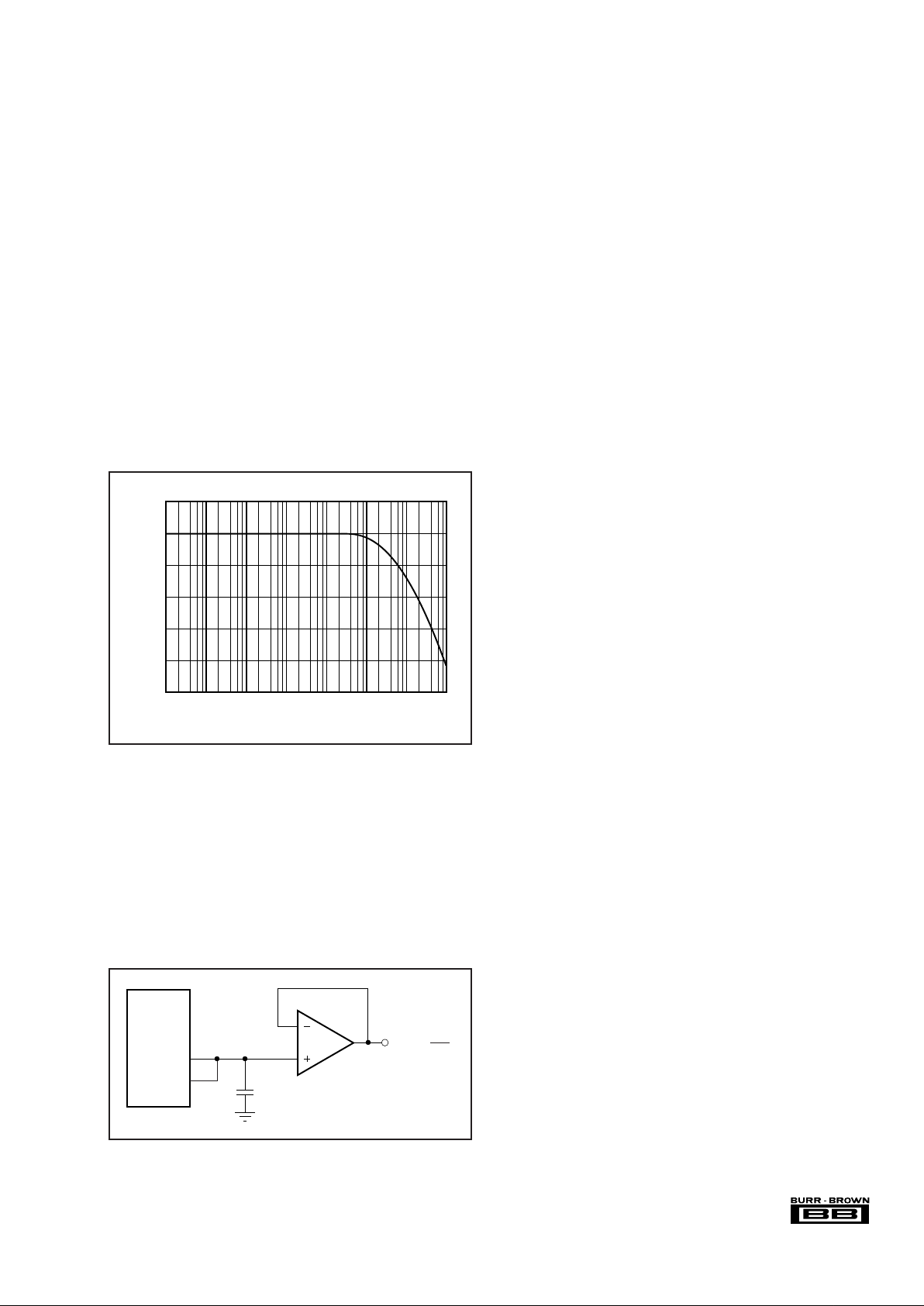

FIGURE 11. Output Filter Frequency Response.

FIGURE 12. Biasing External Circuits Using the V

COM

1

and V

COM

2 Pins.

V

COM

1 AND V

COM

2 OUTPUTS

Two unbuffered common-mode voltage output pins, V

COM

1

(pin 16) and V

COM

2 (pin 15), are brought out for decoupling
purposes. These pins are nominally biased to a DC voltage
level equal to VCC/2. If these pins are to be used to bias
external circuitry, a voltage follower is required for buffer­ing purposes. Figure 12 shows an example of using the
V

COM

1 and V

COM

2 pins for external biasing applications.

ZERO FLAG AND INFINITE ZERO DETECT MUTE
FUNCTIONS

The PCM1604 includes circuitry for detecting an all ‘0’ data
condition for the data input pins, DATA1 through DATA3.
This includes two independent functions: Zero Output Flags
and Zero Detect Mute.

Although the flag and mute functions are independent of one
another, the zero detection mechanism is common to both
functions.

Zero Detect Condition

Zero Detection for each output channel is independent from
the others. If the data for a given channel remains at a ‘0’
level for 1024 sample periods (or LRCK clock periods), a
Zero Detect condition exists for the that channel.

Zero Output Flags

Given that a Zero Detect condition exists for one or more
channels, the Zero flag pins for those channels will be set to
a logic ‘1’state. There are Zero Flag pins for each channel,
ZERO1 through ZERO6 (pins 1 through 6). In addition, all
six Zero Flags are logically ANDed together and the result
provided at the ZEROA pin (pin 48), which is set to a logic
‘1’ state when all channels indicate a zero detect condition.
The Zero Flag pins can be used to operate external mute
circuits, or used as status indicators for a microcontroller,
audio signal processor, or other digitally controlled func­tions.

Infinite Zero Detect Mute

Infinite Zero Detect Mute is an internal logic function. The
Zero Detect Mute can be enabled or disabled using the INZD
bit of Control Register 8. The reset default is Zero Detect
Mute disabled, INZD = 0. Given that a Zero Detect Condi­tion exists for one or more channels, the zero mute circuitry
will immediately force the corresponding DAC output(s) to
the bipolar zero level, or VCC/2. This is accomplished by
switching the input of the DAC output amplifier from the
delta-sigma modulator output to the DC common-mode
reference voltage.

APPLICATIONS INFORMATION

CONNECTION DIAGRAMS

A basic connection diagram is shown in Figure 13, with the
necessary power supply bypassing and decoupling compo­nents. Burr-Brown recommends using the component values
shown in Figure 13 for all designs.

A typical application diagram is shown in Figure 14. Burr­Brown’s REG1117-3.3 is used to generate +3.3V for V

DD

from the +5V analog power supply. Burr-Brown’s PLL1700E
is used to generate the system clock input at SCKI, as well
as generating the clock for the audio signal processor.

The use of series resistors (22Ω to 100Ω) are recommended
for SCKI, LRCK, BCK, DATA1, DATA2, and DATA3.
The series resistor combines with the stray PCB and device
input capacitance to form a low-pass filter which removes
high frequency noise from the digital signal, thus reducing
high frequency emission.

1 10 100 1k 10k 100k 10M1M

20

0

–20

–40

–60

–80

–100

Level (dB)

Log Frequency (Hz)

+

OPA337

10µF

V

COM

1

V

COM

2

PCM1604
PCM1605

16
15

4

3

1

V

BIAS

≈

V

CC

2

®

26

PCM1604, PCM1605

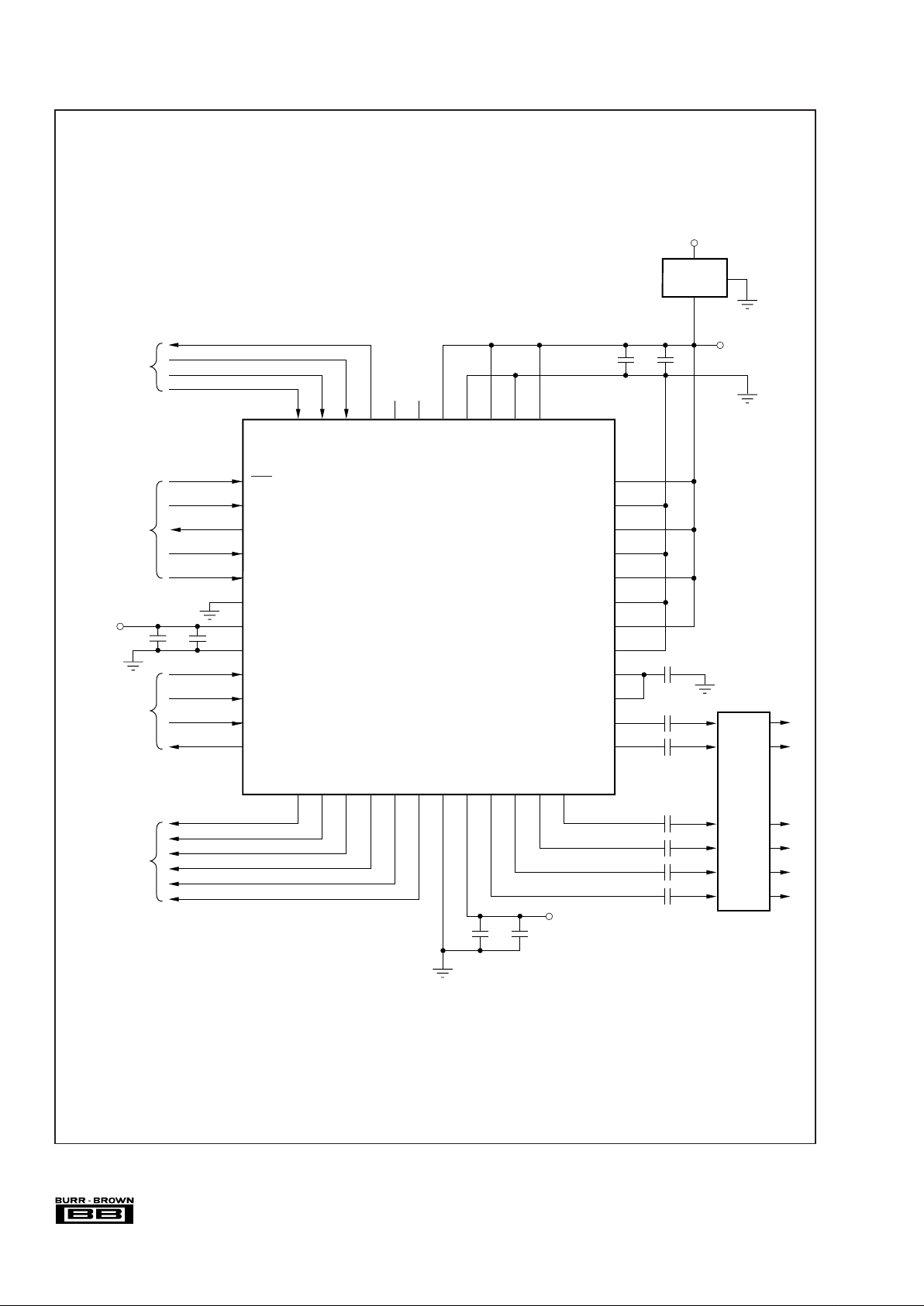

FIGURE 13. Basic Connection Diagram.

24
23
22
21
20
19
18
17
16
15
14
13

37
38
39
40
41
42
43
44
45
46
47
48

ZERO1/GPO1

ZERO2/GPO2

ZERO3/GPO3

ZERO4/GPO4

ZERO5/GPO5

ZERO6/GPO6

AGND

VCCV

OUT

6

V

OUT

5

V

OUT

4

V

OUT

3

ML

MC

MDI

MDO

NC

NC

V

CC

0

AGND0

V

CC

1

AGND1

V

CC

2

AGND2
RST
SCKI
SCKO
BCK
LRCK
TEST
V

DD

DGND
DATA1
DATA2
DATA3
ZEROA

V

CC

3

AGND3

V

CC

4

AGND4

V

CC

5

AGND5

V

CC

6

AGND6

V

COM

1

V

COM

2

V

OUT

1

V

OUT

2

36 35 34 33 32 31 30 29 28 27 26

12345678910112512

PCM1604
PCM1605

+

To/From
Decoder

To/From
Decoder

or

Microcontroller

+3.3V

Analog

+5V Analog

+5V Analog

C

11

C

10

+

C

12

C

13

+

C9C

8

C

4

C

4

C

6

C

7

+

C

3

+

C

2

+

C

1

+

+
+
+

To/From
Decoder

Zero-

Output

Flags

or
General­Purpose

Outputs

+3.3V

Regulator

+3.3V

Analog

Output

Low-Pass

Filters

NOTE: C1 - C7, C8, C11, C13 = 10µF tantalum or aluminum electrolytic

C

9

, C10, C12 = 0.1µF ceramic

®

27 PCM1604, PCM1605

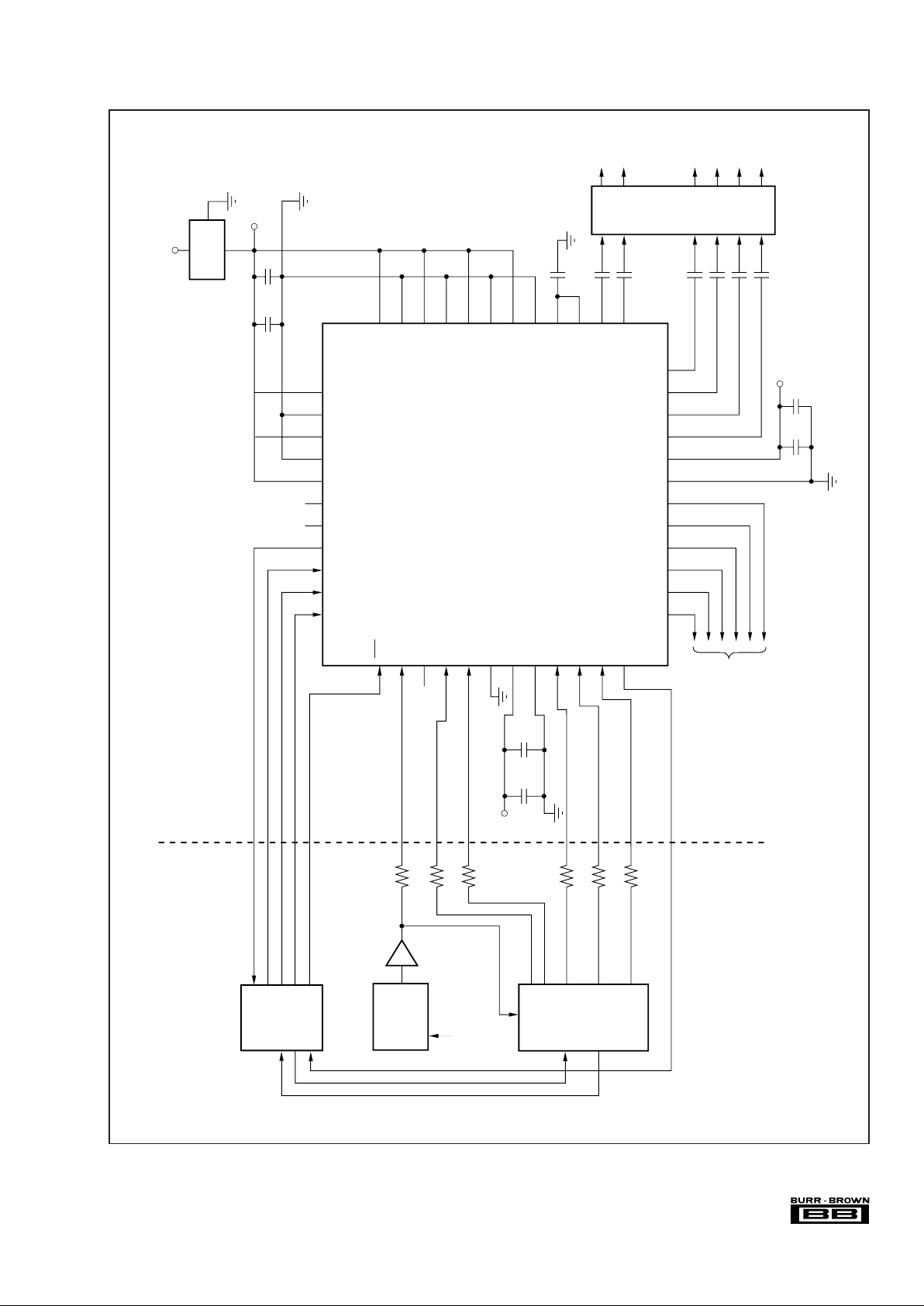

FIGURE 14. Typical Application Diagram.

24

23

22

21

20

19

18

17

16

15

14

13

37

38

39

40

41

42

43

44

45

46

47

48

ZERO1/GPO1

ZERO2/GPO2

ZERO3/GPO3

ZERO4/GPO4

ZERO5/GPO5

ZERO6/GPO6

AGND

V

CC

V

OUT

6

V

OUT

5

V

OUT

4

V

OUT

3

ML

MC

MDI

MDO

NC

NC

V

CC

0

AGND0

V

CC

1

AGND1

V

CC

2

AGND2

RST

SCKI

SCKO

BCK

LRCK

TEST

V

DD

DGND

DATA1

DATA2

DATA3

ZEROA

V

CC

3

AGND3

V

CC

4

AGND4

V

CC

5

AGND5

V

CC

6

AGND6

V

COM

1

V

COM

2

V

OUT

1

V

OUT

2

36 35 34 33 32 31 30 29 28 27 26

1234567891011

25

12

PCM1604

PCM1605

27MHz

Master Clock

Buffer

SCKO3

(2)

XT1

+5V Analog

+5V Analog

R

S

(3)

RSR

S

R

S

+

0.1µF10µF

+

10µF0.1µF

10µF

10µF

10µF

10µF

10µF

10µF

10µF

+

+

+

+

+

+

+

Zero-Flag or

General-Purpose

Outputs

for Mute Circuits,

microcontroller, or

DSP/Decoder.

NOTES: (1) Serial Control and Reset functions may be provided

by DSP/Decoder GPIO pins. (2) Actual clock output used is determined

by the application. (3) R

S

= 22Ω to 100Ω. (4) See Applications Information

section of this data sheet for more information.

REG1117

+3.3V

+3.3V

Analog

Output

Low-Pass

Filters

(4)

LS

RS

CTR

SUB

LF

RF

R

SRS

µC/µP

(1)

PLL1700

Audio DSP

or

Decoder

DIGITAL SECTION ANALOG SECTION

+

+3.3V

Analog

C1110µF

C

10

0.1µF

®

28

PCM1604, PCM1605

POWER SUPPLIES AND GROUNDING

The PCM1604 requires a +5V analog supply and a +3.3V
digital supply. The +5V supply is used to power the DAC
analog and output filter circuitry, while the +3.3V supply is
used to power the digital filter and serial interface circuitry.
For best performance, the +3.3V supply should be derived
from the +5V supply using a linear regulator, as shown in
Figure 14.

Six capacitors are required for supply bypassing, as shown
in Figure 13. These capacitors should be located as close as
possible to the PCM1604 or PCM1605 package. The 10µF
capacitors should be tantalum or aluminum electrolytic,
while the 0.1µF capacitors are ceramic (X7R type is recom­mended for surface-mount applications).

D/A OUTPUT FILTER CIRCUITS

Delta-sigma D/A converters utilize noise shaping techniques
to improve in-band Signal-to-Noise Ratio (SNR) perfor­mance at the expense of generating increased out-of-band
noise above the Nyquist Frequency, or fS/2. The out-of-band
noise must be low-pass filtered in order to provide the
optimal converter performance. This is accomplished by a
combination of on-chip and external low-pass filtering.

Figures 15 and 16 show the recommended external low-pass
active filter circuits for dual and single-supply applications.
These circuits are 2nd-order Butterworth filters using the

Multiple Feedback (MFB) circuit arrangement, which re­duces sensitivity to passive component variations over fre­quency and temperature. For more information regarding
MFB active filter design, please refer to Burr-Brown Appli­cations Bulletin AB-034, available from our web site
(www.burr-brown.com) or your local Burr-Brown sales
office.

Since the overall system performance is defined by the
quality of the D/A converters and their associated analog
output circuitry, high quality audio op amps are recom­mended for the active filters. Burr-Brown’s OPA2134 and
OPA2353 dual op amps are shown in Figures 15 and 16, and
are recommended for use with the PCM1604 and PCM1605.

FIGURE 15. Dual Supply Filter Circuit.

FIGURE 16. Single-Supply Filter Circuit.

R

1

R

3

R

4

R

2

C

1

C

2

V

IN

V

OUT

OPA2134

2

3

1

R

2

R

1

AV ≈ –

R

1

R

3

R

4

R

2

C

1

C

2

V

OUT

To Additional

Low-Pass Filter

Circuits

OPA2353

2

3

1

+

OPA337

C

2

10µF

V

OUT

X

V

COM

1

V

COM

2

PCM1604
PCM1605

R

2

R

1

AV ≈ –

where X = 1 to 6

®

29 PCM1604, PCM1605

Separate power supplies are recommended for the digital
and analog sections of the board. This prevents the switching
noise present on the digital supply from contaminating the
analog power supply and degrading the dynamic perfor­mance of the D/A converters. In cases where a common +5V
supply must be used for the analog and digital sections, an
inductance (RF choke, ferrite bead) should be placed be­tween the analog and digital +5V supply connections to
avoid coupling of the digital switching noise into the analog
circuitry. Figure 18 shows the recommended approach for
single-supply applications.

PCB LAYOUT GUIDELINES

A typical PCB floor plan for the PCM1604 and PCM1605 is
shown in Figure 17. A ground plane is recommended, with
the analog and digital sections being isolated from one
another using a split or cut in the circuit board. The PCM1604
or PCM1605 should be oriented with the digital I/O pins
facing the ground plane split/cut to allow for short, direct
connections to the digital audio interface and control signals
originating from the digital section of the board.

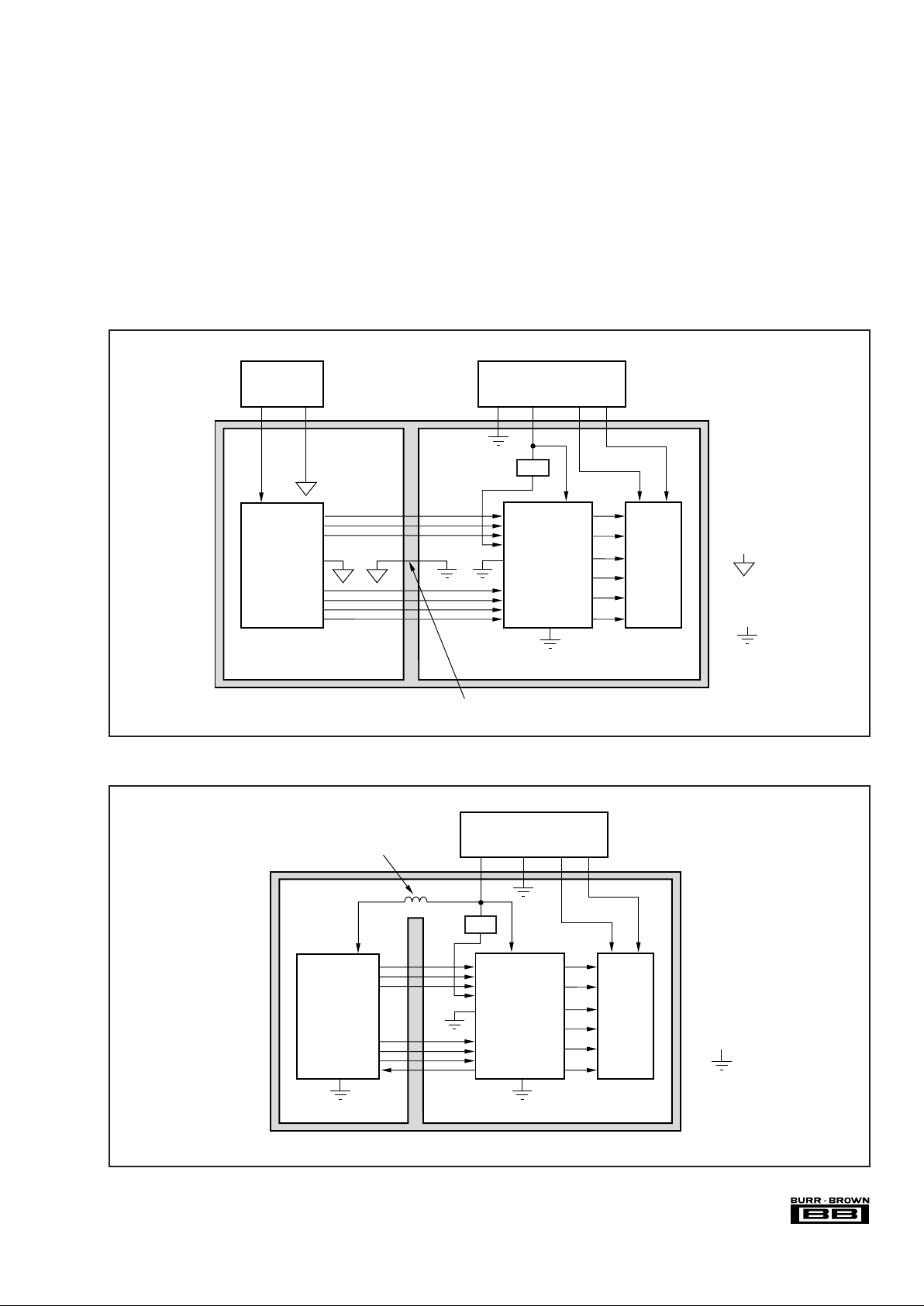

FIGURE 17. Recommended PCB Layout.

FIGURE 18. Single-Supply PCB Layout.

PCM1604
PCM1605

V

CC

V

DD

DGND

Return Path for Digital Signals

Analog

Ground

Digital

Ground

AGND

Output

Circuits

DIGITAL SECTION ANALOG SECTION

Digital Logic

and

Audio

Processor

Digital Power

+V

D

DGND

Analog Power

+5VA +V

S

AGND

REG

–V

S

PCM1604
PCM1605

V

CC

V

DD

DGND

Output

Circuits

RF Choke or Ferrite Bead

Common

Ground

AGND

DIGITAL SECTION ANALOG SECTION

V

DD

Power Supplies

+5V +V

S

AGND

REG

–V

S

®

30

PCM1604, PCM1605

FIGURE 19. Eight-Level Delta-Sigma Modulator.

THEORY OF OPERATION

The D/A converter section of the PCM1604 is based upon a
multi-bit delta-sigma architecture. This architecture utilizes
an 4th-order noise shaper and an 8-level quantizer, followed by
an analog low-pass filter. A block diagram of the delta-sigma
modulator is shown in Figure 19. This architecture has the
advantage of stability and improved jitter tolerance when
compared to traditional 1-bit (2-level) delta-sigma designs.

The combined oversampling rate of the digital interpolation
filter and the delta-sigma modulator is 32fs, 64fs, or 128fs.
The total oversampling rate is determined by the desired
sampling frequency. If fs ≤ 96kHz, then the OVER bit in
Register 12 may be set to an oversampling rate to 64fs or
128fs. If fs > 96kHz, then the OVER bit may be used to set the
oversampling rate to 32fs or 64fs. Figure 20 shows the out­of- band quantization noise plots for both the 64x and 128x
oversampling scenarios. Notice that the 128x oversampling
plot shows significantly improved out-of-band noise perfor­mance, allowing for a simplified low-pass filter to be used at
the output of the DAC.

+

Z

–1

8-Level Quantizer

+

Z

–1

+

Z

–1

–

+

Z

–1

+

+

4fS or 8f

S

32fS, 64fS, or 128f

S

0 100 200 300 400 500 600

125
120
115
110
105
100

95
90
85
80

Dynamic Range (dB)

Jitter (ps)

CLOCK JITTER

FIGURE 21. Jitter Sensitivity.

FIGURE 20. Quantization Noise Spectrum.

012345678

0
–20
–40
–60
–80

–100
–120
–140
–160
–180

Amplitude (dB)

Frequency (fS)

QUANTIZATION NOISE SPECTRUM

(64x Oversampling)

QUANTIZATION NOISE SPECTRUM

(128x Oversampling)

012345678

0
–20
–40
–60
–80

–100
–120
–140
–160
–180

Amplitude (dB)

Frequency (fS)

Figure 21 illustrates the simulated jitter sensitivity of the
PCM1604. To achieve best performance, the system clock
jitter should be less than 300 picoseconds. This is easily
achieved using a quality clock generation IC, like Burr­Brown’s PLL1700.

®

31 PCM1604, PCM1605

FIGURE 22. Test Setup for THD+N Measurements.

S/PDIF

Receiver

Evaluation Board

f

–3dB

= 54kHz

PCM1604
PCM1605

DEM-DAI1604

2nd-Order
Low-Pass

Filter

Notch FilterBand Limit

HPF = 22Hz

(1)

LPF = 30kHz

(1)

fC = 1kHzRMS Mode100% Full Scale

24-Bit, 1kHz

Sine Wave

S/PDIF

Output

Option = 20kHz Apogee Filter

(2)

Analyzer

and

Display

Digital

Generator

NOTES: (1) There is little difference
in measured THD+N when using the
various settings for these filters.
(2) Required for THD+N test.

PERFORMANCE MEASUREMENTS

This section provides information on how to measure key
dynamic performance parameters for the PCM1604 and
PCM1605. In all cases, an Audio Precision System Two
Cascade or equivalent audio measurement system is utilized
to perform the testing.

TOTAL HARMONIC DISTORTION + NOISE

Total Harmonic Distortion + Noise (THD+N) is a significant
figure of merit for audio D/A converters, since it takes into
account both harmonic distortion and all noise sources
within a specified measurement bandwidth. The true rms
value of the distortion and noise is referred to as THD+N.

For the PCM1604 and PCM1605 D/A converters, THD+N is
measured with a full scale, 1kHz digital sine wave as the test
stimulus at the input of the DAC. The digital generator is set
to 24-bit audio word length and a sampling frequency of

44.1kHz, or 96kHz. The digital generator output is taken
from the unbalanced S/PDIF connector of the measurement
system. The S/PDIF data is transmitted via coaxial cable to
the digital audio receiver on the DEM-DAI1604 demo board.
The receiver is then configured to output 24-bit data in either
I2S or left-justified data format. The DAC audio interface
format is programmed to match the receiver output format.
The analog output is then taken from the DAC post filter and
connected to the analog analyzer input of the measurment
system. The analog input is band limited using filters resi­dent in the analyzer. The resulting THD+N is measured by
the analyzer and displayed by the measurement system.

®

32

PCM1604, PCM1605

DYNAMIC RANGE

Dynamic range is specified as A-Weighted, THD+N mea­sured with a –60dBFS, 1kHz digital sine wave stimulus at
the input of the D/A converter. This measurment is designed
to give a good indicator of how the DAC will perform given
a low-level input signal.

The measurement setup for the dynamic range measurement
is shown in Figure 23, and is similar to the THD+N test
setup discussed previously. The differences include the
band limit filter selection, the additional A-Weighting filter,
and the –60dBFS input level.

IDLE CHANNEL SIGNAL-TO-NOISE RATIO

The SNR test provides a measure of the noise floor of the
D/A converter. The input to the D/A is all 0’s data, and the
D/A converter’s Infinite Zero Detect Mute function must
be disabled (default condition at power up for the PCM1604,
PCM1605). This ensures that the delta-sigma modulator
output is connected to the output amplifier circuit so that
idle tones (if present) can be observed and effect the SNR
measurement. The dither function of the digital generator
must also be disabled to ensure an all ‘0’s data stream at the
input of the D/A converter.

The measurement setup for SNR is identical to that used for
dynamic range, with the exception of the input signal level
(see the notes provided in Figure 23).

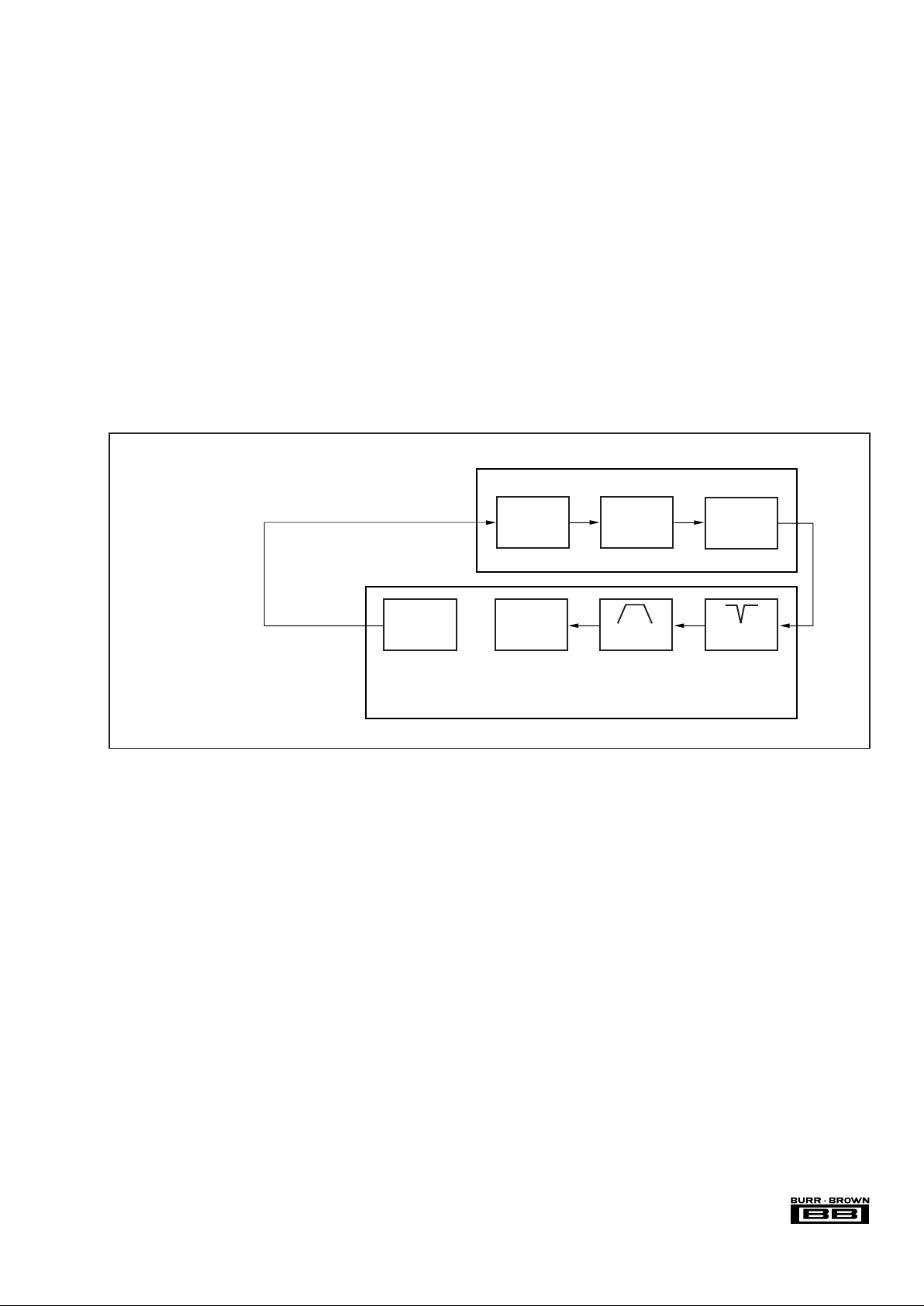

FIGURE 23. Test Set-Up for Dynamic Range and SNR Meeasurements.

S/PDIF

Receiver

Evaluation Board

PCM1604

(1)

PCM1605

DEM-DAI1604

2nd-Order

Low-Pass

Filter

Notch FilterBand Limit

HPF = 22Hz
LPF = 22kHz

f

C

= 1kHz

f

–3dB

= 54kHz

0% Full Scale,

Dither Off (SNR)

–60dBFS,

1kHz Sine Wave

(Dynamic Range)

S/PDIF

Output

Option = A-Weighting

(2)

A-Weight

Filter

(1)

RMS Mode

Analyzer

and

Display

Digital

Generator

NOTES: (1) Infinite Zero Detect Mute disabled.
(2) Results without A-Weighting will be
approximately 3dB worse.
