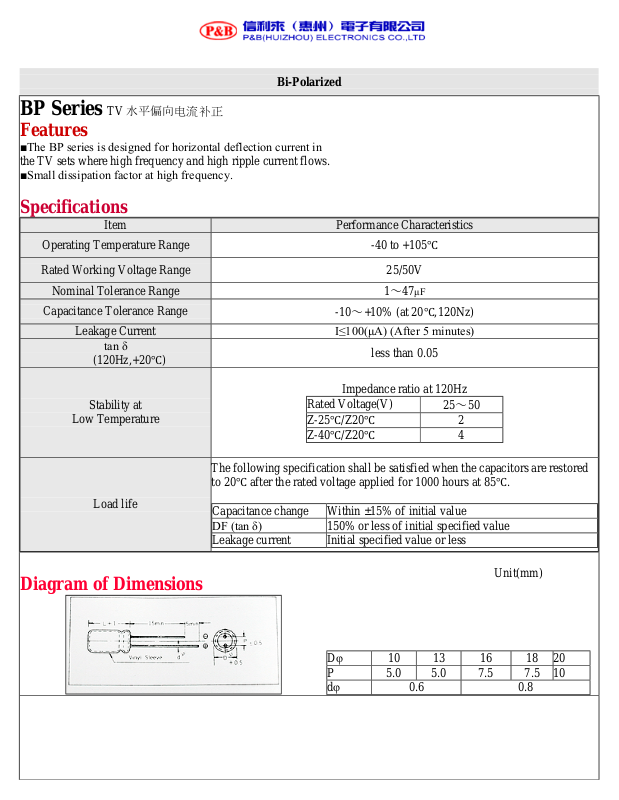

Page 1
Bi-Polarized
BP Series TV 水平偏向电流补正
Features
■The BP series is designed for horizontal deflection current in
the TV sets where high frequency and high ripple current flows.
■Small dissipation factor at high frequency.
Specifications
Item
Performance Characteristics
Operating Temperature Range
-40 to +105℃
Rated Working Voltage Range
25/50V
Nominal Tolerance Range
1～47μF
Capacitance Tolerance Range
-10～+10% (at 20℃,120Nz)
Leakage Current
I≤100(μA) (After 5 minutes)
tan δ
(120Hz,+20℃)
less than 0.05
Stability at
Low Temperature
Impedance ratio at 120Hz
Rated Voltage(V)
25～50
Z-25℃/Z20℃
2
Z-40℃/Z20℃
4
Load life
The following specification shall be satisfied when the capacitors are restored
to 20℃ after the rated voltage applied for 1000 hours at 85℃.
Capacitance change
Within ±15% of initial value
DF (tan δ)
150% or less of initial specified value
Leakage current
Initial specified value or less

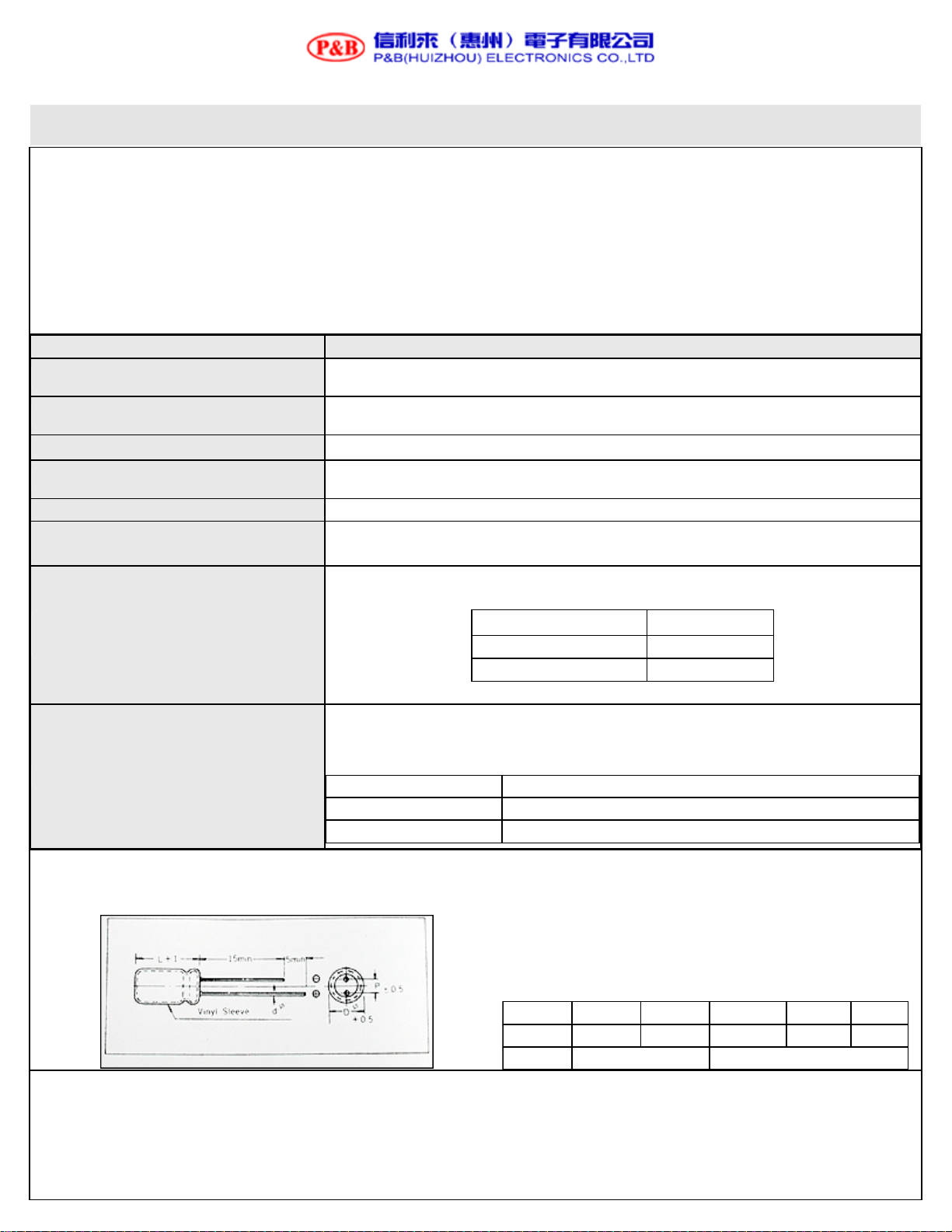

Diagram of Dimensions
Unit(mm)
Dφ
10
13
16
18
20 P 5.0
5.0
7.5
7.5
10
dφ
0.6
0.8
Page 2
Case Size of Standard Products
WV
25
50
μF
1
10×20
10×20
2.2
10×20
13×25
3.3
13×21
13×25
4.7
13×21
16×31.5
5.6
16×25
16×34.5
6.8
16×25
16×34.5
8.2
16×25
18×35.5
10
16×25
18×35.5
12
16×31.5
18×40
15
16×35.5
18×40
18
22×41
22×41
22
22×41
22×41
27
22×41
22×41
33
22×41
22×41
39
22×41
22×41
47
22×41
22×41
Permissible Ripple Current (A P-P) at 85℃,15-75KHz
WV
25
50
μF
1
3.0
3.0
2.2
4.0
4.0
3.3
5.0
5.0
4.7
6.0
6.0
5.6
6.6
6.6
6.8
7.0
7.0
8.2
7.7
7.7
10
8.0
8.0
12
8.6
8.6
15
9.0
9.0
18
12.0
12.0
22
12.0
12.0
27
12.0
12.0
33
12.0
12.0
39
12.0
12.0
47
12.0
12.0
