Page 1
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONIC
S
Oct,
2005
❈ Verify the above model numbers when placing orders.

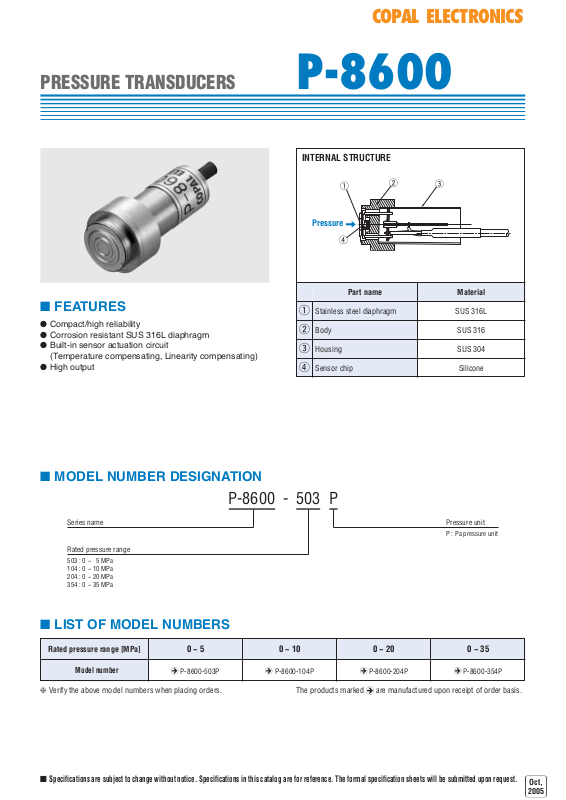

PRESSURE TRANSDUCERS
● Compact/high reliability
● Corrosion resistant SUS 316L diaphragm
● Built-in sensor actuation circuit
(Temperature compensating, Linearity compensating)
● High output
■ FEATURES
Part name Material
Stainless steel diaphragm SUS 316L
SUS 316
SUS 304
Silicone
Body
Housing
Sensor chip
1
2
3
4
INTERNAL STRUCTURE
■ MODEL NUMBER DESIGNATION
Series name
Rated pressure range
503 : 0 ~ 5 MPa
104 : 0 ~ 10 MPa
204 : 0 ~ 20 MPa
354 : 0 ~ 35 MPa
Pressure unit
P : Pa pressure unit
■ LIST OF MODEL NUMBERS
Rated pressure range [MPa]
Model number
0 ~ 5 0 ~ 10 0 ~ 20 0 ~ 35
A
P-8600-503P
A
P-8600-104P
A
P-8600-204P
A
P-8600-354P
P-8600
P-8600 - 503 P
2
The products marked A are manufactured upon receipt of order basis.
1
Pressure
4
3
Page 2
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONIC
S
Oct,
2005
■ STANDARD SPECIFICATIONS
Item
Pressure reference
Rated pressure range
Maximum pressure
Operating temp. range
Compensated temp. range
Storage temp.
Operating humidity
Thermal error
(Reference temp.: 25 °C)
Excitation voltage
Offset voltage
Span voltage
Linearity/Hysteresis
Pressure medium
Insulation resistance
Dielectric strength
Load resistance
Response
Net weight
Model number
P-8600
503P 104P 204P 354P
Gauge
5102035
10 20 40 50
Corrosive gases/liquids compatible with SUS 316L or SUS 316
Approx. 10
± 5
40 ± 5
1
Approx. 1.5
5 ± 5 %
100 (500 V DC)
350 V AC, 60 s (Leakage current 0.5 mA maximum
)
0 ~ 50
35 ~ 85 (No condensation)
−
20 ~ 90 (Atmospheric pressure, humidity 65 %RH maximum)
− 10 ~ 75
± 0.5
± 0.05
± 0.05
MPa
MPa
°C
°C
%RH
°C
ZERO
%F.S./°C
%F.S.
SPAN
%F.S./°C
V DC
Consumption current 5
mA
maximum
mV
mV
MΩ
minimum
MΩ
ms
g
General specifications
Analog output Power
P-8600
PRESSURE TRANSDUCERS
● Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 5 V DC.
■ ENVIRONMENTAL CHARACTERISTICS
Test item
Test conditions (At 25 ± 5 °C)
permissible change
Vibration
10 ~ 500 Hz, 1.5 mm maximum/98.1 m/s
2
,
3 directions for 2 hours each
490 m/s
2
, 3 directions for 3 times each
0 ~ Rated pressure, 10
6
cycles
40 °C, 90 ~ 95 %RH, 240 hrs.
Zero voltage, Span voltage
± 3 %F.S. maximum each
Shock
Pressure cycling
Moisture resistance
Page 3
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONIC
S
Oct,
2005
P-8600
PRESSURE TRANSDUCERS
■ OUTLINE DIMENSIONS Unless otherwise specified, tolerance : ± 0.5 (Unit: mm)
■ INTERNAL ELECTRICAL SCHEMATICS
Wire color
Red
Black
White
Blue
Shield
Connection
Input
B
Input
C
Output
B
Output
C
N.C.
❈ Please make sure of a proper wiring. A wrong connection may cause a damage of sensor.
9
φ
17
+0.1
0.1 max.
0
12.7
10 ± 0.05
φ
φ
+ 0.5
2.5 6
0
Resistors for temp.compensation
(5)
Metal housing
4-core shielded cable L = 500 ± 20
φ
( 2) AWG 30 ULNo.2851
V/I circuit
Input B
Input C
Output B
Output C
