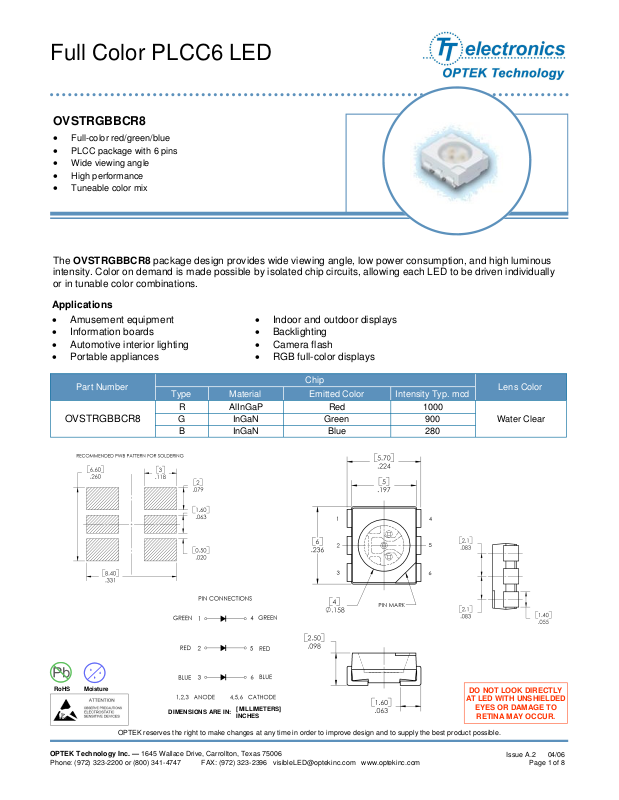

Page 1
Full Color PLCC6 LED
OVSTRGBBCR8
x Full-color red/green/blue
x PLCC package with 6 pins
x Wide viewing angle
x High performance
x Tuneable color mix
The OVSTRGBBCR8 package design provides wide viewing angle, low power consumption, and high luminous
intensity. Color on demand is made possible by isolated chip circuits, allowing each LED to be driven individually
or in tunable color combinations.
P r o d u c t P h o t o H e r e
Applications
x Amusement equipment
x Information boards
x Automotive interior lighting
x Portable appliances
Part Number
OVSTRGBBCR8
Type Material Emitted Color
R AlInGaP Red
G InGaN Green
B InGaN Blue
x Indoor and outdoor displays
x Backlighting
x Camera flash
x RGB full-color displays
Chip
Intensity Typ. mcd
1000
900
280
Lens Color
Water Clear
RoHS
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
Moisture
[MILLIMETERS]
DIMENSIONS ARE IN:
INCHES
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
Issue A.2 04/06
Page 1 of 8
Page 2
Full Color PLCC6 LED
OVSTRGBBCR8
Absolute Maximum Ratings
TA = 25o C unless otherwise noted
PARAMETER
R G B
Storage Temperature -40 ~ +100 °C
Operating Temperature -40 ~ +100 °C
Reverse Voltage V
Continuous Forward Current1 80 80 80 mA
Peak Forward Current (10% Duty Cycle, PW sec) 200 100 100 mA
Power Dissipation 260 410 410 mW
Junction Temperature 110 110 110 °C
Junction/ambient (1 chip on2) 250 210 210 °C/W
Junction/ambient (3 chips on2) 500 300 300 °C/W
Junction/solder point (1 chip on) 150 130 130 °C/W
Junction/solder point (3 chips on) 150 160 160 °C/W
Notes:
1. Single color light
2. Rth test condition: Mounted on PC Board FR 4 (pad size
2
)
RATING
5
UNIT
Electrical Characteristics
TA = 25o C unless otherwise noted
SYMBOL PARAMETER
R G B
Min 710 710 180
IV Luminous Intensity
Avg 1000 900 280
Avg 2.5 4.5 4.5
VF Forward Voltage
Max 3.2 5.1 5.1
IR Reverse Current (max) 10 10 10 µA V R = 5 V
Dominant Wavelength
D
Wavelength at Peak Emission
P
2 ½ 50% Power Angle
Spectrum Radiation Bandwidth
VALUES
UNIT CONDITIONS
mcd I
V I
624 525 470 nm I
620 521 468 nm I
120 120 120 deg I
24 38 28 nm I
= 50 mA
F
= 50 mA
F
= 50 mA
F
= 50 mA
F
= 50 mA
F
= 50 mA
F
Issue A.2 04/06
Page 2 of 8
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
Page 3
Full Color PLCC6 LED
OVSTRGBBCR8
Standard Bins (I
= 50 mA)
F
Lamps are sorted to luminous intensity (IV) and dominant wavelength (D ) bins shown.
Orders for OVSTRGBBCR8 may be filled with any or all bins contained as below.
RED
1800
1120 W
Luminous
Intensity (mcd)
710 V
612 625
Dominant Wavelength (nm)
GREEN
1800
1120 W
Luminous
Intensity (mcd)
710 V
514 534
Dominant Wavelength (nm)
Luminous intensity is at
V bin or above.
Luminous intensity is at
V bin or above.
BLUE
450
280 T
Luminous
Intensity (mcd)
180 S
460 480
Notes:
1. All ranks will be included per delivery, rank ratio will be based on the chip distribution.
2. Tolerance of measurement of luminous intensity is ±10%.
3. Tolerance of measurement of dominant wavelength is ±1 nm.
4. Tolerance of measurement of VF is ±0.05V.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
Dominant Wavelength (nm)
Luminous intensity is at
S bin or above.
Issue A.2 04/06
Page 3 of 8
Page 4
Full Color PLCC6 LED
OVSTRGBBCR8

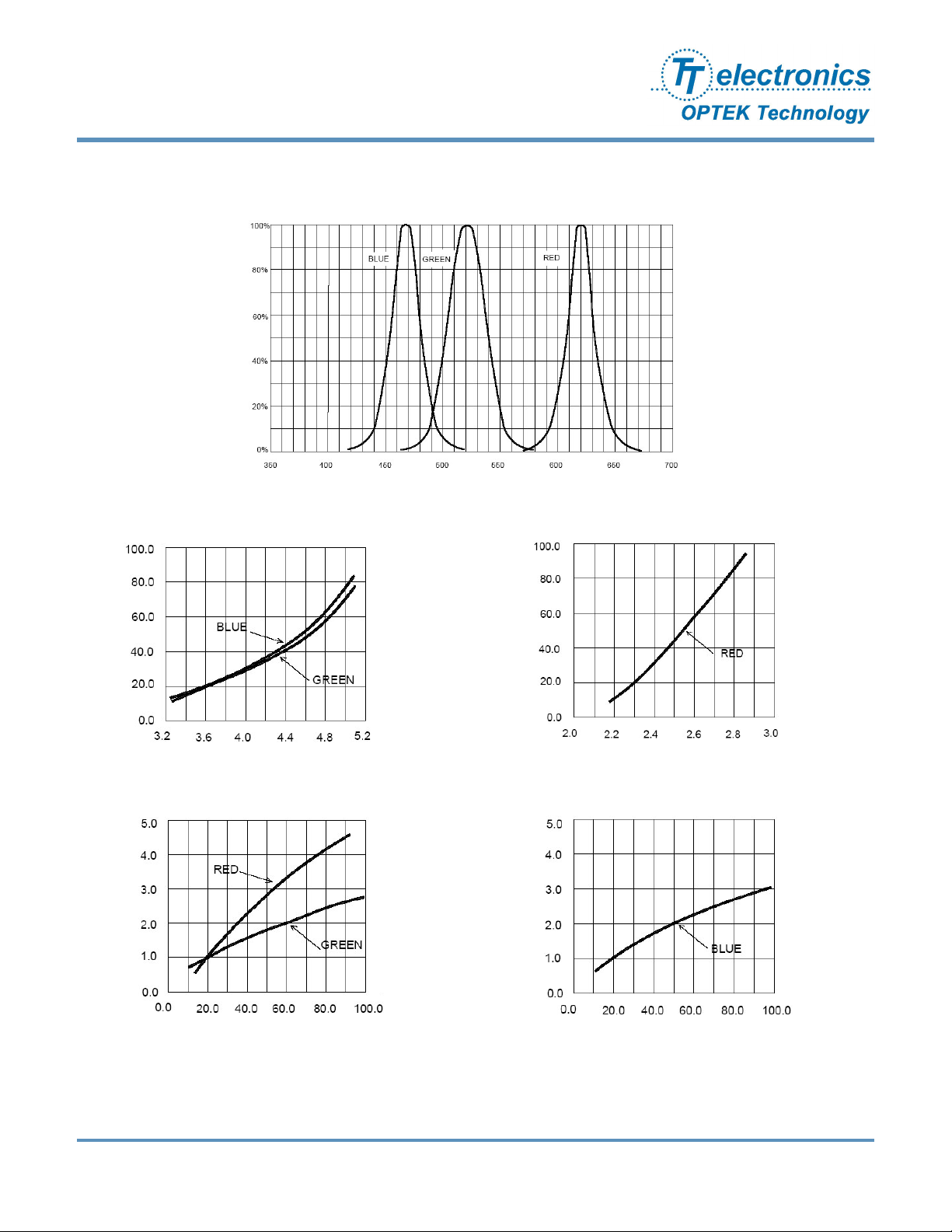

Typical Electro-Optical Characteristics Curves
nm
Relative Intensity vs Dominant Wavelength
mA
%
mA
V
Forward Current vs Forward Voltage
%
Relative Luminous Intensity vs Forward Current
V
mA mA
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.2 04/06
Page 4 of 8
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Page 5
Full Color PLCC6 LED
OVSTRGBBCR8
Typical Electro-Optical Characteristics Curves
mA
mA
mA
°C
°C

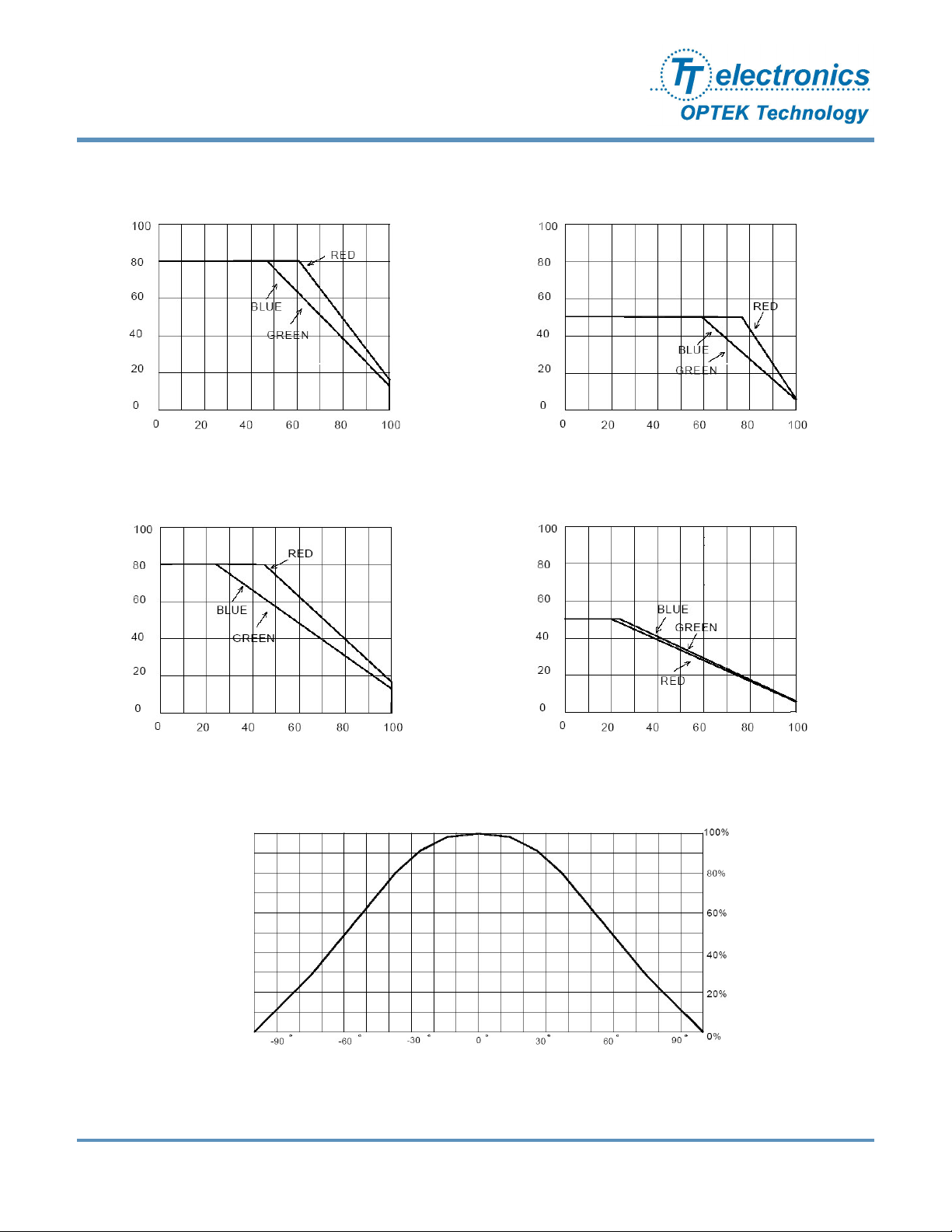

Maximum Forward DC Current vs Solder Point Temperature
1 Chip On
°C
mA
3 Chips On
°C
Maximum Forward DC Current vs Ambient Temperature
50% Power Angle: 120°
Far Field Pattern
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
Issue A.2 04/06
Page 5 of 8
Page 6
Full Color PLCC6 LED
OVSTRGBBCR8

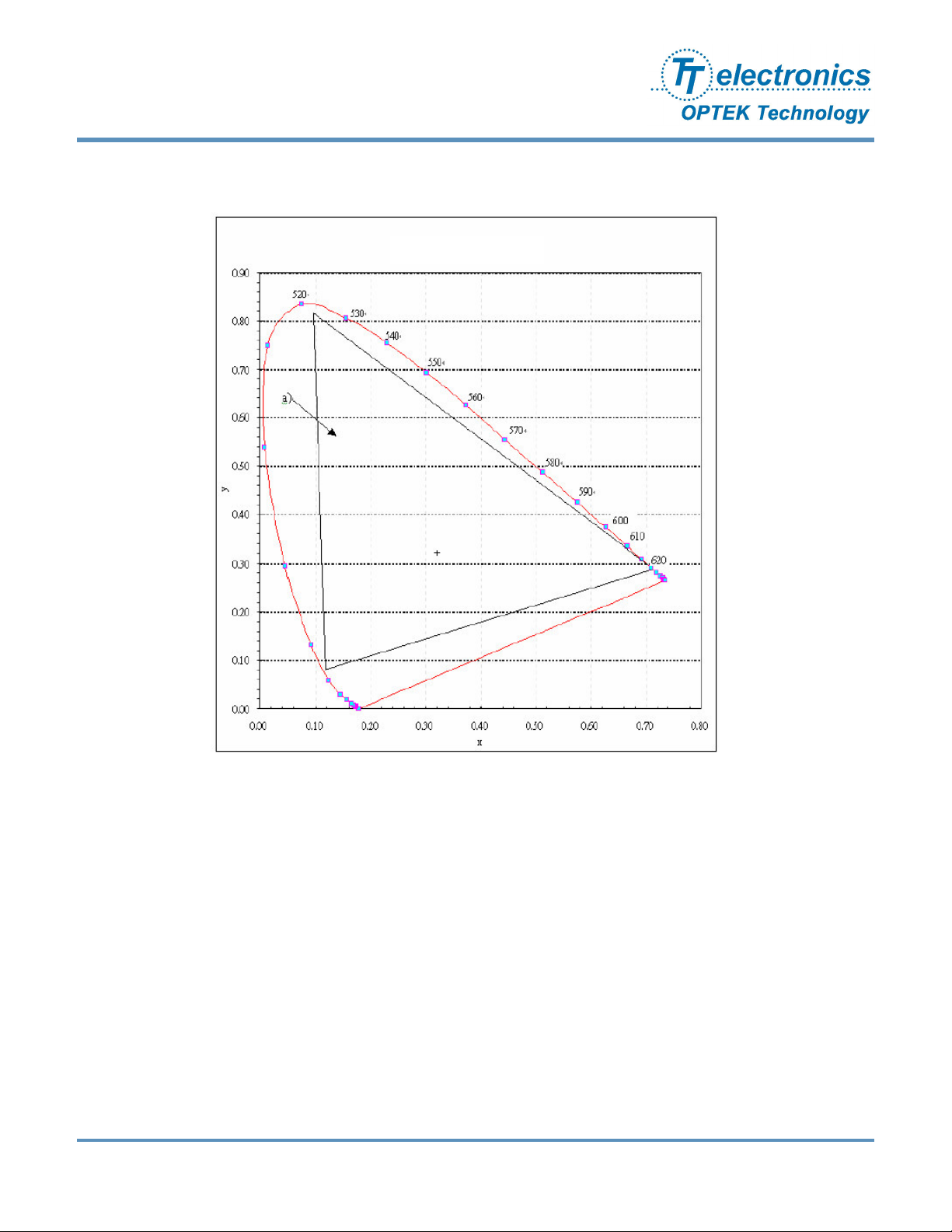

CIE Chromaticity Diagram
Note:
1. The color coordinates of the mixed light can be expected within the area of the color triangle marked a). The achromatic point (x=0.33,
y=0.33) is marked “+”.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.2 04/06
Page 6 of 8
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Page 7
Full Color PLCC6 LED
OVSTRGBBCR8

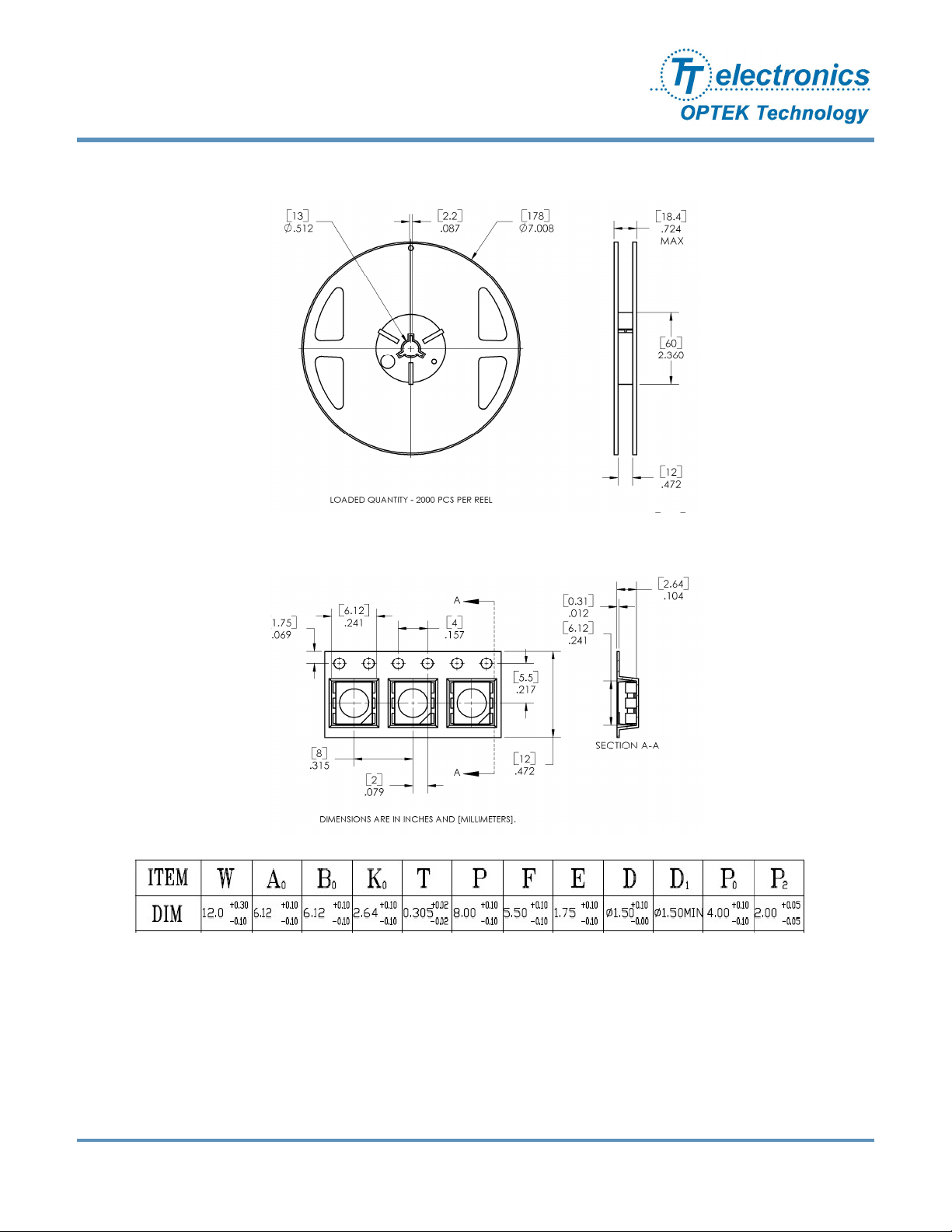

Reel Dimensions: 13-inch reel
Carrier Tape Dimensions: Loaded quantity 2000 pieces per reel
Notes:
1. 10 sprocket hole pitch cumulative tolerance ±0.20 mm.
2. Carrier camber not to exceed 1 mm in 100 mm.
3. A0 and B0 measured on a plane 0.3 mm above the bottom of the
pocket.
4. K0 measured from a p lane on the inside bottom of the pocket to
the top surface of the carrier.
5. All dimensions meet EIA-481-2A requirements.
6. Material: Black Anti-static Polystyrene.
7. Thickness: 0.305±0.02 mm.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. — 1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396
[email protected] www.optekinc.com
Issue A.2 04/06
Page 7 of 8
Page 8
Full Color PLCC6 LED
OVSTRGBBCR8
Moisture Resistant Packaging
Label Aluminum Moisture-proof Bag Desiccant Bar Code Label
Issue A.2 04/06
Page 8 of 8
