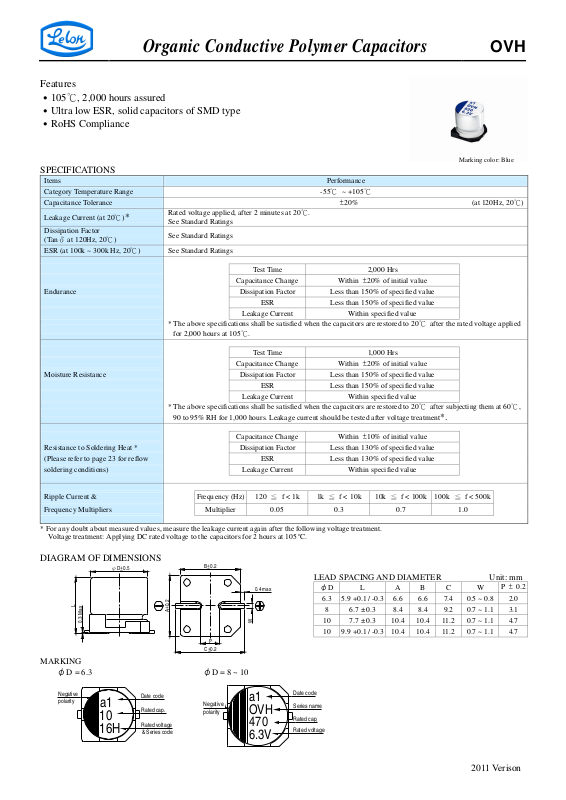

Page 1
& Series code
Organic Conductive Polymer Capacitors
OVH
Features
˙105 , 2,000 hours assured℃
˙Ultra low ESR, solid capacitors of SMD type
˙RoHS Compliance
SPECIFICATIONS
Items Performance
Date code
Series name
Rated cap
.
Rated voltage
-55℃ ~ +105℃
±20% (at 120Hz, 20℃)
Within ±20% of initial value
Within ±20% of initial value
Within ±10% of initial value
φD
6.3 5.9 +0.1 / -0.3 6.6 6.6 7.4 0.5 ~ 0.8 2.0
8 6.7 ± 0.3 8.4 8.4 9.2 0.7 ~ 1.1 3.1
10 7.7 ± 0.3 10.4 10.4 11.2 0.7 ~ 1.1 4.7
10 9.9 +0.1 / -0.3 10.4 10.4 11.2 0.7 ~ 1.1 4.7
L A B C W
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20 )℃*
Dissipation Factor
(Tanδ at 120Hz, 20 )℃
ESR (at 100k ~ 300k Hz, 20 )℃ See Standard Ratings
Endurance
Moisture Resistance
Resistance to Soldering Heat *
(Please refer to page 23 for reflow
soldering conditions)
Ripple Current &
Frequency Multipliers
* For any doubt about measured values, measure the leakage current again after the following voltage treatment.
Voltage treatment: Applying DC rated voltage to the capacitors for 2 hours at 105 oC.
Rated voltage applied, after 2 minutes at 20℃.
See Standard Ratings
See Standard Ratings
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
for 2,000 hours at 105℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃,
90 to 95% RH for 1,000 hours. Leakage current should be tested after voltage treatment*.
Frequency (Hz)
Multiplier 0.05 0.3 0.7 1.0
Test Time 2,000 Hrs
Capacitance Change
Dissipation Factor Less than 150% of specified value
ESR Less than 150% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change
Dissipation Factor Less than 150% of specified value
ESR Less than 150% of specified value
Leakage Current Within specified value
Capacitance Change
Dissipation Factor Less than 130% of specified value
ESR Less than 130% of specified value
Leakage Current Within specified value
120 ≦ f < 1k 1k ≦ f < 10k 10k ≦ f < 100k 100k ≦ f < 500k

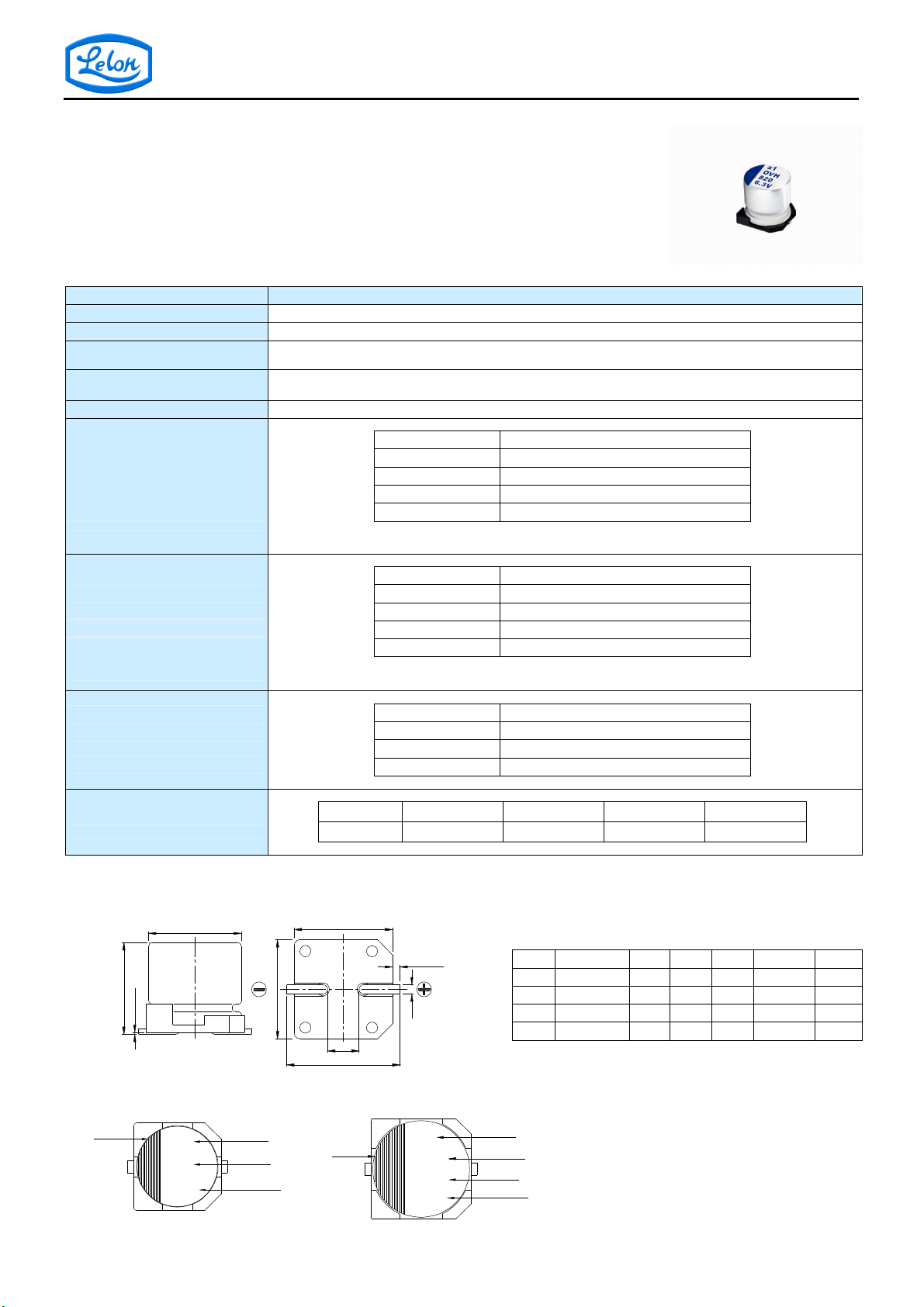

DIAGRAM OF DIMENSIONS
φD±
LEAD SPACING AND DIAMETER Unit: mm
L
0.3 Max
MARKING
φ
D = 6.3
0.5
0.2
±
A
B±0.2
P
C±0.2
φ
D = 8 ~ 10
0.4 max
W
Negative
polarity
a1
10
16H
Date code
Rated cap.
Rated voltage
Negative
polarity
a1
OVH
470
6.3V
Marking color: Blue
P ± 0.2
2011 Verison
Page 2
STANDARD RATINGS
W. V. (V)
390 6.3×5.9 0.12 293 10 3,900
6.3×5.9 0.12 420 10 3,900
2.5V (0E)
680 8×6.7 0.12 510 9 4,500
1,200 10×7.7 0.12 900 9 5,000
2,200 10×9.9 0.12 1,650 8 6,000
330 6.3×5.9 0.12 396 10 3,900
470 8×6.7 0.12 564 9 4,500
4V (0G) 560 8×6.7 0.12 894 9 4,500
1,000 10×7.7 0.12 1,200 9 5,000
1,800 10×9.9 0.12 2,160 8 6,000
220 6.3×5.9 0.12 416 10 3,900
330 8×6.7 0.12 624 9 4,500
6.3V (0J) 390 8×6.7 0.12 737 9 4,500
820 10×7.7 0.12 1,550 9 5,000
1,500 10×9.9 0.12 2,835 8 6,000
Capacitance
Organic Conductive Polymer Capacitors
Dimension: φD×L(mm)
Ripple Current: mA/rms at 100k Hz, 105℃
(µF)
560
Size
φD×L(mm)
8×6.7 0.12 420 9 4,200
Tanδ
(120Hz, 20 )℃
L C
(µA)
(mΩ/at 100k ~ 300k Hz, 20 Max)℃
E S R
(mA/rms at 100k Hz, 105 )℃
OVH
Rated R. C.
2011 Version
