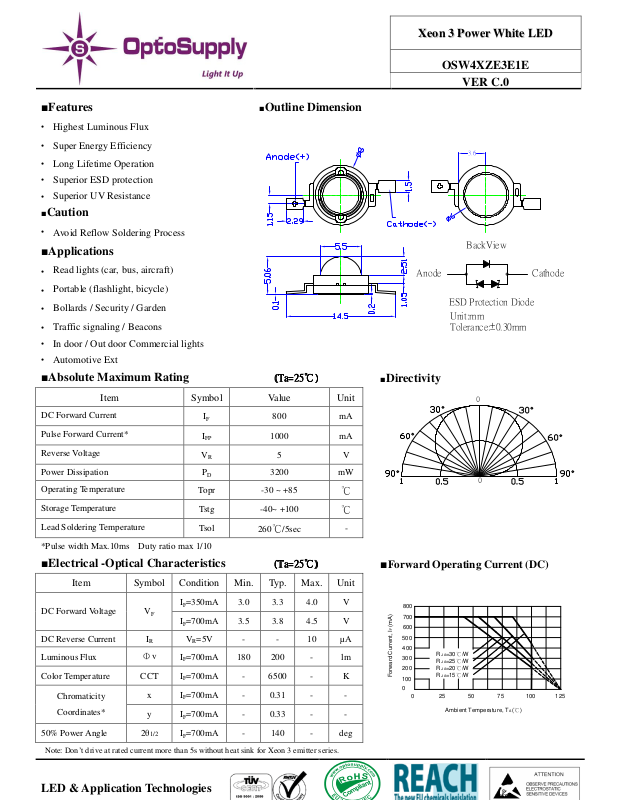

XXeeoonn 33 PPoowweerr WWhhiittee LLEEDD
■Features
●
Highest Luminous Flux
●
Super Energy Efficiency
●
Long Lifetime Operation
●
Superior ESD protection
●
Superior UV Resistance
■
Caution
●
Avoid Reflow Soldering Process
■Applications
●
Read lights (car, bus, aircraft)
●
Portable (flashlight, bicycle)
●
Bollards / Security / Garden
●
Traffic signaling / Beacons
●
In door / Out door Commercial lights
●
Automotive Ext
■
Outline Dimension
OSW4XZE3E1E
VER C.0
3.6
BackView
Anode
ESD Protection Diode
Unit:mm
Tolerance:±0.30mm
Cathode
■Absolute Maximum Rating
Item Symbol
DC Forward Current
Pulse Forward Current*
Reverse Voltage
(Ta=25℃)
(Ta=25℃)
(Ta=25℃)(Ta=25℃)
Value Unit
IF 800 mA
IFP 1000 mA
VR 5 V
Power Dissipation PD 3200 mW
Operating Temperature
Storage Temperature
Lead Soldering Temperature
*Pulse width Max.10ms Duty ratio max 1/10
■Electrical -Optical Characteristics
Topr -30 ~ +85
Tstg -40~ +100
Tsol
260℃/5sec
(Ta=25
(Ta=25℃℃℃℃))))
(Ta=25(Ta=25
℃
℃
-
Item Symbol Condition Min. Typ. Max. Unit
DC Forward Voltage VF
DC Reverse Current IR VR=5V - - 10 µA
Luminous Flux
Color Temperature
Chromaticity
Coordinates*
Φ
CCT
x IF=700mA
y IF=700mA
IF=350mA 3.0 3.3 4.0 V
IF=700mA 3.5 3.8 4.5 V
v
IF=700mA 180 200 - lm
IF=700mA
6500
-
- 0.31 - -
- 0.33 - -
- K
■
Directivity
0
0
■
Forward Operating Current (DC)
800
700
(mA)
600
F
500
400
300
200
Forward Current, I
100
0
R
J-A
=30 /W
R
J-A
=25 /W
R
J-A
=20 /W
R
J-A
=15 /W
0 25 50
Ambient Temperature, T
℃
℃
℃
℃
75
A
( )
℃
100
125
50% Power Angle 2θ
Note: Don’t drive at rated current more than 5s without heat sink for Xeon 3 emitter series.
LED & Application Technologies
1/2
IF=700mA
- 140 - deg
