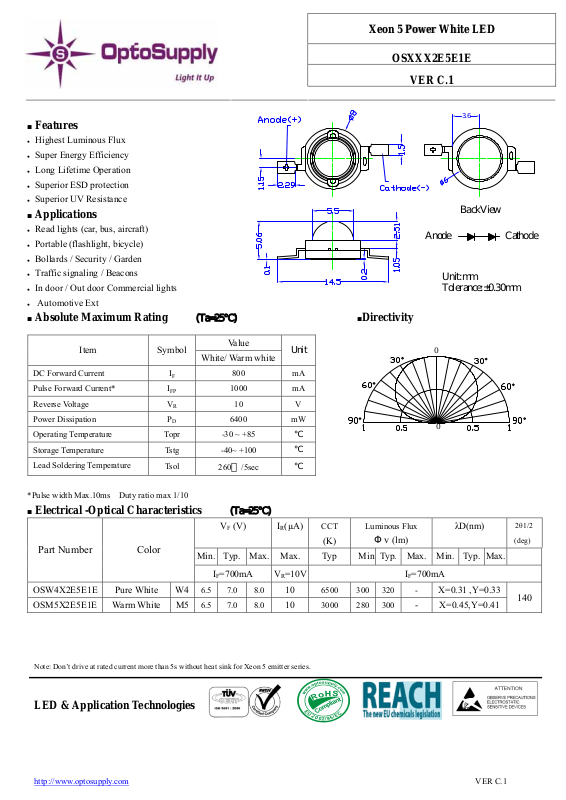

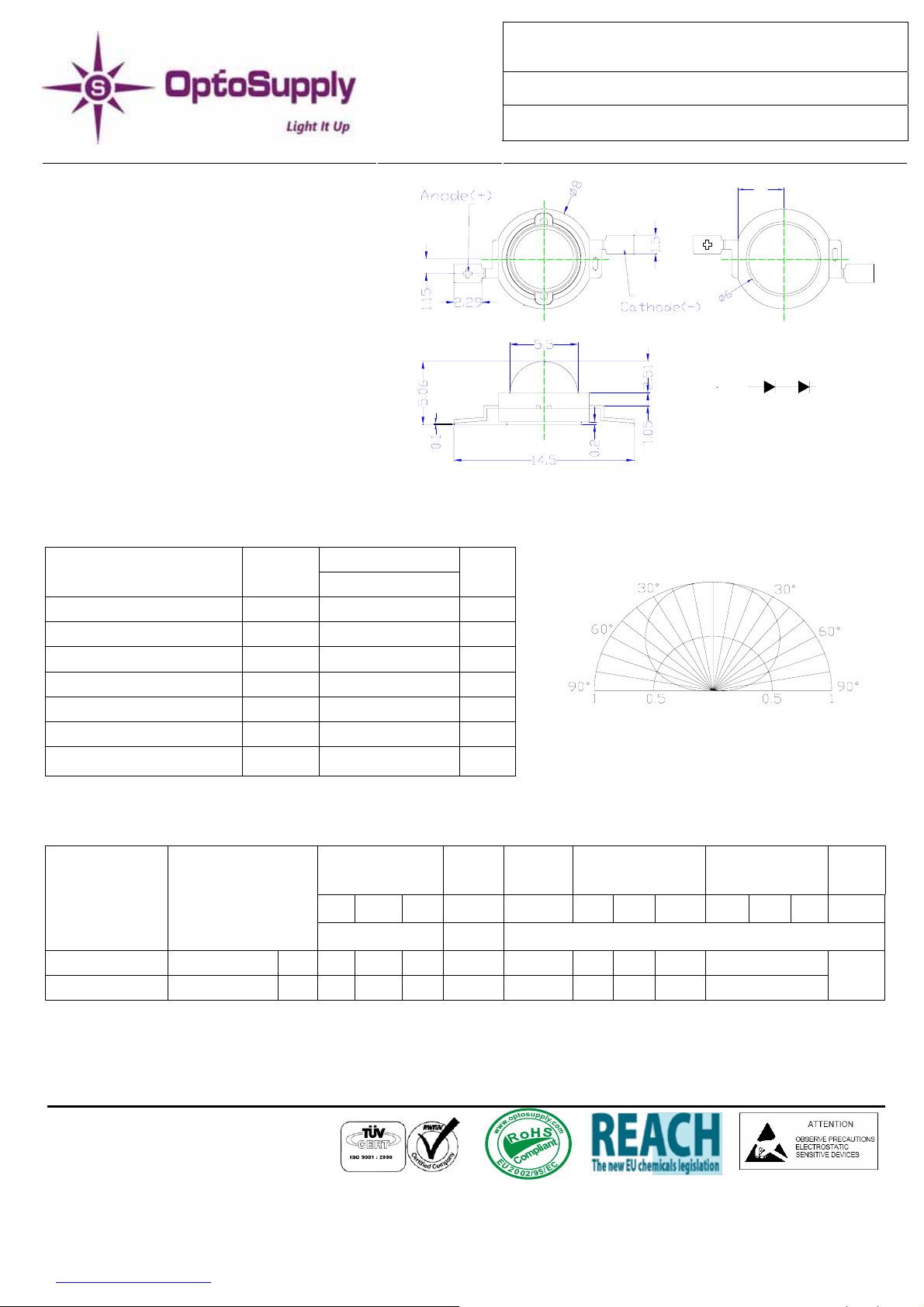

XXeeoonn 55 PPoowweerr WWhhiittee LLEEDD
■
Features
●
Highest Luminous Flux
●
Super Energy Efficiency
●
Long Lifetime Operation
●
Superior ESD protection
●
Superior UV Resistance
■
Applications
●
Read lights (car, bus, aircraft)
●
Portable (flashlight, bicycle)
●
Bollards / Security / Garden
●
Traffic signaling / Beacons
●
In door / Out door Commercial lights
●
Automotive Ext
■
Absolute Maximum Rating
DC Forward Current IF 800 mA
Pulse Forward Current* IFP 1000 mA
Reverse Voltage VR 10 V
Power Dissipation PD 6400 mW
Operating Temperature Topr -30 ~ +85
Storage Temperature Tstg -40~ +100
Lead Soldering Temperature
*Pulse width Max.10ms Duty ratio max 1/10
■
Electrical -Optical Characteristics
Part Number Color
(Ta=25℃)
Item Symbol
Va l ue
White/ Warm white
Tso l
260
℃
(Ta=25℃)
VF (V) IR(µA)
Min. Typ. Max. Max. Typ Min Typ. Max. Min. Typ. Max.
/5sec
Unit
℃
℃
℃
CCT
(K)
■
Directivity
Luminous Flux
OSXXX2E5E1E
VER C.1
Anode Cathode
Φv
(lm)
3.6
BackView
Unit:mm
Tolerance:±0.30mm
0
0
λD(nm)
2θ1/2
(deg)
IF=700mA VR=10V IF=700mA
OSW4X2E5E1E
OSM5X2E5E1E Warm White M5
Pure White W4
6.5 7.0 8.0
6.5 7.0 8.0
10
10
6500
3000
300
280
320
300
-
X=0.31 ,Y=0.33
-
X=0.45,Y=0.41
Note: Don’t drive at rated current more than 5s without heat sink for Xeon 5 emitter series.
LED & Application Technologies
http://www.optosupply.com VER C.1
140
Page 2
XXeeoonn 55 PPoowweerr WWhhiittee LLEEDD
OSXXX2E5E1E
VER C.1
■ Handling of Silicone Lens LEDs
Notes for handling of silicone lens LEDs
● Please do not use a force of over 3kgf impact or pressure on the silicone lens, otherwise it will cause a catastrophic
failure.

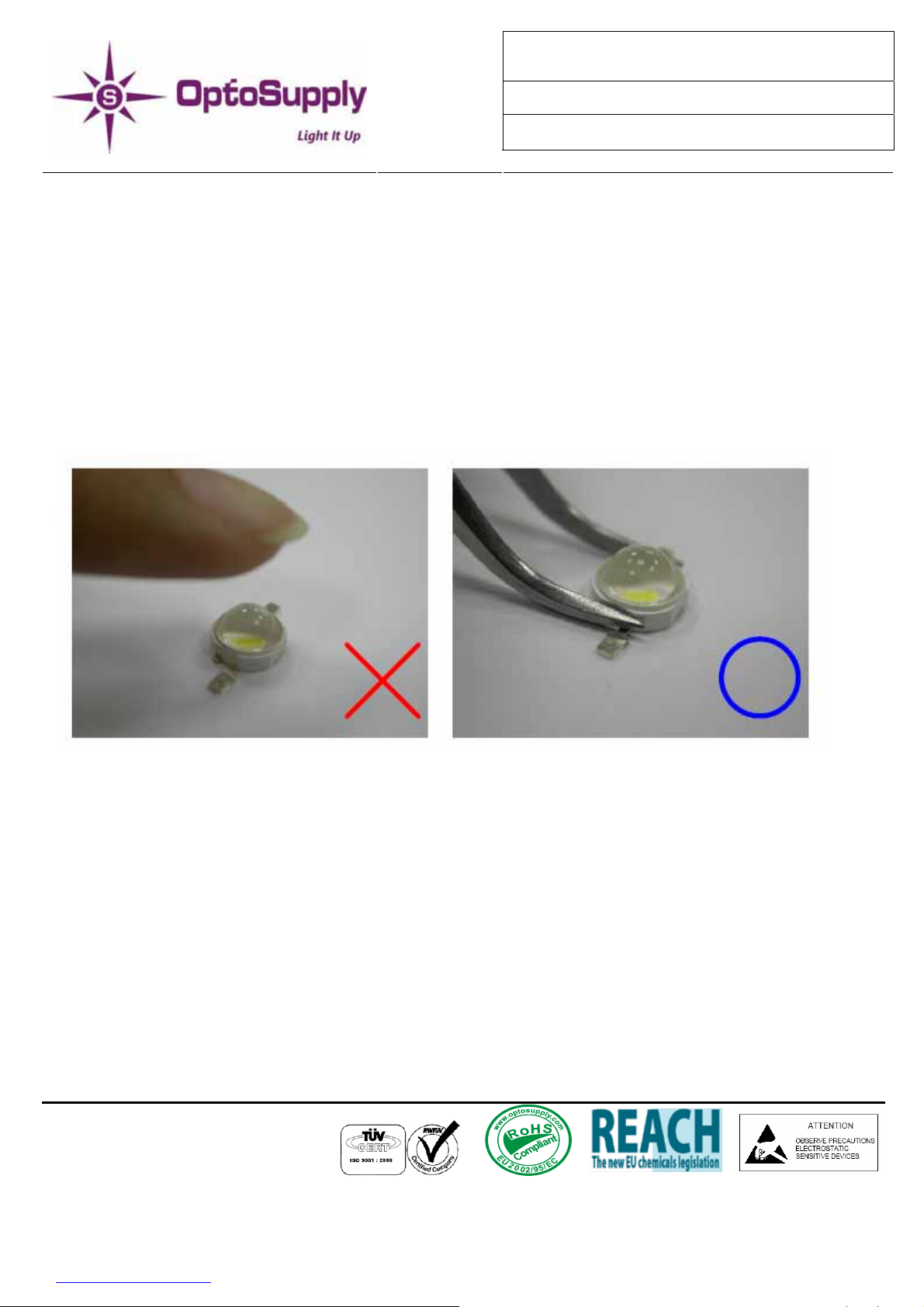

● The LEDs should only be picked up by making contact with the sides of the LED body.
● Avoid touching the silicone lens especially by sharp tools such as Tweezers.
● Avoid leaving fingerprints on the silicone lens.
● Please store the LEDs away from dusty areas or seal the product against dust.
● When populating boards in SMT production, there are basically no restrictions regarding the form of the pick and
place nozzle, except that mechanical pressure on the silicone lens must be prevented.
● Please do not mold over the silicone lens with another resin. (epoxy, urethane, etc)
