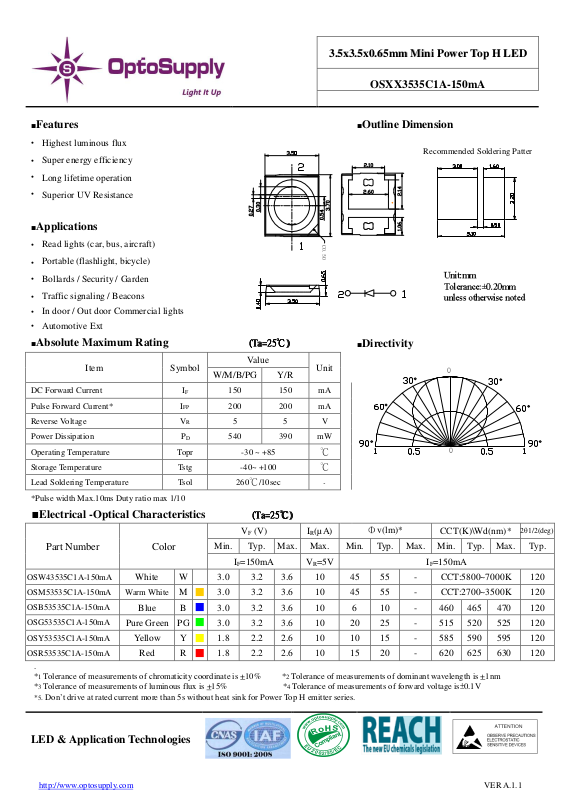

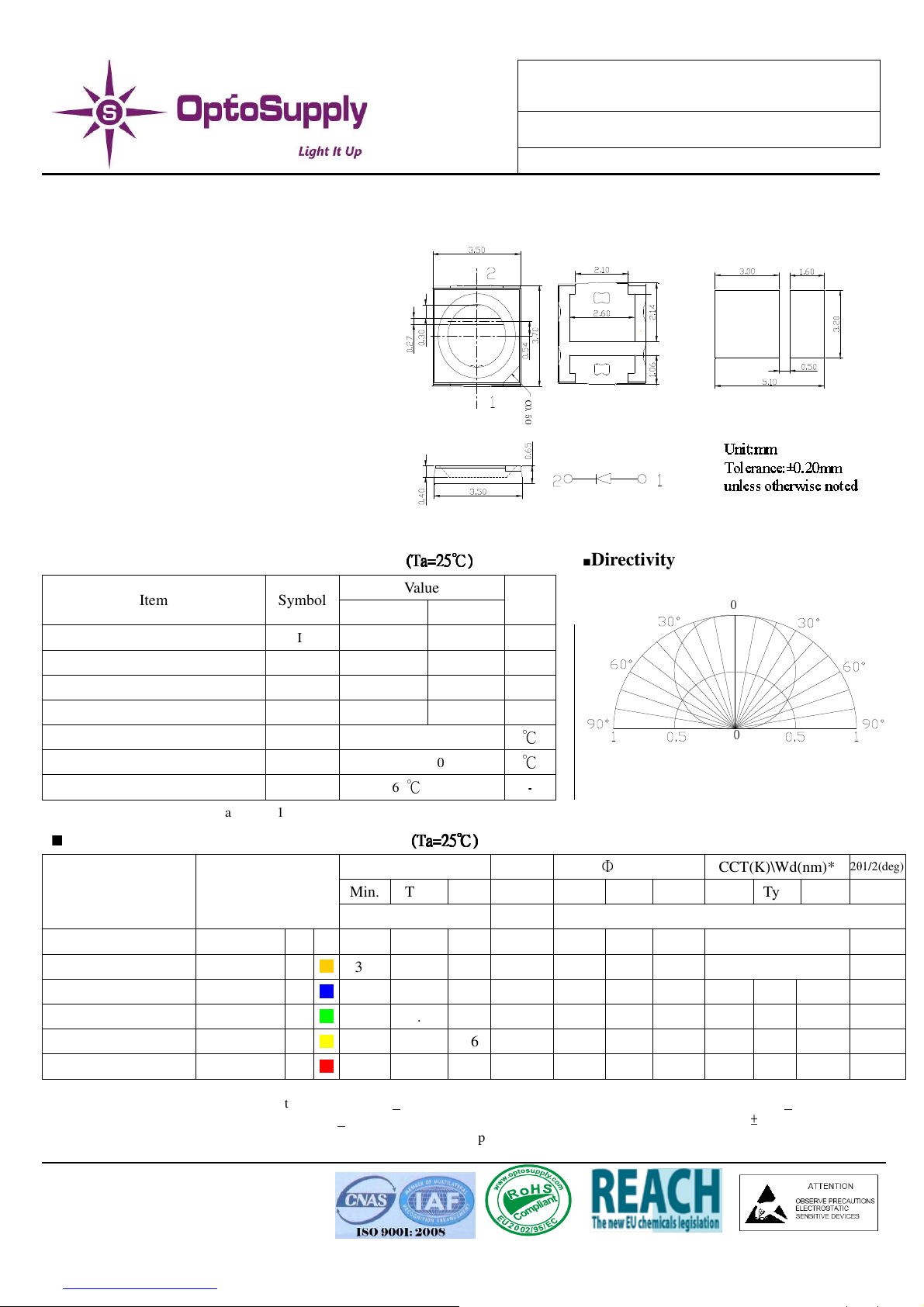

Page 1
■
■
■
■
■
■
■
Features
●
Highest luminous flux
●
Super energy efficiency
●
Long lifetime operation
●
Superior UV Resistance
■
Applications
●
Read lights (car, bus, aircraft)
●
Portable (flashlight, bicycle)
●
Bollards / Security / Garden
●
Traffic signaling / Beacons
●
In door / Out door Commercial lights
●
Automotive Ext
33..55xx33..55xx00..6655mmmm MMiinnii PPoowweerr TToopp HH LLEEDD
OSXX3535C1A-150mA
C
0
.
5
0
■
Outline Dimension
Recommended Soldering Patter
■
Absolute Maximum Rating
(Ta=25
(Ta=25℃℃℃℃))))
(Ta=25(Ta=25
■
Directivity
Value
Item Symbol
W/M/B/PG
DC Forward Current IF 150 150 mA
Pulse Forward Current* IFP 200 200 mA
Reverse Voltage VR 5 5 V
Power Dissipation PD 540 390 mW
Operating Temperature Topr -30 ~ +85
Storage Temperature Tstg -40~ +100
Lead Soldering Temperature Tsol 260℃/10sec
*Pulse width Max.10ms Duty ratio max 1/10
■
Electrical -Optical Characteristics
Y/R
(Ta=25
(Ta=25℃℃℃℃))))
(Ta=25(Ta=25
VF (V) IR(µA)
Part Number Color
Min. Typ. Max. Max. Min. Typ. Max. Min. Typ. Max. Typ.
IF=150mA VR=5V
OSW43535C1A-150mA
OSM53535C1A-150mA Warm White
OSB53535C1A-150mA
OSG53535C1A-150mA
OSY53535C1A-150mA
OSR53535C1A-150mA
.
*1 Tolerance of measurements of chromaticity coordinate is +10% *2 Tolerance of measurements of dominant wavelength is +1nm
*3 Tolerance of measurements of luminous flux is +15% *4 Tolerance of measurements of forward voltage is±0.1V
*5.
Don’t drive at rated current more than 5s without heat sink for Power Top H emitter series.
White W
M
Blue B
Pure Green PG
Yellow Y
Red R
3.0 3.2 3.6
3.0 3.2 3.6
3.0 3.2 3.6
3.0 3.2 3.6
1.8 2.2 2.6
1.8 2.2 2.6
Unit
℃
℃
-
Φ
v(lm)*
0
0
CCT(K)\Wd(nm)*
IF=150mA
10 45 55 - CCT:5800~7000K 120
10 45 55 - CCT:2700~3500K 120
10 6 10 - 460 465 470 120
10 20 25 - 515 520 525 120
10 10 15 - 585 590 595 120
10 15 20 - 620 625 630 120
2θ1/2(deg)
LED & Application Technologies
http://www.optosupply.com VER A.1.1
Page 2
33..55xx33..55xx00..6655mmmm MMiinnii PPoowweerr TToopp HH LLEEDD
OSXX3535C1A-150mA

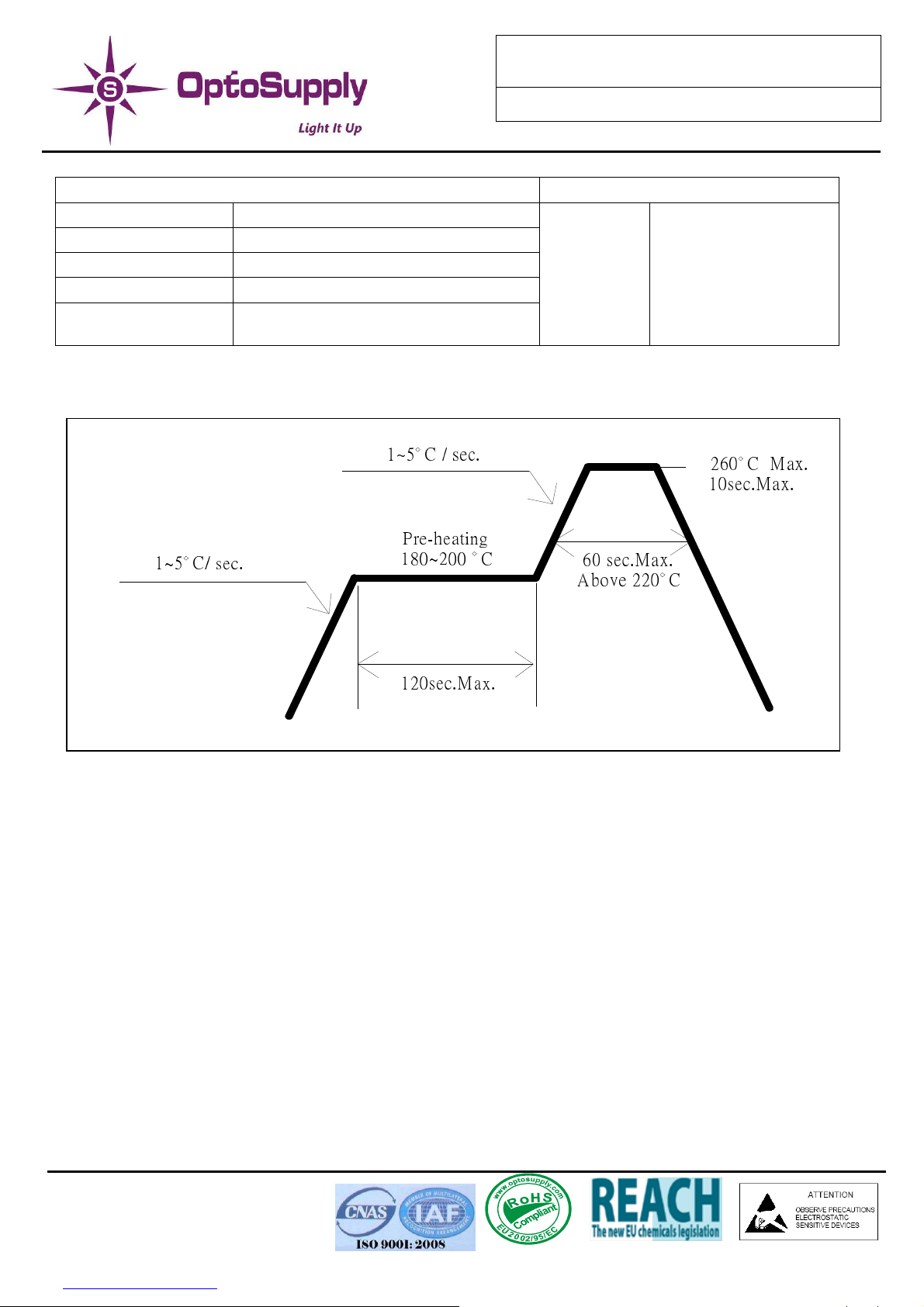

■ Soldering Conditions
Reflow Soldering Hand Soldering
Pre-Heat 180 ~ 200°C
Pre-Heat Time 120 sec. Max.
Peak temperature 260°C Max.
Dipping Time
Condition Refer to Temperature-profile
10 sec. Max.
Temperature
Soldering time
• Reflow Soldering Condition(Lead-free Solder)
1~5 C / sec.
1~5 C/ sec.
Pre-heating
180~200 C
60 sec.Max.
Above 220 C
120sec.Max.
*Recommended soldering conditions vary according to the type of LED
*Although the recommended soldering conditions are specified in the above table, reflow, or hand soldering at the
lowest possible temperature is desirable for the LEDs.
*A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.
•All SMD LED products are pb-free soldering available.
• Occasionally there is a brightness decrease caused by the influence of heat or ambient atmosphere during air reflow.
It is recommended that the User use the nitrogen reflow method.
• Repairing should not be done after the LEDs have been soldered. When repairing is unavoidable a
double-head soldering iron should be used. It should be confirmed beforehand whether the characteristics of the
LEDs will or will not be damaged by repairing.
• Reflow soldering should not be done more than two times.
• When soldering, do not put stress on the LEDs during heating.
• After soldering, do not warp the circuit board.
350°C Max.
3 sec. Max.
(one time only)
260 C Max.
10sec.Max.
LED & Application Technologies
http://www.optosupply.com VER A.1.1
Page 3

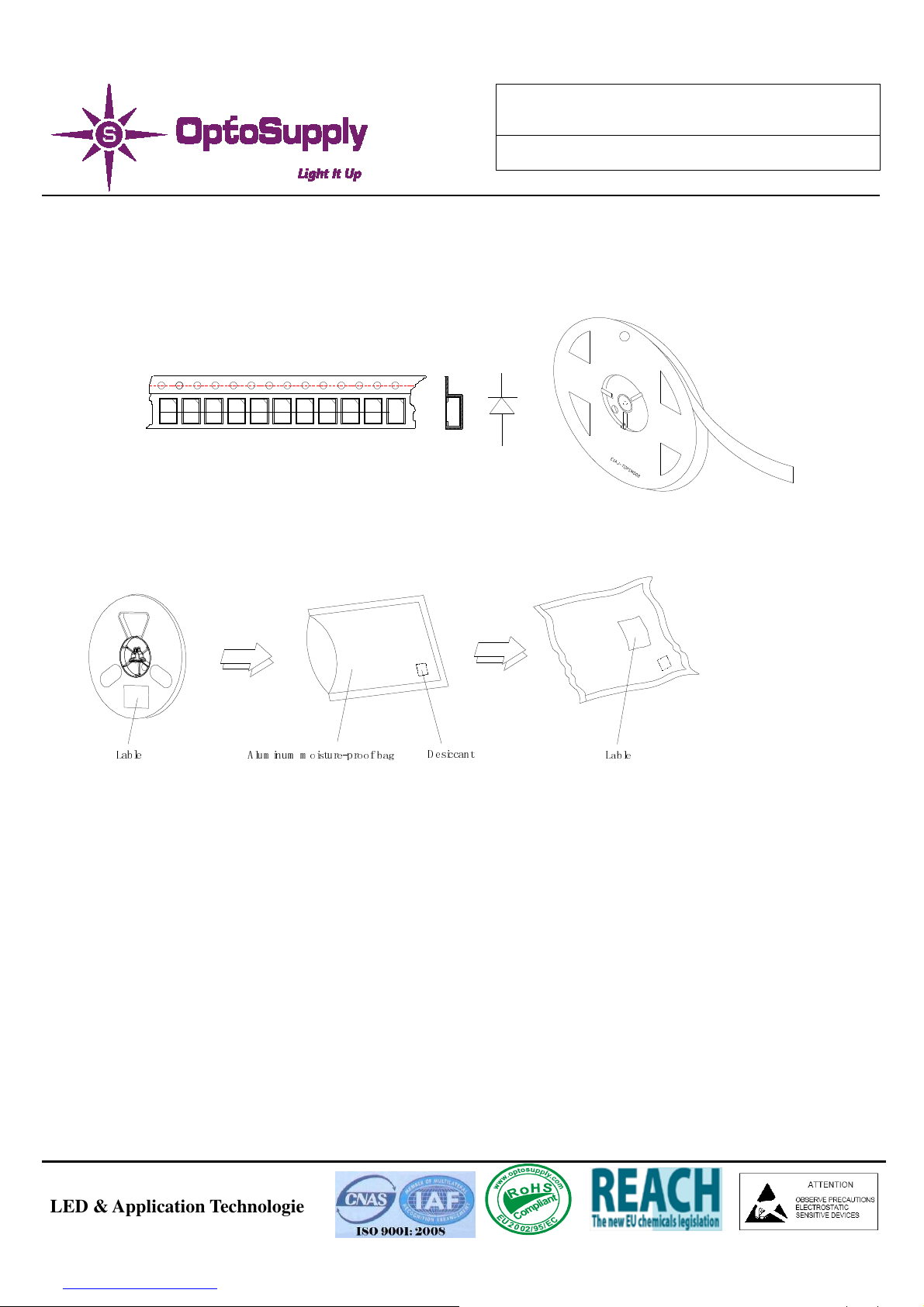

PACKING
Tape leader and reel (5000pcs/Reel)
Moisture resistant packing
33..55xx33..55xx00..6655mmmm MMiinnii PPoowweerr TToopp HH LLEEDD
OSXX3535C1A-150mA
Lable
Alum inum m oisture-proof bag
Desiccant
Lable
LED & Application Technologies
http://www.optosupply.com VER A.1.1
