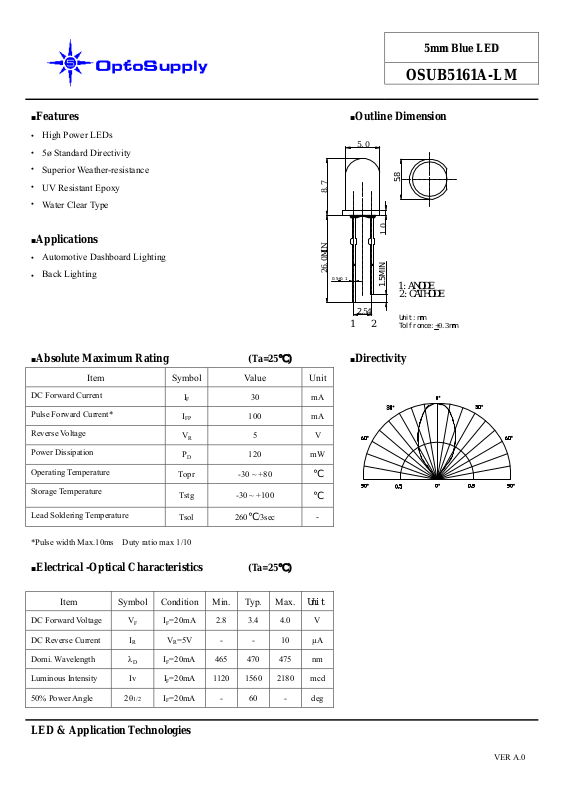

Blue LLEEDD
m
55mmm
■Features
●
High Power LEDs
●
5ø Standard Directivity
●
Superior Weather-resistance
●
UV Resistant Epoxy
●
Water Clear Type
■Applications
●
Automotive Dashboard Lighting
●
Back Lighting
■Outline Dimension
5.0
8.726.0MIN
0.5+0.1
OSUB5161A-LM
5.8
1.0
1.5MIN
1:ANODE
2:CATHODE
2.54
1
2
Unit:mm
Tolfronce:
+0.3mm
■Absolute Maximum Rating (Ta=25℃)
Item Symbol Value Unit
DC Forward Current
Pulse Forward Current*
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Temperature
*Pulse width Max.10ms Duty ratio max 1/10
■Electrical -Optical Characteristics (Ta=25℃)
I
30 mA
F
I
100 mA
FP
V
5 V
R
P
120 mW
D
Topr -30 ~ +80
Tstg -30 ~ +100
Tsol
260
℃/3sec
Item Symbol Condition Min. Typ. Max.
DC Forward Voltage VF I
=20mA 2.8 3.4 4.0 V
F
■Directivity
℃
℃
-
Unit
DC Reverse Current IR V
Domi. Wavelength λD I
Luminous Intensity Iv IF=20mA 1120 1560 2180 mcd
50% Power Angle 2θ1/2 IF=20mA - 60 - deg
=5V - - 10 µA
R
=20mA 465 470 475 nm
F
LED & Application Technologies
VER A.0
