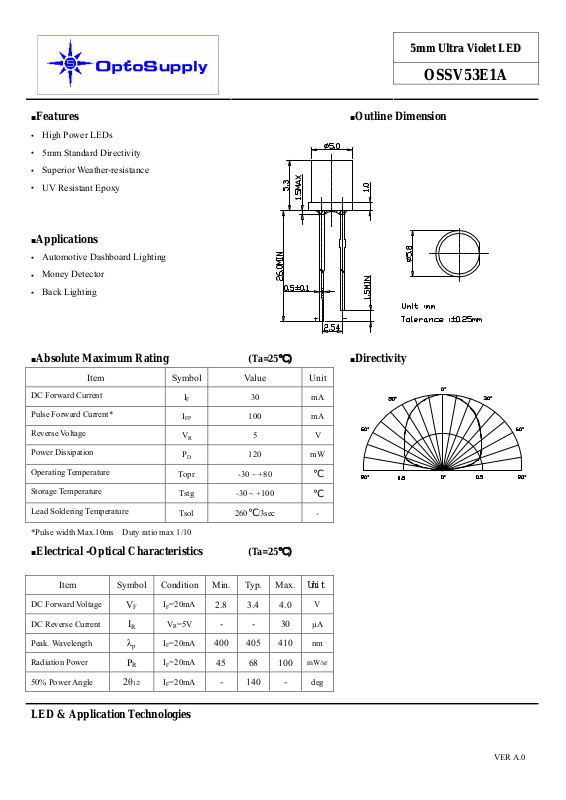

Page 1
■Features
●
High Power LEDs
●
5mm Standard Directivity
●
Superior Weather-resistance
●
UV Resistant Epoxy
■Applications
●
Automotive Dashboard Lighting
●
Money Detector
●
Back Lighting
■Outline Dimension
55mmmm UUllttrraa VViioolleett LLEEDD
OSSV53E1A
■Absolute Maximum Rating (Ta=25℃)
Item Symbol Value Unit
DC Forward Current
Pulse Forward Current*
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Temperature
*Pulse width Max.10ms Duty ratio max 1/10
■Electrical -Optical Characteristics (Ta=25℃)
I
30 mA
F
I
100 mA
FP
V
5 V
R
P
120 mW
D
Topr -30 ~ +80
Tstg -30 ~ +100
Tsol
260
℃/3sec
Item Symbol Condition Min. Typ. Max.
■Directivity
℃
℃
-
Unit
DC Forward Voltage
DC Reverse Current
Peak. Wavelength
Radiation Power
50% Power Angle
VF
IR
λp
PR
2θ1/2
IF=20mA
VR=5V
IF=20mA
IF=20mA
IF=20mA
LED & Application Technologies
2.8 3.4 4.0
- - 30
400 405 410
45 68 100
- 140 -
V
µA
nm
mW/sr
deg
VER A.0
