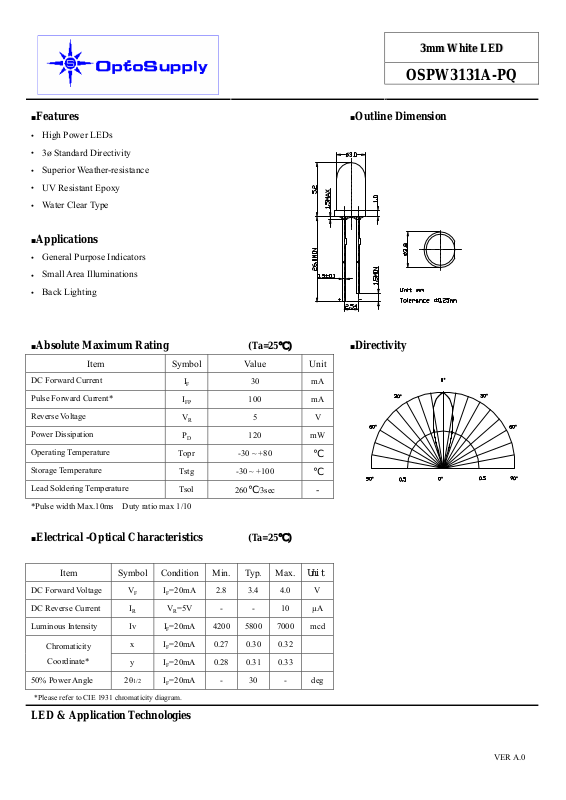

Page 1
33mmmm WWhhiittee LLEEDD
■Features
●
High Power LEDs
●
3ø Standard Directivity
●
Superior Weather-resistance
●
UV Resistant Epoxy
●
Water Clear Type
■Applications
●
General Purpose Indicators
●
Small Area Illuminations
●
Back Lighting
■Absolute Maximum Rating (Ta=25℃)
Item Symbol Value Unit
OSPW3131A-PQ
■Outline Dimension
■Directivity
DC Forward Current
Pulse Forward Current*
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Temperature
*Pulse width Max.10ms Duty ratio max 1/10
■Electrical -Optical Characteristics (Ta=25℃)
Item Symbol Condition Min. Typ. Max.
DC Forward Voltage VF I
DC Reverse Current IR V
Luminous Intensity Iv IF=20mA 4200 5800 7000 mcd
Chromaticity
Coordinate*
x IF=20mA 0.27 0.30 0.32
y I
IF 30 mA
IFP 100 mA
VR 5 V
PD 120 mW
Topr -30 ~ +80
Tstg -30 ~ +100
Tsol
℃/3sec -
260
℃
℃
Unit
=20mA 2.8 3.4 4.0 V
F
=5V - - 10 µA
R
=20mA 0.28 0.31 0.33
F
50% Power Angle 2θ1/2 IF=20mA - 30 - deg
*Please refer to CIE 1931 chromaticity diagram.
LED & Application Technologies
VER A.0
