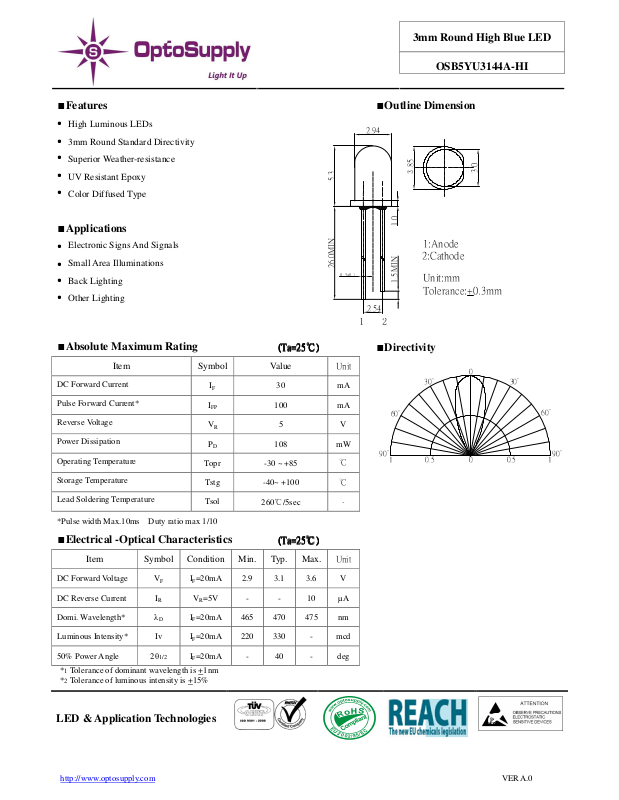

Page 1
3mm Round High Blue LED
■
Features
●
High Luminous LEDs
●
3mm Round Standard Directivity
●
Superior Weather-resistance
●
UV Resistant Epoxy
●
Color Diffused Type
■
Applications
●
Electronic Signs And Signals
●
Small Area Illuminations
●
Back Lighting
●
Other Lighting
■
Absolute Maximum Rating
(Ta=25
(Ta=25℃℃℃℃))))
(Ta=25(Ta=25
OSB5YU3144A-HI
■
Outline Dimension
2.94
5
8
.
0
.
1
N
I
M
5
.
1
3
1:Anode
2:Cathode
Unit:mm
3
.
5
N
I
M
0
.
6
2
0.5+0.1
Tolerance:+0.3mm
2.54
2
1
■
Directivity
0
.
3
Item Symbol
DC Forward Current
Pulse Forward Current*
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Lead Soldering Temperature
*Pulse width Max.10ms Duty ratio max 1/10
■
Electrical -Optical Characteristics
IF 30 mA
IFP 100 mA
VR 5 V
PD 108 mW
Topr -30 ~ +85
Tstg -40~ +100
Tsol
Value
260℃/5sec
(Ta=25
(Ta=25℃℃℃℃))))
(Ta=25(Ta=25
Item Symbol Condition Min. Typ. Max.
DC Forward Voltage VF IF=20mA 2.9 3.1 3.6 V
DC Reverse Current IR VR=5V - - 10 µA
Domi. Wavelength* λD IF=20mA 465 470 475 nm
Luminous Intensity* Iv IF=20mA 220 330 - mcd
50% Power Angle 2θ
*1 Tolerance of dominant wavelength is +1nm
*2 Tolerance of luminous intensity is +15%
1/2
IF=20mA
- 40 - deg
Unit
℃
℃
-
Unit
0
30°
60°
90°
1 1
0.5
0
30°
0.5
60°
90°
LED & Application Technologies
http://www.optosupply.com VER A.0
