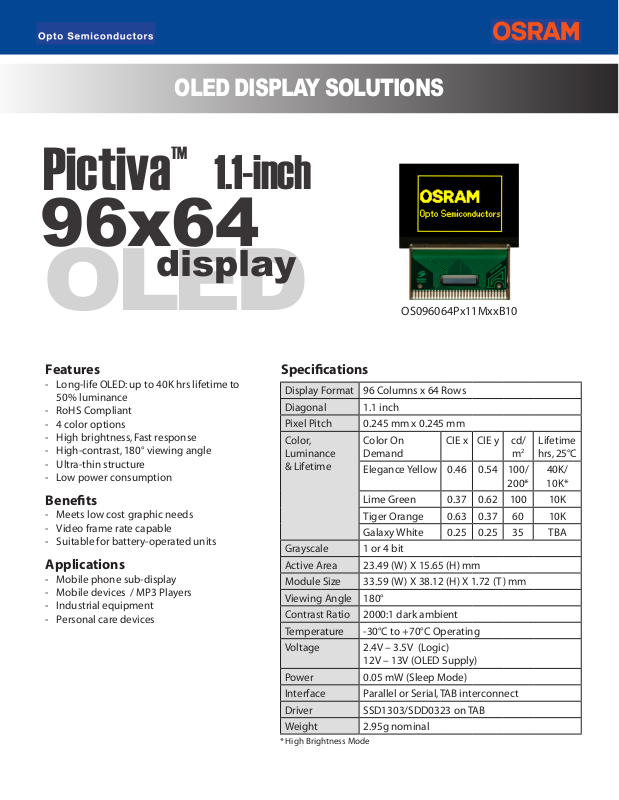

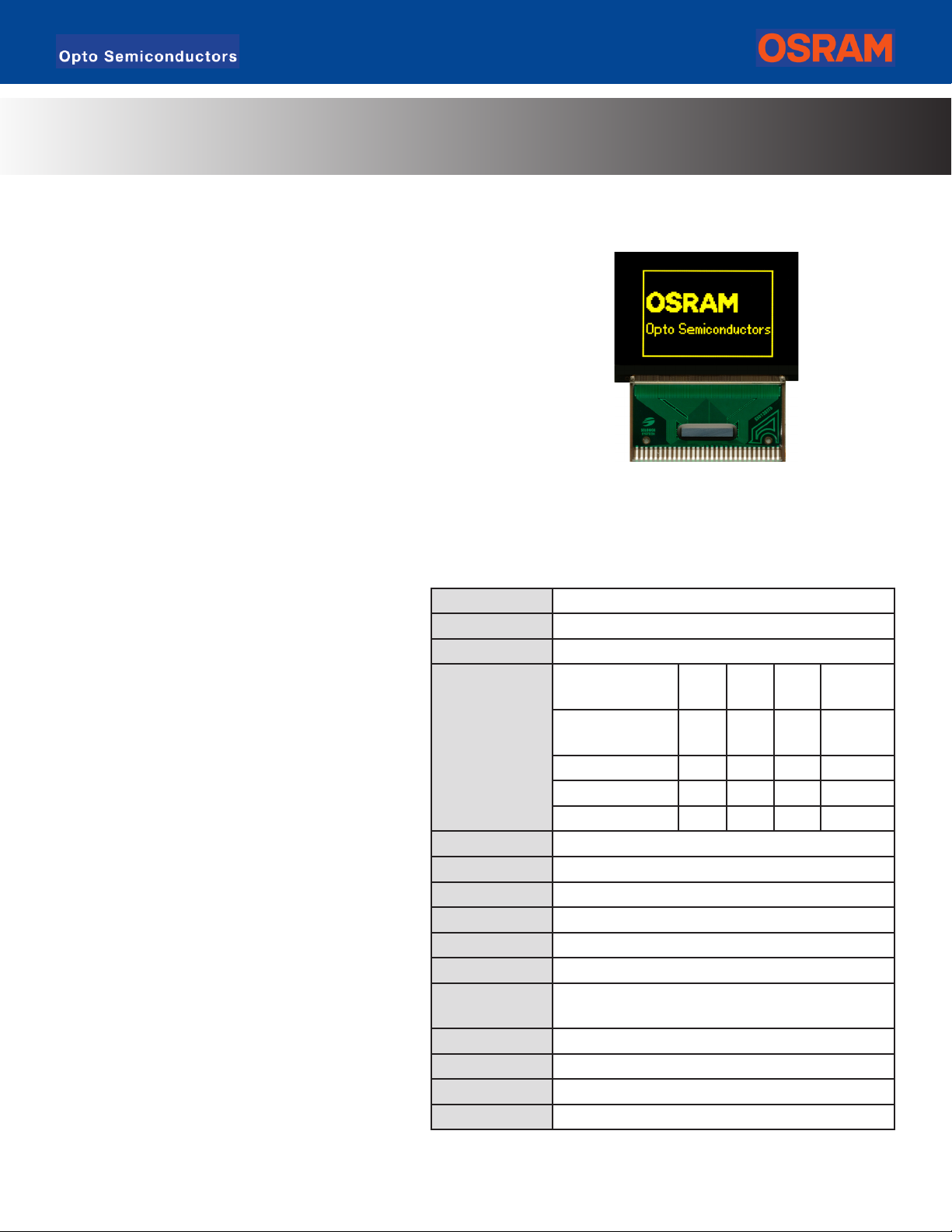

Page 1
OLED DISPLAY SOLUTIONS
TM
Pictiva
1.1-inch
96x64
display
OLED
Features
Long-life OLED: up to 40K hrs lifetime to
50% luminance
RoHS Compliant
4 color options
High brightness, Fast response
High-contrast, 180° viewing angle
Ultra-thin structure
Low power consumption
-
Benefits
Meets low cost graphic needs
Video frame rate capable
Suitable for battery-operated units
-
Applications
Mobile phone sub-display
Mobile devices / MP3 Players
Industrial equipment
Personal care devices
-
Specifications
Display Format 96 Columns x 64 Rows
Diagonal 1.1 inch
Pixel Pitch 0.245 mm x 0.245 mm
Color,
Luminance
& Lifetime
Grayscale 1 or 4 bit
Active Area 23.49 (W ) X 15.65 (H) mm
Module Size 33.59 (W ) X 38.12 (H) X 1.72 (T) mm
Viewing Angle 180°
Contrast Ratio 2000:1 dark ambient
Temperature -30°C to +70°C Operating
Voltage 2.4V – 3.5V (Logic)
Power 0.05 mW (Sleep Mode)
Interface Parallel or Serial, TAB interconnect
Driver SSD1303/SDD0323 on TAB
Weight 2.95g nominal
* High Brightness Mode
OS096064Px11MxxB10
Color On
Demand
Elegance Yellow 0.46 0.54 100/
Lime Green 0.37 0.62 100 10K
Tiger Orange 0.63 0.37 60 10K
Galaxy White 0.25 0.25 35 TBA
12V – 13V (OLED Supply)
CIE x CIE y cd/
m
200*
2
Lifetime
hrs, 25°C
40K/
10K*
Page 2

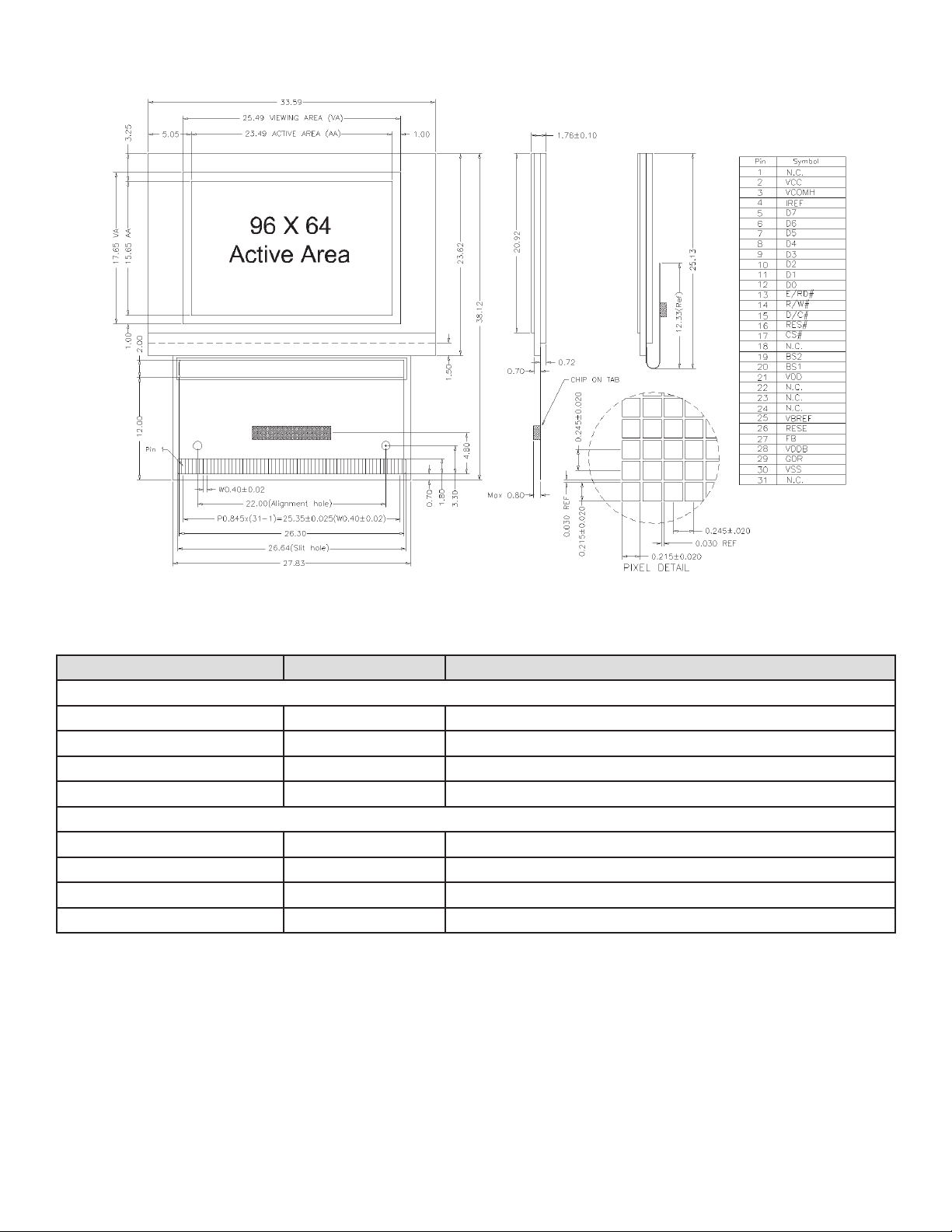

Mechanical Dimensions and Pin Description
Ordering Information
Part Number Order Number Description
1-bit
OS096064PN11MY0B10 Q65110A3348 PictivaTM 1.1 inch 96x64 OLED Display, Elegance Yellow
OS096064PN11MG1B10 Q65110A4052 PictivaTM 1.1 inch 96x64 OLED Display, Lime Green
OS096064PN11MO1B10 Q65110A4053 PictivaTM 1.1 inch 96x64 OLED Display, Tiger Orange
OS096064PN11MW1B10 Q65110A4163 PictivaTM 1.1 inch 96x64 OLED Display, Galaxy White
4-bit
OS096064PK11MY0B10 Q65110A4054 PictivaTM 1.1 inch 96x64 OLED Display, Elegance Yellow
OS096064PK11MG1B10 Q65110A4585 PictivaTM 1.1 inch 96x64 OLED Display, Lime Green
OS096064PK11MO1B10 Q65110A4586 PictivaTM 1.1 inch 96x64 OLED Display, Tiger Orange
OS096064PK11MW1B10 Q65110A4701 PictivaTM 1.1 inch 96x64 OLED Display, Galaxy White
Contact Information
OSRAM Opto Semiconductors
Asia: +60(4) 631-8100 [email protected]
Europe: +49 (0)941-850-3535 [email protected]
North America: +1-888-446-7726 ext.4310 [email protected]
Web: www.pictiva.com
©2005 OSRAM Opto Semiconductors. OSRAM, the OSRAM logo and Pictiva are trademarks and/or service marks of OSRAM Opto Semiconductros, Inc. Other brands or products are trademarks of their respective holders. OSRAM holds a license from Cambridge Display Technology to manufacture and sell polymer light emitting displays. The specifications contained in
this document are subject to change without notice. OSRAM Opto Semiconductor, Inc. assumes no responsibility or liability arising out of the application or use of any legal information,
product or service described herein except as expressly agreed to in writing by OSRAM Opto Semiconductors, Inc. Customers are advised to obtain the latest version of the device specifications before relying on any published information and before placing orders for products or services. All rights reserved.
Lit# 519DS-1 updated on 12/19/05
