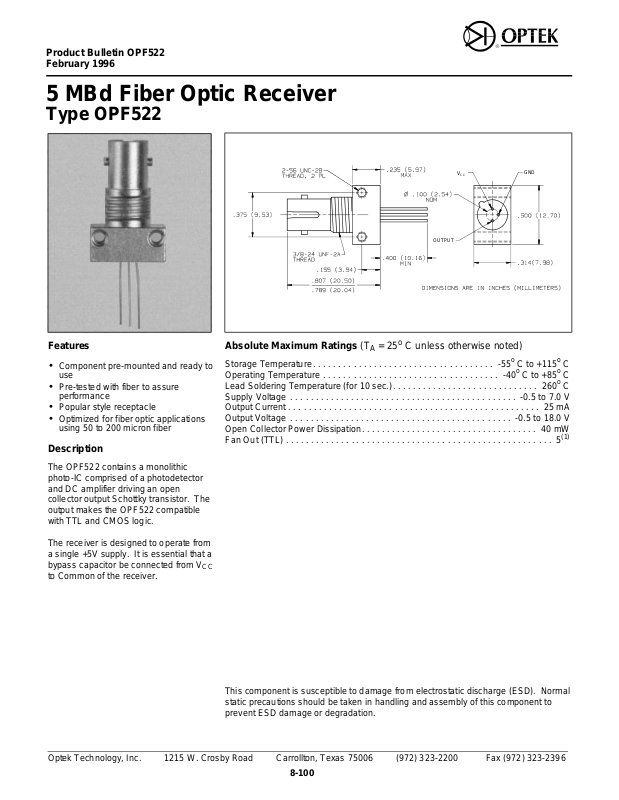

Prod uct Bul le tin OPF522
Feb ru ary 1996
5 MBd Fi ber Op tic Re ceiver
Type OPF522
Fea tures
• Component pre-mounted and ready to
use
• Pre-tested with fiber to assure
performance
• Popular style receptacle
• Optimized for fiber optic applications
using 50 to 200 micron fiber
De scrip tion

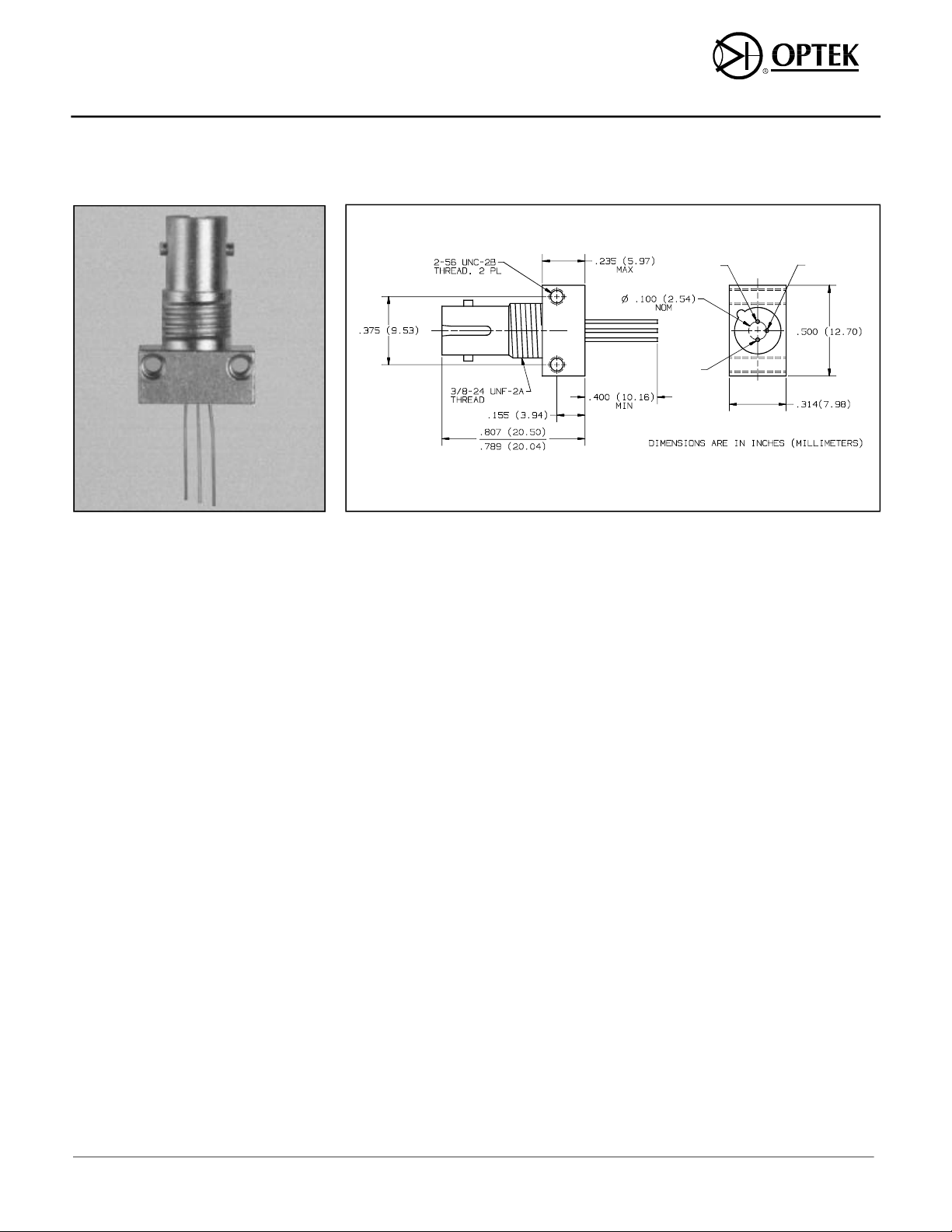

GND
OUT PUT
V
CC
Ab so lute Maxi mum Rat ings (TA = 25o C un less oth er wise noted)
Stor age Tem pera ture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55o C to +115o C
Op er at ing Tem pera ture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40o C to +85o C
Lead Sol der ing Tem pera ture (for 10 sec.). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260o C
Sup ply Volt age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 to 7.0 V
Out put Cur rent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 mA
Out put Volt age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 to 18.0 V
Open Col lec tor Power Dis si pa tion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mW
Fan Out (TTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
(1)
The OPF522 contains a monolithic
photo-IC comprised of a photodetector
and DC amplifier driving an open
collector output Schottky transistor. The
output makes the OPF522 compatible
with TTL and CMOS logic.
The receiver is designed to operate from
a single +5V supply. It is essential that a
bypass capacitor be connected from V
to Common of the receiver.
Op tek Tech nol ogy, Inc. 1215 W. Crosby Road Car roll ton, Texas 75006 (972) 323- 2200 Fax (972) 323- 2396
CC
This component is susceptible to damage from electrostatic discharge (ESD). Normal
static precautions should be taken in handling and assembly of this component to
prevent ESD damage or degradation.
8-100

Types OPF522
Elec tri cal Char ac ter is tics (TA = 25o C un less oth er wise noted)
4.75 ≤ VCC ≤ 5.25, Fi ber Sizes ≤ 100 Mi crons, N.A. ≤ 0.35, BER ≤ 10-9
Sym bol Pa rame ter Min Typ Max Units Test Con di tions
I
OH
V
OL
I
CCH
I
CCL
P
RH
P
RL
t
PLHR
t
PHLR
Notes:
(1) 8 mA load (5 x 1.6 mA), RL = 560 Ω.
(2) Meas ured at the end of 100/140 µm fi ber ca ble with a large area de tec tor.
High Level Output Current
5 250
VO = 18 V, PR < -40 dBm
µA
Low Level Output Voltage 0.4 0.5 V IO = 8 mA, PR > -24 dBm
High Level Supply Current 3.5 6.3 mA VCC = 5.25 V, PR < -40 dBm
Low Level supply Current 6.2 10 mA VCC = 5.25 V, PR > -24 dBm
Peak Input Power Level Logic HIGH -40 dBm
0.1
µW
Peak Input Power Level Logic LOW -25.4 -9.2 dBm
2.9 120
µW
-24 -10 dBm
4.0 100
µW
λp = 840 nm
λp = 840 nm, IOL = 8 mA
-40o C ≤ TA ≤ +85o C
(2)
Propagation Delay LOW to HIGH 65 ns PR = -21 dBm, Data Rate = 5 MBd
Propagation Delay HIGH to LOW 49 ns
(2)
Op tek re serves the right to make changes at any time in or der to im prove de sign and to sup ply the best prod uct pos si ble.
Op tek Tech nol ogy, Inc. 1215 W. Crosby Road Car roll ton, Texas 75006 (972)323- 2200 Fax (972)323- 2396
8-101
