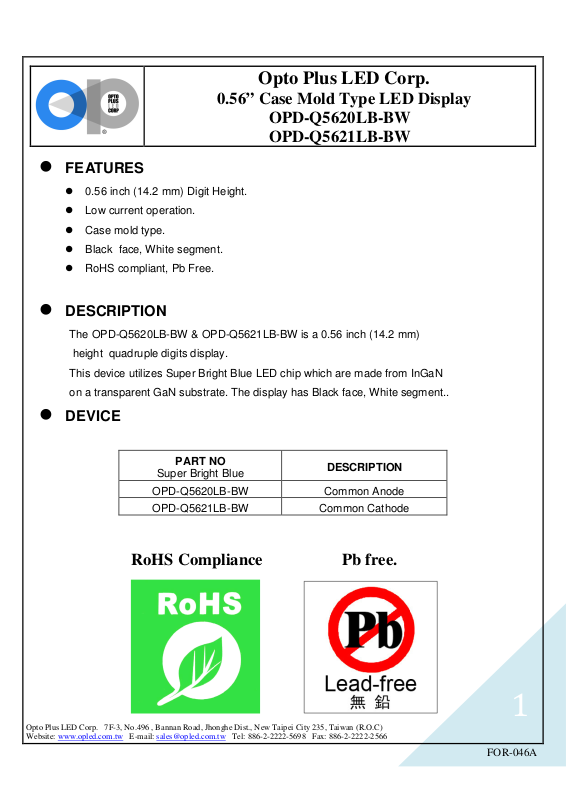

Page 1
1
FEATURES
0.56 inch (14.2 mm) Digit Height.
Low current operation.
Case mold type.
Black face, White segment.
RoHS compliant, Pb Free.
DESCRIPTION
The OPD-Q5620LB-BW & OPD-Q5621LB-BW is a 0.56 inch (14.2 mm)
height quadruple digits display.
Opto Plus LED Corp.
0.56” Case Mold Type LED Display
OPD-Q5620LB-BW
OPD-Q5621LB-BW
This device utilizes Super Bright Blue LED chip which are made from InGaN
on a transparent GaN substrate. The display has Black face, White segment..
DEVICE
PART NO
Super Bright Blue
OPD-Q5620LB-BW Common Anode
OPD-Q5621LB-BW Common Cathode
DESCRIPTION
RoHS Compliance Pb free.
Opto Plus LED Corp. 7F-3, No.496 , Bannan Road, Jhonghe Dist., New Taipei City 235, Taiwan (R.O.C)
Website:
FOR-046A
Page 2
2

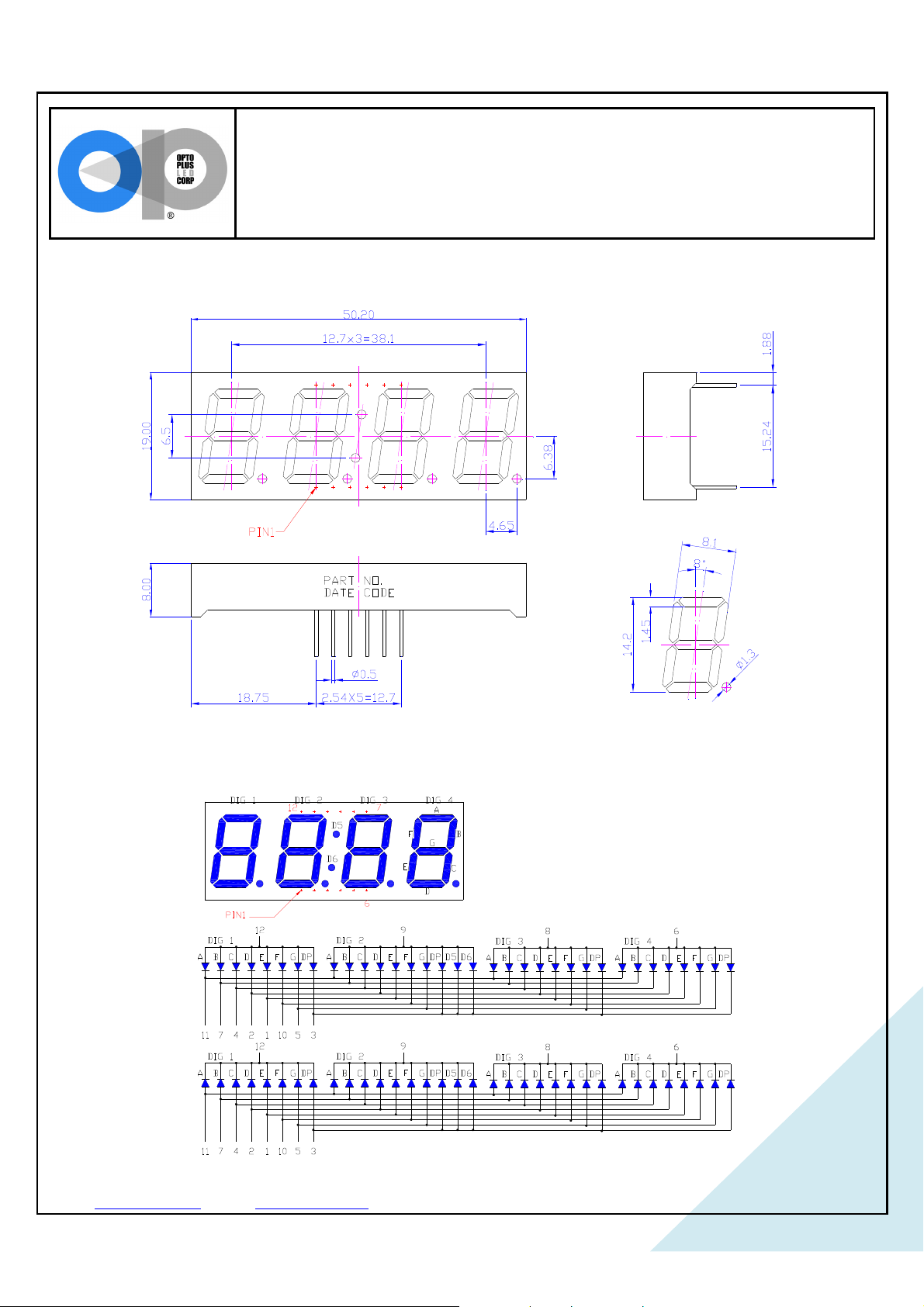

MECHANICAL DIMENSIONS
Opto Plus LED Corp.
0.56” Case Mold Type LED Display
OPD-Q5620LB-BW
OPD-Q5621LB-BW
NOTES: All dimensions are in millimeters. Tolerances are± 0.25 mm unless otherwise noted.
TYPICAL INTERNAL EQUIVALENT CIRCUIT
OPD-Q5620
OPD-Q5621
Opto Plus LED Corp. 7F-3, No.496 , Bannan Road, Jhonghe Dist., New Taipei City 235, Taiwan (R.O.C)
Website:
FOR-046A
Page 3
3
Opto Plus LED Corp.
0.56” Case Mold Type LED Display
OPD-Q5620LB-BW
OPD-Q5621LB-BW
LB: SUPER BRIGHT BLUE (InGaN/GaN)
ABSOLUTE MAXIMUM RATING AT Ta=25oC
Parameter Symbol
Power dissipation per dice PAD 120 mW
Derating liner from 25°C per dice - 0.4 mA / °C
Continuous forward current per dice IAF 30 mA
Peak current per dice (duty cycle 1/10, 1kHz) IPF 100 mA
Super Bright
Blue
Unit
Reverse voltage per dice VR 5 V
Operating temperature T
Storage temperature T
-25 to +85 °C
OPR
-25 to +85 °C
STG
ELECTRICAL - OPTICAL CHARACTERISTICS AT Ta=25oC
Characteristic Symbol Condition Min. Typ. Max. Unit
Forward voltage VF IF =20mA
Reverse current IR VR =8V - - 10 µA
Dominant wavelength
Luminous intensity IV IF =20mA
λD
IF =20mA
- 3.2 4.0 V
- 470
- 80 - mcd
- nm
Spectral radiation bandwidth
Opto Plus LED Corp. 7F-3, No.496 , Bannan Road, Jhonghe Dist., New Taipei City 235, Taiwan (R.O.C)
Website:
∆λ
IF =20mA
- 30 - nm
FOR-046A
Page 4
4
Opto Plus LED Corp.
0.56” Case Mold Type LED Display
OPD-Q5620LB-BW
OPD-Q5621LB-BW
LB: SUPER BRIGHT BLUE (InGaN/GaN) CURVE

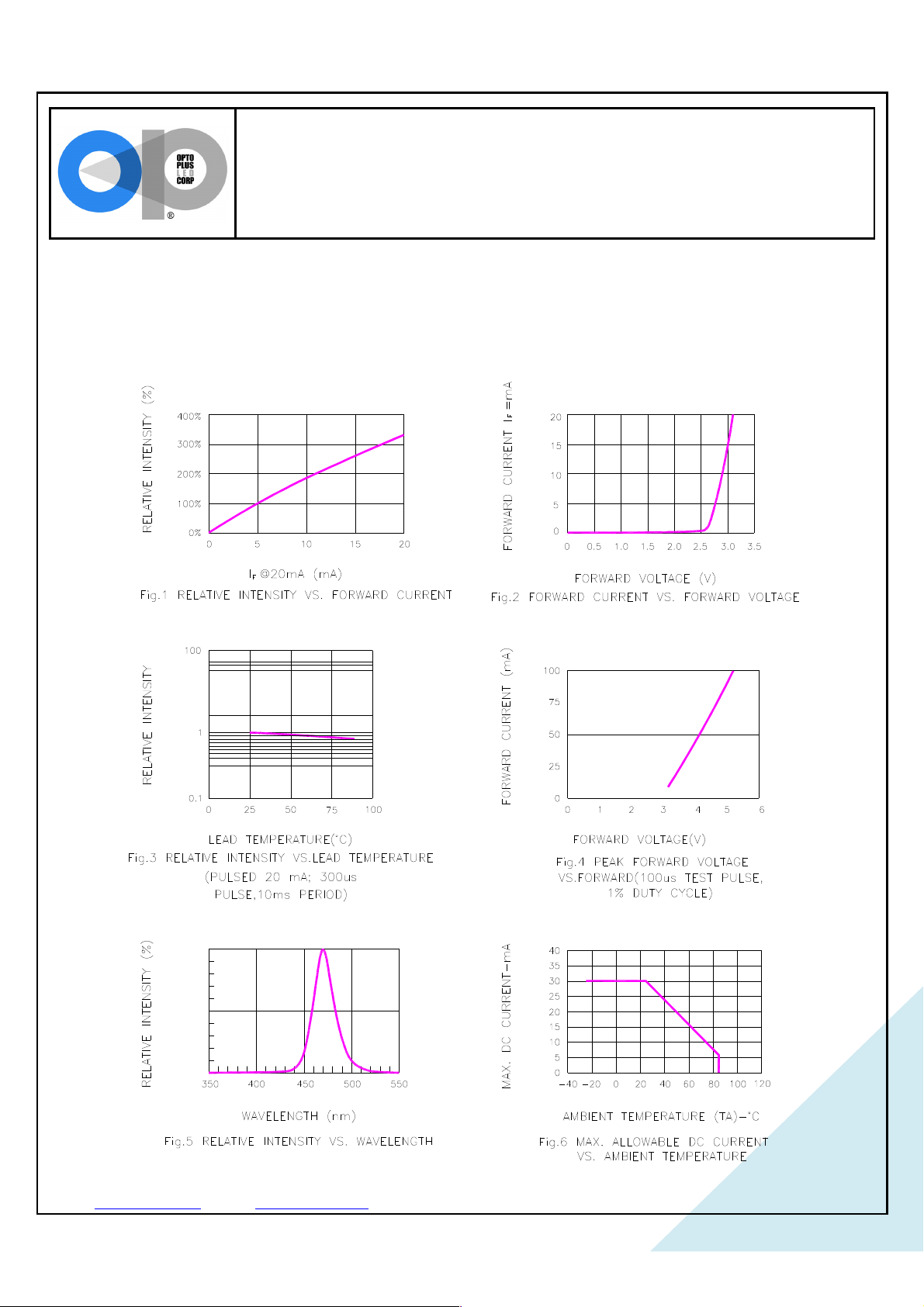

Typical Electro-optical Characteristic Curves
(25 ℃
Free Air Temperature Unless Otherwise Specified)
Opto Plus LED Corp. 7F-3, No.496 , Bannan Road, Jhonghe Dist., New Taipei City 235, Taiwan (R.O.C)
Website:
FOR-046A
Page 5
5
Opto Plus LED Corp.
0.56” Case Mold Type LED Display
OPD-Q5620LB-BW
OPD-Q5621LB-BW

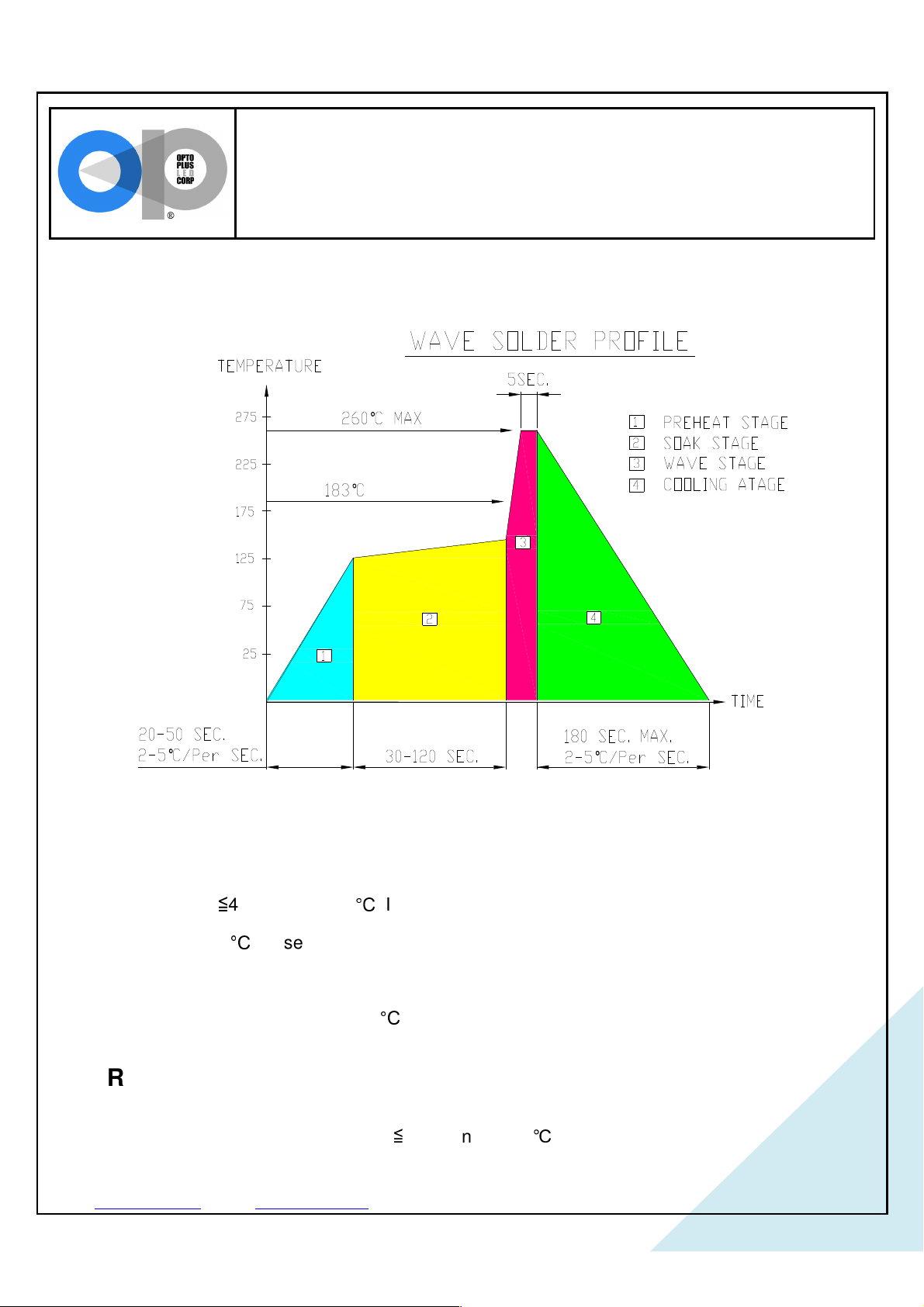

RECOMMEND SOLDERING PROFILE
SOLDERING IRON
Basic spec is ≦4 sec when 260°C. If temperature is higher, time should
be shorter (+10°C→1 sec). Power dissipation of Iron should be smaller
than 15W, and temperature should be controllable. Surface temperature
of the device should be under 230°C.
REWORK
Customer must finish rework within ≦4 sec under 245℃.
Opto Plus LED Corp. 7F-3, No.496 , Bannan Road, Jhonghe Dist., New Taipei City 235, Taiwan (R.O.C)
Website:
FOR-046A
