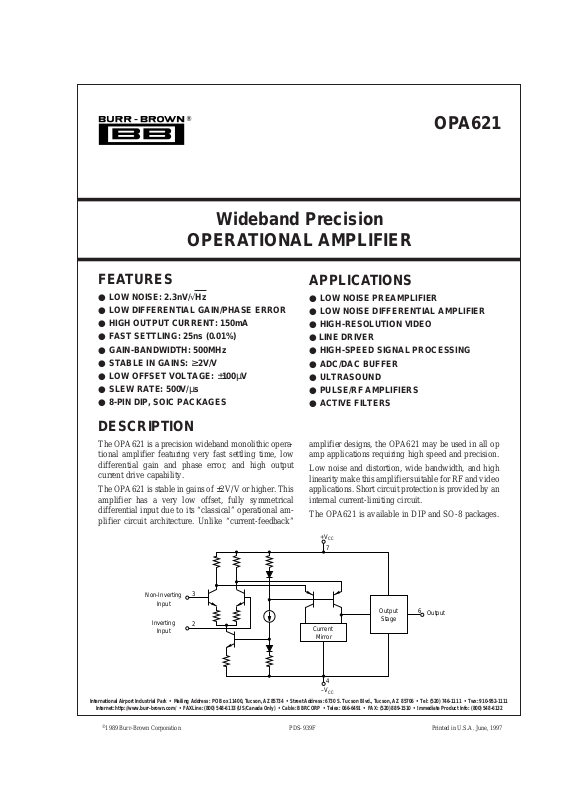

1989 Burr-Brown Corporation PDS-939F Printed in U.S.A. June, 1997
FEATURES
● LOW NOISE: 2.3nV/√Hz
● LOW DIFFERENTIAL GAIN/PHASE ERROR
● HIGH OUTPUT CURRENT: 150mA
● FAST SETTLING: 25ns (0.01%)
● GAIN-BANDWIDTH: 500MHz
● STABLE IN GAINS:
≥ 2V/V
● LOW OFFSET VOLTAGE:
±100µV
● SLEW RATE: 500V/
µs
● 8-PIN DIP, SOIC PACKAGES
Wideband Precision
OPERATIONAL AMPLIFIER
APPLICATIONS
● LOW NOISE PREAMPLIFIER
● LOW NOISE DIFFERENTIAL AMPLIFIER
● HIGH-RESOLUTION VIDEO
● LINE DRIVER
● HIGH-SPEED SIGNAL PROCESSING
● ADC/DAC BUFFER
● ULTRASOUND
● PULSE/RF AMPLIFIERS
● ACTIVE FILTERS
DESCRIPTION
The OPA621 is a precision wideband monolithic operational amplifier featuring very fast settling time, low
differential gain and phase error, and high output
current drive capability.
The OPA621 is stable in gains of ±2V/V or higher. This
amplifier has a very low offset, fully symmetrical
differential input due to its “classical” operational amplifier circuit architecture. Unlike “current-feedback”
Current
Mirror
Output
Stage
3
2
Non-Inverting
Input
Inverting
Input
7
+V
CC
4
–V
CC
6
Output
®
OPA621
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
Internet: http://www.burr-brown.com/ • FAXLine: (800) 548-6133 (US/Canada Only) • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
amplifier designs, the OPA621 may be used in all op
amp applications requiring high speed and precision.
Low noise and distortion, wide bandwidth, and high
linearity make this amplifier suitable for RF and video
applications. Short circuit protection is provided by an
internal current-limiting circuit.
The OPA621 is available in DIP and SO-8 packages.
Page 2
®
OPA621
2
OPA621KP, KU
PARAMETER CONDITIONS MIN TYP MAX UNITS
INPUT NOISE
Voltage: f
O
= 100Hz RS = 0Ω 10 nV/√Hz
f
O
= 1kHz 5.5 nV/√Hz
f
O
= 10kHz 3.3 nV/√Hz
f
O
= 100kHz 2.5 nV/√Hz
f
O
= 1MHz to 100MHz 2.3 nV/√Hz
f
B
= 100Hz to 10MHz 8.0 µV, rms
Current: f
O
= 10kHz to 100MHz 2.3 pA/√Hz
OFFSET VOLTAGE
(1)
Input Offset Voltage VCM = 0VDC ±200 ±1mV µV
Average Drift T
A
= T
MIN
to T
MAX
±12 µV/°C
Supply Rejection ±V
CC
= 4.5V to 5.5V 50 60 dB
BIAS CURRENT
Input Bias Current V
CM
= 0VDC 18 30 µA
OFFSET CURRENT
Input Offset Current V
CM
= 0VDC 0.2 2 µA
INPUT IMPEDANCE
Differential Open-Loop 15
|| 1 kΩ || pF
Common-Mode 1
|| 1 MΩ || pF
INPUT VOLTAGE RANGE
Common-Mode Input Range ±3.0 ±3.5 V
Common-Mode Rejection V
IN
= ±2.5VDC, VO = 0VDC 65 75 dB
OPEN-LOOP GAIN, DC
Open-Loop Voltage Gain R
L
= 100Ω 50 60 dB
R
L
= 50Ω 48 58 dB
FREQUENCY RESPONSE
Closed-Loop Bandwidth
(–3dB) Gain = +2V/V 500 MHz
Gain = +5V/V 100 MHz
Gain = +10V/V 50 MHz
Gain-Bandwidth Product Gain ≥ +10V/V 500 MHz
Differential Gain 3.58MHz, G = +2V/V 0.05 %
Differential Phase 3.58MHz, G = +2V/V 0.05 Degrees
Harmonic Distortion G = +2V/V, f = 10MHz, V
O
= 2Vp-p
f = 10MHz, Second Harmonic –62 –50 dBc
(3)
Third Harmonic –80 –70 dBc
Full Power Bandwidth V
O
= 5Vp-p, Gain = +2V/V 22 32 MHz
V
O
= 2Vp-p, Gain = +2V/V 55 80 MHz
Slew Rate 2V Step, Gain = –2V/V 350 500 V/µs
Overshoot 2V Step, Gain = –2V/V 15 %
Settling Time: 0.1% 2V Step, Gain = –2V/V 15 ns
0.01% 25 ns
Phase Margin Gain = +2V/V 50 Degrees
Rise Time Gain = +2V/V, 10% to 90%
V
O
= 100mVp-p; Small Signal 1.8 ns
V
O
= 6Vp-p; Large Signal 8 ns
RATED OUTPUT
Voltage Output R
L
= 100Ω±3.0 ±3.5 V
R
L
= 50Ω±2.5 ±3.0 V
Output Resistance 1MHz, Gain = +2V/V 0.015 Ω
Load Capacitance Stability Gain = +2V/V 15 pF
Short Circuit Current Continuous ±150 mA
POWER SUPPLY
Rated Voltage ±V
CC
5 VDC
Derated Performance ±V
CC
4.0 6.0 VDC
Current, Quiescent I
O
= 0mA 26 28 mA
TEMPERATURE RANGE
Specification: KP, KU Ambient Temperature –40 +85 °C
Operating: KP, KU –40 +85 °C
θ
JA
KP 100 °C/W
KU 125 °C/W
SPECIFICATIONS
ELECTRICAL
At VCC = ±5VDC, RL = 100Ω, and TA = +25°C, unless otherwise noted.
Page 3
®
OPA621
3
SPECIFICATIONS (CONT)
ELECTRICAL (FULL TEMPERATURE RANGE SPECIFICATIONS)
At VCC = ±5VDC, RL = 100Ω, and TA = T
MIN
to T
MAX
, unless otherwise noted.
OPA621KP, KU
PARAMETER CONDITIONS MIN TYP MAX UNITS
TEMPERATURE RANGE
Specification: KP, KU Ambient Temperature –40 +85 °C
OFFSET VOLTAGE
(1)
Average Drift Full Temperature Range ±12 µV/°C
Supply Rejection ±V
CC
= 4.5V to 5.5V 45 60 dB
BIAS CURRENT
Input Bias Current Full Temperature, V
CM
= 0VDC 18 40 µA
OFFSET CURRENT
Input Offset Current Full Temperature, V
CM
= 0VDC 0.2 5 µA
INPUT VOLTAGE RANGE
Common-Mode Input Range ±2.5 ±3.0 V
Common-Mode Rejection V
IN
= ±2.5VDC, VO = 0VDC 60 75 dB
OPEN LOOP GAIN, DC
Open-Loop Voltage Gain R
L
= 100Ω 46 60 dB
R
L
= 50Ω 44 58 dB
RATED OUTPUT
Voltage Output R
L
= 100Ω±3.0 ±3.5 V
R
L
= 50Ω±2.5 ±3.0 V
POWER SUPPLY
Current, Quiescent I
O
= 0mA 26 30 mA
NOTES: (1) Offset Voltage specifications are also guaranteed with units fully warmed up. (2) Parameter is guaranteed by characterization. (3) dBc = dB referred
to carrier-input signal.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
Page 4
®
OPA621
4
OPA621
Basic Model Number
Performance Grade Code
K = –40°C to +85°C
Package Code
P = 8-pin Plastic DIP
U = 8-pin Plastic SO-8
PIN CONFIGURATION
1
2
3
4
8
7
6
5
No Internal Connection
Positive Supply (+V )
Output
No Internal Connection
No Internal Connection
Inverting Input
Non-Inverting Input
Negative Supply (–V )
CC
CC
ORDERING INFORMATION
Top View
DIP/SO-8
ABSOLUTE MAXIMUM RATINGS
NOTE: (1) Packages must be derated based on specified θ JA. Maximum TJ must
be observed.
Supply .............................................................................................±7VDC
Internal Power Dissipation
(1)
.......................... See Applications Information
Differential Input Voltage............................................................. Total V
CC
Input Voltage Range .................................... See Applications Information
Storage Temperature Range KP, KU: ............................ –40°C to +125°C
Lead Temperature (soldering, 10s)............................................... +300°C
(soldering, SO-8 3s) ........................................ +260°C
Output Short Circuit to Ground (+25°C) .................. Continuous to Ground
Junction Temperature (T
J
) ............................................................ +175°C
PACKAGE DRAWING
PRODUCT PACKAGE NUMBER
(1)
OPA621KP 8-Pin Plastic DIP 006
OPA621KU 8-Pin SO-8 182
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix C of Burr-Brown IC Data Book.
PACKAGE INFORMATION
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
()()
Page 5
®
OPA621
5
A = +2V/V CLOSED-LOOP
SMALL-SIGNAL BANDWIDTH
V
Frequency (Hz)
+10
+8
+6
+2
0
–2
1M 10M 100M 1G
0
–45
–90
–135
–180
Gain (dB)
+4
Phase Shift (°)
A
OL
PM 50°
Gain
Open-Loop Phase
≈
f 500MHz
–3dB
≈
A = +5V/V CLOSED-LOOP BANDWIDTH
vs OUTPUT VOLTAGE SWING
V
Frequency (Hz)
8
6
0
1M 10M 100M 1G
Output Voltage (Vp-p)
4
1k 10k 100k
2
Ω
R = 50
L
A = +10V/V CLOSED-LOOP
SMALL-SIGNAL BANDWIDTH
V
Frequency (Hz)
+24
+22
+20
+16
+14
+12
1M 10M 100M 1G
0
–45
–90
–135
–180
Gain (dB)
+18
Phase Shift (°)
A
OL
PM 80°
Gain
Open-Loop Phase
≈
f 50MHz
–3dB
≈
A = +5V/V CLOSED-LOOP
SMALL-SIGNAL BANDWIDTH
V
Frequency (Hz)
+18
+16
+14
+10
+8
+6
1M 10M 100M 1G
0
–45
–90
–135
–180
Gain (dB)
+12
Phase Shift (°)
A
OL
PM 70°
Gain
Open-Loop Phase
≈
f 100MHz
–3dB
≈
OPEN-LOOP FREQUENCY RESPONSE
Frequency (Hz)
1k 10k 100k 1M 10M 100M 1G
80
60
40
20
0
–20
Open-Loop Voltage Gain (dB)
Gain
Phase
Phase
Margin
50°
≈
0
–45
–90
–135
–180
Phase Shift (°)
TYPICAL PERFORMANCE CURVES
At VCC = ±5VDC, RL = 100Ω, and TA = +25°C, unless otherwise noted.
A = +2V/V CLOSED-LOOP BANDWIDTH
vs OUTPUT VOLTAGE SWING
V
Frequency (Hz)
8
6
0
1M 10M 100M 1G
Output Voltage (Vp-p)
4
1k 10k 100k
2
ΩR = 50
L
Page 6
®
OPA621
6
61
INPUT OFFSET VOLTAGE WARM-UP DRIFT
+200
+100
0
–100
–200
02345
Offset Voltage Change (µV)
Time From Power Turn-On (min)
VOLTAGE AND CURRENT NOISE SPECTRAL DENSITY
vs TEMPERATURE
3.1
2.8
2.5
2.2
1.9
–75 –50 –25 0 +25 +50 +75 +100 +125
Voltage Noise (nV/√Hz)
Current Noise (pA/√Hz)
Ambient Temperature (°C)
f = 100kHz
O
Current Noise
Voltage Noise
3.1
2.8
2.5
2.2
1.9
INPUT CURRENT NOISE SPECTRAL DENSITY
Frequency (Hz)
100
0.1
1M 10M 100M
10
100 1k 10k
1
100k
Current Noise (pA/√Hz)
TOTAL INPUT VOLTAGE NOISE SPECTRAL DENSITY
vs SOURCE RESISTANCE
Frequency (Hz)
100
0.1
1M 10M 100M
Voltage Noise (nV/√Hz)
10
100 1k 10k1100k
Ω
R = 1k
S
ΩR = 500
S
Ω
S
ΩR = 0
S
R = 100
A = +10V/V CLOSED-LOOP BANDWIDTH
vs OUTPUT VOLTAGE SWING
V
Frequency (Hz)
8
6
0
1M 10M 100M 1G
Output Voltage (Vp-p)
4
1k 10k 100k
2
Ω
R = 50
L
TYPICAL PERFORMANCE CURVES (CONT)
At VCC = ±5VDC, RL = 100Ω, and TA = +25°C, unless otherwise noted.
0
INPUT OFFSET VOLTAGE CHANGE
DUE TO THERMAL SHOCK
+1500
+750
0
–750
–1500
–1 +1
+2
+3 +4
Offset Voltage Change (µV)
Time From Thermal Shock (min)
+5
TA = 25°C to 70°C
Air Environment
25°C
Page 7
®
OPA621
7
POWER SUPPLY REJECTION vs FREQUENCY
Frequency (Hz)
1k 10k 100k 1M 10M 100M 1G
80
60
40
20
0
–20
Power Supply Rejection (dB)
+ PSR
– PSR
–50
BIAS AND OFFSET CURRENT
vs TEMPERATURE
24
21
18
15
12
–75 –25 0 +25 +50 +75 +100
0.8
0.6
0.4
0.2
0
Bias Current (µA)
Offset Current (µA)
Ambient Temperature (°C)
+125
Bias Current
Offset Current
TYPICAL PERFORMANCE CURVES (CONT)
At VCC = ±5VDC, RL = 100Ω, and TA = +25°C, unless otherwise noted.
–50
SUPPLY CURRENT vs TEMPERATURE
32
29
26
23
20
–75 –25 0 +25 +50 +75 +100
Supply Current (mA)
Ambient Temperature (°C)
+125
–3
BIAS AND OFFSET CURRENT
vs INPUT COMMON-MODE VOLTAGE
28
23
18
13
8
–4 –2 –1 0 +1 +2 +3
0.8
0.6
0.4
0.2
0
Bias Current (µA)
Offset Current (µA)
Common-Mode Voltage (V)
Bias Current
+4
Offset Current
COMMON-MODE REJECTION vs FREQUENCY
Frequency (Hz)
1k 10k 100k 1M 10M 100M 1G
80
60
40
20
0
–20
Common-Mode Rejection (dB)
V = 0VDC
O
–4
COMMON-MODE REJECTION
vs INPUT COMMON-MODE VOLTAGE
80
75
70
65
60
–5 –2
0
+2 +3
Common-Mode Rejection (dB)
Common-Mode Voltage (V)
+5
–3 –1 +1 +4
V = 0VDC
O
Page 8
®
OPA621
8
TYPICAL PERFORMANCE CURVES (CONT)
At VCC = ±5VDC, RL = 100Ω, and TA = +25°C, unless otherwise noted.
SMALL-SIGNAL TRANSIENT RESPONSE
0 25 50
Time (ns)
LARGE-SIGNAL TRANSIENT RESPONSE
Time (ns)
0 100 200
+3
Output Voltage (V)
0
–3
+50
–50
0
Output Voltage (mV)
G = +2V/V
R
L
= 50Ω
C
L
= 15pF
G = +2V/V
R
L
= 50Ω
C
L
= 15pF
–2
SETTLING TIME vs CLOSED-LOOP GAIN
100
80
40
20
0
–1 –3 –4 –5 –6 –7 –9
Settling Time (ns)
Closed-Loop Amplifier Gain (V/V)
60
–8
V = 2V Step
O
–10
0.01%
0.1%
SETTLING TIME vs OUTPUT VOLTAGE CHANGE
160
140
80
40
0
0246
Settling Time (ns)
Output Voltage Change (V)
100
8
120
60
20
G = –2V/V
0.01%
0.1%
–50
FREQUENCY CHARACTERISTICS vs TEMPERATURE
2.0
1.5
1.0
0.5
0
–75 –25 0 +25 +50 +75 +100
Relative Value
Temperature (°C)
+125
Gain-Bandwidth
Slew Rate
Settling Time
–50
A , PSR, AND CMR vs TEMPERATURE
80
70
60
50
40
–75 –25 0 +25 +50 +75 +100
A , PSR, CMR (dB)
Temperature (°C)
+125
OL
OL
A
OL
PSR
CMR
Page 9
®
OPA621
9
1MHz HARMONIC DISTORTION
vs POWER OUTPUT
–100
–50
–60
–80
–20
Harmonic Distortion (dBc)
Power Output (dBm)
+15
–40
–70
0+5
–90
–15 +10–10 –5
0.125Vp-p 0.25Vp-p 0.5Vp-p 1Vp-p 2Vp-p
G = +2V/V
ΩR = 50
L
C
f = 1MHz
3f below noise floor
2f
TYPICAL PERFORMANCE CURVES (CONT)
At VCC = ±5VDC, RL = 100Ω, and TA = +25°C, unless otherwise noted.
NTSC DIFFERENTIAL GAIN vs CLOSED-LOOP GAIN
0.5
0.3
0.2
0
13 68
Differential Gain (%)
Closed-Loop Amplifier Gain (V/V)
10
0.4
0.1
24579
f = 3.58MHz
R = 75 (Two Back-Terminated Outputs)
L
Ω
V = 0V to 2.1V
O
V = 0V to 0.7V
O
V = 0V to 1.4V
O
NTSC DIFFERENTIAL PHASE vs CLOSED-LOOP GAIN
1.0
0.6
0.4
0
13 68
Differential Phase (Degrees)
Closed-Loop Amplifier Gain (V/V)
10
0.8
0.2
24579
f = 3.58MHz
R = 75 (Two Back-Terminated Outputs)
L
Ω
V = 0V to 2.1V
O
V = 0V to 0.7V
O
V = 0V to 1.4V
O
SMALL-SIGNAL
HARMONIC DISTORTION vs FREQUENCY
–90
–50
–60
–80
100k
Harmonic Distortion (dBc)
Frequency (Hz)
100M
–40
–70
1M 10M
G = +2V/V
ΩR = 50
L
O
V = 0.5Vp-p
2f
3f below noise floor
LARGE-SIGNAL
HARMONIC DISTORTION vs FREQUENCY
–30
–50
–60
–80
100k
Harmonic Distortion (dBc)
Frequency (Hz)
100M
–40
–70
1M 10M
G = +2V/V
ΩR = 50
L
O
V = 2Vp-p
2f
3f
10MHz HARMONIC DISTORTION
vs POWER OUTPUT
–30
–50
–60
–80
–20
Harmonic Distortion (dBc)
Power Output (dBm)
+15
–40
–70
0+5
–90
–15 +10–10 –5
0.125Vp-p 0.25Vp-p 0.5Vp-p 1Vp-p 2Vp-p
G = +2V/V
ΩR = 50
L
C
f = 10MHz
2f
3f
Page 10
®
OPA621
10
APPLICATIONS INFORMATION
DISCUSSION OF PERFORMANCE
The OPA621 provides a level of speed and precision not
previously attainable in monolithic form. Unlike current
feedback amplifiers, the OPA621’s design uses a “Classical” operational amplifier architecture and can therefore be
used in all traditional operational amplifier applications.
While it is true that current feedback amplifiers can provide
wider bandwidth at higher gains, they offer many disadvantages. The asymmetrical input characteristics of current
feedback amplifiers (i.e. one input is a low impedance)
prevents them from being used in a variety of applications.
In addition, unbalanced inputs make input bias current errors
difficult to correct. Bias current cancellation through matching of inverting and non-inverting input resistors is
impossible because the input bias currents are uncorrelated.
Current noise is also asymmetrical and is usually significantly higher on the inverting input. Perhaps most important,
settling time to 0.01% is often extremely poor due to internal
design tradeoffs. Many current feedback designs exhibit
settling times to 0.01% in excess of 10 microseconds even
though 0.1% settling times are reasonable. Such amplifiers are completely inadequate for fast settling 12-bit
applications.
The OPA621’s “Classical” operational amplifier architecture employs true differential and fully symmetrical inputs
to eliminate these troublesome problems. All traditional
circuit configurations and op amp theory apply to the
OPA621. The use of low-drift thin-film resistors allows
internal operating currents to be laser-trimmed at
wafer-level to optimize AC performance such as bandwidth
and settling time, as well as DC parameters such as input
offset voltage and drift. The result is a wideband,
high-frequency monolithic operational amplifier with a gainbandwidth product of 500MHz, a 0.01% settling time of
25ns, and an input offset voltage of 200µV.
WIRING PRECAUTIONS
Maximizing the OPA621’s capability requires some wiring
precautions and high-frequency layout techniques. Oscillation, ringing, poor bandwidth and settling, gain peaking, and
instability are typical problems plaguing all high-speed
amplifiers when they are improperly used. In general, all
printed circuit board conductors should be wide to provide
low resistance, low impedance signal paths. They should
also be as short as possible. The entire physical circuit
should be as small as practical. Stray capacitances should be
minimized, especially at high impedance nodes, such as the
amplifier’s input terminals. Stray signal coupling from the
output or power supplies to the inputs should be minimized.
All circuit element leads should be no longer than 1/4 inch
(6mm) to minimize lead inductance, and low values of
resistance should be used. This will minimize time constants
formed with the circuit capacitances and will eliminate
stray, parasitic circuits.
Grounding is the most important application consideration
for the OPA621, as it is with all high-frequency circuits.
Oscillations at frequencies of 500MHz and above can easily
occur if good grounding techniques are not used. A heavy
ground plane (2oz copper recommended) should connect all
unused areas on the component side. Good ground planes
can reduce stray signal pickup, provide a low resistance, low
inductance common return path for signal and power, and
can conduct heat from active circuit package pins into
ambient air by convection.
Supply bypassing is extremely critical and must always be
used, especially when driving high current loads. Both
power supply leads should be bypassed to ground as close as
possible to the amplifier pins. Tantalum capacitors (1µF to
10µF) with very short leads are recommended. A parallel
0.1µF ceramic should be added at the supply pins. Surface
mount bypass capacitors will produce excellent results due
to their low lead inductance. Additionally, suppression filters can be used to isolate noisy supply lines. Properly
bypassed and modulation-free power supply lines allow full
amplifier output and optimum settling time
performance.
Points to Remember
1) Don’t use point-to-point wiring as the increase in wiring
inductance will be detrimental to AC performance. However, if it must be used, very short, direct signal paths are
required. The input signal ground return, the load ground
return, and the power supply common should all be
connected to the same physical point to eliminate ground
loops, which can cause unwanted feedback.
2) Good component selection is essential. Capacitors used in
critical locations should be a low inductance type with a high
quality dielectric material. Likewise, diodes used in critical
locations should be Schottky barrier types, such as HP50822835 for fast recovery and minimum charge storage.
Ordinary diodes will not be suitable in RF circuits.
3) Whenever possible, solder the OPA621 directly into the
PC board without using a socket. Sockets add parasitic
capacitance and inductance, which can seriously degrade
AC performance or produce oscillations. If sockets must be
used, consider using zero-profile solderless sockets such as
Augat part number 8134-HC-5P2. Alternately, Teflon
®
standoffs located close to the amplifier’s pins can be used to
mount feedback components.
4) Resistors used in feedback networks should have values
of a few hundred ohms for best performance. Shunt capacitance problems limit the acceptable resistance range to about
1kΩ on the high end and to a value that is within the
amplifier’s output drive limits on the low end. Metal film
and carbon resistors will be satisfactory, but wirewound
resistors (even “non-inductive” types) are absolutely
unacceptable in high-frequency circuits.
5) Surface mount components (chip resistors, capacitors,
etc.) have low lead inductance and are therefore strongly
Teflon® E. I. Du Pont de Nemours & Co.
Page 11
®
OPA621
11
recommended. Circuits using all surface mount components
with the OPA621AU (SO-8 package) will offer the best AC
performance. The parasitic package inductance and capacitance for the SO-8 is lower than the both the Cerdip and
8-lead Plastic DIP.
6) Avoid overloading the output. Remember that output
current must be provided by the amplifier to drive its own
feedback network as well as to drive its load. Lowest
distortion is achieved with high impedance loads.
7) Don’t forget that these amplifiers use ±5V supplies.
Although they will operate perfectly well with +5V and
–5.2V, use of ±15V supplies will destroy the part.
8) Standard commercial test equipment has not been
designed to test devices in the OPA621’s speed range.
Benchtop op amp testers and ATE systems will require a
special test head to successfully test these amplifiers.
9) Terminate transmission line loads. Unterminated lines,
such as coaxial cable, can appear to the amplifier to be a
capacitive or inductive load. By terminating a transmission
line with its characteristic impedance, the amplifier’s load
then appears purely resistive.
10) Plug-in prototype boards and wire-wrap boards will not
be satisfactory. A clean layout using RF techniques is
essential; there are no shortcuts.
OFFSET VOLTAGE ADJUSTMENT
The OPA621’s input offset voltage is laser-trimmed and will
require no further adjustment for most applications. However, if additional adjustment is needed, the circuit in Figure
1 can be used without degrading offset drift with temperature. Avoid external adjustment whenever possible since
extraneous noise, such as power supply noise, can be
inadvertently coupled into the amplifier’s inverting input
terminal. Remember that additional offset errors can be
created by the amplifier’s input bias currents. Whenever
possible, match the impedance seen by both inputs as is
shown with R3. This will reduce input bias current errors to
the amplifier’s offset current, which is typically only 0.2µA.
INPUT PROTECTION
Static damage has been well recognized for MOSFET
devices, but any semiconductor device deserves protection
from this potentially damaging source. The OPA621 incorporates on-chip ESD protection diodes as shown in Figure 2.
This eliminates the need for the user to add external
protection diodes, which can add capacitance and degrade
AC performance.
All pins on the OPA621 are internally protected from ESD
by means of a pair of back-to-back reverse-biased diodes to
either power supply as shown. These diodes will begin to
conduct when the input voltage exceeds either power supply
by about 0.7V. This situation can occur with loss of the
amplifier’s power supplies while a signal source is still
present. The diodes can typically withstand a continuous
current of 30mA without destruction. To insure long term
reliability, however, diode current should be externally
limited to 10mA or so whenever possible.
The internal protection diodes are designed to withstand
2.5kV (using Human Body Model) and will provide
adequate ESD protection for most normal handling procedures. However, static damage can cause subtle changes in
amplifier input characteristics without necessarily destroying the device. In precision operational amplifiers, this may
cause a noticeable degradation of offset voltage and drift.
Therefore, static protection is strongly recommended when
handling the OPA621.
OUTPUT DRIVE CAPABILITY
The OPA621’s design uses large output devices and has
been optimized to drive 50Ω and 75Ω resistive loads. The
device can easily drive 6Vp-p into a 50Ω load. This highoutput drive capability makes the OPA621 an ideal choice
for a wide range of RF, IF, and video applications. In many
cases, additional buffer amplifiers are unneeded.
Internal current-limiting circuitry limits output current to
about 150mA at 25°C. This prevents destruction from
accidental shorts to common and eliminates the need for
external current-limiting circuitry. Although the device can
withstand momentary shorts to either power supply, it is not
recommended.
Many demanding high-speed applications such as ADC/
DAC buffers require op amps with low wideband output
impedance. For example, low output impedance is essential
* R3 is optional and can be used to cancel offset errors due to input bias
currents.
FIGURE 1. Offset Voltage Trim.
ESD Protection diodes internally
connected to all pins.
External
Pin
+V
CC
–V
CC
Internal
Circuitry
FIGURE 2. Internal ESD Protection.
R
2
OPA621
*R = R || R
312
R
1
R
Trim
+V
CC
–V
CC
20k
V or Ground
IN
Output Trim Range +V ( R ) to –V ( R )
≅
CC 2 2CC
R
Trim
R
Trim
47kΩ
Ω
Page 12
®
OPA621
12
when driving the signal-dependent capacitances at the inputs
of flash A/D converters. As shown in Figure 3, the OPA621
maintains very low closed-loop output impedance over
frequency. Closed-loop output impedance increases with
frequency since loop gain is decreasing with frequency.
When the output is shorted to ground P
DL
= 5V x 150mA =
750mW. Thus, P
D
= 280mW + 750mW = 1W. Note that the
short-circuit condition represents the maximum amount of
internal power dissipation that can be generated. Thus, the
“Maximum Power Dissipation” curve starts at 1W and is
derated based on a 175°C maximum junction temperature
and the junction-to-ambient thermal resistance,
θ
JA
, of each
package. The variation of short-circuit current with temperature is shown in Figure 5.
FIGURE 3. Small-Signal Output Impedance vs Frequency.
THERMAL CONSIDERATIONS
The OPA621 does not require a heat sink for operation in
most environments. The use of a heat sink, however, will
reduce the internal thermal rise and will result in cooler,
more reliable operation. At extreme temperatures and under
full load conditions a heat sink is necessary. See “Maximum
Power Dissipation” curve, Figure 4.
FIGURE 4. Maximum Power Dissipation.
The internal power dissipation is given by the equation PD =
P
DQ
+ PDL, where PDQ is the quiescent power dissipation and
P
DL
is the power dissipation in the output stage due to the
load. (For ±V
CC
= ±5V, PDQ = 10V x 28mA = 280mW,
max). For the case where the amplifier is driving a grounded
load (RL) with a DC voltage (±V
OUT
) the maximum value of
P
DL
occurs at ±V
OUT
= ±VCC/2, and is equal to PDL, max =
(±V
CC
)2/4RL. Note that it is the voltage across the output
transistor, and not the load, that determines the power
dissipated in the output stage.
FIGURE 5. Short-Circuit Current vs Temperature.
CAPACITIVE LOADS
The OPA621’s output stage has been optimized to drive
resistive loads as low as 50Ω. Capacitive loads, however,
will decrease the amplifier’s phase margin which may cause
high frequency peaking or oscillations. Capacitive loads
greater than 15pF should be buffered by connecting a small
resistance, usually 5Ω to 25Ω, in series with the output as
shown in Figure 6. This is particularly important when
driving high capacitance loads such as flash A/D converters.
In general, capacitive loads should be minimized for optimum high frequency performance. Coax lines can be driven
if the cable is properly terminated. The capacitance of coax
cable (29pF/foot for RG-58) will not load the amplifier
when the coaxial cable or transmission line is terminated in
its characteristic impedance.
FIGURE 6. Driving Capacitive Loads.
OPA621
C
L
R
L
R
S
(R typically 5 to 25 )
S
ΩΩ
100 1k 10k
100k
1M 10M 100M
Frequency (Hz)
10
1
0.1
0.01
Small-Signal Output Impedance ( )Ω
G = +10V/V
G = +2V/V
G = +5V/V
1.2
1.0
0.8
0.6
0.4
0.2
0
0 +25 +50 +75 +100 +125 +150
Ambient Temperature (°C)
Internal Power Dissipation (W)
Plastic, SO-8
Packages
250
200
150
100
50
–75 –50 –25 0 +25 +50 +75 +100 +125
Short-Circuit Current (mA)
Ambient Temperature (°C)
+I
SC
– I
SC
Page 13
®
OPA621
13
OPA621
0 to –2V
V
OUT
To Active Probe (Channel 2)
on sampling scope.
200Ω100Ω
V
IN
0 to +2V, f = 1.25MHz
+5VDC
–5VDC
1pF to 4pF (Adjust for Optimum Settling)
200Ω
NOTE: Test fixture built using all surface-mount components. Ground
plane used on component side and entire fixture enclosed in metal case.
Both power supplies bypassed with 10µF Tantalum || 0.01µF ceramic
capacitors. It is directly connected (without cable) to TIME CAL trigger
source on Sampling Scope (Data Precision's Data 6100 with Model
640-1 plug-in). Input monitored with Active Probe (Channel 1).
FIGURE 7. Settling Time Test Circuit.
error band of ±200µV centered around the final value of 2V.
Settling time, specified in an inverting gain of two, occurs in
only 25ns to 0.01% for a 2V step, making the OPA621 one
of the fastest settling monolithic amplifiers commercially
available. Settling time increases with closed-loop gain and
output voltage change as described in the Typical Performance Curves. Preserving settling time requires critical
attention to the details as mentioned under “Wiring Precautions.” The amplifier also recovers quickly from input
overloads. Overload recovery time to linear operation from
a 50% overload is typically only 30ns.
In practice, settling time measurements on the OPA621
prove to be very difficult to perform. Accurate measurement
is next to impossible in all but the very best equipped labs.
Among other things, a fast flat-top generator and high speed
oscilloscope are needed. Unfortunately, fast flat-top generators, which settle to 0.01% in sufficient time, are scarce and
expensive. Fast oscilloscopes, however, are more commonly
available. For best results a sampling oscilloscope is recommended. Sampling scopes typically have bandwidths that
are greater than 1GHz and very low capacitance inputs.
They also exhibit faster settling times in response to signals
that would tend to overload a real-time oscilloscope.
Figure 7 shows the test circuit used to measure settling time
for the OPA621. This approach uses a 16-bit sampling
oscilloscope to monitor the input and output pulses. These
waveforms are captured by the sampling scope, averaged,
and then subtracted from each other in software to produce
the error signal. This technique eliminates the need for the
traditional “false-summing junction,” which adds extra
parasitic capacitance. Note that instead of an additional flattop generator, this technique uses the scope’s built-in calibration source as the input signal.
DIFFERENTIAL GAIN AND PHASE
Differential Gain (DG) and Differential Phase (DP) are
among the more important specifications for video applications. DG is defined as the percent change in closed-loop
gain over a specified change in output voltage level. DP is
COMPENSATION
The OPA621 is stable in inverting gains of ≥–2V/V and in
non-inverting gains ≥+2V/V. Phase margin for both configurations is approximately 50°. Inverting and non-inverting gains of unity should be avoided. The minimum stable
gains of +2V/V and –2V/V are the most demanding circuit
configurations for loop stability and oscillations are most
likely to occur in these gains. If possible, use the device in
a noise gain greater than three to improve phase margin and
reduce the susceptibility to oscillation. (Note that, from a
stability standpoint, an inverting gain of –2V/V is equivalent
to a noise gain of 3.) Gain and phase response for other gains
are shown in the Typical Performance Curves.
The high-frequency response of the OPA621 in a good
layout is flat with frequency for higher-gain circuits. However, low-gain circuits and configurations where large
feedback resistances are used, can produce high-frequency
gain peaking. This peaking can be minimized by connecting
a small capacitor in parallel with the feedback resistor. This
capacitor compensates for the closed-loop, high frequency,
transfer function zero that results from the time constant
formed by the input capacitance of the amplifier (typically
2pF after PC board mounting), and the input and feedback
resistors. The selected compensation capacitor may be a
trimmer, a fixed capacitor, or a planned PC board capacitance. The capacitance value is strongly dependent on circuit
layout and closed-loop gain. Using small resistor values will
preserve the phase margin and avoid peaking by keeping the
break frequency of this zero sufficiently high. When high
closed-loop gains are required, a three-resistor attenuator
(tee network) is recommended to avoid using large value
resistors with large time constants.
SETTLING TIME
Settling time is defined as the total time required, from the
input signal step, for the output to settle to within the
specified error band around the final value. This error band
is expressed as a percentage of the value of the output
transition, a 2V step. Thus, settling time to 0.01% requires an
Page 14
®
OPA621
14
defined as the change in degrees of the closed-loop phase
over the same output voltage change. Both DG and DP are
specified at the NTSC sub-carrier frequency of 3.58MHz.
DG and DP increase with closed-loop gain and output
voltage transition as shown in the Typical Performance
Curves. All measurements were performed using a Tektronix
model VM700 Video Measurement Set.
DISTORTION
The OPA621’s Harmonic Distortion characteristics into a
50Ω load are shown vs frequency and power output in the
Typical Performance Curves. Distortion can be further
improved by increasing the load resistance as illustrated in
Figure 8. Remember to include the contribution of the
feedback resistance when calculating the effective load
resistance seen by the amplifier.
FIGURE 9. Two-Tone Third-Order Intermodulation Inter-
cept vs Frequency.
FIGURE 8. 10MHz Harmonic Distortion vs Load Resistance.
Two-tone, third-order intermodulation distortion (IM) is an
important parameter for many RF amplifier applications.
Figure 9 shows the OPA621’s two-tone, third-order IM
intercept vs frequency. For these measurements, tones were
spaced 1MHz apart. This curve is particularly useful for
determining the magnitude of the third-order IM products as
a function of frequency, load resistance, and gain. For
example, assume that the application requires the OPA621
to operate in a gain of +2V/V and drive 2Vp-p (4dBm for
each tone) into 50Ω at a frequency of 10MHz. Referring to
Figure 9 we find that the intercept point is +47dBm. The
magnitude of the third-order IM products can now be easily
calculated from the expression:
Third IMD = 2(OPI
3
P – PO)
where OPI
3
P = third-order output intercept, dBm
P
O
= output level/tone, dBm/tone
Third IMD = third-order intermodulation ratio
below each output tone, dB
For this case OPI
3
P = 47dBm, PO = 4dBm, and the thirdorder IMD = 2(47 – 4) = 86dB below either 4dBm tone. The
OPA621’s low IMD makes the device an excellent choice
for a variety of RF signal processing applications.
NOISE FIGURE
The OPA621’s voltage and current noise spectral densities
are specified in the Typical Performance Curves. For RF
applications, however, Noise Figure (NF) is often the
preferred noise specification since it allows system noise
performance to be more easily calculated. The OPA621’s
Noise Figure vs Source Resistance is shown in Figure 10.
SPICE MODELS
Computer simulation using SPICE is often useful when
analyzing the performance of analog circuits and systems.
This is particularly true for Video and RF amplifier circuits
where parasitic capacitance and inductance can have a major
effect on circuit performance. A SPICE model using
MicroSim Corporation’s PSpice is available for the OPA621.
This simulation model is available through the Burr-Brown
web site at www.burr-brown.com or by calling the BurrBrown Applications Department.
NOISE FIGURE vs SOURCE RESISTANCE
25
20
15
10
5
0
10
100
1k
10k 100k
NF (dB)
Source Resistance ( )Ω
NFdB = 10log 1 +
e
n
2
+ (inRS)
2
4kTR
S
FIGURE 10. Noise Figure vs Source Resistance.
V = 2Vp-p
O
10MHz HARMONIC DISTORTION
vs LOAD RESISTANCE
–40
–50
–60
–70
–80
–90
0 100 200 300 400 500
Harmonic Distortion (dBc)
Load Resistance ( )Ω
3f
2f
G = +2V/V
G = +5V/V
P
OUT
250Ω250Ω
R
L
–
+
G = +2V/V
0 102030405060708090
100
10
15
20
25
30
35
40
45
50
55
60
Frequency (MHz)
Intercept Point (+dBm)
R = 50LΩ
R = 100
L
Ω
R = 400
L
Ω
Page 15
®
OPA621
15
OPA621
OPA621
2kΩ
V
OUT
R
3
R
4
2kΩ
158Ω
R
5
C
2
15.8k
R
1
R
2
158Ω
V
IN
1000pF
C
1000pF
1
Ω
f
C
BW
Q
= 1MHz
= 20kHz at –3dB
= 50
OPA621
V
OUT
*R
1
2kΩ
+5V
(–)
(+)
D
S
*J
1
D
S
2N5911
–5V
2
3
7
6
4
*R
2
2kΩ
*J
2
FIGURE 12. High-Q 1MHz Bandpass Filter
Feedback from pin 6 to the (–)
FET input required for stability.
* Select J
1
, J2 and R1, R2 to set
input stage current for optimum
performance.
: 1pA
: 6nV/√Hz at 1MHz
: 500MHz
: 500 V/µs
: 18ns to 0.1%
Minimum Stable Gain : ≥ ±2V/V
I
B
e
N
Gain-Bandwidth
Slew Rate
Settling Time
RELIABILITY DATA
Extensive reliability testing has been performed on the
OPA621. Accelerated life testing (2000 hours) at maximum
operating temperature was used to calculate MTTF at an
ambient temperature of 25°C. These test results yield MTTF
of: DIP = 5.02E+7 Hours, and SO-8 = 2.94E+7 Hours.
Additional tests such as PCT have also been performed.
Reliability reports are available upon request for each of the
package options offered.
ENVIRONMENTAL (Q) SCREENING
The inherent reliability of a semiconductor device is
controlled by the design, materials and fabrication of the
device—it cannot be improved by testing. However, the use
of environmental screening can eliminate the majority of
those units which would fail early in their lifetimes (infant
mortality) through the application of carefully selected
accelerated stress levels. Burr-Brown “Q-Screening” provides environmental screening to our standard industrial
products, thus enhancing reliability. The screening illustrated in the following table is performed to selected levels
similar to those of MIL-STD-883.
FIGURE 13. Low Noise, Wideband FET Input Op Amp.
SCREEN METHOD
Internal Visual Burr-Brown QC4118
Stabilization Bake Temperature = 125°C, 24 hrs
Temperature Cycling Temperature = –55°C to 125°C, 10 cycles
Burn-In Test Temperature = 125°C, 160 hrs minimum
Hermetic Seal Fine: He leak rate < 1 X 10 atm cc/s
Gross: per Fluorocarbon bubble test
Electrical Tests As described in specifications tables.
External Visual Burr-Brown QC5150
NOTE: Q-Screening is available on SG package only.
DEMONSTRATION BOARDS
Demonstration boards are available to speed protyping. The
8-pin DIP packaged parts may be evaluated using the DEMOPA65XP board while the SO-8 packaged part may be
evaluated using the DEM-OPA65XU board. Both of these
boards come partially assembled from your local distributor
(the external resistors or the amplifier is not included).
APPLICATIONS
FIGURE 14. Differential Input Buffer Amplifier (G = –2V/V).
FIGURE 11. Unity Gain Difference Amplifier.
OPA621
499
Ω
OPA621
249Ω
R
F
249Ω
R
G
249Ω
R
F
249Ω
OPA621
249Ω
249Ω
OPA621
249Ω
249Ω
SingleEnded
Output
249Ω
249Ω
Differential
Input
Page 16
®
OPA621
16
FIGURE 15. Video Distribution Amplifier.
Bandwidth, —3dB = 500MHz
High output current drive capability (6Vp-p into 50Ω)
allows three back-terminated 75Ω transmission lines
to be simultaneously driven.
OPA621
V
OUT
390Ω390Ω
Video
Input
75Ω
75Ω
75 Transmission LineΩ
V
OUT
75Ω
75Ω
V
OUT
75Ω
75Ω
75Ω
Loading...
