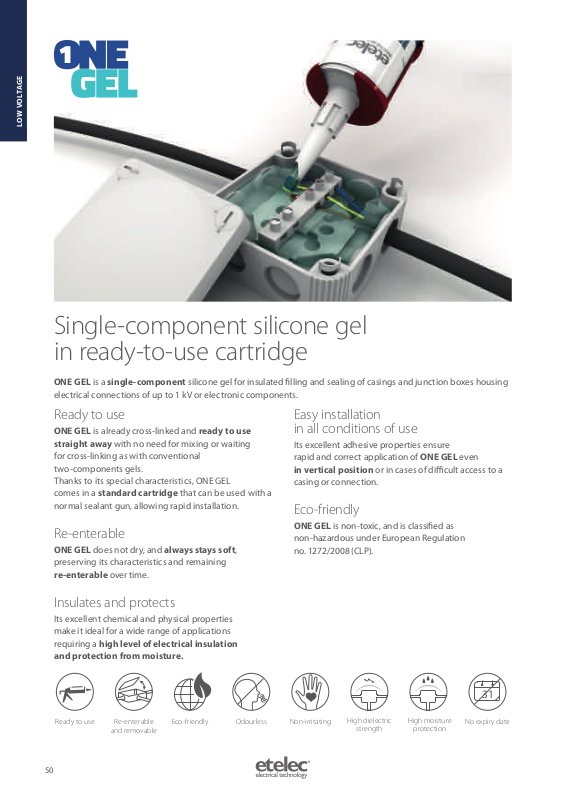

Page 1
LOW VOLTAGE
Single-component silicone gel
in ready-to-use cartridge
ONE GEL is a single-component silicone gel for insulated lling and sealing of casings and junction boxes housing
electrical connections of up to 1 kV or electronic components.
Ready to use
ONE GEL is already cross-linked and ready to use
straight away with no need for mixing or waiting
for cross-linking as with conventional
two-components gels.
Thanks to its special characteristics, ONE GEL
comes in a standard cartridge that can be used with a
normal sealant gun, allowing rapid installation.
Re-enterable
ONE GEL does not dry, and always stays soft,
preserving its characteristics and remaining
re-enterable over time.
Insulates and protects
Its excellent chemical and physical properties
make it ideal for a wide range of applications
requiring a high level of electrical insulation
and protection from moisture.
Easy installation
in all conditions of use
Its excellent adhesive properties ensure
rapid and correct application of ONE GEL even
in vertical position or in cases of dicult access to a
casing or connection.
Eco-friendly
ONE GEL is non-toxic, and is classied as
non-hazardous under European Regulation
no. 1272/2008 (CLP).
Ready to use
50
and removable
31
Eco-friendly OdourlessRe-enterable
Non-irritating No expiry date
High dielectric
strength
High moisture
protection

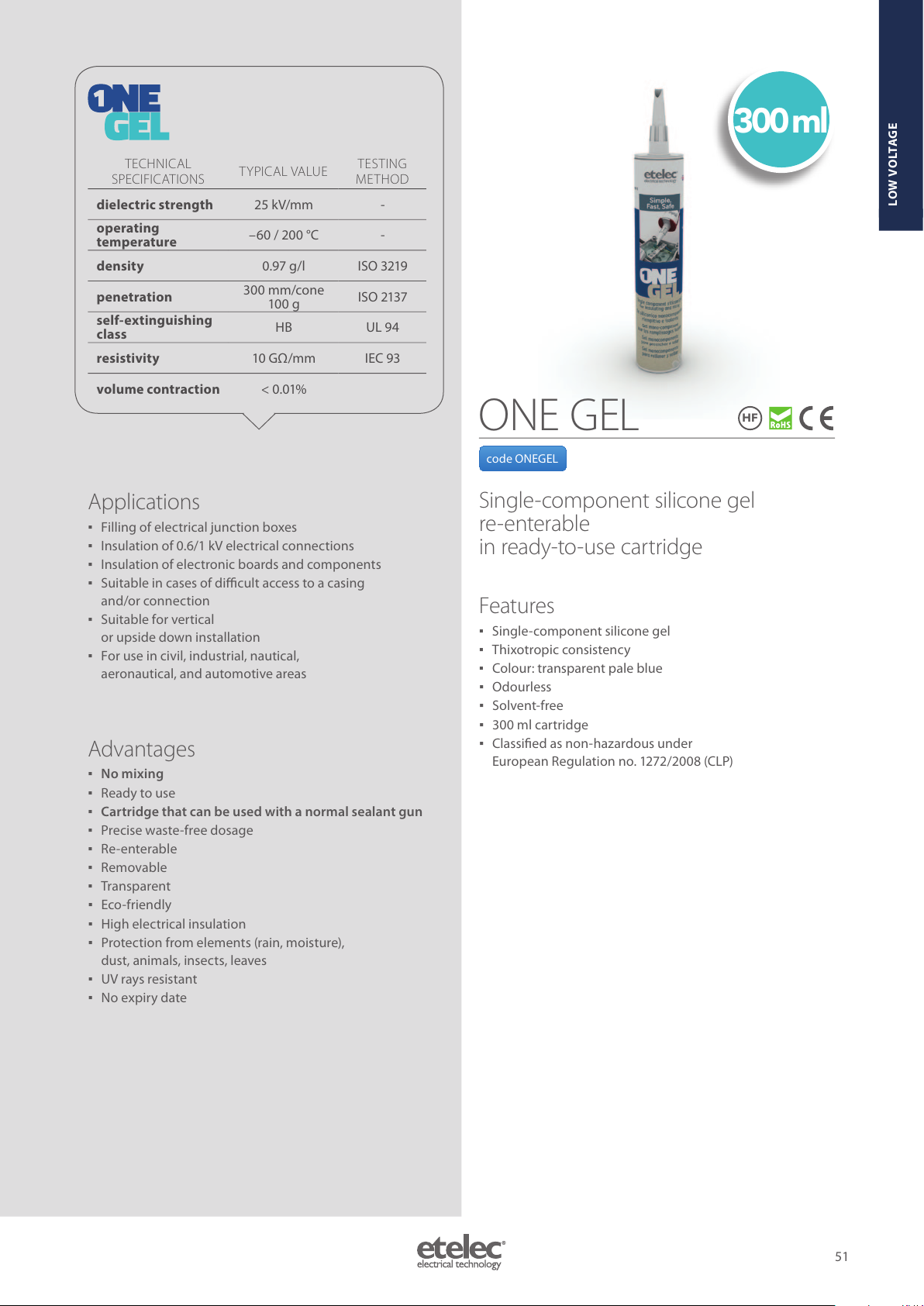

Page 2
TECHNICAL
SPECIFICATIONS
TYPICAL VALUE
TESTING
METHOD
dielectric strength 25 kV/mm -
operating
temperature
–60 / 200 °C -
density 0.97 g/l ISO 3219
penetration
300 mm/cone
100 g
ISO 2137
self-extinguishing
class
HB UL 94
resistivity 10 GΩ/mm IEC 93
volume contraction < 0.01%
Applications
▪ Filling of electrical junction boxes
▪ Insulation of 0.6/1 kV electrical connections
▪ Insulation of electronic boards and components
▪ Suitable in cases of dicult access to a casing
and/or connection
▪ Suitable for vertical
or upside down installation
▪ For use in civil, industrial, nautical,
aeronautical, and automotive areas
Advantages
▪ No mixing
▪ Ready to use
▪ Cartridge that can be used with a normal sealant gun
▪ Precise waste-free dosage
▪ Re-enterable
▪ Removable
▪ Transparent
▪ Eco-friendly
▪ High electrical insulation
▪ Protection from elements (rain, moisture),
dust, animals, insects, leaves
▪ UV rays resistant
▪ No expiry date
Features
▪ Single-component silicone gel
▪ Thixotropic consistency
▪ Colour: transparent pale blue
▪ Odourless
▪ Solvent-free
▪ 300 ml cartridge
▪ Classied as non-hazardous under
European Regulation no. 1272/2008 (CLP)
ONE GEL
HF
code ONEGEL
Single-component silicone gel
re-enterable
in ready-to-use cartridge
300 ml
51
LOW VOLTAGE
