Datasheet OM5730 Datasheet (Philips)

INTEGRATED CIRCUITS

DATA SH EET

OM5730

STB5860 (Set-Top Box) STB
concept

Preliminary specification
File under Integrated Circuits, IC02

1999 Aug 25

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

CONTENTS

1 FEATURES

1.1 SAA7219 features

1.1.1 General SAA7219 features

1.1.2 MPEG2 systems features

1.1.3 External interface features

1.2 SAA7215 family features

1.2.1 General SAA7215 family features

1.2.2 CPU related features

1.2.3 MPEG2 system features

1.2.4 MPEG2 video features

1.2.5 MPEG2 audio features

1.2.6 Graphics features
2 GENERAL DESCRIPTION

2.1 Introduction

2.2 Reference design goal

2.3 Benefits

2.3.1 Key system benefits

2.3.2 Key IC benefits
3 BLOCK DIAGRAMS
4 HARDWARE

4.1 IC list

4.2 Main board

4.2.1 SAA7219

4.2.2 SAA7215

4.3 Front-end

4.4 Front panel

4.4.1 LNB interface

4.4.2 IR

4.4.3 Keys

4.4.4 SCART control

4.5 Memory

4.5.1 Non-Volatile Memory (NVM)

4.5.2 DRAM

4.5.3 Boot ROM

4.5.4 Flash

4.5.5 Video and graphics RAM

4.5.6 Memory options

4.6 Connectors

5 SOFTWARE DESCRIPTION

5.1 Software overview

5.1.1 General software resources

5.1.2 Application layer

5.1.3 System control layer

5.1.4 Platform layer

5.1.5 I/O device drivers

5.2 General software resources

5.3 System control layer

5.4 Platform layer

5.5 Application layer

5.5.1 Top level menu

5.5.2 Installation menu

5.5.3 Tuning menu

5.5.4 Feature demonstration menu
6 DEVELOPMENT ENVIRONMENT

6.1 Summary of the STB5860 kit

6.1.1 The hardware

6.1.2 The software

6.1.3 Documentation

6.1.4 Test reports

6.2 How to get started

6.3 Hardware interface with the STB5860

6.4 Software interface with the STB5860

6.5 Running ‘hello world’
7 CONTENTS LIST FOR STB5860
8 DEFINITIONS
9 LIFE SUPPORT APPLICATIONS
10 PURCHASE OF PHILIPS I2C COMPONENTS

1999 Aug 25 2

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

1 FEATURES

1.1 SAA7219 features

1.1.1 GENERAL SAA7219 FEATURES

• Internal PR3930 32-bit RISC processor running at
81 MHz

• Comprehensive driver software and development tool
support

• A JTAG interface for board test support

• 8-kbyte 8-way set associative instruction cache

• 4-kbyte 4-way set associative instruction cache.

1.1.2 MPEG2 SYSTEMS FEATURES

• Parsing of Transport Stream (TS), Philips
Semiconductors hardware and proprietary software
data streams; maximum input rate is 108 Mbits/s

• A real time descrambler consisting of 3 modules:
– A control word bank containing 14 pairs (odd and

even) of control words and a default control word

– The Digital Video Broadcasting (DVB) descrambler

core implementing the stream decipher and block
decipher algorithms

– The MULTI2 descrambler algorithm implementing

the CBC and OFB mode descrambling functions.

• Hardware section filtering based on 32 different Packet
Identifiers (PIDs) with a flexible number of filter
conditions (8 or 4-byte condition plus8 or 4-byte mask)
per PID and a total filter capacity of 40 (8-byte condition
checks) or up to 80 (4-byte condition checks) filter
conditions

• 4 Transport Stream/Packetized Elementary Stream
(PES) filters for retrieval of data at TS or PES level for
applications such as subtitling, TXT or retrieval of
private data

• Flexible Direct Memory Access (DMA) based storage of
the 32 section substreams and 4 TS/PES data
substreams in the external memory

• System time base management with a double counter
mechanism for clock control and discontinuity handling
2 Presentation Time Stamp (PTS)/Decoding Time
Stamp (DTS) timers

• AGeneral Purpose/High speed (GP/HS) filter which can
serve as alternative input from e.g. IEEE 1394 devices.
It can also output either scrambled or descrambled
TS to IEEE 1394 devices.

1.1.3 EXTERNAL INTERFACE FEATURES

• A 32-bit microcontroller extension bus supporting
DRAM, SDRAM flash, (E)PROM and external memory
mapped I/O devices. It also supports a synchronous
interface to communicate with the integrated MPEG
Audio Video Graphics (AVG) decoder SAA7215 family
at 40.5 Mbytes/s.

• An IEEE 1284 interface supporting master and slave
modes; usable as a general purpose port

• 2 UART (RS232) data ports with DMA capabilities
(187.5 kbits/s) including hardware flow control RXD,
TXD, RTS and CTS for modem support

• Two dedicated smart card reader interfaces (ISO 7816
compatible) with DMA capabilities

• Two I2C-bus master/slave transceivers supporting the
standard (100 kbits/s) and fast (400 kbits/s) I2C-bus
modes

• 32 general purpose, bidirectional I/O interface pins, 8 of
which may also be used as interrupt inputs

• 2 Pulse Width Modulated (PWM) outputs with 8-bit
resolution.

1.2 SAA7215 family features

1.2.1 GENERAL SAA7215 FAMILY FEATURES

• Singleordoubleexternal synchronous DRAMorganized
as 1M × 16or2 × 1M × 16 interfacing at 81 MHz. Due to
efficient memory use in MPEG decoding, more than
1 Mbit is available for graphics in the single SDRAM
configuration whereas 17 Mbits are available in the
double SDRAM configuration targeted to BSkyB 3.00
and Canal+ 4.0 specifications.

• Dedicated input for compressed audio and video in PES
or ES in byte wide or bit serial format; accompanying
strobe signals distinguish between audio and video data

• Optimum compatibility with SAA7219 TMIPS controller

• Flexible memory allocation under control of the external

Central Processing Unit (CPU) enables optimized
partitioning of memory for different tasks

• Boundary scan testing implemented.

1999 Aug 25 3

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

1.2.2 CPU RELATED FEATURES

• External SDRAM self test

• Asynchronous interface possible with external

microcontroller

• Support of fast DMA transfer

• High speed/low latency interface with second graphics

SDRAM

• Byte access to the full SDRAM in the upper 16-Mbit
address range

• Fast 16-bit data plus 22-bit address synchronous
interface with external controller at up to 40.5 MHz

• Support of Motorola ColdFire and 68xxx interfaces as
well as LSI L64108 interface.

1.2.3 MPEG2 SYSTEM FEATURES

• Support for seamless time base change (edition)

• Processing of errors flagged by channel decoding

section.

1.2.4 MPEG2 VIDEO FEATURES

• Decoding of MPEG2 video up to main level and main
profile

• Output picture format: CCIR-601 4 : 2 : 2 interlaced
pictures; picture format 720 to 576 at 50 Hz or
720 to 480 at 60 Hz

• Support of constant and variable bit rates up to
15 Mbits/s for the elementary stream

• Digital video input/output interface on 8-bit,
27 MHz (CbYCrY multiplexed bus), at a CCIR-656
format

• Analog video output interface on both the RGB and
Y/C/CVBS formats (internal digital encoder)

• Horizontal and vertical pan and scan allows the
extraction of a window from the coded picture

• Flexible horizontal scaling from 0.5 up to 4 allows easy
aspect ratio conversion including support for 2.21 : 1
aspect ratio movies; in case of shrinking an anti-aliasing
pre-filter is applied

• Vertical scaling with fixed factors 0.5 and 0.75;
factor 0.75 is used for letter-box presentation, 1 or 2;
factor 0.5 realizes picture shrink

• Factor 2 can be used for up-conversion of pictures with
288 (240) lines or less

• Horizontalandverticalscalingcanbecombinedtoscale
pictures to1⁄4 their original size, thus freeing up screen
space for graphic applications like Electronic Program
Guides (EPGs)

• Non full screen MPEG pictures can be displayed in a
box of which position and background colour are
adjustable by the external microcontroller; structured
background is available as part of the graphic features

• Nominal video input buffer size for MP at ML 27-Mbit

• Decoding and presentation can be independently

handled under CPU control

• Various trick modes under control of external
microcontroller

• Freeze field/frame on I- or P-frames; restart on I-picture

• Freeze field on B-frames; restart at any moment

• Scanning and decoding of I- or I- and P-frames in a

IBP sequence

• Single-step mode

• Repeat/skip field for time base correction

• Repeat/skip frame for display parity integrity.

1.2.5 MPEG2 AUDIO FEATURES

• Decoding of 2 channel, layer I and II MPEG audio;
support for mono, stereo, intensity stereo and dual
channel mode

• Constant and variable bit rates up to 448 kbits/s

• Supported audio sampling frequencies:

48, 44.1, 32, 24, 22.05 and 16 kHz

• Selectable output channel in dual channel mode

• Dynamic range control at output

• Independentchannelvolumecontrol and programmable

inter-channel crosstalk through a baseband audio
processing unit

• Muting possibility via (external) controller; automatic
muting in case of errors

• Generation of ‘beeps’ with programmable tone height,
duration and amplitude

• Support for up to 8 channels linear Pulse Code
Modulated (PCM) elementary audio streams with
8, 16, 20 and 24 bits/sample and bit rates up to

6.144 Mbits/s

• 96 kHz Linear Pulse Code Modulated (LPCM) samples
will be mapped to a 48 kHz multi-channel format

1999 Aug 25 4

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

• Volume control for linear PCM samples in three steps:

−6, −12 and −18 dB

• Burst-formatting of AC-3 elementary streams and

MPEG-2 multi-channel streams in ES or PES format for
interconnection with an external multi-channel decoder
via the digital audio output or the IEC 958 output

• Serial multi-channel digital audio output with
16, 18, 20 or 24 bits/sample, compatible either to I2Sor
Japanese formats; output can be set to high impedance
mode via the external controller

• Serial Sony/Philips Digital Interface (SPDIF) (IEC 958)
audio output; output can be set to high-impedance
mode.

1.2.6 GRAPHICS FEATURES

• Graphics is presented in boxes independent of video
format

• Boxes can be up to full screen allowing double buffer
display mechanism

• Two independent graphics planes are available for
background and/or graphics overlay

• Two independent data paths with RGB 4 :4:4 and
YCbCr 4:2:2 formats available with independent
mixing

• RGB path transparent to YCbCr format

• Screen arrangement of boxes is determined by display

list mechanism which allows for multiple boxes,
background loading, fast switching, scrolling,
overlapping and fading of regions

• Real-time anti-flickering performed in hardware;
programmable hardware available for off-line
anti-flickering

• Hard-edged or soft-edged wiping of regions available

• Support of 2, 4, 8 and 16 bits/pixel in fixed bit maps

format or coded in accordance to the DVB variable/run
length standard for region based graphics

• Chrominance down-sampling filter switched per region

• Display colours are obtained via Colour Look-Up

Tables (CLUT)ordirectlyfrombitmap.CLUToutputcan
be YCbCrT at 8-bit for each signal component thus
enabling 16M different colours and 6-bit for T which
gives 64 mixing levels with video. CLUT output can also
be RGBT with same resolutions. Non-linear processing
available by means of LUTs.

• Conversion matrices available to allow any format on
any different data path (RGB or YCbCr)

• Graphics boxes may overlap vertically even inside one
graphics layer due to the use of flexible chained
descriptors

• Internal support for fast 3-D block moves in external
SDRAM through Data Manipulation Unit (DMU)

• DMU allows format conversion and bit manipulation
from a chained list of instructions

• Graphics mechanism can be used for signal generation
in the vertical blanking interval; useful for teletext, wide
screen signalling, closed caption, etc.

• Support for a single down loadable cursor of 1 K pixel
with programmable shape

• Supported shapes are 8 × 128, 16 × 64, 32 × 32,
64 × 16 and 128 × 8 pixels

• Cursor colours obtained via two 16 entry CLUTs with
YCbCrT at 6, 4, 4 respectively

• 2 bits and RGBT at 4, 4, 4 respectively 4 bits (or 4, 5, 3,
respectively 4 bits); mixing of cursor with video and
graphics in 4 levels

• Cursor can be moved freely across the screen without
overlapping restrictions.

2 GENERAL DESCRIPTION

2.1 Introduction

ThePhilipsSemiconductorsSet-Top Box (STB) conceptis
a Digital Media Broadcast (DMB) platform designed to
help developers bring the right product to market at the
right time, with a minimum of risk. A complete hardware
and software solution for fully-featured digital cable,
satellite and terrestrial system; it is based around a
powerful, programmable embedded microprocessor core,
allowing manufacturers to develop and rapidly evaluate
system designs and test application software.

This programmability is the key to maintaining flexibility
and reducing risk. Application software can be easily
modified to meet changing requirements, so highly
featured and differentiated STB designs can be brought
quickly to market. It also allows flexible handling of
graphics, so manufacturers can implement menus,
Electronic Program Guides and the sophisticated
graphics-based features expected by today’s users.

Sophisticated hardware is supported by a full suite of
software,developedinpartnershipwithcustomerstomeet
real-world needs and provide the reliability required for
consumer electronics products.

1999 Aug 25 5

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

2.2 Reference design goal

The Philips STB concept STB5860 is a reference design
of a complete hardware and software solution intended for
the digital satellite receiver set-top box market. This
reference design addresses the potential customer base
who is targeting the new world of digital media
broadcasting. The reference platform for a set-top box
combines the key ICs, the SAA7219 transport MPEG
source decoder and the SAA7215 family AVG
decoder/video encoder and the software to run a set-top
box.

As in many cases a platform is a stepping stone from
which evolution and specification enhancements can be
launched. The first reference design of the platform
contains the necessary functions which demonstrate the
performance and capabilities of the system.
Enhancements in the ICs as well as for SW modules will
be released during the lifetime of the platform.
The convention which has been used is that backwards
compatibility is guaranteed within the platform (STB5000
range).

The main objectives are:

• Firstly providing this complete system, greatly reduces
the required investments needed in scarce design
resources and helps customers focus on building a
position and responding quickly to the market demand

• Secondly, an advantage of the reference design
approach is that the system consisting of complex
functions realized in silicon and software can be
validated in tangible results

• Thirdly, to create a stable platform from which
customized solutions can be derived faster.

It is expected that in the coming years the market will grow
in all segments, satellite, cable and terrestrial; and that the
captive broadcasters gradually open up their system,
focusing more on the services rather then the contents of
the box. Their service role at the beginning is to create the
market by having box content, then it will change towards
the real core service activities bringing content and new
services to the home.

This changing behaviour of the service providers calls for
thesemiconductorproviderstooffercompetitivesolutions,
enabling the future dreams of the service providers. This
implies that in order to plan the evolution of the set-top box
functionality, one must be positioned and in control of the
whole system.

2.3 Benefits

2.3.1 KEY SYSTEM BENEFITS

• STB5860 offers a good compromise between flexibility,
performance and integration of functions which leads to
a very attractive price/performance offer.

• The SAA7219 performs the descrambling,
demultiplexing and control of the STB while the
SAA7215 family performs the media processing
functions such as MPEG2 audio video and graphics
processing.The communication between thetwo ICsas
well as the memory partitioning and management have
been designed so that a true unified memory concept
can be implemented with no performance degradation.

• Within the STB family of products, HW and SW
footprints will be maintained to ensure the maximum
possible reuse of resources.

• Philips offering the most comprehensive portfolio of ICs
combined with our well known technological capabilities
brings the best on a complete system level. This in
combination with our local technical support centres
gives the customer a fast and secure inroad to the new
field of emerging technology.

2.3.2 KEY IC BENEFITS

• SAA7219 incorporates a low cost high performance
32 bits MIPS processor with 4 kbytes instruction cache
and 1-kbyte data cache. In addition a 4-kbyte
second-level cache, designed for SW optimization but
can also be used for ‘last minute’ CPU intensive
software patches is offered to software developers,
boosting application performance.

• A flexible hardware/software partitioning and
optimization for DVB TS demultiplexing has been
designed targeted to Canal+ specification. This
partitioning makes parsing of incoming stream in
hardware, in order to off-load the processor and makes
most of the processing from system memory by the
MIPS processor, which leaves to software developers
the freedom to allocate the right priority at the
application level for MPEG system data handling.

• All required DVB/MPEG2 system services are covered
by the SAA7219, such as full DVB descrambling,
section filtering with 32 PIDs handled in hardware and
more if required in software, TS/PES filter for maximum
flexibility in the service handling and edition (time base
discontinuity)

1999 Aug 25 6

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

• In terms of interfaces, the SAA7219 interfaces with
basic STB peripherals such as UART, smart card
interface, IEEE 1284, but also with the next generation
high speed interfaces such as IEEE 1394

• SAA7219 is able to control with a high speed clock
(40.5 MHz) DRAMs, flash, EEPROM and is able to
control the SAA7215 family as a memory mapped
devicewithamaximumsustainedrateof40.5 Mbytes/s,
which enables fast graphic update in the second
SDRAM

• SAA7215 family has a scalable memory architecture:
16 Mbits for low-end and 32 Mbits for mid/high-end
applications; furthermore, there is a full decoupling of
MPEG processing and graphics/CPU control buses and
control, which offers a high bandwidth and low latency
for CPU when accessing the graphics memory

• SAA7215 family features 5 independent graphics
planes that can address all the known digital TV, video
and graphics requirements:

– Background: where still pictures can be displayed in

the background

– Foreground: where broadcast graphics and the user

interface can be displayed
– Video: where still or moving video is displayed
– Cursor: implemented in hardware to offer fast

responses times.

• Graphics are processed internally in high resolution
RGB 4:4:4 format which provides the best quality in
graphics rendering as well as for mixing with video in
4:2:2 format

• AdedicatedDMU(bitblock transfer type) offersveryfast
block move and data manipulation during the transfers;
thiscanbeusedto perform scaling ofgraphics,transfers
from 4 :2:0 to CLUT or RGB formats, or fast block
move in MPEG or graphics SDRAMs

• SAA7215 family offers flexible scaling features,
including letter box conversion that is now becoming a
needed features for broadcasters

• Two independent mixed video/graphics and video-only
signal paths are implemented and allow software
disabling of the user interface for recording on VCR

• Integrated digital video encoder with Y/C, CVBS and
RGBoutputsreducetheBillofMaterials (BOM) and also
the board space, while still offering the possibility to
have access to the YUV digital bus through CCIR 656
interface

• SAA7215 family is ready for future audio features such
as AC-3 or high fidelity LPCM audio, such as requested
by the world-wide DVD standard, but also for high-end
STB in the USA. SAA7215 family processes LPCM
audio data and can interface gluelessly with an external
multi-channel audio decoder such as the SAA2505,
through IEC 958 interface.

1999 Aug 25 7

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

3 BLOCK DIAGRAMS

handbook, full pagewidth

FEATURE DEMONSTRATION APPLICATION

OPERATING

SYSTEM

ABSTRACTION

(OSA)

REAL-TIME

KERNEL

(RTK)

BOARD
SUPPORT
PACKAGE

(BSP)

GENERAL

SOFTWARE

RESOURCES

PSI

LIBRARY

GRAPHICS

IEEE 1394

SATELLITE TUNER

SATELLITE DEMOD/DECOD

TELETEXT

PROCESSING

SMART CARD

IEEE 1284

SATELLITE

PROCESSING

NVM

FLASH

2

I

C-BUS

FRONT-END

FRONT PANEL

MSP

AVG DECODER

PARALLEL

I/O

LNB

UARTS

IEEE 1394

DEBUG

FRONT PANEL

FCE378

Fig.1 Software block diagram.

1999 Aug 25 8

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1999 Aug 25 9

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

handbook, full pagewidth

TUNER

SD1228

Q

FRONT PANEL CONTROL

MICRO 87C524

smart card

smart card

I

I

TDA8044A

TDA8004

TDA8004

2

C-BUS

SDD

UART

EEPROM

32 KBYTES

× 8

SAA7214

TMIPS

EEPROM

256 KBYTES

× 8

AV

PES

16-MBIT

VIDEO/

GRAPHICS

RAM

DRAM

2 MBYTES

SAA7215

AVG DENC

GRAPHICS/

CPU DATA

16-MBIT

RAM

FLASH

2 × 2 MBYTES

IEEE 1394

L + PHY

BUFFERS

RGB

LR

UDA1320

ADAC

SVHS (Y + UV)
AUDIO

CVBS

FCE379

IEEE 1394

IEEE 1284
RS232

SCART

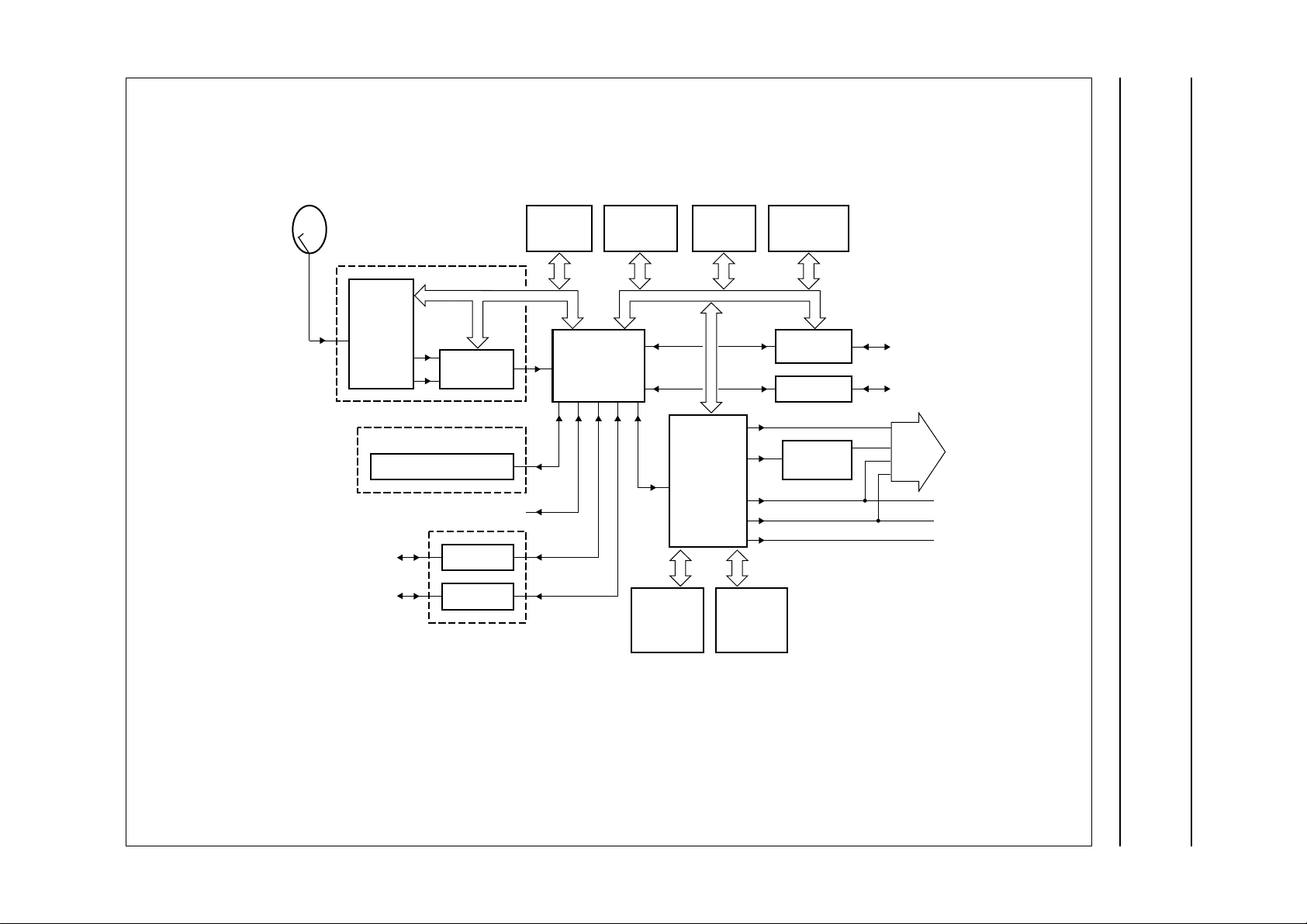

Fig.2 Hardware block diagram.

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

4 HARDWARE

4.1 IC list
Table 1 Description of system ICs

HARDWARE DESCRIPTION
Channel module

SD1288MK2 tuner
TDA8044 satellite demodulator and decoder

Front panel board

87C524 microprocessor

Main board

SAA7219 descrambler; demultiplexer and MIPS

core

SAA7215 audio; video; graphics and digital

encoder
PDI1394L11 link and physical layer of 1394
PDI1394P11 link and physical layer of 1394
UDA1320 audio DAC
TDA8004 smart card interface

4.2 Main board

4.2.1 SAA7219
The SAA7219 (TMIPS) is a CPU for MPEG2 stream

transport; it includes a MIPS R3000 microcontroller core
and several peripheral interfaces such as UARTs, I
units, an IEEE 1394, and an IEEE 1284 (Centronics)
interface.

The SAA7219 receives transport streams through a
versatile stream input interface capable of handling both
byte-parallel and bit-serial streams, in various formats,
supportingdatastreamsuptoand including 13.5 Mbytes/s
(108 Mbits/s).Thestreamdataisfirstapplied to an on-chip
descrambler incorporating DVB descrambling algorithms,
onthe basis of 6 control word pairs stored in on-chip RAM.

Demultiplexing is subsequently applied to the stream, to
separate up to 40 individual data streams.
The demultiplexer section includes clock recovery and
timebase management.

Program Specific Information (PSI), Service
Information (SI), Conditional Access (CA) messages and
private data is selected and stored in external memory, for
subsequent off-line processing by the internal R3000
microcontroller core.

2

C-bus

4.2.2 SAA7215

Table 2 SAA7215 family

TYPE NUMBER MACROVISION SECAM

SAA7215HS/C2 no no
SAA7216HS/C1 yes no
SAA7221HS/C1 no yes

The SAA7215 is a MPEG2 source decoder which
combines audio decoding and video decoding.
AdditionallytothesebasicMPEG functions it also provides
means for enhanced graphics, background display and/or
on-screen display as well as encoding of output video.
Due to an optimized architecture for audio and video
decoding, maximum capacity in external memory and
processing power from the external CPU is available for
graphic support.

4.3 Front-end

The front-end allows reception of channels transmitted by
satellite received via a satellite dish in combination with a
LNB. The outdoor unit can be controlled with:

• OFF/14 V/18 V pouring for polarisation steering

• 22 kHz tone switching control for band switching

• Digital Satellite Equipment Control (DiSEqC) V1.0.

4.4 Front panel

4.4.1 LNB INTERFACE
MastertransmitterDiSEqCcontrolis provided and14/18 V

switching is routed through the digital board to the
front-end utility connector. The possibility to disable the
DiSEqC on the front panel, allows for the next generation
QPSK front-end which will have DiSEqC control.

4.4.2 IR
The on-board microcontroller decodes the IR commands

in RC5/6 format and relays via the serial link to the
SAA7219.

4.4.3 KEYS
STANDBY, UP, DOWN, LEFT, RIGHT, OK and MENU

4.4.4 SCART CONTROL
Pin 8 control as per the SCART specification for 16 × 9

and 4 × 3.

1999 Aug 25 10

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

Pin 16 control as per SCART specification for RGB fast
blanking (in this case used to switch between RGB and
composite).

4.5 Memory

4.5.1 NON-VOLATILE MEMORY (NVM)
A 32-kbyte NVM is implemented with an EEPROM

connectedtotheI2C-bustoallowforchanneldatastorage,
etc.

4.5.2 DRAM
2 Mbytes (1M × 16); 60 ns fast or hyper-page mode.

4.5.3 BOOT ROM
256 kbytes (256 kbytes × 8) to allow for ROM boot up and

also to provide ROM emulation.

4.6 Connectors
Table 3 The main board connectors

CONNECTOR DESCRIPTION

Optical SPDIF a SPDIF signal from the SAA7215 is brought out via an optical output connector
SPDIF to allow connection of the Philips SAA2505 AC3/MPEG7.1 surround sound
SCART 1 standard SCART, audio/video output signals only
3 phonos (RCAs) CVBS, right audio and left audio
SVHS the Y/C output from the SAA7215 is brought out to a standard SVHS connector
CCIR 656 connector a connector to the CCIR 656 YUV output from the SAA7215
JTAG a standard JTAG connector for boundary scan testing
DEBUG socket two 64 pins DIN connectors form the debug socketallowing connection to a ROM emulator via

a debug interface board (not included)

RS232 an additional RS232-C (±12 V) interface to provide a board connector for debug use; one half

of a suitable RS232 driver chip will be used for signal level conversion

IEEE 1394 the Philips PDI1394L11 and PDI1394P11 is implemented to provide half-duplex 1394 access

from the SAA7219; under isolation mode the power for the physical IC will be taken from the
bus via the switching regulator; the option between isolated and non-isolated is selectable via
option links; two 1394 connectors are available on the back panel

IEEE 1294 subject to Electro-Static Discharge (ESD), standard logic are implemented as buffers to

provide 1284 to a 25-way D-type female connector on the back panel

4.5.4 FLASH
2 Mbytes [2 × (512K × 16)]; this can be is upgraded to

4 Mbytes [2 × (1M × 16)].
Two flash banks are needed to allow code to be run from

one bank while writing to the other.

4.5.5 VIDEO AND GRAPHICS RAM
4 Mbytes SDRAM [2 × (1M × 16)] at 81 MHz.

4.5.6 MEMORY OPTIONS
Surface mount links can select memory configuration.
Remark:theboot CS is selectable between boot ROM and

flash.

1999 Aug 25 11

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

5 SOFTWARE DESCRIPTION

5.1 Software overview

5.1.1 GENERAL SOFTWARE RESOURCES

• Real-time kernel

• Board support package

• Operating system abstraction package.

5.1.2 APPLICATION LAYER

• Feature demonstration application.

5.1.3 SYSTEM CONTROL LAYER

• Graphics library

• PSI processing

• Front panel communications

• IEEE 1394

• Satellite front-end component

• Teletext processing component.

5.1.4 PLATFORM LAYER

• MPEG System Processor (MSP)

• Audio/video/graphics device driver

• Front panel device driver

• Flash memory device driver

• Non-Volatile Memory device driver

• Debug UART device driver

• IEEE 1394 device driver

• Smart card device driver

• IEEE 1284 device driver

• LNB device driver

• Satellite tuner device driver

• TDA8044A device driver.

5.1.5 I/O DEVICE DRIVERS

5.2 General software resources

This layer is used by all the layers. Typical parts are
real-time operating system functionality, C-library and
debug components.

5.3 System control layer

Part of the system control layer provides functionalities
which are a compound of device driver functionality.

Examples of the system control layer components are
teletext, which uses the TS/PES package an part of MSP
devicedriverandtheAVGdevicedriver. Also the front-end
satellite component is a functional layer component, it
usestheLNBdevicedriver,thesatellite tuner device driver
and the TDA8044A device driver.

5.4 Platform layer

Theplatform layers consists of set of platform drivers each
controlling a set-top box functionality that is implemented
in hardware. Examples of a set-top box functionality are
video decoding, audio decoding and section filtering. It is
possible that more than one platform driver can control a
physical hardware component (IC) if this component
provides a set of set-top box functions.

The interface of a platform driver consists of generic set of
functions.It is the intention not to directly specify hardware
interface functions but MPEG/DVB related functions.
In this way future generations of controlled hardware use
the same subset of interface functions. Some platform
drivers do not directly interface with the hardware but use
an I/O platform driver. Platform drivers are not allowed to
communicate with each other. If communicating is
required between platform drivers it is under control of a
component located in the functional layer.

The I/O platform drivers provide the functions when a
device driver does not directly have access to the
hardware. Examples of I/O device drivers are an I2C-bus
device driver and an UART device driver.

• Parallel I/O device driver

• I2C-bus device driver

• UART device driver.

1999 Aug 25 12

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

5.5 Application layer

This layer has been limited only to demonstrate the
possibilities that can be implemented at the application
layer.

5.5.1 TOP LEVEL MENU
Main menu options:

• Installation menu

• Tuning menu

• Feature demonstration menu.

5.5.2 INSTALLATION MENU
The installation menu is used to select the board

configuration options. The selected options are stored to
NVM.

Table 4 Board configuration options

ITEM CONFIGURATION OPTION

LNB setup on/off DiSeqC LNB and single or dual

band; note 1
Video standard PAL or NTSC; default PAL
SCART pin 16 control (RGB or composite

video signalled)
Display allows selection of 16 : 9 or 4 : 3

TV screen

5.5.3 TUNING MENU

5.5.3.1 Transponder setup

The transponder can be setup automatically or manually.
Selecting the automatic option gives the user the

possibility to sweep the band over a particular frequency
range at all symbol rates. All transponders found will be
logged and stored to NVM. The sweep can be started by
pressing the start button via the user controls.

Selecting the automatic network option will give the user
the possibility to sweep the band over a particular
frequency range at a user defined symbol rate.
The Network Information Table (NIT) from the first
transponder found will be read and the services known in
this NIT table will be logged and stored to NVM.

Table 5 Program setup

ITEM OPERATION

Source The source of the transport stream can be

selected between tuner and stream server. In
tuner mode the ability to change the selected
transponder is available.

Listing Shows the current transport stream and the

possible audio PIDS for the selected service.
The service can be selected and the audio
PID chosen.

Note

1. With non-DiSEqC LNBs the control is simply by
14/18 V switching for polarity and in the case of a dual
band the use of 22 kHz signal (no modulation)
selecting the high band. With DiSEqC LNBs the
control is by sending DiSEqC commands via
modulation in the 22 kHz signal, (this means DiSEqC
level 1).

1999 Aug 25 13

Selecting the manual option provides the user with the
ability to enter additional transponder data or to adjust
transponders found with an auto setup. To add a
transponder the correct frequency, symbol rate,
polarisation and Forward Error Correction (FEC) rate are
required.

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

5.5.4 FEATURE DEMONSTRATION MENU

Table 6 Screens highlighting the main features of the Philips SAA7219/SAA7215 chip-set

SCREEN FEATURE

Audio

Audio routing and
dual channel

Mute sound muted
Balance control via a text box for left/right balance
Beep control of the volume, frequency and duration; the beep can then be heard
LPCM demonstration Show the possibility of decoding Linear Pulse Code Modulated (LPCM) audio samples. This

IEEE 1394

IEEE 1394 disable I/O of IEEE 1394 traffic can be disabled; IEEE 1394 will carry on relaying any IEEE 1394

Smart card

Smart card a service scrambled using the default keyword will be descrambled upon insertion of a smart

PC download

PC download When selected, the MPEG board will wait for the download of a BMP picture, via the

MIPS performance

MIPS performance this will show the MIPS performance in drystones under the current setup
Block copy To show a fast block copy, a bit map picture is copied across the screen. This function is also

Graphics

Text and drawings a combination of different fonts and line drawings to demonstrate colour depth and resolution

Fast transfer fast transfer feature; via IEEE 1284
Planes demo demonstration of the different graphics layers, by displaying quarter screen video over a

Fade combination of video and graphic layers showing fading in and out of the graphics layer
Tiling one smaller picture is displayed multiple times in a user selectable rectangle
Hard-edge wiping two pictures in one plane, overlapping each other where the user can move and select the

Soft-edge wiping two user selectable and movable pictures in two planes, with transparency in the pictures

audio routing options: mono, stereo, LL and RR; dual channel options: channels 1 and 2, both
(1-L and 2-R)

besides the decoding of normal MPEG audio although both cannot be not done at the same
time. This feature is for example used to play uploaded audio samples.

A command is given when the audio and video decoding is running. This command will start
the demonstration. The function itself will play about 1 second of LPCM audio and will
continue with normal MPEG audio and video decoding afterwards.

between the two IEEE 1394 ports; also choose between input/output of data into systems

card which contains authorization to use the default keyword

IEEE 1284 port. Upon completion of the download the picture will be displayed, the progress
of the download is also displayed.

supported in HW but handling this in SW makes the function more flexible. The actual copying
is executed in the SAA7215 HW by the DMU. SW however has to upload the picture, initialize
and start the DMU with correct parameters. The cost however compared to the HW tiling is
processor and memory use.

capabilities

MPEG I frame background with superimposed text and cursor

pictures

1999 Aug 25 14

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

SCREEN FEATURE

Anti-flickering The anti-flickering demonstration highlights the functions available in the SAA7215 to reduce

the line flickering in graphics regions. During this demonstration, 2 graphics regions are
displayed. One with anti-flickering and one without. The contents of the bit map in the regions
is one that shows flickering without anti-flicker measures active. Video and audio decoding are
still active and visible during the demonstration.

Grab frame store to
OSD and scale

1

continuously location

1

Scale

⁄9 of

16 bits/pixel graphics
location

Menu during all the demonstrations, graphics regions with menu bars and buttons are visible for

Scaling

Cut-out Display of 16 : 9 video on a 4 : 3 display by cutting out 4 : 3 centres and panning/scanning.

Letter-box display of 16 : 9 video on a 4 : 3 display using letter-boxing
Continuous

horizontal, vertical
steps

Video control

Video control scan, freeze, play and stop

Teletext

Teletext switch on and off of the VBI insertion by using a graphics region in VBI lines

Debug

Event logging user enabled event logging provided via the RS232 debug socket

A picture of the running video is grabbed and displayed1⁄4 of its original size as a 16-bit, bit

⁄

map on a graphics plane. The picture data of an I or P picture is copied from a frame store to

4

SDRAM2 memory. During the copy the format of the data is converted from 4:2:0formatto
4:2:2andconvertedinto the graphics memory bit map format. Then the picture is displayed
on the screen.

The demonstration runs continuously. It displays the running video while a graphics
region1⁄4th of the screen size is in the top left corner. This graphics region is showing the
I and P pictures of the running video.

This demonstration shows a 16 bits/pixel bit map in an OSD region on the screen. This picture
will be scaled to a factor1⁄4and1⁄9 of the original size and displayed on the screen, after the
original is removed. The scaling is done by using a software routine that executes a DMU
program. During the demonstration, audio and video is playing.

control of the demonstration

This demonstration shows the pan/scan control via the left/right cursor keys. This function
would usually be under control from data in the transport stream.

allows a window to be selected using the cursor; the video will then be resized to fit the
selected window

1999 Aug 25 15

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

6 DEVELOPMENT ENVIRONMENT

Thischapter describes how to develop your own STB5860
application, what environment you need and what
hardware and software interface the system provides.
It details what is needed to start developing your
applicationandinadditionwilltellyouwhatyou will receive
with the system that gets you on your way and shorten
development time and reduce the costs involved.

6.1 Summary of the STB5860 kit

WhenyoureceivetheSTB5860development system it will
offer you a complete set-top box system along with the
necessary documentation for development. This will give
you a ‘plug and play’ solution to test and develop a system
based on this platform.

6.1.1 THE HARDWARE

This consists of a satellite front-end board, a front panel
with the display and IR-receiver, a main board, smart card
unit, the remote control and all cables needed to make the
necessary connections. On the main board you will find a
programmed EPROM and flash memory.

6.1.2 THE SOFTWARE

You will receive not only the binary executable, but also all
source codes in C, header files and documentation files.
The software will include the complete Application
Programmers Interface (API) for all components on the
board, except for IEEE 1394, which will be a subset of the
standard. This API will offer a developers logical services
like audio, video, graphics, descrambling, etc. Together
with this you will get the Feature Demonstration
Application (FDS).This is an application that will show you
the key features of the system.

6.1.3 DOCUMENTATION

Here you will find the user manual and programmers
reference for all major parts of the system like the
SAA7215(AVGdecoderchip),theSAA7219CPU MPEG2
stream transporter and the satellite front-end module
(OM5718).

6.1.4 TEST REPORTS

These are included to prove the system maturity. You will
see the reports of the API tests and the reports concerning
theextensivein-systemtest.Thelatter is done to provethe
chip-set in a complete system environment, a customer
like set-up, customer use based on our experience with
previous end-customers.

6.2 How to get started

The first day you receive the system you can hook up a
satellite dish or transport stream (DiSeqC or not), a TV,
connect power to the system and it will start with the FDS
program. This demo gives you a menu driven interface to
the system. You can test and experiment with all main
featuresofthesystem.Seehow fast the on-screen display
functions, try out the IEEE 1394 interface to a similar
board, look at window tests, try out teletext, etc. This will
give you an understanding of the system and its
possibilities.

6.3 Hardware interface with the STB5860

Besides the dish and the TV (SCART, SVHS and
CCIR 656YUV)there is an interface to IEEE 1394, SPDIF
(multi-channel audio decoder), to a PC via RS232 and
IEEE 1284 (Centronics), a debug socket (ROM
emulator and I/O), JTAG connector (boundary scan
testing), smart card unit and a remote control.

To use a ROM emulator there are two I/O connectors on
the main printed-circuit board where an extension board
will fit on the debug connector. This extension gives you
access to two footprints for 1-Mbyte ROMs.

6.4 Software interface with the STB5860

In the following way you can interface to the system to
develop and debug your own application. Connect a PC
(or other development system) with a ROM emulator to
extension board on the debug connector, compile the
supplied source code and load the executable in the ROM
emulator. Connect the RS232 debug port to the PC and
run a terminal program, this will give you a debug screen.

If you don’t have a ROM emulator you can use the parallel
port (IEEE 1284) of the set-top box. There is a loader
program embedded in the EPROM of the system which
allows development without ROM emulator.

The maximum possible memory configuration is as
follows.AbootROM(256 kbytes) with the loader program,
2 Mbytes fast DRAM as scratch memory, 32 kbytes NVM
for channel data storage, 4 Mbytes flash memory to store
the program and 4 Mbytes SDRAM video memory.
The boot chip select can be switched between boot ROM
and flash memory. Of course a smaller configuration is
possible, just leave the memory footprints open.

6.5 Running ‘hello world’

We have supplied a small program which is called ‘hello
world’ to help you start developing your own software.

1999 Aug 25 16

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

How can we get the supplied ‘hello world’ application
running if we work with a PC and a ROM emulator?

Connect the emulator to the STB5860 board via the
extension board. Then connect the PC RS232 port to the
STB5860 RS232 port. The program is running pSOS as
the read-time software. You need the pSOS libraries to
buildthesoftware.Compiletheplatformlayer(drivers),the
board support package and the ‘hello world’ program.
Load the executable in the ROM emulator and start the
program. You will see the ‘hello world’ text on the debug
window. You are now ready to start writing your own
application, with help from the programmers reference
documentation and user guide.

1999 Aug 25 17

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

7 CONTENTS LIST FOR STB5860
Table 7 Delivery list for the STB5860 system

ITEM DESCRIPTION

Hardware front panel

OM5718
STB5860 main board

Software front panel driver

satellite software driver
SAA7219 driver
SAA7215 driver
TXT driver
feature demonstration application

Documentation objective system specification long

SAA7219 IC specification
SAA7219 driver software programmer’s reference
SAA7219 user manual
SAA7215 IC specification without registers medium
SAA7215 driver software programmer’s reference
SAA7215 user manual
TDA8044 specification
87C524 specification
PDI1394L11 specification
PDI1394P11 specification
UDA1320 specification
TDA8004 specification
TDA8060 specification
TSA5512 specification
hardware definition document of main board
STB5860 system validation report
user guide of feature demonstration application
schematics OM5730, front panel
gerber files
check list

Cables RS232 cable and 1394 cable

SCARTand power cable

1999 Aug 25 18

Philips Semiconductors Preliminary specification

STB5860 (Set-Top Box) STB concept OM5730

8 DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

9 LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

10 PURCHASE OF PHILIPS I

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

2

C COMPONENTS

2

C components conveys a license under the Philips’ I2C patent to use the

1999 Aug 25 19

Philips Semiconductors – a w orldwide compan y

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips DevelopmentCorporation, SemiconductorsDivision,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS,Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable andmaybechanged
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

1999

Internet: http://www.semiconductors.philips.com

67

Printed in The Netherlands 545004/25/01/pp20 Date of release: 1999 Aug 25 Document order number: 9397 750 05377
