OL5300N-03

Surface Mount Laser Diode Module

(1550 nm, 0.3 mW)

November 1999

■ ■

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Oki Semiconductor

OL5300N-03 Laser Diode Module

Surface Mount LD Module for Single-Mode Fiber

INTRODUCTION

Oki Semiconductor’s OL5300N-03 surface mount laser diode module feature a 1.5-µm, InGaAsP/InP
laser diode providing 1550-nm output at 0.3 mW. These low-cost laser diodes is available in an 8-pin
Mini-Dil package, has a built-in monitor photodiode, and is coupled to a single-mode fiber pigtail.

FEATURES

• InGaAsP/InP laser diode

• Fiber output: 1550-nm output at 0.3 mW

• 1.5-µm technology

• Single-mode fiber

• 8-pin Mini-Dil package

• Includes a photodiode for power monitoring

APPLICATION

• Optical transmission systems

• Digital video systems

• LAN systems

• Optical measurement / OTDRs

1Oki Semiconductor

■

OL5300N-03 Laser Diode Module ■ –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings (ambient temperature Ta=25°C unless otherwise noted)

Parameter

Fiber Output Power Pf 2 mW

Laser diode reverse voltage V

Photo diode forward current I

Photo diode forward voltage V

Operating Temperature (Ta) Topr -40 to +85 °C

Storage Temperature Tstg -40 to +85 °C

Lead Soldering Temperature (1O sec) Tsol 260 °C

Exceeding these maximum ratings could cause immediate damage or lead to permanent deterioration of the device.

Symbol Ratings Units

R(LD)

F(PD)

F(PD)

2V

10 mA

15 V

Optical and Electrical Characteristics

Parameter

Fiber output power Pf CW 0.3 - - mW

Threshold current

Laser diode forward voltage V

Center wavelength

RMS Spectral width

Tracking error

Rise and fall time 10 to 90 % 0.5 ns

Monitor current

(Ta=25°C)

Symbol Test Conditions Min. Typ. Max. Units

Ith

OP(LD)

λ

σ

TER

Im

c

---40mA

Pf =0.3 mW --- --- 1.5 V

Pf =0.3 mW, RMS

Ta=40 to 65°C

Pf =1 mW, RMS (

Im=constant@

Pf =0.3 mW (25°C)

Pf =0.3 mW 100 600 uA

σ)

1430 1550 1570 nm

5nm

1.5 dB

Fiber Pigtail Specifications

Parameter

Type SM --­Mode Field Diameter 10 +/-1
Cladding Diameter 125 +/-2
Jacket Diameter 900
Length 1.0 (Minimum) m
Connector FC ---

Specifications Units

µ

m

µ

m

µ

m

Connector and Fiber Specifications

Connector FC-PC, SC-PC, MUJ-PC etc

Fiber 1.31-µm single-mode fiber Bending Radius: 20 mm (minimum)

Diameter: 0.9 mm Heat resistant
Color: Dark blue Length: Options (contact Oki Semiconductor)

2 Oki Semiconductor

–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ■ OL5300N-03 Laser Diode Module

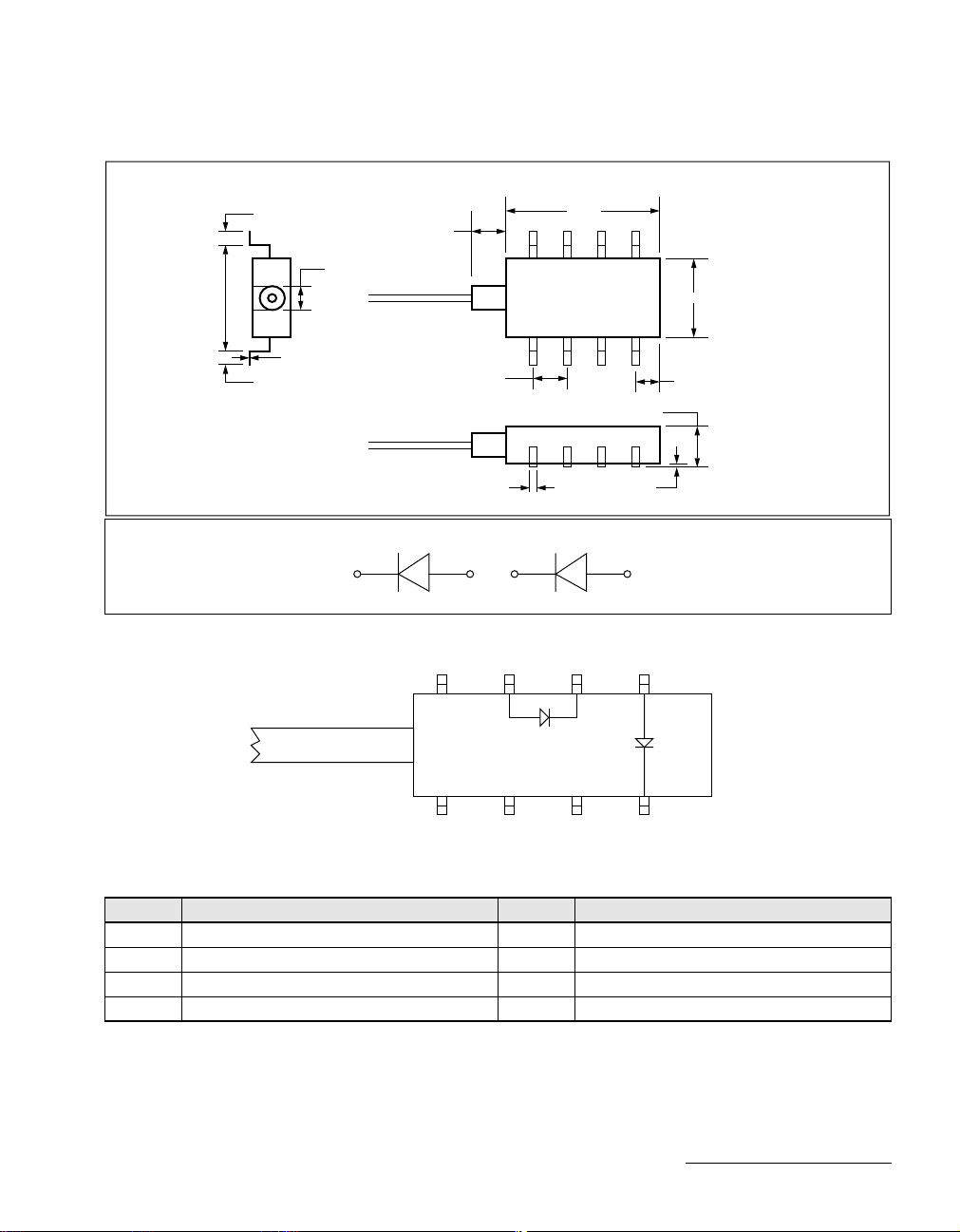

PACKAGE DIMENSIONS (UNITS: MM)

■

1.0

7.62

0.25

1.0

All dimensions in millimeters (Typical)

FIBER

11.20

2.50

1.8

14

2.54 Typ

Photo Diode Laser Diode

4567

LEAD CONNECTIONS (TOP VIEW)

#8

CASE

LD

58

1.75

3.0 Max

0.170.46 Typ

#5#7 #6

PD

5.60

(TOP VIEW)

CASECASE

#1

#2 #3 #4

CASE

Pin Configuration

Pin Mo.

01 Case Ground 05 PD Anode

02 Case Ground 06 LD Cathode

03 Case Ground 07 LD Anode

04 PD Cathode 08 Case Ground

Description Pin No. Description

3Oki Semiconductor

■

OL5300N-03 Laser Diode Module ■ –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Notes
