D
ATA SHEET
OL4121N-120 and OL4121N-140
High-Power Laser Diode Butterfly Modules
(1480 nm, 120 mW/140 mW)
February 2000
■ ■
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
CONTENTS
OL4121N-120 and OL4121N-140 High-Power Laser Diode Butterfly Modules
...... 1
Oki Semiconductor
OL4121N-120 and OL4121N-140
High-Power Laser-Diode Butterfly Modules

INTRODUCTION

Oki Semiconductor’s OL4121N-120/OL4121N-140 family of 1480-nm high-power laser diodes are avail­able in a 14-pin “butterfly” package which is designed for high-performance fiber-optic applications. The OL4121N-120 and OL4121N-140 diodes have a built-in thermo-electric cooler, thermistor, and isolator, and have a single-mode fiber pigtail.
The OL4121N is available in two optional power levels: 120 mW or 140 mW. These laser diodes can be used as a pumping source for an Er- (erbium) doped fiber-optic amplifier. The high power output of the laser diodes in the OL4121N family supports the high-performance demands of Erbium-Doped Fiber­optic Amplifiers in Dense Wavelength Division Multiplex (DWDM-EDFA) systems and long-haul terres­trial networks.

FEATURES

• High power output: Pf=120 mW (OL4121N-120)
• 14-pin “butterfly” package
• Single-mode fiber
• Built-in isolator
• Includes photodiode for power monitoring
• Built-in thermo-electric cooler (TEC)
Pf=140 mW (OL4121N-140)

APPLICATION

• WDM/DWDM systems
• Erbium-doped fiber amplifier
• Regeneration of data
• Fiber-optic long-haul terrestrial networks
1Oki Semiconductor
OL4121N-120 and OL4121N-140 ■ ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings (ambient temperature Ta = 25°C unless otherwise noted)
Parameter
Fiber Output Power
OL4121N-120
OL4121N-140
Laser Diode Forward Current
OL4121N-120
OL4121N-140
Laser Diode Reverse Voltage V Photo Diode Reverse Voltage V Operating Temperature Range Topr -20 to +65 °C Storage Temperature Range Tstg -40 to +70 °C
Exceeding these maximum ratings could cause immediate damage or lead to permanent deterioration of the device.
Optical and Electrical Characteristics (Ta = 25°C)
Parameter
Threshold Current I Laser Diode Operating Current
OL4121N-120
OL4121N-140
Laser Diode Operating Voltage Vop Center Wavelength RMS Spectral Width Tracking Error TER IM = const., 0/ 25/ 65°C --- --- +/-1.0 dB PD Dark Current I Monitor Current Im Pf = 120 / 140 mW, V Thermoelectric Cooler Capacity Thermoelectric Cooler Current I Thermoelectric Cooler Voltage V Thermistor Resistance Rth --- 9 --- 11 K
Symbol Test Conditions Min. Typ. Max. Units
TH
Iop
(LD)
Pf = 120 mW --- --- 600 mA Pf = 140 mW 700 mA
(LD)
λ
c Pf = 120 / 140 mW 1460 --- 1490 nm
σ
DARK
T Pf = 120 / 140 mW 40 --- --- °C
TEC
TEC
Pf = 120 / 140 mW --- --- 2.5 V
Pf = 120 / 140 mW (RMS) --- --- 10 nm
V
R(PD)
T = 40°C, Pf = 120 / 140 mW --- --- 1.5 A
T = 40°C, Pf = 120 / 140 mW --- --- 4.0 V
Symbol Ratings Units
Pf 130 mW
160 mW
I
F(LD)
750 mA 800 mA
R(LD) R(PD)
2V
15 V
--- --- --- 60 mA
= 5 V --- --- 100 nA
= 5 V 100 --- ---
R(PD)
µ
A
Fiber Pigtail Specifications
Parameter Specifications Units
Type SM --­Mode Field Diameter 10 +/-1 Cladding Diameter 125 +/-2 Jacket Diameter 900 Length 1.0 (Minimum) m Connector FC ---
2 Oki Semiconductor
µ
m
µ
m
µ
m
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ■ OL4121N-120 and OL4121N-140

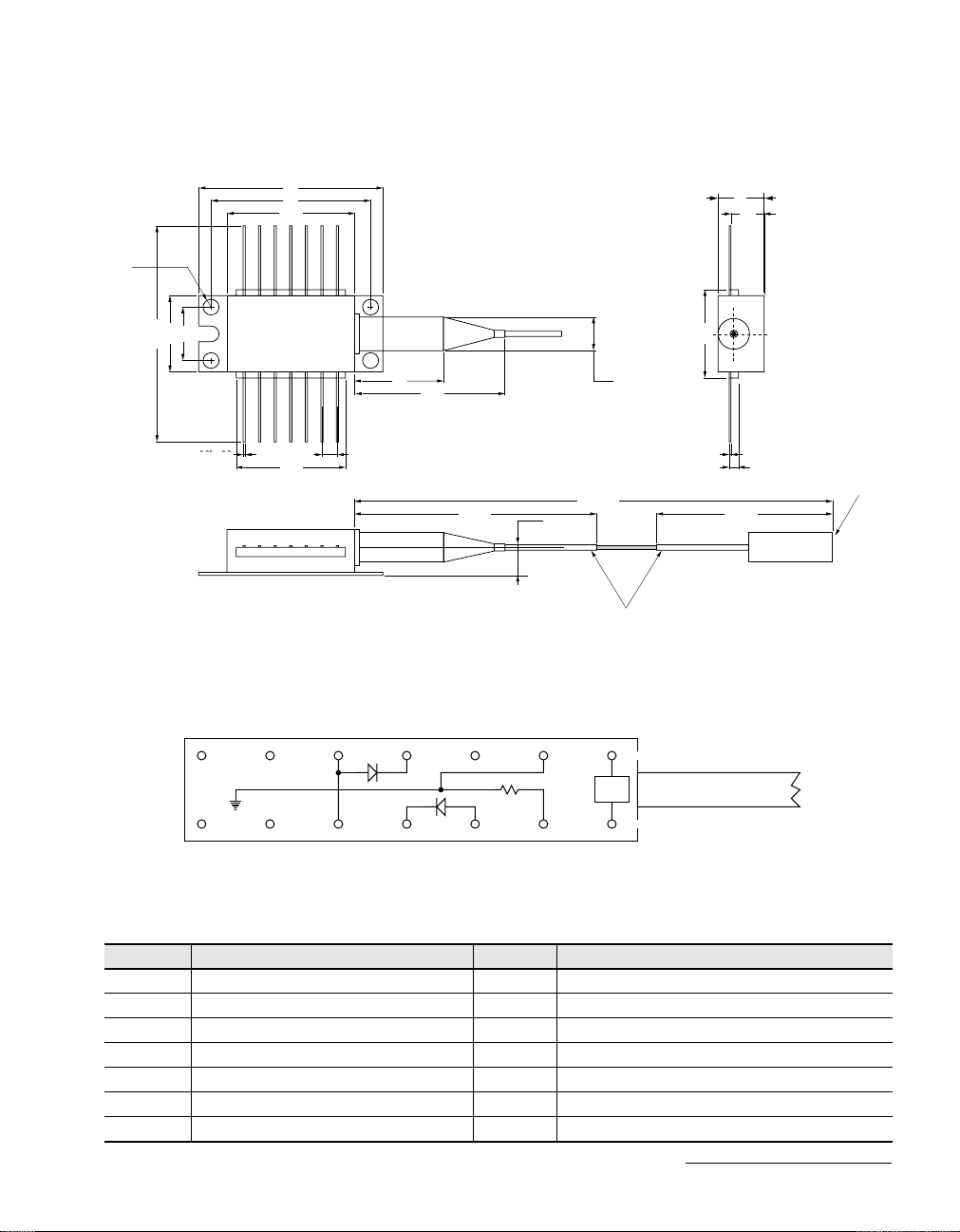

PACKAGE DIMENSIONS

(Units: mm)
d = 2.6
12.7
36 (min.)
30 26
20.83
8.9
8.0
5.35
5.4
14.7
1000 (min.)
1100 (min.)
5.6
ø0.9mm Loose Tube
0.48 ± 0.2
0.35 ± 0.2
17.78
16
26 ± 1
2.54
280 ± 10 50 ± 20
5.1
Tolerance = ±0.5 mm (unless noted otherwise)
TERMINAL CONNECTION (BOTTOM VIEW)
#14#13#11#10
(-)
T.E.C
(+)
#1#2#4#5 #3
CASE
#7 #6
#9#8
#12
LD
TH
PD
Pin Configuration
Pin No.
01 Thermo Electric Cooler (+) 08 NC
02 Thermistor 09 NC
03 PD Anode 10 LD Anode
04 PD Cathode 11 LD Cathode
05 LD Anode 12 NC
06 NC 13 Thermistor and Case Ground
07 NC 14 Thermo Electric Cooler Cathode (-)
Description Pin No. Description
0.25 ± 0.1
0.2 ± 0.1
1.52
FIBER
TH:
Thermistor
T.E.C: Thermo-Electric Cooler
8° Angled ø2.5mm
Ferrule
3Oki Semiconductor
