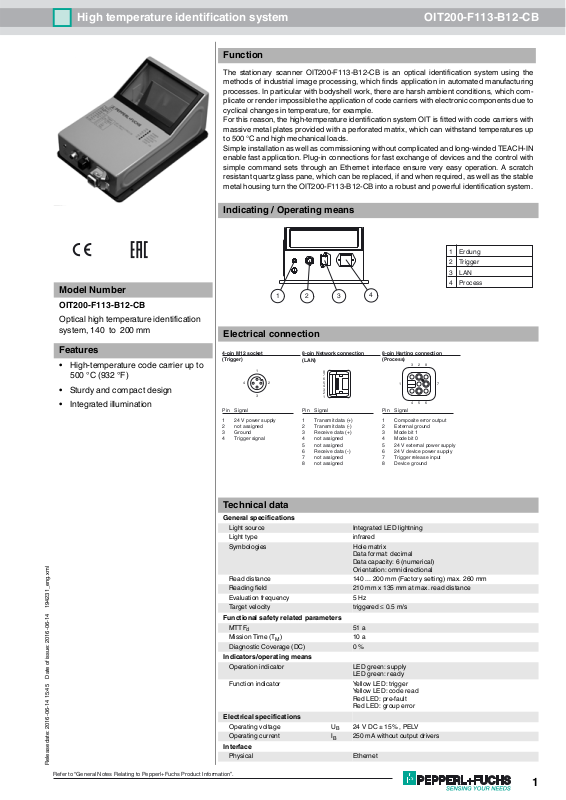

High temperature identification system OIT200-F113-B12-CB
Function
The stationary scanner OIT200-F113-B12-CB is an optical identification system using the
methods of industrial image processing, which finds application in automated manufacturing
processes. In particular with bodyshell work, there are harsh ambient conditions, which complicate or render impossible the application of code carriers with electronic components due to
cyclical changes in temperature, for example.
For this reason, the high-temperature identification system OIT is fitted with code carriers with
massive metal plates provided with a perforated matrix, which can withstand temperatures up
to 500 °C and high mechanical loads.
Simple installation as well as commissioning without complicated and long-winded TEACH-IN
enable fast application. Plug-in connections for fast exchange of devices and the control with
simple command sets through an Ethernet interface ensure very easy operation. A scratch
resistant quartz glass pane, which can be replaced, if and when required, as well as the stable
metal housing turn the OIT200-F113-B12-CB into a robust and powerful identification system.
Indicating / Operating means
1 Erdung
2 Trigger
3 LAN
Model Number
OIT200-F113-B12-CB
Optical high temperature identification
system, 140 to 200 mm
1
2
Electrical connection
3
4
4 Process
Features
• High-temperature code carrier up to
500 °C (932 °F)
• Sturdy and compact design
• Integrated illumination
Release date: 2016-06-14 15:45 Date of issue: 2016-06-14 194231_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
8-pin Harting connection8-pin Network connection4-pin M12 socket
(Trigger)
1
2
4
3
Pin Signal Pin Signal Pin Signal
1 24 V power supply
2 not assigned
3 Ground
4 Trigger signal
(LAN)
8
7
6
5
4
3
2
1
1 Transmit data (+)
2 Transmit data (-)
3 Receive data (+)
4 not assigned
5 not assigned
6 Receive data (-)
7 not assigned
8 not assigned
(Process)
1 Composite error output
2 External ground
3 Mode bit 1
4 Mode bit 0
5 24 V external power supply
6 24 V device power supply
7 Trigger release input
8 Device ground
23
8
1
7
654
Technical data
General specifications
Light source Integrated LED lightning
Light type infrared
Symbologies Hole matrix
Read distance 140 ... 200 mm (Factory setting) max. 260 mm
Reading field 210 mm x 135 mm at max. read distance
Evaluation frequency 5 Hz
Ta rg et ve lo ci ty triggered ≤ 0.5 m/s
Functional safety related parameters
MTTFd 51 a
Mission Time (T
) 10 a
M
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Operation indicator LED green: supply
Function indicator Yellow LED: trigger
Electrical specifications
Operating voltage UB24 V DC ± 15% , PELV
Operating current I
Interface
Physical Ethernet
Data format: decimal
Data capacity: 6 (numerical)
Orientation: omnidirectional
LED green: ready
Yellow LED: code read
Red LED: pre-fault
Red LED: group error
250 mA without output drivers
B
1
Page 2
OIT200-F113-B12-CBHigh temperature identification system
Protocol TCP/IP
Tran sf er ra te 100 MBit/s
Input
Input voltage to be applied externally 24 V ± 15% PELV
Number/Type 1 trigger input 2 control unit inputs , optically decoupled
Input current approx. 1 mA at 24 V DC
Output
Number/Type 1 electronic output, PNP, optically decoupled
Switching voltage to be applied externally 24 V ± 15 % PELV
Switching current 100 mA each output
Ambient conditions
Ambient temperature 0 ... 45 °C (32 ... 113 °F)
Storage temperature -20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection IP64
Connection 8-pin Harting HAN
Material
Housing Metal /high-grade steel powder coated
Mass approx. 3100 g
Compliance with standards and directives
Directive conformity
EMC Directive 2004/108/EC EN 61326-1 , EN 61000-6-4
Standard conformity
Noise immunity EN 61326-1
Emitted interference EN 61000-6-4:2007/A1:2011
Degree of protection EN 60529
Approvals and certificates
EAC conformity TR CU 020/2011
RJ-45
5-pin M12 socket
Supplied ferrite sleeve for suppression of the Ethernet cable
Notes
Accessories
OIC-C10V2A-CB1
Code carrier for optical high-temperature
identification system, stainless steel
V8HAN-G-10M-PVC-ABG
Female cordset, Harting, 8-pin, shielded,
PVC cable
V45-GP-10M-PUR-ABG-V45-G
Connecting cable, RJ-45 to RJ-45, PUR
cable
V45-GP
Field-attachable "Push-Pull" connector
V45-G
Field-attachable male connector
V1S-G-10M-PVC
Cable connector, M12, 4-pin, PVC cable
V8HAN-G
Female connector, Harting, 8-pin, field attachable
OITControl
Software for OIT high temperature identification system
OIZ-FG500
Replacement glass for series OIT300,
OIT500 and OIT1500
Other suitable accessories can be found at
Distance Code Carrier / OIT
65 mm
60 mm 140 mm
Release date: 2016-06-14 15:45 Date of issue: 2016-06-14 194231_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
Page 3
High temperature identification system OIT200-F113-B12-CB
Dimensions
168
153
116
68
188
6
270
297
ø 5.4 (4x)
177.4
41
189
Release date: 2016-06-14 15:45 Date of issue: 2016-06-14 194231_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
