Powering Communications and Technology
TECHNICAL SPECIFICATIONS
Input
Voltage Range
48 VDC Nominal 36 - 72 VDC
Input Under Voltage Lockout <34V
Input Undervoltage Hysteresis 1V Nominal
Reflected Ripple 50 mA Pk-Pk
Input Reverse Voltage Protection Shunt Diode
Output
Setpoint Accuracy ±1%
3.3/5.0 V Line Regulation V
2.5/2.1 V Line Regulation VinMin. - VinMax., I
Load Regulation I
Minimum Output Current 10%, I
Dynamic Regulation, Loadstep 25% I
Pk Deviation 6% V
Settling Time 500 µs
Voltage Trim Range ±10%
Short Circuit / Overcurrent Protection Shutdown / Hiccup
Current Limit Threshold Range, % of I
OVP Trip Range 120 - 140% V
Remote Shutdown Reference V
†
MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
out
in
Min. - I
Min. - VinMax., I
Max., VinNom. 0.5% V
out
out
Notes
Rated 0.2% V
out
Rated 0.4% V
out
Rated 110 - 140%
out
out
Negative
in
out
out
out
Rated
out
out
Nom.
OES SERIES
40 WATT
DESCRIPTION

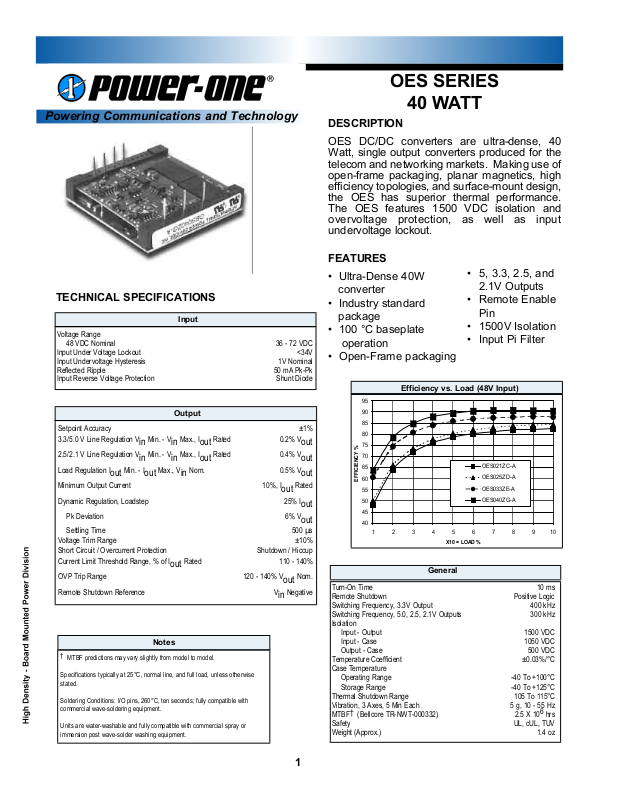

OES DC/DC converters are ultra-dense, 40
Watt, single output converters produced for the
telecom and networking markets. Making use of
open-frame packaging, planar magnetics, high
efficiency topologies, and surface-mount design,
the OES has superior thermal performance.
The OES features 1500 VDC isolation and
overvoltage protection, as well as input
undervoltage lockout.
FEATURES
• Ultra-Dense 40W
converter
• Industry standard
package
• 100 °C baseplate
operation
• Open-Frame packaging
Efficiency vs. Load (48V Input)
95
90
85
80
75
70
65
60
EFFICIENCY %
55
50
45
40
1 2 3 4 5 6 7 8 9 10
General
Turn-On Time 10 ms
Remote Shutdown Positive Logic
Switching Frequency, 3.3V Output 400 kHz
Switching Frequency, 5.0, 2.5, 2.1V Outputs 300 kHz
Isolation
Input - Output 1500 VDC
Input - Case 1050 VDC
Output - Case 500 VDC
Temperature Coefficient ±0.03%/°C
Case Temperature
Operating Range -40 To +100°C
Storage Range -40 To +125°C
Thermal Shutdown Range 105 To 115°C
Vibration, 3 Axes, 5 Min Each 5 g, 10 - 55 Hz
MTBF†(Bellcore TR-NWT-000332) 2.5 X 106hrs
Safety UL, cUL, TUV
Weight (Approx.) 1.4 oz
• 5, 3.3, 2.5, and
2.1V Outputs
• Remote Enable
Pin
• 1500V Isolation
• Input Pi Filter
OES021ZC-A
OES025ZD-A
OES033ZE-A
OES040ZG-A
X10 = LOAD %
1
Page 2
Powering Communications and Technology
MODELS - (See the last page of Section for options.)
OES SERIES
40 WATT
Vin
(Volts)
48
48
48
48
* Maximum input current at minimum input voltage, maximum rated output power.
** At nominal Vin, rated output.
Vin Range
(Volts)
36 - 72
36 - 72
36 - 72
36 - 72
Iin Max.*
(Amps)
0.77
0.87
1.12
1.31
MECHANICAL DRAWING
Vout
(Volts)
2.1
2.5
3.3
5
Iout Rated
(Amps)
10.00
10.00
10.00
8.00
Ripple & Noise
Pk-Pk (mV)
50
50
75
75
Efficiency
Typ. **
84%
81%
85%
89%
Model
OES021ZC-A
OES025ZD-A
OES033ZE-A
OES040ZG-A
Thermal Impedance
Natural Convection 11.3 C/W
100 LFM 8.9 C/W
200 LFM 6.2 C/W
300 LFM 4.4 C/W
400 LFM 3.4 C/W
Note:
Thermal impedance data is dependent on
many environmental factors. The exact
thermal performance should be validated
for specific application.
Pin Function
1 +V
2 -V
3 No Conn.
4 Enable
5 +V
6 -V
7 Trim
in
in
out
out
2
Tolerances
Inches: (Millimeters)
.XX ± 0.020 .X ± 0.5
.XXX ± 0.010 .XX ± 0.25
Pin:
± 0.002 ± 0.05
(Dimensions as listed unless otherwise specified.)
Page 3
OPTIONS
0.95" (24.1mm) Horizontal
All Units (Except DIP, SIP, and SM
All Units (Except DIP, SIP, and SM
Powering Communications and Technology
When ordering equipment options, use the following suffix information. Select the option(s) that you
prefer and add them to the model number. Example ordering options are located below the options
table.
OPTIONS SUFFIX APPLICATIONS SERIES REMARKS
Negative Logic N HAS, HBD, HBS, HES, LES, QBS, TTL "Low" Turns Module ON
QES, TES, TQD TTL "High" Turns Module OFF
Lucent Compatible Trim T HAS, HBD, HBS, HES, QBS, QES
Terminal Strip TS XWS, XWD, XWT
Trim 1 IAS, LES
Enable 2 IAD, IAS, LES, SMS
Trim and Enable 3 IAS, LES
Current Share 4 SMS
Headerless Y Encapsulated EWS, IWS, OWS
PIN LENGTH AND HEATSINK
OPTIONS
0.110" (2.8mm) Pin Length 8 All Units (Except SMS)
0.150" (3.8mm) Pin Length 9 All Units (Except SMS)
All Units (Except DIP, SIP, and SM
0.24" (6.1mm) Horizontal Heatsink
0.24" (6.1mm) Vertical Heatsink 1V
0.45" (11.4mm) Horizontal
Heatsink
0.45" (11.4mm) Vertical Heatsink 2V
Heatsink
0.95" (24.1mmVertical Heatsink 3V
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent compatible trim, and 0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent compatible trim and 0.110” pin length.
1H
2H
3H
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
All Units (Except DIP, SIP, and SM
Packages)
Packages)
Packages)
Standard Pin Length is 0.180"
(4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
