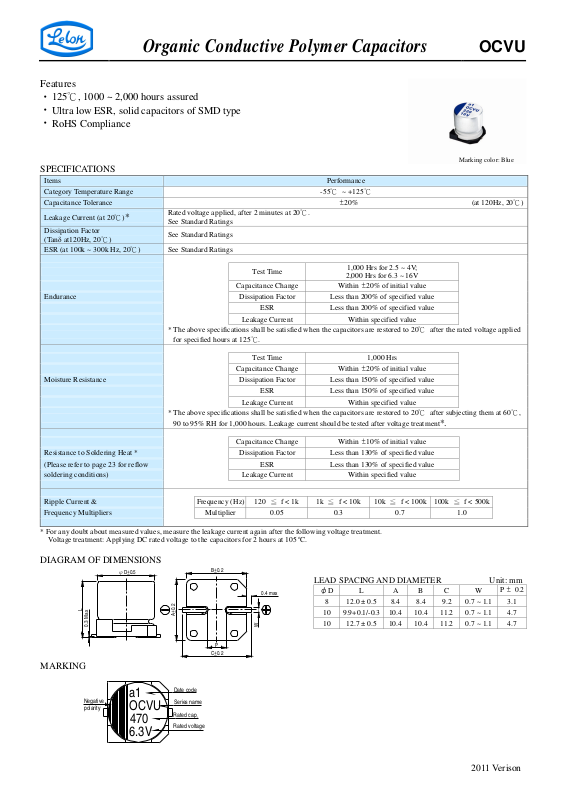

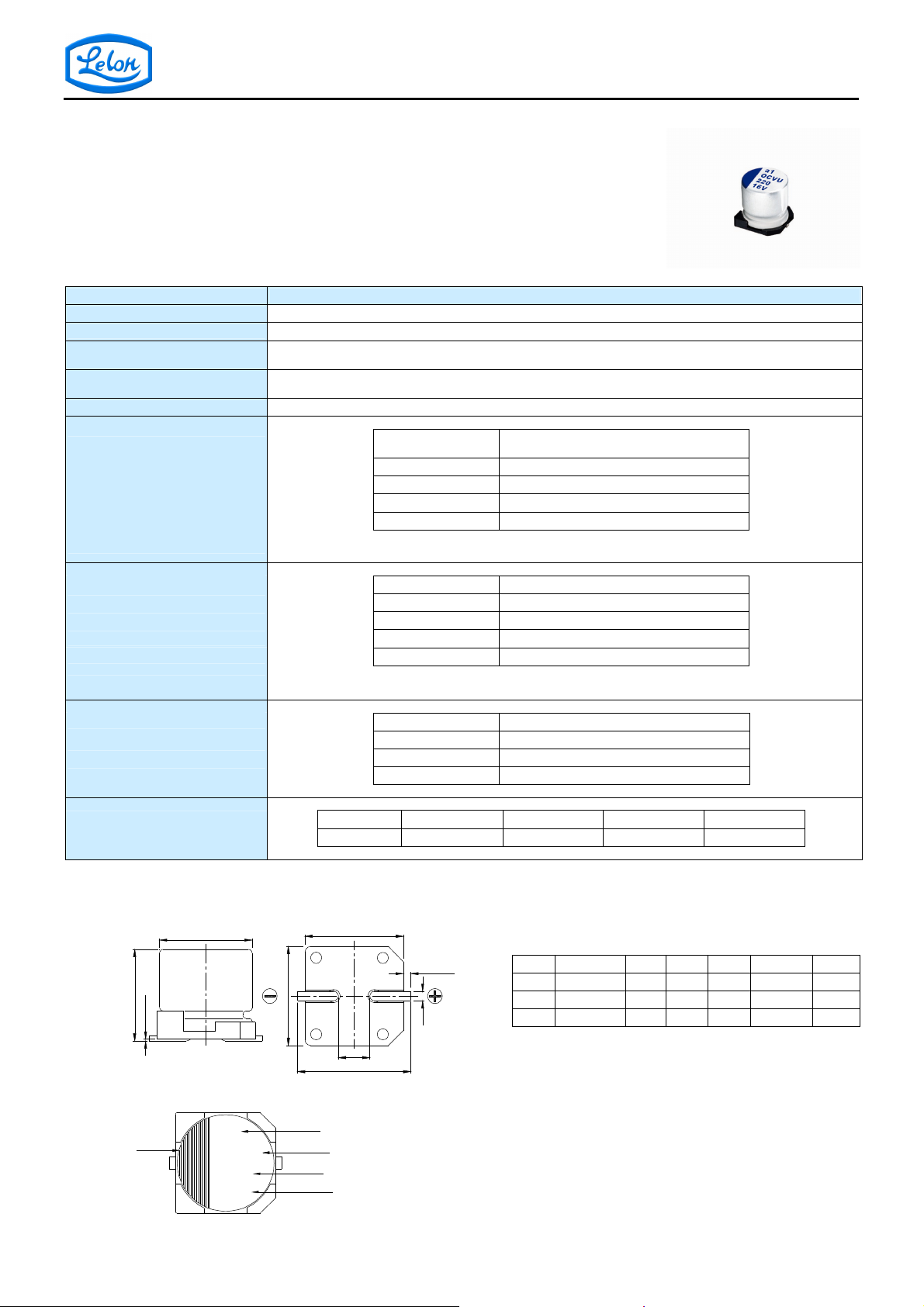

Page 1
Organic Conductive Polymer Capacitors
OCVU
Features
‧
125℃, 1000 ~ 2,000 hours assured
‧
Ultra low ESR, solid capacitors of SMD type
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20 )℃*
Dissipation Factor
(Tanδ at120Hz, 20 )℃
ESR (at 100k ~ 300k Hz, 20 )℃ See Standard Ratings
Endurance
Moisture Resistance
Resistance to Soldering Heat *
(Please refer to page 23 for reflow
soldering conditions)
Ripple Current &
Frequency Multipliers
* For any doubt about measured values, measure the leakage current again after the following voltage treatment.
Voltage treatment: Applying DC rated voltage to the capacitors for 2 hours at 105 oC.
Rated voltage applied, after 2 minutes at 20℃.
See Standard Ratings
See Standard Ratings
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
for specified hours at 125℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃,
90 to 95% RH for 1,000 hours. Leakage current should be tested after voltage treatment*.
Frequency (Hz)
Multiplier 0.05 0.3 0.7 1.0
Test Time
Capacitance Change
Dissipation Factor Less than 200% of specified value
ESR Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change
Dissipation Factor Less than 150% of specified value
ESR Less than 150% of specified value
Leakage Current Within specified value
Capacitance Change
Dissipation Factor Less than 130% of specified value
ESR Less than 130% of specified value
Leakage Current Within specified value
120 ≦ f < 1k 1k ≦ f < 10k 10k ≦ f < 100k 100k ≦ f < 500k
DIAGRAM OF DIMENSIONS
φD±
0.5
LEAD SPACING AND DIAMETER Unit: mm
L
0.3 Max
0.2
±
A
B±0.2
0.4 max
W
P
C±0.2
MARKING
Negative
polarity
a1
OCVU
470
6.3V
Date code
Series name
Rated cap
.
Rated voltage
-55℃ ~ +125℃
±20% (at 120Hz, 20℃)
1,000 Hrs for 2.5 ~ 4V;
2,000 Hrs for 6.3 ~ 16V
Within ±20% of initial value
Within ±20% of initial value
Within ±10% of initial value
φD
8 12.0 ± 0.5 8.4 8.4 9.2 0.7 ~ 1.1 3.1
10 9.9+0.1/-0.3 10.4 10.4 11.2 0.7 ~ 1.1 4.7
10 12.7 ± 0.5 10.4 10.4 11.2 0.7 ~ 1.1 4.7
L A B C W
Marking color: Blue
P ± 0.2
2011 Verison
Page 2
STANDARD RATINGS
W. V. (V)
2.5V (0E)
4V (0G)
6.3V (0J)
10V (1A)
16V (1C)
Capacitance Size
(µF) φD×L(mm) (120Hz, 20℃) (µA) (mΩ/at 100k ~ 300k Hz, 20℃ Max)
680 8×12 0.18 340 13
1,000 10×9.9 0.18 500 13
1,500 10×12.7 0.18 750 13
560 8×12 0.18 448 13
820 10×9.9 0.18 656 13
1,200 10×12.7 0.18 960 12
470 8×12 0.15 592 15
560 10×9.9 0.15 706 16
820 10×12.7 0.15 1,033 12
330 8×12 0.15 660 17
470 10×9.9 0.15 940 18
560 10×12.7 0.15 1,120 13
180 8×12 0.15 576 20
220 10×9.9 0.15 704 20
330 10×12.7 0.15 1,056 16
Organic Conductive Polymer Capacitors
Dimension: φD×L(mm)
Tanδ
L C ESR Rated R. C.(mA/rms at 100k Hz)
Ripple Current: mA/rms at 100k Hz
OCVU
T ≤ 105℃ 105 ℃ < T ≦ 125℃
4,520
5,200
5,440
4,520
5,200
5,440
4,210
4,700
5,440
3,950
4,400
5,230
3,640
4,200
4,720
1,430
1,645
1,721
1,430
1,645
1,721
1,332
1,487
1,721
1,250
1,392
1,655
1,151
1,330
1,493
2011 Version
